Abstract

The invention discloses a multifunctional ring-shaped pad, which adopts a ring-shaped pad with a length of about 2-3 meters as the initial template of the ring-shaped pad body, including: a ring-shaped pad body, a segmented jacket, an interlayer and latex filling pads, and a ring-shaped pad body. The segmented jacket is evenly divided into 1-10 sub-segments. The segmented jacket is separated by nodes and connected to form a bamboo-shaped annular jacket. The outer layer of the segmented section is provided with an interlayer, and the segmented jacket is composed of Stinky fabric is sewn, the latex filling pad is in the shape of a curved cotton pad, the latex filling pad is placed inside the interlayer, fillers are provided in the nodes, and fillers are provided inside the segmented coat, and the composition of the filler includes Cotton, sponge and bamboo charcoal granules, the fabric of the segmented jacket includes a deodorizing carbon fiber composite fabric. Through the above-mentioned method, the multi-functional annular pad of the present invention has multiple usage modes of deodorization, random surrounding, folding and reclining fixation through the latex clip pad, which is flexible and changeable.

Description

A multifunctional ring pad

technical field

The invention relates to the field of cotton pads, in particular to a multifunctional annular pad.

Background technique

The general ring-shaped cushion is a separate ring-shaped cotton pad with fillings, which can be combined and used in any combination, and has great flexibility and softness. However, the general ring-shaped cotton pad does not have deodorization function and cannot be used as a cushion or pillow. Use simultaneously, also can not make pillow use again after warming feet in winter, has certain limitation, and the inside of general annular cushion is filled with fluffy thing, and texture is softer, can not use as back cushion.

Contents of the invention

The technical problem mainly solved by the present invention is to provide a kind of multi-functional annular pad, through the arrangement of multiple nodes, it is convenient to add latex pads in the interlayer respectively, and the ring pad can be folded and used as a back cushion through the addition of latex pads. The fabric can effectively deodorize and is convenient for many occasions.

In order to solve the above-mentioned technical problems, a technical solution adopted by the present invention is: provide a kind of multi-functional annular pad, adopt the annular pad of about 2-3 meters as the initial formwork of annular pad main body, comprise: annular pad main body, sub-section Sectional jacket, interlayer and latex filling pad, the main body of the ring pad is divided into 1-10 segments through the segmented jacket, and the segmented jacket is separated by nodes and connected to form a bamboo-style The outer layer of the annular outer layer is provided with an interlayer, and the latex filling pad is placed inside the interlayer.

In a preferred embodiment of the present invention, the latex filling pad is in the form of a curved cotton pad.

In a preferred embodiment of the present invention, fillers are arranged inside the nodes, and fillers are arranged inside the segmented jacket.

In a preferred embodiment of the present invention, the filler comprises cotton, sponge and bamboo charcoal particles.

In a preferred embodiment of the present invention, the constituent fabrics of the segmented jacket include deodorizing carbon fiber composite fabrics.

The beneficial effect of the present invention is: a kind of multi-functional annular pad of the present invention is convenient to add latex pad respectively in the interlayer through the setting of a plurality of nodes, the ring pad can be folded and used as a back cushion by adding latex pad, also can add 1- 10 latex pads, flexible collocation; the deodorizing carbon fiber composite fabric can effectively deodorize, which is convenient for use in various occasions.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings that need to be used in the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained based on these drawings without creative work, wherein:

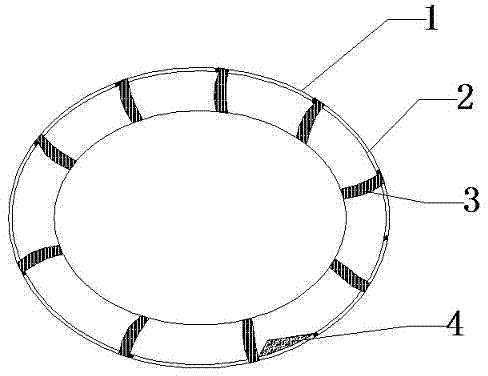

Fig. 1 is a schematic structural view of a preferred embodiment of a multi-functional annular pad of the present invention.

The marks of each part in the accompanying drawings are as follows: 1. Ring pad main body, 2. Segmented jacket, 3. Interlayer, 4. Latex filling pad. the

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention. Obviously, the described embodiments are only some of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Please refer to Fig. 1, the embodiment of the present invention comprises:

A multi-functional annular pad, using a ring-shaped pad about 2-3 meters long as the initial template for the main body of the annular pad, including: the main body of the annular pad 1, the segmented jacket 2, the interlayer 3 and the latex filling pad 4.

The main body 1 of the annular pad is divided into 1-10 segments by the segmented jacket, and the segmented jacket 2 is separated by nodes and connected to form a bamboo-shaped annular jacket. The outer layers are all provided with an interlayer 3 , and the latex filling pad 4 is placed inside the interlayer 3 .

The latex filling pad 4 is a curved cotton pad style.

Fillers are arranged inside the nodes, and fillers are arranged inside the segmented jacket.

The filler comprises cotton, sponge and bamboo charcoal particles.

The constituent fabrics of the section jacket 2 include deodorizing carbon fiber composite fabrics.

In the present invention, the deodorizing carbon fiber composite fabric is made of coffee carbon and cotton fiber, and has a deodorizing function; the outer side of each segment of the segmented jacket 2 is provided with an interlayer 3, and the interlayer 3 is coated on The outer layer of the sub-section, the interlayer 3 is provided with a zipper at the opening, and is provided with folds on the inner edge; the latex filling pad 4 can be added to one or more sub-section interlayers according to the situation to Meet different needs.

The beneficial effects of the multifunctional annular pad of the present invention are:

1. It is convenient to add latex pads in the interlayer through the setting of multiple nodes;

2. Through the setting of multiple nodes, it is convenient to add latex pads in the interlayer respectively. By adding latex pads, the ring pads can be folded and used as back cushions. You can also add 1-10 latex pads at will for flexible matching;

3. The deodorizing carbon fiber composite fabric can effectively deodorize, which is convenient for use in various occasions;

4. Compared with ordinary multi-functional ring pads, it has a more random combination of adjustable pads. By placing and taking out 1-10 latex pads in random combinations, it can be folded in a variety of ways for various use states. ; By deodorizing the carbon fiber fabric, the number of cleanings is reduced and the space used is increased.

The above descriptions are only examples of the present invention, and are not intended to limit the patent scope of the present invention. Any equivalent structure or equivalent process transformation made by using the content of the description of the present invention, or directly or indirectly used in other related technical fields, shall be The same reasoning is included in the patent protection scope of the present invention.

Claims (5)

1. a multi-functional annular pad, adopting an annular ring-shaped pad of about 2-3 meters long as the initial formwork of the annular pad main body, is characterized in that, comprising: an annular pad main body, a segmented overcoat, an interlayer and a latex filling pad, the The main body of the annular pad is equally divided into 1-10 sub-sections through the segmented jacket, and the segmented jacket is separated from the segments by nodes and connected to form a bamboo-shaped annular jacket, and the outer layers of the segments are uniform An interlayer is provided, and the latex filling pad is placed inside the interlayer. 2. The multifunctional annular pad according to claim 1, characterized in that, the latex filled pad is in the form of a curved cotton pad. 3. The multi-functional annular pad according to claim 1, characterized in that, fillers are arranged inside the nodes, and fillers are arranged inside the segmented jacket. 4. The multifunctional annular pad according to claim 1 or 3, characterized in that, the composition of the filler comprises cotton, sponge and bamboo charcoal particles. 5. The multi-functional annular pad according to claim 1, characterized in that, the constituent fabrics of the segmented jacket include deodorizing carbon fiber composite fabrics.
