CN103691671A - Automatic cleaning device of arc sieve - Google Patents

Automatic cleaning device of arc sieve Download PDF

Info

Publication number
CN103691671A
CN103691671A CN201310690954.5A CN201310690954A CN103691671A CN 103691671 A CN103691671 A CN 103691671A CN 201310690954 A CN201310690954 A CN 201310690954A CN 103691671 A CN103691671 A CN 103691671A
Authority
CN
China
Prior art keywords
brush roll
sieve bend
arc sieve
support
sieve
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Pending
Application number
CN201310690954.5A
Other languages
Chinese (zh)
Inventor
赵兰英
于靖博
董丽娜
姚国生
吴嵩
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Dalian Ocean University
Original Assignee
Dalian Ocean University
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Dalian Ocean University filed Critical Dalian Ocean University
Priority to CN201310690954.5A priority Critical patent/CN103691671A/en
Publication of CN103691671A publication Critical patent/CN103691671A/en
Pending legal-status Critical Current

Links

Abstract

The invention discloses an automatic cleaning device of an arc sieve. The automatic cleaning device is characterized by comprising a bracket (2) fixedly arranged above the arc sieve (1) and following with the arc sieve (1), wherein a motor (3) is fixedly supported on the bracket (2); a soft hairbrush roller (4), an ordinary hairbrush roller (5) and a hard hairbrush roller (6) which are sequentially arranged from top to bottom are also rotationally supported on the bracket (2); the motor (3) drives the soft hairbrush roller (4), the ordinary hairbrush roller (5) and the hard hairbrush roller (6) through a belt driving pair; a water pump (8) is also arranged in a water-collecting groove (7) positioned below the arc sieve (1); an outlet end of a secondary flushing pipeline (9) connected with the water pump (8) is positioned above the arc sieve (1). The automatic cleaning device is the device which is simple in structure and ingenious in design and can automatically run and simply and quickly clean the arc sieve.

Description

Sieve bend automatic flushing device
Technical field
The present invention relates to a kind of cleaning device, particularly a kind of sieve bend automatic flushing device.
Background technology
Sieve bend is a kind of metallic netted structural equipment that can separate solid particles thing, and it has very high intensity, rigidity and bearing capacity.The water that culturing pool is discharged enters after sieve bend, and the impurity that particle diameter is less and clear water become screenings and enter biofilter, particle diameter slightly greatly or the part solid waste that approaches sieve aperture width dimensions stay on compass screen surface and become oversize, finally import sewage sump.Sieve bend has good filtration effect, invest low, without advantages such as operating costs.But sieve bend needs to clean in use for some time, the method for cleaning at present sieve bend is the rear manual cleaning of dismounting, time and effort consuming, and process very complicated, has greatly affected operating efficiency.
Summary of the invention
The present invention is in order to solve the existing above-mentioned deficiency of prior art, proposes a kind of simple in structurely, designs ingeniously, can automatically move, simply, the device that quickly sieve bend cleaned.
Technical solution of the present invention is: a kind of sieve bend automatic flushing device, it is characterized in that: described cleaning device comprise be fixedly installed on sieve bend 1 top and with the support 2 of its conformal, on support 2, fixed support has motor 3, on support 2, also rotational support has the fur brush roll 4 setting gradually from top to bottom, common brush roll 5 and bristle brush roll 6, motor 3 is by the moving fur brush roll 4 of belt transmission subband, between fur brush roll 4 and common brush roll 5, between common brush roll 5 and bristle brush roll 6, all by belt transmission is secondary, connect, at the water leg 7 being arranged in below sieve bend 1, be also provided with water pump 8, the port of export of the secondary flushing line 9 being connected with water pump 8 is positioned at the top of sieve bend 1.
Compared with the existing technology, tool has the following advantages in the present invention:
The sieve bend automatic flushing device of this kind of version, it is simple in structure, designs ingenious, rationally distributed.It need to completely disassemble manually and scrub when cleaning for traditional sieve bend, time and effort consuming, the problem such as complex operation, inefficiency, design a kind of micro-machine that utilizes as power source, utilize moving three brush rolls with different hardness bristle of belt transmission subband to realize the automatic washing to sieve bend; It,, also by coming on the water body after once filtering again pumping, washes away sieve bend simultaneously, can realize the cleaning to sieve bend on the one hand, has realized again on the other hand the secondary filter to recycle-water, makes recycle-water more clean.And its manufacture craft is simple, cheap for manufacturing cost, therefore can say that it has possessed multiple advantage, be particularly suitable for applying in the art, its market prospects are very wide.
Accompanying drawing explanation

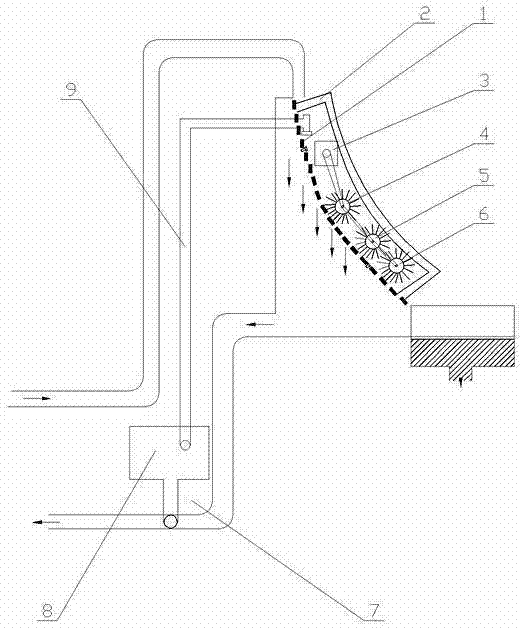

Fig. 1 is the structural representation of the embodiment of the present invention.
The specific embodiment
Below in conjunction with accompanying drawing explanation the specific embodiment of the present invention.As shown in Figure 1: a kind of sieve bend automatic flushing device, it is characterized in that: described cleaning device comprise be fixedly installed on sieve bend 1 top and support 2, and support 2 is similar with the general shape of sieve bend 1, on support 2, be fixedly installed motor 3, above support 2, also rotational support has fur brush roll 4 simultaneously, common brush roll 5 and bristle brush roll 6, wherein fur brush roll 4 is positioned at the position near sieve bend 1 top, bristle brush roll 4 is positioned at the position near sieve bend 1 bottom, common brush roll 5 is between fur brush roll 4 and bristle brush roll 6, motor 3 is by the moving fur brush roll 4 of belt transmission subband, and between fur brush roll 4 and common brush roll 5, between common brush roll 5 and bristle brush roll 6, all by belt transmission is secondary, connect, like this when motor 3 work, can drive fur brush roll 4, common brush roll 5 and bristle brush roll 6 rotate jointly, the below of sieve bend 1 is provided with water leg 7, is provided with water pump 8 in water leg 7, and what be connected with water pump 8 is provided with secondary flushing line 9, and the port of export of secondary flushing line 9 is positioned at the top of sieve bend 1.
The sieve bend automatic flushing device course of work of the embodiment of the present invention is as follows: the water body in culturing pool by Pipeline transport to the top of sieve bend 1 and fall, the particle depositions such as the dirt being mingled with in water body, impurity can be stopped by sieve bend 1, water body directly falls into the water leg 7 that is arranged in sieve bend 1 below, the a part of impurity being deposited on sieve bend 1 can fall in the sewage sump that is arranged on sieve bend 1 lower end at gravity and the double action of washing away, and wait focuses on; In the process of sieve bend 1 work, motor 3 can drive fur brush rolls 4, common brush roll 5 and bristle brush roll 6 jointly to rotate, the Surface Contact of the bristle of three brush rolls and sieve bend 1, realization to sieve bend surface in real time, cleaning automatically; Be arranged on water pump 8 work in water leg 7 simultaneously, water body be pumped in secondary flushing line 9 and be washed on sieve bend 1, sieve bend 1 is carried out to secondary flushing, can also carry out secondary filter to recycle-water simultaneously.

Claims (1)

1. a sieve bend automatic flushing device, it is characterized in that: described cleaning device comprise be fixedly installed on sieve bend (1) top and with the support (2) of its conformal, at the upper fixed support of support (2), there is motor (3), in the upper also rotational support of support (2), there is the fur brush roll (4) setting gradually from top to bottom, common brush roll (5) and bristle brush roll (6), motor (3) is by the moving fur brush roll (4) of belt transmission subband, between fur brush roll (4) and common brush roll (5), between common brush roll (5) and bristle brush roll (6), all by belt transmission is secondary, connect, at the water leg (7) that is arranged in sieve bend (1) below, be also provided with water pump (8), the port of export of the secondary flushing line (9) being connected with water pump (8) is positioned at the top of sieve bend (1).
