CN103663235A - Hand-jack for rod - Google Patents
Hand-jack for rod Download PDFInfo
- Publication number
- CN103663235A CN103663235A CN201310408748.0A CN201310408748A CN103663235A CN 103663235 A CN103663235 A CN 103663235A CN 201310408748 A CN201310408748 A CN 201310408748A CN 103663235 A CN103663235 A CN 103663235A
- Authority
- CN
- China
- Prior art keywords
- crossbeams
- jack
- bar
- hand
- equipment
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Landscapes
- Load-Engaging Elements For Cranes (AREA)
Abstract
本发明涉及一种杆用手动起重器其包括两根横梁，在两横梁上设置有支撑杆，支撑杆下端和抱箍相连，在两横梁前端设置有垂片，两垂片之间设置有定轴，定轴上套接绞盘。由于实施上述技术方案，本发明结构简单，其可快速固定在电杆上，其利用绞盘降低起重重量，可快速、稳定的将设备吊至工作面，即解决了高空设备不易起吊的难题，又保护了起吊人员和设备的安全。
The invention relates to a manual jack for poles, which comprises two crossbeams, a support rod is arranged on the two crossbeams, the lower end of the support rod is connected with a hoop, a hanging piece is arranged at the front end of the two crossbeams, and a hanging piece is arranged between the two hanging pieces. A fixed shaft is sleeved with a winch on the fixed shaft. Due to the implementation of the above technical solution, the present invention has a simple structure, can be quickly fixed on the electric pole, and uses a winch to reduce the lifting weight, so that the equipment can be hoisted to the working surface quickly and stably, which solves the problem that high-altitude equipment is not easy to lift. It also protects the safety of lifting personnel and equipment.
Description
Technical field
The present invention relates to a kind of hoisting device, relate in particular to a kind of being fixed on electric pole, for electric power maintainer's bar hand-jack.
Background technology
Power department often can run into operation on bar in maintenance repair and handling labor, and weight, large equipment and the objects such as voltage transformer, circuit breaker are installed, and due to environments such as being subject to periphery road conditions, limits, and crane cannot be reached the spot.So it is very inconvenient that equipment is transported to eminence, mostly is now to install aloft fixed pulley, with rope, walks around fixed pulley, is assembled into easy lifting appliance, and this kind of mode comparatively required great effort, and careless slightly, and equipment will drop, and causes personnel and property damage.Even if sometimes there is crane, but part circuit is in farmland, and crane enters the crops that peasant can be damaged in camp site, to peasant, causes damage.
Summary of the invention
The object of the invention is to propose a kind of laborsaving, efficient, quick for installation, portable bar hand-jack.
The object of the present invention is achieved like this: with hand-jack, it comprises two crossbeams to bar, on two crossbeams, is provided with strut bar, and strut bar lower end is connected with anchor ear, at two crossbeam front ends, is provided with lappet, between two lappets, is provided with dead axle, is socketed capstan winch on dead axle.
Owing to implementing technique scheme, the present invention is simple in structure, and it can be fixed on electric pole fast; it utilizes capstan winch to reduce lifting weight; can be quick, stable equipment is winched to driving surface, solved the difficult problem that altitude plant is difficult for lifting, protected again the safety of lifting personnel and equipment.
Accompanying drawing explanation: concrete structure of the present invention is provided by following drawings and Examples:

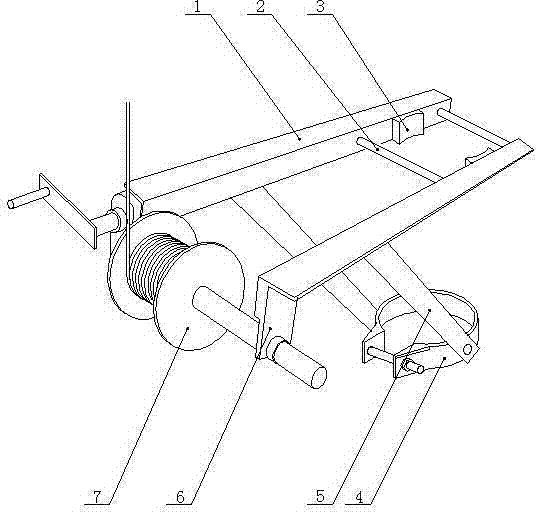

Fig. 1 is bar hand-jack structural representation.
Legend: 1, crossbeam, 2, position-limited lever, 3, limiting stopper, 4, anchor ear, 5, strut bar, 6, lappet, 7, capstan winch.
The specific embodiment: the present invention is not subject to the restriction of following embodiment, can determine concrete embodiment according to technical scheme of the present invention and actual conditions.
Embodiment: as shown in Figure 1, bar comprises two crossbeams 1 with hand-jack, is provided with strut bar 5 on two crossbeams 1, and strut bar 5 lower ends are connected with anchor ear 4.At two crossbeam 1 front ends, be provided with between lappet 6, two lappets 6 and be provided with dead axle, on dead axle, be socketed capstan winch 7.At two crossbeam 1 rear portion opposite positions, being provided with inside face is that limiting stopper 3, two limiting stopper 3 front and rears of circular arc are provided with the position-limited lever 2 that connects two crossbeams 1, and position-limited lever 2 is located by jam nut.Two crossbeams 1 can parallelly be laid, and also can be front wide and rear narrow splayed and lay.At two crossbeam 1 middle parts, offer corresponding through hole, can pass through to regulate position-limited lever 2 in the position of different through holes and the fastening degree of jam nut, thereby regulate the opening angle of two crossbeams 1.
During use, anchor ear 4 is placed on electric pole, electric pole is snapped in limiting stopper 3 simultaneously.After locking anchor ear 4, then by position-limited lever 2 location.Pulley is installed in head of mast, and the steel rope of capstan winch 7 rises up into pulley, needs the equipment steel rope fixation of installation, and the crank on rotation capstan winch 7 can be realized the handling of equipment.
Above technical characterictic has formed most preferred embodiment of the present invention, and it has stronger comformability and best implementation result, can increase and decrease according to actual needs inessential technical characterictic, meets the needs of different situations.
Claims (4)
1. a bar hand-jack, is characterized in that: it comprises two crossbeams, on two crossbeams, is provided with strut bar, and strut bar lower end is connected with anchor ear, at two crossbeam front ends, is provided with lappet, between two lappets, is provided with dead axle, is socketed capstan winch on dead axle.
2. bar hand-jack as claimed in claim 1, is characterized in that: at two crossbeam rear portion opposite positions, be provided with the limiting stopper that inside face is circular arc, two limiting stopper front and rears are provided with the position-limited lever that connects two crossbeams, and position-limited lever is located by jam nut.
3. bar hand-jack as claimed in claim 1, is characterized in that: two crossbeams can parallelly be laid, and also can be front wide and rear narrow splayed and lay.
4. bar hand-jack as claimed in claim 1, is characterized in that: at two crossbeam middle parts, offer corresponding through hole.
