CN103591684A - Intelligent energy-saving single water tank constant temperature unit capable of continuously supplying hot water - Google Patents
Intelligent energy-saving single water tank constant temperature unit capable of continuously supplying hot water Download PDFInfo
- Publication number
- CN103591684A CN103591684A CN201310577666.9A CN201310577666A CN103591684A CN 103591684 A CN103591684 A CN 103591684A CN 201310577666 A CN201310577666 A CN 201310577666A CN 103591684 A CN103591684 A CN 103591684A
- Authority
- CN
- China
- Prior art keywords
- water
- water tank
- source heat
- heat pump
- air source
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Landscapes
- Heat-Pump Type And Storage Water Heaters (AREA)
- Bathtubs, Showers, And Their Attachments (AREA)
Abstract
一种智能节能单水箱恒温连续供热水机组，包括：空气源热泵机组、止回阀、水箱、电磁阀、喷头供水泵，远传压力表、智能控制柜；所述的空气源热泵机组包括：冷凝器、压缩机、蒸发器、储液罐、过滤器、风机、膨胀阀；所述的水箱包括：混水装置、温度传感器、液位传感器；所述的混水装置是个套管，内管为冷水进水管，向上开有四排出水孔，且每排水孔夹角为40°，其末端封闭，外管为热水进水管，末端与内管外壁封闭，外管管壁向下方均匀开有四排出水孔，每排水孔夹角为40°；本装置安装简单、易于实现，维护费用低。
An intelligent energy-saving single water tank constant temperature continuous water supply unit, comprising: an air source heat pump unit, a check valve, a water tank, a solenoid valve, a nozzle water supply pump, a remote pressure gauge, and an intelligent control cabinet; the air source heat pump unit includes : condenser, compressor, evaporator, liquid storage tank, filter, fan, expansion valve; the water tank includes: water mixing device, temperature sensor, liquid level sensor; the water mixing device is a casing, the inner The pipe is a cold water inlet pipe, with four outlet holes opening upwards, and the angle between each outlet hole is 40°. The end is closed. The outer pipe is a hot water inlet pipe. There are four drainage holes, and the included angle of each drainage hole is 40°; the device is simple to install, easy to implement, and low in maintenance costs.
Description
Technical field
The present invention relates to a kind of supplying hot water unit, relate in particular to a kind of intelligent power saving list water tank constant temperature continuous heat supply water unit.
Background technology
We have a bath in the process of taking a shower daily, often suffer from the sometimes hot and sometimes cold puzzlement of water temperature.Constantly because hot and cold stimulation causes flu, heavy cause slipping even and to scald while gently having a bath.And have such experience: while just starting, bleed off a lot of cold water and sometimes can, because temporarily stopping shower, when again opening spray head for shower, can scalded or freeze again.At this moment, we can bleed off overheated or excessively cold water conventionally, so both affect the comfort level of shower, waste again a lot of water and the energy.
Generally, the method that solves fluctuating temperature is during higher or lower than the water temperature of hope, constantly to adjust heat supply water yield knob, to reach a new hot and cold water equalization point in water temperature in the process of having a bath.But when hydraulic pressure changes again, must readjust, one time shower process will be adjusted temperature repeatedly, is a pretty troublesome thing really.For old man and child, be also not only trouble, also may owe sensitive or misoperation because of reaction, cause scald accident.
Tradition hot water dispenser device group system because the water consumption of single water tank with enter cool water quantity, firing rate and water tank enter that the difference etc. of cool water quantity is many-sided cannot balanced Matching, temperature is often sometimes hot and sometimes cold, user side water supply is not satisfied at all.
Summary of the invention
In order to solve people's sometimes hot and sometimes cold problem of water temperature in shower process, the invention provides a kind of intelligent power saving list water tank constant temperature continuous heat supply water unit, realized the artificial design temperature of thermal source facility, and also reached energy-saving effect.
For achieving the above object, technical scheme of the present invention is as follows:
A list water tank constant temperature continuous heat supply water unit, comprising: net for air-source heat pump units, check-valves, water tank, magnetic valve, shower nozzle supply-water pump, distance-transmission pressure gauge, Intelligent control cabinet; Described net for air-source heat pump units comprises: condenser, compressor, evaporimeter, fluid reservoir, filter, blower fan, expansion valve; Described water tank comprises: water admixing device, temperature sensor, liquid level sensor; Described water admixing device is a sleeve pipe, inner tube is cold water inlet, upwards have four discharge water holes, and every osculum angle is 40 °, its endcapped, outer tube is hot water inlet pipe, end and outer wall of inner tube sealing, outer tube wall evenly has four discharge water holes downwards, and every osculum angle is 40 °; Described magnetic valve is connected with one end of check-valves II, water admixing device in water tank is connected with one end of check-valves I with the other end of check-valves II respectively, the other end of check-valves I is connected with one end of condenser in net for air-source heat pump units, described circulating pump is connected with the other end of condenser and a side lower end of water tank in net for air-source heat pump units respectively, the opposite side lower end of water tank is connected to shower nozzle supply-water pump, and what be connected with shower nozzle supply-water pump is distance-transmission pressure gauge; Described device all connects by copper pipe; Temperature sensor in compressor in described net for air-source heat pump units and blower fan, circulating pump, water tank and liquid level sensor, magnetic valve, shower nozzle supply-water pump, distance-transmission pressure gauge are all connected to Based Intelligent Control cashier's office in a shop by cable.
Equipment of the present invention is controlled step and is comprised:
When having people's water, high water tank reduces, and liquid level sensor sends signal, and magnetic valve is opened, and appropriate running water enters into the water admixing device of water tank through magnetic valve and check-valves II.
Circulating pump is extracted the water of water tank to deliver in net for air-source heat pump units out simultaneously, and net for air-source heat pump units heats water by condenser, and hot water is delivered in the water admixing device in water tank, gives cool water heating, presses certain angle simultaneously and evenly sprays in water tank; Because this step is periodic duty under the effect of circulating pump, so the water in water tank is thermostatted water.
Now temperature sensor sends signal and makes magnetic valve by regulating and controlling inflow, and the coupling balance that reach a heating, water inlet, supplies water has reached the object of single cistern system constant temperature water supply simultaneously.
Beneficial effect of the present invention is: the invention solves in bathing process hot and cold water pressure imbalance, temperature and be difficult to regulate and cause the sometimes hot and sometimes cold problem of water outlet; Native system has configured a set of water admixing device, by Intelligent control cabinet, controls and whole system linkage work, adopts a single cistern system, has reached equally the object of the stable hot-water supply of continuous constant temperature, its install simple, be easy to realize, maintenance cost is low.
Accompanying drawing explanation
The present invention has accompanying drawing 2 width.

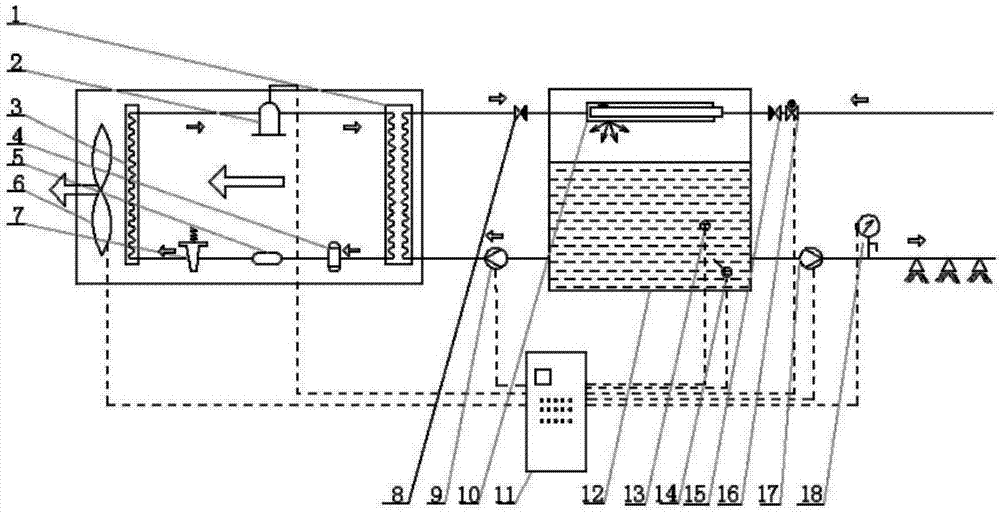

Fig. 1 is a kind of intelligent power saving list water tank constant temperature continuous heat supply water unit schematic diagram;
Fig. 2 is the longitudinal section of the water admixing device in water tank.
Sequence number explanation in figure: 1, condenser, 2, compressor, 3, evaporimeter, 4, fluid reservoir, 5, filter, 6, blower fan, 7, expansion valve, 8, check-valves I, 9 circulating pumps, 10, water admixing device, 11, Intelligent control cabinet, 12, water tank, 13, temperature sensor, 14, liquid level sensor, 15, check-valves II, 16, magnetic valve, 17, shower nozzle supply-water pump, 18, distance-transmission pressure gauge, 19, inner tube, 20, outer tube.
The specific embodiment
Below in conjunction with the present embodiment, the present invention is further described:
A list water tank constant temperature continuous heat supply water unit, comprising: net for air-source heat pump units, check-valves, water tank 12, magnetic valve 16, shower nozzle supply-water pump 17, distance-transmission pressure gauge 18, Intelligent control cabinet 11, circulating pump 9; Described net for air-source heat pump units comprises: condenser 1, compressor 2, evaporimeter 3, fluid reservoir 4, filter 5, blower fan 6, expansion valve 7; Described water tank 12 comprises: water admixing device 10, temperature sensor 13, liquid level sensor 14; Described water admixing device 10 is sleeve pipes, inner tube 19 is cold water inlet, upwards have four discharge water holes, and every osculum angle is 40 °, its endcapped, outer tube 20 is hot water inlet pipe, end and inner tube 19 closed front, outer tube 20 tube walls evenly have four discharge water holes downwards, and every osculum angle is 40 °; Described magnetic valve 16 is connected with one end of check-valves II 15, water admixing device 10 in water tank 12 is connected with one end of check-valves I 8 with the other end of check-valves II 15 respectively, the other end of check-valves I 8 is connected with one end of condenser 1 in net for air-source heat pump units, described circulating pump 9 is connected with the other end of condenser 1 and a side lower end of water tank 12 in net for air-source heat pump units respectively, the opposite side lower end of water tank 12 is connected to shower nozzle supply-water pump 17, and what be connected with shower nozzle supply-water pump 17 is distance-transmission pressure gauge 18; Described device all connects by copper pipe; Temperature sensor 13 in compressor 2 in described net for air-source heat pump units and blower fan 6, circulating pump 9, water tank 12 and liquid level sensor 14, magnetic valve 16, shower nozzle supply-water pump 17, distance-transmission pressure gauge 18 are all connected on Intelligent control cabinet 11 by cable.
Equipment of the present invention is controlled step and is comprised:
When having people's water, water tank 12 liquid levels reduce, and liquid level sensor 14 sends signal, and magnetic valve 16 is opened, and appropriate running water enters into the water admixing device 10 of water tank 12 through magnetic valve 16 and check-valves II 15.
Circulating pump 9 is extracted the water of water tank 12 to deliver in net for air-source heat pump units out simultaneously, and net for air-source heat pump units heats water by condenser 1, and hot water is delivered in the water admixing device 10 in water tank 12, gives cool water heating, presses certain angle simultaneously and evenly sprays in water tank 12; Because this step is periodic duty under the effect of circulating pump 9, so the water in water tank 12 is thermostatted water.
Now temperature sensor 13 sends signal and makes magnetic valve 16 by regulation and control inflow, reaches the coupling balance of a heating, water inlet, water supply, has reached the object of single water tank 12 system constant temperature water supplies simultaneously.
Claims (1)
