Abstract

The invention discloses a high-strength and complex aluminum alloy special-shaped outer hexagonal seat plate extrusion final forming die, which includes a final forming punch, a final forming die, a final forming punch, and a mouth part of the final forming die. Irregular-shaped outer hexagonal, the size of the mouth of the final forming die is consistent with the size of the final forming punch, the center of the final forming punch is the final forming conical convex surface, and the three straight sides form three V-shaped final forming convex Ridge, the V-shaped final forming ridge forms a smooth transition between the tangential connection of the final forming conical convex surface, and the final forming conical convex surface between two adjacent V-shaped final forming ridges forms a trumpet-shaped drainage terminal A raised fan surface is formed, and a fan-shaped resistance cavity is provided on the raised fan surface. The fan-shaped resistance cavity gradually increases from the top to the bottom on the final formed conical convex surface, and the bell-shaped drainage is finally formed. There is a plane area between the bottom and the V-shaped final forming ridge and the edge of the arc, and each V-shaped final forming ridge is provided with a V-shaped high-rib final forming cavity.

Description

A high-strength complex aluminum alloy special-shaped outer hexagonal seat sheet extrusion final forming die

technical field

The invention belongs to the plastic precision forming processing technology of metal materials, specifically belongs to the field of light alloy precision forming, and particularly relates to the precise extrusion of high-strength and complex aluminum alloy special-shaped outer hexagonal seat plates by using pre-forming dies, partial loading dies, and final forming dies take shape. the

Background technique

Complex high-strength aluminum alloy special-shaped outer hexagonal seat sheet parts are widely used in aerospace and equipment manufacturing fields, and are an important part and main load-bearing component of the equipment to buffer the instantaneous large impact force. The structural shape of the component is complex, the shape is asymmetrical, there are high ribs inside and outside, the inside is V-shaped with high rib height-to-width ratio ≥ 3, the cross-sectional shape is complex, and the wall thickness difference is large. Ordinary overall extrusion molding die is used for one-time extrusion loading and forming. The forming pressure and load of the processing equipment are relatively large, and the loss of processing equipment and mold wear are large; at the same time, it is easy to fold defects at the V-shaped high ribs; material utilization rate Low, not conducive to mass production of products. the

Contents of the invention

The purpose of the present invention is to solve the above problems. The present invention proposes a high-strength complex aluminum alloy special-shaped outer hexagonal seat plate extrusion final forming die. The die has a simple structure, low forming pressure, and high V-shaped high-rib forming quality. the

To achieve the above object, the technical solution adopted in the present invention is:

A high-strength complex aluminum alloy special-shaped outer hexagonal seat sheet extrusion final forming die, including pins, final forming upper template, final forming upper backing plate, screws, final forming punch, final forming die, final forming Forming lower backing plate, screw, final forming lower template, final forming punch is installed under the final forming upper template and final forming upper backing plate through screws and pins, final forming die is installed on the final forming die through screws and pins On the top of the forming lower template and the final forming lower backing plate, the final forming punch forms a special-shaped outer hexagon with straight sides and arcs, and the mouth of the final forming die also forms a special-shaped outer hexagon correspondingly. Corresponding to the shape of the final forming workpiece, the mouth size of the final forming die is consistent with the size of the final forming punch. The center of the final forming punch is the final forming conical convex surface, and the three straight sides are upward Three V-shaped final forming ridges are formed, and a smooth transition is formed between the tangential connection between the V-shaped final forming ridge and the final forming conical convex surface, and the final forming between two adjacent V-shaped final forming ridges The conical convex surface forms a gradually larger trumpet-shaped drainage from the top to the bottom. The final shaped convex fan is provided with a fan-shaped resistance cavity on the final formed conical convex surface along the top. It gradually increases towards the bottom, opposite to the metal flow direction, there is a plane area between the bottom of the bell-shaped drainage final forming raised sector and the V-shaped final forming ridge and the edge of the arc edge, and each V-shaped final forming A V-shaped high-rib final forming cavity is arranged on the forming convex ridge. the

The high-strength and complex aluminum alloy special-shaped outer hexagon seat plate extrusion final forming die also includes a final forming top block and a final forming ejector pin, forming a three-width current limiting at the bottom of the V-shaped final forming groove. The final forming top block also forms three spokes and is placed in the three-width flow-limiting groove. The final forming top block is screwed to the final forming ejector rod, and the final forming ejector rod is movable on the final forming lower backing plate. In the through hole formed together with the final forming lower template. the

The high-strength complex aluminum alloy special-shaped outer hexagonal seat sheet extrusion final forming die also includes a final forming guide ring fixed above the final forming die, and the guide ring is designed as a special-shaped hexagonal through The cavity has three straight sides and three arc sides, and the adjacent two sides are connected by straight sides and arc sides, with rounded corner transition. the

Three fan-shaped resistance concave cavities are formed on the final shaped conical convex surface. the

The direction of the V-shaped high rib final forming cavity is parallel to the straight side of the final forming punch. the

In the present invention, a flat part is arranged on the outer edge of the final forming punch. During the partial forming process, the metal flows upward freely along the conical surface of the partial forming punch, so the formed partial forming workpiece can be shaped into a conical shape. The total height of the workpiece will be 30-40mm higher than the platform part of the final forming punch, so that in the final forming, the flat part of the final forming punch will contact the top of the final forming workpiece first, and then the metal The material is filled with the surface of the final forming punch and V-shaped high ribs. In addition, the fan-shaped resistance cavity of the final forming punch acts as a current limiter. High-strength and complex aluminum alloys are realized by controlling the metal flow direction and controlling the metal flow sequence to reduce the load. Precise extrusion forming of special-shaped outer hexagonal seat sheet avoids defects such as pushing and folding of the workpiece. Realize the precise forming of the complex surface inside the component, and reduce the production cost. the

Description of drawings

The specific implementation manners of the present invention will be described in further detail below in conjunction with the accompanying drawings. the

Fig. 1 is the assembly drawing of the high-strength complex aluminum alloy special-shaped outer hexagonal seat plate preforming mold of the present invention;

Figure 2 is an assembly drawing of the high-strength and complex aluminum alloy special-shaped outer hexagonal seat plate for partial loading of the mold;

Fig. 3 is the three-dimensional view 206,307 of inner different hexagonal guide ring;

Fig. 4 is the front view of the bell mouth type drainage groove of the punch;

Figure 4-1 is a three-dimensional view of the horn-shaped drainage groove of the punch;

Figure 5 is the front view of the three-width flow-limiting cavity of the die;

Figure 5-1 is a perspective view of the three-width flow-limiting cavity of the die;

Figure 6 is a perspective view of the three-frame quick-change top block;

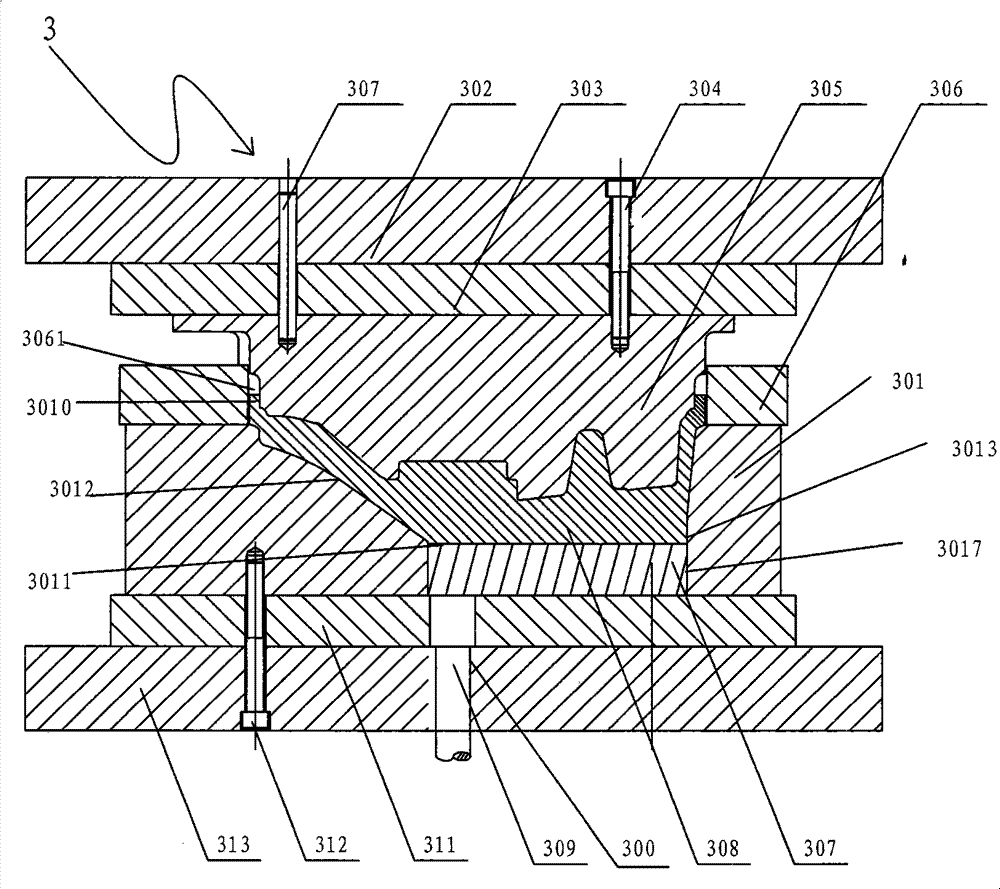

Figure 7 is an assembly drawing of the final forming die of the high-strength and complex aluminum alloy special-shaped outer hexagonal seat sheet;

Fig. 8 is the front view of the fan-shaped resistance cavity of the final forming punch;

Figure 8-1 is a perspective view of the fan-shaped resistance cavity of the final forming punch;

Figure 9 is a blank front view;

Figure 10 is a front view of the preformed workpiece;

Figure 10-1 is a top view of the preformed workpiece;

Figure 11 is a front view of a partially formed workpiece;

Figure 11-1 is a cross-sectional view of a partially formed workpiece;

Figure 12 is a schematic diagram of the initial stage of the partial forming process;

Figure 12-1 is a schematic diagram of the final stage of the partial forming process;

Fig. 13 is the front view of the finished workpiece;

Figure 13-1 is a sectional view of the final formed workpiece;

Figure 14 is a schematic diagram of the initial stage of the final forming process;

Figure 14-1 is a schematic diagram of the final stage of the final forming process;

Fig. 15 is a flow chart of extrusion forming of a high-strength complex aluminum alloy special-shaped outer hexagonal seat sheet. the

Detailed ways

The present invention will be further described below in conjunction with accompanying drawings and examples. the

As shown in Figure 1, a high-strength complex aluminum alloy special-shaped outer hexagonal seat sheet extrusion preforming die 1 includes a preformed upper template 101, a preformed upper backing plate 102, screws 103, a preformed punch 104, a preformed Die 105, preformed backing plate 106, preformed workpiece 107, preformed ejector pin 108, preformed lower template 109, screw 110, described preformed upper template 101 links to each other with the upper slide block of press (not shown common connection structure in the industry), the preformed punch 104 is installed under the preformed upper template 101 and the preformed backing plate 102 through screws 103, and the preformed die 105 is mounted on the preformed die 105 through screws 110 and Above the preformed lower formwork 109 and the preformed lower backing plate 106, a through hole 1081 is provided in the middle part of the preformed lower formwork 109, and a preformed ejector pin 108 is installed in the through hole 1081. The middle moves up and down, corresponding to the expansion and contraction in the pre-forming die 105, and is used for ejecting the pre-formed workpiece 107 from the pre-forming die 105. the

As shown in Figure 10 and Figure 10-1, the preformed workpiece 107 is made of aluminum alloy material, and is a special-shaped outer hexagon with straight sides and arcs, and the adjacent two sides are respectively - straight sides and an arc side, as shown in Figure 1 Shown, described preforming male mold 104, preforming female mold 105 also correspond to the special-shaped outer hexagon of straight edge plus circular arc, preforming male mold 104 and preforming female mold 105 size adapt. the

As shown in Figure 2, a high-strength and complex aluminum alloy special-shaped outer hexagonal seat plate extrusion partial loading die 2 includes a partial forming die 201, a partial forming upper template 202, a partial forming upper backing plate 203, screws 204, and a partial forming Punch 205, partial forming guide ring 206, partial forming top block 207, partial forming workpiece 208, partial forming push rod 209, partial forming lower backing plate 210, screw 211, partial forming lower template 212, the partial forming convex Die 205 is contained in the following of partial forming upper template 202 and partial forming backing plate 203 by screw 204, and described partial forming die 201 is contained in the top of partial forming lower template 212 and partial forming lower backing plate 210 by screw 211. the

As shown in Figure 4, Figure 4-1, Figure 11, and Figure 11-1, the local forming punch 205 also forms a special-shaped outer hexagon with straight sides and arcs, corresponding to the contour of the partially forming workpiece 208, and locally forming The center of the punch 205 is a conical convex surface 2052, such as the outer surface of a bowl. The three straight sides 2056 of the locally formed punch 205 form three V-shaped ridges 2053 upwards, and the V-shaped ridges 2053 and the conical convex surface 2052 are connected tangentially to form Smooth transition, the conical convex surface 2052 located between two adjacent V-shaped ridges 2053 forms a gradually larger bell-shaped drainage raised fan from the top to the bottom, and the bottom of the bell-shaped drainage raised fan extends to an arc On the edge of the side 2055 , each V-shaped ridge 2053 is provided with a V-shaped high-rib pre-forming cavity 2054 , and the direction of the V-shaped high-rib pre-forming cavity 2054 is parallel to the straight side 2056 of the partial forming punch 205 . the

As shown in Fig. 4 and Fig. 4-1, the top 2051 of the conical convex surface 2052 is designed as a plane, and the three V-shaped ridges 2053 are only connected with the conical surface of the conical convex surface 2052, and the three V-shaped ridges 2053 are not connected directly, so that It is more conducive to the plastic flow of the partially formed workpiece 208 . the

As shown in Fig. 2, Fig. 4, Fig. 4-1, Fig. 5, and Fig. 5-1, the conical convex surface 2052 and the V-shaped convex ridge 2053 of the local forming die 201 corresponding to the local forming die 205 respectively form a conical concave. Cavity 2012 and V-shaped groove 2013, between the conical concave cavity 2012 and V-shaped groove 2013 forms a gradually larger bell mouth-shaped drainage concave sector from the bottom 2011 to the mouth 2010, and the bell-mouth shape of the conical convex surface 2052 The fan surface of the drainage protrusions corresponds, and the mouth 2010 of the local forming die 201 also forms a special-shaped outer hexagon correspondingly, corresponding to the contour shape of the partial forming workpiece 208, and the size of the mouth 2010 of the partial forming die 201 is larger than that of the local forming punch 205 , a metal free-flow zone 20 is formed between the mouth 2010 and the pre-forming punch 205 . the

As shown in Figure 5 and Figure 5-1, the bottom 2011 of the V-shaped groove 2013 also forms a three-width flow limiting groove 2017, as shown in Figure 6, the partially formed top block 207 also forms three spokes, as shown in Figure 2 As shown, the partial forming top block 207 is placed in the three-width restricting groove 2017, the partial forming top block 207 is screwed to the local forming ejector rod 209, and the partial forming ejector rod 209 is arranged on the partial forming lower backing plate 210 and the partial forming lower template 212 jointly formed in the through hole 200, the partial forming ejector rod 209 moves up and down in the through hole 200 to complete the ejection of the partial forming workpiece 208 from the partial forming die 201. the

As shown in Fig. 3, the partial forming guide ring 206 is fixed on the top of the partial forming die 201, and the guide ring is designed as a special-shaped hexagonal through cavity 2061, wherein 3 straight sides 2062, 3 arc sides 2063, The adjacent two sides are connected by a straight side 2062 and an arc edge 2063, and have a rounded corner transition. In the local forming process, the preformed workpiece 107 is automatically guided into the local forming die 201 by the three arc edges 2063, and at the same time 3 The straight edge 2062 makes the center of the preformed workpiece 107 coincide with the center of the partially formed die 201, without manual alignment, and realizes the automatic positioning of the preformed workpiece 107 and the mold, and the positioning accuracy can reach ±0.1mm. the

After the preformed workpiece 107 is extruded, the heated preformed workpiece 107 is put into the preheated partial loading mold 2 through the partial forming guide ring 206, and the partial forming punch 205 . The partial forming die 201 extrudes the preformed workpiece 107 into a partially formed workpiece 208 , and then the partially formed ejector pin 209 pushes the partially formed workpiece 208 out through the partially formed ejector block 207 . the

As shown in Figure 4 and Figure 4-1: the local forming punch 205 is designed with a bell-shaped drainage convex fan at the place where the material flows violently. Through the bell-shaped drainage raised fan, the constraints on the metal passing through here are gradually reduced, and the degree of freedom is gradually increased. At the same time, the design of the conical convex surface here reduces the filling resistance, speeds up the flow speed of the metal, and improves the uniformity of deformation. The property allows the local metal to flow quickly to reduce the forming load and avoid defects such as through-flow, eddy current and folding. the

As shown in Figure 5 and Figure 5-1, the bottom of the partial forming die 201 is designed with three-width flow limiting grooves 2017. During the partial forming process, the three-width flow limiting grooves 2017 increase the flow resistance and make the local extrusion force increase, which plays a role in restricting the inflow of metal, thereby ensuring that the metal fills the cavity of the convex mold, and at the same time increases the demoulding force, so that the partially formed workpiece 208 stays in the partially formed concave mold 201 during demoulding and does not follow the upward movement of the partially formed convex mold 205 , it is beneficial to take out the workpiece from the local forming die 201, so as to realize continuous and uninterrupted production and improve productivity. the

As shown in Figure 6, the partially formed top block 207 is designed as three and can be quickly replaced. A screw hole 2071 is drilled in the center of the top block. This screw hole 2071 can be connected with the partially formed push rod 209 with screws, as in If the top block is damaged during the production process, it can be replaced quickly and freely, which is conducive to continuous and uninterrupted production and improves productivity. the

As shown in Figure 7, a high-strength complex aluminum alloy special-shaped outer hexagonal seat plate extrusion final forming die 3 includes pins 310, final forming upper template 302, final forming upper backing plate 303, screws 304, final forming Forming punch 305, final forming guide ring 306, final forming die 301, final forming top block 307, final forming workpiece 308, final forming ejector pin 309, final forming lower backing plate 311, screws 312, the final forming lower template 313, the final forming punch 305 is installed under the final forming upper template 302 and the final forming upper backing plate 303 by screws 304 and pins 310, and the final forming die 307 is installed by screws 312 and On the top of the final forming lower template 313 and the final forming lower backing plate 311. the

As shown in Fig. 8, Fig. 8-1, Fig. 13, and Fig. 13-1, the final forming punch 305 also has a special-shaped outer hexagon with straight sides and arcs, corresponding to the contour of the final forming workpiece 308, The center of the final forming punch 305 is a final forming conical convex surface 3052, such as the outer surface of a bowl, and the three straight sides 3056 of the final forming punch 305 form three V-shaped final forming ridges 3053 upwards, and the V-shaped final forming A smooth transition is formed between the convex ridge 3053 and the tangential connection between the final forming conical convex surface 3052, and the final forming conical convex surface 3052 between two adjacent V-shaped final forming convex ridges 3053 forms a shape that gradually becomes larger from the top to the bottom. The bell-mouth-shaped drainage final forming convex fan surface, the bottom of the bell-mouth-shaped drainage final forming convex fan surface and the V-shaped final forming convex ridge 3053 and the edge of the arc edge 3055 leave a plane area 3050, each A V-shaped high-rib final forming cavity 3054 is arranged on the V-shaped final forming ridge 3053 , and the direction of the V-shaped high-rib final forming cavity 3054 is parallel to the straight edge 3056 of the final forming punch 305 . the

As shown in Figure 8 and Figure 8-1, the top 3051 of the final forming conical convex surface 3052 is designed as a platform, and the three V-shaped final forming ridges 3053 are only connected with the conical surface of the final forming conical convex surface 3052, and the three V-shaped final forming ridges The forming ridges 2053 are spaced apart from each other and are not connected directly, which is more conducive to the plastic flow of the final formed workpiece 308 . the

As shown in Figure 8 and Figure 8-1, a fan-shaped resistance cavity 314 is provided on the bell mouth-shaped drainage final forming convex fan between two adjacent V-shaped final forming ridges 3053. Three fan-shaped resistance cavities 314 are formed on the conical convex surface 3052, and the fan-shaped resistance cavities 314 gradually increase along the top 3051 to the bottom on the final formed conical convex surface 3052, which is opposite to the metal flow direction. During the final forming process, the flow resistance of the metal here is increased, and its flow velocity is reduced to ensure that the metal here is in a static state during the final forming process, and does not move unstable with the downward movement of the final forming punch 305 , to avoid defects such as pushing and folding in the central circular platform portion 3081 of the final formed workpiece 308 . the

As shown in Figure 7, the profile of the final forming die 301 is the same as that of the final forming workpiece 308, and its structural composition is similar to that of the local forming die 201, and also includes a final forming conical convex surface corresponding to the final forming punch 305 3052 and the V-shaped final forming ridge 3053 respectively form the final forming conical cavity 3012 and the V-shaped final forming groove 3013, and the final forming conical cavity 3012 and the V-shaped final forming groove 3013 form a bottom From 3011 to the mouth 3010, a gradually larger bell-mouth-shaped drainage concave fan surface is formed, corresponding to the bell-mouth-shaped drainage convex fan surface that is finally formed into the conical convex surface 2052, and the mouth 3010 of the final forming die 301 is also formed correspondingly. The six sides correspond to the shape of the final forming workpiece 308 , and the size of the mouth 2010 of the final forming die 301 is consistent with the size of the final forming punch 305 . the

As shown in Figure 7, a three-width restrictor groove 3017 is formed at the bottom 2011 of the V-shaped final forming groove 2013, and the final forming top block 307 also forms three spokes correspondingly (not shown, the structure is the same as that of the local forming top block 207 are exactly the same), as shown in Figure 7, the final forming top block 307 is placed in the three-width flow limiting groove 3017, the final forming top block 307 is screwed to the final forming ejector pin 309, and the final forming ejector pin 309 is set In the through hole 300 jointly formed by the final forming lower backing plate 311 and the final forming lower template 313, the partial forming ejector pin 209 moves up and down in the through hole 300, completing the final forming workpiece 308 from the final forming die 301 out of the middle. the

As shown in Figure 7, the final forming guide ring 306 is fixed on the top of the final forming die 301, and the guide ring is designed as a special-shaped hexagonal cavity 3061, wherein 3 straight sides, 3 arc sides, The adjacent two sides are connected by a straight side and an arc edge, and have a rounded corner transition (the structure is exactly the same as that of the partially formed guide ring 206). In the final forming process, the partially formed workpiece 208 is automatically entered into the In the final forming die 301, three straight sides make the center of the partial forming workpiece 208 coincide with the center of the final forming die 301 at the same time, no manual alignment is required, and the automatic positioning of the partial forming workpiece 208 and the mold is realized, and the positioning accuracy can reach ±0.1mm. the

After the extrusion of the partially formed workpiece 208 is completed, the heated partially formed workpiece 208 is put into the preheated final forming loading mold 3 through the final forming guide ring 306. During the downward loading process of the press slider, the final forming The forming punch 305 and the final forming die 301 extrude the partially formed workpiece 208 into the final formed workpiece 308 (that is, the aluminum alloy special-shaped outer hexagonal seat plate), and then the final forming ejector pin 309 passes through the final forming top block 307 ejects the final forming workpiece 308 from the final forming die 301 . the

In summary, the local loading mold 2 and the final forming mold 3 of the present invention have the following advantages:

1. The hexagonal guide ring of the local forming die and the final forming die enables precise and automatic alignment of the workpiece during placement, improves positioning accuracy to ±0.1mm, reduces labor intensity and improves production efficiency. the

2. The bottom of the local forming die and the final forming die is designed with a three-width flow-limiting cavity. Although three-width protrusions will be formed on the bottom surface of the workpiece, that is, the metal material flows into the flow-limiting cavity, but it is also not a defect. The local flow-limiting cavity is also a part of the size and shape of the formed workpiece, with a machining allowance of +2mm, and plays the role of flow-limiting and forming at the same time, ensuring that the metal fills the cavity of the local forming punch and the final forming punch. At the same time, it is beneficial to eject the workpiece from the die to realize continuous and uninterrupted production. the

3. The top block of the partial loading and final forming mold is designed as a three-width structure that can be replaced quickly. If it is damaged during the production process, it can be replaced quickly and freely. the

4. The cavity of the local forming die has a certain relationship with the local forming punch. The outer dimension of the local forming punch must be smaller than the cavity size of the die to form a metal material between the local forming die and the local forming punch. free movement zone. the

5. The cavity of the final forming punch and the final forming die conform to the size of the final product, the cavity of the final forming die is consistent with the size of the final forming punch, and the shape of the final forming punch is compared with the outer edge of the local forming punch In the plane part, during the partial forming process, the metal flows upward freely along the conical surface of the partial forming punch, so the formed partial forming workpiece will be shaped into a conical shape, and the total height of the workpiece will be higher than the final forming convex. The platform part of the mold is 30-40mm higher, so that in the final forming, the flat part of the final forming punch first contacts the top of the final forming workpiece, and then the metal material fills the surface of the final forming punch and V Type high gluten. the

In addition, the final forming punch is designed to limit the flow of the fan-shaped resistance cavity to avoid defects such as pushing and folding of the workpiece. Realize the precise forming of the internal complex surface of the component, and reduce the production cost. the

As shown in Figure 15, the following is an introduction to the extrusion forming method of processing high-strength and complex aluminum alloy special-shaped outer hexagonal seat sheet using the above-mentioned mold. Forming - heating before final forming - final forming. the

(1) Process 1: cutting

As shown in Figure 9: loading and unloading on the band saw machine, the blank is 7A04 forged aluminum alloy bar 1070

(2) Process 2: homogenization treatment: heating temperature: 470°C±5°C, heat preservation for 6h;

(3) Process three: preforming

As shown in Figure 2, first put the heated aluminum alloy bar stock 1070 into the preforming die 105 of the preforming die 1, during the downward loading process of the press slider, the preforming punch 104, the preforming die 105 extrudes the aluminum alloy cylindrical bar 1070 into a preformed workpiece 107 , and then the preformed ejector pin 108 ejects the preformed workpiece 107 from the preformed die 105 . the

As shown in Figure 10 and Figure 10-1, the thickness H of the preformed workpiece 107 is greater than the thickness of the actual final product aluminum alloy special-shaped outer hexagonal seat sheet, and the radius R of the arc edge 1075 of the preformed workpiece 107 is smaller than the actual final product. The radius of the arc edge of the product aluminum alloy special-shaped outer hexagonal seat plate, the present invention adopts the optimization design technology of the preformed workpiece, under the principle of constant volume, the height H of the preformed workpiece is increased, and the radius R of the arc is reduced, while the traditional During the overall loading extrusion forming, the external dimensions of the preformed workpiece are the same as those of the final formed workpiece, with larger area and lower thickness. During the forming process, the flow mode of metal at the internal V-shaped high rib is mainly horizontal The center flow, therefore, creates folding defects in the preformed workpiece during the V-shaped high-rib forming process. the

(4) Process four:

Heating before partial forming, the preformed workpiece 107 is heated at a temperature of 470°C±5°C, and kept for 4 hours;

Partially load the mold 2 with a preheating temperature of 430°C±5°C and keep it warm for 4 hours. the

(5) Process five: local forming

As shown in Figure 2, Figure 12, and Figure 12-1, the heated preformed workpiece 107 is put into the preheated partial forming mold 2 through the partial forming guide ring 206, and is formed during the downward forming process of the press slider. , the partial forming punch 205 and the partial forming die 201 extrude the preformed workpiece 107 into a partially formed workpiece 208. In the forming process, as shown in Figure 12, only the partial forming workpiece 208 and the partial forming punch 205 close contact, while at the end of the extrusion stage, the workpiece and the punch are not in complete contact, as shown in Figure 2, Figure 12, Figure 12-1, Figure 11, Figure 11-1, but along the local forming punch 205 Inverted conical reverse upward free flow, that is, the three straight sides 2086 and the arc edge 2085 of the special-shaped hexagon of the partial forming workpiece 208 can be free of metal left between the partial forming punch 205 and the partial forming die 201. The flow area 20 realizes free flow, and realizes that the main flow direction of the metal at the V-shaped local forming high rib is upward and the V-shaped free flow to both sides, that is, the V-shaped local forming high rib metal at the V-shaped local forming punch 205 appears at the same time. The direction of the high-rib pre-forming cavity 2054 and the metal free-flow area 20 flow in two directions, avoiding the folding defects generated during the existing overall extrusion forming, and realizing the complex internal structure and V of the partially formed workpiece 208 under a small load. The cavity is filled with metal at the high ribs of the partial forming, and then the partial forming ejector rod 209 pushes the partial forming workpiece 208 out through the partial forming ejector block 207 . the

(6) Process six:

Heating before final forming, local forming workpiece 208 heating temperature 470 ℃ ± 5 ℃, heat preservation 4h;

The final forming mold 3 is preheated at a temperature of 430°C±5°C and kept warm for 4 hours. the

(7) Process Seven: Final Forming

As shown in Fig. 7, Fig. 14, and Fig. 14-1, put the heated partially formed workpiece 208 into the final forming mold 3 through the final forming guide ring 206, and finally The forming punch 305 and the final forming die 301 extrude the partially formed workpiece 208 into the final formed workpiece 308. During the forming process, as shown in Fig. 14 and Fig. 12, the local loading initial stage of the partially formed workpiece 208 Different, because the special-shaped hexagons of the partial forming workpiece 208 flow upward in the partial forming die 201, so the final forming punch 305 and the final forming workpiece 308 are not completely in contact with the final forming workpiece 308 at the initial stage of final forming, but first The plane area 3050 of the final forming punch 305 is in contact with the special-shaped hexagonal top of the final forming workpiece 308, so that part of the metal slides and flows downward. After part of the metal fills the plane area 305, the metal will completely contact the final forming The punch 305, in addition, when the metal slides downward, the flow will be limited by the fan-shaped resistance cavity 314, which increases the flow resistance of the metal here, reduces its flow speed, and ensures that the metal here is in the final forming process. In a relatively static state, it does not move unstable with the downward movement of the final forming punch 305, and avoids defects such as pushing and folding in the central circular platform part 3081 of the final forming workpiece 308 (as shown in Figure 13 and Figure 13-1) , and the metal in this process is in a flowing state most of the time, there will be no dead zone, the forming load is reduced, and the filling efficiency is improved. the

Compared with the prior art, this forming method:

1. Design the workpiece size between the preforming process, the local loading process and the final forming process to be a continuous and uniform transition, and control the overlapping of the workpiece and the mold in different areas and at different times. For example, in the partial forming process, the preformed workpiece is in full contact with the local forming punch at the beginning, and the local forming punch and the preformed workpiece are not in complete contact at the later stage of forming, but flow freely in the reverse direction of the preforming punch; In the final forming process, the top of the final forming workpiece is first in contact with the plane of the final forming punch at the beginning, and the final forming punch is gradually completely overlapped with the final forming workpiece in the later stage. This continuous uniform transition design ensures the uniform flow of metal materials during the forming process, so that the complex cavity inside the workpiece can be completely filled. the

2. Design the outer dimension of the preformed workpiece as a special-shaped outer hexagon with straight sides and arcs, where the radius R of the arc and the length L of the straight sides are smaller than the final size of the product, and the height H of the blank is higher than that of the traditional overall loading process. In traditional overall loading forming, the metal flow velocity vector at the radius R is relatively large, so that during the forming process, the metal here will first fill the mold cavity, resulting in a sharp increase in the forming load, but at this time the rest of the cavity is indeed not full, resulting in defect. The radius R of the arc is optimized to increase the flow distance of the metal during the forming process, increase the forming resistance, make it fill the mold cavity with other parts of the metal at the same time, reduce the forming pressure, and eliminate the filling defect of the overall loading forming. the

3. The reverse complete filling method of V-shaped high ribs is designed in the final forming, and the technology of controlling the metal flow direction is designed by using the cooperation of the height H of the preformed blank and the radius R, so that the filling method of the internal V-shaped high ribs with a height-to-width ratio ≥ 3 is changed from horizontal to The center folding filling is changed to upward and side filling, which eliminates the folding defect of V-shaped high ribs in ordinary overall loading. the

4. The extrusion force of the present invention is 60%-70% lower than that of common integral forming, and the forming load is reduced by more than 60% compared with traditional integral forming, which greatly reduces the loss of equipment and molds. the

To sum up, the beneficial effect of the present invention is that the high-strength and complex aluminum alloy special-shaped outer hexagonal seat sheet can be realized by adopting the technology of controlling the step-by-step overlapping of the workpiece and the mold, the technology of optimizing the design of the preformed size to control the metal flow direction, and the technology of controlling the metal flow sequence to reduce the load. precise extrusion. the

Claims (5)

1. A high-strength complex aluminum alloy special-shaped outer hexagon seat plate extrusion final forming die, characterized in that it includes pins, final forming upper template, final forming upper backing plate, screws, final forming punch, final forming The forming die, the final forming lower backing plate, the screw, the final forming lower template, the final forming punch is installed under the final forming upper template and the final forming upper backing plate through screws and pins, and the final forming concave The die is installed on the final forming lower template and the final forming lower backing plate through screws, the final forming punch has a straight side and arc shaped outer hexagon, and the mouth of the final forming die is also corresponding Forming special-shaped outer hexagons, corresponding to the shape of the final forming workpiece, the mouth size of the final forming die is consistent with the size of the final forming punch, and the center of the final forming punch is the final forming conical convex surface , three straight sides upwards to form three V-shaped final forming ridges, a smooth transition is formed between the tangential connection between the V-shaped final forming ridges and the final forming conical convex surface, located between two adjacent V-shaped final forming ridges The final forming conical convex surface in between forms a gradually larger trumpet-shaped drainage final forming convex fan from the top to the bottom, and a fan-shaped resistance cavity is provided on the convex fan. The conical convex surface gradually increases from the top to the bottom, opposite to the metal flow direction, there is a plane area between the bottom of the bell-shaped drainage final forming convex fan and the V-shaped final forming convex ridge and the edge of the arc edge. Each V-shaped final forming ridge is provided with a V-shaped high rib final forming cavity. 2. A high-strength complex aluminum alloy special-shaped outer hexagon seat plate extrusion final forming die as claimed in claim 1, characterized in that: it also includes a final forming ejector block and a final forming ejector pin, and the V-shaped final forming The bottom of the forming groove forms a three-width flow limiting groove, and the final forming top block also forms three spokes correspondingly and is placed in the three-width flow limiting groove. The ejector pin is movably arranged in the through hole jointly formed by the final forming lower backing plate and the final forming lower template. 3. A high-strength complex aluminum alloy special-shaped outer hexagonal seat plate extrusion final forming die as claimed in claim 1, characterized in that: it also includes a final forming guide ring fixed above the final forming die , the guide ring is designed as a special-shaped hexagonal through cavity, with three straight sides and three arc sides, and the adjacent two sides are connected by straight sides and arc sides, with rounded transitions. 4. A high-strength complex aluminum alloy special-shaped outer hexagonal seat plate extrusion final forming die as claimed in claim 1, characterized in that three fan-shaped resistance cavities are formed on the final forming conical convex surface. 5. A high-strength complex aluminum alloy special-shaped outer hexagonal seat plate extrusion final forming die as claimed in claim 1, characterized in that: the direction of the V-shaped high-reinforced final forming cavity is in line with the final forming convexity. The straight sides of the mold are parallel.
