The invention discloses a floor for a clean room. The floor comprises an anti-skid layer, a flame-retardant layer, an activated carbon layer, a transient absorption layer and a wood layer. The transient absorption layer is mounted on the surface of the wood layer. The activated carbon layer is mounted on the surface of the transient absorption layer. The flame-retardant layer is mounted on the surface of the activated carbon layer. The anti-skid layer is mounted on the surface of the flame-retardant layer. The floor for the clean room is of a multi-layer complex structure, risk in fire accident is effectively prevented by the aid of the flame-retardant layer, pollution particles in the air can be absorbed by the activated carbon layer, skidding caused by wetness on the floor is prevented by the anti-skid layer, and accumulated water can be quickly drained outdoors by the transient absorption layer.
Description
Technical field
The present invention relates to a kind of floor, relate in particular to a kind of toilet and use floor.
Background technology
Toilet, also be called dust free room, refer in the certain space scope pollutants such as airborne particulate, noxious air, bacterium reduced under set quota, by indoor temperature, cleanliness factor, room pressure, air velocity and air-flow distribution, noise vibration and illumination, Electrostatic Control in a certain range of needs and specially designed room.No matter how external air conditions changes, it is indoor all can maintain the performances such as cleanliness factor, humiture and pressure that originally set requirement.The cleanliness factor one-level means that the contained large or dust particle that equal 0. 5um of every cubic feet of indoor air is no more than l; 10 grades of toilets are for being no more than 10; 100 grades, 1000 grades of toilets ... the like.
Summary of the invention
The technical problem that the present invention mainly solves is to provide a kind of toilet and uses floor, this floor adopts multi-layer compound structure, surface is with flame-retardant layer, effectively prevented the danger of flame, also, with active carbon layer, can absorb airborne contamination particle, also with skid resistant course, prevent that road surface is wet, inhale layer wink and make in the rapid discharge chamber of ponding energy.
For solving the problems of the technologies described above, the technical scheme that the present invention adopts is: a kind of toilet uses floor, comprising: skid resistant course, flame-retardant layer, active carbon layer, wink are inhaled layer and plank layer;
Described wink inhale layer and be arranged on described plank layer surface;
Described active carbon layer is arranged on inhales layer surface described wink;
Described flame-retardant layer is arranged on described active carbon layer surface;
Described skid resistant course is arranged on described flame-retardant layer surface.
In a preferred embodiment of the present invention, described skid resistant course is PVC wear-resisting antiskid material.
In a preferred embodiment of the present invention, described flame-retardant layer both can be placed in the middle of floor, can also be placed on the surface on floor.
In a preferred embodiment of the present invention, the material that described wink is inhaled layer is super absorbent resin.
The invention has the beneficial effects as follows: a kind of toilet of the present invention adopts multi-layer compound structure with floor, surface is with flame-retardant layer, effectively prevented the danger of flame, also with active carbon layer, can absorb airborne contamination particle, also, with skid resistant course, prevent that road surface is wet, inhale layer wink and make in the rapid discharge chamber of ponding energy.
The accompanying drawing explanation

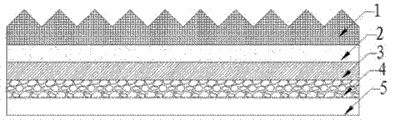

Fig. 1 is the structural representation of a kind of toilet of the present invention with floor.
In accompanying drawing, the mark of each parts is as follows: 1, skid resistant course; 2, flame-retardant layer; 3, active carbon layer; 4, wink is inhaled layer; 5, plank layer.
The specific embodiment
Below in conjunction with accompanying drawing, preferred embodiment of the present invention is described in detail, thereby so that advantages and features of the invention can be easier to be it will be appreciated by those skilled in the art that, protection scope of the present invention is made to more explicit defining.
Refer to Fig. 1, the embodiment of the present invention comprises: a kind of toilet uses floor, comprising: skid resistant course 1, flame-retardant layer 2, active carbon layer 3, wink are inhaled layer 4 and plank layer 5.
Described wink inhale layer 4 and be arranged on described plank layer 5 surface, the material that described wink is inhaled layer 4 is super absorbent resin, makes this floor have good water imbibition.
Described active carbon layer 3 is arranged on inhales layer 4 surface in described wink, and the contamination particle of active carbon in can absorbed air, make toilet cleaner.
Described flame-retardant layer 2 is arranged on described active carbon layer 3 surfaces, and described flame-retardant layer 2 makes this floor can prevent the destruction of flame; Described flame-retardant layer 2 both can be placed in the middle of floor, can also be placed on the surface on floor.
Described skid resistant course 1 is arranged on described flame-retardant layer 2 surfaces, and described skid resistant course 1 is PVC wear-resisting antiskid material, prevents that ground when people walk about in toilet from skidding.
Below a kind of toilet of the present invention is described in detail by the operating principle on floor.
When using, skid resistant course 1 can provide good frictional force for the staff, prevent from slipping, if catch fire, flame-retardant layer 2 can prevent that flame from damaging the staff, and active carbon layer 3 can also be purified the air of toilet, sponges the air atom of harm, during floor ponding, by inhaling layer 4 wink, can fast water be siphoned away, plank layer 5 provides powerful support force for whole floor.
Compared with prior art, a kind of toilet of the present invention adopts multi-layer compound structure with floor, surface is with flame-retardant layer, effectively prevented the danger of flame, also, with active carbon layer, can absorb airborne contamination particle, also with skid resistant course, prevent that road surface is wet, inhale layer wink and make in the rapid discharge chamber of ponding energy.
The foregoing is only embodiments of the invention; not thereby limit the scope of the claims of the present invention; every equivalent structure or conversion of equivalent flow process that utilizes manual of the present invention and accompanying drawing content to do; or directly or indirectly be used in other relevant technical fields, all in like manner be included in scope of patent protection of the present invention.
Claims (4)
1. a toilet uses floor, it is characterized in that, comprising: skid resistant course, flame-retardant layer, active carbon layer, wink are inhaled layer and plank layer;
Described wink inhale layer and be arranged on described plank layer surface;
Described active carbon layer is arranged on inhales layer surface described wink;
Described flame-retardant layer is arranged on described active carbon layer surface;
Described skid resistant course is arranged on described flame-retardant layer surface.
2. a kind of toilet according to claim 1 uses floor, it is characterized in that: described skid resistant course is PVC wear-resisting antiskid material.
3. a kind of toilet according to claim 1 uses floor, it is characterized in that: described flame-retardant layer both can be placed in the middle of floor, can also be placed on the surface on floor.
4. a kind of toilet according to claim 1 uses floor, it is characterized in that: the material that described wink is inhaled layer is super absorbent resin.
