Abstract

The invention provides a self-elevating protective shed, which includes: a column with a column pull ring; a connecting sleeve sleeved on the column, and the connecting sleeve is provided with a sleeve pull ring; the scaffold includes The truss chords arranged along the upper and lower horizontal planes, the truss webs arranged along the vertical surface, and the horizontal tie rods, wherein the truss webs connect the truss chords on the upper and lower two horizontal planes, and the horizontal tie rods connect the truss chords on the same horizontal plane rods, the scaffolding is fixed on the connecting sleeve and is arranged on the column through the connecting sleeve; and a protective plate is arranged on the truss chord of the scaffolding. The self-elevating protective shed has a simple structure and is easy to install, disassemble and transport. Moreover, the self-elevating protective shed can be assembled on the ground, and the column pull ring and the bushing pull ring can be pulled by lifting equipment, so that the self-elevating protective shed can be lifted as a whole. At the same time, the self-elevating protective shed is easy to disassemble and can be used many times, reducing the cost of use.

Description

self-elevating shelter

technical field

The invention relates to the field of building construction, in particular to a self-elevating protective shed.

Background technique

At present, the protective sheds used in construction generally adopt steel pipe fastener scaffolding to form. Most of the protective sheds built by steel pipes are door-type and disposable, and the construction and disassembly are time-consuming and labor-intensive, resulting in high cost of use.

Contents of the invention

The technical problem to be solved by the present invention is to provide a self-elevating protective shed that is simple in structure and easy to install, disassemble and transport.

The technical scheme that the present invention takes for solving the problems of the technologies described above is:

A self-elevating protective shed, comprising: a column with a column pull ring; a connecting sleeve sleeved on the column, and the connecting sleeve is provided with a sleeve pull ring; The truss chords arranged on the horizontal plane, the truss webs arranged along the erected surface, and the horizontal tie rods, wherein the truss webs are connected to the truss chords on the upper and lower horizontal planes, and the horizontal tie rods are connected to the truss chords on the same horizontal plane. The frame is fixed on the connecting sleeve and arranged on the column through the connecting sleeve; and the protective plate is arranged on the truss chord of the scaffold.

In the above scheme, the column has a plurality of first pin holes, and the connecting sleeve has a plurality of second pin holes corresponding to the first pin holes, and each pin passes through a first pin hole and corresponds to the first pin hole. The second pin hole to fix the connecting sleeve on the column.

In the above solution, the connecting sleeve includes a sleeve and a plurality of connecting lugs radiating outward from the sleeve, the sleeve is sleeved on the pole, and the shelf is fixed on the connecting lugs.

In the above solution, the connecting lugs include a first group of connecting lugs and a second group of connecting lugs respectively located at the upper and lower ends of the sleeve, and the first group of connecting lugs and the second group of connecting lugs are respectively used Truss chords fixed to the upper and lower horizontal planes.

In the above solution, the first group of connecting lugs and the second group of connecting lugs respectively include four connecting lugs uniformly arranged on the sleeve.

In the above scheme, the truss web and its corresponding truss chord are combined to form a truss beam, and the two connecting lugs of the connecting sleeve in the direction parallel to the truss chord are respectively connected to one end of a truss chord and a truss girders, and two connecting lugs along the vertical truss chord direction are used to connect adjacent truss girders.

In the above solution, the scaffolding includes a plurality of scaffolding units, and each scaffolding unit includes two adjacent parallel truss beams and a horizontal tie rod connecting the two truss beams.

In the above scheme, the sleeve pull ring, the sleeve and the plurality of connecting lugs are welded into an integral structure

In the above solution, the truss web and the truss chord are connected to each other through connecting corners.

In the above solution, the column pull ring is arranged on the top of the column, and the bottom of the column is provided with a flange, and the flange is connected with pre-embedded anchor bolts to fix the column on the ground.

Compared with prior art, the technical effect that the present invention obtains is:

The self-elevating protective shed has a simple structure and is easy to install, disassemble and transport. Moreover, the self-elevating protective shed can be assembled on the ground, and the column pull ring and the sleeve pull are pulled by the lifting equipment, so that the self-elevating protective shed ring is lifted as a whole. At the same time, the self-elevating protective shed is easy to disassemble and can be used many times, reducing the cost of use.

Description of drawings

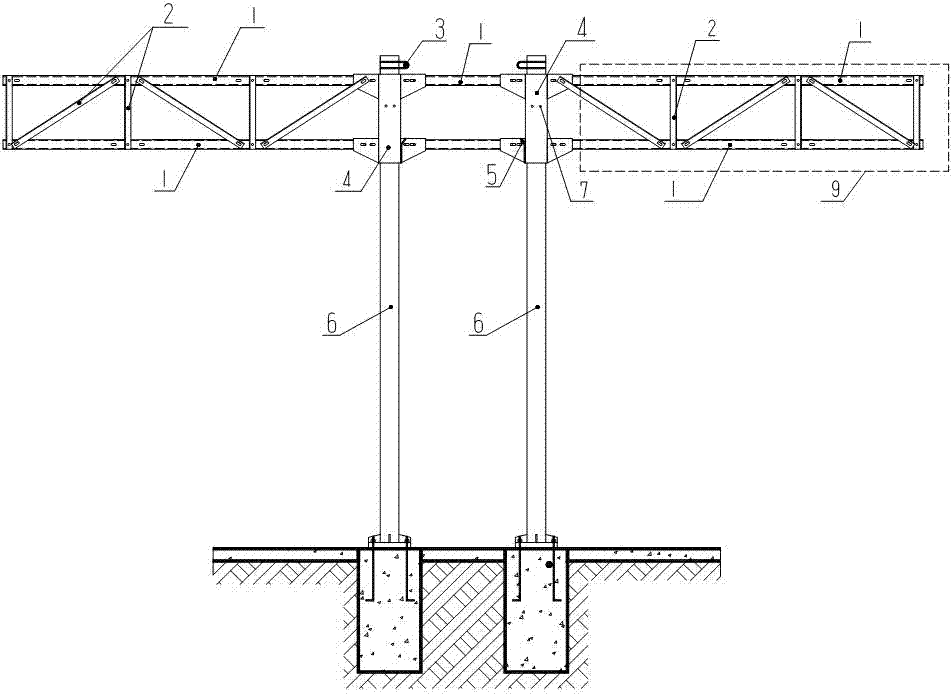

Fig. 1 is a structural schematic diagram of the first direction of the self-elevating shelter provided by the present invention.

Fig. 2 is a schematic structural diagram of the second direction of the self-elevating shelter provided by the present invention.

Fig. 3 is a schematic structural diagram of the vertical rod in Fig. 1 .

Fig. 4 is a schematic structural diagram of the connecting sleeve in Fig. 1 .

Fig. 5 is a top view of the scaffolding in Fig. 1 .

FIG. 6 is a schematic structural diagram of the horizontal pull rod in FIG. 1 .

In the figure: 1-truss chord, 2-truss web, 3-column pull ring, 4-connecting sleeve, 5-sleeve pull ring, 6-column, 7-second pin hole, 8-horizontal tie rod, 9-truss beam, 10-connecting lug plate, 11-the first pin hole, 13-connecting angle code, 14-stilt, 15-column sleeve.

Detailed ways

The present invention will be further described below in conjunction with the accompanying drawings and examples, but of course the following examples should not be construed as limiting the present invention.

Please refer to Fig. 1 to Fig. 5, which are structural schematic diagrams of the self-elevating shelter provided by the present invention. The self-elevating protective shed includes a column 6, a connecting sleeve 4, a shelf 14 and a protective plate.

In this embodiment, the column 6 is column-shaped, and the column pull ring 3 , a plurality of first pin holes 11 and a flange are arranged on it. The column pull ring 3 is arranged on the top of the column 6 . The flange is arranged at the bottom of the column 6, and the flange is connected with the embedded anchor bolts to fix the column 6 on the ground.

The connecting sleeve 4 is sleeved on the column 6 . The connecting sleeve 4 is provided with a sleeve pull ring 5 . The connecting sleeve 4 has a plurality of second pin holes 7 corresponding to the first pin holes 11 . Each pin (not shown) passes through a first pin hole 11 and a corresponding second pin hole 7 to fix the connecting sleeve 3 on the column 6 . The connecting sleeve 4 includes a cylindrical sleeve 15 and a plurality of connecting lugs radiating outward from the sleeve 15 , and the sleeve 15 is sleeved on the column 6 . In this embodiment, the sleeve 15 , the plurality of connecting lugs and the sleeve pull ring 5 are welded into an integral structure. The plurality of connecting lugs include a first group of connecting lugs and a second group of connecting lugs respectively located at the upper and lower ends of the sleeve 15, and the first group of connecting lugs and the second group of connecting lugs respectively include four A connecting lug 10 evenly arranged at the center of the side surface of the sleeve 15. Of course, the number and sequence of the connecting lugs 10 included in the connecting sleeve 4 are not limited to the above, and can be adjusted according to actual needs.

Please refer to FIG. 6 together. The scaffolding 14 includes a plurality of truss chords 1 arranged along the upper and lower horizontal planes, a plurality of truss webs 2 arranged along the vertical plane, and a plurality of horizontal tie rods 8 . The truss web 2 connects the truss chords 1 on the upper and lower horizontal planes. The truss webs 2 and the truss chords 1 are connected to each other through connecting corners 13 . The horizontal tie rod 8 is also connected to the connecting sleeve 4 through the connecting angle code 13 . The truss chords 1 corresponding to the truss webs 2 are combined into a truss girder 9 . The horizontal tie rods 8 are connected to the truss chords 1 on the same horizontal plane. In this embodiment, the scaffolding 14 includes a plurality of scaffolding units, and each scaffolding unit includes two adjacent parallel truss beams 9 and a horizontal tie rod 8 connecting the two truss beams 9 . The frame 14 is fixed on the connecting ear plate 10 of the connecting sleeve 4 and is arranged on the column 6 through the connecting sleeve 4 . Specifically, the two connecting lugs 10 of the connecting sleeve 4 in the direction parallel to the truss chord 1 respectively connect one end of a truss chord 1 and a truss beam 9 , while in the direction along the vertical truss chord 1 The two connecting lugs 10 are used to connect adjacent truss girders 9 . Therefore, when the connecting sleeve 4 connects the column 6 and the scaffold 14 , it can expand the module through the connecting lug 10 , that is, increase the number of scaffold units, thereby increasing the usable area of the scaffold 14 . In this embodiment, the scaffolding 14 is made of section steel.

The protective plate (not shown) is arranged on the truss chord 1 of the scaffold 14 .

When using the self-elevating scaffolding, the connecting sleeve 4 is set on the column 6 first, and then the flange plate at the bottom of the column 6 is connected with the embedded anchor bolts, so that the column 6 is fixed on the ground. Then, the scaffolding 14 is assembled, and the scaffolding 14 is fixed on the connecting sleeve 4 . Then, by lifting equipment, such as a chain block, with the column 6 as the guide rail, and by the column pull ring 3 on the column 6 and the sleeve pull ring 5 on the connection sleeve 4, the scaffold 14 and the connection sleeve 4 Carry out integral lifting, when the frame 14 and the connecting sleeve 4 are lifted to a predetermined position, the pin passes through a first pin hole 11 and a second pin hole 7 corresponding thereto, thereby fixing the frame 7 on the column 6 . Finally, install the fenders.

The self-elevating protective shed has a simple structure and is easy to install, disassemble and transport. Moreover, the self-elevating protective shelter can be assembled on the ground, and the column pull ring 3 and the casing pull ring 5 can be pulled by lifting equipment, so that the self-elevating protective shelter can be lifted as a whole. At the same time, the self-elevating protective shed is easy to disassemble and can be used many times, reducing the cost of use.

It should be noted that those skilled in the art should understand that the technical solution of the present invention can be modified or equivalently replaced without departing from the purpose and scope of the technical solution of the present invention, which should be covered by the claims of the present invention. .

Claims (10)

1. A self-promoting protective shed, characterized in that the self-promoting protective shed comprises: a column with a column pull ring; a connecting sleeve sleeved on the column, and the connecting sleeve is provided with a sleeve pull ring; Ring; scaffolding, which includes truss chords arranged along the upper and lower horizontal planes, truss webs arranged along the erected surface, and horizontal tie rods, wherein the truss webs connect the truss chords on the upper and lower two horizontal planes, and the horizontal tie rods Connecting the truss chords on the same horizontal plane, the scaffolding is fixed on the connecting sleeve and arranged on the column through the connecting sleeve; and the protective plate is arranged on the truss chords of the scaffolding. 2. The self-elevating protective shed according to claim 1, characterized in that, the column has a plurality of first pin holes, and the connecting sleeve has a plurality of second pin holes corresponding to the first pin holes , each pin passes through a first pin hole and a corresponding second pin hole, so as to fix the connecting sleeve on the column. 3. The self-elevating shelter according to claim 1, wherein the connecting sleeve comprises a sleeve and a plurality of connecting lugs radiating outward from the sleeve, and the sleeve is sleeved on the pole , the frame is fixed on the connecting ear plate. 4. The self-elevating shelter according to claim 3, characterized in that, the connecting lugs comprise a first group of connecting lugs and a second group of connecting lugs respectively located at the upper and lower ends of the sleeve, the first The first set of connecting lugs and the second set of connecting lugs are respectively used to fix the truss chords on the upper and lower horizontal planes. 5 . The self-elevating shelter according to claim 4 , wherein the first set of connecting lugs and the second set of connecting lugs respectively comprise four connecting lugs uniformly arranged on the sleeve. 6. The self-elevating shelter according to claim 5, characterized in that, the truss web and its corresponding truss chord are combined to form a truss girder, and the connecting sleeve is connected at two ends along the direction parallel to the truss chord. The two connecting lugs are respectively connected to one end of a truss chord and a truss girder, and the two connecting lugs along the vertical direction of the truss chord are used to connect adjacent truss girders. 7. The self-elevating protective shed according to claim 6, characterized in that, the shed comprises a plurality of shed units, each shed unit comprises two adjacent parallel truss beams, and a bridge connecting the two truss beams between the horizontal tie rods. 8. The self-elevating shelter according to claim 3, characterized in that, the sleeve pull ring, the sleeve and the plurality of connecting ear plates are welded into an integral structure. 9. The self-elevating shelter according to claim 1, characterized in that, the truss webs and truss chords are connected to each other through connecting corners. 10. The self-elevating shelter according to claim 1, characterized in that, the column pull ring is arranged on the top of the column, and the bottom of the column is provided with a flange, and the flange is connected with the embedded anchor bolts to fix the column to the ground.
