Abstract

本发明涉及烟草滤棒技术领域，公开了一种复合增香植物的三元烟草纤维纸质滤棒，所述滤棒由滤芯和包裹滤芯的成型纸组成，所述滤芯包括两段烟草纤维纸质滤芯和设置于两段烟草纤维纸质滤芯之间的天然香味植物滤芯，所述的烟草纤维纸质滤芯由纸质纤维卷制而成。本发明所述的纸质滤棒比醋酸纤维滤棒有更强的去除焦油和尼古丁的能力，原料来源于烟草或其他天然植物，消费者看到的滤棒的颜色与香烟烟丝一致，具有强烈的烟草天然材料质感，合理添加增香植物为降焦减害后的卷烟烟气增加了丰富的滋味，为滤棒技术领域指引了新的研究方向。

Figure 201210588882

The invention relates to the technical field of tobacco filter sticks, and discloses a ternary tobacco fiber paper filter stick compounded with aroma-enhancing plants. The filter stick is composed of a filter core and molding paper wrapping the filter core, and the filter core includes two sections of tobacco fiber paper. A quality filter element and a natural flavor plant filter element arranged between two sections of tobacco fiber paper filter elements, the tobacco fiber paper filter element is rolled from paper fibers. The paper filter rod of the present invention has a stronger ability to remove tar and nicotine than the cellulose acetate filter rod. The raw material comes from tobacco or other natural plants. The natural material texture of tobacco, and the reasonable addition of aroma-enhancing plants add a rich taste to the cigarette smoke after reducing tar and harm, and guide a new research direction for the field of filter rod technology.

Figure 201210588882

Description

Ternary baccy fiber paper filter stick of a kind of compound flavouring plant and preparation method thereof
Technical field
The present invention relates to the cigarette filter rod technical field, more particularly, relate to ternary baccy fiber paper filter stick of a kind of compound flavouring plant and preparation method thereof.
Background technology
Include particulate in cigarette smoke, usually be referred to as tar.Containing a large amount of chemical compositions in tar, have 4000 to 5000 kinds, is all the unburnt product of tobacco.Except tar, also include other materials in cigarette smoke, as " steam " or " gas " phase, also comprise volatile result of combustion of tobacco material, as acetaldehyde and other low molecular wt composition.Other phases in cigarette smoke, as " half volatile " phase, comprising many combustible substances, be equal to particulate and vapor phase.
Cigarette filter rod can filter smoke composition.The filter stick of cigarette is comprised of filter core and forming paper.The filter core of existing filter stick is all generally to adopt acetate fiber or polypropylene fibre to form.Because these filter cores that contain fiber directly contact with the lip of human body, media report is arranged recently, fiber particularly polypropylene fibre may enter human body along with the suction of cigarette, and health is caused damage.Filter tip is the important component part of cigarette, utilizes sorbing material and additive thereof in cigarette filter can filter out the harmful substance in the cigarette main flume.At present, the filter tip filter material mainly contains three types: acetate fiber, polypropylene fibre and paper.Paper filter tip is higher because flue gas is held back to efficiency, and more easily degrades and receive much concern than the acetate fiber filter tip abandoned and polypropylene fibre filter tip.
The report of some string filter stick for cigarettes is also arranged, as (patent No. 200910185294) reported a kind of string filter stick for cigarettes and preparation method thereof in currently available technology.But this patent filter stick directly consists of rice-straw fibre, wheat straw fiber, tabacco straw fiber and soybean stalk fiber, mainly to utilize plant straw to reduce the cigarette cost, the pollution to environment of filter tip after minimizing is used and tow production process, also can not provide the more function of multiple coincidence cigarette filter rod requirement in addition.
The cigarette filter of being made by the crape silk paper is introduced European cigarette market first in the twenties in 20th century, the filter tip of papery has stronger removal tar and the ability of nicotine than acetate fiber, but the consumer can not accept always, until the 1950's, exploitation along with acetate fiber, cigarette with filter tip just starts to obtain consumer's extensive approval, and main cause is that paper has " taste of paper ", and the consumer does not often like this point.And paper is softer, seriously polluted in the process of smoking, therefore should not directly as filter tip, use.At present, the filter tip that acetate fiber is made is be widely used a kind of.Along with the continuous pursuit of consumer for health, take acetate fiber as the main filter tip prepared via chemical substance because the non-natural characteristics are conflicted gradually.But also do not find the new material that substitutes acetate fiber fully at present.
Prior art adopts dry-papermaking also to obtain exploitation as the technology for preparing the cigarette filter tip rod filter material, and mostly adopting wood pulp cellulose is main fibrous material, or is aided with a certain proportion of composite fibre, meldable fibre or ecological fiber to reach target separately.As Chinese patent (CN180167B) " dry process paper filter tip and preparation method thereof ", it has added 5%～65% hot melt core-skin fibre in wood pulp cellulose; The material that Chinese patent application (CN101171981A) " binary composite cigarette filter stick " adopts expanded dry-papermaking to prepare for another example is as the filter core near the monobasic filter tip of pipe tobacco, and this material directly is comprised of pure wood pulp or 50%～95% wood pulp and 5%～50% composite fibre; Also have Chinese patent application (CN101624756A) " Biodegradable non-woven cloth for cigarette filter tips and preparation method thereof " to adopt wood pulp cellulose, polylactic acid fiber with high melting point, low melting point acid fiber by polylactic and water-soluble glue.Also there is the people directly baccy fiber to be delivered to the pressing section laying net for shaping by blower fan, form fluffy uniform fleece on the moulding guipure, again through applying glue, preheating, roll-in, solidify and cigarette filter material paper is made in moulding, and add natural medicinal herbs scrap feed material in forming process.The fiber that these dry-papermakings are used has related to the fiber types such as wood pulp cellulose, composite fibre, hot melt core-skin fibre, acid fiber by polylactic, although these fibers can be used for making the filter material of filter tip, but when filtering flue gas, make the fragrant loss of cigarette more, and bring certain wooden assorted gas into, in when suction to cigarette odor-absorbing with jealous certain negative effect arranged, can not guarantee the cigarette quality, the more important thing is the color of these current materials and quality and natural baccy feel differ greatly, the person that can not cater to the cigarette consumption pursuit to the natural baccy sensation.
In recent research, also there is the people that baccy fiber is applied to, in dry method paper processed, baccy fiber is delivered to the pressing section laying net for shaping by blower fan, form fluffy uniform fleece on the moulding guipure.Again through applying glue, preheating, roll-in, solidify and cigarette filter material paper is made in moulding, and add natural medicinal herbs scrap feed material in forming process.But its technical scheme is still laid and is formed by simple baccy fiber, and use various colloids to be bonded, so it removes the poor effect of assorted gas, and the colloid used too much can bring peculiar smell to cigarette holder, in addition, can not solve the problem that reduces tobacco waste, and additionally add in process of production baccy fiber, improve on the contrary the Tobacco using amount of whole cigarette.
In addition, existing tobacco productive corporation aborning, produce a lot of waste materials, as waste tobacco leaf, offal, fragment, offal etc., to the utilization of these waste materials, be mainly to substitute the small part pipe tobacco because fall after burnt purpose is reprocessed these waste materials in the pipe tobacco that adds cigarette at present, but well-known, the addition of these materials in pipe tobacco is subject to very large restriction, can not solve the problem of tobacco manufacturing enterprise waste disposal and the dynamics turned waste into wealth fully.
Also do not find at present the new paper filter tip material that can substitute acetate fiber fully, feel to consumer's natural baccy.
Summary of the invention
The technical problem to be solved in the present invention is the deficiency that overcomes existing filter stick technology, and the ternary baccy fiber paper filter stick of a kind of compound humectation plant is provided.The present invention designs the filter stick of three sections filter cartridge constructions, good filtration, the adsorption function based on the baccy fiber paper filter stick, reduce the tar content in cigarette smoke, and by flue gas, the active ingredient of fragrant plant is taken out of, supplement and fall Jiao to flue gas note and the jealous deficiency of bringing, guarantee the abundant note of cigarette, effectively flavouring.
Another technical problem that will solve of the present invention is to provide the preparation method of described filter stick.
Purpose of the present invention is achieved by the following technical programs:
The ternary baccy fiber paper filter stick of a kind of compound flavouring plant is provided, forming paper by filter core and parcel filter core forms, described filter core comprises two sections baccy fiber paper filter cores and is arranged at two sections fragrant plant particle filter cores between the baccy fiber paper filter core and connects to form, described baccy fiber paper filter core by the paper fiber roll-in, roll and form, described fragrant plant particle filter core adopts the fragrant plant material to prepare;
Described paper fiber be adopt tobacco material and long fibered raw material respectively defibrination obtain baccy fiber slurry and long fiber pulp, baccy fiber slurry and long fiber pulp are carried out to slurry, handsheet, squeezing, drying and make fiber paper base, fiber paper base is through being coated with, being drying to obtain;
Described fragrant plant material is one or more in tealeaves, peppermint, chrysanthemum, rose, jasmine, lavender, lily, cloves, orchid, tulip, azalea or lotus.
Preferably, described fragrant plant particle is the thin slice that granularity is 8 orders～50 purpose powder or Hou Du<=0.1mm.
Preferably described two sections baccy fiber paper filter cores and the length ratio that is arranged at two sections fragrant plant particle filter cores between the baccy fiber paper filter core are 1:1:1.
The raw material of described long fiber pulp is one or more in offal, cigarette stalk, tobacco stem, tendril, Radix Glycyrrhizae, cotton fiber, wood fibre or bamboo fibre.The long fibre that preferably uses offal, cigarette stalk to prepare, because itself comes from tobacco, have castering action to cigarette flavor, and the uniformity of pipe tobacco can be more strong.Preferred as another, long stapled raw material of the present invention can be selected bamboo fibre, because of its wide material sources, cost is moderate, (short) fiber that fibre structure and tobacco material prepare brings out the best in each other, guaranteed the function admirable such as tensile index, tensile strength, tear index, bulk, tightness of paper filter stick material, guaranteed that flue gas well holds back the fragrance of efficiency and cigarette smoke.The present invention can adopt the conventional long fiber pulp of buying.Described tobacco material comprises one or more in offal, tobacco leaf and fragment, offal, these several fibers are mainly derived from tobacco and produce the scrap feed material in enterprise production process, human and material resources, financial resources and the space that these scrap feed material need to expend manufacturing enterprise bank up or and dispose, for the preparation of filter stick, can allow scrap feed material be utilized more fully.
Preferably, to carry out the mass ratio of with slurry be 1:0.5～3 for described baccy fiber slurry and long fiber pulp; More preferred 1:1～2.
The present invention provides the preparation method of the ternary baccy fiber paper filter stick of described compound flavouring plant simultaneously, it is characterized in that, comprises the following steps:
S1. prepare the baccy fiber paper substrates;
S2. prepare fragrant plant particle filter core: the fragrant plant particle is spilt in the baccy fiber paper substrates through roll-in, rolls and obtain Chinese medicine particle filter core with forming paper parcel or by the fragrant plant particle;
S3. by the baccy fiber paper substrates through roll-in, roll, segment, obtain the baccy fiber paper filter core; Fragrant plant particle filter core is arranged between two sections baccy fiber paper filter cores; Obtain compound herbal ternary baccy fiber paper filter stick three sections filter core outer wrapping forming paper.
Preferably, S3 be by the baccy fiber paper substrates through roll-in, roll, segment, obtain the baccy fiber paper filter core, is applied to the pipe tobacco end of cigarette; The baccy fiber paper substrates, through roll-in, is rolled, the compacting groove, segment, must be with fluted baccy fiber paper filter core, is applied to the lip contact jaw of cigarette; The flavouring plant filter core is arranged between the baccy fiber paper filter core of pipe tobacco end and lip contact jaw; Three sections filter core outer wrapping forming paper and get final product.
Preferably, S1 comprises the following steps:
S11. baccy fiber raw material and long fibered raw material lixiviate are processed, obtained respectively extract, baccy fiber raw material solid slag, long fibered raw material extract and the long fibered raw material solid slag of baccy fiber raw material;
S12. by baccy fiber raw material solid slag and long fibered raw material solid slag difference defibrination, obtain baccy fiber slurry and long fiber pulp;
S13. baccy fiber slurry and long fibered raw material are starched to 1:0.5 ~ 3 compound sheets in mass ratio, through squeezing, drying, make the baccy fiber paper substrate;
S14. baccy fiber raw material extract step S1 obtained is coated onto on the baccy fiber paper substrate of S3 gained, and drying, obtain the baccy fiber paper substrates.
Preferably, to carry out the mass ratio of with slurry be 1:0.5～3 for described baccy fiber slurry and long fiber pulp.1:1～2 more preferably.
S2 is described pulverized 8 orders～50 mesh sieves by Chinese medicine; Perhaps Chinese medicine is cut into to the thin slice of Hou Du<=0.1mm.
The temperature that the described lixiviate of S11 is processed is 60～90 ℃, continues 60～100 minutes, 1～3 time repeatedly.
Beneficial effect of the present invention is as follows:
1, the invention provides a kind of new tri compound baccy fiber paper filter stick, the present invention designs the filter stick of three sections filter cartridge constructions, for the baccy fiber paper filter core be connected successively, fragrant plant particle filter core, the baccy fiber paper filter core, based on the baccy fiber paper filter stick, the present invention has thoroughly changed existing filter stick design of material thought, real by the texture of natural baccy fiber material and good filter stick function perfect adaptation, paper filter stick of the present invention has higher adsorptivity and relative absorbability, compare existing acetate fiber or polypropylene fibre fibrous material, the filter stick of papery has stronger removal tar and the ability of nicotine than acetate fiber, can adsorb more cigarette mainstream flue gas aerosol, thereby improve the filter efficiency of filter stick, guaranteed good burnt and the harm reduction function of falling, the active ingredient of fragrant plant particle is taken out of by flue gas, supplement and fall Jiao to flue gas note and the jealous loss brought, experimental results show that, aroma component in filter stick of the present invention in fragrant plant composition and flue gas complements each other, improve the cigarette smoke wetability, give cigarette abundanter note, promote flue gas fragrance richness.
2, the raw material that filter stick of the present invention is used all derives from natural plants, the filter tip of papery has been got rid of " taste of paper " and " taste of chemical fibre " that the consumer does not like, filter stick color outward appearance and cigarette shreds are close, there is strong tobacco natural material texture, be equipped with the flavor component of fragrant plant, bring the brand-new sense organ natural, flavouring of consumer and impact.Realize that the filter stick technology is visual, touching, product has abundant fragrance, causes consumer's interest, is easy to public praise and passes on from one to another, and the sale of cigarette product is had to stronger market and touch property, for technical field of cigarettes has been guided new research direction.
3, filter stick material of the present invention has good bearing capacity, and it is more suitable for carrying various cigarette additives.
4, adopt the ratio of suitable short fibered pulp and long fiber pulp, adopt paper process to prepare papery baccy fiber paper filter core, not only effectively improved the filter efficiency of filter stick, reduce tar and the harmful substance of cigarette, and improved greatly the demand of smoker to filter stick papery and natural baccy sensory experience, obtain better contact impression when sucking cigarette.
5, the preparation method of filter stick of the present invention is simple, is easy to promote.
The accompanying drawing explanation
Fig. 1 baccy fiber paper filter stick material pictorial diagram.
Fig. 2 baccy fiber paper filter stick electron microscope picture.

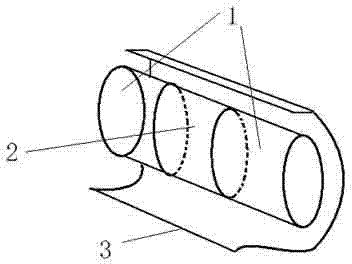

Fig. 3 is containing the ternary paper filter stick structural representation of flavouring plant.
Wherein, 1 is the baccy fiber paper filter core, and 2 is the natural flavor plant filter core, and 3 is forming paper.
Fig. 4 is with the ternary paper filter stick structural representation of the compound flavouring plant of trench design
Wherein, 1 is the baccy fiber paper filter core, and 2 is the humectation plant filter core, and 3 is forming paper, and 4 for being with fluted baccy fiber paper filter core, and 5 is groove.
The specific embodiment
Further describe the present invention below in conjunction with the drawings and specific embodiments.The natural flavor plant is commercial.
Embodiment 1
For S1, tobacco leaf, offal and Radix Glycyrrhizae prepare the baccy fiber filter core
(1) extract tobacco leaf and offal
S11. the tobacco material lixiviate is processed, obtained the extract of tobacco material, the solid slag of tobacco material;
The present embodiment by the feed liquid mass ratio be 1:7 respectively by offal and water, extracting temperature is 60 ℃, extraction time is 100 minutes, repeatedly extracts three times.The stem extracting solution obtained after processing and offal solid slag.
By the feed liquid mass ratio be 1:10 respectively by tobacco leaf and water, extracting temperature is 80 ℃, extraction time is 60 minutes, repeatedly extracts three times.The tobacco leaf extract obtained after processing and tobacco leaf solid slag.
S12. by the solid slag defibrination of tobacco material, obtain the baccy fiber slurry; Commercial wood fibre slurry the present embodiment refining process is with reference to the refining process in existing reconstituted tobacoo.
After Radix Glycyrrhizae is soaked to (soak time is not done strict restriction, is generally about 60 minutes) by suitable quantity of water, defibrination obtains the Radix Glycyrrhizae long fiber pulp;
S13. baccy fiber slurry and Radix Glycyrrhizae long fiber pulp are joined and copied for the ratio of 1:0.5 in mass ratio, handsheet obtains the baccy fiber paper substrate, at pressure, is to squeeze 5 minutes under 0.4MPa pressure, then is placed in temperature and is under 105 ℃ drying 1 hour.
S14. the stem extracting solution of S11 gained and tobacco leaf extract are applied on the baccy fiber paper substrate again, natural drying, obtain the baccy fiber paper substrates.
S2. prepare the tealeaves filter core: tealeaves is cut into to the tealeaves silk approximate with the cigarette shreds thickness, wraps up forming paper and get final product; Tealeaves can adopt the kind tealeaves such as commercial Iron Guanyin, oolong tea, does not do strict restriction.
S3. by the baccy fiber paper substrates through roll-in, roll, segment, obtain the baccy fiber paper filter core; The tealeaves filter core is arranged between two sections baccy fiber paper filter cores; At three sections filter core outer wrapping cork papers, obtain containing herbal ternary paper filter stick.The length ratio of three sections filter cores is 1:1:1.
As shown in Figure 3, wherein, 1 is the baccy fiber paper filter core to the structure of filter stick, and 2 is the tealeaves filter core, and 3 is forming paper.The same the present embodiment of following example structure.
Embodiment 2
S1. use the standby with groove baccy fiber filter stick of offal, tobacco fragment and cigarette straw
S11. the raw material lixiviate is processed, obtained the extract of raw material, the solid slag of raw material;
The present embodiment by the feed liquid mass ratio be 1:7 respectively by offal and water, extracting temperature is 60 ℃, extraction time is 100 minutes, repeatedly extracts three times.The stem extracting solution obtained after processing and offal solid slag.
By the feed liquid mass ratio be 1:10 respectively by tobacco leaf and water, extracting temperature is 80 ℃, extraction time is 60 minutes, repeatedly extracts three times.The tobacco leaf extract obtained after processing and tobacco leaf solid slag.
By the feed liquid mass ratio be 1:10 respectively by tobacco fragment and water, extracting temperature is 75 ℃, extraction time is 60 minutes.The tobacco fragment extract obtained after processing and tobacco fragment solid slag.
S12. defibrination after tobacco leaf solid slag and tobacco fragment solid slag being mixed according to the mass ratio of 1:1, obtain the baccy fiber slurry;
Separately get dry cigarette stalk and obtain cigarette stalk long fiber pulp with defibrination after suitable quantity of water immersion (soak time is not done strict restriction, is generally about 60 minutes); The present embodiment refining process is with reference to the refining process in existing reconstituted tobacoo.
S13. baccy fiber slurry and cigarette stalk long fiber pulp are joined and copied for the ratio of 1:3 in mass ratio, handsheet obtains the baccy fiber paper substrate, at pressure, is to squeeze 5 minutes under 0.4MPa pressure, then is placed in temperature and is under 105 ℃ drying 1 hour.
The extract of the baccy fiber raw material S14. step S11 obtained is coated with step to the dried baccy fiber paper substrate of S13, then dry, obtains the baccy fiber paper substrates; See accompanying drawing 1, the color of baccy fiber paper substrates and texture and pipe tobacco are very close.
S2. prepare the peppermint filter core: peppermint is cut into to the peppermint silk approximate with the cigarette shreds thickness, wraps up forming paper and get final product;
S3. by the baccy fiber paper substrates through roll-in, roll, segment, obtain the baccy fiber paper filter core, is applied to the pipe tobacco end of cigarette; The baccy fiber paper substrates, through roll-in, is rolled, the compacting groove, segment, must be with fluted baccy fiber paper filter core, is applied to the lip contact jaw of cigarette; The flavouring plant filter core is arranged between pipe tobacco end and lip contact jaw baccy fiber paper filter core; Three sections filter core outer wrapping forming paper and get final product.Plug configuration is shown in shown in accompanying drawing 4.
Embodiment 3
S1. prepare with groove baccy fiber filter stick with offal, tobacco fragment and tobacco stem
S11. the raw material lixiviate is processed, obtained the extract of raw material, the solid slag of raw material;
The present embodiment by the feed liquid mass ratio be 1:7 respectively by offal and water, extracting temperature is 60 ℃, extraction time is 100 minutes, repeatedly extracts three times.The stem extracting solution obtained after processing and offal solid slag.
By the feed liquid mass ratio be 1:10 respectively by tobacco leaf and water, extracting temperature is 80 ℃, extraction time is 60 minutes, repeatedly extracts three times.The tobacco leaf extract obtained after processing and tobacco leaf solid slag.
By the feed liquid mass ratio be 1:10 respectively by tobacco fragment and water, extracting temperature is 75 ℃, extraction time is 60 minutes.The tobacco fragment extract obtained after processing and tobacco fragment solid slag.
S12. defibrination after tobacco leaf solid slag and tobacco fragment solid slag being mixed according to the mass ratio of 1:1, obtain the baccy fiber slurry;
Separately get dry tobacco stem and obtain the tobacco stem long fiber pulp with defibrination after suitable quantity of water immersion (soak time is not done strict restriction, is generally about 60 minutes); The present embodiment refining process is with reference to the refining process in existing reconstituted tobacoo.
S13. baccy fiber slurry and tobacco stem long fiber pulp are joined and copied for the ratio of 1:1 in mass ratio, handsheet obtains the baccy fiber paper substrate, at pressure, is to squeeze 5 minutes under 0.4MPa pressure, then is placed in temperature and is under 105 ℃ drying 1 hour.
The extract of the baccy fiber raw material S14. step S11 obtained is coated with step to the dried baccy fiber paper substrate of S13, then dry, obtains the baccy fiber paper substrates; See accompanying drawing 1, the color of baccy fiber paper substrates and texture and pipe tobacco are very close.
S2. prepare the chrysanthemum filter core: chrysanthemum is cut into to the chrysanthemum silk approximate with the cigarette shreds thickness, wraps up forming paper and get final product;
S3. by the baccy fiber paper substrates through roll-in, roll, segment, obtain the baccy fiber paper filter core; The chrysanthemum filter core is arranged between two sections baccy fiber paper filter cores; At three sections filter core outer wrapping cork papers, obtain containing herbal ternary paper filter stick.
Embodiment 4
S1. prepare the baccy fiber filter stick with offal and wood-fibred slurry
S11. the tobacco material lixiviate is processed, obtained the extract of tobacco material, the solid slag of tobacco material;
The present embodiment by the feed liquid mass ratio be 1:7 respectively by offal and water, extracting temperature is 60 ℃, extraction time is 100 minutes, repeatedly extracts three times.The stem extracting solution obtained after processing and offal solid slag.
By the feed liquid mass ratio be 1:10 respectively by tobacco leaf and water, extracting temperature is 80 ℃, extraction time is 60 minutes, repeatedly extracts three times.The tobacco leaf extract obtained after processing and tobacco leaf solid slag.
S12. by the other defibrination of the solid slag of tobacco material, obtain the baccy fiber slurry; Commercial wood-fibred slurry, the present embodiment refining process is with reference to the refining process in existing reconstituted tobacoo.
S13. baccy fiber slurry and bamboo fibre slurry (commercial) are joined and copied for the ratio of 1:2 in mass ratio, handsheet obtains the baccy fiber paper substrate, at pressure, is to squeeze 5 minutes under 0.4MPa pressure, then is placed in temperature and is under 105 ℃ drying 1 hour.
The extract of the baccy fiber raw material S14. step S11 obtained is coated with step to the dried baccy fiber paper substrate of S13, then dry, obtains the baccy fiber paper substrates;
S2. prepare the cloves filter core: cloves is cut into to the cloves silk approximate with the cigarette shreds thickness, wraps up forming paper and get final product;
S3. by the baccy fiber paper substrates through roll-in, roll, segment, obtain the baccy fiber paper filter core; The cloves filter core is arranged between two sections baccy fiber paper filter cores; At three sections filter core outer wrapping cork papers, obtain containing herbal ternary paper filter stick.
Embodiment 5 application detect
1, physical property is measured the physical property of embodiment 1,2,3,4 gained filter sticks according to Y/CT 152-2001, and result is as described in Table 1.
Table 1 fibrous material physical property
Physical property embodiment 1 Embodiment 2 Embodiment 3 Embodiment 4
Tensile index/Nmg -1 36.03 36.18 36.70 36.15
Tensile strength/kNm -1 0.45 0.46 0.48 0.45
Tear index/mNm 2·g -1 1.98 1.98 2.01 1.97
Bulk/cm 3·g -1 2.23 2.22 2.41 2.29
Tightness/gcm -3 0.48 0.50 0.43 0.49
Air permeability/μ mPa -1·s -1 10.40 10.36 10.35 10.39
Filling value/cm 3·g -1 7.00 6.98 7.18 7.00
Relative absorbability % 119 119 119 119
2, cigarette Analyses Methods for Sensory Evaluation Results
Take that to adopt the cigarette of cellulose acetate filter rod be control sample, with the cigarette sample that adopts gained baccy fiber paper filter stick of the present invention, be to test sample, carry out the cigarette sensory evaluating smoking, the results are shown in Table shown in 2, after sensory evaluating smoking's mark is given a mark separately by 7 professional members of smoking, make even and divide equally rear gained (each project full marks is 10 minutes, retains a decimal after decimal point, trend is better, and mark is higher).
Table 2 Analyses Methods for Sensory Evaluation Results
Project Fragrance Harmony Assorted gas Stimulate Pleasant impression Total points
Control sample 8.2 8.1 7.1 7.0 8.0 38.4
Embodiment 1 test sample 8.6 9.0 7.6 7.9 8.6 41.7
Embodiment 2 test samples 8.9 9.1 7.5 7.8 8.6 41.9
Embodiment 3 test samples 9.0 9.1 7.8 8.0 8.6 42.5
Embodiment 4 test samples 8.9 9.0 7.6 7.8 8.6 41.9
3, seven kinds of harmful components chemical analyses of cigarette smoke
Take that to adopt the cigarette of cellulose acetate filter rod be control sample, with the cigarette sample that adopts the embodiment of the present invention 3 gained baccy fiber paper filter sticks, be to test sample, according to cigarette Evaluation of Harmfulness index, the smoke components that sample is burnt and sucked to generation carries out chemical detection, using 7 kinds of main harmful substances as detecting index, and cigarette harmfulness index is shown in Table 3, and result shows, the harmfulness index of embodiment 3 is compared with normal sample, has reduced by 16.17%.

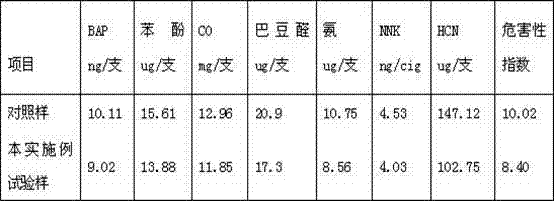

Table 3 cigarette Evaluation of Harmfulness result
Figure 995831DEST_PATH_IMAGE002

Claims (8)

1.一种复合增香植物的三元烟草纤维纸质滤棒，由滤芯和包裹滤芯的成型纸组成，其特征在于所述滤芯包括两段烟草纤维纸质滤芯和设置于两段烟草纤维纸质滤芯之间的香味植物颗粒滤芯连接组成，所述的烟草纤维纸质滤芯由纸质纤维辊压、卷制而成，所述的香味植物颗粒滤芯采用香味植物材料制备得到； 1. A ternary tobacco fiber paper filter rod of a composite aroma-enhancing plant is made up of a filter element and a wrapping paper for the filter element, and is characterized in that the filter element comprises two sections of tobacco fiber paper filter elements and is arranged on two sections of tobacco fiber paper The aroma plant particle filter element is connected between the quality filter elements, the tobacco fiber paper filter element is rolled and rolled from paper fiber, and the aroma plant particle filter element is prepared from aroma plant material; 所述纸质纤维是采用烟草原料和长纤维原料分别磨浆得到烟草纤维浆和长纤维浆，将烟草纤维浆和长纤维浆进行配浆、抄片、压榨、干燥制成纤维纸基，纤维纸基经涂布、干燥即得； The paper fiber is obtained by grinding tobacco raw material and long fiber raw material respectively to obtain tobacco fiber pulp and long fiber pulp, and then the tobacco fiber pulp and long fiber pulp are mixed, sheeted, pressed, and dried to form a fiber paper base. The paper base is obtained by coating and drying; 所述香味植物材料为茶叶、薄荷、菊花、玫瑰、茉莉、薰衣草、百合、丁香、兰花、郁金香、杜鹃花或荷花中的一种或几种。 The scented plant material is one or more of tea, mint, chrysanthemum, rose, jasmine, lavender, lily, clove, orchid, tulip, rhododendron or lotus. 2.根据权利要求1所述的复合增香植物的三元烟草纤维纸质滤棒，其特征在于，所述香味植物颗粒为粒度为8目～50目的粉末或者厚度≦0.1mm的薄片。 2. The ternary tobacco fiber paper filter rod of compound flavoring plants according to claim 1, characterized in that, the flavoring plant particles are powders with a particle size of 8 mesh to 50 mesh or flakes with a thickness of ≦0.1 mm. 3.根据权利要求1所述的复合草本植物的三元烟草纤维纸质滤棒，其特征在于，所述两段烟草纤维纸质滤芯和设置于两段烟草纤维纸质滤芯之间的香味植物颗粒滤芯的长度比例为1:1:1。 3. the ternary tobacco fiber paper filter rod of composite herb plant according to claim 1, is characterized in that, described two sections tobacco fiber paper filter cores and the fragrance plant that is arranged between two sections tobacco fiber paper filter cores The length ratio of the particle filter element is 1:1:1. 4.根据权利要求1所述复合增香植物的三元烟草纤维纸质滤棒，其特征在于 4. according to the ternary tobacco fiber paper filter stick of the described composite flavoring plant of claim 1, it is characterized in that 所述烟草纤维浆和长纤维浆进行配浆的质量比例为1:0.5～3。 The mass ratio of the tobacco fiber pulp and the long fiber pulp is 1:0.5-3. 5.根据权利要求1所述所述复合增香植物的三元烟草纤维纸质滤棒，其特征在于，所述长纤维浆的原料为烟梗、烟秸秆、烟茎、藤蔓、甘草、棉纤维、木质纤维或竹纤维中的一种或几种；所述烟草纤维浆的原料为烟叶、烟叶碎片、烟末或烟梗中的一种或几种。 5. The ternary tobacco fiber paper filter rod of the compound flavoring plant according to claim 1, wherein the raw material of the long fiber pulp is tobacco stems, tobacco stalks, tobacco stems, vines, licorice, cotton One or more of fibers, wood fibers or bamboo fibers; the raw material of the tobacco fiber pulp is one or more of tobacco leaves, tobacco leaf fragments, tobacco dust or tobacco stems. 6.一种权利要求1至5所述复合增香植物的三元烟草纤维纸质滤棒的制备方法，其特征在于，包括以下步骤： 6. A preparation method of the ternary tobacco fiber paper filter rod of the composite flavoring plant described in claims 1 to 5, characterized in that, comprising the following steps: S1.制备烟草纤维纸质基材； S1. Prepare tobacco fiber paper substrate; S2.制备香味植物颗粒滤芯：将香味植物颗粒用成型纸包裹或将香味植物颗粒洒于烟草纤维纸质基材经辊压、卷制得到中药材颗粒滤芯； S2. Prepare the scented plant particle filter element: wrap the scented plant particle with molding paper or sprinkle the scented plant particle on the tobacco fiber paper substrate, roll and roll to obtain a Chinese herbal medicine particle filter element; S3.将烟草纤维纸质基材经辊压，卷制，切段，得烟草纤维纸质滤芯；将香味植物颗粒滤芯设置于两段烟草纤维纸质滤芯之间；在三段滤芯外包裹成型纸即得复合草本植物的三元烟草纤维纸质滤棒。 S3. The tobacco fiber paper substrate is rolled, rolled, and cut into sections to obtain a tobacco fiber paper filter element; the aroma plant particle filter element is arranged between two sections of tobacco fiber paper filter elements; wrapped and formed outside the three-section filter element The paper is a ternary tobacco fiber paper filter rod of composite herbal plants. 7.根据权利要求6所述三元烟草纤维纸质滤棒的制备方法，其特征在于，S3是将烟草纤维纸质基材经辊压，卷制，切段，得烟草纤维纸质滤芯，应用于卷烟的烟丝端；将烟草纤维纸质基材经辊压，卷制，压制沟槽，切段，得带有沟槽的烟草纤维纸质滤芯，应用于卷烟的嘴唇接触端；将增香植物滤芯设置于烟丝端和嘴唇接触端的烟草纤维纸质滤芯之间；在三段滤芯外包裹成型纸即得。 7. according to the preparation method of the described ternary tobacco fiber paper filter rod of claim 6, it is characterized in that, S3 is that the tobacco fiber paper substrate is rolled, rolled, and cut into sections to obtain the tobacco fiber paper filter core, Applied to the shredded tobacco end of cigarettes; the tobacco fiber paper base material is rolled, rolled, grooved, and cut into sections to obtain a tobacco fiber paper filter element with grooves, which is applied to the lip contact end of cigarettes; The fragrant plant filter element is arranged between the shredded tobacco end and the tobacco fiber paper filter element at the lip contact end; the three-stage filter element is wrapped with molding paper. 8.根据权利要求6所述复合增香植物的三元烟草纤维纸质滤棒的制备方法，其特征在于，S1包括以下步骤： 8. according to the preparation method of the ternary tobacco fiber paper filter rod of the described composite flavoring plant of claim 6, it is characterized in that, S1 comprises the following steps:   S11.将烟草纤维原料和长纤维原料浸提处理，分别得到烟草纤维原料的提取液、烟草纤维原料固体渣、长纤维原料提取液和长纤维原料固体渣； S11. Extracting the tobacco fiber raw material and the long fiber raw material to obtain respectively the extract of the tobacco fiber raw material, the solid slag of the tobacco fiber raw material, the extract of the long fiber raw material and the solid slag of the long fiber raw material;   S12.将烟草纤维原料固体渣和长纤维原料固体渣分别磨浆，得到烟草纤维浆和长纤维浆； S12. Refining the tobacco fiber raw material solid slag and the long fiber raw material solid slag respectively to obtain tobacco fiber pulp and long fiber pulp;   S13.将烟草纤维浆和长纤维原料浆按质量比1：0.5~3混合抄片，经压榨，干燥，制成烟草纤维纸基； S13. Mix the tobacco fiber pulp and the long fiber raw material pulp according to the mass ratio of 1:0.5~3 and make sheet, press and dry to make tobacco fiber paper base;   S14.将步骤S1得到的烟草纤维原料提取液涂到S3所得的烟草纤维纸基上，干燥，得到烟草纤维纸质基材。 S14. Apply the tobacco fiber raw material extract obtained in step S1 to the tobacco fiber paper base obtained in S3, and dry to obtain a tobacco fiber paper base.
CN201210588882.9A 2012-12-29 2012-12-29 Ternary tobacco fiber paper filter rod made from composite aroma-enhancing plants and preparation method of filter rod Active CN103445295B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN201210588882.9A CN103445295B (en) 2012-12-29 2012-12-29 Ternary tobacco fiber paper filter rod made from composite aroma-enhancing plants and preparation method of filter rod

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN201210588882.9A CN103445295B (en) 2012-12-29 2012-12-29 Ternary tobacco fiber paper filter rod made from composite aroma-enhancing plants and preparation method of filter rod

Publications (2)

Publication Number Publication Date
CN103445295A true CN103445295A (en) 2013-12-18
CN103445295B CN103445295B (en) 2015-06-03

Family

ID=49728471

Family Applications (1)

Application Number Title Priority Date Filing Date
CN201210588882.9A Active CN103445295B (en) 2012-12-29 2012-12-29 Ternary tobacco fiber paper filter rod made from composite aroma-enhancing plants and preparation method of filter rod

Country Status (1)

Country Link
CN (1) CN103445295B (en)

Cited By (19)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN104005301A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Cool, refreshing and comfortable type raw tipping paper and preparation method thereof
CN104005268A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Antibacterial moisture-proof high-quality tipping base paper and preparation method thereof
CN104005296A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Tipping paper capable of reducing phlegm and stopping coughing and preparation method of tipping paper
CN104005287A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Tipping paper capable of clearing away heat and toxic materials and alleviating hot and dry feelings of throat and preparation method thereof
CN104005251A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Tipping paper with functions of clearing heat from throat and moistening throat and preparation method of tipping paper
CN104018401A (en) * 2014-05-30 2014-09-03 滁州卷烟材料厂 Tipping paper base paper with health care function and preparation method thereof
CN104153253A (en) * 2014-07-29 2014-11-19 安徽省三环纸业(集团)有限公司 Antioxidant, heat-clearing and detoxifying tipping paper of lady cigarettes and preparation method thereof
CN104153255A (en) * 2014-07-29 2014-11-19 安徽省三环纸业(集团)有限公司 Unprocessed rehmannia root and tortoise shell health aroma type tipping paper with high tensile strength and preparation method thereof
CN105132167A (en) * 2015-08-18 2015-12-09 昆明理工大学 Plant particle capable of moisturizing and carrying fragrance, and preparation method and applications thereof
WO2016040768A1 (en) * 2014-09-12 2016-03-17 R. J. Reynolds Tobacco Company Tobacco-derived filter element
CN105795517A (en) * 2016-05-18 2016-07-27 云南中烟新材料科技有限公司 Fen-flavor cigarette holder containing various natural plant materials
CN106617286A (en) * 2017-01-16 2017-05-10 河北中烟工业有限责任公司 Preparation method of lotus leaf-type composite filter rods of cigarettes
CN107212466A (en) * 2017-03-07 2017-09-29 南通烟滤嘴有限责任公司 Hot-fluid Cigarette
US9950858B2 (en) 2015-01-16 2018-04-24 R.J. Reynolds Tobacco Company Tobacco-derived cellulose material and products formed thereof
CN108991597A (en) * 2018-05-25 2018-12-14 颐中（青岛）实业有限公司 A kind of preparation method of fermentation of Chinese herbal medicine binary compound filter candle
CN108991598A (en) * 2018-05-25 2018-12-14 颐中（青岛）实业有限公司 A kind of preparation method of fermentation of Chinese herbal medicine Three-element composite filter core
CN109602073A (en) * 2018-11-16 2019-04-12 深圳市凯神科技股份有限公司 Tobacco filler, cigarette feed liquid additive and cigarette
CN113455695A (en) * 2021-06-30 2021-10-01 河南中烟工业有限责任公司 Processing method of clove raw material and application of clove raw material in clove type cigarettes
CN116268564A (en) * 2022-12-05 2023-06-23 内蒙古昆明卷烟有限责任公司 A slow-release filter stick with aroma-enhancing function and its preparation process

Citations (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN102247013A (en) * 2011-07-02 2011-11-23 云南瑞升烟草技术（集团）有限公司 Method for preparing low-acetification natural fiber filter stick
CN102273732A (en) * 2011-06-03 2011-12-14 湖南中烟工业有限责任公司 Weakly polar cigarette paper filter material and preparation and application methods thereof
CN102277780A (en) * 2011-07-19 2011-12-14 湖北中烟工业有限责任公司 Production method of tobacco sheet cigarette paper
CN102326863A (en) * 2011-07-02 2012-01-25 云南瑞升烟草技术（集团）有限公司 Preparation method of cigarette paper filter material containing nicotiana tabacum extract
CN102423135A (en) * 2011-08-28 2012-04-25 云南烟草科学研究院 Application of mint leaves and Pu'er tea in ternary composite filter tips
CN102599636A (en) * 2012-03-10 2012-07-25 广东中烟工业有限责任公司 Preparation method of reconstituted tobacco from tobacco stem and tobacco powder
CN102747647A (en) * 2012-06-06 2012-10-24 云南瑞升烟草技术（集团）有限公司 Paper cigarette filter rod filter media and processing method thereof

Patent Citations (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN102273732A (en) * 2011-06-03 2011-12-14 湖南中烟工业有限责任公司 Weakly polar cigarette paper filter material and preparation and application methods thereof
CN102247013A (en) * 2011-07-02 2011-11-23 云南瑞升烟草技术（集团）有限公司 Method for preparing low-acetification natural fiber filter stick
CN102326863A (en) * 2011-07-02 2012-01-25 云南瑞升烟草技术（集团）有限公司 Preparation method of cigarette paper filter material containing nicotiana tabacum extract
CN102277780A (en) * 2011-07-19 2011-12-14 湖北中烟工业有限责任公司 Production method of tobacco sheet cigarette paper
CN102423135A (en) * 2011-08-28 2012-04-25 云南烟草科学研究院 Application of mint leaves and Pu'er tea in ternary composite filter tips
CN102599636A (en) * 2012-03-10 2012-07-25 广东中烟工业有限责任公司 Preparation method of reconstituted tobacco from tobacco stem and tobacco powder
CN102747647A (en) * 2012-06-06 2012-10-24 云南瑞升烟草技术（集团）有限公司 Paper cigarette filter rod filter media and processing method thereof

Cited By (20)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN104005268B (en) * 2014-05-30 2016-05-04 滁州卷烟材料厂 A kind of antibacterial moistureproof high-quality cork paper body paper and preparation method thereof
CN104005268A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Antibacterial moisture-proof high-quality tipping base paper and preparation method thereof
CN104005296A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Tipping paper capable of reducing phlegm and stopping coughing and preparation method of tipping paper
CN104005287A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Tipping paper capable of clearing away heat and toxic materials and alleviating hot and dry feelings of throat and preparation method thereof
CN104005251A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Tipping paper with functions of clearing heat from throat and moistening throat and preparation method of tipping paper
CN104018401A (en) * 2014-05-30 2014-09-03 滁州卷烟材料厂 Tipping paper base paper with health care function and preparation method thereof
CN104005301A (en) * 2014-05-30 2014-08-27 滁州卷烟材料厂 Cool, refreshing and comfortable type raw tipping paper and preparation method thereof
CN104153253A (en) * 2014-07-29 2014-11-19 安徽省三环纸业(集团)有限公司 Antioxidant, heat-clearing and detoxifying tipping paper of lady cigarettes and preparation method thereof
CN104153255A (en) * 2014-07-29 2014-11-19 安徽省三环纸业(集团)有限公司 Unprocessed rehmannia root and tortoise shell health aroma type tipping paper with high tensile strength and preparation method thereof
WO2016040768A1 (en) * 2014-09-12 2016-03-17 R. J. Reynolds Tobacco Company Tobacco-derived filter element
US9950858B2 (en) 2015-01-16 2018-04-24 R.J. Reynolds Tobacco Company Tobacco-derived cellulose material and products formed thereof
CN105132167A (en) * 2015-08-18 2015-12-09 昆明理工大学 Plant particle capable of moisturizing and carrying fragrance, and preparation method and applications thereof
CN105795517A (en) * 2016-05-18 2016-07-27 云南中烟新材料科技有限公司 Fen-flavor cigarette holder containing various natural plant materials
CN106617286A (en) * 2017-01-16 2017-05-10 河北中烟工业有限责任公司 Preparation method of lotus leaf-type composite filter rods of cigarettes
CN107212466A (en) * 2017-03-07 2017-09-29 南通烟滤嘴有限责任公司 Hot-fluid Cigarette
CN108991598A (en) * 2018-05-25 2018-12-14 颐中（青岛）实业有限公司 A kind of preparation method of fermentation of Chinese herbal medicine Three-element composite filter core
CN108991597A (en) * 2018-05-25 2018-12-14 颐中（青岛）实业有限公司 A kind of preparation method of fermentation of Chinese herbal medicine binary compound filter candle
CN109602073A (en) * 2018-11-16 2019-04-12 深圳市凯神科技股份有限公司 Tobacco filler, cigarette feed liquid additive and cigarette
CN113455695A (en) * 2021-06-30 2021-10-01 河南中烟工业有限责任公司 Processing method of clove raw material and application of clove raw material in clove type cigarettes
CN116268564A (en) * 2022-12-05 2023-06-23 内蒙古昆明卷烟有限责任公司 A slow-release filter stick with aroma-enhancing function and its preparation process

Also Published As

Publication number Publication date
CN103445295B (en) 2015-06-03

Similar Documents

Publication Publication Date Title
CN103445295A (en) Ternary tobacco fiber paper filter rod made from composite aroma-enhancing plants and preparation method of filter rod
CN103054189B (en) Ternary tobacco fiber paper filter stick of composite moistening plants and preparation method thereof
CN103829374A (en) Tobacco fiber paper filter stick and preparation method thereof
CN114269168B (en) Reconstituted cocoa material for aerosol generation
CN103284327B (en) Tobacco paper filter stick combining bamboo fiber and preparation method of tobacco paper filter stick
CN102860586B (en) Non-woven fabric filter tip material with materia medica incense smoke and preparation method thereof
CN108783572A (en) The reconstituted tobacoo and production technology of the high porosity with herbal applied to low temperature cigarette
CN108713788A (en) The reconstituted tobacoo and production technology of a kind of high porosity applied to low temperature cigarette
CN108968139A (en) The reconstituted tobacoo and production technology of the high porosity with the fragrance of a flower applied to low temperature cigarette
CN101171981A (en) Binary composite cigarette filter stick
CN112853811A (en) Powder forming coating papermaking process
CN106136311A (en) A kind of non-tobacco new cigarette and preparation method thereof
CN115226951A (en) Electronic cigarette atomizing core, atomizer and electronic cigarette
CN101912161B (en) A mint filter stick for tobacco and preparation method thereof
CN206354420U (en) A kind of dry process reproduction tobacco leaf filter stick
CN118716667A (en) Roll-pressed sheet, preparation method thereof and cigarette
CN104256900A (en) Novel electronic cigarette cotton
JP7182805B2 (en) HNB herb aroma bomb flakes, filaments, filament cuts, recipes and production methods for herb aroma bombs
CN103110185B (en) A kind of ternary tobacco fiber paper filter rod of composite shredded tobacco and its preparation method
CN103110186B (en) Dibasic compound hollow tobacco fiber paper filtering stick and preparation method thereof
CN105167158B (en) The method preparing reconstituted tobacco sheets silk based on low-class tobacco raw material
CN103622157B (en) Ternary tobacco fiber paper filter stick containing herbaceous plants and manufacturing method thereof
CN101011186A (en) Reconstructed tobacco leaf formulation material using non-tobacco paper making method, its preparation and operation method
CN107663808B (en) Functional plant particle cigarette coating forming paper and preparation method thereof
CN108523242A (en) The low temperature cigarette and preparation method thereof of loose integrated tobacco segment with herbal

Legal Events

Date Code Title Description
C06 Publication
PB01 Publication
C10 Entry into substantive examination
SE01 Entry into force of request for substantive examination
C14 Grant of patent or utility model
GR01 Patent grant
