Abstract
The invention relates to battery processing equipment, particularly to a full-automatic plate cladding machine for a storage battery electrode plate. The full-automatic plate cladding machine comprises a rack, wherein a positive plate trough and a negative plate trough are formed in the rack; a positive plate crank sliding block mechanism and a negative plate crank sliding block mechanism are oppositely arranged on two sides of the bottoms of the positive plate trough and the negative plate trough; a paper tape holder is fixedly arranged on the rack; a paper feeding mechanism is arranged beside the paper tape holder; a paper cutting mechanism is arranged below the paper feeding mechanism; a distributing mechanism is arranged between the positive plate crank sliding block mechanism and the negative plate crank sliding block mechanism; a cast welding machine die moving mechanism is arranged on one side of the rack; a material transporting mechanism is arranged between the distributing mechanism and the cast welding machine die moving mechanism. According to the full-automatic plate cladding machine disclosed by the invention, the transporting and the cutting of the paper tape, the transportation of a positive plate and a negative plate, the plate cladding operation of the electrode plates and the paper tape, subsequent transportation of the cladded plate and the butting of the cast welding machine die are automatically operated, so that the operation efficiency of the whole working procedure is increased, the contact of persons and the electrode plates is reduced and the health of the persons is guaranteed.
Description
Technical field
The present invention relates to a kind of battery process equipment, the full-automatic wrapper sheet machine of especially a kind of accumulator plate.
Background technology
In the course of processing of storage battery, pole plate is significant components wherein, and along with the development of accumulator green production. art, in the existing course of processing, for the capacity that increases storage battery and make compact conformation, its electrode can be composed in parallel by the multi-disc pole plate.There is the assembly that the pole plate of identical polar connects into and be called the pole plate group, claim again the pole plate group.Pole plate group's manufacture is to align, what the little pole plate of negative pole replaced by separator paper is isolated and cuts afterwards and make, all to complete by manual operation in the past, not only working (machining) efficiency is very low, and because pole plate is generally plumbous material, easily produce heavy metal dusts in the course of processing, the health that is unfavorable for operating personnel, so consideration based on safety in production in national relevant regulations, require manufacturer to adopt automatic plate wrapping machine (also claiming flaker) in the processing of carrying out pole plate, so wrapper sheet machine miscellaneous occurred on the market, but the wrapper sheet process is divided into push jack substantially, the bag sheet, send sheet three large step, existing wrapper sheet machine generally passes through specific structure separately and realizes automatically wrapping emphatically the process of sheet, the method of there is no realizes the whole-course automation operation.
Summary of the invention
But the invention provides a kind of full-automatic wrapper sheet machine of accumulator plate of whole-course automation operation.
To achieve these goals, the present invention adopts following technical scheme:
The present invention includes a frame, described frame is provided with the positive plate hopper of placing positive plate and the negative plate hopper of placing negative plate, described positive plate hopper and negative plate hopper two bottom sides are relatively set with from the positive plate hopper and release the positive plate slider-crank mechanism of positive plate and release the negative plate slider-crank mechanism of negative plate from negative plate hopper bottom, be fixed with the paper tape frame of a loading paper tape on described frame, the other paper feed mechanism that is provided with carriage tape of paper tape frame, described paper feed mechanism below is provided with the paper cutting mechanism that cuts off paper tape, be provided with the feeding distribution mechanism of receiving positive/negative plate and carrying out the wrapper sheet operation between described positive plate slider-crank mechanism and negative plate crank mechanism, frame one side is provided with cast welding machine mold movement mechanism, be provided with feeding unit between feeding distribution mechanism and cast welding machine mold movement mechanism.
In said structure, described positive plate hopper comprises the tilting section of top and vertical section of below end, and described tilting section below is provided with bracing frame.
In said structure, described positive plate slider-crank mechanism comprises a column, the column top is provided with a crankwheel, be connected with a connecting rod on described crankwheel, described connecting rod connects a push rod by a bar linkage structure, push rod is provided with linear bearing, and linear bearing is installed in the linear axis bearing, and described push rod end connects a pushing piece.
In said structure, described paper tape frame comprises a vertical rack, and described vertical rack bottom is fixed on frame, and described vertical rack top is provided with the rotating shaft that paper tape is installed, a horizontal stand is fixed on described vertical rack top, and the horizontal stand end is provided with the axis of guide.
In said structure, described paper feed mechanism comprises that one is fixed in the paper feed support on frame, and described paper feed props up top of the trellis and is provided with a paper feed running roller, and described paper feed running roller connects a stepping motor, and the inside sidewalls of paper feed support is provided with paper input slot.
In said structure, described paper cutting mechanism comprises a cut paper support, described cut paper support connects blade holder by connecting axle, on described blade holder, paper cutting blade is installed, and is fixed with the cut paper cylinder that drives blade holder on described cut paper support.
In said structure, the cut paper support is provided with two connecting axles, and described cut paper cylinder is between two connecting axles.
In said structure, described feeding distribution mechanism comprises left cylinder and the right cylinder be oppositely arranged, described left cylinder and right cylinder are installed on respectively on left socle and right support, described left cylinder connects and parts hopper on the left side by a left connecting axle, described right cylinder connects and parts hopper on the right side by a right connecting axle, the described hopper that parts on the left side comprises a location notch, the location notch below is provided with left anodal board slot and left negative pole board slot successively, describedly part the locating piece that hopper comprises that a level is stretched out on the right side, the locating piece below is provided with right anodal board slot and right negative pole board slot successively.
In said structure, described cast welding machine mold movement mechanism is arranged in the side stand that is arranged on frame one side.
In said structure, also be provided with utmost point group reshaping device on described side stand.
Owing to having adopted said structure, the full-automatic wrapper sheet machine of accumulator plate of the present invention is from the conveying of the transmission of paper tape and cutting, positive and negative pole plate, pole plate and the wrapper sheet of paper tape operate follow-up wrapper sheet transportation and with the docking of cast welding machine mould, overall process is automation mechanized operation, improved greatly the operational efficiency of whole operation, significantly reduce contacting of personnel and pole plate, ensured personnel's health.
The accompanying drawing explanation
Fig. 1 is the overall structure schematic diagram of the embodiment of the present invention;
Fig. 2 is the whole plan structure schematic diagram of the embodiment of the present invention;
The structural representation of Fig. 3 embodiment of the present invention positive plate hopper;
Fig. 4 is the structural representation of embodiment of the present invention positive plate slider-crank mechanism;
Fig. 5 is the structural representation of embodiment of the present invention paper-feeding mechanism;
Fig. 6 is the structural representation of embodiment of the present invention paper feed mechanism;
Fig. 7 is the structural representation of embodiment of the present invention paper cutting mechanism;
Fig. 8 is the structural representation of embodiment of the present invention feeding distribution mechanism.
In figure: frame 1, positive plate hopper 2, negative plate hopper 3, positive plate slider-crank mechanism 4, negative plate slider-crank mechanism 5, paper tape frame 6, paper feed mechanism 7, paper cutting mechanism 8, feeding distribution mechanism 9, cast welding machine mold movement mechanism 10, feeding unit 11; Tilting section 201, vertical section 202, bracing frame 203; Column 401, crankwheel 402, connecting rod 403, connecting-rod cap 404, push rod 405, linear bearing 406, linear axis bearing 407, pushing piece 408; Vertical rack 601, rotating shaft 602, horizontal stand 603, the axis of guide 604; Paper feed support 701, paper feed running roller 702, stepping motor 703, paper input slot 704; Cut paper support 801, connecting axle 802, blade holder 803, paper cutting blade 804; Left cylinder 901, right cylinder 902, left socle 903, right support 904, left connecting axle 905, part hopper 906, right connecting axle 907 on the left side, part hopper 908 on the right side, location notch 9061, left anodal board slot 9062, left negative pole board slot 9063, locating piece 9081, right anodal board slot 9082, right negative pole board slot 9083; In side stand 12, utmost point group reshaping device 13.
Embodiment
As shown in Fig. 1-Fig. 8, the full-automatic wrapper sheet machine of the accumulator plate of the present embodiment comprises a frame 1, described frame 1 is provided with the positive plate hopper 2 of placing positive plate and the negative plate hopper 3 of placing negative plate, described positive plate hopper 2 and negative plate hopper 3 two bottom sides are relatively set with from positive plate hopper 2 and release the positive plate slider-crank mechanism 4 of positive plate and release negative plate slider-crank mechanism 5 from negative plate hopper 3 bottoms, be fixed with the paper tape frame 6 of a loading paper tape on described frame 1, the other paper feed mechanism 7 that is provided with carriage tape of paper tape frame 6, described paper feed mechanism 7 belows are provided with the paper cutting mechanism 8 that cuts off paper tape, but be provided with the feeding distribution mechanism 9 of receiving positive/negative plate and carrying out the folding of wrapper sheet operation between described positive plate slider-crank mechanism 4 and negative plate crank mechanism 5, frame 1 one sides are provided with cast welding machine mold movement mechanism 10, be provided with feeding unit 11 between feeding distribution mechanism 9 and cast welding machine mold movement mechanism 10.
During work, operating personnel are arranged on reel on paper tape frame 6, then positive plate and negative plate are respectively charged into to positive plate hopper 2 and negative plate hopper 3, positive plate slider-crank mechanism 4 and negative plate slider-crank mechanism 5 move simultaneously, paper feed mechanism 7 and paper cutting mechanism 8 actions simultaneously, the vertical paper tape that positive plate is pushed to cut, push feeding distribution mechanism 9, positive plate pushing piece operation 7 times, negative plate pushing piece operation 8 times, after completing, left cylinder and right air cylinder driven part hopper on the left side and part hopper on the right side and separate, positive plate and the negative plate wrapped naturally fall and stack, can form required pole plate group after the quantity that repeatedly repeats to reach predetermined, the paper feeding of paper feed mechanism motor, the paper cutting mechanism cut paper, paper tape length is by Electric Machine Control, in bag sheet process, positive/negative plate enters the material-dividing groove of feeding distribution mechanism simultaneously, respectively there is a short stroke cylinder material-dividing groove left and right, control the separately closed of material-dividing groove, when closed, the pole plate pushing piece advances material-dividing groove by pole plate, then cylinder unclamps, material-dividing groove is opened, positive/negative plate enters on feeding unit 11, 7 positive 8 negatively complete a utmost point group, then feeding unit 11 is transported utmost point group, after completing, shaping with cylinder, utmost point group is advanced in the cast welding machine mould, finish the work.
Particularly, in the present embodiment, described positive plate hopper 2 comprises the tilting section 201 of top and vertical section 202 of below end, and described tilting section below is provided with bracing frame 203.The structure of negative plate hopper 3 is identical with the structure of positive plate hopper 2, no longer be repeated in this description herein, during work, positive/negative plate is installed in hopper, by the pole plate slider-crank mechanism, the pole plate of bottommost is released, after the pole plate slider-crank mechanism exits, the pole plate of top descends due to the gravity reason, for pole plate is next time released ready.
In the present embodiment, described positive plate slider-crank mechanism 4 comprises a column 401, column 401 tops are provided with a crankwheel 402, be connected with a connecting rod 403 on described crankwheel 402, described connecting rod 403 connects a push rod 405 by a connecting-rod cap 404, push rod 405 is provided with linear bearing 406, and linear bearing 406 is installed in linear axis bearing 407, and described push rod 405 ends connect a pushing piece 408.During work, crankwheel 402 drive is rotated by motor, and an end of drivening rod 403 moves back and forth on a circumference, and the transmission by connecting-rod cap 404, push rod 405 makes pushing piece 408 carry out the reciprocating motion of level, thereby realizes the promotion to pole plate.In the present embodiment, the structure of negative plate slider-crank mechanism 5 is identical with the structure of positive plate slider-crank mechanism 4, repeats no more herein.
In the present embodiment, described paper tape frame 6 comprises a vertical rack 601, described vertical rack 601 bottoms are fixed on frame 1, described vertical rack 601 tops are provided with the rotating shaft 602 that paper tape is installed, a horizontal stand 603 is fixed on described vertical rack 601 tops, and horizontal stand 603 ends are provided with the axis of guide 604.During use, operating personnel directly are installed on reel in rotating shaft 602 and get final product, and then the front end of paper tape are incorporated into to the paper feed structure through the axis of guide 604.
In the present embodiment, described paper feed mechanism 7 comprises that one is fixed in the paper feed support 701 on frame 1, described paper feed support 701 tops are provided with a paper feed running roller 702, and described paper feed running roller 702 connects a stepping motor 703, and the inside sidewalls of paper feed support 701 is provided with paper input slot 704.
In the present embodiment, described paper cutting mechanism 8 comprises a cut paper support 801, described cut paper support 801 connects blade holder 803 by connecting axle 802, on described blade holder 803, paper cutting blade 804 is installed, is fixed with the cut paper cylinder 804 that drives blade holder 803 on described cut paper support 801.In order further to guarantee operating steadily of cutting knife, improve the cut paper quality, be provided with two connecting axles 802 in the present embodiment on cut paper support 801, described cut paper cylinder 804 is between two connecting axles 802.

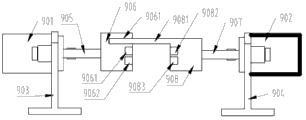

In said structure, described feeding distribution mechanism 9 comprises left cylinder 901 and the right cylinder 902 be oppositely arranged, described left cylinder 901 and right cylinder 902 are installed on respectively on left socle 903 and right support 904, described left cylinder 901 connects and parts hopper 906 on the left side by a left connecting axle 905, described right cylinder 902 connects and parts hopper 908 on the right side by a right connecting axle 907, the described hopper 906 that parts on the left side comprises a location notch 9061, location notch 9061 belows are provided with left anodal board slot 9062 and left negative pole board slot 9063 successively, describedly part the locating piece 9081 that hopper 908 comprises that a level is stretched out on the right side, locating piece 9081 belows are provided with right anodal board slot 9082 and right negative pole board slot 9083 successively.
In the present embodiment, the overall operation process is progressively to be moved toward opposite side by a side of frame 1, and for the ease of the installation of cast welding machine mold movement mechanism 10, described cast welding machine mold movement mechanism 10 is arranged in the side stand 12 that is arranged on frame one side.
Because may there be irregular situation in the utmost point group who obtains in the wrapper sheet operation at pole plate, for the ease of follow-up processing, in the present embodiment, also be provided with utmost point group reshaping device 13 on described side stand, utmost point group reshaping device is a pneumatic-finger, and the utmost point group that conveying is put in place is compressed shaping.
The foregoing is only the preferred embodiments of the present invention; not thereby limit the scope of the claims of the present invention; every equivalent structure or conversion of equivalent flow process that utilizes specification of the present invention and accompanying drawing content to do; or directly or indirectly be used in other relevant technical fields, all in like manner be included in scope of patent protection of the present invention.
Claims (10)
1. the full-automatic wrapper sheet machine of accumulator plate, it is characterized in that: comprise a frame, described frame is provided with the positive plate hopper of placing positive plate and the negative plate hopper of placing negative plate, described positive plate hopper and negative plate hopper two bottom sides are relatively set with from the positive plate hopper and release the positive plate slider-crank mechanism of positive plate and release the negative plate slider-crank mechanism of negative plate from negative plate hopper bottom, be fixed with the paper tape frame of a loading paper tape on described frame, the other paper feed mechanism that is provided with carriage tape of paper tape frame, described paper feed mechanism below is provided with the paper cutting mechanism that cuts off paper tape, be provided with the feeding distribution mechanism of receiving positive/negative plate and carrying out the wrapper sheet operation between described positive plate slider-crank mechanism and negative plate crank mechanism, frame one side is provided with cast welding machine mold movement mechanism, be provided with feeding unit between feeding distribution mechanism and cast welding machine mold movement mechanism.
2. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 1 is characterized in that: described positive plate hopper comprises the tilting section of top and vertical section of below end, and described tilting section below is provided with bracing frame.
3. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 2, it is characterized in that: described positive plate slider-crank mechanism comprises a column, the column top is provided with a crankwheel, be connected with a connecting rod on described crankwheel, described connecting rod connects a push rod by a connecting-rod cap, push rod is provided with linear bearing, and linear bearing is installed in the linear axis bearing, and described push rod end connects a pushing piece.
4. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 3, it is characterized in that: described paper tape frame comprises a vertical rack, described vertical rack bottom is fixed on frame, described vertical rack top is provided with the rotating shaft that paper tape is installed, a horizontal stand is fixed on described vertical rack top, and the horizontal stand end is provided with the axis of guide.
5. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 4, it is characterized in that: described paper feed mechanism comprises that one is fixed in the paper feed support on frame, described paper feed props up top of the trellis and is provided with a paper feed running roller, described paper feed running roller connects a stepping motor, and the inside sidewalls of paper feed support is provided with paper input slot.
6. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 5, it is characterized in that: described paper cutting mechanism comprises a cut paper support, described cut paper support connects blade holder by connecting axle, on described blade holder, paper cutting blade is installed, is fixed with the cut paper cylinder that drives blade holder on described cut paper support.
7. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 6, it is characterized in that: the cut paper support is provided with two connecting axles, and described cut paper cylinder is between two connecting axles.
8. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 7, it is characterized in that: described feeding distribution mechanism comprises left cylinder and the right cylinder be oppositely arranged, described left cylinder and right cylinder are installed on respectively on left socle and right support, described left cylinder connects and parts hopper on the left side by a left connecting axle, described right cylinder connects and parts hopper on the right side by a right connecting axle, the described hopper that parts on the left side comprises a location notch, the location notch below is provided with left anodal board slot and left negative pole board slot successively, describedly part the locating piece that hopper comprises that a level is stretched out on the right side, the locating piece below is provided with right anodal board slot and right negative pole board slot successively.
9. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 8 is characterized in that: described cast welding machine mold movement mechanism is arranged in the side stand that is arranged on frame one side.
10. the full-automatic wrapper sheet machine of accumulator plate as claimed in claim 9, is characterized in that: also be provided with utmost point group reshaping device on described side stand.
