CN103338302A - Method of interaction experience of double-screen touch mobile phone - Google Patents

Abstract

The invention discloses an interactive experience method for a dual-screen touch mobile phone. The dual-screen touch mobile phone includes a first display screen and a second display screen, including the following steps: S1, the first display screen is normally turned on, and the current interface is displayed; S2. Judging whether there is a new event reminder, if not, return to step S1, if yes, execute to wake up the second display screen; S3, judge whether there is a trigger event at present, if not, return to step S1, if yes, then execute The content in the second display screen is transferred to the first display screen for display; S4. After the user completes the time query, press the return key to return to the previous use state of the first screen and make the second screen enter the sleep state. The method of the present invention can better meet the user's needs and give the user a better experience through the switching of the content of the first display screen and the second display screen; meanwhile, the purpose of saving electricity and power consumption can also be achieved.

Description

An interactive experience method for a dual-screen touch mobile phone

technical field

The invention relates to the technical field of touch-screen mobile phones, in particular to an interactive experience method for a dual-screen touch mobile phone.

Background technique

With the development of science and technology, people's demand for mobile phones is getting higher and higher. Nowadays, smart phones occupy a major share of the market, and smart dual-screen mobile phones have become a hot spot among them. There are also many dual-screen mobile phones in the prior art, which basically include a fuselage and a main display screen arranged on the upper surface of the fuselage. There is an auxiliary display screen electrically connected to the main display screen. In use, the main display screen and the auxiliary display screen are on the same plane to form a large screen. The above-mentioned dual-screen mobile phone has improved the structure of the mobile phone, but it cannot meet people's needs for using the dual-screen mobile phone, and there are still defects in the aspect of human-computer interaction. In addition, it is well known that smart phones consume a lot of power. In the above-mentioned dual-screen mobile phones, the two screens are always in working condition, which will consume a lot of power. This will not only affect the use of users, but also affect the performance of mobile phones. life.

Contents of the invention

The purpose of the present invention is to overcome the shortcomings and deficiencies of the prior art, and provide an interactive experience method for a dual-screen touch mobile phone.

The object of the present invention is achieved through the following technical solutions:

The interactive experience method for a dual-screen touch mobile phone of the present invention, the dual-screen touch mobile phone includes a first display screen and a second display screen, including the following steps:

S1. The first display is turned on normally, displaying the current interface;

S2. Determine whether there is a new event reminder, if not, return to step S1, and if yes, wake up the second display screen;

S3. Determine whether there is a trigger event at present, if not, return to step S1, if yes, transfer the content in the second display screen to the first display screen for display;

S4. After the user completes the time query, press the return key to return to the previous use state of the first screen and make the second screen enter the sleep state.

Preferably, in step 3, it also includes executing multi-task event processing, the steps of which are: the second display screen displays a task reminder box, the first display screen displays the current task details; judging whether a task trigger action is received on the second display screen, If yes, switch to trigger task, if no, return.

Preferably, in step S1, when the whole machine is in the sleep state, the following steps are also included:

S5. Determine whether there is a wake-up event, if not, continue to be in the sleep state, and if so, wake up the second display screen;

S6. Determine whether there is a trigger event, if not, continue to be in the sleep state, and if yes, transfer the detailed content of the second display screen to the first display screen for display.

Preferably, when the mobile phone is in the charging state, the new event is only displayed on the second display screen, and when the user needs to view the content, the detailed content is transferred to the first display screen for display by triggering an event.

Preferably, the second display screen is also used as a display module of the work task status bar, and the content of the first display screen is switched by selecting a work task in the second display screen.

Preferably, in step S2, the new event reminder includes incoming calls, text messages or network update information.

Preferably, the network update information includes QQ information, WeChat information or weather update information.

Preferably, the trigger event includes click, long press or drag event.

Compared with the prior art, the present invention has the following advantages and effects:

1. The method of the present invention can better meet the user's needs and give the user a better experience by switching the contents of the first display screen and the second display screen.

2. In the method of the present invention, when the mobile phone is in a dormant state, incoming calls, short messages and network update information are only displayed on the second display screen, and the trigger event is executed when the user needs to check, which can save power and work consumption purpose.

Description of drawings

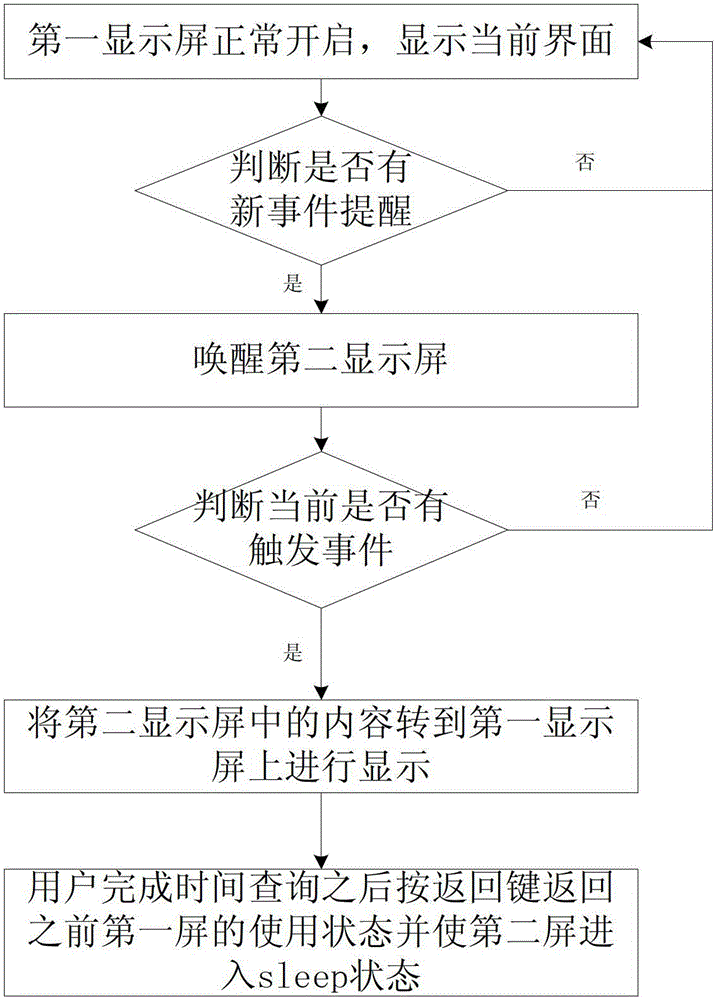

Fig. 1 is a flow chart of a method for interactive experience of a dual-screen touch mobile phone of the present invention;

Fig. 2 is the flow chart when double-screen touch mobile phone multitasking processing of the present invention;

Fig. 3 is a flow chart of the present invention when the whole machine is in a dormant state.

Detailed ways

The present invention will be further described in detail below in conjunction with the embodiments and the accompanying drawings, but the embodiments of the present invention are not limited thereto.

Example

As shown in Figure 1, the dual-screen mobile phone of this embodiment includes a first display screen and a second display screen, and the first display screen and the second display screen are controlled by the main control to realize switching between screens and other operations. The interactive experience method of the dual-screen touch mobile phone of this embodiment specifically includes the following steps:

S1. When the user uses a dual-screen mobile phone, the first display screen is normally turned on and displays the current interface;

S2. Determine whether there is a new event reminder, if not, return to step S1, and if yes, wake up the second display screen;

S3. Determine whether there is a trigger event at present, if not, return to step S1, if yes, transfer the content in the second display screen to the first display screen for display;

S4. After the user completes the time query, press the return key to return to the previous use state of the first display screen, and put the second display screen into a sleep state, which can save power consumption of the mobile phone.

The new event reminder includes incoming calls, short messages or network update information, and the network update information includes QQ information, WeChat information or weather update information; the trigger event includes click, long press or drag event. Of course, new events and trigger events are not limited to the above-mentioned ones, and other events that can realize the interaction method of this embodiment should be included within the scope of the present invention.

As shown in Figure 2, when a multi-task event needs to be executed, first, the second display screen displays a task reminder box, and the first display screen displays the current task details; determine whether a task trigger action has been received on the second display screen, and if so , then switch to the trigger task, if not, return, so as to realize the switching between multiple tasks.

As shown in Figure 3, when the whole machine is in the sleep state, the specific execution steps are as follows:

S5. Determine whether there is a wake-up event, if not, continue to be in the sleep state, and if so, wake up the second display screen;

S6. Determine whether there is a trigger event, if not, continue to be in the sleep state, and if yes, transfer the detailed content of the second display screen to the first display screen for display.

In addition, in order to better realize the human-computer interaction method, when the mobile phone is in the charging state, the new event is only displayed on the second display screen, and when the user needs to view the detailed event, the detailed content is transferred to the first display screen by triggering the event to display.

The above-mentioned embodiment is a preferred embodiment of the present invention, but the embodiment of the present invention is not limited by the above-mentioned embodiment, and any other changes, modifications, substitutions, combinations, Simplifications should be equivalent replacement methods, and all are included in the protection scope of the present invention.

Claims (8)

1. a double screen touches the interactive experience method of mobile phone, and described double screen touches mobile phone and comprises first display screen and second display screen, it is characterized in that, comprises the steps:

S1, first display screen are normally opened, and show current interface;

S2, judged whether that new events reminds, if do not have, then returned step S1, if having, then carried out and wake second display screen up;

S3, judge current whether trigger event is arranged, if do not have, then return step S1, if having, then the content in second display screen is forwarded on first display screen and show;

S4, user's deadline return by return key after inquiring about before first screen the use state and make second screen enter the sleep state.

2. double screen according to claim 1 touches the interactive experience method of mobile phone, it is characterized in that, in the step 3, also comprises and carries out the multitask event handling, the steps include: that second display screen shows the task reminders frame, and first display screen shows the current task details; Judge whether receive the task trigger action on second display screen, if any being, then switch to the triggering task, if not, then return.

3. double screen according to claim 1 touches the interactive experience method of mobile phone, it is characterized in that, among the step S1, when complete machine is in the sleep state, also comprises the steps:

S5, judge whether wake events, if do not have, then kept the sleep state, if having, then waken second display screen up;

S6, judged whether trigger event, if do not have, then kept the sleep state, if having, then the detailed content of second display screen has been forwarded on first display screen and show.

4. double screen according to claim 1 touches the interactive experience method of mobile phone, it is characterized in that, when mobile phone was in charged state, new events only showed at second display screen, forwards detailed content to first display screen by trigger event again when the user needs viewing content and show.

5. double screen according to claim 1 touches the interactive experience method of mobile phone, it is characterized in that second display screen also as the display module of task status bar, by selecting the task in second display screen, switches the content of first display screen.

6. touch the interactive experience method of mobile phone according to each described double screen among the claim 1-5, it is characterized in that, among the step S2, described new events is reminded and is comprised incoming call, note or network lastest imformation.

7. double screen according to claim 6 touches the interactive experience method of mobile phone, it is characterized in that described network lastest imformation comprises QQ information, little letter information or weather lastest imformation.

8. touch the interactive experience method of mobile phone according to each described double screen among the claim 1-5, it is characterized in that, described trigger event comprises clicks, grow by or drag events.
