Abstract
本发明涉及医疗器械技术领域，是用于创伤、造影、介入治疗等创口止血的一种压迫止血器，由固定座（1）、压迫螺杆（2）、手柄（3）、衔接件（4）和压迫板（5）组成，固定座分托板（1.1）、竖柱（1.2）和横杆（1.3）三部分，压迫螺杆（2）置于横杆（1.3）游离端的螺孔内，压迫螺杆的顶端设有手柄孔，用于安插手柄（3），压迫螺杆的底端通过万向螺丝与衔接件（4）相连，衔接件与压迫板（5）衔接。本发明结构简单，使用方便，由于压迫螺杆与衔接件通过万向螺丝相连，因此便于调节压迫板方向，对于不同部位不同形状大小的创面，只要更换相应规格型号的压迫板，调节下压松紧度，就能有效压迫创面达到止血的目的，且不容易出现移位现象。
The invention relates to the technical field of medical devices, and is a compression hemostat used for wound hemostasis in trauma, radiography, interventional therapy, etc. Composed of compression plate (5), the fixed seat is divided into three parts: support plate (1.1), vertical column (1.2) and cross bar (1.3). Compression screw (2) is placed in the screw hole of the free end of The top of the screw rod is provided with a handle hole for inserting the handle (3), and the bottom end of the compression screw rod is connected with the connecting piece (4) through a universal screw, and the connecting piece is connected with the compression plate (5). The present invention is simple in structure and easy to use. Since the compression screw rod is connected with the connecting piece through a universal screw, it is convenient to adjust the direction of the compression plate. For wounds of different shapes and sizes in different parts, it is only necessary to replace the compression plate of the corresponding specification and model to adjust the tightness of the compression. , can effectively compress the wound to achieve the purpose of hemostasis, and is not prone to displacement.
Description
Technical field
The present invention relates to technical field of medical instruments, is a kind of compression apparatus for the hemostasis of the wounds such as wound, radiography, interventional therapy.
Background technology
Clinically, wound needs hemostasis by compression usually behind the Minimally Invasive Surgery, such as the general sandbag pressing that adopts such as coronary arteriography, angiography, chemoembolization of hepatic carcinoma, Limb Trauma is adopted hemostatic apparatus or tourniquet, groin place wound hemorrhage adopts pressurization to twine or free-hand hemostasis by compression, although convenient with sandbag pressing, the patient must keep motionless posture, the easy slippage of movable sandbag is slightly arranged, and poor patient does not reach the effect of hemostasis for coagulation function; When running into sharp injury, need to adopt limbs the winding tourniquet relatively to require great effort, easily cause the untoward reaction such as limb ischemia or tourniquet tension, especially when groin place sharp injury, because region of anatomy particularity adopts tourniquet or with the difficulty such as hemostasis by compression bandage, so adopt tourniquet or all undesirable with the sandbag pressing hemostasis.
Summary of the invention
The purpose of this invention is to provide a kind of easy and simple to handle, compression apparatus that can effectively stop blooding.
The present invention is comprised of holder, compressing screw rod, handle, convergence piece and plate for forcing, holder side-looking similar C-shaped, divide supporting plate, mullion and cross bar three parts, supporting plate is positioned at the bottom, is used for affected part is held up, its internal layer is provided with one deck sponge, flannelette or other elasticity heat-barrier materials, so that contact is comparatively comfortable during skin, mullion is positioned at the central authorities of supporting plate one side perpendicular to supporting plate, and cross bar is positioned at the top of mullion, the vertical direction of its free-end is provided with screw, and screw is provided with female thread; The compressing screw rod places in the screw of cross bar free-end, the external screw thread of compressing screw rod and the female thread of external diameter and cross bar screw and internal diameter coupling, the top of compressing screw rod is provided with horizontal circular hole, this circular hole is handle hole, handle hole is used for assigning handle, handle is a little pole, the two ends bulging, in case handle is from the handle hole slippage, the bottom of compressing screw rod links to each other with convergence piece by universal screw, convergence piece is by the rotatable different angles of universal screw, the face of convergence piece below is provided with draw-in groove, this draw-in groove is used for being connected with plate for forcing, and plate for forcing is rounded, ellipse or rectangle, lower surface covers one deck sponge, flannelette or other elastomeric materials, be conducive to press wound surface, the upper surface of plate for forcing is provided with the projection that the draw-in groove with convergence piece below is complementary, in order to should projection insert the draw-in groove of convergence piece, plate for forcing is docked with convergence piece be connected as a single entity.Wound for difformity and different length, can select different plate for forcing, for example, when coronarography, internal organs interventional therapy, groin sharp weapon wound etc. need femoral hemostasis, circular plate for forcing can be adopted, to the rectangular wound of limbs, ellipse or rectangle plate for forcing can be adopted, because universal screw can make the plate for forcing different rotation angle, so can be multi-faceted for hemostasis.
During use, select the compression apparatus of dimension according to different parts, make the space between holder supporting plate, mullion and the cross bar be enough to hold affected part, select the plate for forcing of corresponding size and shape to be installed on convergence piece according to wound surface, with supporting plate the affected part below is held, plate for forcing is aimed at the wound surface of intending hemostasis, with handle backspin compressing screw rod, plate for forcing is pressed on the wound surface, and regulate with handle and to press down elasticity, just can effectively stop blooding, even position chanP also is not easy to produce the displacement phenomenon.
The present invention is simple in structure, easy to use, time saving and energy saving, because the compressing screw rod links to each other by universal screw with convergence piece, therefore is convenient to regulate the plate for forcing direction, for the wound surface of different parts difformity size, as long as change the plate for forcing of dimension model, adjusting presses down elasticity, just can effectively oppress the purpose that wound surface reaches hemostasis, and is not easy to occur the displacement phenomenon.
Description of drawings

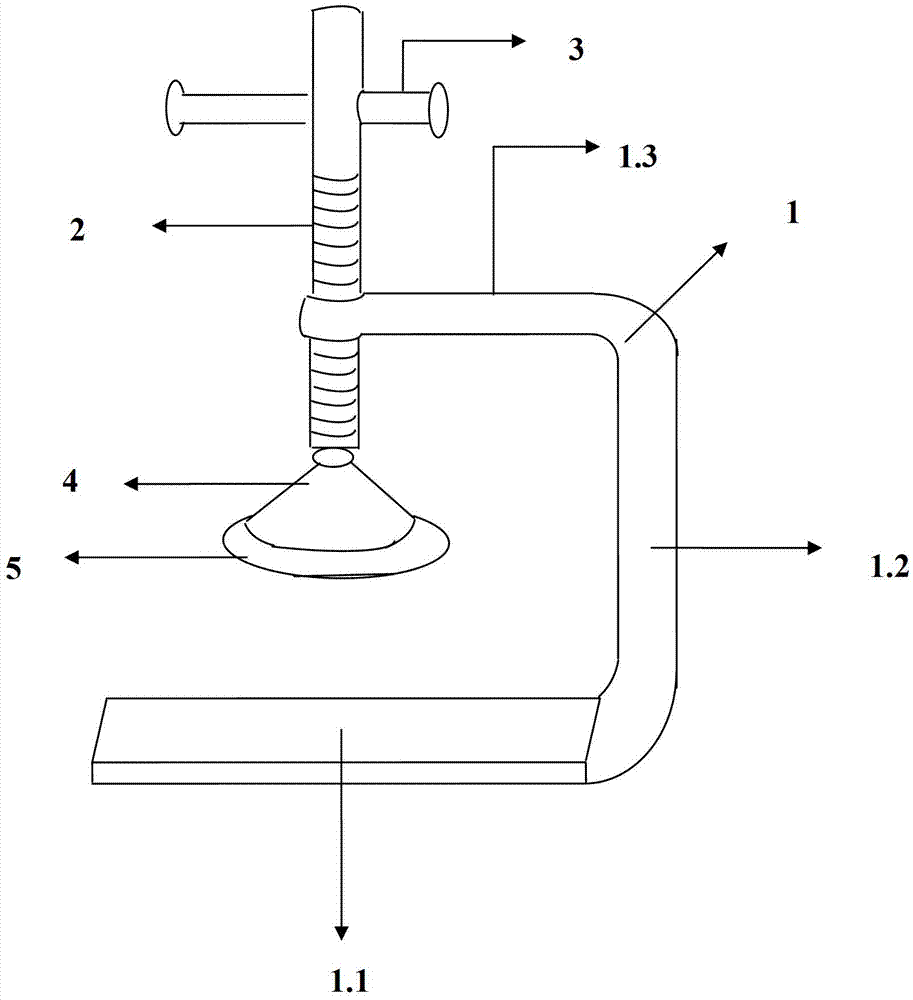

Fig. 1 is overall structure schematic diagram of the present invention.
The specific embodiment
Now by reference to the accompanying drawings the present invention is described in detail.
The present invention is comprised of holder 1, compressing screw rod 2, handle 3, convergence piece 4 and plate for forcing 5, holder side-looking similar C-shaped, divide supporting plate 1.1, mullion 1.2 and cross bar 1.3 3 parts, supporting plate 1.1 is positioned at the bottom, its internal layer is provided with one deck sponge, flannelette or other elasticity heat-barrier materials, and mullion 1.2 is positioned at the central authorities of supporting plate one side perpendicular to supporting plate, and cross bar 1.3 is positioned at the top of mullion, the vertical direction of its free-end is provided with screw, and screw is provided with female thread; Compressing screw rod 2 places in the screw of cross bar 1.3 free-ends, the external screw thread of compressing screw rod 2 and the screw female thread of external diameter and cross bar 1.3 and internal diameter coupling, the top of compressing screw rod 2 is provided with horizontal circular hole, this circular hole is handle hole, handle 3 is a little pole, the two ends bulging, assign in handle hole, the bottom of compressing screw rod 2 links to each other with convergence piece 4 by universal screw, the face of convergence piece below is provided with draw-in groove, this draw-in groove is used for being connected with plate for forcing 5, plate for forcing is rounded, ellipse or rectangle, lower surface covers one deck sponge, flannelette or other elastomeric materials, the upper surface of plate for forcing 5 are provided with the projection that the draw-in groove with convergence piece below is complementary, in order to should projection insert the draw-in groove of convergence piece plate for forcing are connected mutually with convergence piece.
The present invention can make different specifications and models as required.
