CN103240343A - Fine-adjusting device of iron clad forming tool - Google Patents
Fine-adjusting device of iron clad forming tool Download PDFInfo
- Publication number
- CN103240343A CN103240343A CN2013101525619A CN201310152561A CN103240343A CN 103240343 A CN103240343 A CN 103240343A CN 2013101525619 A CN2013101525619 A CN 2013101525619A CN 201310152561 A CN201310152561 A CN 201310152561A CN 103240343 A CN103240343 A CN 103240343A
- Authority
- CN
- China
- Prior art keywords
- iron
- push rod
- clad forming
- fine
- fixed
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- XEEYBQQBJWHFJM-UHFFFAOYSA-N Iron Chemical compound [Fe] XEEYBQQBJWHFJM-UHFFFAOYSA-N 0.000 title description 34
- 229910052742 iron Inorganic materials 0.000 title description 17
- 238000003801 milling Methods 0.000 claims 1
- 238000007493 shaping process Methods 0.000 description 15
- 238000010586 diagram Methods 0.000 description 4
- 238000003032 molecular docking Methods 0.000 description 3
- 230000009286 beneficial effect Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 238000003466 welding Methods 0.000 description 1
Images
Landscapes
- Forklifts And Lifting Vehicles (AREA)
Abstract
本发明属于航空机械领域，特别是涉及到一种包铁成形工装的微调装置，包括底座[1]、固定在底座[1]上的支撑板[2]，在支撑板[2]的一侧设置有顶冒[3]，另一侧通过螺纹孔[8]连接有推杆[4]，推杆[4]与手柄[5]固定。本发明包铁成形模具用车间内的叉车放到设备的工作台面上，与包铁成形模具宽度一样，只要将模具的定位孔与设备上的定位孔保证前后对接准确，然后操作者用螺钉将微调装置固定在工作台上，通过手柄或者用扳手拧推杆，使顶冒的前端作用在包铁成形模具的凸模部位，由于拧推杆一端是螺纹，操作者可以用手很轻松的推动1吨左右的工装。可以精细准确的将模具定位孔与设备上的定位孔进行对接。
The invention belongs to the field of aviation machinery, and in particular relates to a fine-tuning device for iron-clad forming tooling, which includes a base [1], a support plate [2] fixed on the base [1], and a support plate [2] on one side A top cap [3] is provided, and the other side is connected with a push rod [4] through a threaded hole [8], and the push rod [4] is fixed with the handle [5]. The forklift in the iron-clad forming mold of the present invention is placed on the working table of the equipment, which is the same as the width of the iron-clad forming mold. As long as the positioning holes of the mold and the positioning holes on the equipment are ensured to be connected accurately before and after, then the operator uses screws. The fine-tuning device is fixed on the workbench, and the push rod is screwed by the handle or a wrench, so that the front end of the top riser acts on the punch part of the iron-clad forming mold. Since one end of the screw push rod is threaded, the operator can easily push it by hand. About 1 ton of tooling. It can finely and accurately connect the positioning hole of the mold with the positioning hole on the equipment.
Description
Technical field
The invention belongs to the aviation machine field, particularly relate to a kind of micromatic setting of iron clad shaping frock.
Background technology
The iron clad shaping dies needs when clamping and will cooperate with fork truck, but the work top of iron clad forming machine equipment has only 200mm wide, on will the work top with the locating hole equipment that is put into just in time of mould, need fork truck to do all around motion, the movement before and after but the fork truck between cars on hand can only carry out, can't accomplish left and right sides translation, so all use the movement about the jaw promotion mould of equipment is done during each mold, but the fuse of jaw of long duration will blow, this also is occurrence that producer does not allow, thus since the weight of mould all each about 1 ton all be a job of wasting time and energy during to iron clad finishing die clamping.
Summary of the invention
Goal of the invention: a kind of micromatic setting of iron clad shaping frock is provided, and the operator can improve speed and the efficient of mould clamping with the movement about the very light promotion mould of hand.
Technical scheme: a kind of micromatic setting of iron clad shaping frock, comprise base 1, be fixed on the gripper shoe 2 on the base 1, be provided with the top in a side of gripper shoe 2 and emit 3, opposite side is connected with push rod 4 by screwed hole 8, and push rod 4 is fixing with handle 5.
The quantity of described screwed hole 8 is no less than 1.
Described handle 5 is cross structure, and a side is provided with mills flat 12.
Beneficial effect: iron clad shaping dies of the present invention is put on the work top of equipment with the fork truck in the workshop, the same with iron clad shaping dies width, as long as locating hole and the locating hole on the equipment of mould are guaranteed that tandem docking is accurate, the operator is fixed on micromatic setting on the workbench with screw then, twist push rod by handle or with spanner, the front end that the top is emitted acts on the punch position of iron clad shaping dies, because twisting push rod one end is screw thread, the operator can promote frock about 1 ton very easily with hand.Can be meticulous accurately the mould locating hole be docked with locating hole on the equipment.
Description of drawings

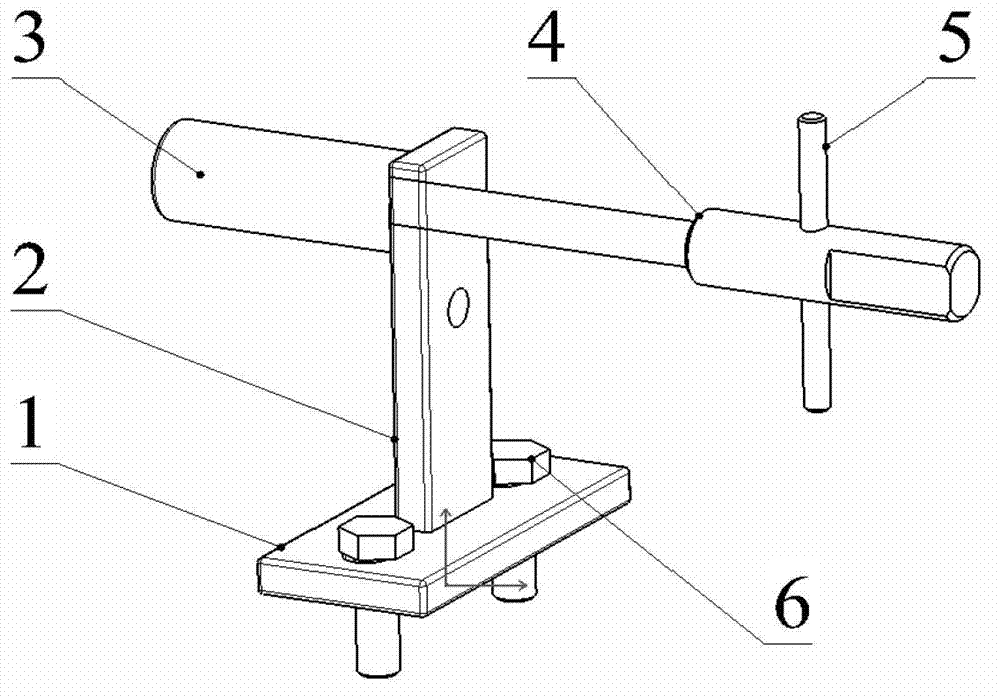

Fig. 1 is structural representation of the present invention.
Fig. 2 is base schematic diagram among the present invention.
Fig. 3 is gripper shoe schematic diagram of the present invention.
Fig. 4 emits schematic diagram for top among the present invention.
Fig. 5 is push rod schematic diagram among the present invention.
The specific embodiment
Below in conjunction with accompanying drawing invention is done to describe in further detail, seen also Fig. 1 to Fig. 5.
A kind of micromatic setting of iron clad shaping frock comprises base 1, is fixed on the gripper shoe 2 on the base 1, is provided with the top in a side of gripper shoe 2 and emits 3, and opposite side is connected with push rod 4 by screwed hole 8, and push rod 4 is fixing with handle 5.
The quantity of described screwed hole 8 is no less than 1.
Described handle 5 is cross structure, and a side is provided with mills flat 12.
During use, at first, with base 1, gripper shoe 2 is pressed the welding of Fig. 1 position together, emit 3 with the top, push rod 4, after handle 5 fits together by Fig. 1, the iron clad shaping dies is put on the work top of equipment with the fork truck in the workshop, near mould the most nearby screw 6 micromatic setting is fixed on the workbench, turning handle 5 advances push rod 4, allow the top emit 3 front end to act on the punch position of iron clad shaping dies, the operator just can promote frock very easily with hand like this, for the ease of using base 1 to manufacture slotted hole 7, screw thread and position according to screw thread 8 each models of mould size gripper shoe 2, this adopts as figure internal thread 9, external screw thread 10 sizes are M18, position, two places up and down, interference fit is generally joined with handle 5 by through hole 11 places, can make according to the different through holes 11 of mould and to get different value, can also make and mill flat 12 operators and turn push rod 4 with spanner, again according to different with the micromatic setting distance as the different shaping dies of Fig. 2, the top that can make different length emits 3 for operator's use, and meticulous finishing accurately carried out docking mission with the locating hole on mould locating hole and the equipment.
Iron clad shaping dies of the present invention is put on the work top of equipment with the fork truck in the workshop, the same with iron clad shaping dies width, as long as locating hole and the locating hole on the equipment of mould are guaranteed that tandem docking is accurate, the operator is fixed on micromatic setting on the workbench with screw then, twist push rod by handle or with spanner, making the front end that emits of top act on the punch position of iron clad shaping dies, is screw thread owing to twist push rod one end, and the operator can promote frock about 1 ton very easily with hand.Can be meticulous accurately the mould locating hole be docked with locating hole on the equipment.
Claims (4)
