CN103169355A - Electronic incense - Google Patents

Abstract

An electronic incense, comprising a number of hollow tubes, the same number of optical fibers as the hollow tubes, light-emitting elements and lenses, the optical fibers are correspondingly installed in the hollow tubes, and the lenses are located in the The light emitted by the light emitting element is converged between the light emitting element and the optical fiber, and the light converged by the lens is transmitted to one end of the hollow tube through the optical fiber to be emitted.

Description

Electonic incense

Technical field

The present invention relates to a kind of Electonic incense.

Background technology

As shown in Figure 1, at present Electonic incense 10 be use scribble the opaque coating 110 identical with traditional line spices color hollow tube 11 coatings, in incense burner 12 bottoms, a light-emitting component 13 is arranged, the light that light-emitting component 13 sends passes to the top of hollow tube 11, head portion one has a hemispheric transparent part 111, makes light field that Electonic incense 10 sends can be similar to the burning shape of traditional line spices.But, the Electonic incense 10 of said structure, each piece Electonic incense 10 needs an independent light-emitting component 13, thereby makes the cost of Electonic incense 10 higher.

Summary of the invention

In view of this, be necessary the Electonic incense that provides a kind of cost lower.

A kind of Electonic incense, comprise some hollow tubes, optical fiber, light-emitting component and lens that quantity is identical with described hollow tube, described optical fiber correspondence is located in described hollow tube, the light that described lens send to converge described light-emitting component between described light-emitting component and described optical fiber, described lens converge rear light and send by described fiber optic conduction to one of described hollow tube end.

Compared to prior art, the Electonic incense of the embodiment of the present invention with coupling light in a plurality of hollow tubes that light-emitting component sends, only uses a light-emitting component can make many Electonic incenses luminous by multifiber, thereby reduces the use of light-emitting component, reduces costs.

Description of drawings

Fig. 1 is the schematic diagram of Electonic incense in prior art.

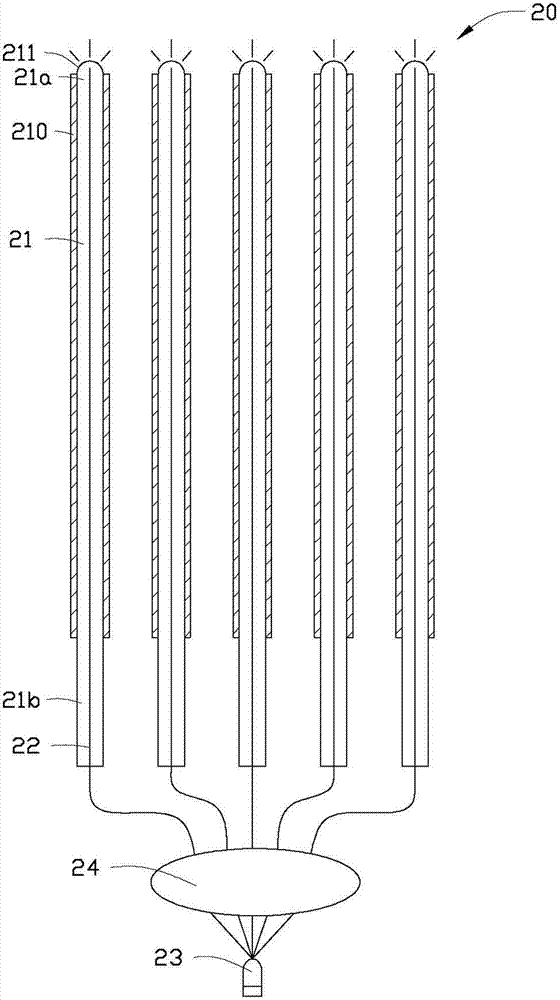

Fig. 2 is the schematic diagram of embodiment of the present invention Electonic incense.

The main element symbol description

Electonic incense	10，20
		Hollow tube	11，21
Incense burner	12
		Light- emitting component	13，23
Coating	110，210
		Transparent part	111，211
First end	21a
		The second end	21b
Optical fiber	22
		Lens	24

The following specific embodiment further illustrates the present invention in connection with above-mentioned accompanying drawing.

The specific embodiment

See also Fig. 2, the Electonic incense 20 that the embodiment of the present invention provides comprises a plurality of hollow tubes 21, the optical fiber 22 that quantity is identical with hollow tube 21, a light-emitting component 23 and lens 24.

In present embodiment, the number of hollow tube 21 is 5, in other embodiments, can limit arbitrarily according to actual needs, for example, 3,4 or 6 etc.

Hollow tube 21 can be made by transparent or transparent materials, and in the present embodiment, the material of hollow tube 21 is transparent material, therefore the surface-coated of hollow tube 21 has opaque coating 210.

Coating 210 is the color of corresponding general line spices, and mainly with black or yellowish-brown for it, but should be as limit.

When hollow tube 21 is when being made by transparent materials, can omit coating 210, only, the corresponding general line spices color of the color of hollow tube 21 is good.

Hollow tube 21 has relative first end 21a and the second end 21b, has hemispheric transparent part 211 on first end 21a.The Handheld Division of the second corresponding line spices of end 21b in order to make the line spices of the more approaching tradition of hollow tube 21, can be coated with the color of corresponding general line spices Handheld Division on the second end 21b, color with redness or the color identical with coating 210 for it but should be as limit.

Optical fiber 22 is located in hollow tube 21, and stretches out hollow tube 21 from the second end 21b, and scioptics 24 are coupled with light-emitting component 23.

Light-emitting component 23 is bulb or light emitting diode (LED), and light emitting diode comprises general common monocrystalline type LED or polymorphic LED, but should be as limit.

After light-emitting component 23 and power connection, after the light that light-emitting component 23 sends converges through lens 24, optical fiber 22 in being located in hollow tube 21 is transmitted to first end 21a, spreads out of finally by transparent part 211, thereby makes each hollow tube 21 all can be luminous to realize the form of traditional line spices.

In actual applications, the second end 21b of light-emitting component 23, lens 24 and hollow tube 21 is arranged in incense burner, and light-emitting component 23 can be luminous by the power supply power taking that is arranged in incense burner, and power supply can or be communicated with civil power by socket for battery, battery.

In present embodiment, Electonic incense 20 with coupling light in a plurality of hollow tubes 21 that light-emitting component 23 sends, only uses a light-emitting component 23 can make many Electonic incenses 20 luminous by optical fiber 22, thereby the use that reduces light-emitting component 23 reduces the cost.

Be understandable that, those skilled in the art also can do other variation etc. and be used in design of the present invention in spirit of the present invention, as long as it does not depart from technique effect of the present invention and all can.The variation that these are done according to spirit of the present invention is within all should being included in the present invention's scope required for protection.

Claims (5)

1. An electronic incense, comprising several hollow tubes, optical fibers with the same number as the hollow tubes, light-emitting elements and lenses, the optical fibers are correspondingly installed in the hollow tubes, and the lenses are located at The light emitted by the light emitting element is converged between the light emitting element and the optical fiber, and the light converged by the lens is transmitted to one end of the hollow tube through the optical fiber to be emitted. 2. The electronic incense according to claim 1, wherein the light-emitting element is a light bulb or a light-emitting diode. 3. The electronic incense according to claim 1, characterized in that, the surface of the hollow tube has an opaque coating. 4. The electronic incense according to claim 1, wherein the hollow tube body is made of opaque material. 5. The electronic incense according to any one of claims 1-4, wherein one end of the hollow tube has a hemispherical transparent part, and the light emitted by the light-emitting element is emitted through the transparent part.
