Abstract

A vertical drum shearer with a large inclination angle, including a body composed of several cabinet compartments and a power transmission chain, an extension arm, a drum and a reel arranged in the cabinet compartments, a slide plate is arranged at the lower part of the body, and the power transmission chain includes The main transmission wheel on the main shaft of a motor meshes with a pair of auxiliary transmission wheels to drive the longitudinal front and rear transmission shafts to output power. The gears and transmission gear shafts at all levels rotate, thereby driving the final transmission gear shaft and the drum on the semi-flexible coupling to rotate, and the end worm of the rear transmission shaft drives the worm gear shaft and the drum on the shaft to rotate; it It overcomes the defect that the coal mining devices used in existing small and medium-sized coal mines are only suitable for mining the top and side coal seams of small-inclination roadway structures, and solves the problem of abandoning coal seams at the bottom of structures with a roadway inclination angle above 25°; it is especially suitable for small and medium-sized coal mines The excavation of the coal seam at the bottom of the structure with the inclination angle of the roadway above 25°.

Description

Large inclination angle vertical drum shearer

technical field

The invention relates to a vertical roller shearer with a large inclination angle.

Background technique

The number of existing small and medium-sized coal mines accounts for more than 90% of the total number of coal mines in the country, but the mining scale is small, the mining roadways are narrow, and the technical equipment is backward. Some coal mines even still use pneumatic picks for manual mining, and their coal mining efficiency is low. , the working environment is harsh, and personnel safety is even more difficult to guarantee; and it is even more helpless to mine the bottom coal seam of the steeply inclined roadway structure, resulting in a serious waste of a large amount of coal resources. It is a big problem; while mechanized coal mining has been fully used in small and medium-sized coal mines, the coal mining equipment is only suitable for mining the coal seam at the bottom of the small-inclination roadway structure, and the roadway inclination is generally in the range of 18-25°; for the bottom coal seam with a large roadway inclination The coal seam structure accounts for a relatively large proportion in the small and medium-sized coal mines in the south. The mining roadway inclination angle is generally above 25°, and the largest inclination angle even reaches 30°; for the roadway coal seam structure with an inclination angle above 25°, there is no effective Coal mining machinery and equipment can be popularized and used; in addition, although the small coal cutter can adapt to the coal seam structure with an inclination angle of more than 25°, it can only mine the coal seam on the side of the roadway; there is no effective method for the development of the bottom coal seam with a large inclination angle of the roadway. Implementation of measures, so it can only be discarded and mined, resulting in a large amount of waste of coal resources, which seriously hinders the implementation and implementation of resource-saving and coal resource development and protection strategies.

In summary, based on the specific implementation of the resource-saving strategy, the researchers have invested a lot of manpower, financial and material resources in the development of the coal seam at the bottom of the steep-angle roadway structure, and have made further in-depth discussions and research, and have achieved preliminary results. research results.

Contents of the invention

In view of the above-mentioned situation, the purpose of the present invention is to provide a kind of large-inclination vertical roller shearer, which is suitable for the mining of the bottom coal seam with the roadway inclination angle less than 25 °, and is suitable for the mining of the large-inclination bottom coal seam with the roadway inclination angle greater than 25 °. Mining, and the mining capital investment of the coal seam is small, the mining device is compact, easy to manufacture, safe and reliable operation control, high work efficiency, no waste of coal resources, no environmental pollution, economical and practical, easy to popularize in small and medium coal mines.

In order to achieve the above purpose, the large-inclination vertical drum shearer includes a body composed of several compartments of the chassis and a power transmission chain, an extension arm, a drum and a reel arranged in the compartments of the chassis, and a slide plate is arranged at the lower part of the body. The power transmission chain includes a motor main shaft, the main drive wheel on the motor main shaft meshes with a pair of auxiliary drive wheels to drive the longitudinal front and rear drive shafts to output power, and a bevel gear is arranged at the end of the front drive shaft, and the bevel gear drives A bevel gear shaft and the spur gear on the shaft rotate, and the spur gear drives the three-stage transmission gear and the transmission gear shafts of each stage to rotate, thereby driving the final-stage transmission gear shaft and the roller on the semi-flexible coupling to rotate. A worm is arranged at the end of the rear drive shaft, and the worm drives the worm gear shaft and the reel on the shaft to rotate.

In order to achieve structure and effect optimization, its further measures are:

There are at least 8 compartments in the case, and they are respectively conical compartment, front compartment I, front compartment II, front compartment III, middle compartment, rear compartment I, rear compartment II and rear compartment III.

A semi-flexible coupling is arranged in the middle of the front transmission shaft, and the semi-flexible coupling is arranged in the front compartment III.

The motor main shaft is arranged in the rear compartment I.

The extension arm is arranged in the conical compartment, which is mainly composed of the final drive gear shaft and the semi-flexible coupling outside the cavity.

A pick and a spiral chute are arranged on the drum.

The four corners of the body are provided with anti-friction safety wheels.

The anti-friction safety wheel is a rubber wheel.

The slide plate is movably connected to the bottom of the body and the support seat.

The support seat is integrated with the bottom skid.

The present invention adopts the machine body composed of several cabinet compartments and a power transmission chain, an extension arm, a roller and a reel arranged in the cabinet compartment, a slide plate is arranged at the lower part of the body, and the power transmission chain includes a main drive wheel on a motor spindle. Mesh with a pair of auxiliary transmission wheels to drive the longitudinal front and rear transmission shafts to output power. A bevel gear is arranged at the end of the front transmission shaft, and drives a bevel gear shaft and the spur gear on the shaft to rotate. The spur gear drives the three-stage transmission gear and The transmission gear shafts at all levels rotate, thereby driving the final transmission gear shaft and the drum on the semi-flexible coupling to rotate, and a worm is arranged at the end of the rear transmission shaft, and the worm drives the worm gear shaft and the drum on the shaft to rotate It overcomes the defect that the coal mining devices used in existing small and medium-sized coal mines are only suitable for mining the top and side coal seams of small-inclination roadway structures, and solves the problem of discarding coal seams at the bottom of structures with roadway inclination angles above 25°.

Compared with the beneficial effects produced by the prior art, the present invention:

(1) The present invention adopts the technical scheme of the vertical drum, which preferably solves the difficult problem of abandoning the coal seam at the bottom of the large-inclination roadway, and opens a precedent for small and medium-sized coal mine roadways with an inclination angle of more than 25 ° at the bottom of the coal seam without mining, avoiding A large number of bottom coal seam resources have caused direct economic losses and resource waste of coal resources due to abandoned mining, and obtained the greatest benefits with the smallest investment, making pioneering contributions to the realization of the coal resource mining protection strategy, and its implementation results can be fully promoted ;

(II) The present invention adopts the transmission chain structure in which the main transmission wheel on the motor main shaft is engaged with a pair of auxiliary transmission wheels to drive the output power of the longitudinal front and rear transmission shafts, which not only increases the function of the main engine, but also makes the coal mining equipment lighter;

(III) The present invention uses an explosion-proof motor to provide power and combines gear transmission and worm gear transmission to solve the problem that the power transmission output needs to be perpendicular to each other and multiple transmissions are required, and the structure must be simplified, lightweight, compact, and small in size, and its functions must be adapted to small and medium-sized Difficulties in the coal mining environment; return the abandoned coal resources to the plan to be mined, avoiding the direct economic loss and huge waste of coal resources;

(IV) The present invention adopts the traction and movement mode in the roadway, so that the coal mining equipment can work under the condition of large inclination angle, which meets the environmental requirements of small and medium-sized coal mining, the synchronous control performance of traction and coal mining is good, and coal resources are not wasted , no environmental pollution, high mining efficiency;

(V) The present invention adopts that slide plate is arranged at the bottom of the body, which improves the maneuverability of the body and makes it easier to realize synchronous movement and traction control during operation;

(VI) The present invention adopts that slide plate is arranged at the bottom of the body, effectively preventing the damage to the coal seam caused by the movement of the body during operation;

(VII) The present invention adopts a slide plate at the bottom of the machine body, which facilitates the placement and adjustment of the machine position, and makes the maintenance of the machine body more convenient;

(VIII) The present invention adopts the connection structure of the bracket and the skid, which makes the transition transportation, disassembly and repeated installation of the shearer faster and more convenient, effectively saves human resources, and improves the transfer efficiency;

(IX) The present invention adopts the front and rear anti-friction safety wheels on both sides of the four corners of the machine body, which effectively protects the main parts such as the machine body and the roller from collision, and can automatically adjust the smooth movement at the curve, thereby improving the vertical The service life, work efficiency and mining safety performance of the drum shearer;

(X) The present invention adopts a split structure, and the body is a box-type compartment type, which is convenient for the layout and installation of the transmission chain, the lubrication of the parts, and the sealing and dustproof;

(XI) The present invention has simplified structure, compact size, small volume, flexible and brisk operation and control, high work efficiency, high coal seam coal production rate, no waste of resources, no environmental pollution, and is suitable for small and medium-sized coal mine roadways with an inclination angle of more than 25° at the bottom of the coal seam. Mining is very easy to popularize and promote.

The invention is suitable for excavation of the bottom coal seam of the small and medium-sized coal mine roadway with an inclination angle structure, and is particularly suitable for the excavation of the bottom coal seam of the middle and small coal mine roadway with the inclination angle above 25°.

The present invention will be described in further detail below in conjunction with the accompanying drawings and embodiments.

Description of drawings

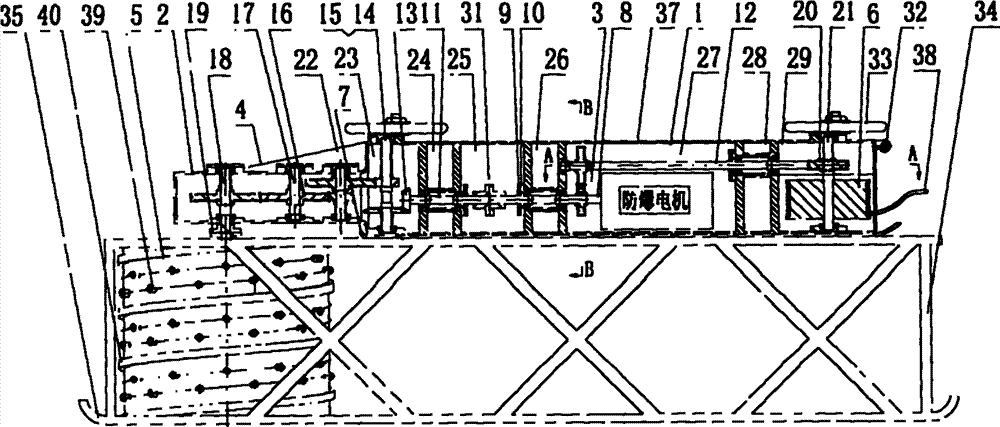

Fig. 1 is the front view of the large-inclination vertical roller shearer of the present invention (the power transmission chain shown in the figure is the F-F sectional view in Fig. 2).

Fig. 2 is a top view of the large-inclination vertical roller shearer of the present invention (the output power of the rear transmission shaft shown in the figure is the A-A sectional view in Fig. 1 ).

Fig. 3 is a side view of the large-inclination vertical drum shearer of the present invention (the figure shows that the main drive wheel on the motor shaft is meshed with a pair of secondary drive wheels, which is the B-B sectional view in Fig. 1).

Fig. 4 is a front view of the connection between the anti-friction safety wheel and the body of the large-inclination vertical drum shearer of the present invention.

Fig. 5 is a side view of the support seat in the large-inclination vertical roller shearer of the present invention.

Fig. 6 is a front view of the sliding plate in the large-inclination vertical roller shearer of the present invention.

Fig. 7 is a top view of the sliding plate in the large-inclination vertical roller shearer of the present invention.

Fig. 8 is a front view of the support seat and the skid in the large-inclination vertical roller shearer of the present invention.

Fig. 9 is a top view of the support seat and skid in the large-inclination vertical roller shearer of the present invention.

Fig. 10 is a schematic view of the working site of the large-inclination vertical roller shearer of the present invention.

In the figure: 1. Chassis compartment, 2. Body, 3. Power transmission chain, 4. Extension arm, 5. Roller, 6. Reel, 7. Skateboard, 8. Motor spindle, 9. Main drive wheel, 10 , secondary transmission wheel, 11, front transmission shaft, 12, rear transmission shaft, 13, bevel gear, 14, bevel gear shaft, 15, spur gear, 16, three-stage transmission gear, 17, transmission gear shaft, 18, final stage Transmission gear shaft, 19, semi-flexible coupling, 20, worm, 21, worm gear shaft, 22, tapered compartment, 23, front compartment I, 24, front compartment II, 25, front compartment III, 26 , septum cavity, 27, rear compartment I, 28, rear compartment II, 29, rear compartment III, 31, semi-flexible coupling, 32, tail hook, 33, anti-friction safety wheel, 34, bracket seat , 35, skid, 36, lug, 37, maintenance inspection window, 38, steel rope, 39, pick, 40, spiral chute, 41, bracket connecting hole.

Detailed ways

Combined with the accompanying drawings, the large-inclination vertical drum shearer includes a body 2 composed of at least 8 cabinet compartments 1, a power transmission chain 3 arranged in the cabinet compartment 1, an extension arm 4, a drum 5 and a drum 6. The lower part of the body 2 is provided with a slide plate 7, and the power transmission chain 3 includes a motor main shaft 8, which is arranged in the rear compartment 127, and the main transmission wheel 9 on the motor main shaft 8 meshes with a pair of secondary transmission wheels 10 Drive the longitudinal front transmission shaft 11 and the rear transmission shaft 12 to output power; the front transmission shaft 11 end is provided with a bevel gear 13, and the bevel gear 13 drives a bevel gear shaft 14 and the spur gear 15 on the shaft to rotate, and the spur gear 15 drives The three-stage transmission gear 16 and the transmission gear shaft 17 of each stage rotate, thereby driving the cylinder 5 on the final transmission gear shaft 18 and its semi-flexible coupling 19 to rotate; Drive the worm gear shaft 21 and the reel 6 on the shaft to rotate; in order to make the drum 5 run freely under the extension arm 4, the lower end of the final transmission gear shaft 18 is connected with the drum 5 shaft through a semi-flexible coupling 19. The semi-flexible coupling 19 is arranged under the extension arm 4, and the extension arm 4 is arranged in the conical compartment 22. The extension arm 4 is mainly composed of the final stage transmission gear shaft 18 and the semi-flexible coupling 19 outside the cavity. ; In order to improve transmission efficiency and improve transmission performance, a semi-flexible coupling 31 is established in the middle of the front transmission shaft 11, and the semi-flexible coupling 31 is arranged in the front compartment III25; Teeth 39, spiral chute 40, and picks 39 are arranged at intervals in a circular matrix; tail hook 32 is arranged at the rear of body 2 to facilitate the fixing of traction hoist traction rope; And damage body 2 and parts, the four jiaos of body 2 are provided with the anti-friction safety wheel 33 of rubber wheel material for use, anti-friction safety wheel 33 can freely rotate or roll; Anti-friction safety wheel 33 can also play body 2 when moving The guide adjustment function is used to guide the shearer to automatically adjust the direction of travel and protect the machine body 2 and the drum 5 from being damaged due to collision with the wall of the mining roadway; speed, extend the service life of the body 2, the slide plate 7 is movably connected with the bottom of the body 2 through the lug 36; in order to facilitate the transportation, maintenance and maintenance of the shearer equipment, when not working, the body 2 and the slide plate 7 are placed on the support seat 34, They are bolted and fixed through the bracket connection hole 41, and can be quickly disassembled at any time; a skid 35 is arranged at the bottom of the bracket seat 34, and the bracket seat 34 is integrated with the skid 35; for dustproof and lubrication needs, the body 2 is set as a box Type compartment type, 8 chassis compartments 1 are conical compartment 22, front compartment I 23, front compartment II 24, front compartment III 25, middle compartment 26, rear compartment I 27, rear compartment II 28 and rear compartment III29, in order to optimize the structure, the compartment of the extension arm 4 and the conical compartment 22 are combined into one cavity; Drive chain 3 requirements, compartment or Lubricating oil is housed or a system maintenance inspection window 37 is arranged or a flange connection and a bearing seat are installed.

As shown in the accompanying drawings, the working principle and operating conditions of the large-inclination vertical drum shearer of the present invention are as follows:

1. Position placement and adjustment of the large-inclination vertical drum shearer of the present invention: first, a certain pile is artificially driven at the top of the coal seam mining face, that is, at the auxiliary roadway, and a gap is dug at the main roadway of the coal seam mining face As machine position, the steel rope 38 on the shearer reel 5 at the gap is pulled out and fixed on the fixed pile, and at the same time, the traction rope of the auxiliary traction hoist is fixed on the tail hook 32 at the rear of the body 2, so that The shearer is tilted as a whole, so that the tail portion of the body 2 and the extension arm 4 faces upwards and the front portion faces downwards, and is placed right along the coal seam mining face. In the dug gap, loosen the fixed connection bolts between the machine body 2, the bracket seat 34 and the skid 35, turn on the power supply, and pull the shearer to move upward slowly by the auxiliary traction hoist until the machine body 2 is completely moved to the coal seam excavation. On the working surface, the drum 5 just contacts with the vertical surface of the coal seam mining working surface.

Two, the excavation process of the large-inclination vertical drum shearer of the present invention: (1), after removing the support seat 34 and the skid 35, lay and install other auxiliary facilities, and then coal mining can be carried out; (2), by The explosion-proof motor directly drives the main transmission wheel 9 on the motor main shaft 8 to mesh with a pair of auxiliary transmission wheels 10 to make the power transmission chain 3 run, and drives the longitudinal front and rear transmission shafts 11 and 12 to output power synchronously; (3), the front transmission shaft 11 The end bevel gear 13 drives a bevel gear shaft 14 and the spur gear 15 on the shaft to rotate, and the spur gear 15 drives the third-stage transmission gear 16 and the transmission gear shafts 17 of all levels to rotate, thereby driving the final transmission gear shaft 18 and its half The drum 5 on the flexible coupling 19 rotates, and the pick 39 on the drum 5 rotates synchronously with the spiral chute 40 to complete coal mining and coal output. Laying in the enamel chute of the mining roadway, due to the large inclination angle of the mining roadway, the speed of coal passing through the enamel chute will be accelerated, directly slipped into the main roadway below the mining roadway, and then transported to the ground by transportation equipment; (4), The end worm 20 of the rear transmission shaft 12 drives the worm gear shaft 21 and the reel 6 on the shaft to rotate, and the steel rope 38 on the reel 6 forms a steel rope traction power transmission chain under the action of a fixed fulcrum above the coal seam mining working face to realize Synchronized with the rotation of the drum 5, thereby tightening the steel rope 38, so that the shearer slowly moves upwards and climbs along the coal seam mining face; (5), the direction of the shearer during the mining movement and the protection of the body 2 are set by The four anti-friction safety wheels 33 at the four corners of the body 2 are controlled. When the body 2 encounters the bending of the coal seam mining face during the movement, because the two outer wheelbases of the four anti-friction safety wheels 33 on the body 2 are larger than the body 2 and the drum 5, so the four anti-friction safety wheels 33 are first in contact with the roadway wall of the coal seam mining face, and with the movement of the shearer, the anti-friction safety wheels 33 are purely rolled, guiding the shearer to cling to The movement of the roadway wall automatically controls the forward movement, and also protects the body 2 and the drum 5 from collision until all the coal seams are excavated here.

Three. The transition of the large-inclination vertical drum shearer of the present invention: (1), after the coal seam excavation is completed, when it is necessary to transition, the support seat 34 and the skid 35 are placed below the body 2, and the opening above the excavation roadway is opened. Auxiliary traction hoist to make the shearer move downwards slowly until the shearer is fully moved to the bracket seat 34 and the skid 35, and is fixed by inserting bolts into the bracket connection hole 41; Sliding function makes the shearer on the skid 35 slowly slide down to the main roadway, so far the coal seam mining process of the large dip angle roadway is over.

Claims (10)

1. high inclination-angle vertical rotary cylinder coal-winning machine, it is characterized in that it comprises by several cabinet separate spaces (1) forms body (2) and is arranged at power chain (3) in cabinet separate space (1), cantilever arm (4), cylinder (5) and reel (6), body (2) bottom arranges slide plate (7), described power chain (3) comprises an electric machine main shaft (8), before main driving wheel (9) on this electric machine main shaft (8) drives vertically with a pair of auxiliary driving wheel (10) engagement, inter-axle shaft (11, 12) outputting power, described front propeller shaft (11) end arranges a bevel gear (13), the spur gear (15) that this bevel gear (13) drives on a bevel gear shaft (14) and axle thereof rotates, this spur gear (15) drives three grades of travelling gears (16) and driving gearshaft at different levels (17) rotates, thereby the cylinder (5) that drives on final stage driving gearshaft (18) and half flexible clutch (19) thereof rotates, the end of described inter-axle shaft (12) arranges a worm screw (20), the reel (6) that this worm screw (20) drives on worm-wheel shaft (21) and axle thereof rotates.

2. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 1, it is characterized in that described cabinet separate space (1) establishes at least 8, they are respectively taper separate space (22), front separate space I (23), front separate space II (24), front separate space III (25), middle separate space (26), rear separate space I (27), rear separate space II (28) and rear separate space III (29).

3. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 1, is characterized in that half flexible clutch (31) is established at the middle part of described front propeller shaft (11), and this half flexible clutch (31) is arranged in front separate space III (25).

4. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 1, is characterized in that described electric machine main shaft (8) is arranged in rear separate space I (27).

5. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 1, it is characterized in that described cantilever arm (4) is arranged in taper separate space (22), it mainly is comprised of half flexible clutch (19) outside final stage driving gearshaft (18) and chamber.

6. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 1, is characterized in that arranging on described cylinder (5) pick (39) and spiral chute (40).

7. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 1, is characterized in that four jiaos of described body (2) arrange abrasion-proof safety wheel (33).

8. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 7, is characterized in that described abrasion-proof safety wheel (33) is rubber wheel.

9. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 1, is characterized in that described slide plate (7) is movably connected on body (2) bottom and carrier base (34).

10. high inclination-angle vertical rotary cylinder coal-winning machine according to claim 9, is characterized in that described carrier base (34) is connected with bottom skid (35).
