Abstract
全自动磁性表座磁力检测装置，采用该检测装置能够避免磁性表座不合格时可能对检测人员产生的伤害，其特征在于，包括机箱，所述机箱内具有竖立设置的底板，所述底板的上部固定有电机，所述电机通过螺杆往下连接拉力传感器，所述拉力传感器通过活动悬挂组件连接磁性表座固定机构，所述磁性表座固定机构的下方设置有磁性表座工作磁力吸附平台，所述磁性表座工作磁力吸附平台为角铁结构的一个平面，所述角铁结构的另一面与所述底板的下部通过螺栓紧固连接。
A fully automatic magnetic detection device for a magnetic watch base, the detection device can avoid possible damage to the testing personnel when the magnetic watch base is unqualified, and it is characterized in that it includes a chassis, and the chassis has an upright bottom plate, the bottom of the bottom plate The upper part is fixed with a motor, and the motor is connected downwards with a tension sensor through a screw, and the tension sensor is connected with a magnetic table base fixing mechanism through a movable suspension assembly, and a magnetic table base working magnetic adsorption platform is arranged below the magnetic table base fixing mechanism, The working magnetic adsorption platform of the magnetic table base is a plane of the angle iron structure, and the other side of the angle iron structure is fastened to the lower part of the bottom plate by bolts.
Description
技术领域technical field
本发明涉及磁性表座的磁力检测技术，特别是一种全自动磁性表座磁力检测装置。The invention relates to a magnetic detection technology for a magnetic watch base, in particular to a fully automatic magnetic detection device for a magnetic watch base.
背景技术Background technique
磁性表座吸附在铁磁性表面（一般都是机床表面）后，相关仪器再固定于磁性表座上进行测量。在航天加工、装配的各种场合都有广泛的应用，比如常用做千分表或百分表固定在机床上的磁性表座，是千分表或者百分表在使用中不可或缺的一部分。工作磁力是磁性表座的一个主要参数，对表座安全使用有很大的参考价值。磁性表座在接通磁路后，工作面上的工作磁力必须达到的最小磁力值。如果磁性表座没有达到最小磁力的要求，在使用过程中轻则损坏仪器，重则危害检测人员的安全。目前常采用的磁性表座检定方法依据JB/T10010-1999《磁性表座》标准，这种检测方法主要靠人力牵拉磁性表座，牵拉磁性表座的牵拉绳上设置有测力器，检测人员边增加牵引力边读取测力器数据。现有的检测方式存在一定的问题，即如果磁性表座不合格，也就意味着在达到最小磁力前，磁性表座就会脱离铁磁性表面并在惯性作用下快速运动，而此时检测人员正在近距离读取测力器上的数据，非常容易被运动中的磁性表座伤害，并会磕碰损坏磁性表座。After the magnetic watch base is adsorbed on the ferromagnetic surface (usually the surface of the machine tool), the related instruments are then fixed on the magnetic watch base for measurement. It is widely used in various occasions of aerospace processing and assembly. For example, it is often used as a dial indicator or a magnetic base fixed on a machine tool. It is an indispensable part of the dial indicator or dial indicator in use. . The working magnetic force is a main parameter of the magnetic watch base, which has great reference value for the safe use of the watch base. After the magnetic watch base is connected to the magnetic circuit, the working magnetic force on the working surface must reach the minimum magnetic force value. If the magnetic base does not meet the minimum magnetic force requirements, the instrument may be damaged during use, and the safety of the testing personnel may be endangered. At present, the commonly used verification method of magnetic watch base is based on JB/T10010-1999 "Magnetic Watch Base". This detection method mainly relies on manpower to pull the magnetic watch base. , the inspector reads the data of the dynamometer while increasing the traction. There are certain problems in the existing detection methods, that is, if the magnetic watch base is unqualified, it means that the magnetic watch base will break away from the ferromagnetic surface and move rapidly under the action of inertia before reaching the minimum magnetic force. When reading the data on the dynamometer at close range, it is very easy to be damaged by the magnetic watch base in motion, and the magnetic watch base will be damaged by collision.
发明内容Contents of the invention
本发明针对现有技术中存在的缺陷或不足，提供一种全自动磁性表座磁力检测装置，采用该检测装置能够避免磁性表座不合格时可能对检测人员产生的伤害。Aiming at the defects or deficiencies in the prior art, the present invention provides a fully automatic magnetic detection device for a magnetic watch base. The detection device can avoid possible damage to testing personnel when the magnetic watch base is unqualified.
本发明的技术方案如下：Technical scheme of the present invention is as follows:
全自动磁性表座磁力检测装置，其特征在于，包括机箱，所述机箱内具有竖立设置的底板，所述底板的上部固定有电机，所述电机通过螺杆往下连接拉力传感器，所述拉力传感器通过活动悬挂组件连接磁性表座固定机构，所述磁性表座固定机构的下方设置有磁性表座工作磁力吸附平台，所述磁性表座工作磁力吸附平台为角铁结构的一个平面，所述角铁结构的另一面与所述底板的下部通过螺栓紧固连接。The full-automatic magnetic watch base magnetic force detection device is characterized in that it includes a chassis, and there is an upright bottom plate in the chassis, a motor is fixed on the top of the bottom plate, and the motor is connected with a tension sensor through a screw rod, and the tension sensor The magnetic table base fixing mechanism is connected through the movable suspension assembly, and the magnetic table base working magnetic adsorption platform is arranged below the magnetic table base fixing mechanism, and the magnetic table base working magnetic adsorption platform is a plane of an angle iron structure, and the angle The other side of the iron structure is fastened to the lower part of the bottom plate through bolts.
所述活动悬挂组件包括环部相扣的上吊环和下吊环，所述上吊环连接于所述拉力传感器的连接件，所述下吊环连接于所述磁性表座固定机构。The movable suspension assembly includes an upper suspension ring and a lower suspension ring interlocked with each other, the upper suspension ring is connected to the connector of the tension sensor, and the lower suspension ring is connected to the magnetic table base fixing mechanism.
所述磁性表座固定机构上设置有与磁性表座上表面螺纹杆进行螺纹连接的螺孔，所述磁性表座的下表面为磁性表座工作磁力面。The fixing mechanism of the magnetic watch base is provided with a screw hole threadedly connected with the threaded rod on the upper surface of the magnetic watch base, and the lower surface of the magnetic watch base is the working magnetic force surface of the magnetic watch base.
所述磁性表座固定机构采用卡套装置。The fixing mechanism of the magnetic watch base adopts a ferrule device.
所述角铁结构包括两块角铁，所述两块角铁横向间隔地并列形成所述磁性表座工作磁力吸附平台，所述底板的下部设置有横向槽形通孔，紧固连接角铁的螺栓通过在所述横向槽形通孔中的移动调整所述横向间隔的距离。The angle iron structure includes two angle irons, and the two angle irons are spaced side by side to form the working magnetic adsorption platform of the magnetic watch base. The bolts can adjust the distance of the transverse interval by moving in the transverse slot-shaped through hole.
所述角铁结构包括两块角铁，所述两块角铁横向间隔地并列设置，所述两块角铁的上表面搁置有铸铁平板，所述铸铁平板通过G形固钳固定于角铁上，所述底板的下部设置有横向槽形通孔，紧固连接角铁的螺栓通过在所述横向槽形通孔中的移动调整所述横向间隔的距离。The angle iron structure includes two angle irons, the two angle irons are arranged side by side at intervals laterally, and a cast iron plate is rested on the upper surface of the two angle irons, and the cast iron plate is fixed to the angle iron by G-shaped clamps Above, the lower part of the bottom plate is provided with a transverse groove-shaped through hole, and the bolts fastened to connect the angle irons can adjust the distance of the transverse interval by moving in the transverse groove-shaped through hole.
所述机箱上设置有拉力传感器控制显示仪表、电机升降控制旋钮、电机调速旋钮和开关按钮。The chassis is provided with tension sensor control display instrument, motor lifting control knob, motor speed control knob and switch button.
所述底板为不锈钢板。The bottom plate is a stainless steel plate.
所述电机为直线电机。The motor is a linear motor.
所述底板上位于所述横向间隔的对应位置设置有中心线和标尺刻度。Centerlines and scales are provided on the bottom plate at corresponding positions of the transverse intervals.
本发明的技术效果如下：本发明的全自动磁性表座磁力检测装置能够在机箱内通过机电方式实现对磁性表座的工作磁力进行检测，能够避免磁性表座不合格时可能对检测人员产生的伤害。其创新点和技术进步点归纳如下：1）采用可调节行进速度和方向的直线电机作为力源，方便省力。2）采用高精度拉力传感器作为测试标准，校准便捷，测试精度高。3）磁性表座工作磁力吸盘方便更换，同时方便调节开口大小。可以实现不同类型的磁性表座的检测。4）整个操作过程安全可靠，解决了以往容易造成人生伤害的问题。5）测试的是被吸附表面垂直方向上的拉力，更符合磁性表座出厂时的技术要求。The technical effects of the present invention are as follows: the fully automatic magnetic detection device of the magnetic watch base of the present invention can realize the detection of the working magnetic force of the magnetic watch base by electromechanical means in the cabinet, and can avoid possible damage to the testing personnel when the magnetic watch base is unqualified. harm. Its innovations and technological progress are summarized as follows: 1) A linear motor with adjustable travel speed and direction is used as the power source, which is convenient and labor-saving. 2) Using high-precision tension sensor as the test standard, the calibration is convenient and the test accuracy is high. 3) The working magnetic suction cup of the magnetic table is easy to replace, and at the same time it is convenient to adjust the size of the opening. Detection of different types of magnetic watch bases can be realized. 4) The whole operation process is safe and reliable, which solves the problem of easily causing personal injury in the past. 5) The test is the tensile force in the vertical direction of the adsorbed surface, which is more in line with the technical requirements of the magnetic watch base when it leaves the factory.
附图说明Description of drawings

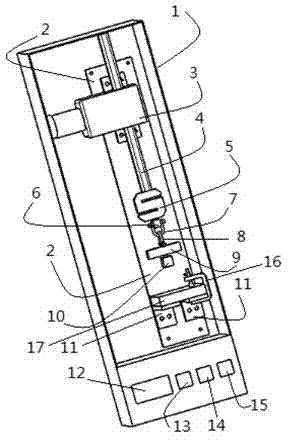

图1是实施本发明的全自动磁性表座磁力检测装置的结构示意图。Fig. 1 is the structural schematic diagram of the fully automatic magnetic watch base magnetism detecting device implementing the present invention.
图2是实施本发明的全自动磁性表座磁力检测装置的另一结构示意图。Fig. 2 is another structural schematic view of the fully automatic magnetic watch base magnetism detection device implementing the present invention.
附图标记列示如下：1-机箱；2-底板；3-电机；4-螺杆；5-拉力传感器；6-连接件；7-上吊环；8-下吊环；9-磁性表座固定机构；10-磁性表座；11-角铁；12-拉力传感器控制显示仪表；13-电机升降控制旋钮；14-电机调速旋钮；15-开关按钮；16-G形固钳；17-铸铁平板。Reference signs are listed as follows: 1-chassis; 2-base plate; 3-motor; 4-screw; 5-tension sensor; 6-connector; 7-upper ring; 8-lower ring; ;10-magnetic watch base; 11-angle iron; 12-tension sensor control display instrument; 13-motor lift control knob; 14-motor speed control knob; 15-switch button; 16-G-shaped clamp; 17-cast iron plate .
具体实施方式Detailed ways
下面结合附图（图1）对本发明进行说明。Below in conjunction with accompanying drawing (Fig. 1) the present invention is described.
图1是实施本发明的全自动磁性表座磁力检测装置的结构示意图。图2是实施本发明的全自动磁性表座磁力检测装置的另一结构示意图。如图1和图2所示，全自动磁性表座磁力检测装置，其特征在于，包括机箱1，所述机箱1内具有竖立设置的底板2，所述底板2的上部固定有电机3，所述电机3通过螺杆4往下连接拉力传感器5，所述拉力传感器5通过活动悬挂组件连接磁性表座固定机构9，所述磁性表座固定机构9的下方设置有磁性表座工作磁力吸附平台，所述磁性表座工作磁力吸附平台为角铁结构的一个平面，所述角铁结构的另一面与所述底板2的下部通过螺栓紧固连接。所述活动悬挂组件包括环部相扣的上吊环7和下吊环8，所述上吊环7连接于所述拉力传感器5的连接件6，所述下吊环8连接于所述磁性表座固定机构9。所述磁性表座固定机构9上设置有与磁性表座10上表面螺纹杆进行螺纹连接的螺孔，所述磁性表座10的下表面为磁性表座工作磁力面。所述磁性表座固定机构9采用卡套装置。所述角铁结构包括两块角铁11，所述两块角铁11横向间隔地并列形成所述磁性表座工作磁力吸附平台，所述底板的下部设置有横向槽形通孔，紧固连接角铁的螺栓通过在所述横向槽形通孔中的移动调整所述横向间隔的距离。所述角铁结构包括两块角铁11，所述两块角铁11横向间隔地并列设置，所述两块角铁的上表面搁置有铸铁平板17，所述铸铁平板17通过G形固钳16固定于角铁11上，所述底板2的下部设置有横向槽形通孔，紧固连接角铁的螺栓通过在所述横向槽形通孔中的移动调整所述横向间隔的距离。所述机箱1上设置有拉力传感器控制显示仪表12、电机升降控制旋钮13、电机调速旋钮14和开关按钮15。所述底板2为不锈钢板。所述电机3为直线电机。所述底板上位于所述横向间隔的对应位置设置有中心线和标尺刻度。Fig. 1 is the structural schematic diagram of the fully automatic magnetic watch base magnetism detecting device implementing the present invention. Fig. 2 is another structural schematic view of the fully automatic magnetic watch base magnetism detection device implementing the present invention. As shown in Figures 1 and 2, the fully automatic magnetic watch base magnetic detection device is characterized in that it includes a cabinet 1, which has a base plate 2 erected in the cabinet 1, and a motor 3 is fixed on the top of the base plate 2. The motor 3 is connected to the tension sensor 5 through the screw rod 4, and the tension sensor 5 is connected to the magnetic table base fixing mechanism 9 through a movable suspension assembly. The magnetic table base fixing mechanism 9 is provided with a magnetic adsorption platform for the magnetic table base. The working magnetic adsorption platform of the magnetic table base is a plane of the angle iron structure, and the other side of the angle iron structure is connected with the lower part of the bottom plate 2 by bolts. The movable suspension assembly includes an upper suspension ring 7 and a
本发明中，不锈钢板竖直固定，将直线电机和角铁固定在不锈钢板上，由直线电机作为拉力发生源，角铁作为磁性表座磁力吸附面，拉力传感器连接在直线电机螺杆上。首先将磁性表座和拉力传感器连接好，然后对拉力传感器的二次控制仪表清零，消除表座磁力测试中拉力传感器以下各部件的重力影响。然后调节直线电机下降，使磁性表座在磁力作用下吸在角铁上。改变电机运行方向，使磁力表座在电机拉力的作用下，脱离角铁，通过拉力传感器控制仪表的峰值保持功能，记录磁性表座脱离角铁的过程中的最大拉力，即为磁性表座的工作磁力。磁性表座可以直接通过螺纹和拉力传感器建立连接，因此吸附角铁可以是一个整体。如果磁性表座无法通过螺纹和拉力传感器建立连接，因此通过卡套装置连接，但受到磁性表座结构影响，必须留有卡套槽，以便卡套装置进入卡套槽内，使得卡套装置内被卡持的磁性表座与卡套槽两边的磁力吸附面自由接触。所述卡套槽利用两块角铁横向间隔地并列而形成。In the present invention, the stainless steel plate is vertically fixed, the linear motor and the angle iron are fixed on the stainless steel plate, the linear motor is used as the source of tension, the angle iron is used as the magnetic adsorption surface of the magnetic watch base, and the tension sensor is connected to the linear motor screw. First connect the magnetic base and the tension sensor, and then clear the secondary control instrument of the tension sensor to eliminate the influence of gravity on the components below the tension sensor in the magnetic test of the base. Then adjust the linear motor to descend, so that the magnetic watch base is attracted on the angle iron under the action of magnetic force. Change the running direction of the motor, so that the magnetic meter base is separated from the angle iron under the action of the pulling force of the motor, and the peak value holding function of the instrument is controlled by the tension sensor, and the maximum pulling force in the process of the magnetic meter base being separated from the angle iron is recorded, which is the magnetic meter base. Working magnetism. The magnetic table base can be directly connected with the tension sensor through the thread, so the adsorption angle iron can be a whole. If the magnetic base cannot be connected with the tension sensor through the thread, it is connected through the ferrule device, but affected by the structure of the magnetic base, a ferrule groove must be left so that the ferrule device enters the ferrule groove, so that the ferrule device The clamped magnetic watch base is in free contact with the magnetic adsorption surfaces on both sides of the ferrule groove. The ferrule groove is formed by two pieces of angle irons arranged side by side at intervals in the transverse direction.
实施本发明的全自动磁性表座磁力检测装置的技术指标：1）拉力输出范围：（0～150）kg的重力。2）拉力测量范围：（0～2000）N。3）拉力测量系统等级：0.1级。拉力测量可以通过标准砝码验证。The technical indicators of the fully automatic magnetic watch base magnetic detection device implementing the present invention: 1) Pull force output range: (0-150) kg gravity. 2) Tension measuring range: (0-2000) N. 3) Tension measurement system level: 0.1 level. Pull force measurements can be verified with standard weights.
在此指明，以上叙述有助于本领域技术人员理解本发明创造，但并非限制本发明创造的保护范围。任何没有脱离本发明创造实质内容的对以上叙述的等同替换、修饰改进和/或删繁从简而进行的实施，均落入本发明创造的保护范围。It is pointed out here that the above description is helpful for those skilled in the art to understand the present invention, but does not limit the protection scope of the present invention. Any equivalent replacement, modification and improvement and/or simplified implementation of the above descriptions without departing from the essence of the present invention shall fall within the protection scope of the present invention.
