Abstract

The invention discloses a desk lamp. The desk lamp comprises a bulb, a lampshade and a base. The bulb is arranged in the lampshade. The lampshade is a spherical lampshade. A world map layer is arranged on the surface of the spherical lampshade. The desk lamp also A bracket is set, the spherical lampshade is connected with the bracket, the bracket is connected with the base, the base is provided with a power switch, the power switch is connected with the light bulb, and the desk lamp is also provided with a power plug, and the power plug Connect with the power switch. The invention is novel, unique and interesting in style, simple in structure, convenient to manufacture and saves resources at the same time. In addition, the present invention not only has the function of lighting, but also has the function of education.

Description

a desk lamp

technical field

The invention relates to the lighting field, in particular to a desk lamp.

Background technique

Desk lamp is a kind of household appliance that is used for lighting in people's life. It is generally divided into two types, one is column type, and the other is clip type. Its working principle is mainly to concentrate the light in a small area, which is convenient for work and study. Generally, the bulbs used in desk lamps are incandescent lamps or energy-saving bulbs, and there is another kind of eye-protecting desk lamps popular on the market. Some desk lamps also have emergency functions.

But above-mentioned desk lamp all can only be used for illumination, and function is more single.

Contents of the invention

The present invention provides a desk lamp in order to solve the problem of relatively single functions in the above desk lamp.

In order to achieve the above object, the technical scheme of the present invention is as follows:

A desk lamp, the desk lamp includes a light bulb, a lampshade and a base, the bulb is arranged in the lampshade, the lampshade is a spherical lampshade, a world map layer is arranged on the surface of the spherical lampshade, and a bracket is also arranged on the desk lamp, The sphere lampshade is connected with the bracket, the bracket is connected with the base, the base is provided with a power switch, the power switch is connected with the light bulb, and the desk lamp is also provided with a power plug, and the power plug is matched with the power switch connect.

Further, the bracket is a U-shaped bracket, the top of the bracket is provided with a connecting part, and the spherical lampshade is connected to the bracket through the connecting part.

Further, the connecting part is a driving device, and the spherical lampshade can be rotated on the bracket by being connected with the driving device.

Still further, the connection part is mated with a power switch, and the power switch can control the operation of the driving device.

Further, the bulb is an LED lamp.

The invention is novel, unique and interesting in style, simple in structure, convenient to manufacture, and saves resources at the same time.

In addition, the present invention not only has the function of lighting, but also has the function of education.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings and specific embodiments.

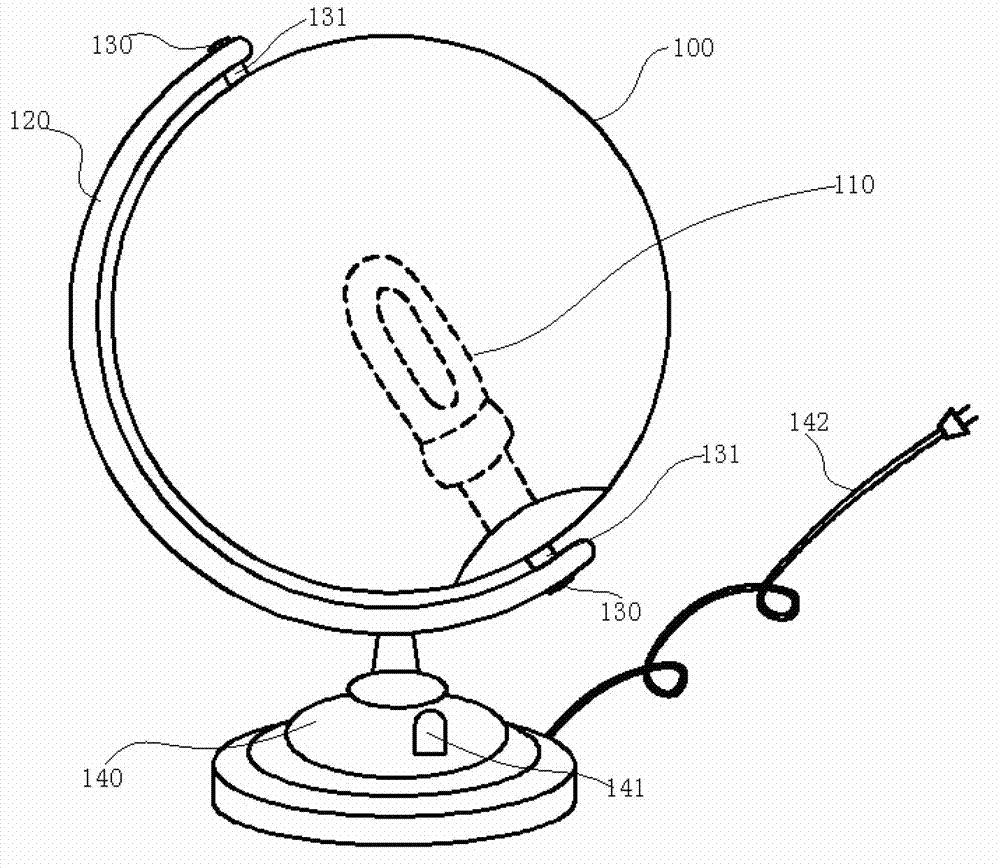

Fig. 1 is a structural schematic diagram of the present invention.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the present invention easy to understand, the present invention will be further described below in conjunction with specific illustrations.

Referring to FIG. 1 , a table lamp provided by the present invention mainly includes a spherical lampshade 100 , a light bulb 110 , a bracket 120 and a base 140 .

The spherical lampshade 100 is our common globe, and it mainly includes a spherical lampshade 100 , a bracket 120 , a connecting part 130 and a base 140 .

The spherical lampshade 100 is connected with the bracket 120 and can be rotated on the bracket 120 , and a world map layer is arranged on the surface of the spherical lampshade 100 .

Because the surface of the spherical lampshade 100 on the globe is drawn with a world map layer, when the inside of the spherical lampshade 100 is provided with a light bulb 110 for lighting, the patterns drawn on the surface can be illuminated so that people can observe the patterns above more clearly, so not only To the effect of lighting, it can also facilitate people to understand the distribution map of various countries in the world on the earth, and play an educational role.

The bracket 120 is a U-shaped bracket, which is obliquely arranged on the base 140, and is mainly used to fix the spherical lampshade 100 and prevent it from falling.

Connecting parts 130 are provided at both ends of the top end of the bracket 120, and the connecting part 130 is a driving device, which mainly includes a shaft body 131 and a driving motor.

The driving motor is arranged inside the bracket 120 and is connected with the power switch 141 to drive the shaft body 131 to rotate.

The shaft body 131 is arranged at both ends of the top end of the bracket 120 and is connected with the spherical lampshade 100 so that the spherical lampshade 100 is connected to the bracket 120 for rotation.

For the placement of the shaft body 131 and the drive motor, the present invention can provide the following several embodiments:

Example 1

Both ends of the bracket 120 are provided with drive motors to drive the shaft body 131 to rotate, which can provide greater power for the shaft body 131 to rotate.

Example 2

A driving motor is arranged inside any one of the two ends of the bracket 120, so that the spherical lampshade 110 can also be driven to rotate through the driving shaft 131, which can save production costs.

Example 3

The shaft body 131 at either end of the two ends of the bracket 120 can be connected with the bulb 110 inside the spherical lampshade 100 , so that not only the effect of fixing the bulb 110 can be played, but also the control of the bulb 110 by the power switch 141 is convenient.

Through the above implementation, when the device is in use, after the power switch 141 is turned on, the drive motor will drive the shaft body 131 to rotate, thereby driving the spherical lampshade 100 connected to the shaft body 131 to rotate, so that the spherical lampshade 100 imitates the earth to rotate on its axis sports.

In addition, when the power switch 141 is turned on, the bulb 110 inside the sphere lampshade 100 will also be brightened, so that the sphere lampshade 100 will rotate on its axis while being illuminated, which not only plays a lighting effect, but also imitates the rotation of the earth way, play an educational role.

Because the surface of the sphere lampshade 100 is depicted with land and ocean, the colors are different in depth. During lighting, as the sphere lampshade 100 rotates, the light changes, so that the light will not be too monotonous, and it is very attractive and interesting.

The base 140 is connected with the bracket 120, and it is used to support the bracket so that the bracket can be placed on a plane, and a power switch 141 is arranged on it. Turning on and off of the bulb 110 and the connection part 130 may be controlled simultaneously.

A power plug 142 is also arranged on the base 140, and when the power plug 142 is powered on, it can provide power for the device.

In addition, a battery installation slot is provided at the bottom of the base 140 , and a battery can be installed in the battery installation slot to provide power for the device.

The light bulb 110 is fixedly installed inside the sphere lampshade 100, and the light bulb 110 adopted by the device is an LED light, which is energy-saving and environment-friendly.

For the installation of the light bulb 110 , an installation groove matching the light bulb 110 can be provided inside the spherical lampshade 100 , the installation groove is matched with the power switch 141 and connected, and the light bulb 110 is detachably arranged on the installation groove.

The desk lamp provided by the invention can be replaced by a commonly used globe, and the production is very simple, and resources are saved.

The basic principles, main features and advantages of the present invention have been shown and described above. Those skilled in the industry should understand that the present invention is not limited by the above-mentioned embodiments, and what described in the above-mentioned embodiments and the description only illustrates the principles of the present invention, and the present invention will also have other functions without departing from the spirit and scope of the present invention. Variations and improvements are possible, which fall within the scope of the claimed invention. The protection scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. desk lamp, described desk lamp comprises bulb, lampshade and base, described bulb is arranged in the lampshade, it is characterized in that, described lampshade is a spheroid lampshade, described spheroid lampshade surface is provided with world map figure layer, described desk lamp also arranges a support, described spheroid lampshade is connected with support, described support is connected with base, is provided with power switch on the described base, and described power switch and bulb are connected, described desk lamp also arranges an attaching plug, and described attaching plug and power switch are connected.

2. a kind of desk lamp according to claim 1 is characterized in that, described support is a U-shaped support, and described cantilever tip is provided with attaching parts, and described spheroid lampshade is connected with support by attaching parts.

3. attaching parts according to claim 2 is characterized in that, described attaching parts are drive unit, and described spheroid lampshade can be rotated at support by being connected with drive unit.

4. according to claim 2 or 3 described attaching parts, it is characterized in that described attaching parts and power switch are connected, but the running of described power switch accessory drive.

5. a kind of desk lamp according to claim 1 is characterized in that, described bulb is the LED lamp.
