CN102997353A - Solar electronic air conditioner and manufacture method thereof - Google Patents
Solar electronic air conditioner and manufacture method thereof Download PDFInfo
- Publication number
- CN102997353A CN102997353A CN201210355842XA CN201210355842A CN102997353A CN 102997353 A CN102997353 A CN 102997353A CN 201210355842X A CN201210355842X A CN 201210355842XA CN 201210355842 A CN201210355842 A CN 201210355842A CN 102997353 A CN102997353 A CN 102997353A
- Authority
- CN
- China
- Prior art keywords
- air
- heat
- housing
- semiconductor refrigerating
- refrigerating module
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E60/00—Enabling technologies; Technologies with a potential or indirect contribution to GHG emissions mitigation
- Y02E60/14—Thermal energy storage
Landscapes
- Cooling Or The Like Of Electrical Apparatus (AREA)
Abstract
本发明公开了一种太阳能电子空调及其制作方法，本发明将半导体制冷模块分别安装在两块基板上，将这两块基板分别作为储冷器矩形框架的侧板，在基板之间连接上传热柱；然后将该储冷器矩形框架安装在一个壳体中，在该壳体中设置有风机，然后将太阳能供电装置作为风机及半导体制冷模块的电源；通过风机使空气从储冷器矩形框架的下部抽吸进入壳体中后，再通过风机将空气从壳体中通过储冷器矩形框架的上部吹出，这样空气中的热量通过导热柱和基板传给半导体制冷模块，通过半导体制冷模块对流进和流出壳体的空气进行有效降温。本发明不仅具有结构简单、造价低、维修方便、使用寿命较长的优点，而且还具有结构紧凑、安装方便、制冷效率高等优点。
The invention discloses a solar electronic air conditioner and a manufacturing method thereof. In the invention, semiconductor refrigeration modules are respectively installed on two base boards, and the two base boards are respectively used as side plates of a rectangular frame of a cold storage device, and are connected and uploaded between the base boards. heat column; then the rectangular frame of the cold storage device is installed in a housing, and a fan is arranged in the housing, and then the solar power supply device is used as the power supply of the fan and the semiconductor refrigeration module; After the lower part of the frame is sucked into the casing, the air is blown out from the casing through the upper part of the rectangular frame of the cold storage by the fan, so that the heat in the air is transferred to the semiconductor refrigeration module through the heat conduction column and the substrate, and then passed through the semiconductor refrigeration module. Effective cooling of the air flowing into and out of the housing. The invention not only has the advantages of simple structure, low cost, convenient maintenance and long service life, but also has the advantages of compact structure, convenient installation and high refrigeration efficiency.
Description
Technical field
The present invention relates to a kind of solar energy electronic air-conditioning and preparation method thereof, belong to the solar airconditioning manufacture technology field.
Background technology
At present, utilize solar power supply apparatus as power supply and adopt the technology of semiconductor refrigerating module making air-conditioning to be widely used, but solar energy electronic air-conditioning ubiquity of the prior art complex structure, difficult in maintenance, cost is higher, refrigerating efficiency is lower problem, so its result of use or not ideal enough.
Summary of the invention
The objective of the invention is: provide a kind of simple in structure, maintenance easily, service life is long, cost is lower, refrigerating efficiency is higher solar energy electronic air-conditioning and preparation method thereof, to overcome the deficiencies in the prior art.
The present invention is achieved in that the preparation method of a kind of solar energy electronic air-conditioning of the present invention is, the method comprises the employing solar power supply apparatus as power supply and adopts the semiconductor refrigerating module that air is cooled off, the semiconductor refrigerating module is installed in respectively on two substrates that can conduct temperature, and with these two substrates respectively as the side plate of cool storage container rectangular frame, two substrates are symmetrical arranged up and down, then connecting heat transfer pole between these two symmetrically arranged substrates, the two ends of each heat transfer pole are separately fixed on symmetrically arranged two substrates; Then this cool storage container rectangular frame is installed in the housing, in this housing, is provided with blower fan, then with the power supply of solar power supply apparatus as blower fan and semiconductor refrigerating module; When semiconductor refrigerating module and blower fan energising work, make air after the suction of the bottom of cool storage container rectangular frame enters the housing by blower fan, by blower fan air is blown out by the top of cool storage container rectangular frame from housing again, like this when air process cool storage container rectangular frame, heating column and substrate contacts in air and the cool storage container rectangular frame, airborne heat is passed to the semiconductor refrigerating module by heating column and substrate, can carry out effective temperature-reducing to the air that flows to and flow out housing by the semiconductor refrigerating module like this, thereby realize that high efficiency reduces the air-conditioning purpose of air themperature.
The of the present invention a kind of solar energy electronic air-conditioning that makes up according to said method is: this solar energy electronic air-conditioning comprises the solar power supply apparatus that forms by being arranged on outdoor solar panel and connected battery, semiconductor refrigerating module and housing, housing is comprised of rectangle mounting shell and arc water conservancy diversion cover plate, arc water conservancy diversion cover plate is connected to the rear portion of rectangle mounting shell, in arc water conservancy diversion cover plate, be provided with the air conducting dividing plate, be fixed with blower fan between the air conducting dividing plate in arc water conservancy diversion cover plate, in arc water conservancy diversion cover plate, be formed with the upper and lower surface space of air conducting dividing plate by blower fan and be connected, and the air duct that is connected with the upper and lower of rectangle mounting shell; The cool storage container rectangular frame is installed in the rectangle mounting shell, form the up and down biside plate of cool storage container rectangular frame for conducting the substrate of heat, on the outer surface of each substrate, be separately installed with the semiconductor refrigerating module, the inner surface of two substrates be connected with can heat conduction heat transfer pole, in the semiconductor refrigerating module radiator is housed, battery is connected with blower fan with the semiconductor refrigerating module respectively by the control circuit board that is installed on the housing.
On above-mentioned each heat transfer pole that is connected on the substrate, be fixed with at least 2 cold stored plates with heat conductivility.
Aforesaid substrate, heat transfer pole and cold stored plate are metal structure or are the plastic material structure with heat conductivility.
Above-mentioned radiator is comprised of heat-conducting plate, heat pipe and fin, and heat-conducting plate is affixed on the semiconductor refrigerating module, and an end of heat pipe is plugged in the heat-conducting plate, and the other end of heat pipe stretches out outside the rectangle mounting shell, and fin and backboard are installed thereon.
Above-mentioned center line and the horizontal angle angle that is not plugged on the heat pipe in the heat-conducting plate is 15 °～35 °, and heat-conducting liquid is housed in heat pipe.
Below the fin of above-mentioned each radiator, be provided with cooling fan, and cooling fan is connected with battery by control circuit board.
Be provided with at the back side of the arc water conservancy diversion cover plate of above-mentioned housing two separated heat shields of radiator up and down.
Rectangle mounting shell at above-mentioned housing is provided with the louvre blade that water conservancy diversion is used.
Place, centre position at above-mentioned housing rectangle mounting shell is provided with mezzanine space.
Be placed with control circuit board in above-mentioned mezzanine space, battery is placed in the mezzanine space or is placed on housing place in addition.
Owing to adopted technique scheme, the present invention adopts knockdown structure, be about to air-conditioning and be made into the fabricated structure that is formed by solar power supply apparatus, housing, cool storage container and radiator, greatly simplified the structure of solar airconditioning, and the present invention is made into cooling cool storage container the structure that is comprised of cool storage container rectangular frame, semiconductor refrigerating module, heat transfer pole and substrate, directly cool storage container is installed in the rectangle mounting shell of housing, has greatly improved the cooling effectiveness to air.Therefore, the present invention compared with prior art, that the present invention not only has is simple in structure, cost is low, easy to maintenance, advantage that service life is long, but also has compact conformation, easy for installation, refrigerating efficiency advantages of higher.
Description of drawings

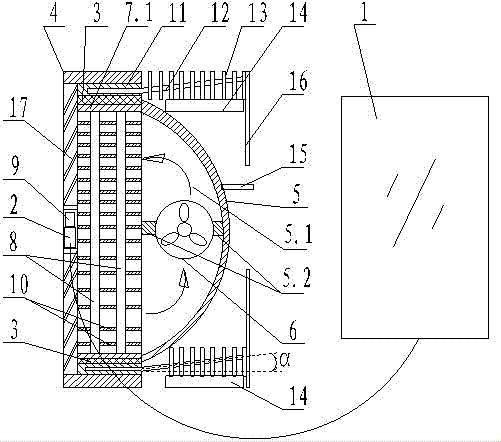

Fig. 1 is structural representation of the present invention;
Fig. 2 is the left TV structure schematic diagram of Fig. 1.
Description of reference numerals: 1-solar panel, 2-battery, 3-semiconductor refrigerating module, 4-rectangle mounting shell, 4.1-mezzanine space, 5-arc water conservancy diversion cover plate, 5.1-air duct, 5.2-air conducting dividing plate, the 6-blower fan, 7-rectangular frame, 7.1-substrate, 8-heat transfer pole, the 9-control circuit board, 10-cold stored plate, 11-heat-conducting plate, the 12-heat pipe, 13-fin, 14-cooling fan, the 15-heat shield, 16-backboard, 17-louvre blade.
Arrow in the accompanying drawing 1 is illustrated in the direction of Air Flow under the drive of blower fan.
The specific embodiment
Below in conjunction with drawings and Examples the present invention is done further to say in detail.
Embodiments of the invention: when implementing the preparation method of a kind of solar energy electronic air-conditioning of the present invention, its solar power supply apparatus and semiconductor refrigerating module as power supply that adopts is finished product of the prior art, during enforcement, the semiconductor refrigerating module is installed in respectively on two substrates that can conduct temperature, and with these two substrates respectively as the side plate of cool storage container rectangular frame, two substrates are symmetrical arranged up and down, then connecting heat transfer pole between these two symmetrically arranged substrates, the two ends of each heat transfer pole are separately fixed on symmetrically arranged two substrates; Then this cool storage container rectangular frame is installed in the housing, in this housing, is provided with blower fan, then with the power supply of solar power supply apparatus as blower fan and semiconductor refrigerating module; When semiconductor refrigerating module and blower fan energising work, make air after the suction of the bottom of cool storage container rectangular frame enters the housing by blower fan, by blower fan air is blown out by the top of cool storage container rectangular frame from housing again, like this when air process cool storage container rectangular frame, heating column and substrate contacts in air and the cool storage container rectangular frame, airborne heat is passed to the semiconductor refrigerating module by heating column and substrate, can carry out effective temperature-reducing to the air that flows to and flow out housing by the semiconductor refrigerating module like this, thereby realize that high efficiency reduces the air-conditioning purpose of air themperature.
The structural representation of the of the present invention a kind of solar energy electronic air-conditioning that makes up according to said method such as Fig. 1～shown in Figure 2, solar energy electronic air-conditioning of the present invention comprises the solar power supply apparatus that forms by being arranged on outdoor solar panel 1 and connected battery 2, and comprise and adopt semiconductor refrigerating module 3 of the prior art and housing, during making, housing can adopt plastics or metal material to make, its housing is comprised of rectangle mounting shell 4 and arc water conservancy diversion cover plate 5, arc water conservancy diversion cover plate 5 is connected to the rear portion of rectangle mounting shell 4, in arc water conservancy diversion cover plate 5, be provided with air conducting dividing plate 5.2, be fixed with blower fan 6(blower fan 6 between the air conducting dividing plate 5.2 in arc water conservancy diversion cover plate 5 and can directly adopt the cylindric fan that split-type air conditioner adopts in the prior art), in arc water conservancy diversion cover plate, be formed with the upper and lower surface space of air conducting dividing plate by blower fan and be connected, and the air duct that is connected with the upper and lower of rectangle mounting shell; The cool storage container rectangular frame is installed in the rectangle mounting shell, form the up and down biside plate of cool storage container rectangular frame for conducting the substrate 7.1 of heat, on the outer surface of each substrate 7.1, be separately installed with semiconductor refrigerating module 3, the inner surface of two substrates 7.1 be connected with can heat conduction heat transfer pole 8, be connected to and be fixed with at least 2 cold stored plates 10 with heat conductivility on each heat transfer pole 8 on the substrate 7.1, in order to reach better cooling effect, its each heat transfer pole 8 is preferably fixed 5～20 cold stored plate 10(with heat conductivility as depicted in figs. 1 and 2), its substrate 7.1, heat transfer pole 8 and cold stored plate 10 can adopt metal material to make or adopt the plastic material that has better heat conductivility in the prior art to make; In order to improve the refrigerating efficiency of semiconductor refrigerating module 3, can load onto radiator in semiconductor refrigerating module 3, this radiator is comprised of heat-conducting plate 11, heat pipe 12 and fin 13, heat-conducting plate 11 is affixed on the semiconductor refrigerating module 3, one end of heat pipe 12 is plugged in the heat-conducting plate 11, the other end of heat pipe 12 is stretched out outside the rectangle mounting shell 4, and install fin 13 and backboard 16 thereon; Simultaneously, rapider in order to dispel the heat, when mounted, be not controlled at 15 °～35 ° scope with being plugged on the center line of the heat pipe 12 in the heat-conducting plate 11 and the angle of horizontal angle α, and after heat pipe 12 vacuumized first, add heat-conducting liquid in heat pipe 12, the volume of the heat-conducting liquid of its adding should be less than the volume of heat pipe 3.2 inner chambers, and heat-conducting liquid can adopt running water of the prior art, distilled water, alcohol or acetone; In order to reach better radiating effect, a cooling fan 14 is installed on each radiator, and cooling fan 14 is connected with battery 2 by control circuit board 9; For when working, radiator is not influenced each other, can arrange at the arc water conservancy diversion cover plate 5 of housing one can be with two separated heat shield 15(of radiator up and down as shown in Figure 1), like this in when work, be installed in the radiator that heat that the radiator of bottom gives out can not have influence on top; Then by the mode of traditional air-conditioning, install the louvre blade 17 that water conservancy diversion is used at the front end of the rectangle mounting shell 4 of housing, this louvre blade 17 can directly adopt used hand or the DYN dynamic blind device of air-conditioning in the prior art; During making, in order to save space and convenient the installation and maintenance, a mezzanine space 4.1 can be set in the rectangle mounting shell 4 of housing, then place control circuit board 9 in mezzanine space 4.1, this control circuit board 9 can directly adopt commonly used being used for of conventional air conditioner in the prior art to regulate control circuit board with A.T.C; When used battery 2 small volume, can place it in the mezzanine space 4.1, when the volume of battery 2 is larger, can place it in the place beyond the housing; Then the mode of connection routinely, battery 2 is connected with cooling fan with semiconductor refrigerating module 3, blower fan 6 respectively and is connected by being installed in control circuit board 9 on the housing, make the control that battery 2 can be by control circuit board 9 respectively can be to semiconductor refrigerating module 3 and blower fan 6 and cooling fan 14 power supplies.
Claims (10)
1. the preparation method of a solar energy electronic air-conditioning, comprise and adopt solar power supply apparatus as power supply and adopt the semiconductor refrigerating module that air is cooled off, it is characterized in that: the semiconductor refrigerating module is installed in respectively on two substrates that can conduct temperature, and with these two substrates respectively as the side plate of cool storage container rectangular frame, two substrates are symmetrical arranged up and down, then connecting heat transfer pole between these two symmetrically arranged substrates, the two ends of each heat transfer pole are separately fixed on symmetrically arranged two substrates; Then this cool storage container rectangular frame is installed in the housing, in this housing, is provided with blower fan, then with the power supply of solar power supply apparatus as blower fan and semiconductor refrigerating module; When semiconductor refrigerating module and blower fan energising work, make air after the suction of the bottom of cool storage container rectangular frame enters the housing by blower fan, by blower fan air is blown out by the top of cool storage container rectangular frame from housing again, like this when air process cool storage container rectangular frame, heating column and substrate contacts in air and the cool storage container rectangular frame, airborne heat is passed to the semiconductor refrigerating module by heating column and substrate, can carry out effective temperature-reducing to the air that flows to and flow out housing by the semiconductor refrigerating module like this, thereby realize that high efficiency reduces the air-conditioning purpose of air themperature.
2. solar energy electronic air-conditioning, comprise the solar power supply apparatus that forms by being arranged on outdoor solar panel (1) and connected battery (2), semiconductor refrigerating module (3) and housing, it is characterized in that: housing is comprised of rectangle mounting shell (4) and arc water conservancy diversion cover plate (5), arc water conservancy diversion cover plate (5) is connected to the rear portion of rectangle mounting shell (4), in arc water conservancy diversion cover plate (5), be provided with air conducting dividing plate (5.2), be fixed with blower fan (6) between the air conducting dividing plate (5.2) in arc water conservancy diversion cover plate (5), in arc water conservancy diversion cover plate (5), be formed with the upper and lower surface space of air conducting dividing plate (5.2) by blower fan (6) and be connected, and the air duct (5.1) that is connected with the upper and lower of rectangle mounting shell (4); Cool storage container rectangular frame (7) is installed in rectangle mounting shell (4), form the up and down biside plate of cool storage container rectangular frame (7) for conducting the substrate (7.1) of heat, on the outer surface of each substrate (7.1), be separately installed with semiconductor refrigerating module (3), the inner surface of two substrates (7.1) be connected with can heat conduction heat transfer pole (8), in semiconductor refrigerating module (3) radiator is housed, battery (2) is connected 6 with semiconductor refrigerating module (3) with blower fan respectively by the control circuit board (9) that is installed on the housing) be connected.
3. solar energy electronic air-conditioning according to claim 2 is characterized in that: be connected to and be fixed with at least 2 cold stored plates (10) with heat conductivility on each heat transfer pole (8) on the substrate (7.1).
4. solar energy electronic air-conditioning according to claim 3 is characterized in that: substrate (7.1), heat transfer pole (8) and cold stored plate (10) are for metal structure or for having the plastic material structure of heat conductivility.
5. solar energy electronic air-conditioning according to claim 2, it is characterized in that: radiator is comprised of heat-conducting plate (11), heat pipe (12) and fin (13), heat-conducting plate (11) is affixed on the semiconductor refrigerating module (3), one end of heat pipe (12) is plugged in the heat-conducting plate (11), the other end of heat pipe (12) stretches out outside the rectangle mounting shell (4), and fin (13) and backboard (16) are installed thereon.
6. solar energy electronic air-conditioning according to claim 5, it is characterized in that: the center line and horizontal angle (α) angle that are not plugged on the heat pipe (12) in the heat-conducting plate (11) are 15 °～35 °, and in heat pipe (12) heat-conducting liquid are housed.
7. solar energy electronic air-conditioning according to claim 5 is characterized in that: be provided with cooling fan (14) below the fin (13) of each radiator, and cooling fan (14) is connected with battery (2) by control circuit board (9).
8. solar energy electronic air-conditioning according to claim 2 is characterized in that: be provided with at the back side of the arc water conservancy diversion cover plate (5) of housing two separated heat shields of radiator (15) up and down.
9. solar energy electronic air-conditioning according to claim 2, it is characterized in that: the rectangle mounting shell (4) at housing is provided with the louvre blade (17) that water conservancy diversion is used.
10. solar energy electronic air-conditioning according to claim 2, it is characterized in that: the place, centre position at the rectangle mounting shell (4) of housing is provided with mezzanine space (4.1), be placed with control circuit board (9) in mezzanine space (4.1), battery (2) is placed in the mezzanine space (4.1) or is placed on housing place in addition.
