Abstract
本发明公开了一种可适用于不同衣服的晾衣架，包括一挂钩，所述挂钩连接一衣架本体，所述挂钩通过一基座连接所述衣架本体，所述挂钩可旋转的连接所述基座，所述衣架本体包括二个斜架和一个水平架，所述的两个斜架的一端分别连接所述基座，另一端通过所述水平架连接，所述斜架通过弹性体与所述水平架连接，所述的斜架和水平架为可伸缩结构体，所述基座的一侧设置有一卡勾，所述挂钩为中空结构，并内部设置有一可拉伸的弹性带，所述弹性带的端部连接一拉环，并通过所述拉环延伸出所述挂钩的腔体外。
The invention discloses a clothes hanger applicable to different clothes, comprising a hook connected to a hanger body, the hook connected to the hanger body through a base, the hook rotatably connected to the base seat, the hanger body includes two slanting frames and a horizontal frame, one end of the two slanting frames is respectively connected to the base, and the other end is connected through the horizontal frame, and the slanting frame is connected to the The horizontal frame is connected, the inclined frame and the horizontal frame are telescopic structures, a hook is provided on one side of the base, the hook is a hollow structure, and a stretchable elastic belt is arranged inside, so The end of the elastic band is connected with a pull ring, and extends out of the cavity of the hook through the pull ring.
Description
the
技术领域 technical field
本发明属于生活用具领域，具体的涉及一种晾衣架。 The invention belongs to the field of living appliances, and in particular relates to a clothes drying rack.
the
背景技术 Background technique
西装、T恤衫、内衣等不同的衣服在晾晒时必须使用大小合适的晾衣架。这样就得准备很多晾衣架，导致每个晾衣架的使用效率不高。而且，现有的晾衣架在遇到较大的风吹时容易刮落而弄脏衣物。 Different clothes such as suits, T-shirts, underwear must use the right size drying rack when drying. In this way, a lot of drying racks must be prepared, resulting in inefficient use of each drying rack. Moreover, the existing clothes drying racks are easy to scrape off and dirty the clothes when encountering relatively large wind blowing.
the
发明内容 Contents of the invention
为克服现有技术中的不足，本发明旨在提供一种可适用于不同衣服的晾衣架。 In order to overcome the deficiencies in the prior art, the present invention aims to provide a clothes drying rack applicable to different clothes.
为实现上述技术目的，达到上述技术效果，本发明通过以下技术方案实现： In order to achieve the above-mentioned technical purpose and achieve the above-mentioned technical effect, the present invention is realized through the following technical solutions:
一种晾衣架，包括一挂钩，所述挂钩连接一衣架本体，所述挂钩通过一基座连接所述衣架本体，所述挂钩可旋转的连接所述基座，所述衣架本体包括二个斜架和一个水平架，所述的两个斜架的一端分别连接所述基座，另一端通过所述水平架连接，所述斜架通过弹性体与所述水平架连接。 A clothes hanger, comprising a hook, the hook is connected to a hanger body, the hook is connected to the hanger body through a base, the hook is rotatably connected to the base, and the hanger body includes two inclined A frame and a horizontal frame, one end of the two inclined frames is respectively connected to the base, the other end is connected through the horizontal frame, and the inclined frame is connected to the horizontal frame through an elastic body.
进一步的，所述的斜架和水平架为可伸缩结构体。 Further, the inclined frame and the horizontal frame are telescopic structures.
进一步的，所述基座的一侧设置有一卡勾，所述挂钩为中空结构，并内部设置有一可拉伸的弹性带，所述弹性带的端部连接一拉环，并通过所述拉环延伸出所述挂钩的腔体外。 Further, a hook is provided on one side of the base, the hook is a hollow structure, and a stretchable elastic belt is arranged inside, and the end of the elastic belt is connected with a pull ring, and through the pull A loop extends out of the cavity of the hook.
与现有技术相比，本发明具有以下有益效果： Compared with the prior art, the present invention has the following beneficial effects:
本发明的晾衣架通过可伸缩的斜架及水平架和弹性体的配合可适用于晾刮不同的衣服，可旋转的挂钩结构可以避免在受到风吹时减少水平晃动，并且可通过所述弹性带卡在卡勾内将晾衣架的挂钩环扣在晾衣绳上，避免晾衣架从晾衣绳上掉落。 The clothes hanger of the present invention can be suitable for drying and scraping different clothes through the cooperation of the telescopic inclined frame and the horizontal frame and the elastic body. The rotatable hook structure can avoid reducing horizontal shaking when being blown by the wind, and can Buckle the hook ring of the clothes hanger on the clothesline by locking it in the hook to prevent the clothes hanger from falling off the clothesline.
上述说明仅是本发明技术方案的概述，为了能够更清楚了解本发明的技术手段，并可依照说明书的内容予以实施，以下以本发明的较佳实施例并配合附图详细说明如后。本发明的具体实施方式由以下实施例及其附图详细给出。 The above description is only an overview of the technical solutions of the present invention. In order to understand the technical means of the present invention more clearly and implement them according to the contents of the description, the preferred embodiments of the present invention and accompanying drawings are described in detail below. The specific embodiment of the present invention is given in detail by the following examples and accompanying drawings.
the
附图说明 Description of drawings
此处所说明的附图用来提供对本发明的进一步理解，构成本申请的一部分，本发明的示意性实施例及其说明用于解释本发明，并不构成对本发明的不当限定。在附图中： The accompanying drawings described here are used to provide a further understanding of the present invention and constitute a part of the application. The schematic embodiments of the present invention and their descriptions are used to explain the present invention and do not constitute improper limitations to the present invention. In the attached picture:

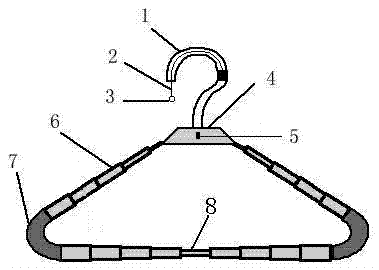

图1示出了本发明的结构示意图。 Fig. 1 shows a schematic structural diagram of the present invention.
the
具体实施方式 Detailed ways
下面将参考附图并结合实施例，来详细说明本发明。 The present invention will be described in detail below with reference to the accompanying drawings and in combination with embodiments.
参见图1，一种晾衣架，包括一挂钩1，所述挂钩1连接一衣架本体，所述挂钩1通过一基座4连接所述衣架本体，所述挂钩1可旋转的连接所述基座4，所述衣架本体包括二个斜架6和一个水平架8，所述的两个斜架6的一端分别连接所述基座6，另一端通过所述水平架8连接，所述斜架6通过弹性体7与所述水平架8连接。 Referring to Fig. 1 , a clothes drying rack includes a hook 1, the hook 1 is connected to a hanger body, the hook 1 is connected to the hanger body through a base 4, and the hook 1 is rotatably connected to the base 4. The hanger body includes two slanting frames 6 and a horizontal frame 8, one end of the two slanting frames 6 is respectively connected to the base 6, and the other end is connected through the horizontal frame 8, and the slanting frame 6 is connected to the horizontal frame 8 through an elastic body 7 .
进一步的，所述的斜架6和水平架8为可伸缩结构体。 Further, the inclined frame 6 and the horizontal frame 8 are telescopic structures.
进一步的，所述基座5的一侧设置有一卡勾5，所述挂钩1为中空结构，并内部设置有一可拉伸的弹性带2，所述弹性带2的端部连接一拉环3，并通过所述拉环3延伸出所述挂钩1的腔体外。 Further, one side of the base 5 is provided with a hook 5, the hook 1 is a hollow structure, and a stretchable elastic band 2 is arranged inside, and the end of the elastic band 2 is connected with a pull ring 3 , and extend out of the cavity of the hook 1 through the pull ring 3 .
以上所述仅为本发明的优选实施例而已，并不用于限制本发明，对于本领域的技术人员来说，本发明可以有各种更改和变化。凡在本发明的精神和原则之内，所作的任何修改、等同替换、改进等，均应包含在本发明的保护范围之内。 The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included within the protection scope of the present invention.
