Abstract

The invention discloses a counter which can realize that goods can be taken out but not brought in, which includes the counter and a goods inlet and a goods pickup port on the counter, and is characterized in that: the goods inlet and the goods pickup port are set separately, and the goods inlet is a double-door switch structure , set on the top surface of the counter, the pick-up port is set on the side of the counter, and a multi-interval overlapping cross one-way rotating shaft device with the function of being able to exit and not enter is installed at the pick-up port; The guardrail is arranged in a staggered manner with the multiple interval overlapping cross rotating shafts in the multiple interval overlapping cross one-way rotating shaft device. The counter with this structure is simple in structure, easy to operate, and does not need power support, so that consumers can see, understand, and touch, and enhance consumer trust; suppliers use this counter to cooperate with shopping malls, so that the business The model is more flexible, more convenient, and reduces costs; it realizes the separation of supply and sales, clear responsibilities, and effectively resists the sale of counterfeit goods.

Description

A kind of counter that can realize that goods can be exited but not entered

technical field

The invention relates to a counter for commodity sales, in particular to a counter that can realize that commodities can be exited but not entered.

Background technique

At present, most of the counters used to display and sell goods in the market are open counters, and there are no special imports and exports. Sales staff can add or take out goods from the counters at will, so it is impossible to restrain some sellers from "selling by car". "Fake" behavior, cannot guarantee the authenticity of the goods in the counter from a certain supplier.

Contents of the invention

The purpose of the present invention is to overcome the deficiencies of the prior art, and provide a kind of semi-enclosed commodity counter that can realize that commodities cannot be entered.

The technical scheme that realizes the object of the present invention is:

A counter that can realize goods can be exited but not entered, including the counter and the import port and the pick-up port on the counter. The difference from the prior art is that the import port and the pick-up port are set separately, and the import port is a door-type switch structure. It is installed on the top of the counter, and the pick-up port is set on the side of the counter. There is a multi-interval coincident cross one-way rotating shaft device at the pick-up port; there is also a horizontal fixed guardrail on the right side of the pick-up port, which coincides with the multiple intervals. The multiple spaced overlapping cross shafts in the one-way shaft device are arranged in parallel and staggered, so that the right side of the shaft is in a constant closed state.

The outlet channel of the said pick-up port is an arc structure, and the upper part of the channel is closed.

The counter is made of a metal material with a certain strength to ensure that it has firm and firm characteristics.

The multi-interval coincident cross one-way rotating shaft device is composed of a multiple interval overlapping cross shaft and one-way bearings arranged at its upper and lower ends. One end of the one-way bearing is fixedly connected to the multiple interval overlapping cross shaft, and the other end is fixedly connected to the counter.

The advantages of the present invention are:

1. The structure is simple, easy to operate, and does not require power support, so that consumers can see, understand, and touch, and enhance consumers' trust in the products sold in the counter;

2. Suppliers use this counter to cooperate with shopping malls, which is more flexible and convenient than the business model of opening specialty stores, and reduces costs;

3. Use technical means to consolidate the good faith cooperative relationship between the supply and sales parties, realize the separation of supply and sales, clarify responsibilities, and effectively resist the behavior of selling counterfeit goods.

Description of drawings

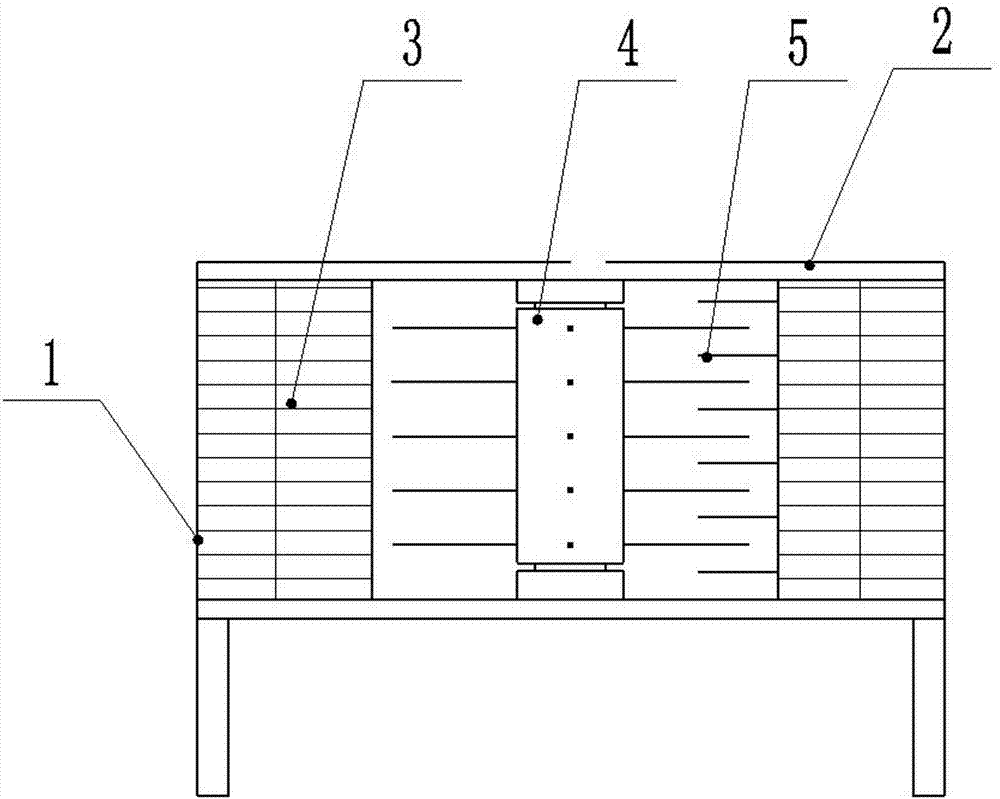

Fig. 1 is the front view of the pick-up port of the counter of the present invention;

Fig. 2 is the front view of the inlet of the counter of the present invention;

Fig. 3 is a structural schematic diagram of a multi-interval overlapping cross one-way rotating shaft device.

In the figure: 1. Counter 2. Import port 3. Pick-up port 4. Multiple interval overlapping cross one-way rotating shaft device 4-1. Multiple interval overlapping cross rotating shaft 4-2. One-way bearing 5. Barrier 6. Pick-up port exit channel.

Detailed ways

Referring to Fig. 1 and Fig. 2, a kind of counter which can realize that goods can be exited but not entered, comprises counter 1, an inlet 2 arranged on the top surface of counter 1 and a pick-up port 3 arranged on the side of the counter, and counter 1 is made of metal material The empty format double-door opening and closing structure that makes, leaves the vertical and horizontal channel that is convenient to move the goods in the counter 1 on the surface, to facilitate the work of picking up goods. The goods inlet 2 is a double-door switch structure, which is only used and managed by the supplier, and is usually in a locked and closed state; at the goods taking place 3, there is a multi-interval coincident cross one-way rotating shaft device 4 that is fixedly connected to the counter 1. The right side of the device 4 is provided with a barrier 5 parallel to the rotating shaft and staggered, so that the right side of the rotating shaft is in a constant closed state; the picking port 3 has the function of being able to exit but not entering, and the exit channel 6 of the picking port is an arc structure, and the top of the channel 6 is closed , to strengthen the "anti-entry" effect of the counter, for the seller to use when selling and picking up the goods.

With reference to Fig. 3, multiple spacing overlapping cross one-way rotating shaft device 4 is made up of multiple spacing overlapping cross rotating shaft 4-1 and the one-way bearing 4-2 that is arranged on its upper and lower two ends, and one end of one-way bearing 4-2 is connected with The overlapping cross shafts 4-1 at multiple intervals are fixedly socketed, and the other end is fixedly connected to the counter 1.

The overall appearance shape and size of the counter of the present invention can be determined according to market demand, and the gap size of the space structure is determined with reference to the specifications and sizes of all sold commodities, so as to ensure its specific function of being able to go out but not to go in. In addition, the large counter can be equipped with multiple pick-up ports,

The working principle of the present invention is: when the supplier puts goods into the counter, he opens the goods inlet on the top surface of the counter to realize the supplier's supply and management functions, and locks the goods inlet after completion. When picking up the goods, the salesperson moves the goods selected by the customer in the counter to the exit channel of the pick-up port, and then rotates the multi-interval coincident cross one-way rotating shaft device in the direction of the arrow shown in Figure 2, and the goods are pushed by the cross rotating shaft Move out of the counter through the exit channel to complete the pick-up work.

Claims (4)

1. A counter that can realize the goods can be exited but not entered, including the counter and the import port and the pick-up port on the counter. On the top surface of the counter, the pick-up port is set on the side of the counter, and there is a multi-interval coincident cross one-way rotating shaft device at the pick-up port; there is also a horizontal fixed guardrail on the right side of the pick-up port, which coincides with the multi-interval cross one-way Multiple spaced overlapping cross rotating shafts in the rotating shaft device are arranged in parallel and staggered. 2. The counter according to claim 1, characterized in that: the multi-interval overlapping cross one-way rotating shaft device is composed of multiple interval overlapping cross rotating shafts and one-way bearings arranged at its upper and lower ends, one end of the one-way bearing is connected to The overlapping cross shafts at multiple intervals are fixedly connected, and the other end is fixedly connected with the counter. 3. The counter according to claim 1, characterized in that: the outlet channel of the goods-taking port is an arc-shaped structure, and the upper part of the channel is closed. 4. The counter according to claim 1, characterized in that: the counter is made of metal material with certain strength.
