Abstract
The invention discloses an adjustably mounted solar battery component fixing bracket, which comprises a front vertical column and a rear vertical column which have circular tube structures, adjustable supports arranged on the upper parts of the front vertical column and the rear vertical column, a longitudinal beam which is arranged on the upper parts of the adjustable supports and has a circular tube structure, arc adjustable hoops, which are connected with the adjustable supports, of the longitudinal beam, transverse beams which are arranged on the upper part of the longitudinal beam and have circular tube structures, specially-shaped adjustable hoops, which are connected with the longitudinal beam, of the transverse beams, L-shaped solar battery component connection pieces arranged on the upper parts of the transverse beams, arc adjustable hoops, which are connected with the transverse beams, of the solar battery component connection pieces, an inclined strut arranged between the longitudinal beam and the rear vertical column, and arc adjustable hoops, which are connected with the longitudinal beam and the rear vertical column, of the inclined strut. Compared with the prior art, the adjustably mounted solar battery component fixing bracket has the advantages that mounting positions of the components of the bracket are easy to adjust, so that the mounting of the bracket can easily adapt to the change of a complicated stratum; and therefore, the construction working period can be shortened, materials are saved, engineering investment can be reduced, and a solar battery matrix is rationally arranged.
Description
Technical field
The present invention relates to a kind of adjustable solar module fixed support of installing.
Technical background
Solar cell array is the important part of photovoltaic plant, mainly is comprised of support and rack-mount battery component thereof.Support mainly is divided into two kinds of fixed and tracking modes, and fixed bracket is the most widely used a kind of rack form of present engineering.Under complex-terrain (such as the mountain area undulating topography) condition, the installation tunable performance of fixed bracket has very important impact to shortening engineering construction duration, saving engineering land used, reduction construction investment.The fixed bracket of using at present is adapted at installing under the smooth or comparatively smooth orographic condition, there are not tunable performance or capable of regulating performance poor, be difficult to adapt to the variation of complex-terrain, adjustment is installed very difficult, its main cause is that the main connecting elements of support does not possess tunable performance on version, causes many key nodes deformation everywhere of support to be adjusted.For as far as possible adaptation to the ground variation, the connecting elements of existing support key node will be made the member of many group different sizes, but mutually can not be general, adaptation to the ground changes continuously, require the foundation construction of support, the installation of support all must reach very high precision, for the installation of large-area thousands of supports, be a very work consuming thing consuming time, also can waste lot of materials simultaneously.Therefore, extremely need a kind of adjustable solar module fixed support of installation that can adapt to complex-terrain.
Summary of the invention
Goal of the invention of the present invention is to overcome the deficiency that above-mentioned prior art exists, and a kind of fixed bracket that has the solar module of tunable performance under MODEL OVER COMPLEX TOPOGRAPHY is provided.
The objective of the invention is to realize by following technical solution.
A kind of adjustable solar module fixed support is installed, the front and back column that comprises circular tube structure, the adjustable seats on column top before and after being arranged on, be arranged on the longitudinal beam of circular tube structure on adjustable seats top and the adjustable anchor ear of circular arc that longitudinal beam is connected with adjustable seats, be arranged on the transverse beam of circular tube structure on longitudinal beam top and two adjustable anchor ears of abnormity of transverse beam and each junction of longitudinal beam, be arranged on the solar module connector on transverse beam top and the adjustable anchor ear of circular arc that the solar module connector is connected with transverse beam, be arranged on the adjustable anchor ear of circular arc that diagonal brace between longitudinal beam and the rear column and diagonal brace and longitudinal beam are connected with rear column.
Adjustable seats of the present invention, bottom be internal diameter greater than the round tube of front and back column external diameter, top is the U-lag that links to each other with round tube.Round tube radially arranges dogbolt, is provided with horizontal support bolt and matching nut in the U-lag.
The adjustable anchor ear of the circular arc that the present invention adopts everywhere, version is identical, and the adjustable anchor ear of each circular arc forms by identic half leaf of two block structures and corresponding locking screw screw bolt and nut.The agent structure of every half leaf is circular arc, and the two-end structure form is the ears or side handles of a utensil with connecting hole.The horizontal support bolt and the clamping screw that arrange in the U-lag of adjustable seats pass half leaf connecting hole, with nut two and half leaves are connected into an adjustable anchor ear of complete circular arc; Clamping screw passes half leaf connecting hole, with nut two and half leaves is connected into an adjustable anchor ear of complete circular arc.
Two adjustable anchor ears of abnormity of transverse beam of the present invention and each junction of longitudinal beam, version is identical.Each special-shaped adjustable anchor ear is comprised of two block structure forms different half leaf and corresponding locking screw screw bolt and nut respectively.Half leaf structure form is identical, and agent structure is circular arc, and the two-end structure form is for being the ears or side handles of a utensil with connecting hole, half leaf structure form is identical, the agent structure form is U-lag, and the both sides, top of U-lag are with Symmetrical Circular Arc, and the two-end structure form is for being the ears or side handles of a utensil with connecting hole.Clamping screw passes the connecting hole of half leaf, with nut two and half leaves is connected into a complete special-shaped adjustable anchor ear.Two adjustable anchor ears of abnormity are by being arranged on link together relative with nut of connecting bolt in the half leaf U-lag, and the realization transverse beam is connected with longitudinal beam arbitrary intersect angle degree.
Solar module connector of the present invention, structure are L shaped, and a L shaped side has circular port, and opposite side has long kidney-shaped hole.
Installation tunable performance of the present invention is embodied among the implementation process of following technical proposals.
Arrange before and after the column north-south, front and back of circular tube structure, the rear column top is higher than the front column top, guarantees that support upper cell assembly plane becomes certain inclination angle with horizontal plane.Column bottom, front and back and vertical connection of basis, top is connected with adjustable seats.In the installation process, adjustable seats can be done certain endwisely slipping and adjust and the radial rotating adjustment in front and back pillar upper end, the height that column easily occurs under MODEL OVER COMPLEX TOPOGRAPHY before and after can eliminating and the deviation in orientation, thus the mounted angle of solar module on support guaranteed.
In the U-lag of adjustable seats, the longitudinal beam of circular tube structure is connected with the horizontal support bolt of adjustable seats by the adjustable anchor ear of circular arc.Longitudinal beam can to adjust the inclination angle of longitudinal beam, also can be done certain horizontal position adjustment along the horizontal support bolt along the radial rotating of horizontal support bolt, to adjust the horizontal level of longitudinal beam.The adjustment process of longitudinal beam can guarantee the mounted angle of battery component on support under MODEL OVER COMPLEX TOPOGRAPHY better, can also guarantee the installation site that longitudinal beam is correct simultaneously, guarantees the stability of supporting structure.
The transverse beam of circular tube structure is positioned at the top of longitudinal beam, and realizes mutual connection by two adjustable anchor ears of abnormity.Two adjustable anchor ears of abnormity link together by bolt and nut in advance, then, embrace transverse beam, another armful longitudinal beam for one.The adjustable anchor ear of abnormity is held tightly before transverse beam or the longitudinal beam, can be along transverse beam or longitudinal beam radial rotating, simultaneously also can be along the connecting bolt radial rotating between two anchor ears, so that transverse beam is connected arbitrarily angled the connection with longitudinal beam, thereby make the mutual space connection angle of transverse beam and longitudinal beam deformation adjusting everywhere under MODEL OVER COMPLEX TOPOGRAPHY, thereby guarantee the reasonable Arrangement of solar cell array.
The solar module connector is positioned at the top of transverse beam, and is connected with transverse beam by the adjustable anchor ear of circular arc.The adjustable anchor ear of circular arc is before holding transverse beam tightly, can endwisely slip along transverse beam, also can be along the transverse beam radial rotating, thus the solar module connector that is connected to anchor ear one end can be moved and multi-angle rotation by multiposition, make things convenient for the installation adjustment of solar module.
Solar module is connected with the solar module connector by bolt, and the long kidney-shaped hole of solar module connector is that the installation of solar module leaves certain adjustment space, to remedy the foozle of solar module connector installing hole.
For guaranteeing the stability of supporting structure, between rear column and the longitudinal beam diagonal brace is set, the diagonal brace two ends are provided with the connection ears or side handles of a utensil, and are connected with longitudinal beam with rear column respectively by two adjustable anchor ears of circular arc.Because the adjustable anchor ear of circular arc can endwisely slip along rear column and longitudinal beam, the link position of diagonal brace can be adjusted as required, changes with the landform that adapts under the MODEL OVER COMPLEX TOPOGRAPHY.
The invention has the beneficial effects as follows: each part of support easily carries out the adjustment of installation site, the landform that the installation of support is easily adapted under the MODEL OVER COMPLEX TOPOGRAPHY changes, thereby can shorten the completion time of project, saves material, reduce construction investment, guarantee the reasonable Arrangement of solar cell array.
Description of drawings
Fig. 1 is structural representation of the present invention;
Fig. 2 is the I-I view of Fig. 1;
Fig. 3 a is the connection diagram of adjustable seats and front and back column and longitudinal beam;
Fig. 3 b is 1-1 view among Fig. 3 a;
Fig. 4 a is the connection diagram of longitudinal beam and transverse beam;
Fig. 4 b is 2-2 view among Fig. 4 a;
Fig. 5 is the connection diagram of transverse beam and solar module connector;

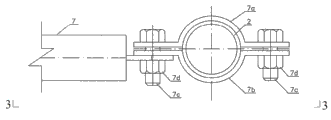

Fig. 6 a is the connection diagram of diagonal brace and rear column;
Fig. 6 b is 3-3 view among Fig. 6 a.
Embodiment
The present invention is further described below in conjunction with the drawings and specific embodiments.
As depicted in figs. 1 and 2, column 1,2 bottoms and 13 vertical connections of basis before and after the support, top suit adjustable seats 3; On adjustable seats 3 tops, longitudinal beam 5 is connected with adjustable seats 3 by the adjustable anchor ear 4 of circular arc; On longitudinal beam 5 tops, transverse beam 10 is connected with longitudinal beam 5 by special-shaped adjustable anchor ear 8,9; On transverse beam 10 tops, solar module connector 12 is connected with transverse beam 10 by the adjustable anchor ear 11 of circular arc; Between longitudinal beam 5 and rear column 2, diagonal brace 6 is connected with rear column with longitudinal beam 5 respectively by the adjustable anchor ear 7 of circular arc and is connected.
Such as Fig. 3 a, shown in Fig. 3 b, support with adjustable 3 bottoms are circular casing 3a and dogbolt 3c, and superstructure is U-lag 3b and horizontal support bolt 3d and matching nut 3e.Circular arc is adjustable anchor ear 4 is comprised of the identic half leaf 4a of two block structures and 4b and corresponding clamping screw 4c and nut 4d.Column 1,2 tops before and after support with adjustable 3 is socketed in, after the preliminary adjustment in position, tentatively fixing with dogbolt 3c.After support integral installation adjustment was finished, the circular casing 3a of support with adjustable 3 and front and back column 1,2 welding realized support with adjustable 3 and front and back column 1,2 be fixedly connected with.Bolt 4c and nut 4d on horizontal support bolt 3d and nut 3e by support with adjustable 3, circular arc the is adjustable anchor ear 4, circular arc is adjustable, and anchor ear 4 can be held longitudinal beam 5 tightly and longitudinal beam 5 is fixed on the suitable position of U-lag 3b, and realization support with adjustable 3 is connected with longitudinal beam 5.
Such as Fig. 4 a, shown in Fig. 4 b, two adjustable anchor ears 8 of abnormity, 9 are comprised of the different half leaf 8a of two block structure forms and 8b, 9a and 9b and corresponding clamping screw 8c, 9c and nut 8d, 9d respectively, and two adjustable anchor ears 8 of abnormity, 9 are by being arranged on link together relative with nut 10b of connecting bolt 10a in half leaf 8b, the 9bU shape groove.Transverse beam 10 is located at longitudinal beam 5 tops, and special-shaped adjustable anchor ear 8 is by bolt 8c and nut 8d locking longitudinal beam 5; Abnormity is adjustable, and anchor ear 9 is locked transverse beam 10 by bolt 9c and nut 9d; Because two adjustable anchor ears 8 of abnormity, 9 have linked together by bolt 10a and nut 10b, thereby realized that transverse beam 10 is connected the connection of arbitrary intersect angle degree with longitudinal beam.
As shown in Figure 5, the adjustable anchor ear 11 of circular arc is comprised of the identic half leaf 11a of two block structures and 11b and corresponding clamping screw 11c and nut 11d.By bolt 11c and nut 11d, circular arc is adjustable, and anchor ear 11 is held tightly in transverse beam 10, and the bolt 11c of circular arc is adjustable anchor ear 11 upper ends and nut 11d also are connected to the upper of the adjustable anchor ear 11 of circular arc with L shaped solar module connector 12 simultaneously.By bolt 12a and nut 12b, solar module connector 12 is connected with the solar module 14 on its top, thereby realizes that solar module 14 is connected with support bracket fastened.
Such as Fig. 6 a, shown in Fig. 6 b, circular arc is adjustable anchor ear 7 is comprised of the identic half leaf 7a of two block structures and 7b and corresponding clamping screw 7c and nut 7d.By bolt 7c and nut 7d, circular arc is adjustable, and anchor ear 7 is held tightly on rear column 2, also couples together with the ears or side handles of a utensil of diagonal brace 7 simultaneously, thereby realizes being connected of diagonal brace 7 and rear column 2.
Claims (5)
1. one kind adjustable solar module fixed support is installed, it is characterized in that, the front and back column (1 that comprises circular tube structure, 2), column (1 before and after being arranged on, 2) adjustable seats on top (3), be arranged on the longitudinal beam (5) of circular tube structure on adjustable seats (3) top and the adjustable anchor ear of circular arc (4) that longitudinal beam (5) is connected with adjustable seats (3), be arranged on the adjustable anchor ear (8 of two abnormity of the transverse beam (10) of circular tube structure on longitudinal beam (5) top and transverse beam (10) and each junction of longitudinal beam (5), 9), be arranged on the solar module connector (12) on transverse beam (10) top and the adjustable anchor ear of circular arc (11) that solar module connector (12) is connected with transverse beam (10), the diagonal brace (6) and the diagonal brace (6) that are arranged between longitudinal beam (5) and the rear column (2) are connected 2 with longitudinal beam (5) with rear column) the adjustable anchor ear of circular arc (7) that is connected.
2. a kind of adjustable solar module fixed support of installing according to claim 1, it is characterized in that, adjustable seats (3) bottom is that internal diameter is greater than the round tube (3a) of front and back column (1,2) external diameter, top is the U-lag (3b) that links to each other with round tube (3a), round tube (3a) radially arranges dogbolt (3c), is provided with horizontal support bolt (3d) and matching nut (3e) in the U-lag (3b).
3. a kind of adjustable solar module fixed support of installing according to claim 1, it is characterized in that, its structure of the adjustable anchor ear of described circular arc (4,7,11) is identical, the adjustable anchor ear of each described circular arc is by two block structures identic half leaf (4a, 4b, 7a, 7b, 11a, 11b) and corresponding clamping screw (4c, 7c, 11c) and nut (4d, 7d, 11d) composition; The agent structure of every half leaf (4a, 4b, 7a, 7b, 11a, 11b) is circular arc, and the two-end structure form is the ears or side handles of a utensil with connecting hole; The horizontal support bolt (3d) and the clamping screw (4c) that arrange in the U-lag (3b) of adjustable seats (3) pass half leaf (4a and 4b) connecting hole, with nut (3e, 4d) two and half leaves (4a and 4b) are connected into an adjustable anchor ear of complete circular arc (4); Clamping screw (7c, 11c) passes half leaf (7a and 7b, 11a and 11b) connecting hole, and (7d, 11d) connects into an adjustable anchor ear of complete circular arc (7,11) with two and half leaves (7a and 7b, 11a and 11b) with nut.
4. a kind of adjustable solar module fixed support of installing according to claim 1, it is characterized in that, two adjustable anchor ears of abnormity (8,9) of transverse beam (10) and each junction of longitudinal beam (5), version is identical, each special-shaped adjustable anchor ear (8,9) is respectively by half different leaf of two block structure forms (8a, 8b, 9a, 9b) and corresponding clamping screw (8c, 9c) and nut (8d, 9d) composition; The version of half leaf (8a, 9a) is identical, agent structure is circular arc, the two-end structure form is for being the ears or side handles of a utensil with connecting hole, the version of half leaf (8b, 9b) is identical, the agent structure form is U-lag, the both sides, top of U-lag are with Symmetrical Circular Arc, and the two-end structure form is for being the ears or side handles of a utensil with connecting hole; Clamping screw (8c, 9c) passes the connecting hole of half leaf (8a, 8b, 9a, 9b), and (8d, 9d) connects into a complete special-shaped adjustable anchor ear (8,9) with two and half leaves with nut; Two adjustable anchor ears of abnormity (8,9) are by being arranged on the connecting bolt (10a) and relative the linking together of nut (10b) in half leaf (8b, the 9b) U-lag, and realization transverse beam (10) is connected with longitudinal beam (5) arbitrary intersect angle degree.
5. a kind of adjustable solar module fixed support of installing according to claim 1, it is characterized in that, solar module connector (12), structure is L shaped, a L shaped side has circular port (15), and opposite side has long kidney-shaped hole (16).
