Abstract

The invention discloses a movable intelligent monitoring and analysis device in the technical field of engineering management and safety monitoring of substation construction sites. The technical solution is that the device includes an industrial control server, a coded orthogonal frequency division multiplexing COFDM wireless transmission module, a network switch, a keyboard/display interface module, a multifunctional camera, an LCD display module, an audible and visual alarm module, and a battery management control module , an antenna and a first I/O interface module. Based on video monitoring technology, intelligent video analysis technology, and wireless communication technology, the present invention proposes a mobile video intelligent monitoring car system device that can perform intelligent analysis and processing, which can meet the temporary requirements of the construction unit for monitoring the construction site and the response to general on-site emergencies. The demand for intelligent analysis and processing of the situation.

Description

A mobile intelligent monitoring and analysis device

technical field

The invention belongs to the technical field of project management and safety monitoring at the substation construction site, and in particular relates to a movable intelligent monitoring and analysis device.

Background technique

The safety monitoring and management of the substation construction site is one of the important links to realize the construction management. Substation construction is prone to various safety accidents, resulting in adverse social influence and even serious consequences.

In recent years, the safety monitoring of the construction site, including construction safety supervision, the safety of people, property, and materials on the construction site, etc., all need to use high-tech means to strengthen prevention. And because an important feature of the construction site is its temporary nature, it will change or cease to exist with the progress and completion of the project, and the monitoring system as the eye of the construction site will have to be reinstalled or dismantled. It consumes manpower and easily damages the monitoring equipment. There is an urgent need for a mobile intelligent monitoring and analysis system device.

Contents of the invention

Aiming at the requirements mentioned in the background technology in order to meet the construction unit's temporary monitoring of the construction site and intelligent analysis and processing of general on-site emergencies, the present invention proposes a mobile intelligent monitoring and analysis device.

The technical solution is a mobile intelligent monitoring and analysis device, which is characterized in that the device includes an industrial control server, a coded orthogonal frequency division multiplexing COFDM wireless transmission module, a network switch, a keyboard/display interface module, and a multifunctional camera , LCD display module, sound and light alarm module, battery management control module, antenna and first I/O interface module;

Wherein, the industrial control server is respectively connected with the coded orthogonal frequency division multiplexing COFDM wireless transmission module, network switch, keyboard/display interface module, multi-function camera, LCD display module, sound and light alarm module and the first I/O interface module connection; the industrial control server is used to process the collected data; the coded orthogonal frequency division multiplexing COFDM wireless transmission module realizes data transmission with the command center or monitoring room; the network switch is used for connecting with the internet wired network Perform data transmission; the keyboard/display interface module is used to connect the keyboard/display; the LCD display module is used to display when the industrial control server is operating and monitor and display local conditions; the battery management control module is used to manage the power supply ; The first I/O interface module is used to implement data transmission with external devices and servers;

The antenna is connected to the coded orthogonal frequency division multiplexing COFDM wireless transmission module; the antenna is used for receiving wireless signals.

The multifunctional camera includes a high-definition dome camera with a universal speed-variable pan-tilt control device, which is used to realize the collection and real-time transmission of high-definition images on the spot.

The device also includes a flat-bottomed trolley; the flat-bottomed trolley includes a car cabinet, a bottom plate, four wheels, two lifting rods, a rotating disk, a handle and a sunshade; the car cabinet is installed on the bottom plate for placing industrial control servers, Coded orthogonal frequency division multiplexing COFDM wireless transmission module, network switch, keyboard/display interface module, sound and light alarm module and battery management control module; the four wheels are installed on the four corners of the bottom plate to realize the movement of the device; The two elevating rods mentioned above are respectively installed on two diagonally opposite corners of the car cabinet, and fixed by nuts, and the rotating disk is installed on one of the elevating rods, which is used to install the high-definition dome camera with the universal variable speed pan-tilt control device A sunshade is installed on the other elevating rod, which is used to prevent rainwater from damaging the equipment, and simultaneously realize real-time monitoring tasks in rainy days; the handle is installed at both ends of the cabinet.

The coded orthogonal frequency division multiplexing COFDM wireless transmission module includes a second I/O interface module, an AV interface and a DV interface; the second I/O interface module is used to transmit data and images with the far end; the The AV interface is used to connect the local camera; the DV interface is used to connect the local camera.

The battery management control module includes a power supply display module, a protection circuit module, a backup battery module and an AC220V external power supply interface; the power supply display module is used to display power supply conditions and power supply status; the protection circuit module is used to cut off the external power supply; the backup battery module includes a charging and discharging circuit, an inverter circuit control module and a storage battery with a switch; the charging and discharging circuit is used to charge the storage battery with a switch while supplying power to the equipment through alternating current; The above-mentioned inverter circuit converts DC and AC; the AC220V external power supply interface is used to supply power to the device.

The sound and light alarm module includes an audio interface, a high-power loudspeaker, a power amplifier drive circuit, a voice module, a red bright warning light, a green bright warning light, a drive control circuit and a module for GPRS communication; the sound interface, a high-power loudspeaker , a power amplifier driving circuit, a voice module, a red bright warning light, a green bright warning light and a drive control circuit are used to realize local voice warning and light flashing warning; the GPRS communication module is used to realize remote warning.

The network switch adopts a multi-caliber switch and includes an RJ45 network interface; it is used to realize the simultaneous use of multiple local and remote users.

The keyboard/display interface module includes a third I/O interface module for connection of control devices.

The beneficial effect of the invention is that a mobile intelligent monitoring and analysis device is provided. This device is based on video monitoring technology, intelligent video analysis technology, wireless communication technology, etc., and develops a mobile, intelligent analysis and processing video intelligent monitoring car system device, which meets the temporary and general monitoring needs of construction units. The demand for intelligent analysis and processing of on-site emergencies.

Description of drawings

Fig. 1 is a schematic structural view of a mobile intelligent monitoring and analysis device provided by the present invention;

Fig. 2 is a functional diagram of a mobile intelligent monitoring and analysis device provided by the present invention;

Fig. 3 is a schematic structural diagram of a battery management control module of a mobile intelligent monitoring and analysis device provided by the present invention;

Fig. 4 is a schematic diagram of a coded orthogonal frequency division multiplexing COFDM module display of a mobile intelligent monitoring and analysis device provided by the present invention;

Fig. 5 is a schematic diagram of the structure distribution of each equipment of the coded orthogonal frequency division multiplexing COFDM module in a kind of mobile intelligent monitoring and analysis device provided by the present invention;

Among them, 1-wheel; 2-base plate; 3-lift rod; 4-nut; 5-handle; - the third I/O interface module; 10-DV interface; 11-AV interface; 12-the second I/O interface module; 13-RJ45 network interface; 14-audio interface; 15-the first I/O interface module; 16-AC220V external power interface; 17-COFDM switch button; 18-COFDM display; 19-direction button; 20-frequency band button; 21-suction cup antenna; 22-suction cup antenna interface; 23-antenna drawer; 24-radio station; 25 -Radio fixed drawer.

Detailed ways

The preferred embodiments will be described in detail below in conjunction with the accompanying drawings. It should be emphasized that the following description is only exemplary and not intended to limit the scope of the invention and its application.

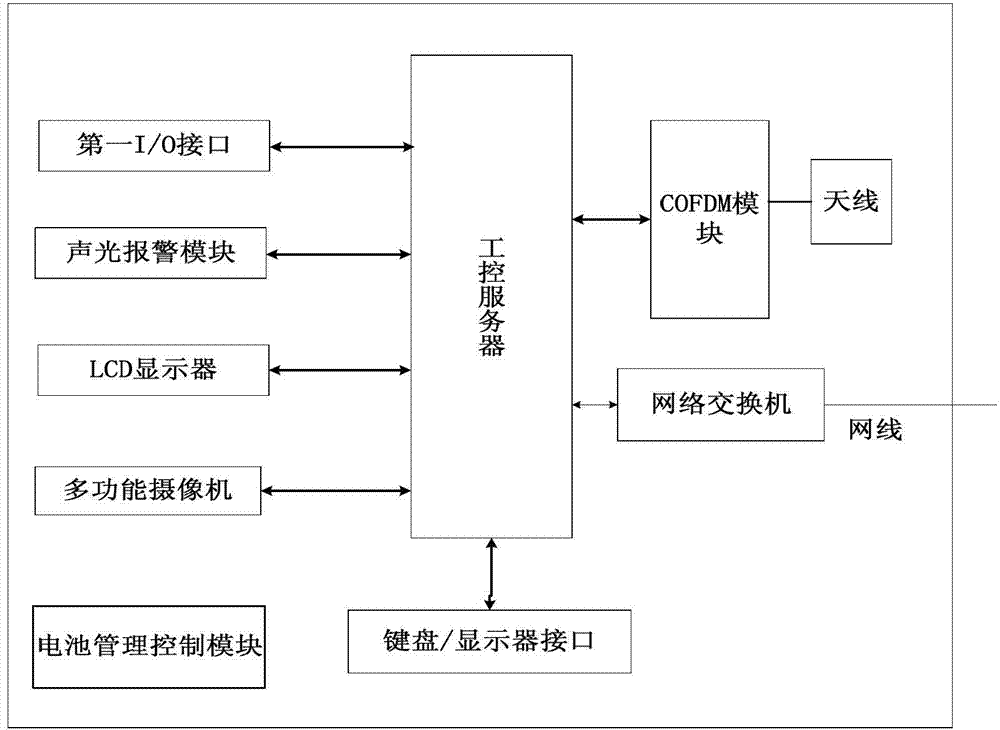

Fig. 1 is a schematic structural diagram of a mobile intelligent monitoring and analysis device provided by the present invention. In Fig. 1, the device includes an industrial control server, a coded orthogonal frequency division multiplexing COFDM wireless transmission module, a network switch, a keyboard/display interface module, an audible and visual alarm module, a battery management control module, a trolley, a cabinet, a base plate, Four wheels, two elevating rods, rotating disc, handle and sunshade; the car cabinet is installed on the bottom plate for placing industrial control server, coded orthogonal frequency division multiplexing COFDM wireless transmission module, network switch, keyboard/display interface module, sound and light alarm module and battery management control module; the four wheels are installed on the four corners of the bottom plate to realize the movement of the device; the two lifting rods are respectively installed on two diagonally opposite corners of the cabinet, It is fixed by nuts, and the rotating disc is installed on one of the elevating rods for installing the high-definition dome camera with a universal variable-speed pan-tilt control device; the other elevating rod is equipped with a parasol to prevent rain from damaging the equipment , and at the same time realize the real-time monitoring task in rainy days; the handle is installed at both ends of the cabinet.

Fig. 2 is a functional diagram of a mobile intelligent monitoring and analysis device provided by the present invention. In Fig. 2, the device includes an industrial control server, a coded orthogonal frequency division multiplexing COFDM wireless transmission module, a network switch, a keyboard/display interface module, a multifunctional camera, an LCD display module, an audible and visual alarm module, a battery management control module, an antenna and a first I/O interface module;

Wherein, the industrial control server is respectively connected with the coded orthogonal frequency division multiplexing COFDM wireless transmission module, network switch, keyboard/display interface module, multi-function camera, LCD display module, sound and light alarm module and the first I/O interface module connection; the industrial control server is used to process the collected data; the coded orthogonal frequency division multiplexing COFDM wireless transmission module realizes data transmission with the command center or monitoring room; the network switch is used for connecting with the internet wired network Perform data transmission; the keyboard/display interface module is used to connect the keyboard/display; the LCD display module is used to display when the industrial control server is operating and monitor and display local conditions; the battery management control module is used to manage the power supply ; The first I/O interface module is used to implement data transmission with external equipment and servers; the antenna is connected to the coded orthogonal frequency division multiplexing COFDM wireless transmission module; the antenna is used to receive wireless Signal.

Fig. 3 is a schematic structural diagram of a battery management control module of a mobile intelligent monitoring and analysis device provided by the present invention. In Fig. 3, the battery management control module includes a power supply display module, a protection circuit module and a backup battery module; the protection circuit module is used to cut off the external power supply when an abnormal situation occurs; Transformer circuit control module and battery with switch; the charging and discharging circuit is used to charge the battery with switch while supplying power to equipment through alternating current; the inverter circuit performs DC and AC conversion; the power supply display module includes voltage Value display and current value display, DC status display indicator, AC status display indicator, working status display normal indicator and abnormal stop display indicator are used to display the power supply situation and power supply status.

Fig. 4 is a schematic diagram of a coded orthogonal frequency division multiplexing COFDM module display of a mobile intelligent monitoring and analysis device provided by the present invention. The coded orthogonal frequency division multiplexing COFDM module display is used to display the status and working conditions of the coded orthogonal frequency division multiplexing COFDM during setting and operation, avoiding blind operation, and belongs to coded orthogonal frequency division multiplexing Front panel of the COFDM module. The coded orthogonal frequency division multiplexing COFDM display module includes a coded orthogonal frequency division multiplexing COFDM switch key, a coded orthogonal frequency division multiplexing COFDM display screen for displaying working status and frequency bands, direction keys and frequency band keys for frequency band selection; The direction keys for frequency band selection are used for fine-tuning the frequency bands; the frequency band keys are used for quickly locating different frequency bands.

Fig. 5 is a schematic diagram of the structure distribution of each equipment of a coded orthogonal frequency division multiplexing COFDM module in a mobile intelligent monitoring and analysis device provided by the present invention. The coded orthogonal frequency division multiplexing COFDM module includes a front panel display module, a coded orthogonal frequency division multiplexed COFDM related hardware device module, a suction cup antenna, a suction cup antenna interface, an antenna drawer, a radio station, and a fixed drawer for the radio station; the suction cup antenna is used For wireless data transmission with the base station, it is convenient to disassemble; the suction cup antenna interface is used to connect the dish washing antenna and the coded orthogonal frequency division multiplexing COFDM module equipment, so that the coded orthogonal frequency division multiplexing COFDM equipment can communicate with the base station through the antenna Work; the antenna drawer is opened for placing the antenna, and the drawer is closed to save space when not in use; the radio station is used for on-site command and dispatch; the station fixed drawer is used for fixing and placing radio equipment.

The above is only a preferred embodiment of the present invention, but the scope of protection of the present invention is not limited thereto. Any person skilled in the art within the technical scope disclosed in the present invention can easily think of changes or Replacement should be covered within the protection scope of the present invention. Therefore, the protection scope of the present invention should be determined by the protection scope of the claims.

Claims (8)

1. a removable intelligent monitoring and analytical equipment, it is characterized in that described device comprises industry control server, COFDM COFDM wireless transport module, the network switch, keypad/display interface module, camera, LCD display module, sound and light alarm module, battery management control modules, antenna and an I/O interface module;

Wherein, described industry control server is connected with described COFDM COFDM wireless transport module, the network switch, keypad/display interface module, camera, LCD display module, sound and light alarm module and an I/O interface module respectively; Described industry control server is used for the data that gather are processed; Described COFDM COFDM wireless transport module realization and command centre or Control Room carry out data transmission; The described network switch is used for and the internet cable network carries out data transmission; Described keypad/display interface module is used for connecting keypad/display; Demonstration when described LCD display module is used for the industry control server operation and to the monitoring display of local condition; Described battery management control modules is used for managing electrical power; A described I/O interface module is used for realizing that equipment and server with outside carry out data transfer;

Described antenna is connected with described COFDM COFDM wireless transport module; Described antenna is used for receiving wireless signal.

2. a kind of removable intelligent monitoring according to claim 1 and analytical equipment, it is characterized in that, described camera comprises the high definition dome camera with universal speed change tripod head controlling device, is used for realizing collection and the real-time Transmission of on-the-spot HD image.

3. a kind of removable intelligent monitoring according to claim 1 and analytical equipment is characterized in that described device also comprises flat dolly; Described flat dolly comprises car cabinet, base plate, four wheels, two elevating levers, rotating disc, handle and parasols; Described car cabinet is installed on the base plate, is used for placing industry control server, COFDM COFDM wireless transport module, the network switch, keypad/display interface module, sound and light alarm module and battery management control modules; Described four wheels are installed on four angles of base plate, the movement of implement device; Described two elevating levers are installed in respectively on two diagonally opposing corners of car cabinet, and are fixed by nut, and rotating disc is installed on one of them elevating lever, are used for the high definition dome camera of the universal speed change tripod head controlling device of mounting strap; On another elevating lever parasols is installed, is used for preventing rainwater to the damage of equipment, being implemented in simultaneously the rainy day carries out the Real Time Monitoring task; Described handle is installed in car cabinet two ends.

4. a kind of removable intelligent monitoring according to claim 1 and analytical equipment is characterized in that, described COFDM COFDM wireless transport module comprises the 2nd I/O interface module, AV interface and DV interface; Described the 2nd I/O interface module is used for carrying out the transmission of data and image with far-end; Described AV interface is used for connecting local camera; Described DV interface is used for connecting local video camera.

5. a kind of removable intelligent monitoring according to claim 1 and analytical equipment is characterized in that, described battery management control modules comprises power supply display module, holding circuit module, reserve battery module and AC220V external power interface; Described power supply display module is used for display power supply electric power thus supplied and power supply state; Described holding circuit module is used for cutting off external power supply when the abnormal situation; Described reserve battery module comprises charge-discharge circuit, inverter circuit control module and with the accumulator of switch; Described charge-discharge circuit is the charge in batteries with switch when being used for by alternating current to power devices; Described inverter circuit carries out direct current and the conversion that exchanges; Described AC220V external power interface is used for powering to device.

6. a kind of removable intelligent monitoring according to claim 1 and analytical equipment, it is characterized in that described sound and light alarm module comprises the module that sound equipment interface, supersound projector, power amplifier driving circuit, voice module, red highlighted warning lamp, green highlighted warning lamp, Drive and Control Circuit are communicated by letter with GPRS; Described sound equipment interface, supersound projector, power amplifier driving circuit, voice module, red highlighted warning lamp, green highlighted warning lamp and Drive and Control Circuit are used for realizing local voice caution and light flash caution; The module of described GPRS communication is used for realizing remote alarms.

7. a kind of removable intelligent monitoring according to claim 1 and analytical equipment is characterized in that the described network switch adopts the switch of many bores, and comprise the RJ45 network interface; Be used for realizing that a plurality of local and remote users use simultaneously.

8. a kind of removable intelligent monitoring according to claim 1 and analytical equipment is characterized in that, described keypad/display interface module comprises the 3rd I/O interface module, are used for the connection of opertaing device.
