Abstract
本发明涉及服饰领域，具体是一种多用途可充气服饰；包括上衣和裤子，其特征在于：所述上衣和裤子为封闭式的双层结构，该上衣和裤子设有充气装置。而在制作的时候，本发明可采用符合卫生标准的柔性橡胶、PVC等材料制作。籍由利用此材料和结构制作的可充气式的服饰，其便具有防雨防寒、保暖护身、防虫叮咬、结构简单和携带方便的特点。因而其可应用在救生抢险、防洪巡逻、高原值班、冬季作业、雨天工作和夜间活动等各种领域和环境中。
The present invention relates to the field of clothing, and specifically to a multi-purpose inflatable clothing; it includes a coat and trousers, and is characterized in that: the coat and trousers are a closed double-layer structure, and the coat and trousers are provided with an inflatable device. When making, the present invention can be made of flexible rubber, PVC and other materials that meet hygiene standards. By using the inflatable clothing made of this material and structure, it has the characteristics of rainproof and coldproof, warm protection, insect bite prevention, simple structure and easy to carry. Therefore, it can be used in various fields and environments such as life-saving and rescue, flood prevention patrol, plateau duty, winter operations, rainy day work and night activities.
Description
技术领域 technical field
本发明涉及服饰领域，具体是一种多用途可充气服饰；其主要作用在于防雨防寒、保暖护身、防虫叮咬、结构简单和携带方便。The invention relates to the field of clothing, in particular to a multi-purpose inflatable clothing; its main function is to prevent rain and cold, keep warm and protect the body, prevent insect bites, and has a simple structure and is convenient to carry.
背景技术 Background technique
人们在日常工作和生活中，“衣食住行”是必不可少的；因此，服饰在人类的活动中扮演着重要的作用。而服饰的应用不仅是普通的穿戴装饰，还可以是保护身体，如救生抢险、防洪巡逻、高原值班、冬季作业、雨天工作和夜间活动等等。而现行的服饰在功能上比较单一，如要在保护身体，如救生抢险、防洪巡逻、高原值班、冬季作业、雨天工作和夜间活动等各种环境和功能上得到应用，需要更换应用在不同领域的服饰。因此，如何开发一种多用途的服饰，便是目前本领域的工作者需要解决的一个问题。In people's daily work and life, "clothing, food, housing and transportation" are indispensable; therefore, clothing plays an important role in human activities. The application of clothing is not only ordinary wear and decoration, but also to protect the body, such as life-saving rescue, flood control patrol, plateau duty, winter operation, rainy day work and night activities, etc. However, the current clothing is relatively single in function. If it is to be applied in various environments and functions such as life-saving and emergency rescue, flood control patrol, plateau duty, winter operation, rainy day work, and night activities, it needs to be replaced and applied in different fields. clothing. Therefore, how to develop a kind of multi-purpose clothing is exactly a problem that workers in this field need to solve at present.
发明内容 Contents of the invention
本发明针对现有技术的不足，提供一种多用途可充气服饰；其主要作用在于防雨防寒、保暖护身、防虫叮咬、结构简单和携带方便。此发明可以广泛应用在救生抢险、防洪巡逻、高原值班、冬季作业、雨天工作和夜间活动中。Aiming at the deficiencies of the prior art, the present invention provides a multi-purpose inflatable garment; its main function is to prevent rain and cold, keep warm and protect the body, prevent insect bites, and has a simple structure and is convenient to carry. The invention can be widely used in life-saving and emergency rescue, flood control patrol, plateau duty, winter operation, rainy day work and night activities.
本发明通过以下技术方案实现。The present invention is realized through the following technical solutions.
一种多用途可充气服饰，包括上衣和裤子，所述上衣和裤子为封闭式的双层结构，该上衣和裤子设有充气装置，以对封闭式双层结构的上衣和裤子进行充气。The utility model relates to a multi-purpose inflatable clothing, which comprises a jacket and trousers, the jacket and trousers are of closed double-layer structure, and the jacket and trousers are provided with an inflation device to inflate the jacket and trousers of the closed double-layer structure.
优选地，所述充气装置由充气孔、孔塞和孔塞绳构成；所述孔塞设于充气孔内，该孔塞绳把孔塞与充气孔连接起来。Preferably, the inflation device is composed of an inflation hole, a hole plug and a hole plug rope; the hole plug is arranged in the inflation hole, and the hole plug rope connects the hole plug and the inflation hole.
优选地，所述充气装置上设有二次防水件。Preferably, the inflatable device is provided with a secondary waterproof member.
优选地，所述裤子上设有可伸缩橡筋脚袖。Preferably, the trousers are provided with stretchable elastic sleeves.
优选地，所述裤子上设有腰部下拉链。Preferably, the trousers are provided with a waist zipper.
优选地，所述上衣上设有可伸缩橡筋手袖。Preferably, the top is provided with stretchable elastic cuffs.
优选地，所述上衣上设有腰部上拉链，该腰部上拉链与腰部下拉链相匹配。Preferably, the upper garment is provided with an upper waist zipper, and the upper waist zipper matches with the lower waist zipper.
优选地，所述上衣上设有腰部防雨布。Preferably, the upper garment is provided with a rainproof cloth at the waist.
优选地，所述上衣上还连接有一帽子，该帽子上设有颈部防雨布。Preferably, a cap is also connected to the jacket, and the cap is provided with a neck rainproof cloth.
作为上述方案的进一步改进，所述帽子为封闭式的双层结构，该帽子上设有充气装置、听音孔和呼吸传音孔；所述充气装置、听音孔和呼吸传音孔上分别设有二次防水件。As a further improvement of the above scheme, the cap is a closed double-layer structure, and the cap is provided with an inflatable device, a sound hole and a breathing sound hole; the inflatable device, the sound hole and the breathing hole are respectively Equipped with secondary waterproof parts.
而在制作的时候，本发明可采用符合卫生标准的柔性橡胶、PVC等材料制作。籍由利用此材料和结构制作的可充气式的服饰，其便具有防雨防寒、保暖护身、防虫叮咬、结构简单和携带方便的特点。因而其可应用在救生抢险、防洪巡逻、高原值班、冬季作业、雨天工作和夜间活动等各种领域和环境中。And when making, the present invention can adopt materials such as the flexible rubber that meets hygienic standard, PVC to make. The inflatable clothing made of this material and structure has the characteristics of rainproof and coldproof, warm and body protection, insect-proof, simple structure and easy to carry. Therefore, it can be used in various fields and environments such as life-saving rescue, flood control patrol, plateau duty, winter operation, rainy day work and night activities.
因此，本发明解决传统服饰如以下缺点：Therefore, the present invention solves the following shortcomings of traditional clothing:
(1)、解决了传统雨衣防雨不保暖的缺点；(1) Solve the shortcomings of traditional raincoats that are not rainproof and not warm;
(2)、解决了传统棉衣、羽绒服保暖不防雨的缺点；(2) Solve the shortcomings of traditional cotton and down jackets that keep warm and are not rainproof;
(3)、解决了传统服饰功能单一，应用领域狭窄的缺点。(3) The disadvantages of single function and narrow application field of traditional clothing are solved.
附图说明 Description of drawings

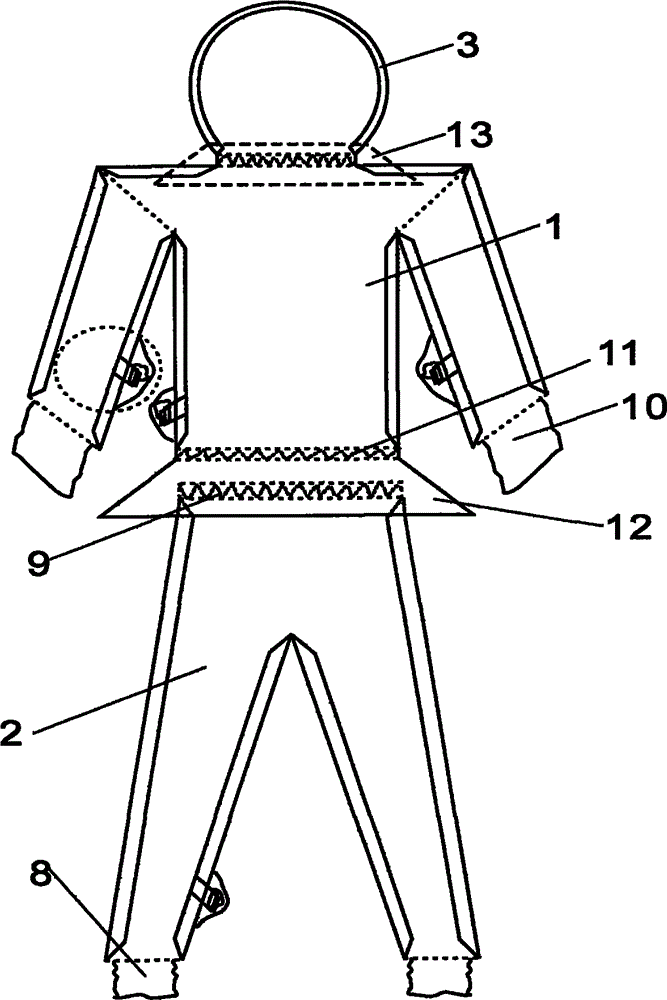

图1为本发明的整体结构剖视图；Fig. 1 is a sectional view of the overall structure of the present invention;
图2为本发明的充气装置局部示意图；Fig. 2 is a partial schematic view of the inflation device of the present invention;
图3为本发明的裤子后视图；Fig. 3 is the rear view of trousers of the present invention;
图4为本发明的帽子前视示意图；Fig. 4 is the front schematic diagram of hat of the present invention;
图5为本发明的帽子后视示意图；Figure 5 is a schematic diagram of a rear view of a hat of the present invention;
图6为本发明的帽子侧视示意图。Fig. 6 is a schematic side view of the hat of the present invention.
其中，1为上衣，2为裤子，3为帽子，4为充气孔，5为孔塞，6为孔塞绳，7为二次防水件，8为可伸缩橡筋脚袖，9为腰部下拉链，10为可伸缩橡筋手袖，11为腰部上拉链，12为腰部防雨布，13为颈部防雨布，14为听音孔，15为呼吸传音孔，16为防水坐布。Among them, 1 is the jacket, 2 is the trousers, 3 is the hat, 4 is the air hole, 5 is the hole plug, 6 is the hole plug rope, 7 is the secondary waterproof part, 8 is the stretchable elastic foot sleeve, 9 is the waist Zipper, 10 is stretchable elastic hand cuff, and 11 is zipper on the waist, and 12 is waist rainproof cloth, and 13 is neck rainproof cloth, and 14 is listening hole, and 15 is breathing sound transmission hole, and 16 is waterproof sitting cloth.
具体实施方式 Detailed ways
以下结合具体实施例对本发明进行详细描述，但不做为对本发明的限定。The present invention will be described in detail below in conjunction with specific examples, but it is not intended to limit the present invention.
从图1～6中可以看出，一种多用途可充气服饰，包括上衣1和裤子2，所述上衣1和裤子2为封闭式的双层结构，该上衣1和裤子2设有充气装置，以对封闭式双层结构的上衣1和裤子2进行充气。As can be seen from Figures 1 to 6, a multi-purpose inflatable garment includes a top 1 and
优选地，所述充气装置由充气孔4、孔塞5和孔塞绳6构成；所述孔塞5设于充气孔4内，该孔塞绳6把孔塞5与充气孔4连接起来。Preferably, the inflation device is composed of an
所述充气装置上设有二次防水件7，以防进水。在裤子2上设有可伸缩橡筋脚袖8，而在上衣1上则设有可伸缩橡筋手袖10。The inflatable device is provided with a secondary
进一步地，所述裤子2上设有腰部下拉链9，而上衣1上则设有腰部上拉链11，该腰部上拉链11与腰部下拉链9相匹配。Further, the
为了更好的防护上衣1与裤子2的连接，所述上衣1上设有腰部防雨布12。In order to better protect the connection between the jacket 1 and the
为了使其更完整，所述上衣1上还连接有一帽子3，该帽子3上设有颈部防雨布13，以防护帽子3与上衣1的连接。所述帽子3为封闭式的双层结构，该帽子3上设有充气装置、听音孔14和呼吸传音孔15；所述充气装置、听音孔14和呼吸传音孔15上分别设有二次防水件7。需要强调的是，所述帽子3的脸部为透明白色塑胶布，而在裤子2的屁股部位则设有防水坐布16，以增加裤子2的耐磨性和坐着作业时身体的稳定性；该防水坐布16可以不需要充气。In order to make it more complete, a
而在制作的时候，本实施例可采用符合卫生标准的柔性橡胶、PVC等材料制作。籍由利用此材料和结构制作的可充气式的服饰，其便具有防雨防寒、保暖护身、防虫叮咬、结构简单和携带方便的特点。因而其可应用在救生抢险、防洪巡逻、高原值班、冬季作业、雨天工作和夜间活动等各种领域和环境中。And when making, the present embodiment can adopt materials such as the flexible rubber that meets hygienic standard, PVC to make. The inflatable clothing made of this material and structure has the characteristics of rainproof and coldproof, warm and body protection, insect-proof, simple structure and easy to carry. Therefore, it can be used in various fields and environments such as life-saving rescue, flood control patrol, plateau duty, winter operation, rainy day work and night activities.
以上已将本发明做一详细说明，但显而易见，本领域的技术人员可以进行各种改变和改进，而不背离所附权利要求书所限定的本发明的范围。The present invention has been described in detail above, but it is obvious that those skilled in the art can make various changes and improvements without departing from the scope of the present invention defined by the appended claims.
