Abstract

The invention discloses a desktop electronic moxibustion treatment instrument for moxibustion on acupuncture points of a human body, which comprises an electric control device, a moxibustion treatment device, a control panel, a power supply device and a host casing, and each device is connected by a plurality of wires. The desktop electronic moxibustion treatment instrument is developed according to the principle of traditional Chinese medicine moxibustion, combined with modern microelectronics, far infrared, low-temperature atomization and other technologies. The control panel online displays independent settings, moxibustion time and moxibustion temperature, moxibustion end indicator light and alarm Acoustic double reminder function. The moxibustion head with double over-temperature protection works by sending commands through the control panel, and the temperature is continuously adjustable. The fast-heating moxibustion head has far-infrared and magnetic therapy effects on human acupoints. Each moxibustion head can realize a series of moxibustion methods such as direct moxibustion, partition moxibustion, and warm needle moxibustion. Through the above method, the desktop electronic moxibustion treatment instrument provided by the present invention can realize functions such as intelligent operation, temperature control and time control, no smoke and no fire, multi-point moxibustion at the same time, and has better curative effect, and is suitable for moxibustion treatment of human acupoints in traditional Chinese medicine.

Description

A desktop electronic moxibustion therapeutic instrument

technical field

The invention relates to the field of medical and health care equipment, in particular to a desktop electronic moxibustion treatment instrument.

Background technique

Moxibustion is the use of moxa or other medicines placed on the acupoints on the body surface for burning, warm ironing, etc., taking advantage of the gentle heat and the action of the medicine, through the acupoints and meridians, it has the effect of warming the meridians and adjusting the balance of human physiological functions , in order to achieve the method of treating disease or health care.

Traditional moxibustion is that medical staff hold burning moxibustion grass sticks or sticks of moxibustion grass to apply moxibustion on the acupoints of the human body. This moxibustion method has disadvantages such as smoky fire, easy burning of open flames, burns from ashes, large demand for personnel, and low efficiency. Use acupuncture needles to pierce acupoints of the human body, and burn moxa sticks on the needles for warming acupuncture, so as to achieve the effects of soothing meridians, dredging collaterals, and treating health care. However, the operation of warming needle moxibustion therapy is very difficult and requires professional doctors to operate. These factors limit Moxibustion is widely popularized. The development of a vertical electronic moxibustion treatment instrument with intelligent operation, safe use, many functions and remarkable effects has a revolutionary role in promoting the popularization of moxibustion and benefiting human health.

Contents of the invention

The main technical problem to be solved by the present invention is to provide a desk-top electronic moxibustion treatment instrument with intelligent operation, safe use and remarkable effect.

In order to solve the above technical problems, a technical solution adopted by the present invention is to provide a desktop electronic moxibustion treatment instrument, including an electric control device, a moxibustion treatment device, a control panel, a power supply device and a host casing, and the electric control device includes a circuit board and an integrated chip, the integrated chip is welded on the circuit board, the moxibustion device includes a connection wire and a moxibustion head, the moxibustion head is connected to the output jack through the connection wire, and the control panel is located at On the host shell, the control panel includes a display screen and a plurality of control keys, and the power supply device includes a power plug, a power wire and a switching power supply, and the power plug is connected to the host shell through the power wire, so The switching power supply is located on the power wire, and the host housing includes a plurality of indicator lights, a plurality of output jacks and a power switch, and the indicator lights correspond to the output jacks one by one.

In a preferred embodiment of the present invention, the plurality of control keys include a channel selection key, a temperature adjustment control key, a time adjustment control key, a confirmation key and a stop key, and the plurality of control keys are located on the same surface of the control panel .

In a preferred embodiment of the present invention, the housing of the main unit further includes a storage box, and the moxibustion device is placed in the storage box.

In a preferred embodiment of the present invention, the display screen is a liquid crystal display screen.

In a preferred embodiment of the present invention, there are 8, 10 or 12 output jacks.

In a preferred embodiment of the present invention, the housing of the host computer further includes a circuit board installation box, and the circuit board is located in the circuit board installation box.

In a preferred embodiment of the present invention, the moxibustion head is a single moxibustion head, a three-combination moxibustion head or a seven-combination moxibustion head.

The beneficial effects of the present invention are: the desktop electronic moxibustion treatment instrument of the present invention is developed according to the principles of traditional Chinese medicine moxibustion combined with modern microelectronics, far-infrared, low-temperature atomization and other technologies. The moxibustion head with double over-temperature protection works by sending commands through the control panel, and the temperature is continuously adjustable. The moxibustion head has far-infrared and magnetic therapy effects on the acupuncture points of the human body. Each moxibustion head can realize a series of moxibustion methods such as direct moxibustion, partition moxibustion, and warm needle moxibustion. The circuit board is placed in the installation box, which is convenient to disassemble and replace when a problem occurs; the moxibustion sheet in the moxibustion head has the function of preventing cross-infection and heat insulation, and is also used as a carrier for liquid moxibustion materials and ironing agents. Special moxibustion tablets for disease, its ingredients can be directed into and absorbed through the skin; the combined moxibustion head is used for moxibustion on the waist and abdomen of the human body, and can perform moxibustion on multiple acupoints at the same time, effectively improving the effect of moxibustion. The instrument is capable of intelligent operation, temperature and time control, smoke-free and fire-free, multi-point moxibustion at the same time, safe, reliable and highly interchangeable, and has remarkable therapeutic effects.

Description of drawings

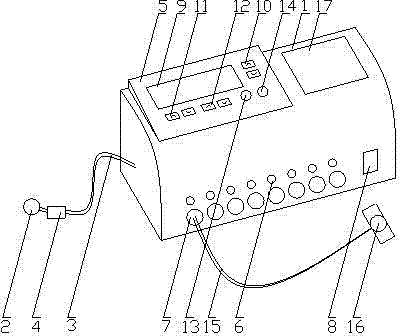

Fig. 1 is a schematic structural view of a preferred embodiment of the desktop electronic moxibustion treatment instrument of the present invention;

Fig. 2 is a block diagram of the circuit principle of the desktop moxibustion therapy instrument of the present invention;

Fig. 3 is a schematic module diagram of the actual temperature signal transmission circuit of the moxibustion head of the desktop moxibustion instrument of the present invention;

Fig. 4 is a block diagram of the actual temperature sensing circuit of the moxibustion head of the desktop moxibustion instrument of the present invention;

Fig. 5 is a schematic block diagram of the display circuit of the desktop moxibustion therapy instrument of the present invention;

Fig. 6 is a schematic block diagram of the heating moxibustion head circuit of the desktop moxibustion instrument circuit of the present invention;

Fig. 7 is a schematic block diagram of the indicator light circuit of the desktop moxibustion instrument of the present invention;

Fig. 8 is a schematic block diagram of the film button circuit of the desktop moxibustion instrument of the present invention;

The marks of the components in the attached drawings are as follows: 1. Host shell, 2. Power plug, 3. Power wire, 4. Switching power supply, 5. Control panel, 6. Indicator light, 7. Output jack, 8. Power switch, 9. Display screen, 10. Channel selection button, 11. Temperature adjustment control button, 12. Time adjustment control button, 13. Confirmation button, 14. Stop button, 15. Connecting wire, 16. Moxibustion head, 17. Storage box .

Detailed ways

The preferred embodiments of the present invention will be described in detail below in conjunction with the accompanying drawings, so that the advantages and features of the present invention can be more easily understood by those skilled in the art, so as to define the protection scope of the present invention more clearly.

Please refer to FIG. 1 , the present invention provides a desktop electronic moxibustion treatment instrument, which includes an electric control device, a moxibustion device, a control panel 5 , a power supply device and a host case 1 . The electric control device includes a circuit board, an integrated chip and a circuit board installation box, the integrated chip is welded on the circuit board, and the circuit board is located in the circuit board installation box.

The control panel 5 includes a display screen 9, a channel selection button 10, a temperature adjustment control key 11, a time adjustment control key 12, a confirmation button 13 and a stop button 14, and the display screen 9 adopts a liquid crystal display screen, and the display screen 9 There are labels on one side, which are marked with the words "channel", "temperature", "time" and "status".

The power supply device includes a power plug 2 , a power wire 3 and a switching power supply 4 , the power plug 2 is connected to the host housing 1 through the power wire 3 , and the switching power supply 4 is located on the power wire 3 . The main engine shell 1 includes a control panel 5, 8 indicator lights 6, 8 output jacks 7, a power switch 8, and a storage box 17. The moxibustion device is placed in the storage box 17 when not in use. The indicator lights 6 are in one-to-one correspondence with the output jacks 7 .

The moxibustion device includes a connecting wire 15 and a moxibustion head 16 , and the moxibustion head 16 is connected to the output jack 7 through the connecting wire 15 . The moxibustion heads 16 are single moxibustion heads, three-combination moxibustion heads or seven-combination moxibustion heads. Special moxibustion sheets can be freely replaced in the moxibustion head 16 . The moxibustion head 16 passes through a fixing belt, and the fixing belt fixes the moxibustion head on the skin of the human body. Described moxibustion head 16 comprises upper casing, middle casing, lower casing, and the middle of described middle casing is set as circular cavity, to place the heating body and health-care magnetic ring that are made by far-infrared ceramic powder, magnetic powder, The heating body provides a heat source for moxibustion, and one end of the heating body is provided with a temperature sensor groove, a heating resistor groove, and an over-temperature protector groove, so as to respectively place a temperature sensor, a 30 ohm heating resistor, an over-temperature protector, and a temperature sensor. During moxibustion, the collected temperature and heating resistance are used for moxibustion electric control heating, and the over-temperature protector is used for over-temperature protection. The other end of the heating body is a circular plane so that the moxibustion sheet can be attached to the heating body. The health care magnetic ring has the effect of magnetic therapy, and is fixed for the moxibustion head to be fixed on human skin. The shape of the moxibustion sheet in the moxibustion head is preferably circular, but not limited to circular, it can also be square or rectangular, and the size can vary. Heat transfer, the thickness is 0.09mm, and the front is spunlace cloth, pulp fiber or hydrophilic medical polymer material.

The working process of the desktop electronic moxibustion therapeutic instrument is as follows: insert the power plug 2 into the 220V external power supply, turn on the power switch 8, display on the display screen 9 to enter the working interface, and the indicator light 6 is green and flickering, prompting all output jacks 7 It can work normally, press the confirmation button 13, and the indicator light 6 goes out at the same time, and the display screen 9 displays 1-12 channels, wherein the channel label corresponds to the output jack 7 from left to right, and the operation of channel 1 For example, connect the connecting wire 15 of the moxibustion device to the first output jack 7, channel 1 displays the temperature, select channel 1 through the channel selection button 10, the temperature and time corresponding to the channel 1 are in the editing state, pass the temperature Adjust the control key 11 and the time adjustment control key 12 to set the value, press the confirmation key 13, the marked "status" corresponds to the work icon R, the indicator light 6 is green, and the desktop electronic moxibustion treatment instrument starts to work. During the moxibustion process The temperature and time can be readjusted and the work can be restarted. After the work is finished, the temperature of the moxibustion head 16 is lowered. The marked "status" corresponds to the icon S and the indicator light 6 is blue. The moxibustion therapy instrument stopped working.

Figure 2 to Figure 8 are diagrams of the working principle of the circuit of the present invention, which are described as follows: the power supply transformation module composed of LM2596, 470 inductors, AMS1117-3.3, etc. transforms 18V DC into 3.3V and 5V, which is LM3S811, CH452A, 74 HC245, 74HCT245, 74HC259, LVC4245A and other chips provide 3.3V voltage, provide 5V voltage for the display LM404B, and directly pass 18V DC for 12 output channels. LM3S811 loads the control program of the entire circuit, lights up the display LM404B through the 6MHz crystal oscillator, and the LVC4245A chip, and the 12 output channels receive channel information and temperature transmission through 74HC245, 74HCT245 and 74HC259, and connect and control the key switch through CH452A.

The circuit working process of the desktop electronic moxibustion therapeutic instrument is as follows: 18V voltage is connected to the circuit through P1, 5V voltage is output through MBRS140, 35V/470uF, and 3.3V voltage is output by connecting 470 inductance regulator, 16V/220uF, 1117-3.3 . C1 and C2 polar capacitors form a quartz crystal oscillator to provide a start pulse for the crystal oscillator and start the control program in the LM3S811. When a channel is connected to the moxibustion head containing the temperature sensor, the 74HC259 detects the actual temperature of the moxibustion head and transmits it to the display screen for display. When the channel is selected by the key switch, the main chip displays the initial value of the channel after receiving the command. Set the temperature and time, and start working after adjustment. At this time, the current signal amplifier is composed of FR5410, 2N7002, IN4001, etc. When the temperature of the moxibustion head changes, the differential voltage is added to the input terminal of the operational amplifier and amplified by the operational amplifier. Afterwards, the working time and the temperature detected by the temperature sensor are directly transmitted to the display screen for display.

The moxibustion treatment mechanism of the desktop electronic moxibustion therapeutic instrument is: when the desktop electronic moxibustion therapeutic instrument is running, the heating body in the moxibustion head 16 starts to heat, and the moxibustion sheet receives the heat energy of the heating body through the heat transfer aluminum. When the medicine reaches a certain temperature, the medicine essence containing wormwood and other medicines begins to volatilize and penetrate. At the same time, the far-infrared ceramic powder in the heating body emits 4-16 μm far-infrared wavelengths that are easy to be received by human skin after being heated. With the magnetic therapy function of the health-care magnetic ring, the human body Under the triple action of far-infrared rays, magnetic field and heat, the skin accelerates the local blood circulation of the acupuncture points, and at the same time dilates the pores and capillaries at the acupuncture points. therapeutic purposes.

The desktop electronic moxibustion treatment instrument disclosed by the present invention is developed according to the principles of traditional Chinese medicine moxibustion combined with modern microelectronics, far infrared, atomization and other technologies. The control panel displays online independent setting and moxibustion treatment time and moxibustion treatment Dual reminder function of temperature, indicator light and alarm sound. The moxibustion head with double over-temperature protection works by sending commands through the control panel, and the temperature is continuously adjustable. The fast-heating moxibustion head has far-infrared and magnetic therapy effects on human acupoints. Each moxibustion head can realize a series of moxibustion methods such as direct moxibustion, partition moxibustion, and warm needle moxibustion. The circuit board is placed in the installation box, which is convenient to disassemble and replace when a problem occurs; the moxibustion sheet in the moxibustion head has the function of preventing cross-infection and heat insulation, and is also used as a carrier for liquid moxibustion materials and ironing agents. Special moxibustion tablet for disease, its ingredients can be directed into and absorbed through the skin; the combined moxibustion head is used for moxibustion on the waist and abdomen of the human body, which is convenient and effective to improve the moxibustion effect. It is capable of intelligent operation, temperature and time control, no smoke and no fire, multi-point moxibustion at the same time, safe, reliable and highly interchangeable, and has remarkable therapeutic effects.

The above is only an embodiment of the present invention, and does not limit the patent scope of the present invention. Any equivalent structure or equivalent process transformation made by using the description of the present invention and the contents of the accompanying drawings, or directly or indirectly used in other related technologies fields, all of which are equally included in the scope of patent protection of the present invention.

Claims (7)

1. A desktop electronic moxibustion treatment instrument, characterized in that it comprises an electric control device, a moxibustion treatment device, a control panel, a power supply device and a host casing, the electric control device comprises a circuit board and an integrated chip, and the integrated chip is welded on On the circuit board, the moxibustion device includes a connection wire and a moxibustion head, the moxibustion head is connected to the output jack through the connection wire, the control panel is located on the main body shell, and the control panel Including a display screen and a plurality of control keys, the power supply device includes a power plug, a power wire and a switching power supply, the power plug is connected to the host shell through the power wire, the switching power is located on the power wire, The shell of the host includes a plurality of indicator lights, a plurality of output jacks and a power switch, and the indicator lights correspond to the output jacks one by one. 2. The desktop electronic moxibustion therapeutic instrument according to claim 1, wherein the plurality of control keys include a channel selection key, a temperature adjustment control key, a time adjustment control key, a confirmation key and a stop key, and the plurality of control keys Control keys are located on the same surface as the control panel. 3 . The desktop electronic moxibustion therapeutic instrument according to claim 1 , wherein the housing of the main unit further includes a storage box, and the moxibustion device is placed in the storage box. 4 . 4. The desktop electronic moxibustion therapeutic instrument according to claim 1, wherein the display screen is a liquid crystal display screen. 5. The desktop electronic moxibustion therapeutic instrument according to claim 1, characterized in that there are 8, 10 or 12 output jacks. 6 . The desktop electronic moxibustion therapeutic instrument according to claim 1 , wherein the housing of the main unit further includes a circuit board installation box, and the circuit board is located in the circuit board installation box. 7 . 7. The desktop electronic moxibustion therapeutic instrument according to claim 1, wherein the moxibustion head is a single moxibustion head, a three-combination moxibustion head or a seven-combination moxibustion head.
