Abstract
The invention relates to a variable-angle vertical axis wind energy device of a guide vane. The variable-angle vertical axis wind energy device is mainly composed of a main shaft, a main shaft wheel, a blade, a blade shaft and a blade shaft wheel; the blade is composed of at least two arc sheets; the arc sheets of the blade are distributed in a center symmetric structure of the blade shaft; the blade shaft is parallel to the main shaft and can rotate around the main shaft; a cross rod structure connection is formed between the main shaft and the blade shaft; the main shaft wheel and the blade shaft wheel are in transmission connection by a transmission part; the main shaft wheel is fixed and can not rotate, and is coaxial with the main shaft; the blade shaft wheel can revolute and automatically rotate; the blade is connected with the blade shaft wheel; the perimeter ratio of the main shaft wheel to the blade shaft wheel is 1 to 2, and the ground effect principle is utilized, so that the blade is in a positive work state all the time to form a positive torque, and can be toward the wind direction to the maximal extent. The situation that the blade of the existing fan is in negative work state at some positions is overcome, and the wind energy utilization rate is improved. The vertical axis wind energy utilization device has the characteristics of being small in start wind force, high in efficiency and easy to maintain.
Description
Technical field
The present invention relates to a kind of Wind Power Utilization device, particularly a kind of guide vane angle vertical shaft wind energy device is suitable as wind-driven generator and other power plant.
Background technique
In existing energy resource structure, having is to be taken from the natural energy greatly, like wind energy, solar energy, geothermal power etc.; Wherein the time of wind energy application is the most remote; In order to utilize wind energy better, for a long time, people have designed the wind generating unit of various ways and structure; According to wind-driven generator running shaft different in direction in space and position; Can be divided into the horizontal axis wind-driven generator of substantially horizontal and the vertical axis aerogenerator of Vertical direction again, use at most still horizontal axis wind-driven generator at present, the horizontal axis hydroelectric generator has its advantage; Reached industrialized production fully like the horizontal axis wind-driven generator group; It is comprehensive with the operation experience to form a complete production network, but vertical axis aerogenerator has little, the non-directional requirement of structural volume, characteristics such as easy to maintenance, vertical wind power generator also have safety, efficient, noise is low, cost is low, advantage such as easy to maintenance.
These present most vertical-axis generators are the blade structure at the fixing angle that facings the wind, and this structure effective torque is less, and possibly have negative moment at specified conditions; Reduced whole efficiency, thus the promotion and application of this type electricity generating device influenced, in addition; Since wind speed with the distance dependent apart from ground is set, so overhead high more then available effective wind speed is just big more; And existing vertical-axis generators sharf is vertically arranged; The real one side of effectively utilizing of just facining the wind, and one side is against the wind usually done negative work, so vertical-axis generators also has some shortcomings and shortcoming to remain to be improved at present.
Summary of the invention
The object of the invention just provides and a kind ofly starts that wind-force is little, efficient is high, the horizontal vertical shaft wind energy utilized device of applied range.
In order to reach the foregoing invention purpose, the present invention adopts following technical solution:
A kind of guide vane angle vertical shaft wind energy device mainly is made up of main shaft, main shaft wheel, blade, sharf, sharf wheel, and blade can be around main axis rotation; Have bar structure between main shaft and the sharf and be connected, can be in transmission connection between main shaft wheel and the blade arbor wheel, main shaft wheel is fixing rotatable; With the main shaft concentric; But the rotation of blade arbor wheel reaches around the main shaft revolution, and blade is connected on the blade arbor wheel, and blade is made up of at least two arc-like sheets.
Preferably, described main shaft wheel is 1:2 with the girth ratio of blade arbor wheel.
Preferably, the arc-like sheet of described blade is the distribution of sharf centrosymmetric structure.
Preferably, the main axis rotation of the sense of rotation of described blade and wind energy plant is in the opposite direction.
Preferably, described blade presents the centrosymmetric structure distribution for spindle axis.
Preferably, the bar structure between each main shaft and the sharf is one, is connected in the central region of sharf.
Preferably, being in transmission connection between described main shaft wheel and the blade wheel to flexibility is in transmission connection, this flexible transmission part is chain or belt.
Preferably, described flexible transmission part is a Timing Belt.
Preferably, being in transmission connection between described main shaft wheel and the blade wheel to positive drive is connected, these positive drive parts are gear.
Preferably, described geared parts Placement has middle equipment gear.
Effect of the present invention and characteristics are embodied in following:
The windward side utilization ratio of this Wind Power Utilization device is the highest, and the angle that facings the wind is also changing always, and blade pass is crossed sharf, blade arbor wheel and driven by transmission part and main shaft, main shaft wheel; Make blade around one week of main axis rotation, blade is around the running shaft rotation half cycle of self, like this; Blade is under the effect of two arc-like sheets, and the effect of backflow makes machine be in the state of doing positive work all the time, forms positive moment of torsion; It can be farthest in face of wind direction, and the blade that overcomes existing blower fan is done the state of negative work in some position, improve wind energy utilization; Even at a critical localisation, the lift acting that also can utilize the ground effect to produce.That this vertical shaft wind energy utilized device has is simple in structure, start the characteristics that wind-force is little, efficient is high, be easy to safeguard.
Description of drawings

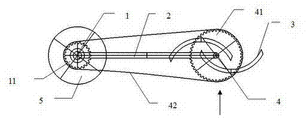

Fig. 1 is the schematic appearance of the guide vane angle vertical shaft wind energy device that proposes of the present invention;
Fig. 2 is the plan view of the guide vane angle vertical shaft wind energy device that proposes of the present invention;
Fig. 3 is the blade of the guide vane angle vertical shaft wind energy device that proposes of the present invention schematic representation when being positioned at position A;
Fig. 4 is the blade of the guide vane angle vertical shaft wind energy device that proposes of the present invention schematic representation when being positioned at position B;
Fig. 5 is the blade of the guide vane angle vertical shaft wind energy device that proposes of the present invention schematic representation when being positioned at position C;
Fig. 6 is the blade of the guide vane angle vertical shaft wind energy device that proposes of the present invention schematic representation when being positioned at position D;
Fig. 7 is the work schematic representation of the guide vane angle vertical shaft wind energy device that proposes of the present invention;
Fig. 8 is the side-looking work schematic representation of the guide vane angle vertical shaft wind energy device that proposes of the present invention.
Explain among the figure:
1 is main shaft;
11 is main shaft wheel;
2 is cross bar;
3 is blade;
4 is sharf;
41 is the blade arbor wheel;
42 is transmission part;
5 is generator.
Embodiment
The purpose of this invention is to provide a kind of simple in structure, with low cost and flow energy collection method and device, therefore, technological scheme related in the existing technology is improved and improved with greater efficiency.In existing wind power generating set with vertical shaft, not only the angle of blade is changeless, and sharf also is perpendicular to the ground; Like this, along with the rotation of blade may receive negative moment, in addition; Since wind speed with the distance dependent apart from ground is set, so overhead high more then available effective wind speed is just big more; That is to say, more effective in the eminence lower of blower fan.For fear of the generation of this situation, adopt the technological scheme of improving and optimizing in the present embodiment, please refer to accompanying drawing 2, arrow is depicted as the direction of the wind comes among the figure; This wind is to wind energy plant, and this device is a kind of guide vane angle vertical shaft wind energy device, and main structure is still comparatively similar with existing technology, is made up of main shaft 1, main shaft wheel 11, blade 3, sharf 4, blade arbor wheel 41; Main shaft 1 is perpendicular to the ground vertical with the direction of the wind comes from, and sharf 4 is parallel with main shaft 1, and can be around main shaft 1 rotation, and main shaft 1 promptly is the line shaft that drives generator; The main shaft wheel 11 in addition that is connected with main shaft 1, main shaft wheel 11 is fixed rotatable, with the main shaft concentric; Blade arbor wheel 41 is connected with sharf 4, but 41 rotations of blade arbor wheel with around main shaft 1 revolution, blade 3 is connected on the blade arbor wheel 41; Blade is made up of at least two arc-like sheets, and the S vertical shaft electricity generating device on miniature has similar part with one on the structure, and the effect of blade 3 is that being used for wind energy transformation is mechanical kinetic energy; Blade 3 is fixed on the sharf 4, and what be connected with blade 3 also has blade arbor wheel 41, has cross bar 2 between main shaft 1 and the sharf 4 and carries out structure and be connected; Can directly be in transmission connection between main shaft wheel 11 and the blade arbor wheel 41, also can be in transmission connection, when 3 last times of wind active force blade with transmission part 42; Because blade 3 is made up of at least two arc-like sheets, and presents arc-like sheet and be the distribution of sharf 4 centrosymmetric structures, the forward wind speed can produce a clockwise moment; Simultaneously, the wind speed that acts on the forward arc-like sheet can produce to reflux and affact leeward arc-like sheet and get on, and will produce a moment like this; And this moment is always positive moment, and this moment can affact on the main shaft wheel 11 through transmission part 42, and produces a work done moment; Simultaneously, also has wind bigger active force on blade 3, the moment stack that is produced with arc-like sheet; Whole like this device will rotate, and whole device can get into smooth under wind action power, and efficient is higher.
In the present embodiment, blade 3 is made up of two arc-like sheets, in the middle of other is used, can be multi-disc, can more than two.
In order to illustrate in greater detail working principle; Defined the position of four blades 3; As shown in Figure 2, defined the position of four blades 3, be respectively position A, position B, position C, position D with respect to the direction of the wind comes from; Wherein position A is the most approaching position of the wind comes from, and this moment, the cross bar 2 of blade 3 was 0 degree with the angle of the wind comes from; So, position B is approaching position of the wind comes from, and this moment, the cross bar 2 of blade 3 was 90 degree with the angle of the wind comes from; Position C is away from the position of the wind comes from, and this moment, the cross bar 2 of blade 3 was 180 degree with the angle of the wind comes from; And position D is approaching position of the wind comes from, and this moment, the cross bar 2 of blade 3 was 270 degree with the angle of the wind comes from.
In order to make blade bring into play maximum effect as far as possible, except using at least two above-mentioned arc-like sheet structures, utilize wind energy more fully; The girth that makes main shaft wheel 11 and blade arbor wheel 41 is than being 1:2, like this, and at blade 3 during around main shaft 1 rotation; Blade wheel shaft 41 forms revolution around main shaft wheel 11, simultaneously, owing to be in transmission connection with transmission part 42 between main shaft wheel 11 and the blade arbor wheel 41; Or directly be in transmission connection, so blade arbor wheel 41 can produce rotation; Because main shaft wheel 11 is 1:2 with the girth ratio of blade arbor wheel 41, the angular velocity of rotation is 1/2nd of revolution angular velocity.
Like this, blade in different positions just with the different angles that facing the wind of the wind comes from, below with regard to blade 3 respectively in the position situation of A, position B, position C, position D explain; It is as shown in Figure 2,, and can clearly see among Fig. 3, Fig. 4, Fig. 5, Fig. 6; Position A is the most approaching position of the wind comes from; This moment, the cross bar 2 of blade 3 was 0 degree with the angle of the wind comes from, and blade 3 is 45 degree with the angle of the wind comes from, and is as shown in Figure 3; Position B is near the position of the wind comes from, and this moment, the cross bar 2 of blade 3 was 90 degree with the angle of the wind comes from, and blade 3 also is 90 degree with the angle of the wind comes from, and is as shown in Figure 4; Position C is away from the position of the wind comes from, and this moment, the cross bar 2 of blade 3 was 180 degree with the angle of the wind comes from, and blade 3 is 135 degree with the angle of the wind comes from, and is as shown in Figure 5; And position D is near the position of the wind comes from, and this moment, the cross bar 2 of blade 3 was 270 degree with the angle of the wind comes from, and blade 3 is 180 degree with the angle of the wind comes from, and is as shown in Figure 6.
Like this, obviously, except D can not produce the positive moment in the position, all because resistance or lift can produce positive moment, particularly in the position during B, the positive moment of generation is maximum in other position at blade 3.
In addition, can find out that when this embodiment received the wind-force rotation, sense of rotation was rotation counterclockwise by Fig. 2; And the sense of rotation of blade 3 is clockwise, again because in the suffered wind-force maximum of the outermost edge of blade 3, so blade 3 itself receives an anticlockwise moment; In the opposite direction with turning clockwise of blade 3, just, may produce the possibility that a moment is offset in this case; So just might reduce the Wind Power Utilization efficient of whole device, produce for fear of this situation, in the present invention; Make blade 3 have two arc-like sheets, like Fig. 2, Fig. 3, Fig. 4, Fig. 5, shown in Figure 6, and the main axis rotation of the arc-like sheet sense of rotation of blade 3 and wind energy plant is in the opposite direction; Like this, in the present embodiment, the suffered wind-force of the outermost edge of blade 3 can be less than the wind-force of inward flange; Situation that just can appearance of negative moment, and can produce a clockwise running torque, make the device operation more steadily with efficient.
Can find out that thus blade 3 is revolution counterclockwise, rotation clockwise in this case, and is opposite each other, and do not have negative moment; If blade 3 revolution sense of rotation are clockwise, then blade 3 rotation sense of rotation also are to become on the contrary counterclockwise, and are opposite each other.Thereby blade 3 presents centrosymmetric structure for main shaft 1 axle center and distributes.
In addition, under normal circumstances, the cross bar 2 between each main shaft 1 and the sharf 4 is two; Such structure is comparatively stable, but also comparatively complicated, and can have influence on Wind Power Utilization efficient; Thereby, also can be that the cross bar 2 between each main shaft 1 and the sharf 4 is one, cross bar 2 is connected in the central region of sharf 4; This spline structure is simpler, and Wind Power Utilization efficient is higher, and outward appearance is also more good-looking.
Directly transmission between aforesaid main shaft wheel 11 and blade arbor wheel 41 also can connect through transmission part 42, and transmission part 42 is for flexibility is in transmission connection, and this flexible transmission part is chain or belt, in particular for Timing Belt.
Simultaneously, described main shaft wheel 11 also can be positive drive with transmission part 42 between the blade wheel shaft 41 and is connected, and these positive drive parts are gear, when adopting the geared parts Placement, can have middle equipment gear.
Like this, the angle that facings the wind of this Wind Power Utilization device is changing always, blade 3 through sharf 4, blade arbor wheel 41 by transmission part 42 and main shaft 1, main shaft wheel 11 drives; Make blade 3 when main shaft 1 rotates a circle, blade 3 is around the sharf 4 rotation half cycles of self, like this; In all positions; Blade 3 is in the state of doing positive work all the time, forms positive moment of torsion, and it can be farthest in face of wind direction; The blade that overcomes existing blower fan is done the state of negative work in some position, improve wind energy utilization.Like Fig. 7, shown in 8.
Therefore, this vertical shaft wind energy utilized device have simple in structure, start the characteristics that wind-force is little, efficient is high, be easy to safeguard.
The above embodiments are not only a kind of wind-driven generator, more can be wind-driven devices, can be various power plant such as wind energy water pump, wind energy air pump, wind energy grinding machine, wind energy refrigeration, wind energy heating, wind energy mechanical energy machine.
Though part preferred embodiment of the present invention only has been described, its meaning and unrestricted scope of the present invention, applicability and configuration here.On the contrary, the detailed description to embodiment can make those skilled in the art be able to implement.Will be understood that not departing under the definite spirit and scope of the invention situation of appended claims, can make suitable change and modification some details.
Claims (10)
1. a guide vane angle vertical shaft wind energy device mainly is made up of main shaft, main shaft wheel, blade, sharf, sharf wheel, it is characterized in that:
Having bar structure between main shaft and the sharf is connected;
Can be in transmission connection between main shaft wheel and the blade arbor wheel;
Main shaft wheel is fixing not rotatable, with the main shaft concentric;
But the rotation of blade arbor wheel reaches around the main shaft revolution, and blade is connected on the blade arbor wheel;
Blade is made up of at least two arc-like sheets.
2. guide vane angle vertical shaft wind energy device according to claim 1 is characterized in that: described main shaft wheel is 1:2 with the girth ratio of blade arbor wheel.
3. guide vane angle vertical shaft wind energy device according to claim 1 is characterized in that: said blade arc sheet is the sharf centrosymmetric structure and distributes.
4. guide vane angle vertical shaft wind energy device according to claim 2, it is characterized in that: the sense of rotation of described blade and the main axis rotation of wind energy plant are in the opposite direction.
5. guide vane angle vertical shaft wind energy device according to claim 1 is characterized in that: described blade presents centrosymmetric structure for spindle axis and distributes.
6. guide vane angle vertical shaft wind energy device according to claim 1, it is characterized in that: the bar structure between each main shaft and the sharf is one, is connected in the central region of sharf.
7. guide vane angle vertical shaft wind energy device according to claim 1 is characterized in that: being in transmission connection to flexibility is in transmission connection between described main shaft wheel and the blade wheel, this flexible transmission part is chain or belt.
8. guide vane angle vertical shaft wind energy device according to claim 7, it is characterized in that: described flexible transmission part is a Timing Belt.
9. guide vane angle vertical shaft wind energy device according to claim 1 is characterized in that: being in transmission connection to positive drive is connected between described main shaft wheel and the blade wheel, these positive drive parts are gear.
10. guide vane angle vertical shaft wind energy device according to claim 9, it is characterized in that: described geared parts Placement has middle equipment gear.
