Abstract
本发明涉及一种池塘养殖激光辅助捕捞装置及捕捞方法，属于渔业捕捞技术领域。包括长条状浮子（1），所述浮子（1）浮于池塘（4）水面上，浮子（1）两端延伸出池塘（4）两岸，所述浮子（1）上附有至少一根电缆（2），沿所述电缆（2）上设有激光发射器组（3），所述激光发射器组（3）通过电缆（2）与激光发射器驱动系统连接，所述激光发射器组（3）发射的激光射线形成激光光栅面，所述激光光栅面与所述池塘的底面及两岸侧面相交。本发明大大降低了池塘养鱼捕捞的劳动强度；提高了捕捞的效率；降低了捕捞成本；无需使用大型机械捕捞设备，操作要求大大降低；同时大大减小捕捞过程中对鱼的伤害。
The invention relates to a laser-assisted fishing device and a fishing method for pond culture, and belongs to the technical field of fishery fishing. It includes a strip-shaped float (1), the float (1) floats on the water surface of the pond (4), the two ends of the float (1) extend out of the two banks of the pond (4), and the float (1) is attached with at least one A cable (2), a laser transmitter group (3) is provided along the cable (2), the laser transmitter group (3) is connected to the laser transmitter driving system through the cable (2), and the laser transmitter The laser rays emitted by the group (3) form a laser grating surface, and the laser grating surface intersects with the bottom surface of the pond and the sides of both banks. The invention greatly reduces the labor intensity of fish culture and fishing in ponds; improves fishing efficiency; reduces fishing cost; does not need to use large-scale mechanical fishing equipment, greatly reduces operating requirements; and at the same time greatly reduces damage to fish during fishing.
Description
Technical field
The present invention relates to a kind of pond culture laser assisted and fish for device, relate in particular to the auxiliary device of fishing for that a kind of Laser Interception is driven fish, belong to fishery and fish for technical field.
Background technology
It is the important step in fish production that fishery is fished for, and in the evolution of pond culture industry, people generally pay attention to cultural technique research, fish for technical development and relatively lag behind.It is that fishnet is put into pond by bank that fishing operation is drawn in the net in traditional pond cultivation, conventionally need 8～12 (each 4～6 people on one side) personnel that fish for while drawing in the net, to step on fishnet bottom line (preventing that fish from escaping below bottom line) and pull to opposite bank, conventionally once draw in the net the rate of fishing for of operation 50～70%, reason is that the whole piece bottom line that can not guarantee fishnet in the process of drawing in the net is pasted at the end completely, draw in the net in addition may occur drawing motionless situation in process, reason is that bottom line is absorbed in the bed mud of pond, therefore has the problems such as labour intensity is large, efficiency is low.Other auxiliary fishing operation modes such as machinery and traditional approach are similar, difference is to have reduced the number of drawing in the net, but every limit still needs 1～2 to step on fishnet bottom line personnel, although alleviated labour intensity, the rate of fishing for do not improve, and have the problems such as cost is high, operation requirements is high.These modes have injury in various degree to fish in the process of fishing for.
Summary of the invention
The technical problem of the actual solution of the present invention is: existing fishing style labour intensity is large, inefficiency, and cost is high, and operation requirements is high, large to fish injury.
The present invention relates to a kind of pond culture laser assisted and fish for device, comprise strip float 1, described float 1 floats on 4 waters surface of pond, 4 two sides, pond are extended at float 1 two ends, on described float 1, have at least one cable 2, along described cable 2, be provided with laser transmitter group 3, described laser transmitter group 3 is connected with generating laser drive system by cable 2, the laser beam of described laser transmitter group 3 transmittings forms laser grating face, and intersect the bottom surface in described laser grating face and described pond and side, two sides.
Preferably, described laser grating face is netted.
Preferably, the laser beam of described laser transmitter group 3 transmittings is parallel to each other, and vertical with described float.
Further preferred, the laser of described laser transmitter group 3 transmittings straight down, described float 1 middle part is connected with vertical pillar 7, the branch cable 8 of described cable 2 is attached on described pillar 7, along described pillar both sides, be respectively provided with another laser transmitter group 9, the laser parallel of described another laser transmitter group 9 transmittings, and with two sides, pond lateral vertical.
Preferably, described generating laser drive system comprises: pulsed drive system, described pulsed drive system comprises pulse-width modulator, frequency regulator, described pulse-width modulator, frequency regulator are connected with impulse generator respectively, described impulse generator is connected with pulse amplifier, described pulse amplifier is connected with pulse power amplifier, and described pulse power amplifier is connected with described laser transmitter group 3; DC drive system, described DC drive system comprises DC generator, and described DC generator is connected with dc amplifier, and described dc amplifier is connected with linear power amplifier, and described linear power amplifier is connected with described laser transmitter group 3.Also comprise signal selector, described signal selector is connected with DC generator with impulse generator respectively, strobe pulse and/or continuous Laser output.
Preferably, the bottom surface angle in described laser grating face and pond 4 is 80 °～100 °.
Preferably, described strip float 1 is vertical with bank, described pond.
Preferably, described cable 2 one end extend to 4 banks, pond, are connected with the output of generating laser drive system, and described generating laser drive system and portable power source 5 are positioned in a go-cart 6.
Further preferred, described portable power source 5 is accumulator or the direct current stabilizer that connects alternating current.
A fishing method for above-mentioned laser fish-catching apparatus, comprises the following steps: open laser transmitter group 3; The operating personnel on two banks, pond pull float 1 to the pond other end, to move on 4 banks along pond, and synchronously to pond, 4 other ends move operating personnel's while mobile handcart 6; In waters between described laser grating face and pond 4 other end end faces, cast a net to catch fish.
Beneficial effect of the present invention is:
1) greatly reduce the labour intensity of fishing for;
2) improved the efficiency of fishing for;
3) reduced and fished for cost;
4) without using big machinery fishing gear, operation requirements reduces greatly;
5) fishing for the injury to fish in process reduces greatly.
Accompanying drawing explanation
Fig. 1 is the schematic top plan view that laser assisted of the present invention is fished for device and pond.

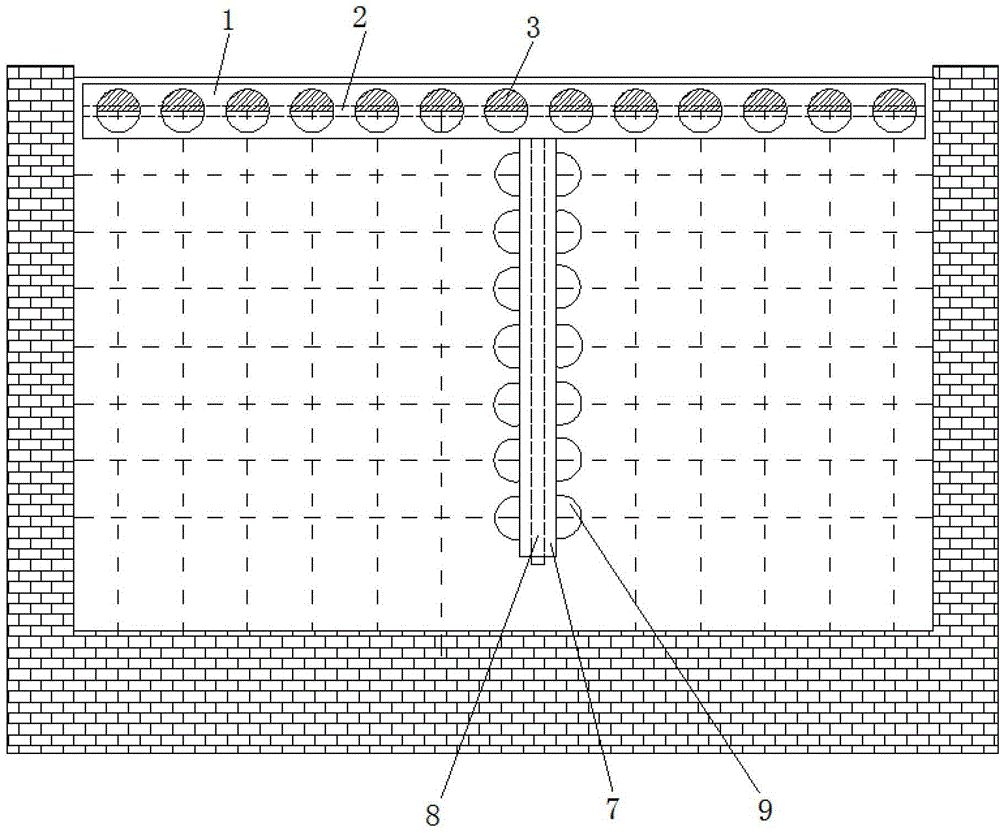

Fig. 2 be in Fig. 1 of relating to of the first embodiment A-A to cross-sectional schematic.
Fig. 3 be in Fig. 1 of relating to of the second embodiment A-A to cross-sectional schematic.
Fig. 4 be in Fig. 1 of relating to of the 3rd embodiment A-A to cross-sectional schematic.
Fig. 5 is the connection schematic block diagram of generating laser drive system of the present invention.
Wherein, 1, float, 2, cable, 3, laser transmitter group, 4, pond, 5, portable power source, 6, go-cart, 7, pillar, 8, branch cable, 9, another laser transmitter group.
Embodiment
Below in conjunction with specific embodiment, the present invention is further described.
According to fish, high light is had the characteristic of escape, the present invention has designed a kind of laser assisted fish-catching apparatus.
The first embodiment:
As shown in Figure 1 and Figure 2, a kind of pond culture laser assisted is fished for device, comprises strip PVC float 1, and described float 1 floats on 4 waters surface of pond, and 4 two sides, pond are extended at float 1 two ends, and vertical with bank, described pond.On described float 1, have at least one cable 2, along described cable 2, be provided with laser transmitter group 3, described laser transmitter group 3 is connected with generating laser drive system by cable 2, the laser beam of described laser transmitter group 3 transmittings forms netted laser grating face, and intersect the bottom surface in described laser grating face and described pond.Described cable 2 one end extend to 4 banks, pond, are connected with generating laser drive system, and generating laser drive system is by the accumulator direct current stabilizer of alternating current (or connect) power supply, and both are positioned in a go-cart 6.Described generating laser drive system comprises: pulsed drive system, described pulsed drive system comprises pulse-width modulator, frequency regulator, described pulse-width modulator, frequency regulator are connected with impulse generator respectively, described impulse generator is connected with pulse amplifier, described pulse amplifier is connected with pulse power amplifier, and described pulse power amplifier is connected with described laser transmitter group 3; DC drive system, described DC drive system comprises DC generator, and described DC generator is connected with dc amplifier, and described dc amplifier is connected with linear power amplifier, and described linear power amplifier is connected with described laser transmitter group 3.Also comprise signal selector, described signal selector is connected with DC generator with impulse generator respectively, the pulse laser of some fish is more responsive, the continuous laser of some fish is more responsive, while using pulse and continuous laser, effect is best simultaneously, but the most energy-conservation while only using pulse laser, therefore strobe pulse and/or continuous Laser output flexibly according to actual needs.Described laser grating face is vertical with the bottom surface in pond 4.As shown in Figure 2, the RC generating laser of laser transmitter group 3 is Emission Lasers straight down, and there is certain inclination angle at the laser beam Jun Xiang center of other generating lasers on both sides, that is, all intersect with center laser beam straight down.
While preparing fishing, according to adult fish size selected element type or linear laser transmitter quantification in on-the-spot culturing pool water surface specification and pond, generating laser is equidistant to be arranged on a PVC float, length is slightly longer than water surface width, and laser beam is downward, and a cable is installed on float, auxiliary output of fishing for device is connected with the cable on float, generating laser is connected with cable, and laser assisted fishes for device and power supply is placed in go-cart, float is placed in to the one side in pond.During fishing operation, float and dolly advancing to another side at the uniform velocity under artificial effect, under the effect of laser grating, in pond, fish is blocked the another side to pond, lasting propelling along with float, fish density between float and pond another side in waters constantly increases, when float is advanced to suitable fish density, keep the auxiliary device operation of fishing with a net in running order time of fishing for, fish density advances float when low, when fish density is high, fish with a net, operation is until stop the auxiliary device work of fishing for after fishing for end repeatedly, in pond, residue adult fish recovers conventional animation.
The second embodiment:
Laser beam branch in the first embodiment is uneven, relatively concentrates on the middle and upper part of grating face, for the fish that is positioned at middle and upper part, pond, has the effect of driveing preferably, but less for the effect of driveing of the fish near two sides and pond bottom.
So as shown in Figure 3, the difference of the second embodiment and the first embodiment is, the Laser emission direction of generating laser vertically parallel downwards, form uniform grating face.
The 3rd embodiment:
Gap between first and second embodiment grating is larger, sometimes can not stop individual petite fish completely, therefore on the basis of above-mentioned laser assisted fish-catching apparatus, improves as follows:
As Figure 1 and Figure 4, the laser parallel of laser transmitter group 3 transmitting and straight down, simultaneously by increasing the generating laser of one group of horizontal direction, a cable vertically downward and the fixedly pillar of generating laser are installed in the middle of former float, cable and generating laser are fixed on pillar, this cable is the branch cable 8 of former cable 2, two groups of generating lasers are arranged on the both sides of pillar, direction is respectively towards two banks, with bank lateral vertical, what when on float and pillar, generating laser is worked like this, send is the grating of square net.
Claims (10)
1. a pond culture laser assisted is fished for device, it is characterized in that: comprise strip float (1), described float (1) floats on the water surface of pond (4), two sides, pond (4) are extended at float (1) two ends, described float (1) is upper with at least one cable (2), along described cable (2), be provided with laser transmitter group (3), described laser transmitter group (3) is connected with generating laser drive system by cable (2), the laser beam of described laser transmitter group (3) transmitting forms laser grating face, intersect the bottom surface in described laser grating face and described pond and side, two sides.
2. laser assisted as claimed in claim 1 is fished for device, it is characterized in that: described laser grating face is netted.
3. laser assisted as claimed in claim 1 is fished for device, it is characterized in that: the laser beam of described laser transmitter group (3) transmitting is parallel to each other, and vertical with described float.
4. laser assisted as claimed in claim 3 is fished for device, it is characterized in that: the laser of described laser transmitter group (3) transmitting straight down, described float (1) middle part is connected with vertical pillar (7), the branch cable (8) of described cable (2) is attached on described pillar (7), along described pillar both sides, be respectively provided with another laser transmitter group (9), the laser parallel of described another laser transmitter group (9) transmitting, and with two sides, pond lateral vertical.
5. laser assisted as claimed in claim 1 is fished for device, it is characterized in that, described generating laser drive system comprises:
Pulsed drive system, described pulsed drive system comprises pulse-width modulator, frequency regulator, described pulse-width modulator, frequency regulator are connected with impulse generator respectively, described impulse generator is connected with pulse amplifier, described pulse amplifier is connected with pulse power amplifier, and described pulse power amplifier is connected with described laser transmitter group (3);
DC drive system, described DC drive system comprises DC generator, and described DC generator is connected with dc amplifier, and described dc amplifier is connected with linear power amplifier, and described linear power amplifier is connected with described laser transmitter group (3).
Also comprise signal selector, described signal selector is connected with DC generator with impulse generator respectively, strobe pulse and/or continuous Laser output.
6. laser assisted as claimed in claim 1 is fished for device, it is characterized in that: the bottom surface angle of described laser grating face and pond (4) is 80 °～100 °.
7. laser assisted as claimed in claim 1 is fished for device, it is characterized in that: described strip float (1) is vertical with bank, described pond.
8. laser assisted as claimed in claim 1 is fished for device, it is characterized in that: described cable (2) one end extends to bank, pond (4), be connected with the output of described generating laser drive system, described generating laser drive system is connected with portable power source (5), is positioned in a go-cart (6).
9. laser assisted as claimed in claim 8 is fished for device, it is characterized in that: described portable power source (5) is accumulator/the connect direct current stabilizer of alternating current.
10. right to use requires laser described in 8 to fish for a catching method for device, it is characterized in that, comprises the following steps:
Open laser transmitter group (3);
The operating personnel on two banks, pond pull float (1) to the pond other end, to move on (4) bank along pond, and operating personnel promote go-cart (6) simultaneously, and synchronously to pond, (4) other end moves;
Fishing in waters between described laser grating face and pond (4) other end end face.
