Abstract
一种分体式增温沼气池，包括沼气池和高效沼气反应器，其特征是：高效沼气反应器内部设置换热器，外部设保温层，其进、出料管与沼气池相连接，出气管与沼气池的出气管相连接；在高效沼气反应器的进料管上组装水泵，高效沼气反应器内设置温控仪的温度传感器，温控仪连接水泵；高效沼气反应器内的换热器与热水进出水管连接。本发明的积极效果在普通沼气池上增加高效沼气反应器进行增温，便于对普通沼气池的改造，降低了增温保温的建设成本。通过增温，保证了高效沼气反应器内的温度，同时也提高了沼气池内的温度，增加了沼气产气率。通过水泵循环起到了搅拌作用，促进了沼气发酵。
A split-type temperature-increasing biogas digester, including a biogas digester and a high-efficiency biogas reactor, is characterized in that: a heat exchanger is arranged inside the high-efficiency biogas reactor, and an insulation layer is arranged on the outside; The air pipe is connected with the outlet pipe of the biogas digester; the water pump is assembled on the feed pipe of the high-efficiency biogas reactor, the temperature sensor of the temperature controller is installed in the high-efficiency biogas reactor, and the temperature controller is connected to the water pump; the heat exchange in the high-efficiency biogas reactor The appliance is connected to the hot water inlet and outlet pipes. The positive effect of the present invention is to add a high-efficiency biogas reactor to the ordinary biogas tank to increase the temperature, which facilitates the transformation of the ordinary biogas tank and reduces the construction cost of warming and heat preservation. By increasing the temperature, the temperature in the high-efficiency biogas reactor is ensured, and at the same time, the temperature in the biogas tank is increased, and the biogas production rate is increased. The stirring effect is played by the water pump circulation, which promotes the biogas fermentation.
Description
Technical field
The present invention relates to a kind of biogas generating device, particularly a kind of split type temperature-raising marsh pool.
Background technology
Biogas is a kind of renewable energy source, the generation of being fermented in methane-generating pit by organism.Temperature is one of key factor affecting biogas fermentation aerogenesis rate, and when methane-generating pit temperature is when more than 15 ℃, biogas fermentation could carry out preferably, and 35 ℃ is a peak of biogas fermentation aerogenesis.Temperature in methane-generating pit is with changing season.The northern area of China cold in winter is very long, and temperature, surface temperature are lower, and methane tank gas production rate is low, cannot meet peasant household's demand, causes winter methane-generating pit to have a large amount of idle problems.Even if in summer, be subject to the impact of ground temperature, the temperature in methane-generating pit is not high yet, and the factor of created gase of methane-generating pit is affected.For improving the temperature of methane-generating pit, conventionally take measures methane-generating pit to heat, methane-generating pit volume is larger, not only makes that to heat the heat needing more for whole methane-generating pit, and the radiating surface of methane-generating pit is also larger simultaneously, and heat dissipation capacity is also many.If built methane-generating pit is carried out to temperature raising and maintaining, also need again to excavate methane-generating pit and construct, difficulty increases.
Summary of the invention
The object of this invention is to provide a kind of split type temperature-raising marsh pool, improve the temperature of biogas fermentation, improve biogas fermentation condition, improve production rate of methane.
The invention provides following technical scheme: comprise methane-generating pit and efficient methane reactor, it is characterized in that: efficient methane inside reactor arranges interchanger, thermal insulation layer is established in outside, and its charging and discharging pipe is connected with methane-generating pit, and escape pipe is connected with the escape pipe of methane-generating pit; On the feed-pipe of efficient methane reactor, assemble water pump, the temperature sensor of temperature controller is set in efficient methane reactor, temperature controller connects water pump; Interchanger in efficient methane reactor arranges into hot-water line and rising pipe.
Positively effect of the present invention: increase efficient methane reactor and heat on common methane-generating pit, be convenient to common methane-generating pit to transform, reduced the construction cost of temperature raising and maintaining.By taking to heat measure, guaranteed the leavening temperature in efficient methane reactor, also improved the temperature in methane-generating pit simultaneously, increased production rate of methane.By water pump, circulate and played stirring action, promoted biogas fermentation.
accompanying drawing explanation

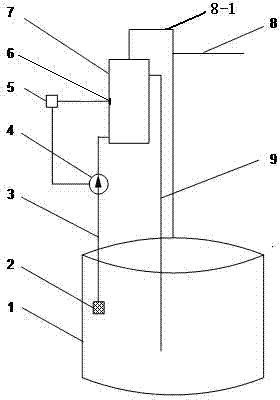

Fig. 1 is structural representation of the present invention.
Fig. 2 is the structure iron of efficient methane reactor.
Fig. 3 is temperature controller and water pump junction circuit principle schematic.
Component serial number explanation in figure: methane-generating pit 1; Strainer 2; Feed-pipe 3; Water pump 4; Temperature controller 5; Temperature sensor 6; Efficient methane reactor 7; Escape pipe 8,8-1; Discharge nozzle 9; Interchanger 10; Heat-storing material 11; Thermal insulation layer 12.
Embodiment
As shown in accompanying drawing 1-3, the present invention is comprised of major portions such as methane-generating pit 1, efficient methane reactor 7, temperature controller 5, water pumps 4.Efficient methane reactor 7 inside arrange interchanger 10; Efficient methane reactor 7 connects charging and discharging pipe 3,9 and escape pipe 8, the charging and discharging pipe 3,9 of efficient methane reactor 7 connects methane-generating pit 1, the opening for feed of feed-pipe 3 is positioned at methane-generating pit middle part, for preventing stopping up, the strainer 2 that filtering net surrounds is housed before opening for feed; On feed-pipe 3, connect water pump 4; The escape pipe 8-1 of efficient methane reactor 7 connects the escape pipe 8 of methane-generating pit; The temperature sensor 6 of temperature controller 5 can adopt thermal resistance type sensor, is arranged in efficient methane reactor 7, for controlling the running of water pump 4; If water pump 4 power are less, temperature controller 5 can directly be connected with water pump 4; If water pump 4 power are larger, can on temperature controller 5, increase rly. and be connected with water pump 4, as shown in Figure 3.The interchanger 10 of efficient methane reactor is connected with the water inlet pipe and water outlet pipe of hot water.
Efficient methane reactor can add heat-storing material layer 11 and carry out accumulation of heat, and to improve the stability of leavening temperature, the heat-storing material of heat-storing material layer 11 can adopt phase change heat storage material, as paraffin, Na
2sO
410H
2o etc., are used after encapsulation.In efficient methane reactor outside, adding lagging material 12 is incubated.Described efficient methane reactor 7 can adopt the anaerobic reactor of the patterns such as fluidized-bed or up-flow anaerobic sludge blanket.Hot water in described interchanger can utilize the low-grade energy heating such as sun power, biomass energy, waste heat to obtain.
Principle of work: send in efficient methane reactor 7 with the natural pond liquid that water pump 4 extracts in methane-generating pit 1, hot water inflow heat exchanger 10 is rear to be heated efficient methane reactor 7, with temperature controller 5, control temperature in efficient methane reactors 7 in optimal temperature, temperature controller has bound function, during higher than design temperature, can open water pump, during lower than design temperature, switch off the pump.When temperature raises, temperature controller 5 is controlled water pump 4 unlatchings, low temperature natural pond liquid pump in methane-generating pit is entered in reactor, high temperature natural pond liquid in efficient methane reactor 7 is discharged in methane-generating pit 1, maintain the temperature in efficient methane reactor 7, make the temperature in methane-generating pit 1 improve simultaneously, so continuous circulation, when guaranteeing efficient methane reactor temperature, can progressively improve the temperature in methane-generating pit 1.When arriving control temperature, water pump quits work, and in efficient methane reactor 7, maintains leavening temperature.
Claims (2)
