High-tension cable radius of turn survey instrument
Technical field
The invention belongs to the high-tension cable field, especially a kind of high-tension cable radius of turn survey instrument.
Background technology
In the laid processes of high-tension cable, should carry out in strict accordance with national standard and relevant regulations, with the function that guarantees that high-tension cable is brought into normal play.According to national standard, high-tension cable is in laid processes, and its radius of turn should be less than 20 times of its diameter D.At present; The instrument that Shang Weiyou directly measures the high-tension cable radius of turn; Common measuring method is to measure cable size in advance, re-uses the circular arc guiding ruler that steel plate is made respective diameters, uses the circular arc guiding ruler to measure at last at the construction field (site); Its measuring method is inconvenience very, and measuring accuracy is lower.
Summary of the invention
The objective of the invention is to overcome the deficiency of prior art, a kind of reasonable in design, high-tension cable radius of turn survey instrument that measuring accuracy is high and easy to use is provided.
The present invention solves its technical matters and takes following technical scheme to realize:
A kind of high-tension cable radius of turn survey instrument; Comprise horizontal ruler and elastic rod; Fastening being installed together of one end of the stiff end of elastic rod and elastic rod; The mobile terminal of this elastic rod is movably arranged in the slideway that horizontal ruler surface is shaped on, and does the time spent when the mobile terminal of elastic rod receives to the external force of stiff end, and elastic rod forms the circular arc of change in radius.
And, on horizontal ruler surface, be shaped on the scale that calculates the cable radius of turn.
And the scale of said calculating cable radius of turn satisfies following formula:
r = x 2 2 y
In the following formula, r is a radius of turn, and x is the length of horizontal ruler, and l is an arc length.
Advantage of the present invention and good effect are:
The invention provides a kind of instrument of direct measurement high-tension cable radius of turn; Its horizontal ruler and elastic rod that will be carved with radius of turn links together; Applying external force through the mobile terminal at elastic rod makes elastic rod form the circular arc that coincides with high-tension cable; Directly just can obtain the radius of turn of cable circular arc on the read level ruler with the scale of elastic rod intersection, have measuring accuracy height, easy to use and measurement range is extensive.
Description of drawings

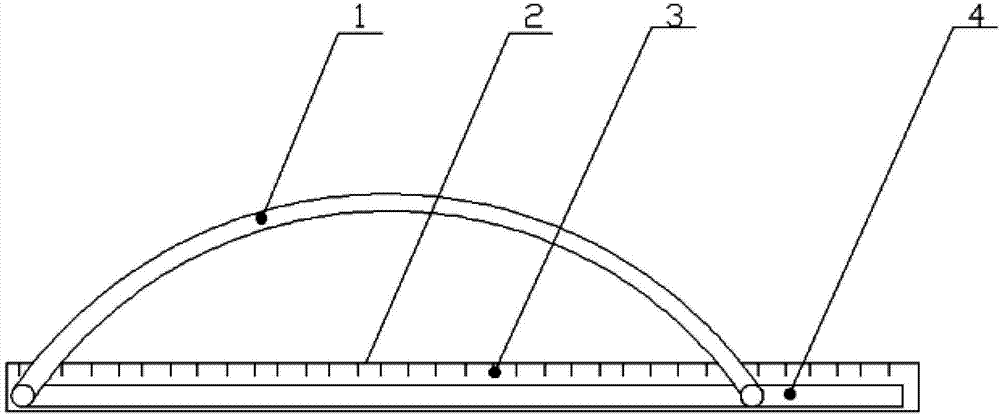

Fig. 1 is a structural representation of the present invention;
Fig. 2 is a measuring principle synoptic diagram of the present invention.
Embodiment
Below in conjunction with accompanying drawing the present invention is done further detailed description.
A kind of high-tension cable radius of turn survey instrument; Like Fig. 1 and shown in Figure 2, comprise horizontal ruler 2 and elastic rod 1, this horizontal ruler is installed in parallel in elastic rod; Fastening being installed together of one end of the stiff end of elastic rod and elastic rod; The mobile terminal of this elastic rod is movably arranged in the slideway 4 that horizontal ruler surface is shaped on, and does the time spent when the mobile terminal of elastic rod receives to the external force of stiff end, and elastic rod can nature forms the circular arc of change in radius; Through measuring the distance on arc length and the horizontal ruler, then can accurately calculate radius of curvature.In order to measure the cable radius of turn intuitively, on horizontal ruler surface, be shaped on the scale 3 that calculates radius of turn.
Below in conjunction with Fig. 2 measuring principle of the present invention is described.Among the figure, x is the length of horizontal ruler, and l is an arc length, and r is a radius of turn, and then the length x of horizontal ruler satisfies following formula:
x = 2 r × sin l 4 r
Can obtain radius of turn r by following formula is:
r = x 2 2 y
Thereby calculate the radius of turn of cable camber line exactly.
In order to measure the cable radius of turn intuitively, can the calculated value of above-mentioned cable radius of turn r be engraved on the horizontal ruler, form the horizontal ruler that is carved with the cable radius of turn, its measurement range can be from a certain value to infinitely great.
When using at the scene; The stiff end of high-tension cable radius of turn survey instrument is fixed on the high-tension cable; Through the position of horizontal adjustment mobile terminal on horizontal ruler elastic rod is overlapped with the flexibility of high-tension cable, with the scale at joining place, elastic rod mobile terminal, can directly obtain the radius of turn of cable on the read level ruler; Its measuring method is simple, and measurement range is extensive.
It is emphasized that; Embodiment of the present invention is illustrative; Rather than it is determinate; Therefore the present invention includes and be not limited to the embodiment described in the embodiment, every other embodiments that drawn by those skilled in the art's technical scheme according to the present invention belong to the scope that the present invention protects equally.

Claims (3)

1. high-tension cable radius of turn survey instrument; It is characterized in that: comprise horizontal ruler and elastic rod; Fastening being installed together of one end of the stiff end of elastic rod and elastic rod; The mobile terminal of this elastic rod is movably arranged in the slideway that horizontal ruler surface is shaped on, and does the time spent when the mobile terminal of elastic rod receives to the external force of stiff end, and elastic rod forms the circular arc of change in radius.
2. high-tension cable radius of turn survey instrument according to claim 1 is characterized in that: on horizontal ruler surface, be shaped on the scale that calculates the cable radius of turn.
3. high-tension cable radius of turn survey instrument according to claim 2 is characterized in that: the formula of the scale of said calculating cable radius of turn is:
r = x 2 2 y
In the following formula, r is a radius of turn, and x is the length of horizontal ruler, and l is an arc length.
CN2012102702048A 2012-07-30 2012-07-30 Measuring tool for turning radius of high-voltage cable Pending CN102778192A (en)
