Abstract

本发明提供一种安全针头，包括针头本体与套设于针头本体上的保护套，所述针头本体通过接头与导管连接，所述接头是由针栓与针台组成的上小下大台阶状；所述保护套由针帽与内嵌其中的套筒组成，所述针帽的上、下端面的中心开设有上、下圆孔；所述套筒呈n形，其顶端卡在所述针帽的上圆孔外面；所述针帽的内壁设有至少一个向斜下方延伸的卡条。保护装置与针头本体连为一体，操作方便，不需另配设备对针头本体进行处理；在针头的使用前与使用后都能很好地保护住针头本体，避免其刺伤医护人员，也不会对回收人员造成二次伤害。

Figure 201210240904

The invention provides a safety needle, which includes a needle body and a protective cover sleeved on the needle body. The needle body is connected to a catheter through a joint. ; The protective sleeve is composed of a needle cap and a sleeve embedded in it, and the center of the upper and lower end faces of the needle cap is provided with upper and lower round holes; the sleeve is n-shaped, and its top end is stuck on the The outside of the upper circular hole of the needle cap; the inner wall of the needle cap is provided with at least one clamping strip extending obliquely downward. The protection device is integrated with the needle body, which is easy to operate and does not require additional equipment to process the needle body; it can well protect the needle body before and after use, avoiding it from stabbing medical staff, and not It will cause secondary damage to the recovery personnel.

Figure 201210240904

Description

A kind of safety needle
Technical field
The invention belongs to the medical apparatus technical field, be specifically related to a kind of safe syringe needle that is used for transfusion, blood transfusion.
Background technology
The syringe needle that is used for transfusion, blood transfusion is with a cylindric pin medicated cap before use, during use, just throws into garbage can conveniently after extracting the pin medicated cap.Its syringe needle exposes after be totally lost, medical personnel pull out pin, so the situation that often has finger to be stabbed takes place, infects various blood-borne diseases easily.So hygiene department has strengthened the recycling management to waste and old medical apparatus.
At present, the recovery method of the syringe needle of disposable infusion, blood transfusion is generally had two kinds: a kind of is to utilize needle destroyer that syringe needle is ground destruction, but the needle destroyer volume is bigger, and inconvenience is carried, and inconvenient operation in addition is so popularization is not enough; Another kind is with pinhead sleeve back stitching medicated cap, throwing into recycling bin is transported to the medical waste recycle bin and concentrates destruction, but because the pin medicated cap is difficult for finding after taking off, in addition, even found, but because the relative aperture of pin medicated cap is less, careless slightlyly in the process of medical worker with pinhead sleeve back stitching medicated cap still very easily stab oneself; The pin cap sleeve is also insecure on syringe needle in addition, easily comes off, and this also will may cause the secondary injury to the recovery personnel.
Summary of the invention
The present invention will solve above-mentioned deficiency exactly, and the syringe needle that has protective sleeve of a kind of safety, handled easily is provided.
In order to reach above-mentioned effect, the invention provides a kind of safety needle, comprise spike body and be sheathed on protective sleeve on the spike body, described spike body is connected with conduit by joint, described joint by pintle and pin platform form up-small and down-big step-like; Described protective sleeve is made up of pin medicated cap and embedded wherein sleeve, and the center of the upper and lower end face of described pin medicated cap offers upper and lower circular hole; Described sleeve is n shape, and its top is stuck in the last circular hole outside of described pin medicated cap; The inwall of described pin medicated cap is provided with at least one card article that extends to oblique below.
For convenience sleeve is pulled up from the pin medicated cap, the top of described sleeve is provided with the leader.
Not mobile for the pin medicated cap is fixed on the spike body place, described pin platform upper surface is provided with the fixture block that at least one stretches obliquely upward.
The preferred version of such scheme is, the inwall of described pin medicated cap is provided with a circle card article, and described card article is positioned on the same horizontal plane.Card article can be to connect in aggregates or setting at interval.
In order to give the hands that entangles and prevent from accidentally injuring medical personnel with the pin medicated cap after spike body is used, described conduit and joint junction are provided with projection, and described projection is being blocked the following circular hole of pin medicated cap, make the pin medicated cap fix and do not glide.
The preferred version of such scheme is that described handle is a lead-in wire.
The preferred version of such scheme is, described pin platform upper surface is provided with a circle fixture block, and described fixture block becomes bowl-shape around being centered around pintle, can be to connect in aggregates or arrange at interval.
Protective sleeve of syringe needle integral body is cylindrical among the present invention, and sleeve is the n type and is embedded in the pin medicated cap, and the top of sleeve is stuck in the last circular hole outside of pin medicated cap, is provided with a lead-in wire above it and is used for extracting sleeve; Sleeve is just in time whole to being covered with spike body, prevents that spike body is contaminated before use; The bottom of pin medicated cap is located on the conduit by following circle hole sleeve.The inwall of pin medicated cap is provided with the card article that extends to oblique below, and pin platform upper surface is provided with the fixture block that stretches obliquely upward.
Syringe needle covers spike body by sleeve before use, and the lower end of sleeve props up on the fixture block of being located at pin platform upper surface, also has frictional force between the card article on the pin medicated cap inwall and the pin platform sidewall, makes protective sleeve be fixed on the top of spike body; Following circle hole sleeve on the pin medicated cap lower surface makes protective sleeve that spike body is fully protected on conduit.When using this product, the lead-in wire of firmly holding pin medicated cap upper end will be embedded in the interior sleeve of pin medicated cap and pull out, and will be again that the pin medicated cap is drop-down to opposite direction, can expose spike body and use; After using, again the pin medicated cap is pulled back to the spike body direction, when moving to a certain degree, card article on the pin medicated cap engages with the fixture block of pin platform upper surface, the following circular hole of this hour hands medicated cap props up the pin platform, and is stuck on the projection, and the pin medicated cap can be fixed, spike body is covered fully again, can not come off again, avoid the spike body exposure and stab medical personnel, can't cause the secondary injury to the recovery personnel.
In sum, the present invention has the following advantages:
1, protector and spike body are connected as a single entity, and be easy to operate;
2, the present invention is safe, spike body before use, after have protector that it is protected, reduced it and stabbed medical personnel's danger coefficient;
3, block after protector being pulled back after using, spike body is protected fully, and protective sleeve can not come off again, just can not cause the secondary injury to the recovery personnel.
Description of drawings
The present invention is further detailed explanation below in conjunction with the drawings and specific embodiments.
Fig. 1 is the structural representation of protective sleeve among the present invention;
Fig. 2 is the structural representation of spike body among the present invention;
Fig. 3 is that the present invention uses the pre-structure sketch map;
Fig. 4 is structural representation during the present invention uses;
Fig. 5 is that the present invention uses the back structural representation.
Among the figure: 1-sleeve, 2-pin medicated cap, 3-card article, 4-lead-in wire, 5-spike body, 6-pintle, 7-pin platform, 8-conduit, 9-projection, 10-fixture block.
The specific embodiment
Embodiment one:
Protective sleeve is made up of pin medicated cap 2 and embedded sleeve 1 wherein as shown in Figure 1, and the center of the upper and lower end face of described pin medicated cap 2 offers upper and lower circular hole; Described sleeve 1 is n shape, and the top of sleeve is stuck in the last circular hole outside of described pin medicated cap 2, and the top of sleeve 1 is provided with lead-in wire 4; The inwall of described pin medicated cap 2 is provided with the card article 3 that extends to oblique below.
Embodiment two:
Spike body 5 is connected with conduit 8 by joint as shown in Figure 2, described joint by pintle 6 and pin platform 7 form up-small and down-big step-like; Described pin platform 7 upper surfaces are provided with the fixture block 10 that stretches obliquely upward; Described conduit 8 is provided with projection 9 with the joint junction, and described projection 9 is being blocked the following circular hole of pin medicated cap, makes the pin medicated cap fix and do not glide.
Embodiment three:

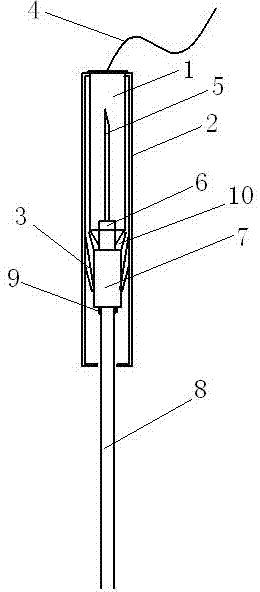

Be safety needle of the present invention sketch map before use as shown in Figure 3, comprise spike body 5 and the protective sleeve that is sheathed on the spike body 5, described spike body 5 is connected with conduit 8 by joint, described joint by pintle 6 and pin platform 7 form up-small and down-big step-like; Described protective sleeve is made up of pin medicated cap 2 and embedded sleeve 1 wherein, and the center of the upper and lower end face of described pin medicated cap 2 offers upper and lower circular hole; Described sleeve 1 is n shape, and the top of sleeve 1 is stuck in the last circular hole outside of described pin medicated cap 2; The inwall of described pin medicated cap 2 is provided with the card article 3 that a circle extends to oblique below.The top of sleeve is provided with a lead-in wire 4, and pin platform upper surface is provided with the fixture block 10 that a circle stretches obliquely upward; Described conduit 8 is provided with projection 9 with the joint junction.
Before use, cover spike body by sleeve, the lower end of sleeve props up the fixture block of being located at pin platform upper surface, and the frictional force between the card article on the pin medicated cap inwall and the pin platform sidewall, makes protective sleeve be fixed on the top of spike body; Following circle hole sleeve on the pin medicated cap lower surface makes protective sleeve that spike body is fully protected on conduit.
Embodiment four:
Be safety needle sketch map in use as shown in Figure 4, with the similar of embodiment three, difference be this product in use, need firmly to hold earlier the sleeves 1 that the lead-in wire 4 of pin medicated cap 2 upper ends will be embedded in the pin medicated cap 2 and pull out, again that pin medicated cap 2 is drop-down to opposite direction, can expose spike body 5 and use.
Embodiment five:
The sketch map of safety needle after use as shown in Figure 5, similar with embodiment three, difference is after this product uses, need pin medicated cap 2 is pulled back to spike body 5 directions, when moving to a certain degree, card article 3 on the pin medicated cap 2 engages with the fixture block 10 of pin platform 7 upper surfaces, the following circular hole of this hour hands medicated cap 2 props up pin platform 7, and be stuck on the projection 9, pin medicated cap 2 can be fixed, spike body 5 is covered fully again, and can not come off again, avoid the spike body exposure and stab medical personnel, can't cause the secondary injury to the recovery personnel.
Above embodiment is not limited only to protection scope of the present invention, all make amendment based on basic thought of the present invention or change all belong to protection scope of the present invention.

Claims (5)

1.一种安全针头，包括针头本体、导管与套设于针头本体上的保护套，其特征在于：所述针头本体通过接头与导管连接，所述接头是由针栓与针台组成的上小下大台阶状；所述保护套由针帽与内嵌其中的套筒组成，所述针帽的上、下端面的中心开设有上、下圆孔；所述套筒呈n形，其顶端卡在所述针帽的上圆孔外面，所述针台上端面设有至少一个向斜上方伸展的卡块；所述针帽的内壁设有至少一个向斜下方延伸的卡条；所述导管与接头连接处设有突起。 1. A safety needle, comprising a needle body, a catheter and a protective cover sleeved on the needle body, characterized in that: the needle body is connected to the catheter through a joint, and the joint is an upper body composed of a needle pin and a needle platform The protective cover is composed of a needle cap and a sleeve embedded in it, and the center of the upper and lower end faces of the needle cap is provided with upper and lower circular holes; the sleeve is n-shaped, and its The top end is stuck outside the upper hole of the needle cap, and the upper end surface of the needle table is provided with at least one clamping block extending obliquely upward; the inner wall of the needle cap is provided with at least one clamping strip extending obliquely downward; A protrusion is provided at the joint between the conduit and the connector. 2.根据权利要求1所述的一种安全针头，其特征在于：所述套筒的顶端设有一把手。 2. A safety needle according to claim 1, characterized in that: a handle is provided on the top end of the sleeve. 3.根据权利要求1所述的一种安全针头，其特征在于：所述卡条在针帽的内壁设成一圈，所述卡条位于同一水平面上。 3 . The safety needle according to claim 1 , wherein the clamping strips are arranged in a circle on the inner wall of the needle cap, and the clamping strips are located on the same horizontal plane. 4 . 4.根据权利要求2所述的一种安全针头，其特征在于：所述把手为一条引线。 4. A safety needle according to claim 2, wherein the handle is a lead wire. 5.根据权利要求1所述的一种安全针头，其特征在于：所述卡块在针台上端面设成一圈，所述卡块围绕在针栓周围成碗状。 5 . The safety needle according to claim 1 , wherein the block is arranged in a circle on the upper surface of the needle platform, and the block is formed into a bowl shape around the pintle. 5 .
