Abstract
The invention relates to the field of medical devices and discloses a lower opener for an endoscope. According to the lower opener, two opener heads are symmetrical to each other and are connected and matched with each other, and can be separated and drawn; when the two opener heads are drawn, a calabash shape with a circular blunt pointed end can be formed; during operation, the circular blunt pointed end punctures a basilar membrane, the edge of crevasse is fixed on the middle concave parts of the calabash-shaped opener heads, and the opener heads are separated to open and expand the crevasse to meet the operation requirements; and the puncturing and opening functions can be realized by using one machine; and the lower opener is simple in structural design and ensures that operation is easy and convenient to implement, and the operation effect is safe and effective. The inner sides of handheld handles are provided with tooth plates which are provided with multi-tooth lock catches matched with each other; and by fixing the positions of the handheld handles, the separating and drawing width of the opener heads can be controlled, the size of the opened mouth can be controlled conveniently, and the operation is convenient to implement. The lower opener is made of metal materials, so that the lower opener can be disinfected and sterilized at high temperature, cannot be damaged easily, can be used repeatedly, and reduces operation cost.
Description
Technical field
The present invention relates to medical instruments field, dilator under particularly a kind of endoscope.
Background technology
In recent years; Develop rapidly along with the neural navigation system of neuroimaging, nerve endoscope manufacturing process, micro-surgical instruments and stereotaxis; Make that the operation method of auxiliary three ventriculostomys of nerve endoscope is increasingly mature; Indication is constantly widened, and plays a greater and greater role in noncommunicating hydrocephalus operative treatment field.Three ventriculostomys mainly are applicable to the noncommunicating hydrocephalus fistulation; Also can be used to shunt the noncommunicating hydrocephalus patient of failure or isocon infection adhesion; Stop up and cause the patient of shunting failure for isocon repeatedly, three ventriculostomys are undoubtedly a kind of excellent alternative medicine.
Be to improve the safety and the effectiveness of operation, except the suitable hydrocephalus patient of correct selection and operation method on top of and operation skill, the operating theater instruments that the employing high-quality suits also is the successful keys of three ventriculostomys.A step very crucial in the process of whole surgery is fistulation, and promptly through the help of operating theater instruments such as neuroendoscopy, on the ventriculus tertius basement membrane, making a diameter is the fistula mouth of 5mm to 6mm.The complication rate of three ventriculostomys is low than bypass on the whole, about 5% to 7%, comprises mainly that the art medium-sized vein is hemorrhage, basilar artery break, postoperative intracranial hemorrhage, infection, of short duration loss of consciousness or hypothalamic function be low, is mostly one to cross property.Wherein the most dangerous complication is exactly that basilar artery and branch thereof break and cause massive hemorrhage.Sharp property such as probe fistulation technology fistulation is easy and effective, but misoperation very easily causes blood vessel and brain tissue impairment, for avoiding in operation, damaging basilar artery, adopts sacculus dilating catheter eleven punch 11 fistulation in the prior art usually.
But inventor of the present invention finds, adopts sacculus dilating catheter eleven punch 11 fistulation, because the conduit quality is softer; The blunt circle of head end often is difficult to break through basement membrane, and is special because of balloon material simultaneously; Price is more expensive, and damages easily, and recycling rate of waterused is very low; Bring very big inconvenience to clinical position, especially for the very tough or very resilient patient of three ventricles of the brain basement membrane, operation has also increased the risk of operation times without number.Therefore need seek a kind of new fistulation apparatus, when guaranteeing the fistulation effect, improve the safety and the ease for operation of operation.
Summary of the invention
The object of the present invention is to provide dilator under a kind of endoscope, utilize an operating theater instruments just can realize the function of poking and strutting, structural design is simple, and operation technique is more simple and convenient, and surgical effect is more safe and effective.
For solving the problems of the technologies described above; Embodiment of the present invention discloses dilator under a kind of endoscope, comprising: first hand holding handle (1), second hand holding handle (2), bolt (4), pin (16), hollow pipe (6), catch bar (7), the first dilator head (8), the second dilator head (9) and connecting plate (11);
Catch bar (7) places the centre bore of hollow pipe (6);
The first dilator head (8) and the second dilator head (9) are symmetric shape; Both have the calabash shape at the blunt tip of circle (15) to fashionable formation; The mid portion of this calabash shape (13) is hung carefully; Expand anterior (14) and rear portion (12), and rear portion (12) diameter is greater than anterior (14) diameter;
First hand holding handle (1) links to each other through bolt (4) with second hand holding handle (2);
The rear portion of the rear portion of the first dilator head (8) and the second dilator head (9) is through pin (16) and connecting plate (11) pin joint; Connecting plate (11) also is connected with an end of catch bar (7) through bolt (4), and the other end of catch bar (7) is connected with first hand holding handle (1);
One end of hollow pipe (6) is connected with second hand holding handle (2), and the other end is through pin (16) and the rear portion of the first dilator head (8) and the rear portion pin joint of the second dilator head (9).
Embodiment of the present invention compared with prior art, the main distinction and effect thereof are:
Two dilator heads are symmetric shape, link together, and cooperatively interact; Can open and to close,, poke basement membrane with the blunt tip of circle earlier during operation when both have the calabash shape of justifying blunt tip to fashionable formation; Then the cut edge is fixed on the intermediate recess place of Pear-Shaped dilator head, struts the dilator head at last, strut cut; Expansion struts mouth to the size that satisfies requirements of operation, utilizes an operating theater instruments just can realize the function of poking and strutting, and structural design is simple; Operation technique is more simple and convenient, and surgical effect is more safe and effective.
Further, be provided with the tooth plate of the multiple tooth snap close that cooperatively interacts in the inboard of hand holding handle, through the fixing position of hand holding handle, the width of control dilator head folding is convenient to control the size that struts mouthful, make operation technique more accurately, convenient.
Further, be provided with hand-held ring, be convenient to hand-held and operation technique more at the end of hand holding handle.
Further, runner is used for the head of unitary rotation dilator, is convenient to more effectively expose surgical field of view, makes operation technique easier.
Further, the design of fluting makes parallelogram that enough displacement spaces arranged, so that control the size that struts mouth better.
Further, metal material is processed, and is convenient to the high-temperature sterilization sterilization, and not fragile, can reuse, and reduces the operation cost.
Description of drawings

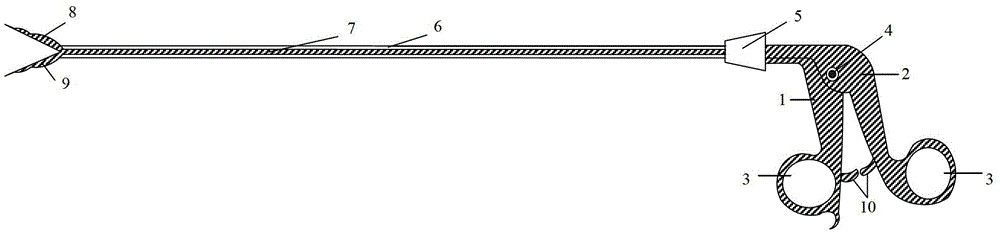

Fig. 1 is the structural representation of dilator under a kind of endoscope in the first embodiment of the invention;
Fig. 2 is the structural representation of the dilator head of dilator under a kind of endoscope in the first embodiment of the invention.
The specific embodiment
In following narration, many ins and outs have been proposed in order to make the reader understand the application better.But, persons of ordinary skill in the art may appreciate that even without these ins and outs with based on the many variations and the modification of following each embodiment, also can realize each claim of the application technical scheme required for protection.
For making the object of the invention, technical scheme and advantage clearer, will combine accompanying drawing that embodiment of the present invention is done to describe in detail further below.
First embodiment of the invention relates to dilator under a kind of endoscope.Fig. 1 is the structural representation of dilator under this endoscope, and Fig. 2 is the enlarged drawing at the dilator head place of dilator shown in Figure 1.
Specifically, as depicted in figs. 1 and 2, dilator comprises under this endoscope: first hand holding handle 1, second hand holding handle 2, bolt 4, pin 16, hollow pipe 6, catch bar 7, the first dilator head 8, the second dilator head 9 and connecting plate 11.
Catch bar 7 places the centre bore of hollow pipe 6.
The first dilator head 8 and the second dilator head 9 are symmetric shape, and both have round blunt most advanced and sophisticated 15 calabash shape to fashionable formation, and the mid portion 13 of this calabash shape is hung carefully, and expand with rear portion 12 front portion 14, and rear portion 12 diameters are greater than anterior 14 diameters.
The first dilator head 8 and the second dilator head 9 link together, and cooperatively interact, and can open and can close, and be when both have the calabash shape of justifying blunt tip to fashionable formation, as shown in Figure 2.
Specifically, when both are combined to form the calabash shape that has the blunt tip of circle,
Blunt most advanced and sophisticated 15 the length of circle is 1mm to 2mm, and diameter is 0.1mm to 0.3mm.
Anterior 14 length is 2mm to 3mm, and diameter is 0.4mm to 0.6mm.
The diameter of mid portion 13 is 0.2mm to 0.4mm.
The length at rear portion 12 is 5mm to 8mm, and diameter is 0.8mm to 1.5mm.
When dilator strutted, shape was as shown in Figure 1: when this dilator head calabash shape struts, strut the diameter maximum and can reach 5mm to 8mm.
First hand holding handle 1 links to each other through bolt 4 with second hand holding handle 2.
In addition, also comprise: tooth plate 10, in the couple positioned opposite of first hand holding handle 1 and second hand holding handle 2 tooth plate 10 is arranged, this tooth plate 10 is provided with the multiple tooth snap close that cooperatively interacts.
Be provided with the tooth plate of the multiple tooth snap close that cooperatively interacts in the inboard of hand holding handle, through the fixing position of hand holding handle, the width of control dilator head folding is convenient to control the size that struts mouthful, make operation technique more accurately, convenient.
Certainly, this is of the present invention preferred embodiment a kind of, and in some other embodiment of the present invention, tooth plate 10 can not have yet.
In addition, also comprise: hand-held ring 3 is connected one respectively at the end of first hand holding handle 1 and second hand holding handle 2 and hand-heldly encircles 3.
End at hand holding handle is provided with hand-held ring, is in order to be convenient to hand-held and operation technique more.
Likewise, this is of the present invention preferred embodiment a kind of, and in some other embodiment of the present invention, hand-held ring 3 can not have yet.
In addition, also comprise: runner 5, runner 5 are fixed on first hand holding handle 1, and runner is used for the head of unitary rotation dilator, are convenient to more effectively expose surgical field of view, make operation technique easier.
The rear portion of the rear portion of the first dilator head 8 and the second dilator head 9 is through pin 16 and connecting plate 11 pin joints; Connecting plate 11 also is connected with an end of catch bar 7 through bolt 4; Specifically; Connecting plate 11 is the shapes that connect into parallelogram through bolt 4, and an angle of the rear portion of the rear portion of the first dilator head 8 and the second dilator head 9 and this parallelogram is through pin 16 pin joints, and the diagonal angle at this angle is connected with an end of catch bar 7 through bolt 4.The other end of catch bar 7 is connected with runner 5.
Likewise, this is of the present invention preferred embodiment a kind of, and in some other embodiment of the present invention, connecting plate 11 can not be the shape that connects into parallelogram also, and runner 5 can not have yet.Under the situation that does not have runner 5, the other end of catch bar 7 with directly be connected with first hand holding handle 1.
One end of hollow pipe 6 is connected with second hand holding handle 2, and the other end is through pin 16 and the rear portion of the first dilator head 8 and the rear portion pin joint of the second dilator head 9.
Particularly, the length of this hollow pipe 6 is 10cm to 50cm, and inner diameter is 0.8mm to 1.5mm.
One end of the rear portion pin joint of the rear portion of the hollow pipe 6 and the first dilator head 8 and the second dilator head 9 is provided with fluting.The design of fluting makes parallelogram that enough displacement spaces arranged, so that control the size that struts mouth better.
Likewise, this is of the present invention preferred embodiment a kind of, and in some other embodiment of the present invention, the front end of hollow pipe 6 can not slotted yet.
Dilator is processed by metal material under this endoscope.Metal material is processed, and is convenient to the high-temperature sterilization sterilization, and not fragile, can reuse, and reduces the operation cost.
Two of dilator dilator heads are symmetric shape under this endoscope; Link together, cooperatively interact, can open and to close; The calabash shape that fashionable formation is had the blunt tip of circle when both; When the dilator head of dilator struts, strut the diameter maximum and can reach 5mm to 8mm, can satisfy the requirement of actual operation.
Poke basement membrane with the blunt tip of circle earlier during operation, basement membrane is convenient to break through safely and effectively in the blunt tip of circle, especially for the very tough or very resilient patient of three ventricles of the brain basement membrane.Then the cut edge is fixed on the intermediate recess place of Pear-Shaped dilator head, struts the dilator head at last, strut cut; Enlarge and strut mouth to satisfying requirements of operation; The design of Pear-Shaped makes the breach be easy to strutted, and can safely and effectively the breach be strutted according to the requirement of actual operation.
Utilize an operating theater instruments just can realize the function of poking and strutting, operation technique is more simple and convenient, and surgical effect is more safe and effective.
Though through reference some preferred implementation of the present invention; The present invention is illustrated and describes; But those of ordinary skill in the art should be understood that and can do various changes to it in form with on the details, and without departing from the spirit and scope of the present invention.
Claims (10)
1. dilator under the endoscope; It is characterized in that, comprising: first hand holding handle (1), second hand holding handle (2), bolt (4), pin (16), hollow pipe (6), catch bar (7), the first dilator head (8), the second dilator head (9) and connecting plate (11);
Catch bar (7) places the centre bore of hollow pipe (6);
The first dilator head (8) and the second dilator head (9) are symmetric shape; Both have the calabash shape at the blunt tip of circle (15) to fashionable formation; The mid portion of this calabash shape (13) is hung carefully; Expand anterior (14) and rear portion (12), and rear portion (12) diameter is greater than anterior (14) diameter;
First hand holding handle (1) links to each other through bolt (4) with second hand holding handle (2);
The rear portion of the rear portion of the first dilator head (8) and the second dilator head (9) is through pin (16) and connecting plate (11) pin joint; Connecting plate (11) also is connected with an end of catch bar (7) through bolt (4), and the other end of catch bar (7) is connected with first hand holding handle (1);
One end of hollow pipe (6) is connected with second hand holding handle (2), and the other end is through pin (16) and the rear portion of the first dilator head (8) and the rear portion pin joint of the second dilator head (9).
2. dilator under the endoscope according to claim 1; It is characterized in that; Said connecting plate (11) is the shape that connects into parallelogram through bolt (4); An angle pin joint of the first dilator head (8) and the second dilator head (9) and this parallelogram, the diagonal angle at this angle is connected with an end of catch bar (7) through bolt (4).
3. dilator under the endoscope according to claim 2 is characterized in that, also comprises: tooth plate (10);
Couple positioned opposite at first hand holding handle (1) and second hand holding handle (2) has tooth plate (10), and this tooth plate (10) is provided with the multiple tooth snap close that cooperatively interacts.
4. dilator under the endoscope according to claim 3 is characterized in that, also comprises: hand-held ring (3);
End at first hand holding handle (1) and second hand holding handle (2) is connected a hand-held ring (3) respectively.
5. dilator under the endoscope according to claim 4 is characterized in that, also comprises: runner (5);
Runner (5) is fixed on first hand holding handle (1), and an end of catch bar (7) is connected with runner (5).
6. dilator under the endoscope according to claim 5 is characterized in that, the length of this hollow pipe (6) is 10cm to 50cm, and inner diameter is 0.8mm to 1.5mm.
7. dilator under the endoscope according to claim 6 is characterized in that, the length at the blunt tip of the circle of calabash shape (15) is 1mm to 2mm, and diameter is 0.1mm to 0.3mm;
The length of anterior (14) is 2mm to 3mm, and diameter is 0.4mm to 0.6mm;
The diameter of mid portion (13) is 0.2mm to 0.4mm;
The length at rear portion (12) is 5mm to 8mm, and diameter is 0.8mm to 1.5mm.
8. dilator under the endoscope according to claim 7 is characterized in that, when this dilator head calabash shape struts, struts the diameter maximum and can reach 5mm to 8mm.
9. dilator under the endoscope according to claim 8 is characterized in that, an end of the rear portion of the hollow pipe (6) and the first dilator head (8) and the rear portion pin joint of the second dilator head (9) is provided with fluting.
10. according to dilator under each described endoscope in the claim 1 to 9, it is characterized in that this dilator is processed by metal material.
