CN102659258A - Treatment method of kitchen slops and treatment device - Google Patents

Abstract

The invention provides a kitchen swill treatment method and treatment device, including swill collection and primary treatment, oil-water separation and solid sediment treatment, disinfection, oil-blocking filtration treatment steps, and also provides a treatment device using the treatment method, It is composed of a solid-liquid separation device, an ultra-fine solid precipitation device, an oil-water separation device, a virus-killing treatment device, and an oil-blocking filtration treatment device. The beneficial effects of the present invention are: simple structure, easy manufacture, low cost of use, modular design, and Large-scale industrial applications or individual equipment operations are not limited by the environment and have high efficiency. They can not only be installed in kitchens, but also can be used in treatment stations that collect and transport centralized treatment of food waste swill.

Description

Kitchen swill treatment method and treatment device

technical field

The invention relates to a method and device for treating kitchen swill.

Background technique

At present, due to the needs of operation, restaurants and restaurants will produce a large amount of food waste, especially the output of kitchen swill is astonishing. The current treatment method for kitchen swill is that the corresponding management department collects sewage charges from the operator, and then discharges it directly into the urban sewer . As we all know, the composition of swill is relatively complex, including oil, water and organic matter, but the main components are oil and water, which are easy to breed bacteria in the natural environment. If it is discharged directly without treatment, it will have a great impact on the environment, and more importantly Yes, it is directly discharged into urban drainage pipes, collected and refined by unscrupulous traders into "gutter oil", and returned to the people's dining table, which is extremely harmful to people's health. The country is currently strengthening the management of kitchen waste and promoting the installation of facilities such as oil-water isolation tanks and oil-water separators. However, the current oil-water separation method is inefficient, and the storage of swill is large, which is easy to breed bacteria and damage the environment. Therefore, a technology is needed to deal with restaurants. kitchen waste generated in restaurants, canteens, restaurants and other places, especially the treatment of kitchen swill, in order to protect the environment and recover the "gutter oil" in the swill in advance, control the source and quantity of "gutter oil", and truly ensure that it is used for Reasonable uses such as biodiesel or aviation fuel prevent criminals from letting "waste oil" flow into restaurants again.

Contents of the invention

The purpose of the present invention is to provide a kind of kitchen swill treatment method that can efficiently process kitchen swill, and the kitchen swill treatment method of the present invention according to the above-mentioned purpose comprises the following steps:

A, swill collection and initial treatment, the swill is preliminarily carried out solid-liquid separation treatment to obtain the swill solid part and swill liquid part;

B, oil-water separation and solid sediment treatment, for the liquid part of the swill obtained in step A, the separated oil, separated water and solid sediment are obtained through the oil-water separation device, and the solid sediment can be sterilized, dried or directly processed by the ultra-fine solid device Used as agricultural fertilizer.

C. Disinfection and oil-repelling filtration treatment. The separated water obtained in step B is subjected to anti-virus treatment and oil-repelling filtration treatment, and the water after the treatment is discharged into the urban sewage system through a valve.

The invention also provides a treatment device using the treatment method, which is composed of a solid-liquid separation device, an ultra-fine solid precipitation device, an oil-water separation device, a virus-killing treatment device, and an oil-blocking filtration treatment device.

The beneficial effects of the present invention are: simple structure, simple manufacture, low cost of use, modular design, large-scale industrial application or single equipment operation, not limited by the environment, high efficiency, not only can be installed in the kitchen for use, but also can be used for It is used by the treatment station where the food waste swill is collected and transported for centralized treatment.

Description of drawings

The present invention will be described in further detail below according to the accompanying drawings.

Fig. 1 is a schematic flow chart of the present invention.

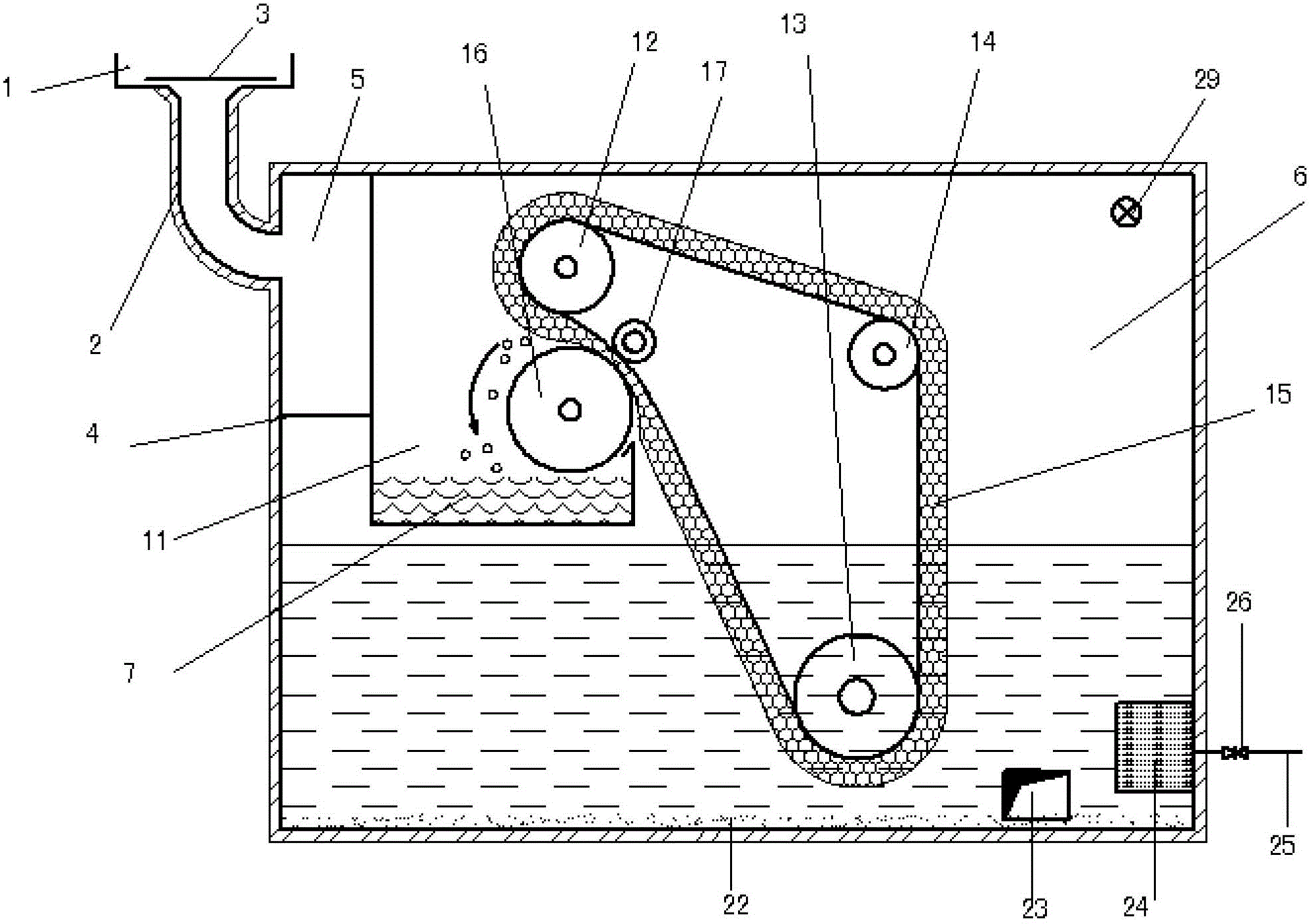

Fig. 2 is a structural schematic diagram of the embodiment.

Fig. 3 is a partially enlarged schematic diagram of an oil-absorbing conveyor belt. .

FIG. 4 is a schematic cross-sectional view along line A-A' of FIG. 3 .

Detailed ways

As shown in Figure 1, the kitchen swill treatment device consists of a solid-liquid separation device, an oil-water separation device, an ultra-fine solid precipitation device, a virus-killing treatment device and an oil-repelling filter treatment device.

According to shown in Fig. 2, the solid-liquid separation device corresponds to the method step A provided by the present invention, a feed port 1 is set at the solid-liquid separation device, and a coarse filter mesh 3 is installed at the feed port 1, below the feed port 1 Connected with the feed pipe 2, the lower port of the feed pipe 2 is connected with the main body of the equipment, and there is a layer of fine-pore filter mesh 4 inside the main body, and the kitchen swill is separated through the solid-liquid separation chamber 5 of the solid-liquid separation device The solid part of the swill and the liquid part of the swill are collected and stored on the fine-pore filter mesh 4 of the solid-liquid separation chamber 5, and the solid part of the swill is regularly cleaned out from the side of the main body of the equipment and treated as domestic solid waste.

The ultra-fine solid precipitation device and the oil-water separation device correspond to step B of the method provided by the present invention. The separated swill liquid part enters the equipment main body and is first stored in the container 6. Before the swill liquid part enters the oil-water separation system, it will still There are finer solids mixed in the liquid part of the swill, which will form ultra-fine solid sediment 22 and settle at the bottom of the container 6. The ultra-fine solid sediment 22 passes through the ultra-fine solid sediment outlet 23 of the equipment. When the equipment is regularly drained of liquid After cleaning, the ultrafine solid sediment 22 is an organic substance, which can be sterilized, dried or directly used as agricultural fertilizer.

The liquid part of the swill after superfine solid precipitation enters the oil-water separation device. The oil-water separation device consists of a drive driving wheel 12, a lower driven wheel 13, an upper driven wheel 14, an oil-absorbing conveyor belt 15, a driving extrusion wheel 16, and an auxiliary extrusion wheel. The pressure roller 17 and the oil collecting tank cavity 11 are composed. The driving driving wheel 12, the lower driven wheel 13, the upper driven wheel 14, and the oil-absorbing transmission belt 15 form a grease carrying system; the active extrusion wheel 16 and the auxiliary extrusion wheel 17 form a grease separation system. During the rotation of the grease carrying system, the oil-absorbing transmission belt 15 will absorb the grease in the liquid part of the swill into the honeycomb cavity 28, carry it out of the water surface, meet the grease separation system, be squeezed and separated into oil droplets, and fall into the oil tank cavity 11, and store in the separated oil in the oil tank cavity 11 Lead out the equipment through the pipe.

The antivirus treatment device and the oil-repelling filtration treatment device correspond to step C of the method provided by the present invention. The oil-resistance filtration treatment device is composed of a hydrophobic base filter membrane 24 , a drain valve 26 and a drain pipe 25 . After the oil-water separation, the water body is discharged after being treated by the oil-repelling filter treatment device. Since the swill separation water still has a small amount of oil dissolved in the water, when passing through the oil-resistance filter treatment device, the hydrophobicity in the oil-resistance filter treatment device The base filter membrane 24 will prevent the dissolved oil in the water from being discharged, so that the concentration of the dissolved oil in the water will increase due to filtration. When the dissolved oil exceeds the limit, it will be precipitated and floated to be processed again by the oil-water separation device. The swill after treatment through the oil-repelling filter treatment device, the oil carried, etc. have reached the sewage standard that can be discharged directly.

A virus-killing treatment device 29 is installed on the top of the equipment body, and the virus-killing treatment device is made of an ultraviolet lamp or an ozone generator. It can continuously sterilize and disinfect the oil-water separation device, ultra-fine solid precipitation device and oil-repelling filtration treatment device in real time, and sterilize and disinfect the water body to prevent the growth of bacteria inside the equipment and cause the swill water to deteriorate and stink.

As shown in FIG. 3 , the front of the entire oil-absorbing conveyor belt 15 is processed into a honeycomb shape by rubber material, and the honeycomb cavity walls 27 form hexagonal concave honeycomb cavities 28 one by one.

As shown in FIG. 4 , the oil-absorbing transmission belt 15 is composed of two layers, one is a transmission belt 30 processed from wear-resistant materials, and the other is a concave honeycomb cavity 28 layers. The concave honeycomb cavity 28 is composed of the honeycomb cavity side wall 33, the honeycomb cavity bottom wall 32, and the honeycomb cavity cornice 31. The concave honeycomb cavity 28 forms a honeycomb cavity ridge line 35 because the concave honeycomb cavity 28 is hexagonal, and the honeycomb cavity bottom wall 32 is a circle. The arc shape can make it difficult for the grease to form a dead corner of the memory.

The present invention is not limited to the above-mentioned best implementation mode, anyone can draw other various forms of products under the inspiration of the present invention, but no matter make any changes in its shape or structure, all those with the same or similar features as the present application Approximate technical solutions all fall within the protection scope of the present invention.

Claims (10)

1. A method for treating kitchen swill, characterized in that: comprising the steps: A, swill collection and initial treatment, the swill is preliminarily carried out solid-liquid separation treatment to obtain the swill solid part and swill liquid part; B, oil-water separation and solid sediment treatment, for the liquid part of the swill obtained in step A, the separated oil, separated water and solid sediment are obtained through the oil-water separation device, and the solid sediment can be sterilized, dried or directly processed by the ultra-fine solid device Used as agricultural fertilizer. C. Disinfection and oil-repelling filtration treatment. The separated water obtained in step B is subjected to anti-virus treatment and oil-repelling filtration treatment, and the water after the treatment is discharged into the urban sewage system through a valve. 2. A kitchen swill treatment device, characterized in that: it is composed of a solid-liquid separation device, an ultra-fine solid precipitation device, an oil-water separation device, a virus-killing treatment device, and an oil-repelling filter treatment device. 3. A kind of kitchen swill treatment device according to claim 2, characterized in that: said solid-liquid separation device is provided with a feeding port, a coarse filter mesh is installed at the feeding port, and the feeding port is connected below Then the feeding pipe, the lower port of the feeding pipe is connected with the main body of the equipment, and there is a layer of fine-pore filter mesh inside the main body. The kitchen swill is separated into the solid part of swill and the solid-liquid separation chamber of the solid-liquid separation device. The liquid part of the swill and the solid part of the swill are collected and stored on the fine-pored filter mesh in the solid-liquid separation chamber, and the solid part of the swill is regularly cleaned out from the side of the main body of the equipment and treated as domestic solid waste. 4. A kitchen swill treatment device according to claim 2, characterized in that: in the ultra-fine solid precipitation device, the liquid part of the separated swill enters the main body of the device and is first stored in a container , Before the liquid part of the swill enters the oil-water separation system, there will still be finer solids mixed in the liquid part of the swill, which will form ultra-fine solid precipitates and settle at the bottom of the container. 5. A kitchen swill treatment device according to claim 2, characterized in that: the oil-water separation device is composed of a driving drive wheel, a lower driven wheel, an upper driven wheel, an oil-absorbing conveyor belt, a driving extrusion wheel, and an auxiliary extrusion wheel. It consists of pressure roller and oil collecting groove. 6. A kitchen swill treatment device according to claim 5, characterized in that: the drive driving wheel, the lower driven wheel, the upper driven wheel, and the oil-absorbing conveyor belt constitute a grease carrying system; the active squeezing wheel and the auxiliary squeezing wheel Composition of grease separation system. 7. A kitchen swill treatment device according to claim 5, characterized in that: the oil-absorbing conveyor belt is composed of two layers, one layer is a conveyor belt processed by wear-resistant materials, and the other layer is a concave-shaped conveyor belt. Honeycomb layer. 8. A kitchen swill treatment device according to claim 7, characterized in that: the concave honeycomb cavity is composed of a honeycomb cavity side wall, a honeycomb cavity bottom wall, and a honeycomb cavity cornice. 9. The kitchen swill treatment device according to claim 7, wherein the bottom wall of the honeycomb cavity is arc-shaped. 10. The kitchen swill treatment device according to claim 2, characterized in that: the oil-repelling oil filtration treatment device is composed of a hydrophobic base filter membrane, a drain valve, and a drain pipe.
