Abstract

A student bed and study table belongs to furniture products; a support frame is installed on the bed body through a fastener group, and two support sleeves are respectively hinged and installed on the front and rear parts of the support frame in parallel with each other, and the support rods are inserted into the In the support sleeve, adjust the fastening screw to lock the support rod and the support sleeve, the connection plate is fixed on the lower end surface of the left table, the support rod is hinged with the connection plate, and the hinge connects the left and right table as a whole. The lower end of the right table is equipped with a slideway, the upper end of the mobile bracket is hinged in the slideway, and the height and levelness adjustment assembly of the table is equipped on the lower end of the mobile bracket, or the connecting plate is fixed on the lower end of the table On the lower end surface of the table, the outrigger seat and the elastic clip are installed, the two outriggers are hinged on the lower end surface of the table through the outrigger seat, and the height and levelness adjustment assembly of the table is installed on the outrigger; The table has a simple and compact structure, is convenient and comfortable to use, and is suitable for a wide range of people.

Description

A study desk on a bed for students

technical field

The invention belongs to furniture products, and mainly relates to a study table for students' beds.

Background technique

At present, the study desk in the student dormitory is mainly a four-corner bracket type. When in use, the desk bracket is opened and stood on the ground or on the bed. But when studying and using on the bed and after using, the table needs to be moved back and forth, which is very inconvenient especially when it is moved from the bed to under the bed. If you don’t move it, you can only put the table on the bottom of your feet all the time. When students go to bed, they will easily hit the table when they turn over. Therefore, it is very necessary to design a folding and adjustable student bed study table with a desktop.

Contents of the invention

The technical problem to be solved by the present invention is to design and provide a foldable, movable desktop, high The adjustable student bed study table achieves the purpose of convenient use.

The purpose of the invention is achieved in this way:

①. A student bed study table, including a bed body, a support frame is installed on the side of the bed body through a fastener group, and two support sleeves are respectively hinged and installed on the front and rear parts of the support frame in parallel with each other. , the support rod can be moved up and down and inserted into the support sleeve, the support rod and the support sleeve are locked by adjusting the locking screw, the connecting plate is fixed on the lower end surface of the left side of the left table, the upper end of the support rod is hinged with the connecting plate Connection, the hinge hinges the left table and the right table into one body, a slideway is equipped on the lower end of the right table, the upper end of the moving bracket is movably hinged and fitted in the slideway, and the lower end of the moving bracket The top is equipped with the table height and levelness adjustment assembly.

②. A study table on a student bed, including a bed body. A support frame is installed on the side of the bed body through a fastener group, and two support sleeves are respectively hinged and installed on the front and rear parts of the support frame in parallel with each other. , the support rod can be moved up and down in the support sleeve, and the support rod and the support sleeve are locked by adjusting the locking screw, the connecting plate is fixed on the lower end surface of the outer side of the table, and the upper end of the support rod is hinged with the connecting plate. Install outriggers and elastic clips on the lower end of the table, and the two outriggers are respectively foldably hinged and installed on the front and rear parts of the lower end of the table through the outriggers, and the height of the table is installed on the bottom of the outriggers with level adjustment assembly.

The beneficial effect of the invention is that the desktop can be flexibly moved, and the table can be adjusted to the best position according to the student's own situation when the student is studying on the bed, and the table can be turned and moved to the outside of the bed when resting at night, without Affect the sleeping space of students. The design has the advantages of simple and compact structure, good stability, easy adjustment, convenient processing and low cost, and is easy for students to accept.

Description of drawings

Fig. 1 is a schematic diagram of the structure of a table for studying on a student's bed with a combined structure of left and right table boards;

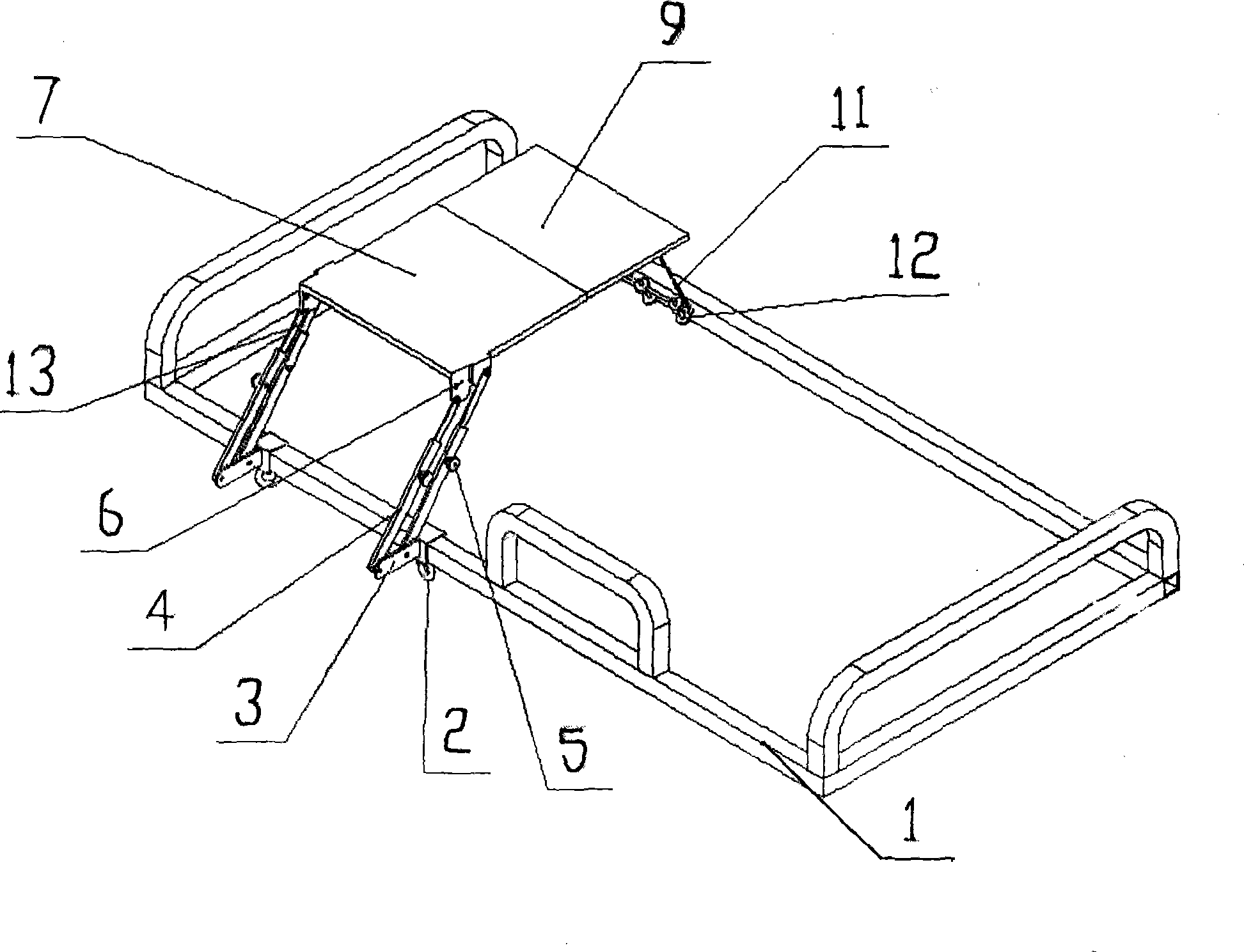

Figure 2 is an isometric view of Figure 1;

FIG. 3 is a schematic diagram of the non-use state of FIG. 2 .

Fig. 4 is a schematic diagram of the structure of a table for studying on a student's bed with a single table board structure;

Figure 5 is an isometric view of Figure 4;

FIG. 6 is a schematic diagram of the non-use state of FIG. 5 .

Part number description in the figure: 1. Bed body 2. Fastener group 3. Support frame 4. Support sleeve 5. Adjustment fastening screw 6. Connecting plate 7. Left table board 8. Folding leaf 9. Right table board 10. Slideway 11, mobile bracket 12, table board height and level adjustment assembly 13, support rod 14, outrigger seat 15, elastic clip 16, outrigger frame 17, table board

Detailed ways

The following describes in detail the implementation cases of the present invention in conjunction with the accompanying drawings.

Example 1: A study table on a student bed, including a bed body 1, a support frame 3 is installed on the side of the bed body 1 through a fastener group 2, and the front and rear parts of the support frame 3 are respectively hinged in parallel to each other. Two supporting sleeves 4 are installed, and the supporting rod 13 can be moved up and down in the supporting sleeve 4, and the supporting rod 13 is locked with the supporting sleeve 4 by adjusting the locking screw 5, and the connecting plate 6 is fixed on the left table 7 On the lower end surface of the left side, the upper end of the support rod 13 is hingedly connected with the connecting plate 6, and the hinge 8 hinges the left table plate 7 and the right table plate 9 into one, and the slideway 10 is equipped on the lower end surface of the right table plate 9, The upper end of the mobile support 11 is movably hinged and fitted in the slideway 10 , and the table height and levelness adjustment assembly 12 is assembled on the lower end of the mobile support 11 .

Example 2: A study table on a student bed, including a bed body 1, a support frame 3 is installed on the side of the bed body 1 through a fastener group 2, and the front and rear parts of the support frame 3 are respectively hinged in parallel to each other. Two support sleeves 4 are installed, and the support rod 13 can be inserted into the support sleeve 4 to move up and down. The support rod 13 and the support sleeve 4 are locked by adjusting the locking screw 5, and the connecting plate 6 is fixed on the table plate 17 On the lower end surface of the outer side, the upper end of the support rod 13 is hingedly connected with the connecting plate 6, and a leg seat 14 and an elastic clip 15 are installed on the lower end surface of the table board 17, and the two leg frames 16 are respectively foldably hinged through the leg seat 14. Be installed on the front and rear positions of the lower end of the table board 17, and install the table board height and level adjustment assembly 12 on the leg frame 16 bottoms.

Claims (2)

1. A table for studying on a student bed, comprising a bed body (1), characterized in that a support frame (3) is installed on the side of the bed body (1) by a fastener group (2), and a support frame (3) is installed on the support frame (3) ) and two support sleeves (4) are respectively hingedly installed on the front and rear parts parallel to each other. ) lock the support rod (13) with the support sleeve (4), the connecting plate (6) is fixed on the left lower end surface of the left table (7), and the upper end of the supporting rod (13) is hinged with the connecting plate (6), The hinge (8) hinges the left table (7) and the right table (9) into one, and the slideway (10) is equipped on the lower surface of the right table (9), and the upper end of the mobile support (11) Removably hinged and fitted in the slideway (10), the table height and level adjustment assembly (12) is fitted on the lower end of the mobile support (11). 2. A study table on a student bed, comprising a bed body (1), characterized in that a support frame (3) is installed on the side of the bed body (1) by a fastener group (2), and a support frame (3) is installed on the support frame (3). ) and two support sleeves (4) are respectively hingedly installed on the front and rear parts parallel to each other. ) to lock the support rod (13) with the support sleeve (4), the connecting plate (6) is fixed on the outer lower end surface of the table plate (17), and the upper end of the support rod (13) is hingedly connected with the connecting plate (6). Outrigger seat (14) and elastic clip (15) are installed on the lower end surface of plate (17), and two outrigger frames (16) are respectively foldably hinged and installed on the lower end of table board (17) through outrigger seat (14). On the front and rear positions, the height of the table plate and the level adjustment assembly (12) are installed on the bottom of the leg frame (16).
