Abstract
本发明公开的外置式厌氧膜生物反应器包括调节池、厌氧生物反应器和膜箱，厌氧生物反应器的底部设有布水管，上部装有三相分离器，厌氧生物反应器外部有与其连通的污泥循环泵，膜箱的底部有微孔曝气装置，内部装有超滤束状膜组件，调节池通过抽吸泵与厌氧生物反应器的布水管相连，厌氧生物反应器的出水管与膜箱上部的进水管相连，膜箱下部的污水管通过循环泵与厌氧生物反应器的布水管连通。该反应器可以有效防止污泥流失，提高污泥泥龄，易于微生物的富集。通过氮气冲刷可以有效减轻膜污染状况，提高膜组件的使用周期，节省清洗膜组件的成本及清洗过程中造成的二次污染。该反应装置结构简单，易于操作，适用于高浓度有机废水的处理。
The external anaerobic membrane bioreactor disclosed by the present invention includes a regulating tank, an anaerobic bioreactor and a membrane box. The bottom of the anaerobic bioreactor is provided with a water distribution pipe, and the upper part is equipped with a three-phase separator. There is a sludge circulation pump connected to it. There is a microporous aeration device at the bottom of the membrane box, and an ultrafiltration bundle membrane module is installed inside. The adjustment tank is connected to the water distribution pipe of the anaerobic bioreactor through a suction pump. The outlet pipe of the reactor is connected with the water inlet pipe at the upper part of the membrane box, and the sewage pipe at the lower part of the membrane box is connected with the water distribution pipe of the anaerobic bioreactor through a circulating pump. The reactor can effectively prevent sludge loss, increase the sludge age, and facilitate the enrichment of microorganisms. Nitrogen flushing can effectively reduce membrane pollution, increase the service life of membrane modules, save the cost of cleaning membrane modules and secondary pollution caused during the cleaning process. The reaction device has a simple structure, is easy to operate, and is suitable for the treatment of high-concentration organic wastewater.
Description
Technical field
The present invention relates to a kind of external placed type anaerobic membrane bioreactor, be applicable to the processing of high concentrated organic wastewater.
Background technology
Membrane bioreactor (MBR) combines membrane separation technique with biologic treating technique, when effectively removing pollutent, also living weight has been trapped in the reactor drum, has overcome the phenomenon that living weight runs off in the traditional biological treatment technology.Difference according to types of bioreactors; MBR can be divided into aerobic MBR and anaerobism MBR; It is low that wherein aerobic MBR is mainly used in organic loadings such as municipal wastewater; The waste water that biodegradability is higher, and for the higher trade effluent of organic loading, use owing to expending too high being difficult to of cost in its aeration process.By contrast, anaerobism MBR more is applicable to the processing of high concentrated organic wastewater because of the lower advantage of its energy consumption.In general, anaerobism MBR reactor drum is made up of the membrane module of a bio-reactor and an external placed type, because the sludge concentration in the anaerobic biological reactor is higher; Long-time running membrane module surface is prone to the accumulation dirt; Cause the film contamination phenomenon, make the MBR treatment effect descend, meanwhile; In the process of cleaning the film pollution, need often to adopt pharmaceutical chemicals, be easy to cause secondary pollution.
Summary of the invention
It is little to the purpose of this invention is to provide a kind of floor space, saves the equipment working cost, but treatment of high concentration organic waste water and can effectively alleviate the external placed type anaerobic membrane bioreactor of film pollution situation.
External placed type anaerobic membrane bioreactor of the present invention comprises equalizing tank, anaerobic biological reactor and film case, and the bottom of anaerobic biological reactor is provided with water distributor; Triphase separator is equipped with on top, and the top is provided with the air outlet, and there is sludge circulation pump the anaerobic biological reactor outside; The import of this sludge circulation pump all links to each other with anaerobic biological reactor with outlet; Microporous aeration device is arranged at the bottom of film case, and the top is provided with venting port, and ultrafiltration pencil membrane module is equipped with in inside; The top of ultrafiltration pencil membrane module links to each other with second suction pump; Equalizing tank links to each other with the water distributor of anaerobic biological reactor through first suction pump, and the rising pipe of anaerobic biological reactor links to each other with the water inlet pipe of film upper box part, and the waste pipe of film lower box part is communicated with the water distributor of anaerobic biological reactor through recycle pump.
Said ultrafiltration pencil membrane module can adopt bundle formula ultrafiltration hollow-fibre membrane among the present invention, and the film surface-area is 0.07m
2
Triphase separator is housed in the anaerobic biological reactor, can effectively the liquid phase in the anaerobic biological reactor, gas phase and solid phase be separated, reduced the sludge concentration of anaerobic biological reactor water outlet, slowed down the film contamination phenomenon.
The anaerobic biological reactor outside is connected to sludge circulation pump, reaches the well-mixed state of muddy water through the waterpower turbulent flow in the working cycle.
Carrying out along with membrane filtration processes; The organic concentration of waste water rises gradually in the film case; Be the organic concentration of waste water in the controlling diaphragm case; The waste pipe of film lower box part is communicated with the water distributor of anaerobic biological reactor through recycle pump, can makes high-concentration waste water and mud in the film case be back to the anaerobic biological reactor circulating reaction.
Microporous aeration device through film case bottom in the membrane filtration processes continues to feed nitrogen, to wash away the mud that accumulates on the ultrafiltration pencil membrane module, decelerating membrane pollution situation.
The advantage of apparatus of the present invention is:
This reactor drum can effectively prevent sludge loss, improves mud mud age, is easy to the enrichment of mikrobe.Wash away through nitrogen and can effectively alleviate the film pollution situation, improve the life cycle of membrane module, save the secondary pollution that causes in cost and the cleaning process of rinsing membrane module.This reaction unit is simple in structure, and easy handling is applicable to the processing of high concentrated organic wastewater.
Description of drawings

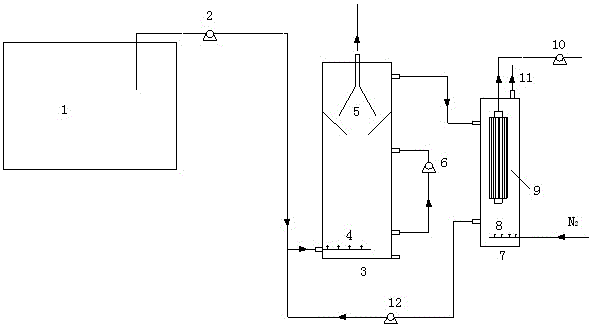

Fig. 1 is the structural representation of external placed type anaerobic membrane biological reaction device.
Embodiment
Further specify the present invention below in conjunction with accompanying drawing and embodiment.
With reference to Fig. 1, external placed type anaerobic membrane bioreactor of the present invention comprises equalizing tank 1, anaerobic biological reactor 3 and film case 7; The bottom of anaerobic biological reactor is provided with water distributor 4, and triphase separator 5 is equipped with on top, and the top is provided with the air outlet; There is sludge circulation pump 6 the anaerobic biological reactor outside, and the import of this sludge circulation pump 6 all links to each other with anaerobic biological reactor with outlet, and microporous aeration device 8 is arranged at the bottom of film case 7; The top is provided with venting port 11; Ultrafiltration pencil membrane module 9 is equipped with in inside, and the top of ultrafiltration pencil membrane module 9 links to each other with second suction pump 10, and equalizing tank 1 links to each other with the water distributor 4 of anaerobic biological reactor 3 through first suction pump 2; The rising pipe of anaerobic biological reactor 3 links to each other with the water inlet pipe on film case 7 tops, and the waste pipe of film case 7 bottoms is communicated with the water distributor 4 of anaerobic biological reactor through recycle pump 12.
High concentrated organic wastewater in the equalizing tank 1 enters into anaerobic biological reactor 3 through first suction pump 2, and water inlet is upwards flow through Sludge Bed cotton-shaped or that particulate state mud is formed after the water distribution uniformity of water distributor 4.The abundant mixing of waterpower turbulent flow that muddy water produces through sludge circulation pump 6, the hydraulic detention time of whole anaerobic biological reactor is 4 days.The mud mixture that rises is through triphase separator 5; Mud sedimentation under action of gravity; The biogas that produces is discharged the air outlet through anaerobic biological reactor from triphase separator 5 tops; And supernatant gets in the film case 7 through pipeline, after the complete submergence of membrane module 9 quilts, draws water from the membrane module top through second suction pump 10 by the time.Feed nitrogen by film case 7 bottom microporous aeration devices 8 in the pump process, membrane module 9 washed away, through the cross-flow that forms on the film surface with decelerating membrane pollution.Liquid concentrator in the film case and mud get in the anaerobic biological reactor 3 through recycle pump 12 and carry out circulating reaction.The suction pump work period stopped 2 minutes for opening in 8 minutes, and membrane flux remains on 60 KPa at transmembrane pressure during drawing water, and it is 1 h/d that nitrogen feeds frequency, and flow control is at 0.1 m
3/H.In the operational process, water outlet COD clearance is stabilized in more than 85%, in addition; Because membrane module can effectively prevent sludge loss; 7000 mg/L when sludge concentration is by inoculation in the anaerobic biological reactor have brought up to 12000 mg/L, and under the nitrogen souring, the film contamination phenomenon obtains alleviating to a great extent; The water outlet membrane flux still remains on 65% of initial film flux in the long-time running process, is approximately 20 L/m
2.h, improve the life cycle of membrane module effectively, having a good application prospect aspect the high concentrated organic wastewaters such as processing bamboo product waste water, beer waste water.
Claims (2)
1. external placed type anaerobic membrane bioreactor; It is characterized in that comprising equalizing tank (1), anaerobic biological reactor (3) and film case (7), the bottom of anaerobic biological reactor is provided with water distributor (4), and triphase separator (5) is equipped with on top; The top is provided with the air outlet; There is sludge circulation pump (6) the anaerobic biological reactor outside, and the import of this sludge circulation pump (6) all links to each other with anaerobic biological reactor with outlet, and microporous aeration device (8) is arranged at the bottom of film case (7); The top is provided with venting port (11); Ultrafiltration pencil membrane module (9) is equipped with in inside, and the top of ultrafiltration pencil membrane module (9) links to each other with second suction pump (10), and equalizing tank (1) links to each other with the water distributor (4) of anaerobic biological reactor (3) through first suction pump (2); The rising pipe of anaerobic biological reactor (3) links to each other with the water inlet pipe on film case (7) top, and the waste pipe of film case (7) bottom is communicated with the water distributor (4) of anaerobic biological reactor through recycle pump (12).
2. external placed type anaerobic membrane bioreactor according to claim 1 is characterized in that said ultrafiltration pencil membrane module (9) is a bundle formula ultrafiltration hollow-fibre membrane, and the film surface-area is 0.07m
