Abstract
一种用于组装家具/宠物屋/活动房的标准化组件，包括面板、连接条以及插头，所述面板的侧边和连接条的侧面均设有与插头插接配合的插槽，每一个面板具有两个侧面和四个侧边，该四个侧边均分别由复数个相同的最小单元组成，每一个最小单元由一个插槽以及围成插槽的侧壁构成；每一个连接条具有四个侧面和两个端面，该四个侧面均分别由复数个相同的最小单元组成，每一个最小单元由一个插槽以及围成插槽的侧壁构成。本发明不仅解决了相邻的连接条之间存在有漏洞、拼接不便、造型样式少等问题，而且由于形成标准化的组件，使其能更简单的进行拼装，更容易进行生产。
A standardized component for assembling furniture/pet house/mobile house, including panels, connecting bars and plugs, the sides of the panels and the connecting bars are provided with slots that are mated with the plugs, and each panel It has two sides and four sides, and the four sides are respectively composed of a plurality of identical minimum units, and each minimum unit is composed of a slot and side walls surrounding the slot; each connecting bar has four Each of the four sides is composed of a plurality of identical minimum units, and each minimum unit is composed of a slot and the side walls surrounding the slot. The invention not only solves the problems of loopholes between adjacent connecting bars, inconvenient splicing, and few styling styles, but also makes it easier to assemble and produce due to the formation of standardized components.
Description
Technical field
The present invention relates to furniture/pet apparatus/trailer coach field, refer to specifically a kind of modular unit for assembled furniture/Pet house/trailer coach.
Background technique
At present various furniture/pet house/trailer coachs are on the market mostly composite sheet or timber and are fixedly connected into integral type, by several one-piece element is single, combine, this class furniture and Pet house mode of appearance are comparatively fixing, style is easily out-of-date, simultaneously this class furniture and the most volume of Pet house large, be not easy to carrying.
A kind of Assembled furniture/pet house that has at present the applicant to apply for, comprise panel and the connection strap that panel is connected, also comprise plug, panel side is provided with slot, connection strap is provided with slot, the two ends of this plug plug respectively with the slot of panel side and the slot of connection strap in.Connection strap comprises that cross section is in-line, L font, T font, criss-cross connection strap.Although this Assembled furniture/pet house has solved the shortcoming that volume is large, be not easy to carry, also in order to overcome current Self-assembled furniture/Pet house, cannot extend along all directions in space simultaneously, the shortcoming that the style of the furniture assembling has some limitations, but still exist defect.Above-mentioned this furniture/pet house connection strap kind is many, needs in use minute situation sub-category, to user, brings inconvenience; Splicing in, because of the size of connection strap, the reason of slot size cause having leak between adjacent connection strap, unfavorable use and attractive in appearance; Between adjacent panel, when splicing, need to use specific connection strap to be connected to both, can not allow both directly connect, be unfavorable for splicing.
Summary of the invention
The present invention is to provide a kind of modular unit for assembled furniture/Pet house/trailer coach, its main purpose is to solve the problems referred to above that prior art exists.
Technological scheme of the present invention is as follows:
A kind of modular unit for assembled furniture/Pet house/trailer coach, comprise panel, for connecting the connection strap of two panels and for connecting panel and connection strap or being connected the plug of two panels, the side of described panel and the side of connection strap are equipped with the slot of pegging graft and coordinating with plug, each panel has two sides and four sides, these four sides are comprised of a plurality of identical minimum units respectively, each minimum unit consists of a slot and the sidewall that surrounds slot, the sidewall of adjacent two slots is connected as a single entity, two slots on both sides, panel bight interconnect and are overlapping, each connection strap has four sides and two end faces, these four sides are comprised of a plurality of identical minimum units respectively, each minimum unit consists of a slot and the sidewall that surrounds slot, the sidewall of adjacent two slots is connected as a single entity, on connection strap, four of same cross-section location slots interconnect and overlapping, form a cross groove.
Take one or more continuous described minimum unit as an elementary cell, and the length of side of described panel has three kinds of specifications, is respectively the length of the length of an elementary cell, the length of two elementary cells and five elementary cells.
Take one or more continuous described minimum unit as an elementary cell, and the length of described connection strap has three kinds of specifications, is respectively the length of the length of an elementary cell, the length of two elementary cells and five elementary cells.
Also comprise that length is the connection strap of an elementary cell length.
Described plug is provided with pin-and-hole, and the corresponding position of the socket sidewalls of described connection strap and panel is also provided with pin-and-hole, between panel and plug, be plugged in corresponding pin-and-hole and be fixedly connected with by latch between connection strap and plug.
As a further improvement on the present invention, the two relative madial walls of each opening of cross groove of described connection strap are provided with a protuberance respectively, pin-and-hole on described connection strap is located on this protuberance, and the shape of described plug and this protuberance are suitable, and the cross section of this plug is I-shaped.
Described panel is formed by two chunk facing plates and the framework construction that is connected with two chunk facing plate one between two chunk facing plates, its inner hollow.
Also be provided with and the identical decorative strip of slot size.
From the above-mentioned description of this invention, compared to the prior art, the invention has the advantages that:
One, because this Self-assembled furniture is by being provided with slot at panel side, connection strap is provided with slot, by a plug, panel and connection strap are connected, and by such connection strap, can assemble various furniture and Pet house, assemble simultaneously and dismantle simply, carry and carry convenient.
Two, because four sides of panel are equipped with slot, in assembling process, can extend along all directions in space, the furniture assembling and Pet house style are more various, simultaneously the two adjacent slots at edge between panel adjacent side, in installation process, can only to one of them slot, insert plug, another slot can insert plug, can avoid two slots to clash in installation process.
Three, this invention makes mutually to mate between the slot of panel and the slot of connecting head, makes it when splicing, can, because of the size of connection strap, the reason of slot size causes having leak between adjacent connection strap, not make its integral body more attractive in appearance.
Four, adopted the connection strap of three kinds of specifications, all there is slot four sides of this type of connection strap, and the connection strap of three kinds of specifications can meet assembling miscellaneous, splicing requirement, makes its assembling, splicing simpler, and a greater variety of moulding of can arranging in pairs or groups out; The decorative strip corresponding with slot being provided with, can, for blocking the slot of plug when splicing, make it more attractive in appearance.
Five, because panel, connection strap and plug construction are simple and form standardized assembly, it not only can more simply be carried out assembled, without finding specific connecting head or panel, and this standardized assembly is more easily produced; Panel side spacing between adjacent slot on same straight line equates simultaneously, and on connection strap, the spacing of adjacent slot equates, panel is that framework construction forms; its inner hollow, has saved material, so the specification of panel and connection strap is comparatively unified; be convenient to large-scale production, and cost is low.
Accompanying drawing explanation
Fig. 1 to Fig. 4 is the schematic diagram of the embodiment of the present invention one all size connection strap.
Fig. 5 to Fig. 7 is the schematic diagram of all size panel.
Fig. 8 is the schematic diagram of embodiment's one plug.
Fig. 9 is the schematic diagram of embodiment's one assembling process.

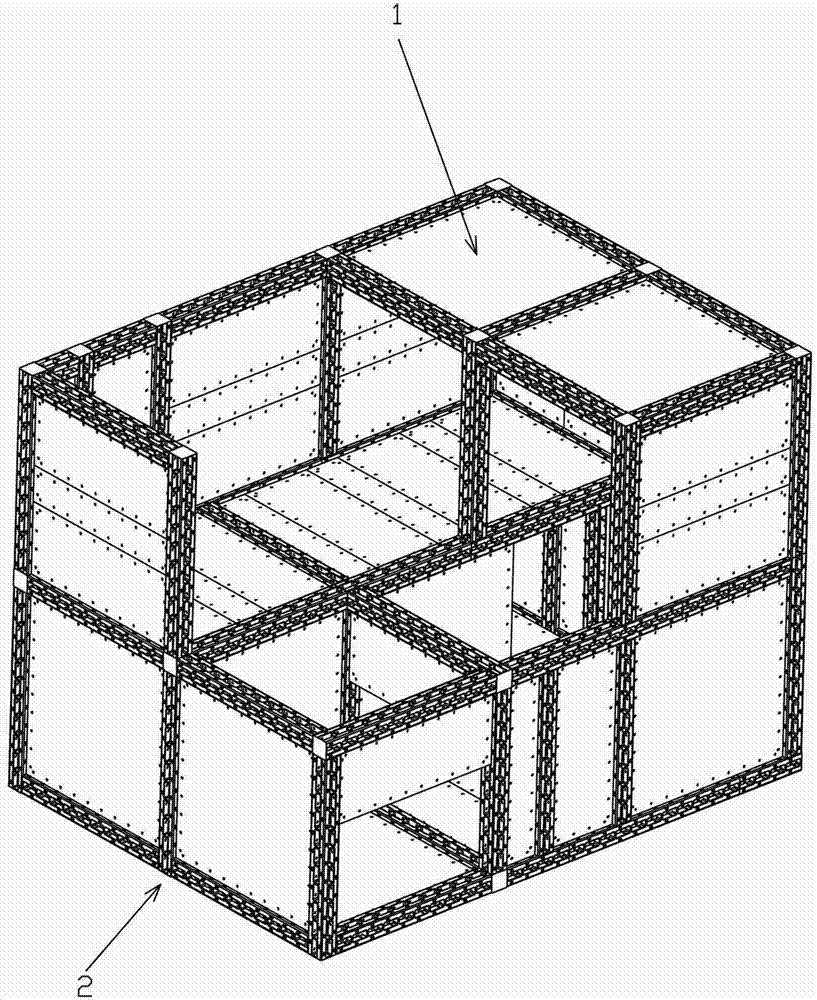

Figure 10 is the assembled schematic diagram completing of embodiment one.
The schematic diagram of the another kind of form of expression of Figure 11 after to be that embodiment one is assembled complete.
Figure 12, Figure 13 are the schematic diagram of embodiment's two connection straps.
Figure 14 is the assembled schematic diagram completing of embodiment two.
Embodiment
Embodiment one
A kind of modular unit for assembled furniture/Pet house/trailer coach, as shown in Figures 1 to 8, comprise panel 1, for connecting the connection strap 2 of two panels 1 and for connecting panel 1 and connection strap 2 or being connected the plug 3 of two panels 1, the side of the side of panel 1 and connection strap 2 is equipped with the slot 11 of pegging graft and coordinating with plug 3, each panel 1 has two sides and four sides, these four sides are comprised of a plurality of identical minimum units respectively, each minimum unit consists of a slot 11 and the sidewall 4 that surrounds slot 11, the sidewall 4 of adjacent two slots 11 is connected as a single entity, two slots 11 on panel 1 both sides, bight interconnect and are overlapping, each connection strap 2 has four sides and two end faces, these four sides are comprised of a plurality of identical minimum units respectively, each minimum unit consists of a slot 11 and the sidewall 4 that surrounds slot 11, the sidewall 4 of adjacent two slots 11 is connected as a single entity, on connection strap 2, four of same cross-section location slots 11 interconnect and overlapping, form a cross groove.
As shown in Figures 5 to 7, panel 1 is formed by two chunk facing plates and the framework construction that is connected with two chunk facing plate one between two chunk facing plates, its inner hollow.Take one or more continuous minimum unit as an elementary cell, and the length of side of panel 1 has three kinds of specifications, is respectively the panel 12 of the length of an elementary cell, two panels 13 of length of elementary cell and the panels 14 of the length of five elementary cells.
As shown in Figures 1 to 4, take one or more continuous minimum unit as an elementary cell, the length of connection strap 2 has three kinds of specifications, is respectively the connection strap 22 of the length of an elementary cell, two connection straps 23 of length of elementary cell and the connection straps 24 of the length of five elementary cells.Also comprise that length is the connection strap 25 of an elementary cell length.Also be provided with and the big or small identical decorative strip of slot 11.
As shown in Figure 8, plug 3 is provided with pin-and-hole 31, and the corresponding position of slot 11 sidewalls of connection strap 2 and panel 1 is also provided with pin-and-hole 31, between panel 1 and plug 3, be plugged in corresponding pin-and-hole 31 and be fixedly connected with by latch between connection strap 2 and plug 3.
By the connecting head 2 of three kinds of specifications and the panel 1 of three kind of specification, can splice, assemble according to user's oneself demand, as shown in Figure 9, the panel 12 of the length of an elementary cell of connection strap 24 splicing of the length of five elementary cells, two panels 13 of length of elementary cell and the panels 14 of the length of five elementary cells, by the splicing of similar this mode, furniture/pet house/the trailer coach miscellaneous of can arranging in pairs or groups out arbitrarily, shown in Figure 10 for splicing the Pet house that, shown in Figure 11, for splicing the cat, flutter frame.
Because this Self-assembled furniture is by being provided with slot 11 in panel 1 side, connection strap 2 is provided with slot 21, by a plug 3, panel 1 and connection strap 2 are connected, and by such connection strap 2, can assemble various furniture and Pet house, assemble simultaneously and dismantle simply, carry and carry convenient.
Because 1 four sides of panel are equipped with slot 11, in assembling process, can extend along all directions in space, the furniture assembling and Pet house style are more various, simultaneously the two adjacent slots 11 at edge between panel 1 adjacent side, in installation process, can only insert plugs to one of them slot 11, another slot 11 can insert plug 3, can avoid two slots 11 to clash in installation process.
This invention makes mutually to mate between the slot 11 of panel 1 and the slot 11 of connecting head 2, makes it when splicing, can, because of the size of connection strap 2, the reason of slot 21 sizes causes having leak between adjacent connection strap 2, not make its integral body more attractive in appearance.
Adopted the connection strap 2 of three kinds of specifications, four sides of this type of connection strap 2 all have the connection strap 2 of 21, three kinds of specifications of slot can meet assembling miscellaneous, splicing requirement, make its assembling, splicing simpler, and a greater variety of moulding of can arranging in pairs or groups out; The decorative strip corresponding with slot being provided with, can, for blocking the slot of plug when splicing, make it more attractive in appearance.
Because panel 1, connection strap 2 and plug 3 are simple in structure and form standardized assembly, it not only can more simply be carried out assembled, without finding specific connecting head 2 or panel 1, and this standardized assembly is more easily produced; Panel side spacing between adjacent slot on same straight line equates simultaneously, and on connection strap, the spacing of adjacent slot equates, panel is that framework construction forms; its inner hollow, has saved material, so the specification of panel and connection strap is comparatively unified; be convenient to large-scale production, and cost is low.
Embodiment two
The present embodiment and embodiment one are roughly the same, its main distinction is as shown in Figure 12, Figure 13 and Figure 14, the two relative madial walls of each opening of cross groove of connection strap 27 are provided with a protuberance 26 respectively, pin-and-hole 31 on connection strap 27 is located on this protuberance 26, the shape of plug and this protuberance are suitable, and the cross section of this plug is I-shaped.
The advantage of the present embodiment is that the thickness of connecting head 27 is identical with the thickness of panel 1, makes finished product assembled, that assembled, and appearance is smooth, more attractive in appearance.
Above are only the specific embodiment of the present invention, but design concept of the present invention is not limited to this, allly utilizes this design to carry out the change of unsubstantiality to the present invention, all should belong to the behavior of invading protection domain of the present invention.
