Abstract

A joint sleeve for assembling together a first blade section and a second blade section of a rotor blade assembly is disclosed. The joint sleeve may include an outer surface and an inner surface defining a cavity. The cavity may be configured to receive a joint end of the first blade section and a joint end of the second blade section. The joint sleeve may also include a plurality of openings defined between the outer and inner surfaces. The openings may be configured to receive fasteners for securing the joint ends of the first and second blade sections within the cavity. Additionally, a profile of the outer surface may be configured to generally correspond to an aerodynamic profile of the first and second blade sections such that a substantially continuous aerodynamic profile is defined between the first and second blade sections when the joint ends are inserted within the cavity.

Description

用于风力机转子叶片组件的连接套管技术领域[0001] 本发明大体上涉及风力机转子叶片,确切地说,涉及用于连接转子叶片组件的叶片部分的连接套管。 BACKGROUND sleeve for connecting a wind turbine rotor blade assembly [0001] The present invention relates generally to wind turbine rotor blades and, more particularly, relates to a coupling sleeve for connecting the blade portion of the rotor blade assembly. 背景技术[0002] 风能被认为是目前可用的最清洁、最环保的能源之一,在这一方面,风力机已获得广泛关注。 [0002] Currently available wind power is considered the cleanest, most environmentally-friendly energy sources, in this regard, wind turbines have gained increased attention. 现代风力机通常包括塔筒、发电机、齿轮箱、机舱以及一片或多片转子叶片。 A modern wind turbine typically includes a tower, generator, gearbox, nacelle, and one more rotor blades. 转子叶片使用已知的翼原理捕获风的动能并通过转动能传输动能,以扭转将转子叶片连接到齿轮箱(或者,如果未使用齿轮箱,则直接连接到发电机)的轴。 Known foil principles capture the kinetic energy of the wind rotor blades transmit the kinetic energy through rotational energy to the rotor blade torsion shaft connected to a gearbox (or, if the gearbox is not used, directly connected to the generator) is. 之后,发电机将机械能转化成可以分配到公用设施电网中的电能。 The generator then converts the mechanical energy to be assigned to the utility power grid. [0003] 为了确保风能作为可利用的能源,人们一直致力于通过修改风力机转子叶片的大小、形状和配置来提高风力机的整体性能。 [0003] In order to ensure that the available wind as an energy source, it has been dedicated to improving the overall performance of the wind turbine by modifying the wind turbine rotor blade size, shape, and configuration. 其中一项此类修改是改变转子叶片的叶尖配置。 One such modification is to change the configuration of the rotor blade tip. 具体而言,叶尖可进行专门设计以提高或改进转子叶片各方面的性能。 More specifically, the tip may be specifically designed to improve or enhance the performance aspects of the rotor blade. 例如,某些叶尖可经设计以在特定风级下有效运行。 E.g., certain tip may be designed to operate efficiently at a particular level wind. 此外,叶尖可经配置以改进风力机的特定运行条件,例如, 可通过经配置以减小扭矩或降低噪音来实现。 Further, the tip may be configured to improve a particular operating condition of the wind turbine, for example, can be configured to reduce the torque or noise reduction is achieved. [0004] 因此,鉴于不同的叶尖配置可向风力机提供不同的运行优势,设有一种可使叶尖在转子叶片上迅速有效地进行组装和拆卸的附接装置将非常有利。 [0004] Accordingly, in view of different tip configurations it may provide different advantages to the operation of the wind turbine, with one kind of attachment means can be performed quickly and efficiently tip assembly and disassembly of the rotor blades is very advantageous. 然而,已知的连接装置通常较为复杂,并且需要进行大量手动安装。 However, the known connection means often complex and requires a lot of manual installation. 此外,此类附接装置难于将叶尖与转子叶片的其余部分准确对齐。 In addition, attachment means such difficult to align the rest of the rotor blade tip accurate. [0005] 因此,需要一种简单有效的附接装置来连接转子叶片组件的两个叶片部分。 [0,005] Therefore, a simple and effective attachment means to connect the two components a rotor blade portion of the blade. 发明内容[0006] 以下说明将部分地阐明本发明的各方面内容和优点,或者,这些方面和优点在说明中可能是显而易见的,或通过实践本发明能够推导出。 SUMMARY OF THE INVENTION [0006] part will be described below illustrate various aspects and advantages of the present invention, or, in these aspects, and advantages may be apparent from the description, or by practice of the invention can be deduced. [0007] —方面,本发明揭示风力机的转子叶片组件。 [0007] - aspect, the present invention discloses a wind turbine rotor blade assembly. 所述转子叶片组件一般包括第一叶片部分和第二叶片部分,其中所述第一叶片部分和所述第二叶片部分均具有连接末端并设有气动廓线。 The rotor blade assembly generally includes a first blade section and a second blade section, wherein the first blade portion and the second blade portion having a connecting end and provided with aerodynamic profile. 所述转子叶片组件还包括连接套管,所述连接套管具有内表面和外表面。 The rotor blade assembly further comprising a sleeve having an inner surface and an outer surface of the connecting sleeve, the connecting. 所述内表面一般可设有腔,所述腔经配置以收纳第一和第二叶片部分的连接末端。 The inner surface may be generally provided a cavity configured to receive a first connection end portion and the second blade. 此外,转子叶片组件可包括多个紧固件,所述紧固件经配置以将第一和第二叶片部分的连接末端固定在腔内。 In addition, rotor blade assembly may include a plurality of fasteners configured to connect the ends of the first and second blade portions secured within the cavity. 另外,连接套管外表面的廓线一般可对应于第一和第二叶片部分的气动廓线,这样, 当连接末端插入腔中时,第一和第二叶片部分之间会形成实质上连续的气动廓线。 Further, the outer surface of the coupling sleeve can generally correspond to the profile aerodynamic profile of the first portion and the second blade, so that the connection end when inserted into the cavity, formed between the first and second blade portions substantially continuous pneumatic profile. [0008] 另一方面,本发明公开一种连接套管,所述连接套管用于将转子叶片组件的第一叶片部分和第二叶片部分组装在一起。 [0008] another aspect, this invention discloses a connector ferrule, said connection sleeve for the blade portion of the first and second rotor blade assembly assembled blade portion. 所述连接套管可包括外表面和设有腔的内表面。 The connecting sleeve can comprise an outer surface and an inner surface provided with cavities. 所述腔可具有根端,其经配置以收纳第一叶片部分的连接末端,以及梢端,其经配置以收纳第二叶片部分的连接末端。 The chamber may have a root end, which is configured to receive the connecting end, and a tip of the first blade section, which is configured to receive the connecting end portion of the second blade. 所述连接套管还可包括设在外表面与内表面之间的多个开口。 The sleeve may further comprise a plurality of connection is provided between the outer surface and the inner surface of the opening. 所述开口可经配置以收纳多个紧固件,从而将第一和第二叶片部分的连接末端固定在腔内。 The aperture may be configured to receive a plurality of fasteners to connect the first and second end portion of the blade is fixed within the cavity. 此外,外表面的廓线可经配置以大体对应于第一和第二叶片部分的气动廓线,这样,当连接末端插入腔中时,第一和第二叶片部分之间会形成实质上连续的气动廓线。 Further, the profile of the outer surface may be configured to generally correspond to the first and second blade section aerodynamic profile, so that, when the connecting terminal is inserted into the cavity, formed between the first and second blade portions substantially continuous the aerodynamic profile. 所述外表面和所述内表面之间形成逐渐变窄的宽度。 The gradually narrowing a width between the outer surface and the inner surface. 所述多个开口中的每个开口均在所述外表面和所述内表面之间设有凹形部件。 The plurality of each opening at said inner and said outer surface provided with a female member in the opening between surfaces. [0009] 所述的连接套管,进一步包括分隔物,其经配置以将所述腔中的所述第一和第二叶片部分的所述连接末端分开。 [0009] The connector sleeve further comprising a spacer, to which said cavity of said first blade section and a second end connected via separate configuration. 所述分隔物实质上从所述内表面垂直延伸。 The separator extends substantially perpendicularly from said inner surface. [0010] 所述的连接套管的所述根端的气动廓线大体上对应于所述第一叶片部分的气动廓线,且所述梢端的气动廓线大体上对应于所述第二叶片部分的气动廓线。 [0010] The connecting sleeve of the aerodynamic profile substantially corresponding to the root end of aerodynamic profile of the first blade portion, and the tip of the aerodynamic profile generally corresponding to said second blade section the aerodynamic profile. [0011] 再一方面,本发明公开一种用于风力机转子叶片的叶尖组件。 [0011] In another aspect, the present invention discloses a tip assembly for a wind turbine rotor blade. 所述叶尖组件一般可包括连接套管,所述连接套管具有设有腔的内表面和设有气动廓线的外表面。 The tip assembly may generally include a connecting sleeve, said connecting sleeve having an inner surface and an outer surface provided with cavities is provided with the aerodynamic profile. 所述连接套管还可包括梢端和根端。 The cannula may further include a connecting tip and a root end. 所述叶尖组件还可包括叶尖部分,所述叶尖部分在置于腔内的连接末端与叶尖之间延伸。 Said tip assembly further includes a tip portion, said tip portion extending cavity disposed between and connected to the tip end. 叶尖部分可设有气动廓线,所述气动廓线大体对应于梢端的连接套管的气动廓线。 Tip portion may be provided with aerodynamic profile, generally corresponding to the aerodynamic profile of the aerodynamic profile is connected to the tip of the cannula. 此外,叶尖组件可包括多个紧固件,所述紧固件经配置以将叶尖部分的连接末端固定在腔中。 Further, the tip assembly may include a plurality of fasteners configured to connect the tip end portion fixed in the cavity. 另外,置于连接套管根端处的腔部分可经配置以收纳转子叶片的单独部分的末端。 Further, the chamber was placed at the root end portion of a connecting sleeve may be configured to separate portions of the housing of the rotor blade tip. [0012] 参考以下具体说明和所附权利要求书可以更深入地了解本发明的这些以及其他特征、方面和优点。 [0012] reference to the following detailed description and the appended claims may be better understanding of these and other features, advantages and aspects of the present invention. 附图包括在本说明书内、并构成本说明书的一部分,显示了本发明的各个实施例,且与具体说明一起用于解释本发明的原理。 Included in the present specification, the figures, and constitute a part of this specification, illustrate various embodiments of the present invention, and the specific description serve to explain the principles of the present invention. 附图说明[0013] 本说明书参考附图,针对所属领域一般技术人员,完整且可实现地详细披露了本发明,包括其最佳模式,其中:[0014] 图I所示为采用传统结构的风力机的透视图;[0015] 图2所示为根据本发明各方面的转子叶片组件的一项实施例的透视图;[0016] 图3所示为图2所示的转子叶片组件的局部透视图;[0017] 图4所示为连接套管的一项实施例的透视图,所述连接套管适合与根据本发明各方面所公开的转子叶片组件结合使用;[0018] 图5所示为根据本发明各方面所公开的转子叶片组件的若干部件进行附接的一项实施例的局部截面图;[0019] 图6所示为根据本发明各方面所公开的转子叶片组件的若干部件进行附接的另一项实施例的局部截面图;以及[0020] 图7所示为根据本发明各方面的叶尖组件的一项实施例的透视图。 BRIEF DESCRIPTION [0013] The present specification with reference to the drawings, for the ordinary skilled in the art, and complete details of the present invention is disclosed to be implemented, including the best mode thereof, wherein: is a conventional configuration of [0014] I shown in FIG. perspective of the wind turbine; [0015] Figure 2 is a perspective view of an embodiment of a rotor blade assembly to aspects of the present invention; rotor blade assembly shown in FIG. 2 partially shown in [0016] Figure 3 a perspective view; [0017] FIG. 4 is a perspective view of an embodiment of the connection sleeve, the connection sleeve for use in combination with the rotor blade assembly in accordance with aspects of the present invention is disclosed; [0018] 5 FIG. a partial sectional view of the embodiment shown for attachment to a member in accordance with several aspects of the rotor blade assembly disclosed in the present invention; [0019] Figure 6 shows the number of rotor blades of the assembly of the various aspects of the invention disclosed according to It means a partial cross-sectional view of another embodiment of the embodiment attached; and the [0020] Figure 7 is a perspective view of an embodiment of a tip assembly according to aspects of the present invention. [0021] 元件符号列表:[0022] [0021] element symbol list: [0022]

Figure CN102536634AD00051

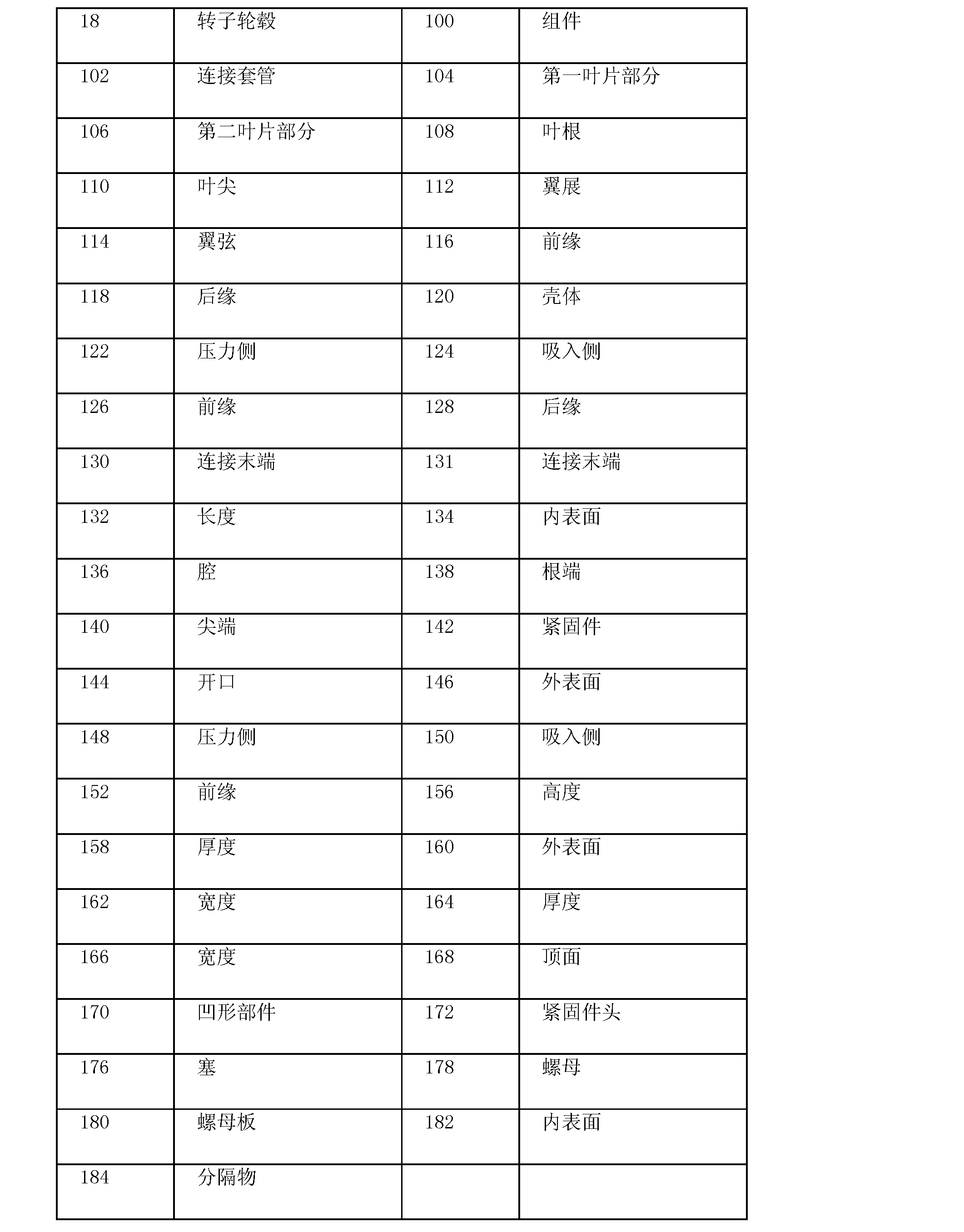

Figure CN102536634AD00061

具体实施方式[0023] 现在将详细阐述本发明的各实施例,附图中将显示本发明实施例的一个或多个实例。 DETAILED DESCRIPTION [0023] The various embodiments will now be described in detail according to the present invention, in the drawings show one case or more examples of embodiments of the present invention. 各个实例用以解释本发明而非限定本发明。 Respective examples serve to explain the present invention and not to limit the present invention. 事实上,所属领域的一般技术人员轻易就可在不脱离本发明的范围或精神的情况下,对本发明作各种修改和变化。 Indeed, one of ordinary skill in the art can easily, without departing from the scope or spirit of the present invention, the present invention is that various modifications and variations. 例如,作为一项实施例一部分的特征可用于其他实施例中,从而得到另一项实施例。 For example, as a part of features of one embodiment you may be used in other embodiments to obtain another embodiment. 因此,本发明应涵盖所有基于所附权利要求书和其等效物的范围内的修改和变化。 Therefore, the present invention should include all modifications within the scope and variations based on the following claims and their equivalents of. [0024] 一般而言,本发明涉及一种用于将转子叶片组件的叶片部分连接在一起的连接套管。 [0024] Generally, the present invention relates to a rotor blade of the blade assembly connecting sleeve connected together. 具体而言,所述连接套管可设有腔,所述腔经配置以收纳每个叶片部分的末端。 Specifically, the coupling sleeve may be provided with a cavity configured to receive the end portion of each blade. 例如, 所述腔的形状一般可对应于叶片部分末端的形状,例如,这可通过使腔的锥形气动廓线对应于叶片部分末端的锥形气动廓线来实现。 For example, generally the shape of the cavity corresponds to the shape of the blade tip portion, for example, this may be achieved corresponding to the tapered end portion of aerodynamic profile of the blade cavity by conical aerodynamic profile. 随后,合适的紧固件可插在连接套管的周围,从而将叶片部分的末端固定在腔内。 Thereafter, suitable fasteners may be inserted around the connection sleeve, whereby the tip of the blade portion is secured within the cavity. [0025] 所公开的连接套管一般可用于迅速有效地组装和拆卸转子叶片。 [0025] The connecting sleeve disclosed generally be used quickly and efficiently assembling and disassembling the rotor blade. 因此,在对转子叶片进行维护、维修和/或提高转子叶片性能时,可轻松地将叶片部分从转子叶片中拆下来并将其重新组装到所述转子叶片上。 Thus, the rotor blades for maintenance or repair and / or improve the performance of the rotor blade, the blade portion can easily be removed and re-assembled to the rotor blades from the rotor blades. 例如,优选根据风力机运行条件和/或转子叶片组件所需的性能来更改转子叶片的叶尖部分。 For example, we are preferable to change the tip portion of the rotor blade of the wind turbine according to the desired operating conditions and / or performance of the rotor blade assembly. 因此,通过使用所公开的连接套管,具有不同大小、配置和/或气动特征的叶尖部分可有效组装到转子叶片上和/或根据需要进行替换。 Thus, by using the disclosed connector bushing having different sizes, configurations and / or the tip portion it can be efficiently assembled pneumatic feature to the rotor blade and / or replaced as needed. 例如,直的叶尖部分(例如,实质上在翼展向延伸的叶尖部分)可替换为小翼型叶尖部分,反之亦然。 For example, the straight tip section (e.g., the tip portion extending substantially in the span) can be replaced by small airfoil tip portion vice versa. 类似地,具有特定配置的叶尖小翼可替换为具有其他配置的叶尖小翼。 Similarly, the tip of the winglet having a specific configuration can be replaced with other configurations winglet tip. [0026] 现参考附图,图I所示为采用传统结构的风力机10的透视图。 [0026] Referring now to the drawings, for the introduction of wind turbine 10 of conventional construction is shown in perspective view in FIG. I. 风力机10包括塔筒12,所述塔筒上安装有机舱14。 Wind turbine 10 includes a tower 12, a nacelle 14 mounted on the tower. 多片转子叶片16安装在转子轮毂18上,而转子轮毂18 连接到转动主转子轴的主法兰上。 16 plurality of rotor blades mounted on rotor hub 18 and rotor hub 18 is connected to main rotor shaft rotatably main flanges 风力机发电和控制部件安装在机舱14中。 And a wind turbine power generation control means 14 mounted in the nacelle. 应了解的是, 图I中的风力机10仅作说明目的,以示例性地说明本发明。 It should be appreciated that the wind turbine of FIG. 10 I for illustrative purposes only, to illustrate exemplarily invention. 因此,本发明所属领域的一般技术人员易于了解,本发明的范围不限于任何特定类型的风力机配置。 Thus, one of ordinary skill in the art readily understand the present invention, the scope of the present invention is not limited to any particular type of wind turbine configuration. [0027] 现参考图2到图4,附图所示为根据本发明各方面的转子叶片组件100和连接套管102的实施例,所述连接套管102用于将转子叶片组件100的第一叶片部分104和第二叶片部分106连接在一起。 [0027] Referring now to FIG. 2 to FIG. 4, according to the embodiment shown in the drawings a rotor blade assembly 100 aspects of the present invention and the connecting sleeve 102, the connector 102 of cannula assembly 100 for a rotor blade a blade portion and a second blade part 104 connector 106 together 具体而言,图2所示为转子叶片组件100的一项实施例的透视图。 Specifically, a perspective view of the embodiment shown in FIG. 2 for a rotor blade assembly 100. 图3所示为图2所示的转子叶片组件100的局部透视图,尤其图示了置于转子叶片组件100的叶片部分104、106之间的连接套管102。 The rotor blade assembly is shown in FIG. 2 FIG. 3 shows a partial perspective view of FIG. 100, particularly illustrating the vane portion of the rotor blade assembly 100 is disposed between the connector sleeve 104, 106 102. 此外,图4所示为所述连接套管102的一项实施例的透视图。 Further, FIG. 4 shows a perspective view of the embodiment of a connecting sleeve 102. [0028] 如图所示,转子叶片组件100包括第一叶片部分104、第二叶片部分106和经配置以将叶片部分104、106连接在一起的连接套管102。 [0028] As shown, the rotor blade assembly 100 comprises a first blade portion 104, and a second blade portion 106 configured to connect together the blade portion 104, 106 is connected to the sleeve 102. 通常,转子叶片组件100可进行配置, 从而当第一叶片部分104和第二叶片部分106附接在连接套管102内时,即会形成设有实质上的气动廓线的完整转子叶片。 Typically, the rotor blade assembly 100 can be configured so that when the first blade portion 104 and a second blade attachment portion 106 connected in the connector sleeve 102, i.e. will form a complete rotor blade has a substantially aerodynamic profile. 因此,完整转子叶片组件100 —般可包括叶根108 (设在第一叶片部分104上),其经配置以安装到风力机10的轮毂18 (如图I所示),以及叶尖110 (设在第二叶片部分106上),其置于与叶根108相对的位置。 Thus, the rotor blade assembly 100 is complete - as may include a root 108 (provided on the first blade part 104), which is mounted to a wheel hub of the wind turbine 10 is configured to 18, 110 and a tip (the I shown in FIG.) ( provided on the second blade section 106), placed in a position opposite to the blade root 108. 转子叶片组件100还可包括翼展112,其构成叶根108和叶尖110之间的总长度,以及翼弦114,其构成前缘116和后缘118之间的总长度。 The rotor blade assembly 100 may further include a spanwise 112, which constitute the total length between the blade root 108 and the tip 110, and a chord 114, which constitute the total length between the leading edge 116 and trailing edge 118. 众所周知,随着转子叶片从叶根108延伸至叶尖110,翼弦114的长度可相对于翼展112而变化。 It is well known as the rotor blade extending from the blade root 108 to tip 110, the length of the chord 114 may be changed with respect to the span 112. [0029] 通常,转子叶片组件100的第一叶片部分104和第二叶片部分106可经配置成类似于所属领域中已知的任何合适的叶片部分和/或叶片段。 [0029] Generally, the first blade and the second blade portion 104 of the rotor blade assembly 100 may be a portion 106 known in the art that any suitable portion of the blade and / or blade section configured to similar. 例如,叶片部分104、106各自均可包括作为叶片部分104、106的外壳/罩的壳体120,以及用于向叶片部分104、106提供刚度和强度的一个或多个结构部件(未图示)(例如,抗剪腹板/主梁帽组件)。 For example, 104, 106 can each blade portion 120 comprises a blade shell case / cover portion 104, 106, and for providing a plurality or rigidity and strength to the blade portion structural member 104, 106 (not shown ) (e.g., the shear web / spar cap assembly). 此外,每个叶片部分104、106 —般可设有气动廓线。 Further, each of the blade portions 104, 106 - generally aerodynamic profile may be provided. 例如,叶片部分104、106各自的壳体120可配置成具有翼形截面,例如对称式或曲线式翼形截面。 For example, the blade portions 104, 106 of each housing 120 may be configured to have a wing cross-section, for example, curvilinear or symmetrical wing section. 因此,如图3所示,每个壳体120 —般可设有在前缘126和后缘128之间延伸的压力侧122和吸入侧124。 Accordingly, FIG. 3, each housing 120-- as may be provided in the pressure leading edge 128 extending between the side edges and rear 126 122 124 sides and suction. [0030] 应理解的是,壳体120 —般可由任何合适的材料形成。 [0030] It should be understood, the housing 120 - as may be formed from any suitable material. 例如,在一项实施例中,每个壳体120可全部由薄板复合材料制成,例如,碳纤维增强复合材料或玻璃纤维增强复合材料。 For example, in one embodiment, each of the housing 120 may all be made from a composite material sheet, e.g., a carbon fiber-reinforced composite material or a glass fiber reinforced composite material. 或者,每个壳体120的一个或多个部分可配置成分层结构,并可包括型芯材料,所述型芯材料由轻型材料,例如木头(例如轻木)、泡沫(例如挤塑聚苯乙烯泡沫)或此类材料的组合制成,并置于薄板复合材料层之间。 Alternatively, each housing one or more configuration layer 120 may be portions of the structural components, and may include a core material, the core material of lightweight material, e.g. wood (e.g. balsa wood), foams (extruded polystyrene e.g. a combination vinyl foam), or is made of such materials, and placed between the composite layer sheet. [0031] 此外,第一叶片部分104和第二叶片部分106各自包括在连接套管102内终止的连接末端130、131。 [0031] In addition, the first vane 104 and the connecting portion 106 each include a termination end of the connecting sleeve 102 in the second blade section 130,131. 因此,在所示实施例中,第一叶片部分104 —般可从转子叶片组件100 的叶根108延伸至连接套管102内的相应连接末端130。 Thus, in the illustrated embodiment, the first blade portion 104 - as may be the blade root of the rotor blade assembly 100 is connected to a respective terminal 108 extends in the connector 130 from the sleeve 102. 类似地,第二叶片部分106 —般可从连接套管102内的相应连接末端131延伸至转子叶片组件100的叶尖110。 Similarly, the second blade portion 106 - as may extend to the tip of the rotor blade assembly 110 100 from the respective connecting terminal 131 is connected to the inner sleeve 102. 另外,如将在下文参考图5和图6进行详细描述,叶片部分104、106的连接末端130、131可具有特定廓线,以使连接末端130、131易于插入连接套管102中。 Further, as will be described below with reference FIGS. 5 and 6 described in detail, the connecting end portion 130, 131, 104, 106 of the blade may have a particular profile, so that the connection end of the cannula 130, 131 are easily inserted into the connector 102. 例如,在若干项实施例中,叶片部分104、106各自的连接末端130、131可设有锥形或阶梯形廓线,所述廓线要对应于设在连接套管102中的锥形或阶梯形廓线。 For example, in several embodiments, blade portion 104, 106 connected to a respective terminal 130, 131 may be provided with tapered or stepped profile, the profile to correspond to the connecting sleeve 102 is provided in a tapered or a stepped profile. [0032] 另外,如图2和图3所示,第一叶片部分104—般可沿着转子叶片组件100的翼展112的大部分纵向延伸,这样,连接套管102就会在转子叶片外侧位置,一般接近叶尖110。 [0032] Further, as shown in FIGS. 2 and 3, the first blade may be generally spanwise portion 104- 100 extends longitudinally along the majority of the rotor blade assembly 112, thus, will be connected to the outer sleeve 102 of the rotor blade position, near the tip 110 generally. 由此,第二叶片部分106 —般可经配置成转子叶片组件100的外侧或叶尖部分。 Thus, the second blade portion 106 - as may be outside or into the tip portion of the rotor blade assembly 100 is configured. 因此,在所示实施例中,第二叶片部分106可经配置成类似于传统转子叶片16的外侧部分(如图I所示),例如,实质上顺着翼展方向在叶片部分106的连接末端131和叶尖110之间延伸。 Accordingly, in the embodiment shown, the second blade portions 106 may be configured similar to the conventional outer rotor blade part 16 (as shown the I), eg substantially along spanwise blade connection portion 106 131 extending between end 110 and tip. 或者,如将在下文参考图7进行描述,第二叶片部分106可经配置成小翼型叶尖部分,或可采用所属领域中已知的其他任何合适的叶尖配置。 Alternatively, as will be described below with reference to FIG. 7, the second blade portion 106 may be configured to a small portion of the airfoil tip, or the tip can be any other suitable configuration known in the art. [0033] 应理解的是,在第二叶片部分106配置为转子叶片组件100的外侧或叶尖部分的实施例中,第二叶片部分106的长度132 —般相对较短。 [0,033] to be appreciated that, in the second blade part 106 disposed outside or to the rotor blade assembly embodiment 100 of the tip portion of the length of the second blade portion 106 132 - as relatively short. 例如,在若干项实施例中,第二叶片部分106的长度132 —般可小于10米(m),例如,小于5m或小于3m以及这两者之间的所有其他长度。 For example, in several embodiments, the blade length of the second portion 106 132 - as can be less than 10 meters (m), e.g., less than a length of 5m or less than all of the other and between the two 3m. 但在各替代实施例中,第二叶片部分106无需配置成转子叶片组件100的叶尖部分,因此其长度132 —般可为任何合适的长度,例如,大于或等于10m。 However, in various alternative embodiments, the second blade portion 106 as blade tip portion configured without a rotor blade assembly 100, and therefore the length 132-- generally may be any suitable length, e.g., greater than or equal to 10m. 在此类实施例中,应了解的是,连接套管102 —般可沿着转子叶片组件100的翼展112置于任何合适的位置,例如,置于更接近叶根108的较为内侧的位置。 Embodiment, he is understood that in such embodiment, sleeve 102 is connected - as the span 100 112 can be placed in any suitable location along the rotor blade assembly, e.g., placed in a position relatively closer to the inner side of the blade root 108 . [0034] 仍参考图2到图4,所公开的转子叶片组件100的连接套管102 —般可配置成附接装置,以连接第一叶片部分104与第二叶片部分106。 [0 034] Still referring to FIG. 4 to FIG. 2, the connecting sleeve 102 of the rotor blade assembly 100 of the disclosed - like attachment means may be arranged to connect the first blade part 104 and the second blade part 106. 因此,应了解的是,连接套管102 — 般可采用任何合适的配置以使叶片部分104、106的连接末端130、131收纳于连接套管102 中。 Thus, you are understood that the sleeve 102 is connected - as any suitable configuration may be employed so that the connector tip of the blade portion 130, 131, 104, 106 are connected accommodated in the sleeve 102. 例如,在若干项实施例中,连接套管102可采用空心或实质上空心的配置以收纳叶片部分104、106的连接末端130、131。 For example, in several embodiments, the connecting sleeve 102 can be hollow or substantially hollow blade is configured to receive the connecting end portion 130, 131, 104, 106. 具体而言,如图4所示,连接套管102 —般可包括设有腔136的内周边或内表面134,其中所述腔136在连接套管102的根端138和梢端140之间延伸。 Specifically, as shown in FIG. 4, the connecting sleeve 102 - as provided may comprise the inner peripheral surface of the inner chamber 136 or 134, wherein the connection between the chamber 136 of the sleeve 102 and tip end 138 of the root 140 extend. 因此,第一叶片部分104的连接末端130可经配置以收纳在位于连接套管102的根端138处的部分中,且第二叶片部分106的连接末端131可经配置以收纳在位于连接套筒102的梢端140处的腔136部分中。 Accordingly, the connecting end portion 104 of the first blade 130 may be configured to receive the portion of the sleeve 138 at the junction of the root end 102 and a second end 131 connected to the blade portion 106 may be configured to receive the connecting sleeve located cavity 136 at a tip portion 140 of the barrel 102. [0035] 应了解的是,叶片部分104、106的连接末端130、131 —般可使用任何合适的方法在连接套管102的腔136内进行附接。 [0035] should be appreciated that the connecting end of the blade portion 130, 131, 104, 106 - as any suitable method may be used for attachment sleeve 102 within the connector cavity 136 例如,在一项实施例中,连接末端130、131可使用任何合适粘合剂在连接套管102内进行粘接。 For example, in one embodiment, the connecting terminal 130,131 may use any suitable adhesive for bonding the sleeve 102 within the connector. 在另一项实施例中,多个紧固件142可用于将连接末端130、131固定在连接套管102中。 In a further embodiment, a plurality of fasteners 142 may be used to connect the connecting end 130, 131 secured to the sleeve 102. 例如,如图3和图4所示,连接套管102可设有多个开口144,所述开口144在连接套管102的内表面134和外表面146之间延伸,其中每个开口144经配置以收纳紧固件142。 For example, FIGS. 3 and 4, the connecting sleeve 102 may be provided with a plurality of openings 144, the opening 144 in the connector bushing 134 extending between the inner surface 146 and outer surface 102, an opening 144 through which each 142 configured to receive a fastener. 具体而言,多个开口144可设在连接套管102的根端138附近,以使相同数目的紧固件142通过开口144插入,并附接到第一叶片部分104的连接末端130。 Specifically, a plurality of openings 144 may be provided in the vicinity of the 138 root end sleeve 102, so that the same number of the fastener 142 is inserted through the opening 144, and attached to the connecting end portion 104 of the first blade 130. 类似地,多个开口144可设在连接套管102的梢端140附近,以使相同数目的紧固件142通过开口144插入,并附接到第二叶片部分106的连接末端131。 Similarly, a plurality of openings 144 may be provided in the vicinity of the connecting sleeve 102 tip 140, so that the same number of fasteners 142 is inserted through the opening 144 and attached to the connecting end 131 of the second blade portion 106. 应易于了解的是,所述开口144可设在连接套管102中,以便形成任何合适的螺栓孔形状。 It should be readily appreciated that the openings 144 may be provided in the sleeve 102 is connected so as to form a any shape suitable bolt hole. 例如,在一项实施例中,开口144可沿着连接套管102的根端138和梢端140形成单排开口。 For example, in one embodiment, opening 144 may be formed along a root end connected to the sleeve 102 and tip 138 of a single row of openings 140. 在另一项实施例中,彼此对齐或偏离的多排(例如,两排或更多排)开口144可设在连接套管102的根端138和梢端140中。 In another embodiment, the alignment or offset from one another in a plurality of rows (e.g., two or more rows) may be provided in the opening 144 in the sleeve 102 connected to the root end 138 and tip 140. [0036] 还应了解的是,本专利申请文件中所述的紧固件142 —般可包括所属领域中已知的任何合适的紧固件。 [0036] should also be appreciated that the present patent application in the fastener 142-- generally may include any suitable fastener known in the art. 例如,在若干项实施例中,紧固件142可经配置成带螺纹的紧固件, 例如带螺纹的螺栓、带螺纹的螺钉和其他合适的带螺纹的紧固装置。 For example, in several embodiments, the fastener 142 may be configured with a threaded fastener, such as a belt threaded bolt, threaded screws and other fastening means suitable threaded. 在其他实施例中,所述紧固件可包括其他合适的紧固和/或附接装置,例如销、夹、支架、连杆、铆钉、粘接紧固件坐寸o[0037] 所公开的连接套管102还可具有实质上的气动廓线。 In other embodiments, the fastener may include other and suitable fastening / or attachment means, such as pins, clamps, brackets, links, rivets, adhesive fasteners take inch o [0037] The disclosed the coupling sleeve 102 also has a substantially aerodynamic profile. 例如,如图4所示,连接套管102可设有翼形截面。 For example, as shown in Figure 4, the connecting sleeve 102 may be provided with a wing cross section. 因此,类似于第一叶片部分104和第二叶片部分106,连接套管102的外表面146—般可设有在前缘152和后缘152之间延伸的压力侧148和吸入侧150。 Thus, similarly first blade portion 104 and a second blade portion 106, connected to an outer surface 102 of sleeve-like 146- 148 can be provided on the pressure side 152 extending between the leading 152 and trailing edges 150 and suction sides. 此外, 在本发明的若干项实施例中,连接套管102的气动廓线一般可对应于或以其他方式匹配第一叶片部分104和第二叶片部分106的气动廓线。 In addition, in several embodiments of the present invention, the connecting sleeve 102 is generally aerodynamic profile may correspond to or otherwise match the first blade portion 104 and the second blade portion 106 of the aerodynamic profile. 具体而言,位于根端138处的连接套管102的气动廓线一般可对应于位于连接末端130邻近区域的第一叶片部分104的气动廓线。 Specifically, the sleeve is located at a connecting end 138 generally aerodynamic profile line 102 may correspond to the blade section 104 is connected at a first end region 130 adjacent the aerodynamic profile. 类似地,位于梢端140处的连接套管102的气动廓线一般可对应于位于连接末端131邻近区域的第二叶片部分106的气动廓线。 Likewise, the tip 140 is located is connected to the sleeve 102 generally aerodynamic profile may correspond to the second blade connection 131 located adjacent the end of the region 106 of portion aerodynamic profile. 这样,当叶片部分104、106在连接套管102中组装在一起时,转子叶片组件100 —般可沿着其全部翼展112设有实质上连续的气动廓线。 Thus, when the blade portions 104, 106 are assembled together in the connecting sleeve 102, a rotor blade assembly 100 - as may be provided a substantially continuous aerodynamic profile along the span 112 in its entirety. 例如,如图3所示,连接套管102可进行配置,从而在第一叶片部分104与连接套管102的根端138的接口以及第二叶片部分106与连接套管102的梢端140的接口处形成实质上平坦的气动表面。 For example, as shown in FIG. 3, the connecting sleeve 102 can be configured to the interface sleeve 102 and a second blade root end 138 of the first blade portion 104 and the connecting portion 106 is connected with the tip end 140 of the sleeve 102 forming a substantially planar interface aerodynamic surface. 因此,转子叶片组件100 —般可在第一叶片部分104和第二叶片部分106之间设有连续的气动表面。 Accordingly, the rotor blade assembly 100-- as continuous aerodynamic surface may be provided between the first blade part 104 and the second blade part 106. [0038] 应了解的是,在若干项实施例中,额外表面部件可施加在或位于接缝上,所述接缝位于叶片部分104、106与连接套管102的末端138、140的接口处,从而确保获得实质上平滑的气动廓线。 [0038] It should be appreciated that, in several embodiments, additional components may be applied to the surface or located on a seam, the seam 104 located at the blade tip portion of the connecting sleeve 102 at the interface 138, 140 to ensure a substantially smooth aerodynamic profile. 例如,在一项特定实施例中,可将若干层薄板复合材料施加在转子叶片组件100的外层周围,例如,使用湿敷工艺,从而在叶片部分104、106和连接管套102之间提供实质上平坦的气动廓线。 For example, in a particular embodiment, the sheet may be several layers of composite material applied around the outer rotor blade assembly 100, for example, wet process to provide a blade portion 104, 106 between the sleeve 102 and the connecting pipe substantially flat aerodynamic profile. [0039] 应理解的是,连接套管102 —般可由任何合适的材料形成。 [0039] It should be understood that the connecting sleeve 102 - as may be formed of any suitable material. 例如,在一项实施例中,连接套管102可由铝、钢等金属形成。 For example, in one embodiment, the connection sleeve 102 may be made of aluminum, steel or the like. 在其他实施例中,连接套管102可由薄板复合材料形成,例如,各种纤维增强复合材料或其他任何合适的非金属材料。 In other embodiments, composite sheet 102 may be connected to the sleeve is formed, e.g., fiber-reinforced composite material or any other suitable non-metallic material. [0040] 现参考图5和图6,附图所示为所公开的转子叶片组件100的两项实施例的局部截面图,尤其图示了第一叶片部分104和第二叶片部分106在连接套管102内的附接。 [0040] Referring now to Figures 5 and 6, a partial sectional view of the embodiment shown in the drawings two embodiments of the disclosed rotor blade assembly 100, particularly illustrating the blade portion 104 and a second portion of the first blade 106 is connected the attachment sleeve 102. 如上所述,叶片部分104、106的连接末端130、131 —般可经配置以在连接套管102所设有的腔136内进行附接,这样就可沿着转子叶片组件100的翼展112 (如图2所示),尤其是在连接套管102的根端138和梢端140与叶片部分104、106的壳体120之间的接口处,形成实质上连续的气动廓线。 As described above, the connecting end portions of the blades 130, 131, 104, 106 - as may be attached within the coupling sleeve 102 is provided with a cavity 136 is configured so that the rotor blade assembly can be along the span of 112,100 (FIG. 2), especially in the root end 102 of the coupling sleeve 138 and the housing 120 at the interface between the tip 140 and blade portion 104, 106, form a substantially continuous aerodynamic profile. 因此,在若干项实施例中,叶片部分104、106各自的截面高度156—般可在连接末端130、131处减小,从而使连接末端130、131插入连接套管102中,并确保叶片部分104、106和连接套管102之间形成实质上连续或平坦的表面。 Accordingly, in several embodiments, the blade portion of each cross section may be reduced as the height of 156- 104, 106 at the connecting end 130, 131, 130, 131, so that the connecting terminal inserted into the connecting sleeve 102, and to ensure that the blade portion and a coupling sleeve 104, 106 form a substantially continuous or flat surface 102 between. [0041] 例如,如图5所示,在一项实施例中,叶片部分104、106的连接末端130、131的至少一部分可形成锥形廓线,例如,将叶片壳120配置成具有逐渐变薄的厚度158,从而使连接末端130、131位于连接套管102中。 [0,041] For example, as shown in FIG. 5, in one embodiment, the connecting end portion 130, 131 at least a portion of the blade 104, 106 form a tapered profile may be, e.g., the blade shell 120 is configured to have a tapered the thickness of the thin 158, 130, 131 are positioned so that the connecting end 102 of the sleeve is connected. 此外,连接套管102可形成对应的锥形廓线,这样,连接套管102的外表面146即可位于实质上与叶片壳120的外表面160齐平的位置。 In addition, sleeve 102 may be connected to form a corresponding tapered profile, so that 146 is connected to the outer surface of the blade is located substantially 160 of the housing 120 flush with the outer surface of the sleeve 102 in position. 因此, 如图所示,连接套管102 —般可在其根端138和梢端140处形成逐渐变窄的宽度162,所述宽度对应于叶片壳120逐渐变薄的厚度158。 Therefore, as shown, is connected sleeve 102 - as may be formed in a gradually narrowed width 162 and tip 138 at its root end 140 of the blade shell 120 corresponding to the width of the tapering thickness of 158. 应了解的是,尽管所示连接套管102逐渐变窄的宽度162显示为在根端138和梢端140处形成实质上的锐边或刃缘,但实际上逐渐变窄的宽度162无需形成此类锐边或刃缘。 It should be appreciated that the connection sleeve 102 tapers in width to form 162 shown in FIG Although shown substantially sharp edges or cutting edge 138 at the root end and a tip end 140, but actually the width of the tapering necessary to form 162 such sharp edges or cutting edge. 例如,在一项实施例中,连接套管102的锥形廓线可经配置以仅部分沿着叶片部分104、106的锥形廓线进行延伸,这样,即可在连接套管102的根端138和梢端140处形成相对较薄的钝缘。 For example, in one embodiment, the connection sleeve 102 may be tapered profile configured to extend only partially along the tapered blade profile portion 104, so that the sleeve can be connected in the root 102 at the tip she ends 138 and 140 forms a relatively thin blunt edge. 在此项实施例中,例如上述薄板层等额外表面部件可施加在根端138和梢端140处,以确保叶片部分104、106和连接套管102之间形成实质上连续的气动表面。 In this embodiment, for example, additional surface layer of the thin plate member and the like can be applied at the root end 138 and tip 140, 104, 106 to ensure that the blade portion and the connecting sleeve forming a substantially continuous aerodynamic surface 102 between. [0042] 或者,如图6所示,叶片部分104、106的连接末端130、131可形成阶梯形廓线,例如,将叶片壳120配置成在连接套管102的根端138和梢端140处的厚度164呈阶梯形减少。 [0042] Alternatively, as shown, connected to the end portions of the blades 130, 131 104, 106 may be formed in a stepped profile 6, for example, the blade shell 120 is configured to connect sleeve 102 to the root end 138 and tip 140 the thickness 164 of the stepped shape is reduced. 在该项实施例中,连接套管102的宽度166实质上等于叶片壳120中所设有的厚度的减少大小,这样,连接套管102的外表面146即可位于实质上与叶片壳120的外表面160齐平的位置。 In this embodiment, the connector 166 of the sleeve 102 is substantially equal to the width of the reduced size of the blade shell 120 is provided with the thickness, so that the outer surface of the sleeve 102 of the connector 146 can be located in the blade case 120 is substantially 160 outer surface flush position. 在其他实施例中,应了解的是,连接套管102和/或叶片部分104、106的连接末端130、131 —般可采用其他任何合适的配置以使连接末端130、131插入连接套管102中。 In other embodiments, it is understood that the connection sleeve and / or blade portions 104, 106 of the terminal 130, 131, 102 - like any other suitable configurations may be employed so that the connector end inserted into the connecting sleeve 130, 131, 102 in. [0043] 通常,叶片部分104、106的连接末端130、131处的锥形或阶梯形廓线可使用任何合适的方法形成。 [0043] Generally, stepped blade portion or conical profile 130, 131 is connected at end 104, 106 may be formed with any suitable process. 例如,在一项实施例中,锥形或阶梯形廓线可作为叶片外壳120的模制特征,例如,在形成叶片壳120时,建立具有锥形/阶梯形廓线的模型或将有锥形或阶梯形廓线的模型嵌件置于模型中。 For example, an embodiment in the embodiment, the tapered or stepped profiles as blade shell mold features 120, for example, is formed when the blade shell 120, having a tapered model / stepped profile or to a cone model insert shape or stepped profile of the model is placed. 在另一项实施例中,在形成叶片壳120之后可将锥形或阶梯形廓线加工到叶片壳120中,例如,使用任何合适的加工工艺和/或任何合适的加工设备。 In another embodiment, after forming the blade shell 120 may be tapered or stepped profile machined into the blade housing 120, eg, using any suitable process, and / or any suitable processing device. 此外,应了解的是,连接套管102的对应廓线一般可使用任何合适的方法形成。 Moreover, it should be appreciated that the connection sleeve 102 generally corresponding to the profile may be formed using any suitable method. 例如,在一项实施例中,连接套管102可进行模制或以其他方式形成以包括对应廓线。 For example, in one embodiment, connector sleeve 102 may be molded or formed to include the corresponding profile in other manners. 在另一项实施例中,对应廓线可使用任何合适的加工工艺和/或任何合适的加工设备加工到连接套管102 中。 In another one embodiment, correspond to any suitable profile using processing techniques and / or any suitable connection processing to the processing device 102 in the sleeve. [0044] 在本发明的另一实施例中,可先形成和/或加工叶片外壳120的锥形或阶梯形廓线或者连接套管102的对应廓线中的一者,随后对其进行扫描以了解此类廓线的准确几何形状。 [0044] In another embodiment of the present invention, may be first formed and / or machined blade shell tapered or stepped profile corresponding to the cannula 120 or the profile 102 are connected in one, and then subjected to scanning for exact geometry of such a profile. 例如,在一项实施例中,可对叶片部分104、106各自的连接末端130、131的锥形廓线进行度量或其他3D扫描。 For example, in one embodiment, may be a measure or other 3D scan of the blade portions 104, 106 are each connected to the end of the tapered profile 130, 131. 在此项实施例中,连接套管102逐渐变窄的宽度162随后可根据扫描结果来形成和/或加工,以确保逐渐变窄的宽度162对应于叶片部分104、106的锥形廓线。 In this embodiment, the width of the connection sleeve 162 tapers 102 may then be formed and / or processed according to the scanning result, to ensure that the width is gradually narrowed profile 162 corresponding to the tapered portion 104 of the blade. [0045] 仍参考图5和图6,在若干项实施例中,设在连接套管102中的开口144可包括凹形部件170,其用于将紧固件142嵌在连接套管102的内表面134和外表面146之间。 [0045] still 5 and 6 at several embodiments, opening 102 provided in the sleeve 144 may include a female connector member 170, for connecting to the fastener 142 embedded in the sleeve 102 the inner surface 134 and outer surface 146 between. 具体而言,开口144可经配置以使紧固件142部分或完全嵌入连接套管102。 Specifically, the opening 144 may be configured so that the fastener 142 to partially or fully embedded in the connector bushing 102. 例如,如图5和图6所示,凹形开口144可经配置,从而使每个紧固件142的顶面168位于与连接套管102的外表面146实质上齐平的位置。 For example, as shown in FIGS. 5 and 6, the concave opening 144 may be configured so that the top surface 142 of each fastener 168 is positioned substantially flush with the connector 146 of the position of the outer surface of the sleeve 102. 因此,连接套管102 —般可在其根端138和梢端140之间具有实质上连续的气动廓线。 Accordingly, the connecting sleeve 102 - as may have a substantially continuous aerodynamic contour line between the root end 138 and tip 140. [0046] 应了解的是,开口144的凹形部件170的大小、形状和/或配置一般可根据紧固件142的大小、形状和/或配置而发生变化,其中所述紧固件142用于在连接套管102内附接叶片部分104、106的连接末端130、131。 [0046] It should be appreciated that the opening of the female member 144 of the size, shape and / or configuration 170 generally may change depending fastener size, shape and / or configuration 142 wherein said fastener 142 with included in the connecting sleeve 102 contact blade portions 130, 131 connected to the end 104, 106. 例如,如图5所示,紧固件142 —般可包括带螺纹的紧固件,其紧固件头172的直径逐渐变小。 For example, 5, the fastener 142 as shown - may generally comprise a threaded fastener, the fastener head 172 whose diameter becomes gradually smaller. 在此项实施例中,形成于连接套管102中的开口144的直径一般可对应逐渐变小,这样,紧固件头172便可完全嵌入连接套管102中。 Diameter of the opening 144 in this embodiment, formed in the connection sleeve 102 generally correspond to progressively smaller, so that the first fastener 172 can be fully embedded in the connecting sleeve 102. 在另一项实施例中,如图6所示,开口144可配置成沉孔,其形状和/或配置要对应于紧固件头172的形状和/或配置。 In another embodiment, shown in FIG. 6, the opening 144 may be configured to sink hole whose shape and / or arranged to correspond to the shape and / or configuration of the head 172 of the fastener. [0047] 仍参考图5和图6,要确保叶片部分104、106在连接套管102内适当附接,所公开的转子叶片组件100还可包括将所公开的紧固件142固定在叶片部分104、106的连接末端130、131的部件。 [0047] Still referring to FIGS. 5 and 6, the blade portion 104, 106 to ensure proper connection in the attachment sleeve 102, a rotor blade assembly 100 may further include a disclosed portion of the fixed blade 142 The disclosed fastener 130, 131 connected to the end members 104, 106. 例如,在紧固件142经配置成带螺纹的紧固件(例如,带螺纹的螺栓)的各实施例中,转子叶片组件100可包括经配置以收纳带螺纹的紧固件142的多个母螺纹构件174,这样,在连接套管102的内表面134和叶片部分104、106的连接末端130、131之间便可形成夹紧的接口。 For example, in the fastener 142 configured by threaded fasteners (e.g., threaded bolts) in each of the embodiments, rotor blade may include a fastener assembly 100 is configured to receive a plurality of threaded 142 the female screw member 174, so that, in the connecting end 134 and an inner surface 102 of the blade connecting sleeve portion 104, 106 can be formed between the interface 130 and 131 clamp. 因此,如图5和图6所示,多个母螺纹构件174可经配置以与设在连接套管102中的开口144对齐,这样,紧固件142便可插入开口144并拧入带螺纹的构件174中。 Thus, as shown in FIGS. 5 and 6, a plurality of female threaded member 174 may be provided in connection with the opening 144 in alignment bushing 102 is configured such that the fastener 142 can be inserted into the opening 144 and screwed into a threaded 174 member. 例如,在图5所示的实施例中,带螺纹的构件174可包括多个带螺纹的槽或塞176, 其可经配置以安装或以其他方式置于叶片部分104、106的连接末端130、131上。 For example, in the embodiment shown in FIG. 5, the threaded member 174 may include a plurality of grooves or a threaded plug 176, which may be configured to be mounted or otherwise disposed on blade tip portion 104, 106 130 , 131. 在另一项实施例中,带螺纹的构件174可包括多个螺母178,其可直接或间接安装到叶片壳120的内表面182。 In another embodiment, the member 174 may comprise a plurality of threaded nuts 178, which may be directly or indirectly attached to the inner surface 182 of the blade housing 120. 例如,如图6所示,螺母178可安装到围绕每个叶片外壳120的内周边延伸的成组的槽或螺母板180上。 For example, as shown in Figure 6, the nut may be mounted to the groove 178 or 180 to set the nut plate 120 of the inner periphery of each blade extending around the housing. 应了解的是,螺母178 —般可包括所属领域中已知的任何合适的螺母,包括传统带螺纹的螺母和游动螺母。 It should be appreciated that the nut 178-- generally may comprise any suitable known in the art of the nut, the nut comprising a nut and a conventional floating threaded. 此外,在各替代实施例中,应了解的是,带螺纹的构件174可采用任意合适的配置,以使紧固件142牢固地附接到第一叶片部分104和第二叶片部分106的连接末端130、131。 Further, in each of the alternative embodiments, it is understood that threaded member 174 employ any suitable arrangement, the fastener to 142 firmly attached to the first blade and the second blade part 104 of the connecting portion 106 end 130,131. [0048] 在本发明的若干项实施例中,所公开的转子叶片组件100还可包括分隔物184,其经配置以在连接套管102中将第一叶片部分104的连接末端130与第二叶片部分106的连接末端131分开。 [0048] In several embodiments of the present invention, a rotor blade assembly 100 may further include a disclosed spacer 184, which is configured to connect a first end of the connecting sleeve portion 104 in the vane 130 and the second 102 separate blade portion 106 connected to terminal 131. 分隔物184还可用于阻止将叶片部分104、106的连接末端130、131放置或定位于连接套管102中。 The separator 184 may also be connected for preventing the blade tip portion 130, 131 or 104, 106 disposed in the sleeve 102 is positioned to connect. 例如,在一项实施例中,分隔物184可位于连接套管102中,这样,当叶片部分104、106的连接末端130、131完全插入连接套管102并接触分隔物184时, 位于叶片壳120内或安装到叶片壳120的带螺纹的构件174 —般会与设在连接套管102中的开口144对准。 For example, in one embodiment, spacer 184 may be positioned in connector sleeve 102 so that, when the connection portion of the blade tip is fully inserted into the connection 104,106 130,131 102 and contacts the sleeve spacer 184, located in the blade shell 120 or mounted to the blade shell 120 of threaded member 174 is - as will be aligned with the opening 144 provided in the connecting sleeve 102. [0049] 应了解的是,分隔物184 —般可采用任何合适的配置,以使分隔物184如本专利申请文件中所述的那样起作用。 [0049] It should be appreciated that the divider 184 - as may be employed in any suitable arrangement, such that the partition 184 function as the present patent application according to document. 例如,如图5和图6所示,分隔物184可经配置成相对较薄的构件,其可围绕连接套管102的内周边实质上垂直地延伸到内表面134。 For example, as shown in FIG. 5 and FIG. 6, separator 184 may be configured to be relatively thin member, which may extend substantially perpendicularly to the inner surface 134 around the inner periphery of the sleeve 102 is connected. 此外,如图5所示, 在一项实施例中,分隔物184可只从内表面134向内部分延伸到连接套管102的腔136中。 As shown in FIG. 5, in one embodiment embodiment, the separator 184 may extend only inwardly from an inner surface portion 134 connect to the sleeve 102 in the cavity 136. 或者,如图6所示,分隔物184可经配置以从内表面134延伸穿过整个腔136,从而将腔136 分为两个单独的腔。 Alternatively, as shown in FIG. 6, separator 184 may be configured to extend from the inner surface 134 through the entire chamber 136, the chamber 136 so as to separate into two chambers. [0050] 现参考图7,附图所示为根据本发明各方面的叶尖组件200的透视图。 [0050] Referring now to Figures 7 a perspective view of the tip component 200 according to aspects of the present invention illustrated in the drawings. 通常,叶尖组件200可包括连接套管202和叶尖部分206。 Typically, tip cannula assembly 200 may include connector 202 and tip portion 206. 所述连接套管202 —般可配置成类似于上文参考图2到图6所述的连接套管102。2-6因此,连接套管202可设有腔136 (如图4所示),其在连接套管202的梢端240和根端238之间延伸。 The connecting sleeve 202 - as may be configured similar to the connector described above with reference to FIG sleeve according to FIG. 6 102.2-6 Thus, the connection sleeve 202 may be provided with a cavity 136 (FIG. 4) which extends between the connecting sleeve 202 to the root end 240 and tip 238. 腔136设在梢端240处的部分一般可经配置以收纳叶尖部分206的连接末端231。 Tip 136 disposed at the cavity end portions 240 may be generally configured to receive the tip portion 231 connected to terminal 206. 例如,连接套管202和叶尖部分206的连接末端231可设有对应的锥形廓线,这样,连接末端231便可插入连接套管202,并使用多个紧固件242附接在连接套管202中。 For example, the sleeve 202 connected to the connecting end portion 206 and tip 231 can be provided with a corresponding conical profile such that the connecting end 231 can be inserted into the connecting sleeve 202, and a plurality of fasteners 242 attached to connector the sleeve 202. 此外,连接套管202可设有气动廓线,其一般对应于叶尖部分206的气动廓线。 Further, the connection sleeve 202 may be provided with aerodynamic profile which generally corresponds to the tip portion 206 of the aerodynamic profile. 这样,当叶尖部分206插入连接套管202中时,叶尖组件200 —般可在连接套管202和叶尖部分206之间具有实质上连续的气动廓线。 Thus, when the tip is inserted into the connection portion 206 of the sleeve 202, tip assembly 200 - as may have a substantially continuous aerodynamic profile between the connecting sleeve 202 and tip portion 206. [0051] 通常,叶尖部分206可从连接末端231延伸至叶尖210,并可采用所属领域中已知的任何合适的叶尖配置。 [0,051] Generally, tip portion 206 may extend from the connecting end 231 to the tip 210, the tip can be in any suitable configuration known in the art. 例如,在一项实施例中,叶尖部分206可经配置成直的叶尖部分, 例如,配置成类似于上文参考图2和图3所述的第二叶片部分106,并实质上顺着翼展方向在连接末端231和叶尖210之间延伸。 For example, in one embodiment, tip portion 206 may be configured as a straight tip portion, e.g., a second blade configured similarly described above with reference to FIGS. 3 and FIG. 2 portion 106, and substantially cis the spanwise extending between the connecting end 231 and tip 210. 在另一项实施例中,如图7所示,叶尖部分206可经配置成小翼型叶尖部分。 In another embodiment, shown in Figure 7, the tip portion 206 may be configured to a small portion of the airfoil tip. 这样,叶尖小翼290 —般会设在连接末端231和叶尖210之间。 In this way, tip winglet 290-- generally be provided between the connecting end and the tip 231 210 应了解的是,叶尖小翼290 —般可采用所属领域中已知的任何合适的配置。 It should be appreciated that the tip winglet 290-- like may take any suitable configuration known in the art. 例如,叶尖小翼290可经配置成吸入侧叶尖小翼或压力侧叶尖小翼。 For example, the winglet tip 290 may be configured into a suction-side or pressure-side tip winglet tip winglet. 此外,叶尖小翼290可设有任何合适的掠角、倾角、前束角和/或扭曲角,其中上述所有术语均为气动领域众所周知的术语。 Further, small wing tip 290 may be provided with any appropriate grazing angle, angle, toe angles and / or twist angle, wherein all the above terms are well known pneumatic term. 进一步地,叶尖小翼290可设有任何合适的曲率半径,并可具有任何合适的高宽比(即,叶尖小翼290的翼展与叶尖小翼290的投影面积之比)。 Further, the winglet tip 290 may be provided with any suitable radius of curvature, and may have any suitable aspect ratio (i.e., tip and winglet spanwise than the projected area of ​​the tip of the winglet 290 290). [0052] 应了解的是,所公开的叶尖组件200 —般可经配置成用于转子叶片的可替换式叶尖。 [0052] It should be appreciated that the tip assembly 200 disclosed - as may be configured for a rotor blade tip may be replaceable. 这样,叶尖组件200即可经配置以附接到任何合适的转子叶片内侧叶片段或部分。 Thus, the tip assembly 200 is configured to be attached to any suitable inboard blade segment or a rotor blade part. 例如,位于连接套管202的根端238处的腔136部分(如图4所示)可经配置以收纳内侧叶片部分(未图示)的末端(未图示),例如,经配置以收纳上文参考图2到图6所述的第一叶片部分104的连接末端130。 E.g., the sleeve 238 at the junction 202 of the base end portion 136 of the cavity (as shown in FIG) blade part can be accommodated inside terminal (unillustrated) of the (not shown) configured such, configured housing to connecting a first end of the blade 2 to a portion of FIG 6 104 130 above with reference to FIG. 因此,在一项实施例中,可形成、加工或以其他方式塑造内侧叶片部分的末端,以使其锥形廓线对应于位于根端238处的腔136的锥形廓线,这样叶片部分即可插入连接套管202。 Thus, in one embodiment, may be formed, machined, or otherwise shaped end portion of the inner blade so as to correspond to the tapered profile at the root end 238 of the cavity 136 is tapered profile, so that the blade part to insert the sleeve 202 is connected. 类似于上述各实施例,叶片部分随后可使用多个紧固件242附接在连接套管202内,其中紧固件242插过沿着根端238设置的开口244。 Analogous to the above embodiment, the blade portion may then be used in a plurality of connected fasteners 242 attached to the sleeve 202, the fastener 242 which is inserted through an opening 238 disposed along the root 244 ends. [0053] 该专利申请文件使用了各种实例来公开本发明,包括最佳模式,同时也让所属领域的任何技术人员能够实践本发明,包括制造并使用任何装置或系统、并实施所涵盖的任何方法。 [0053] This written description uses examples to disclose the invention, including the best mode and also to enable any ordinary skilled in the art to practice the invention, including making and using any devices or systems and performing covered any method. 本发明的保护范围由权利要求书界定,并可包括所属领域的一般技术人员想出的其他实例。 The scope of the invention defined by the claims, and may include other examples of ordinary skill in the art is contemplated. 如果其他此类实例的结构要素与权利要求书的字面意义相同,或如果此类实例包括的等效结构要素与权利要求书的字面意义无实质差别,则此类实例也属于权利要求书的范围。 If books with structural elements as claimed in claim other such examples literally identical or insubstantial differences from the literal meaning of the book and if the equivalent structural elements as claimed Examples of such requirements include, such examples are also within the scope of the appended claims .

Claims (15)

1. 一种用于风力机(10)的转子叶片组件(100),所述转子叶片组件(100)包括: 第一叶片部分(104),其包括连接末端(130)并设有气动廓线;第二叶片部分(106),其包括连接末端(131)并设有气动廓线;连接套管(102),其具有内表面(134)和外表面(146),所述内表面(134)设有腔(136),所述腔(136)经配置以收纳所述第一和第二叶片部分(104、106)的所述连接末端(130.131);以及多个紧固件(142),其经配置以将所述第一和第二叶片部分(104、106)的所述连接末端(130、131)固定在所述腔(136)内,其中所述连接套管(102)的所述外表面的廓线对应于所述第一和第二叶片部分(104、 106)的所述气动廓线,这样,当所述连接末端(130、131)插入所述腔(136)中时,所述第一和第二叶片部分(104、106)之间会形成实质上连续的气动廓线。 A wind turbine (10) of the rotor blade assembly (100), said rotor blade assembly (100) comprising: a first blade section (104), which comprises a connection end (130) and provided with aerodynamic profile ; second blade section (106), which comprises a connection end (131) and provided with aerodynamic profile; connecting sleeve (102) having an inner surface (134) and an outer surface (146), said inner surface (134 ) provided with a cavity (136), said chamber (136) configured to receive said first and said second blade portion (104, 106) connected to the end (130.131); and a plurality of fasteners (142) , to which said first and second blade portions (104, 106) is configured to connect the end (130, 131) within said chamber (136), wherein said coupling sleeve (102) the outer surface profile corresponding to the first and second blade portions (104, 106) of the aerodynamic profile, so that, when the connection terminal (130, 131) inserted into the cavity (136) when, will form a substantially continuous aerodynamic profile between said first and second blade portions (104, 106).
2.根据权利要求I所述的转子叶片组件(100),其特征在于,所述第二叶片部分(106) 配置成所述转子叶片组件(100)的叶尖部分。 The rotor blade assembly (100) the I according to claim, characterized in that said second blade portion (106) disposed to a tip portion of the rotor blade assembly (100).
3.根据权利要求2所述的转子叶片组件(100),其特征在于,所述叶尖部分设有叶尖小翼(290)。 3. The rotor blade assembly (100) according to claim 2, characterized in that said winglet tip portion is provided with a tip (290).
4.根据权利要求I所述的转子叶片组件(100),其特征在于,所述第一和第二叶片部分(104、106)的所述连接末端(130、131)设有锥形廓线,所述连接套管(102)设有对应于所述锥形廓线的逐渐变窄的宽度(162)。 The rotor blade assembly (100) I claim, wherein said first and second blade portions (104, 106) of the connecting end (130, 131) is provided with a conical profile the connecting sleeve (102) provided with progressively narrowing a width (162) corresponding to the tapered profile of.
5.根据权利要求I所述的转子叶片组件(100),其特征在于,所述第一和第二叶片部分(104、106)的所述连接末端(130、131)设有阶梯形廓线。 The rotor blade assembly (100) I claim, wherein said first and second blade portions (104, 106) of the connecting end (130, 131) is provided with a stepped profile .
6.根据权利要求I所述的转子叶片组件(100),其特征在于,所述多个紧固件(142)包括多个带螺纹的紧固件。 6. The rotor blade assembly (100) I claim, wherein said plurality of fasteners (142) comprises a plurality of threaded fasteners.
7.根据权利要求6所述的转子叶片组件(100),其特征在于,进一步包括多个带螺纹的构件(174),其置于所述第一和第二叶片部分(104、106)的所述连接末端(130、131),所述多个带螺纹的构件(174)经配置以收纳多个带螺纹的紧固件。 The rotor blade assembly (100) according to claim 6, characterized in that, further comprising a plurality of threaded member (174) disposed in said first and second blade portions (104, 106) the connecting end (130, 131), a plurality of threaded members (174) configured to house a plurality of threaded fasteners.
8.根据权利要求I所述的转子叶片组件(100),其特征在于,进一步包括多个开口(144),其设在所述连接套管(102)的所述内表面和外表面(134、146)之间,所述多个开口(144)中的每个开口均具有凹形部件(170),其经配置以将所述多个紧固件(142)嵌入所述连接套管(102)。 8. The rotor blade assembly (100) I according to claim, wherein further comprising a plurality of openings (144), which is provided in the connecting sleeve (102) of the inner surface and an outer surface (134 , between 146), the plurality of openings (each opening 144) of each member has a concave (170) configured to convert the plurality of fasteners (142) embedded in the connecting sleeve ( 102).
9.根据权利要求I所述的转子叶片组件(100),其特征在于,进一步包括分隔物(184), 其经配置以将所述腔(136)中的所述第一和第二叶片部分(104、106)的所述连接末端(130.131)分开。 9. The rotor blade assembly (100) I according to claim, wherein further comprising a partition (184) configured to move the said chamber (136) in the first and second blade portions the (104, 106) connected to the end (130.131) separately.
10. 一种连接套管(102),其用于将转子叶片组件(100)的第一叶片部分(104)和第二叶片部分(106)组装在一起,所述套管(102)包括:外表面(146):设有腔(136)的内表面(134),所述腔(136)具有根端(138),其经配置以收纳所述第一叶片部分(104)的连接末端(130),以及梢端(140),其经配置以收纳所述第二叶片部分(106)的连接末端(131);以及多个开口(144),其设在所述外表面和内表面(146、134)之间,所述开口(144)经配置以收纳多个紧固件(142),从而将所述第一和第二叶片部分(104、106)的所述连接末端(130,131)固定在所述腔(136)中,其中所述外表面(146)的廓线经配置对应于所述第一和第二叶片部分(104、106)的气动廓线,当所述连接末端(130、131)插入所述腔(136)中时,所述第一和第二叶片部分(104,106)之间会形成实质上连续的气动廓线。 A connecting sleeve (102) for the rotor blade assembly (100) of the first blade portion (104) and a second blade section (106) assembled together, said sleeve (102) comprises: an outer surface (146): is provided with a cavity (136) an inner surface (134), said chamber (136) having a root end (138), which is configured to receive the first blade portion (104) of the connecting end ( 130), and tip (140), which is configured to receive the connecting end (131) of said second blade section (106); and a plurality of openings (144), which is provided on the outer surface and an inner surface ( between 146,134), said opening (144) configured to storing the plurality of fasteners (142), whereby the first and second blade portions (104, 106) of the connecting end (130, 131) is fixed in the cavity (136), wherein the outer surface (146) is configured to correspond to the profile of said first and second blade portions (104, 106) of aerodynamic profile, when the connecting end ( 130, 131) inserted into the cavity (136) is in form of a substantially continuous aerodynamic profile between said first and second blade portions (104, 106).
11. 一种用于风力机(10)转子叶片(16)的叶尖组件(200),所述叶尖组件(200)包括:连接套管(202),其包括设有腔(136)的内表面(134)和设有气动廓线的外表面(146),所述连接套管(202)进一步包括梢端(240)和根端(238),叶尖部分(206),其在连接末端(231)和叶尖(210)之间延伸并设有气动廓线,所述气动廓线对应于位于梢端(240)处的连接套管(202)的所述气动廓线,所述叶尖部分(206) 的所述连接末端(231)置于所述腔(136)中;以及多个紧固件(242),其经配置以将所述叶尖部分(206)的所述连接末端(231)固定在所述腔(136)中,其中置于所述连接套管(202)的所述根端(238)处的所述腔(136)的一部分可经配置以收纳所述转子叶片(16)的单独部分的末端。 11. A wind turbine (10) of the rotor blade (16) of the tip assembly (200), said tip assembly (200) comprising: a connecting sleeve (202) is provided comprising a chamber (136) the inner surface (134) and provided with an outer surface of the aerodynamic profile (146), said coupling sleeve (202) further comprises a tip (240) and a root end (238), tip portion (206), which is connected extending between the ends (231) and tip (210) and provided with aerodynamic profile of the aerodynamic profile corresponding to the tip end is located (240) connected to the sleeve (202) at the aerodynamic profile, the said tip portion (206) of the connecting end (231) disposed in said chamber (136); and a plurality of fasteners (242), which is configured to the tip portion of the (206) a portion of said chamber (136) at the connecting end of the root end (231) fixed in said cavity (136), wherein said coupling sleeve is placed (202) (238) may be configured to receive the a separate end portion of said rotor blade (16).
12.根据权利要求11所述的叶尖组件(200),其特征在于,所述叶尖部分(206)设有叶尖小翼(290)。 12. The tip assembly (200) according to claim 11, wherein said tip portion (206) has a winglet tip (290).
13.根据权利要求11所述的叶尖组件(200),其特征在于,所述叶尖部分(206)的所述连接末端(231)设有锥形廓线,所述连接套管(202)设有对应于所述锥形廓线的逐渐变窄的宽度(162)。 13. The tip assembly (200) according to claim 11, wherein said tip portion (206) of the connecting end (231) is provided with a conical profile, the connecting sleeve (202 ) tapers with a width (162) corresponding to the tapered profile of.
14.根据权利要求11所述的叶尖组件(200),其特征在于,进一步包括沿着所述连接套管(202)的所述梢端(240)设有的多个开口(244),其经配置以收纳所述多个紧固件(242),所述多个开口(244)中的每个开口均设有凹形部件(170),其经配置以将所述多个紧固件(242)嵌入所述连接套管(202)。 According to claim tip assembly (200) of claim 11, wherein said connector further comprising a sleeve along (202) of said tip (240) is provided with a plurality of openings (244), which is configured to receive the plurality of fasteners (242), each opening (244) of the female member has a plurality of openings (170) configured to a plurality of the fastening member (242) embedded in the connecting sleeve (202).
15.根据权利要求11所述的叶尖组件(200),其特征在于,进一步包括沿着所述连接套管(202)的所述根端(238)设有的多个开口(244),所述多个开口(244)经配置以收纳多个紧固件(242),从而将所述转子叶片(16)的单独部分固定在所述腔(136)中。 15. The assembly of claim tip (200) of claim 11, wherein said connector further comprising a sleeve along a (202) the root end (238) is provided with a plurality of openings (244), said plurality of openings (244) configured to receive a plurality of fasteners (242), so as to separate portions of the rotor blade (16) is fixed in said cavity (136).
