CN102425284B - Manufacturing method of building inner and outer wall decorating plate - Google Patents
Manufacturing method of building inner and outer wall decorating plate Download PDFInfo
- Publication number
- CN102425284B CN102425284B CN201110389794.1A CN201110389794A CN102425284B CN 102425284 B CN102425284 B CN 102425284B CN 201110389794 A CN201110389794 A CN 201110389794A CN 102425284 B CN102425284 B CN 102425284B
- Authority
- CN
- China
- Prior art keywords
- solidifies
- glue
- coat
- roller coat
- energy
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000004519 manufacturing process Methods 0.000 title description 8
- 239000003973 paint Substances 0.000 claims abstract description 67
- 238000000576 coating method Methods 0.000 claims abstract description 37
- 239000011248 coating agent Substances 0.000 claims abstract description 34
- 239000003292 glue Substances 0.000 claims abstract description 32
- 239000003795 chemical substances by application Substances 0.000 claims abstract description 31
- 238000000034 method Methods 0.000 claims abstract description 27
- 238000007789 sealing Methods 0.000 claims abstract description 25
- 238000001723 curing Methods 0.000 claims abstract description 24
- 239000000835 fiber Substances 0.000 claims abstract description 17
- 229910052918 calcium silicate Inorganic materials 0.000 claims abstract description 10
- 239000000378 calcium silicate Substances 0.000 claims abstract description 10
- OYACROKNLOSFPA-UHFFFAOYSA-N calcium;dioxido(oxo)silane Chemical compound [Ca+2].[O-][Si]([O-])=O OYACROKNLOSFPA-UHFFFAOYSA-N 0.000 claims abstract description 10
- 238000003848 UV Light-Curing Methods 0.000 claims abstract description 8
- 238000012545 processing Methods 0.000 claims abstract description 8
- 239000000853 adhesive Substances 0.000 claims abstract description 6
- 230000001070 adhesive effect Effects 0.000 claims abstract description 6
- 239000000463 material Substances 0.000 claims description 53
- 230000000740 bleeding effect Effects 0.000 claims description 30
- 238000005034 decoration Methods 0.000 claims description 19
- 239000000428 dust Substances 0.000 claims description 15
- 238000002360 preparation method Methods 0.000 claims description 15
- 230000000694 effects Effects 0.000 claims description 12
- 239000004576 sand Substances 0.000 claims description 12
- 238000003801 milling Methods 0.000 claims description 9
- 239000000047 product Substances 0.000 claims description 9
- 238000012546 transfer Methods 0.000 claims description 9
- 210000002469 basement membrane Anatomy 0.000 claims description 8
- 230000008595 infiltration Effects 0.000 claims description 8
- 238000001764 infiltration Methods 0.000 claims description 8
- 239000007787 solid Substances 0.000 claims description 7
- XEEYBQQBJWHFJM-UHFFFAOYSA-N Iron Chemical compound [Fe] XEEYBQQBJWHFJM-UHFFFAOYSA-N 0.000 claims description 6
- 230000009286 beneficial effect Effects 0.000 claims description 6
- 230000037452 priming Effects 0.000 claims description 6
- 238000007761 roller coating Methods 0.000 claims description 6
- 239000012466 permeate Substances 0.000 claims description 4
- DGAQECJNVWCQMB-PUAWFVPOSA-M Ilexoside XXIX Chemical compound C[C@@H]1CC[C@@]2(CC[C@@]3(C(=CC[C@H]4[C@]3(CC[C@@H]5[C@@]4(CC[C@@H](C5(C)C)OS(=O)(=O)[O-])C)C)[C@@H]2[C@]1(C)O)C)C(=O)O[C@H]6[C@@H]([C@H]([C@@H]([C@H](O6)CO)O)O)O.[Na+] DGAQECJNVWCQMB-PUAWFVPOSA-M 0.000 claims description 3
- 238000004026 adhesive bonding Methods 0.000 claims description 3
- 230000007547 defect Effects 0.000 claims description 3
- 238000007667 floating Methods 0.000 claims description 3
- LRPWSMQGXLANTG-UHFFFAOYSA-M iodogallium Chemical compound I[Ga] LRPWSMQGXLANTG-UHFFFAOYSA-M 0.000 claims description 3
- 229910052742 iron Inorganic materials 0.000 claims description 3
- 238000005096 rolling process Methods 0.000 claims description 3
- 239000011734 sodium Substances 0.000 claims description 3
- 229910052708 sodium Inorganic materials 0.000 claims description 3
- 238000010023 transfer printing Methods 0.000 claims description 3
- 238000003756 stirring Methods 0.000 claims description 2
- 239000004568 cement Substances 0.000 abstract description 7
- 239000000126 substance Substances 0.000 abstract description 3
- 238000006243 chemical reaction Methods 0.000 abstract description 2
- 238000004132 cross linking Methods 0.000 abstract description 2
- 239000000758 substrate Substances 0.000 abstract description 2
- 239000010410 layer Substances 0.000 abstract 5
- 238000010422 painting Methods 0.000 abstract 5
- 230000000149 penetrating effect Effects 0.000 abstract 1
- 239000002344 surface layer Substances 0.000 abstract 1
- 238000009835 boiling Methods 0.000 description 6
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 5
- PRPAGESBURMWTI-UHFFFAOYSA-N [C].[F] Chemical compound [C].[F] PRPAGESBURMWTI-UHFFFAOYSA-N 0.000 description 4
- 150000003839 salts Chemical class 0.000 description 4
- 230000032683 aging Effects 0.000 description 3
- 239000003513 alkali Substances 0.000 description 3
- 230000009172 bursting Effects 0.000 description 3
- 238000005516 engineering process Methods 0.000 description 3
- 239000007921 spray Substances 0.000 description 3
- NBVXSUQYWXRMNV-UHFFFAOYSA-N fluoromethane Chemical compound FC NBVXSUQYWXRMNV-UHFFFAOYSA-N 0.000 description 2
- 238000006116 polymerization reaction Methods 0.000 description 2
- 238000005201 scrubbing Methods 0.000 description 2
- 238000012360 testing method Methods 0.000 description 2
- 241000233866 Fungi Species 0.000 description 1
- 238000003916 acid precipitation Methods 0.000 description 1
- NIXOWILDQLNWCW-UHFFFAOYSA-N acrylic acid group Chemical group C(C=C)(=O)O NIXOWILDQLNWCW-UHFFFAOYSA-N 0.000 description 1
- 239000012298 atmosphere Substances 0.000 description 1
- 230000004888 barrier function Effects 0.000 description 1
- 239000002585 base Substances 0.000 description 1
- 229910052799 carbon Inorganic materials 0.000 description 1
- 238000004140 cleaning Methods 0.000 description 1
- 230000007797 corrosion Effects 0.000 description 1
- 238000005260 corrosion Methods 0.000 description 1
- 238000011161 development Methods 0.000 description 1
- 230000018109 developmental process Effects 0.000 description 1
- 238000010586 diagram Methods 0.000 description 1
- 238000001035 drying Methods 0.000 description 1
- 238000005265 energy consumption Methods 0.000 description 1
- 238000002474 experimental method Methods 0.000 description 1
- 238000007654 immersion Methods 0.000 description 1
- 230000008676 import Effects 0.000 description 1
- 230000007774 longterm Effects 0.000 description 1
- 239000004579 marble Substances 0.000 description 1
- 230000035772 mutation Effects 0.000 description 1
- 235000021095 non-nutrients Nutrition 0.000 description 1
- 230000003204 osmotic effect Effects 0.000 description 1
- 238000012856 packing Methods 0.000 description 1
- 230000035699 permeability Effects 0.000 description 1
- 230000036314 physical performance Effects 0.000 description 1
- 239000000049 pigment Substances 0.000 description 1
- 229920002635 polyurethane Polymers 0.000 description 1
- 239000004814 polyurethane Substances 0.000 description 1
- 230000002787 reinforcement Effects 0.000 description 1
- 238000007711 solidification Methods 0.000 description 1
- 230000008023 solidification Effects 0.000 description 1
- 238000004078 waterproofing Methods 0.000 description 1
- 239000002023 wood Substances 0.000 description 1
Images
Landscapes
- Finishing Walls (AREA)
- Application Of Or Painting With Fluid Materials (AREA)
Abstract
The invention discloses a method for building inner and outer wall decorating plate, which comprises two flows, each flow including steps of: a primer line processing flow: (1) thickness sanding and dedusting, (2) roller painting back seal coat and curing into a first UV seal coat layer, (3) roller painting UV penetrant twice, (4) leveling by infrared ray, (5) coating UV putty at the front and UV curing and generating a UV putty layer, (6) roller painting the UV seal coat for three times and respectively curing and generating three second UV seal coat layers, (7) fine sanding; and a roller painting finish line flow: (1) dedusting, (2) roller painting UV glue and generating a first UV glue layer, (3) coating the UV finish for five times and curing and generating five UV finish layers. The decorating plate can solve the problems that a UV curing penetrating agent is strongly, quickly and deeply penetrated into a fiber reinforced calcium silicate slab or a fiber cement slab, deeply cured to form a film and subjected to stereo chemical netlike cross-linking reaction with UV putty and UV sealing paint, and thoroughly solves the problem of adhesive force between the decorative surface layer and a substrate.
Description
Technical field
The present invention relates to a kind of dalle and production method thereof, exactly is a kind of architecture inside and outside decoration plate and preparation method thereof.
Background technology
Along with the development of society and people the improving constantly of taste of living, people also have higher requirement to exterior wall color and decorative pattern in the building, wish that the pattern of skin is dazzled beautiful colorful more.But, there is following difficulty in the decorative constructure exterior wall: the sheet material that 1, makes up the skin decoration mainly is fiber reinforced calcium silicate board or fiber cement board, and on fiber reinforced calcium silicate board or fiber cement board the common coating of application, be prone to the phenomenon of poor adhesion between poor adhesion between dope layer, dope layer and sheet material, sheet material boiling water resistance difference and plate bursting; 2, existing coating process is not suitable for mass production, and cost of production is higher, and energy consumption is 5 times of UV fluorine carbon application, is unfavorable for energy-saving and emission-reduction.
Summary of the invention
Purpose of the present invention, provided a kind of preparation method of architecture inside and outside decoration plate, it can solve the strong infiltration of ultraviolet light polymerization bleeding agent and fiber reinforced calcium silicate board or fiber cement board, rapid osmotic, percdation, the deep layer film-forming, and with UV putty, the UV seal coat forms three-dimensional chemical netted cross-linking reaction, thoroughly solve the adhesive power problem of architectural surface and substrate, thereby can solve coating process on fiber reinforced calcium silicate board or the fiber cement board, be prone to poor adhesion between dope layer, poor adhesion between dope layer and sheet material, the problem of sheet material boiling water resistance difference and plate bursting, and can realize suitability for industrialized production efficiently, thereby significantly reduce the cost of production of making sheet.It also can solve the transfer technique existing problems on fiber reinforced calcium silicate board or the fiber cement board, and has realized mass production.
The objective of the invention is to be achieved through the following technical solutions: the architecture inside and outside decoration plate comprises sheet material, the front of sheet material is provided with the UV putty layer, the back side of sheet material is provided with UV sealing enamelled coating, the periphery of sheet material, UV sealing enamelled coating and UV putty layer is provided with three layer of the 2nd UV sealing enamelled coating, and the outside of the 2nd UV sealing enamelled coating is provided with a UV glue-line and five layers of UV top coat layer.The outside of described UV top coat layer is provided with the 2nd UV glue-line, and the outside of the 2nd UV glue-line is provided with bionical film, and the outside of bionical film is provided with two-layer the 2nd UV colored paint layer.Described the 3rd layer of the 2nd UV sealing enamelled coating is white primer, and its thickness is the 70-110 micron.
The preparation method of architecture inside and outside decoration plate comprises following two big technological processes, and each flow process comprises concrete following steps:
One, priming paint line processing process:
1. fixed thick sanding and dedusting: sheet material positive and negative sand milling is smooth with sander, positive sanding abrasive band 120 orders, back side sanding abrasive band 80 orders, the UV seal coat coating after being beneficial to is even, end phenomenon takes place when preventing UV finish paint sand milling to leak, thereby guarantees that finish paint does not continue to permeate to sheet material; With artificial or dust removal machine the plate surface floating dust is removed, in order to avoid the adhering to of UV putty and UV seal coat after the influence;
2. roller coat back side seal coat and be solidified into UV sealing enamelled coating: with single roller roller coating UV seal coat, the curing energy is 250-300 mj/cm2;
3. roller coat UV bleeding agent is twice: a stirs whole bucket UV bleeding agent, and it was disperseed after 5-7 minute, with the sponge roller at the even roller coat first pass of the whole outer surface UV of sheet material bleeding agent, edge that especially can not holiday sheet material; B places sheet material 4-5 hour, is beneficial to the abundant infiltration of bleeding agent; C is coated with the sheet material whole outer surface second time the UV bleeding agent again;
4. infrared rays levelling: the sheet material that infiltration is handled carries out the infrared rays levelling to be handled;
5. positive application UV putty and UV solidify generation UV putty layer: a putty machine roller coat UV putty, and b carries out UV and solidifies, and solidifying energy is 80-120 mj/cm
2, UV putty is solidified not exclusively; UV putty is mainly used in sealing board surface defect;
6. three times UV seal coats of roller coat and the two roller roller coat first pass UV seal coats of three layer of the 2nd UV sealing of curing generation enamelled coating: a respectively, UV curing, the curing energy is 180-240 mj/cm
2The first pass UV sealing of b enamelled coating is made sanded, and abrasive band 240-320 order is made dust removal process behind the sand milling; C solidifies with second time UV seal coat of curtain coater showering, UV, and solidifying energy is 180-240 mj/cm
2D is with the UV seal coat of curtain coater showering white, and after the infrared rays levelling was handled, UV solidified again, solidified energy force 1200-2000mj/cm
2
7. washed ore light: sand flat with the white UV seal coat of washed ore machine with the 3rd time, finish the prime treatment of sheet material, make sheet material become half-finished product plate, abrasive band 320 orders;
Two, roller coat final paint line technological process:
1. dedusting: dust removal process is made on described half-finished product plate surface;
2. roller coat UV glue generates a UV glue-line: the surface roller coating UV glue that need be coated with the UV finish paint with roll coater to half-finished product plate; UV solidifies, and solidifying energy is 50-80 mj/cm
2, make the UV adhesive curing incomplete;
3. be coated with five times UV finish paints and solidify five layers of UV top coat layer: a of generation roll coater roller coat first pass UV finish paint, UV solidifies, and solidifies energy l00-600 mj/cm
2B roller coat UV finish paint second time: with second time UV finish paint of roll coater roller coat, UV solidifies, and solidifies energy l00-600 mj/cm
2C solidifies with the 3rd time UV finish paint of roll coater roller coat, UV, solidifies energy l00-600 mj/cm
2D roll coater roller coat UV glue, UV solidifies, and the curing energy is 50-80mj/cm
2, UV glue is not exclusively solidified; E the 4th time UV finish paint of roll coater roller coat; F is with the 5th time UV finish paint of curtain coater showering, to increase the plumpness of finish paint; Behind the g elder generation infrared rays levelling, carry out UV curing again and make decorative plate of outer wall, solidify energy 1200-2000mj/cm
2
Described decorative plate of outer wall is handled according to the following steps and is generated the bionical decorative panel with bionical effect:
1. dedusting: described decorative plate of outer wall is carried out dust removal process;
2. roller coat UV glue and curing generate the 2nd UV glue-line 7: with roll coater roller coat UV glue, the UV semi-solid preparation: solidifying energy is 50-80 mj/cm
2, UV glue is not exclusively solidified;
3. paste the UV transfer film with bionical effect and constitute bionical film 6: with UV transfer film gluing and overlay on decorative plate of outer wall, UV solidifies: guarantee the disposable energy 1200-2000mj/cm of passing through with UV transfer printing laminator
2With the automatic film rolling machine basement membrane is rolled, namely except the PET basement membrane;
4. infrared rays levelling;
5. roller coat UV glue generates the 3rd UV glue-line 0: with roll coater roller coat UV glue, UV solidifies, and solidifying energy is l00-200 mj/cm
2UV glue is not exclusively solidified;
6. be coated with twice UV finish paint and solidify generation the 2nd UV colored paint layer 1:a roll coater roller coat first pass UV finish paint, UV solidifies, and the curing energy is 180-240mj/cm2; B second time UV finish paint of curtain coater showering, the plumpness of increase finish paint, the infrared rays levelling, UV solidifies, and solidifies energy 1200-2000 mj/cm
2Make the decorative plate of outer wall with bionical effect.
Described sheet material is fiber reinforced calcium silicate board, its proportion: interior wall 1.2-1.35g/cm3, exterior wall 1.5-1.9 g/cm3 and moisture content 8-10%.Be 3-10 second described hardening time.The device that described UV solidifies is high-pressure sodium lamp, iron lamp or Iodine gallium light.The temperature of infrared rays levelling: 50-60 ℃, time 0.5-1 minute.Step in the priming paint line processing process 3. described in the temperature of UV bleeding agent be 30-40 ℃, and the requirement of twice roller coat is, for the first time UV bleeding agent 60g/ ㎡, UV bleeding agent 20g/ ㎡ for the second time.
Description of drawings
Fig. 1 is the sectional structure schematic diagram of architecture inside and outside decoration plate of the present invention.
Reference numeral: 1 sheet material 2UV bleeding agent layer 3 UV sealing enamelled coating 4UV putty layer 5 the 2nd UV sealing enamelled coating, 6 bionical film 7 the 2nd UV glue-line 8 a UV glue-line 9UV top coat layer 10 the 3rd UV glue-line 11 the 2nd UV colored paint layers.
The specific embodiment
Architecture inside and outside decoration plate of the present invention, comprise sheet material 1, the front of sheet material 1 is provided with UV putty layer 4, the back side of sheet material 1 is provided with UV sealing enamelled coating 3, the outside that the periphery of sheet material 1, UV sealing enamelled coating 3 and UV putty layer 4 is provided with three layer of the 2nd UV sealing enamelled coating 5, the two UV sealing enamelled coating 5 is provided with a UV glue-line 8 and five layers of UV top coat layer 9.The outside that the outside of described UV top coat layer 9 is provided with the 2nd UV glue-line 7, the two UV glue-lines 7 is provided with bionical film 6, and the outside of bionical film 6 is provided with two-layer the 2nd UV colored paint layer 11.Described the 3rd layer of the 2nd UV sealing enamelled coating 5 is white primers, and its thickness is the 70-110 micron.
A kind of preparation method of architecture inside and outside decoration plate comprises following two big technological processes, and each flow process comprises concrete following steps:
One, priming paint line processing process:
1. fixed thick sanding and dedusting: sheet material positive and negative sand milling is smooth with sander, positive sanding abrasive band 120 orders, back side sanding abrasive band 80 orders, the UV seal coat coating after being beneficial to is even, end phenomenon takes place when preventing UV finish paint sand milling to leak, thereby guarantees that finish paint does not continue to permeate to sheet material; With artificial or dust removal machine the plate surface floating dust is removed, in order to avoid the adhering to of UV putty and UV seal coat after the influence;
2. roller coat back side seal coat and be solidified into UV sealing enamelled coating 3: with single roller roller coating UV seal coat, the curing energy is 250-300 mj/cm2;
3. twice of roller coat UV bleeding agent generates UV bleeding agent layer 2:a whole bucket UV bleeding agent stirred, and it was disperseed after 5-7 minute, with the sponge roller at the even roller coat first pass of the whole outer surface UV of sheet material 1 bleeding agent, edge that especially can not holiday sheet material 1; B places sheet material 1 4-5 hour, is beneficial to the abundant infiltration of bleeding agent; C is coated with the UV bleeding agent second time with sheet material 1 whole outer surface again;
4. infrared rays levelling: the sheet material 1 that infiltration is handled carries out the infrared rays levelling to be handled;
5. positive application UV putty and UV solidify generation UV putty layer 4:a putty machine roller coat UV putty, and b carries out UV and solidifies, and solidifying energy is 80-120 mj/cm
2, UV putty is solidified not exclusively; UV putty is mainly used in sealing board surface defect;
6. three times UV seal coats of roller coat and the two roller roller coat first pass UV seal coats of three layer of the 2nd UV sealing of curing generation enamelled coating 5:a respectively, UV curing, the curing energy is 180-240 mj/cm
2The first pass UV sealing of b enamelled coating is made sanded, and abrasive band 240-320 order is made dust removal process behind the sand milling; C solidifies with second time UV seal coat of curtain coater showering, UV, and solidifying energy is 180-240 mj/cm
2D constitutes white primer with the UV seal coat of curtain coater showering white, and after the infrared rays levelling was handled, UV solidified again, solidified energy force 1200-2000mj/cm
2The effect of first pass UV seal coat is to playing auxiliary reinforcement effect between UV putty, UV bleeding agent and the sheet material 1.Second time the UV seal coat is conducive to showering white background and sheet material 1 better combination;
7. washed ore light: sand flat with the white UV seal coat of washed ore machine with the 3rd time, finish the prime treatment of sheet material, make sheet material become half-finished product plate, abrasive band 320 orders.
Two, roller coat final paint line technological process:
1. dedusting: dust removal process is made on described half-finished product plate surface;
2. roller coat UV glue generates a UV glue-line 8: the surface roller coating UV glue that need be coated with the UV finish paint with roll coater to half-finished product plate; UV solidifies, and solidifying energy is 50-80 mj/cm
2, make the UV adhesive curing incomplete;
3. be coated with five times UV finish paints and solidify five layers of UV top coat layer 9:a of generation roll coater roller coat first pass UV finish paint, UV solidifies, and solidifies energy l00-600 mj/cm
2B roller coat UV finish paint second time: with second time UV finish paint of roll coater roller coat, UV solidifies, and solidifies energy l00-600 mj/cm
2C solidifies with the 3rd time UV finish paint of roll coater roller coat, UV, solidifies energy l00-600 mj/cm
2D roll coater roller coat UV glue, UV solidifies, and the curing energy is 50-80mj/cm
2, UV glue is not exclusively solidified; E the 4th time UV finish paint of roll coater roller coat; F is with the 5th time UV finish paint of curtain coater showering, to increase the plumpness of finish paint; Behind the g elder generation infrared rays levelling, carry out UV curing again and make the decorating inner and external walls plate, solidify energy 1200-2000mj/cm
2For preventing that the decorating inner and external walls plate from damaging, internally decorative plate of outer wall covers diaphragm and packing.Find through a large amount of experiment, just can both increase the hiding rare of paint in being coated with five times UV finish paints less in worker's technology, guarantee the real colour of decorative panel, can make the case hardness of decorative panel reach instructions for use again.
Permeate the blanking time of number of times, infiltration in the manufacturing process by control, and adopt and to be coated with behind bleeding agent, putty, the seal coat together that UV solidifies, it is the processing technology of ultraviolet light polymerization, make sheet material 1, UV bleeding agent, UV putty, UV seal coat form solid netted macromolecular structure, the technical barrier of poor adhesion between dope layer, dope layer and 1 poor adhesion of sheet material, sheet material boiling water resistance difference and plate bursting can be solved, and decorating inner and external walls plate mechanical and physical performance can be significantly improved.
The decorating inner and external walls plate can reach following performance indications in the building that above-mentioned technological process is produced:
1, fiber reinforced calcium silicate board or fiber cement board performance indications

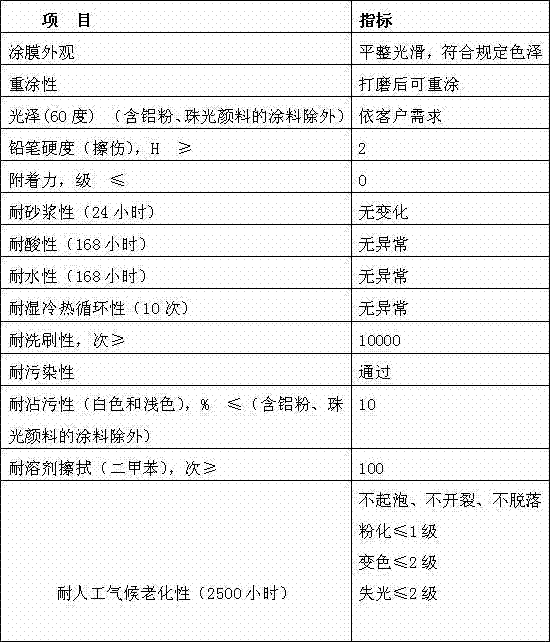

2, paint film property index:
Compare with other decorative panel performances
| Project | UV fluorine carbon architecture inside and outside decoration plate | Tradition fluorine carbon decorative panel | Solvent-type acrylic polyurethane decoration plate |
| Outdoor durable | The best material of anti-the outdoor aging, the paint film life-span surpasses 20 years, artificial accelerated aging 3000 hours, scrubbing resistance 12000 times | Paint film life-span 15-20, artificial accelerated aging were greater than 2500 hours, and scrubbing resistance is greater than 10000 times | The coating durability has 5-8, very easily blackening of 2-3, dirty, and there is the dirty mark of blackout, tear stains on the surface |
| Corrosion resistance | Comprising the medium-term and long-term use of corrosive atmospheres such as industrial atmosphere, acid rain, salt fog, salt spray resistance was greater than 2000 hours | Salt spray resistance was greater than 1500 hours | Salt spray resistance was greater than 500 hours |
| Adhesive power | Fluorine carbon special putty can carry out deep physics and chemical bond and firm attachment with base material, cross cut test=0 | Cross cut test＜1 | Very easily bubble, chap, peel off |
| Water proofing property | Coating structure is tight, and repellency is extremely strong, through boiling water boiling in 48 hours, and 500 hours warm water immersion no changes | Through boiling in 3 hours, easily peel off | Structure does not have the mystery of fluororine-carbon coating, and permeability is big |
| Alkali resistance | It is very excellent to be equipped with import alkali resistance of pigment, saponifiability etc. | Alkali resistance, saponifiability etc. are outstanding | Be subject to metope alkalescence good fortune.Influence ornamental for a long time |
| Stain resistance | Compact structure, dustiness are difficult for being stained with | Compact structure, dustiness are difficult for being stained with | Mutation is black, dirty, needs powerful the cleaning |
| Resistance to fungi | Except mould was difficult for adhering to, base-material was the non-nutrient of mould, and mildew resistance is fabulous | Mildew resistance is good | With the fluorocarbon coating property compared not |
| Hardening time | Do solid work 3-5 second | The fastest surface drying was done solid work 24 hours more than 1200 seconds | |
| Solidification temperature | Normal temperature | 180-250 ℃ of baking | |
| Solid content | 95% | ＜50% | ＜50% |
By the above table contrast as can be known, described architecture inside and outside decoration plate is compared with existing similar sheet material has significant superiority.
For making the decorating inner and external walls plate have more real bionical effect, for example make the decorative panel external surface that real wood grain or marble grain are arranged, described decorating inner and external walls plate is handled according to the following steps and is generated the bionical decorative panel with bionical effect:
1. dedusting: described decorating inner and external walls plate is carried out dust removal process;
2. roller coat UV glue and curing generate the 2nd UV glue-line 7: with roll coater roller coat UV glue, the UV semi-solid preparation: solidifying energy is 50-80 mj/cm
2, UV glue is not exclusively solidified;
3. paste the UV transfer film with bionical effect and constitute bionical film 6: with UV transfer film gluing and overlay on the decorating inner and external walls plate, UV solidifies: guarantee the disposable energy 1200-2000mj/cm of passing through with UV transfer printing laminator
2With the automatic film rolling machine basement membrane is rolled, namely removed the PET basement membrane;
4. infrared rays levelling;
5. roller coat UV glue generates the 3rd UV glue-line 10: with roll coater roller coat UV glue, UV solidifies, and solidifying energy is l00-200 mj/cm
2UV glue is not exclusively solidified;
6. be coated with twice UV finish paint and solidify generation the 2nd UV colored paint layer 11:a roll coater roller coat first pass UV finish paint, UV solidifies, and the curing energy is 180-240mj/cm2; B second time UV finish paint of curtain coater showering, the plumpness of increase finish paint, the infrared rays levelling, UV solidifies, and solidifies energy 1200-2000mj/cm2; Make the decorating inner and external walls plate with bionical effect.
The UV transfer film is the PET basement membrane that is provided with specific color or patterned coatings.The UV transfer film is affixed on the decorating inner and external walls plate, makes the epilamellar coating of PET be printed on plate surface, the PET basement membrane that then will lose coating is removed.
The device of infrared rays levelling is existing infrared rays leveling machine.Described UV finish paint is the ultraviolet curing fluorocarbon coating.
Described sheet material 1 is fiber reinforced calcium silicate board, its proportion: interior wall 1.2-1.35g/cm3, exterior wall 1.4-1.9 g/cm3 and moisture content 8-10%.Be 3-10 second described hardening time.The device that described UV solidifies is high-pressure sodium lamp, iron lamp or Iodine gallium light.The temperature of infrared rays levelling: 50-60 ℃, time 0.5-1 minute.Step in the priming paint line processing process 3. described in the temperature of UV bleeding agent be 30-40 ℃, and the requirement of twice roller coat is respectively, for the first time UV bleeding agent 60g/ ㎡, UV bleeding agent 20g/ ㎡ for the second time.
Claims (7)
1. the preparation method of architecture inside and outside decoration plate, it is characterized in that: comprise following two big technological processes, each flow process comprises concrete following steps:
One, priming paint line processing process:
1. fixed thick sanding and dedusting: sheet material positive and negative sand milling is smooth with sander, positive sanding abrasive band 120 orders, back side sanding abrasive band 80 orders, the UV seal coat coating after being beneficial to is even, end phenomenon takes place when preventing UV finish paint sand milling to leak, thereby guarantees that finish paint does not continue to permeate to sheet material; With artificial or dust removal machine the plate surface floating dust is removed, in order to avoid the adhering to of UV putty and UV seal coat after the influence;
2. roller coat back side seal coat and be solidified into UV sealing enamelled coating (3): with single roller roller coating UV seal coat, the curing energy is 250-300 mj/cm2;
3. roller coat UV bleeding agent is twice: a stirs whole bucket UV bleeding agent, and it was disperseed after 5-7 minute, with the sponge roller at the even roller coat first pass of the whole outer surface UV of sheet material (1) bleeding agent, edge that especially can not holiday sheet material (1); B places sheet material (1) 4-5 hour, is beneficial to the abundant infiltration of bleeding agent; C is coated with the UV bleeding agent second time with sheet material (1) whole outer surface again;
4. infrared rays levelling: the sheet material (1) that infiltration is handled carries out the infrared rays levelling to be handled;
5. positive application UV putty and UV solidify generation UV putty layer (4): a putty machine roller coat UV putty, and b carries out UV and solidifies, and solidifying energy is 80-120 mj/cm
2, UV putty is solidified not exclusively; UV putty is mainly used in sealing board surface defect;
6. three times UV seal coats of roller coat and the two roller roller coat first pass UV seal coats of three layer of the 2nd UV sealing of curing generation enamelled coating (5): a respectively, UV curing, the curing energy is 180-240 mj/cm
2The first pass UV sealing of b enamelled coating is made sanded, and abrasive band 240-320 order is made dust removal process behind the sand milling; C solidifies with second time UV seal coat of curtain coater showering, UV, and solidifying energy is 180-240 mj/cm
2D is with the UV seal coat of curtain coater showering white, and after the infrared rays levelling was handled, UV solidified again, solidified energy force 1200-2000mj/cm
2
7. washed ore light: sand flat with the white UV seal coat of washed ore machine with the 3rd time, finish the prime treatment of sheet material, make sheet material become half-finished product plate, abrasive band 320 orders;
Two, roller coat final paint line technological process:
1. dedusting: dust removal process is made on described half-finished product plate surface;
2. roller coat UV glue generates a UV glue-line (8): the surface roller coating UV glue that need be coated with the UV finish paint with roll coater to half-finished product plate; UV solidifies, and solidifying energy is 50-80 mj/cm
2, make the UV adhesive curing incomplete;
3. be coated with five times UV finish paints and solidify generation five layers of UV top coat layer (9): a roll coater roller coat first pass UV finish paint, UV solidifies, and solidifies energy l00-600 mj/cm
2B roller coat UV finish paint second time: with second time UV finish paint of roll coater roller coat, UV solidifies, and solidifies energy l00-600 mj/cm
2C solidifies with the 3rd time UV finish paint of roll coater roller coat, UV, solidifies energy l00-600 mj/cm
2D roll coater roller coat UV glue, UV solidifies, and solidifying energy is 50-80mj/ cm
2, UV glue is not exclusively solidified; E the 4th time UV finish paint of roll coater roller coat; F is with the 5th time UV finish paint of curtain coater showering, to increase the plumpness of finish paint; Behind the g elder generation infrared rays levelling, carry out UV curing again and make decorative plate of outer wall, solidify energy 1200-2000mj/cm
2
2. the preparation method of architecture inside and outside decoration plate according to claim 1 is characterized in that: described decorative plate of outer wall is handled according to the following steps and is generated the bionical decorative panel with bionical effect:
1. dedusting: described decorative plate of outer wall is carried out dust removal process;
2. roller coat UV glue and curing generate the 2nd UV glue-line (7): with roll coater roller coat UV glue, the UV semi-solid preparation: solidifying energy is 50-80 mj/cm
2, UV glue is not exclusively solidified;
3. paste the UV transfer film with bionical effect and constitute bionical film (6): with UV transfer film gluing and overlay on decorative plate of outer wall, UV solidifies: guarantee the disposable energy 1200-2000mj/cm of passing through with UV transfer printing laminator
2With the automatic film rolling machine basement membrane is rolled, namely except the PET basement membrane;
4. infrared rays levelling;
5. roller coat UV glue generates the 3rd UV glue-line (10): with roll coater roller coat UV glue, UV solidifies, and solidifying energy is l00-200 mj/cm
2UV glue is not exclusively solidified;
6. be coated with twice UV finish paint and solidify generation the 2nd UV at colored paint layer (11): a roll coater roller coat first pass UV finish paint, UV solidifies, and the curing energy is 180-240mj/cm2; B second time UV finish paint of curtain coater showering, the plumpness of increase finish paint, the infrared rays levelling, UV solidifies, and solidifies energy 1200-2000 mj/cm
2Make the decorative plate of outer wall with bionical effect.
3. the preparation method of architecture inside and outside decoration plate according to claim 1, it is characterized in that: described sheet material (1) is fiber reinforced calcium silicate board, its proportion: interior wall 1.2-1.35g/cm3, exterior wall 1.5-1.9 g/cm3 and moisture content 8-10%.
4. the preparation method of architecture inside and outside decoration plate according to claim 1 and 2 is characterized in that: be 3-10 second described hardening time.
5. the preparation method of architecture inside and outside decoration plate according to claim 1 and 2 is characterized in that: the device that described UV solidifies is high-pressure sodium lamp, iron lamp or Iodine gallium light.
6. the preparation method of architecture inside and outside decoration plate according to claim 1 and 2 is characterized in that: the temperature of infrared rays levelling: 50-60 ℃, time 0.5-1 minute.
7. the preparation method of architecture inside and outside decoration plate according to claim 1, it is characterized in that: the step in the priming paint line processing process 3. described in the temperature of UV bleeding agent be 30-40 ℃, and, the requirement of twice roller coat is, for the first time UV bleeding agent 60g/ ㎡, UV bleeding agent 20g/ ㎡ for the second time.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201110389794.1A CN102425284B (en) | 2011-11-30 | 2011-11-30 | Manufacturing method of building inner and outer wall decorating plate |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201110389794.1A CN102425284B (en) | 2011-11-30 | 2011-11-30 | Manufacturing method of building inner and outer wall decorating plate |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN102425284A CN102425284A (en) | 2012-04-25 |
| CN102425284B true CN102425284B (en) | 2013-07-10 |
Family
ID=45959309
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201110389794.1A Active CN102425284B (en) | 2011-11-30 | 2011-11-30 | Manufacturing method of building inner and outer wall decorating plate |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN102425284B (en) |
Families Citing this family (24)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102950923B (en) * | 2012-11-02 | 2015-12-16 | 扬州万盛实业有限公司 | A kind of method of glass fiber reinforced plastic flat plate transfer printing |
| CN103195223B (en) * | 2013-04-11 | 2016-05-11 | 深圳市明远建材科技有限公司 | A kind of imitation stone thermal insulating decoration composite plate and manufacture method thereof |
| CN103696546B (en) * | 2013-12-17 | 2016-05-11 | 佛山澳特板业有限公司 | A kind of antibiotic cement scutum and preparation method thereof |
| CN103696553B (en) * | 2013-12-17 | 2016-05-11 | 佛山澳特板业有限公司 | A kind of cement scutum surface high definition air brushing processing method and the cement scutum with air brushing |
| CN103696557B (en) * | 2013-12-17 | 2017-01-04 | 佛山澳特板业有限公司 | The cementaceous floor of a kind of band air brushing and surface high definition air brushing processing method thereof |
| CN105715007A (en) * | 2014-12-03 | 2016-06-29 | 刘淑珍 | High-simulated decorative plate and production process thereof |
| CN104989045B (en) * | 2014-12-29 | 2018-01-30 | 中关村人居环境工程与材料研究院 | A kind of ultra-violet curing transfer bloom decorative panel and its manufacture method |
| CN104989047B (en) * | 2014-12-29 | 2017-10-27 | 中关村人居环境工程与材料研究院 | A kind of ultraviolet curing chromatic dumb light decorative panel and its manufacture method |
| CN105882175A (en) * | 2015-01-26 | 2016-08-24 | 湖南邦弗特新材料技术有限公司 | Application technique of UV outdoor screen printing ink |
| CN105113732A (en) * | 2015-08-13 | 2015-12-02 | 重庆科恒建材集团有限公司 | Production process of thermal insulation and decoration composite boards |
| CN105507528A (en) * | 2015-12-07 | 2016-04-20 | 无锡捷阳节能科技股份有限公司 | Scratch-proof heat-insulating and decorating integrated board |
| CN105804368A (en) * | 2016-05-09 | 2016-07-27 | 苏州群力防滑材料有限公司 | Preparation method of antiskid plate |
| CN106121165A (en) * | 2016-06-21 | 2016-11-16 | 四川豪意木制品制造有限公司 | A kind of wallboard new material structures and construction method |
| CN106000835A (en) * | 2016-06-30 | 2016-10-12 | 卓达新材料科技集团威海股份有限公司 | Photo-curing film-covered panel improvement process |
| CN106346598A (en) * | 2016-09-18 | 2017-01-25 | 重庆中技万彩世界实业有限公司 | Production method of marbleizing antibacterial decorating board |
| ES2843536T3 (en) * | 2017-01-13 | 2021-07-19 | Akzenta Paneele Profile Gmbh | Wall or floor panel with structured and decorated surface, based on fiber cement board |
| CN108043692A (en) * | 2017-11-30 | 2018-05-18 | 赵德存 | A kind of production technology of anti-bacterial fibre cement coated plate |
| CN109909137A (en) * | 2017-12-13 | 2019-06-21 | 惠州市长润发涂料有限公司 | A kind of plate timber UV coating construction process |
| CN108166699A (en) * | 2018-01-29 | 2018-06-15 | 广西福美新材料有限公司 | A kind of metal sheet and its manufacturing method of textured decorative effect |
| CN109111592A (en) * | 2018-06-05 | 2019-01-01 | 中山易必固新材料科技有限公司 | High adhesion force high-weatherability foamed board and its manufacture craft based on electronic beam curing |
| CN109057213A (en) * | 2018-10-12 | 2018-12-21 | 北京英特威迅建筑装饰工程有限公司 | A kind of UV decorative panel of 3D printing assembly line and the flow line production |
| CN110027339A (en) * | 2019-05-10 | 2019-07-19 | 广东阿特斯科技有限公司 | A kind of sheet printing technology without spraying forced fluid |
| CN111231449A (en) * | 2020-01-16 | 2020-06-05 | 深圳市大昆仑数码科技有限公司 | Film pasting method for metal plate |
| CN112403862A (en) * | 2020-10-27 | 2021-02-26 | 陕西建工建材科技有限公司 | High-flatness high-adhesion UV decorative plate and processing method thereof |
Family Cites Families (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN1307008C (en) * | 2004-04-23 | 2007-03-28 | 珠海东诚化工有限公司 | Manufacturing method of metal decorative plate |
| CN200975081Y (en) * | 2006-11-29 | 2007-11-14 | 徐清江 | Light weight and high intensity thermal insulation heat-barrier material decorated sheet |
| CN101158210A (en) * | 2007-06-20 | 2008-04-09 | 珠海东诚化工有限公司 | Ultraviolet curing chromatic wall decoration board and preparation method thereof |
| CN101235672B (en) * | 2008-03-06 | 2010-09-29 | 珠海东诚光固化材料有限公司 | Ultraviolet light curing overlay film decorative board for wall and method for making same |
| CN201195925Y (en) * | 2008-04-23 | 2009-02-18 | 谢雅各 | Natural marble-imitating energy-saving composite thermal insulation decorative board |
| CN101289891A (en) * | 2008-06-14 | 2008-10-22 | 渠秋 | Light cured fluorine carbon veneer polyurethane thermal insulation board and its manufacturing technique |
| CN101337366B (en) * | 2008-07-31 | 2010-07-28 | 浙江永吉木业有限公司 | A kind of production method of floor |
| JP5208804B2 (en) * | 2009-02-25 | 2013-06-12 | セーレン株式会社 | Building board manufacturing method |
| CN101531114B (en) * | 2009-04-22 | 2012-09-26 | 黄醒帆 | A surface treatment process of wall decorative board |
-
2011
- 2011-11-30 CN CN201110389794.1A patent/CN102425284B/en active Active
Also Published As
| Publication number | Publication date |
|---|---|
| CN102425284A (en) | 2012-04-25 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN102425284B (en) | Manufacturing method of building inner and outer wall decorating plate | |
| CN100548602C (en) | A kind of processing method of decorative panel | |
| CN105421697A (en) | Environment-friendly wall decoration plate and preparing method of environment-friendly wall decoration plate | |
| CN102744190B (en) | Coating method for imitating marble effect | |
| CN110325486A (en) | Fiber cement floor product and method of making the same | |
| CN103184785B (en) | A kind of coating application technique | |
| CN101886463B (en) | High water-resistant stone-like coating building inner and outer wall construction method | |
| CN212405859U (en) | Novel inorganic board of precoating | |
| CN201471810U (en) | High abrasion-resistant and high-strength architectural decoration film faced plywood | |
| JP2012519787A (en) | Wall tile mold for wall decoration, and method for manufacturing wall tile for wall decoration on site using the mold | |
| CN205100480U (en) | A radiation-cured color printing decorative plate | |
| CN104210178A (en) | Plate transfer-printed by transfer film and manufacturing method thereof | |
| CN102962184A (en) | Surface treatment method for marble-imitated vein and marble-imitated vein decorating plate | |
| CN102259085A (en) | Application of water-based metal paint in sgraffito coating process | |
| CN102392516A (en) | Productive technique for multicolor granite aluminum composite panel | |
| CN110341367A (en) | A kind of cladding plaque production technology of backing strip | |
| CN213868650U (en) | Stone imitation decorative layer for building exterior wall | |
| CN103992061A (en) | Stain-resistant stone-like coating | |
| CN204531260U (en) | F-C paint chromatography inorganic pre-coating decorative plaques | |
| CN104989047B (en) | A kind of ultraviolet curing chromatic dumb light decorative panel and its manufacture method | |
| CN205314443U (en) | UV interior wall decorative board | |
| CN107989297A (en) | A kind of finish coat and preparation method thereof | |
| CN209292235U (en) | A kind of dedicated shell enamel coating structure of water amusement park | |
| CN219033684U (en) | Surface Finishing Structures for Ultra High Performance Concrete Curtain Wall Panels | |
| CN212376101U (en) | Novel dry-hanging curtain wall decorative plate |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C06 | Publication | ||
| PB01 | Publication | ||
| C10 | Entry into substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| C14 | Grant of patent or utility model | ||
| GR01 | Patent grant | ||
| ASS | Succession or assignment of patent right |
Owner name: SHANDONG QIANGGUAN BUILDING MATERIALS TECHNOLOGY C Free format text: FORMER OWNER: ZHAO DECUN Effective date: 20150909 |
|
| C41 | Transfer of patent application or patent right or utility model | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20150909 Address after: 271600 Feicheng hi tech Industrial Development Zone, Tai'an City, east of the city of Victoria Avenue Patentee after: Shandong Wall Building Materials Technology Co.,Ltd. Address before: 271600 Shandong city of Tai'an province Feicheng Train Station South Yan Ji Road, No. 024 Patentee before: Zhao Decun |
|
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20181228 Address after: 271608 Muzhuang Village, Wang Guadian Street Office, Feicheng City, Tai'an City, Shandong Province Patentee after: SHANDONG LUTAI BUILDING INDUSTRIALIZATION MATERIAL Co.,Ltd. Address before: 271600 East of Kanghui Street, Feicheng High-tech Industrial Development Zone, Taian City, Shandong Province Patentee before: Shandong Wall Building Materials Technology Co.,Ltd. |
|
| PE01 | Entry into force of the registration of the contract for pledge of patent right |
Denomination of invention: The making method of the decorative board for the interior and exterior walls of buildings Effective date of registration: 20210629 Granted publication date: 20130710 Pledgee: Taian Bank Co.,Ltd. Feicheng Branch Pledgor: SHANDONG LUTAI BUILDING INDUSTRIALIZATION MATERIAL Co.,Ltd. Registration number: Y2021980005468 |
|
| PE01 | Entry into force of the registration of the contract for pledge of patent right | ||
| PC01 | Cancellation of the registration of the contract for pledge of patent right |
Date of cancellation: 20220621 Granted publication date: 20130710 Pledgee: Taian Bank Co.,Ltd. Feicheng Branch Pledgor: SHANDONG LUTAI BUILDING INDUSTRIALIZATION MATERIAL Co.,Ltd. Registration number: Y2021980005468 |
|
| PC01 | Cancellation of the registration of the contract for pledge of patent right | ||
| PE01 | Entry into force of the registration of the contract for pledge of patent right |
Denomination of invention: Fabrication method of interior and exterior wall decorative panels of buildings Effective date of registration: 20220622 Granted publication date: 20130710 Pledgee: Taian Bank Co.,Ltd. Feicheng Branch Pledgor: SHANDONG LUTAI BUILDING INDUSTRIALIZATION MATERIAL Co.,Ltd. Registration number: Y2022980008520 |
|
| PE01 | Entry into force of the registration of the contract for pledge of patent right | ||
| PC01 | Cancellation of the registration of the contract for pledge of patent right |
Date of cancellation: 20220902 Granted publication date: 20130710 Pledgee: Taian Bank Co.,Ltd. Feicheng Branch Pledgor: SHANDONG LUTAI BUILDING INDUSTRIALIZATION MATERIAL Co.,Ltd. Registration number: Y2022980008520 |
|
| PC01 | Cancellation of the registration of the contract for pledge of patent right | ||
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20220915 Address after: 271600 east of Muzhuang village mining street and north of Muzhuang Park Road, Wangguadian sub district office, Feicheng City, Tai'an City, Shandong Province Patentee after: Shandong Lutai fabricated decoration materials Co.,Ltd. Address before: 271608 Muzhuang Village, Wang Guadian Street Office, Feicheng City, Tai'an City, Shandong Province Patentee before: SHANDONG LUTAI BUILDING INDUSTRIALIZATION MATERIAL Co.,Ltd. |
