Abstract
The invention discloses a non-bearing insulating brick with high compressive strength, high fireproof grade, good thermal insulation effect, and good flame retardant performance, comprising the following ingredients: 35-45 %(v/v) of ceramic pellets, 20-25 %(v/v) of vitrified micro bubbles, 10-15 %(v/v) of pumice stone or slag, 8-12 %(v/v) of cement, 3-5 %(v/v) of fly ash, 3-5 %(v/v) of lime, 2-3 %(v/v) of FTC phase change energy storage thermal insulation material, 2-3 %(v/v) of gypsum, 1-3 %(v/v) of asbestos or rock wool, and 1-2 %(v/v) of additive, wherein, the additive comprises 3-4 weight portions of early strength agent, 3-4 weight portions of air entraining agent, 1-2 weight portions of water reducing agent, and 1-2 weight portions of water repellent. The non-bearing insulating brick can be prepared into solid brick, perforated brick and other types and specifications, is convenient for construction and can reduce the bearing capacity of foundation soil, so that the non-bearing insulating brick is suitable for constructional building envelope, especially for high-rise buildings.
Description
Technical field
The present invention relates to building brick, particularly a kind of non-bearing insulating brick.
Background technology
At present building constructions adopts skeleton construction more, Highrise buildings particularly, and body of wall normal operation concrete hollow block or hollow brick assemble and form.Existing concrete hollow block or hollow brick heat insulation effect are poor, therefore after body of wall assembles wall face or interior metope also to smear certain thickness thermal insulation mortar or outside paste warming plate, loaded down with trivial details, the long construction period of not only constructing, and the easy hollowing cracking of metope, have a strong impact on heat insulation effect, and thermal insulation layer is short work-ing life; Particularly the outer styrofoam fire retardant performance that pastes is poor, just can burn and discharge a large amount of toxic gases in case run into naked light, brings great potential safety hazard.
Summary of the invention
It is high that the technical problem to be solved in the present invention provides a kind of ultimate compression strength and fire-protection rating, insulation, good flame retardation effect, and easy construction, quick has phase transition performance and is suitable for the non-bearing insulating brick of building enclosure for building.
Non-bearing insulating brick involved in the present invention; consist of according to the volume percent raw material: haydite 35%～45%, glass bead 20～25%, float stone or slag 10～15%, cement 8～12%, flyash 3～5%, lime 3～5%, FTC phase-changing energy-storing lagging material 2～3%, gypsum 2～3%, asbestos or rock wool 1～3%, admixture 1～2%, described admixture is comprised of 1～2 part of 3～4 parts of hardening accelerator, 3～4 parts of air entrapment agents, 1～2 part of water reducer and hydrophober according to the parts by weight meter.
Particle diameter is 5-10mm after above-mentioned float stone or the slag fragmentation, and the length of asbestos or rock wool is 5-10mm.
Above-mentioned raw material consists of according to volume percent: haydite 39%, glass bead 22%, float stone 13%, cement 10%, flyash 4%, lime 4%, FTC phase-changing energy-storing lagging material 2.5%, gypsum 2.5%, asbestos 2% and admixture 1%, described admixture is comprised of 1.5 parts of 3.5 parts of hardening accelerator, 3.5 parts of air entrapment agents, 1.5 parts of water reducers and hydrophober according to the parts by weight meter.
In the raw material of the present invention: haydite is larger owing to relative density in the moulding process of brickmaking as a kind of light-weight aggregate, therefore can sink to forming gradually the link of relative heavy aggregate in the process of vibrating, and will greatly improve the ultimate compression strength of this non-bearing insulating brick.Float stone or slag can increase the degree of compactness of brick as fine aggregate, improve the mechanical strength of brick.The density of glass bead is relatively light, can play the effect of filling, insulation, thermal insulation, Fang Huo ﹑ sound-absorbing as light filler.Cement, lime and gypsum are mainly as consolidating material and packing material.Flyash plays the workability of regulating concrete and the effect that admixture is played a role.Asbestos or rock wool play the cracking resistance effect, and can reduce dried shrinking percentage, increase the folding strength of brick.FTC phase-changing energy-storing lagging material is a kind of phase change material, has heat absorption, accumulation of heat and heat release function.Hardening accelerator in the admixture can shorten the time of coagulation of cement, improves early strength; Air entrapment agent in the admixture can be increased in the closed pore number of bubbles that forms in the brick, improves heat insulation effect, and improves the workability of mixture; Water reducer and hydrophober can reduce water-intake rate and the relative moisture content of this non-bearing insulating brick.The advantage of the non-bearing insulating brick made from above-mentioned raw materials is: ultimate compression strength and folding strength significantly improve, and ultimate compression strength can reach 7.5Mpa, and folding strength can reach 2.2 Mpa, and fire-protection rating is high, reaches the A level; Insulation, fire-retardant, soundproof effect good, need not to do exterior-wall heat insulation with the body of wall of its construction again, can shorten construction period, simplify construction technology, reduce building cost; Density is little, lightweight, and density can be made into all kinds and the specifications such as solid brick, perforated brick near 1/3rd of sintered common clay brick, constructability not only, and can reduce bearing capacity of foundation soil, and be suitable for building enclosure for building, be particularly suitable for Highrise buildings and use.
Embodiment
Embodiment 1
The raw material that non-bearing insulating brick involved in the present invention uses consists of according to volume percent: haydite 35%, glass bead 25%, float stone 10%, cement 12%, flyash 3%, lime 5%, FTC phase-changing energy-storing lagging material 3%, gypsum 3%, asbestos 3% and admixture 1%.Described admixture is comprised of 2 parts of 3 parts of concrete early strength agents, 4 parts of concrete air-entrainers, 1 part of cement water reducing agent and cement water repellents according to the parts by weight meter, and particle diameter is 5-10mm after the described float stone fragmentation, and the length of asbestos is 5-10mm.
Step is as follows during brickmaking: 1, premixing siccative, and described raw material mix and blend 5 minutes in forced mixer is even with raw material stirring, obtain pulverulent material; 2, add water and stir, amount of water is 6% of raw material gross weight, stirs 5 minutes, is thick to material; 3, material is drawn off and by material distributing machine material is distributed into the brick press bed die, vibrated 3 minutes under in the brick press bed die; 4, start the brick press mold and press down compressed moulding; 5, withdraw from the adobe of moulding, and with high temperature steam curing 10 days, can obtain this non-bearing insulating brick finished product.
Embodiment 2
The raw material that non-bearing insulating brick involved in the present invention uses consists of according to volume percent: haydite 43%, glass bead 20%, float stone 14%, cement 8%, flyash 5%, lime 3%, FTC phase-changing energy-storing lagging material 2%, gypsum 2%, asbestos 1% and admixture 2%.Described admixture is comprised of 1 part of 4 parts of concrete early strength agents, 3 parts of concrete air-entrainers, 2 parts of cement water reducing agents and cement water repellent according to the parts by weight meter, and particle diameter is 5-10mm after the described float stone fragmentation, and the length of asbestos is 5-10mm.
Step is as follows during brickmaking: 1, premixing siccative, and described raw material mix and blend 5 minutes in forced mixer is even with raw material stirring, obtain pulverulent material; 2, add water and stir, amount of water is 10% of raw material gross weight, stirs 6 minutes, is thick to material; 3, material is drawn off and by material distributing machine material is distributed into the brick press bed die, vibrated 5 minutes under in the brick press bed die; 4, start the brick press mold and press down compressed moulding; 5, withdraw from the adobe of moulding, and with high temperature steam curing 15 days, can obtain this non-bearing insulating brick finished product.
Embodiment 3
The raw material that non-bearing insulating brick involved in the present invention uses consists of according to volume percent: haydite 39%, glass bead 22%, float stone 13%, cement 10%, flyash 4%, lime 4%, FTC phase-changing energy-storing lagging material 2.5%, gypsum 2.5%, asbestos 2% and admixture 1%.Described admixture is comprised of 1.5 parts of 3.5 parts of concrete early strength agents, 3.5 parts of concrete air-entrainers, 1.5 parts of cement water reducing agents and cement water repellents according to the parts by weight meter, and particle diameter is 5-10mm after the described float stone fragmentation, and the length of asbestos is 5-10mm.
Step is as follows during brickmaking: 1, premixing siccative, and described raw material mix and blend 5 minutes in forced mixer is even with raw material stirring, obtain pulverulent material; 2, add water and stir, amount of water is 8% of raw material gross weight, stirs 6 minutes, is thick to material; 3, material is drawn off and by material distributing machine material is distributed into the brick press bed die, vibrated 4 minutes under in the brick press bed die; 4, start the brick press mold and press down compressed moulding; 5, withdraw from the adobe of moulding, and with high temperature steam curing 12 days, can obtain this non-bearing insulating brick finished product.

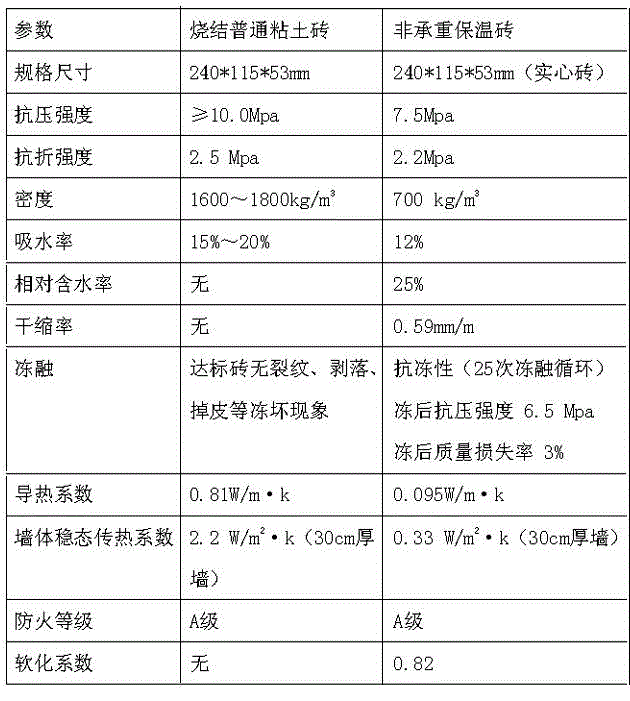

The non-bearing insulating brick finished product that this example makes and the contrast of the performance perameter of sintered common clay brick are as shown in table 1:
FTC phase-changing energy-storing lagging material among above-described embodiment 1-embodiment 3 specifically can adopt GH-FTC phase-changing energy-storing fire-retardant heat-insulation material, and float stone can replace with slag, asbestos can replace with rock wool, and particle diameter is 5-10mm after the slag fragmentation, and the length of rock wool is 5-10mm.
Claims (3)
1. non-bearing insulating brick; it is characterized in that: consist of according to the volume percent raw material: haydite 35%～45%, glass bead 20～25%, float stone or slag 10～15%, cement 8～12%, flyash 3～5%, lime 3～5%, FTC phase-changing energy-storing lagging material 2～3%, gypsum 2～3%, asbestos or rock wool 1～3%, admixture 1～2%, described admixture is comprised of 1～2 part of 3～4 parts of hardening accelerator, 3～4 parts of air entrapment agents, 1～2 part of water reducer and hydrophober according to the parts by weight meter.
2. non-bearing insulating brick according to claim 1, it is characterized in that: particle diameter is 5-10mm after float stone or the slag fragmentation, the length of asbestos or rock wool is 5-10mm.
3. non-bearing insulating brick according to claim 1 and 2; it is characterized in that: described raw material consists of according to volume percent: haydite 39%, glass bead 22%, float stone 13%, cement 10%, flyash 4%, lime 4%, FTC phase-changing energy-storing lagging material 2.5%, gypsum 2.5%, asbestos 2% and admixture 1%, described admixture is comprised of 1.5 parts of 3.5 parts of hardening accelerator, 3.5 parts of air entrapment agents, 1.5 parts of water reducers and hydrophober according to the parts by weight meter.
