CN102295228B - Steel sling for steel column - Google Patents
Steel sling for steel column Download PDFInfo
- Publication number
- CN102295228B CN102295228B CN 201110234900 CN201110234900A CN102295228B CN 102295228 B CN102295228 B CN 102295228B CN 201110234900 CN201110234900 CN 201110234900 CN 201110234900 A CN201110234900 A CN 201110234900A CN 102295228 B CN102295228 B CN 102295228B
- Authority
- CN
- China
- Prior art keywords
- base plate
- steel
- steel column
- spreader
- lifting holes
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Conveying And Assembling Of Building Elements In Situ (AREA)
Abstract
本发明公开了一种钢制钢柱吊具，包括吊具基板，所述吊具基板上部的正中位置设置有钓孔，所述吊具基板的两底角部分别设置有吊孔，在所述吊具基板的前面和后面的正中位置分别设置有垂直于所述吊具基板的辅助基板，所述辅助基板设置有吊孔。在使用本发明时，被吊钢柱的吊环由位于钢柱一端的两个增加至四个，本发明的四个吊孔通过钢丝绳分别与四个吊环进行活动连接，本发明的钢制钢柱吊具保证了被吊钢柱在空中的平衡，使钢索、吊点受力合理，增加了吊装钢柱时的安全度，当一根钢丝绳断开时，被吊钢柱还可以保证平衡和安全。
The invention discloses a steel-made steel column hanger, which comprises a hanger base plate, a fishing hole is arranged at the middle position of the upper part of the hanger base plate, two bottom corners of the hanger base plate are respectively set with hanging holes, and Auxiliary base plates perpendicular to the base plate of the spreader are respectively provided at the central positions of the front and back of the base plate of the spreader, and the auxiliary base plates are provided with lifting holes. When using the present invention, the suspension rings of the suspended steel column are increased from two at one end of the steel column to four, and the four lifting holes of the present invention are respectively movably connected with the four suspension rings through steel wire ropes. The steel column of the present invention The spreader ensures the balance of the suspended steel column in the air, makes the force of the steel cable and the lifting point reasonable, and increases the safety when hoisting the steel column. When a steel wire rope is disconnected, the suspended steel column can also ensure balance and Safety.
Description
Technical field
The invention belongs to the realm of building construction, relate to a kind of sling for steel column.
Background technology
At building field, when steel building is installed, the yi word pattern suspender is usually adopted in the at present lifting of steel column, the two ends of this suspender arrange porose, the hole at yi word pattern suspender two ends and the suspension ring of steel column one end both sides are coupled together with steel rope, the suspension hook of weight-lifting equipment is hooked in the middle part of yi word pattern suspender, steel column can be sling come and be transported to the installation position of steel column after carry out welded and installed.This installation is owing to the suspension ring that are steel column one end both sides are sling by weight-lifting equipment by the yi word pattern suspender, if fracture appears in suspension ring, steel column is at the aerial meeting lack of equilibrium of handling, be difficult to install accurately, What is more, and steel column consists of production safety hidden danger from falling in the air.
Summary of the invention
The objective of the invention is to overcome the deficiencies in the prior art, a kind of steel sling for steel column that can safe handling steel column is provided.
Technical scheme of the present invention is summarized as follows:
A kind of steel sling for steel column, comprise spreader substrate, the center position on described spreader substrate top is provided with and angles the hole, two bottom comer of described spreader substrate are provided with respectively lifting hole(eyelet), center position in the front and back of described spreader substrate is respectively arranged with the assisting base plate perpendicular to described spreader substrate, and described assisting base plate is provided with lifting hole(eyelet).
Preferably be provided with brace panel between spreader substrate and the assisting base plate.
Two lifting hole(eyelet)s on the spreader substrate and two lifting hole(eyelet)s of two assisting base plates are positioned on the same level line, and the distance between two lifting hole(eyelet)s of the distance of two lifting hole(eyelet)s on the described spreader substrate and two assisting base plates equates.
Advantage of the present invention: when use is of the present invention, the suspension ring that hung steel column increase to four by two that are positioned at steel column one end, four lifting hole(eyelet)s of the present invention are flexibly connected with four suspension ring respectively by steel rope, steel sling for steel column of the present invention has guaranteed to be hung the skyborne balance of steel column, make cable wire, suspension centre reasonable stress, degree of safety when having increased the lifting steel column when steel cable disconnects, is hung steel column can also guarantee balance and safety.
Description of drawings

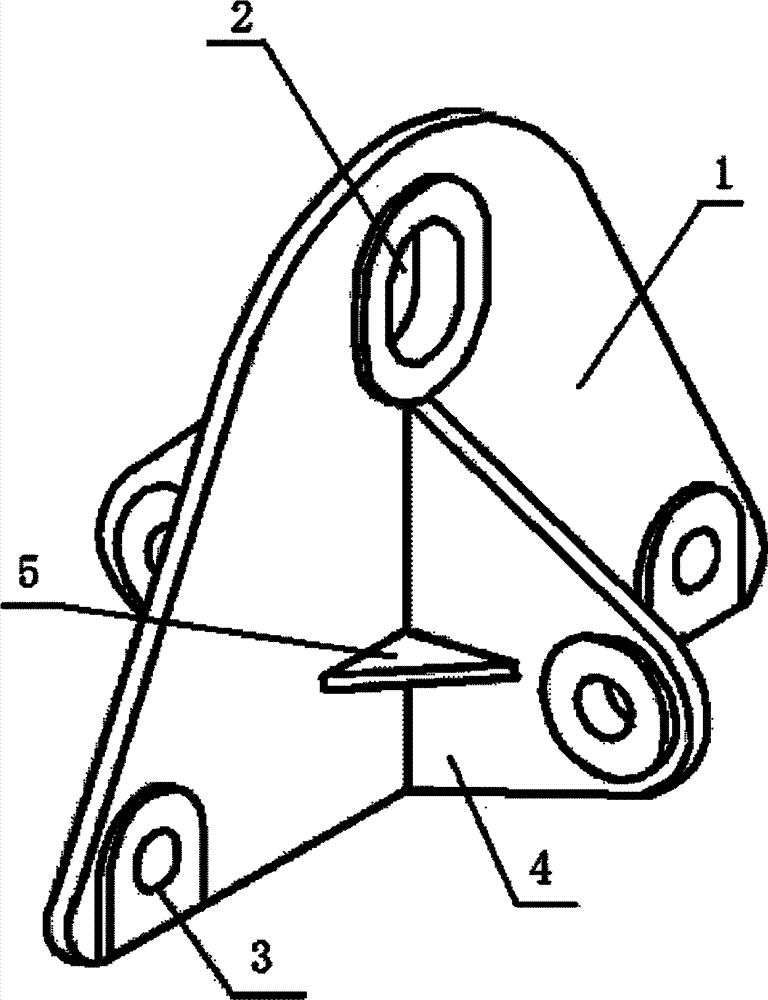

Fig. 1 is structural representation of the present invention.
The specific embodiment
The present invention is further illustrated below by accompanying drawing.
A kind of steel sling for steel column, comprise spreader substrate 1, the center position on spreader substrate top is provided with and angles hole 2, two bottom comer of spreader substrate are provided with respectively lifting hole(eyelet) 3, center position in the front and back of spreader substrate is respectively arranged with the assisting base plate 4 perpendicular to spreader substrate, and assisting base plate is provided with lifting hole(eyelet).
Preferably be provided with brace panel 5 between spreader substrate and the assisting base plate.
Two lifting hole(eyelet)s on the spreader substrate and two lifting hole(eyelet)s of two assisting base plates are positioned on the same level line, and the distance between two lifting hole(eyelet)s of the distance of two lifting hole(eyelet)s on the spreader substrate and two assisting base plates equates.
