Abstract

A single floating tube submersible and intensive marine treasure breeding device, including a floating tube, a cage frame and a depth-fixing device. The floating tube is made of a sealed single high-density polyethylene tube, and one end of the floating tube has an inflation and exhaust port. There is an inlet and outlet at the other end; the cage is a rack-shaped steel structure, and there are multi-layer polyethylene sea treasure breeding box cages arranged vertically in the cages on both sides, and block foam floats are tied on both sides of the cage; Bind at least three cages; the depth-fixing device includes slings and sinking stones; the buoyancy of the floating tube in the empty state is greater than the total weight of the cage and the depth-fixing device. According to the growth environment characteristics of marine treasures, the breeding device can be submerged into the bottom of the water or in different water layers for breeding and production through the submersible and floating control technology. Function, snorkeling operation is fast and safe, easy to operate, flexible to move; it is a new type of submersible floating fish reef, and provides a new breeding mode for the construction of marine pastures.

Description

Single floating tube submersible floating intensive marine treasure cultivation device

technical field

The invention relates to the field of marine aquaculture facilities, in particular to a submersible and buoyant intensive sea treasure cultivation device with a single floating tube.

Background technique

In recent years, with the rapid development of my country's economy and the continuous improvement of people's living standards, people's demand for sea treasures is also increasing, thus promoting the development of sea treasures breeding industry.

Sea treasures—sea cucumbers, abalones, sea urchins and other bottom-dwelling marine organisms are generally cultured in the following ways: raft culture, subtidal caisson culture on rocky reefs, enclosed pond culture in intertidal zones, subtidal culture with stone nets, and land-based factories methods such as chemical breeding, bottom broadcasting and streaming multiplication.

Because raft farming needs to adjust the water layer with the change of seasons and sea conditions, sometimes the ropes of the cages are very long, and the irregular water flow can easily cause the mutual entanglement of the breeding cages, which will bring losses to the breeding production; the other is the load of the farming raft frame It is very large. If the weather is bad, the waves are strong and the current is fast, the force of the raft frame will be increased due to the force of the waves and currents, and there is a danger of being uprooted at any time. In caisson farming, reefs are added to the caisson and sunk to the bottom of the water, which makes the work of inspection, feeding, and removal of harmful organisms more cumbersome. It is necessary to use a larger boat with a boom to lift the caisson to the ship for operation, which is more convenient for offshore operations. Management is inconvenient. The operating cost of factory farming is high, the investment in facility construction is large, the energy consumption of large-scale production is large, and the quality and growth speed of sea treasures are not higher than those in natural sea areas. Pond aquaculture and subtidal aquaculture are also plagued by problems such as susceptibility to offshore seawater environment pollution, large water temperature changes, high disease rates, and short aquaculture cycles.

Therefore, research on an efficient submersible and floatable deep-water layer marine intensive device or facility, so that it can expand the breeding sea area to the deep sea, and take advantage of the advantages of deep sea water clarification, smooth tide, relatively stable water temperature, rich bait, and no pollution , Breeding green and pollution-free breeding products in line with the national advocacy. Compared with the above-mentioned traditional farming models, it has a higher survival rate and better product quality, so its development is imperative.

Contents of the invention

The purpose of the present invention is to provide a single floating tube submersible floating intensive sea treasure cultivation device, which is formed by utilizing a high-density polyethylene floating tube to support multiple groups of sea treasure culture cages; its characteristic is that it can According to the characteristics of the benthic growth environment of sea treasures, the single-floating tube culture device is submerged in the bottom of the water or in different water layers for cultivation and production through submerged-floating control technology, creating an ecological environment suitable for the growth of benthic sea treasures. The submersible function allows it to be arranged in relatively open sea areas, and has the functions of resisting strong storm attacks and avoiding red tide disasters, and can also inflate the floating tube at any time when inspection, feeding and harvesting are required to make the single floating tube The submersible-floating aquaculture device floats to the sea surface for operation as a whole, which is fast and safe, easy to operate, and flexible in movement; in addition, the submersible-floating lifting technology of the present invention can also effectively improve the wind and wave resistance of raft aquaculture, and can also be used as a new type of The submersible floating fish reef provides a new breeding mode for the construction of marine ranches.

The single-floating tube submersible-floating intensive sea treasure breeding device of the present invention includes a floating tube, a cage frame and a depth-fixing device, wherein: the floating tube is made of a sealed single high-density polyethylene tube, and the upper side of one end of the floating tube is The wall is provided with charging and exhaust ports, and the lower side wall at the other end is provided with inlet and outlet ports.

The cage is a pannier-shaped steel bar structure, the middle of the pannier-shaped cage is bound on the floating tube, the buoyancy center of the floating tube is above the gravity center of the cage, and the two sides of the cage are welded by steel The boxes with the same external dimensions are formed, and several layers of polyethylene sea treasure breeding special boxes with the same number of layers are placed in each box. The special breeding boxes can be lifted from the upper part of the cage box; Polyethylene foam floats, the configuration buoyancy of the foam floats should be slightly greater than the gravity of each group of cages.

At least three cages are bound on the floating tube, and the distances between the cages are the same, and a safe distance is reserved between the outermost cage and the top of the floating tube.

The depth-fixing device includes a suspension rope and a sinker, the suspension rope is Y-shaped, the two upper ends are respectively tied to the bottoms of both sides of the pannier-shaped cage, and the sinker is bound to the lower end of the suspension rope.

The buoyancy of the full-empty state of the floating tube is greater than the total weight of the cage frame and the depth-fixing device.

In order to ensure the water sealing performance of the floating tube when it is inflated, the side of the inlet and outlet of the floating tube should be slightly lower. lengthened.

The charging and exhausting port is connected with a charging and discharging pipe, and the upper end of the charging and discharging pipe is provided with floating objects and the upper end of the charging and discharging pipe is provided with a floating object and a control valve, which can realize remote control diving control.

Mooring devices are provided at both ends of the floating pipe.

working principle:

Use the buoyancy provided by the closed high-density polyethylene floating tube in seawater to make the submersible floating culture device float on the sea surface normally, open the exhaust pipe valve to deflate, and let the seawater enter the floating tube cabin to change the submersible floating device. buoyancy and gravity, when the buoyancy is less than the gravity of the whole device, the floating tube and the breeding box cage device will sink; otherwise, by inflating the exhaust pipe, the buoyancy of the floating tube cabin will increase, and the floating tube will drive the breeding box cage to gradually float out The water surface; the aquaculture device is moored in the water by mooring at two points at both ends of the floating tube.

Advantages of the present invention: take full advantage of the high-density polyethylene pipe material characteristics of good flexibility, easy hot-melt welding, aging resistance, and high strength, and use it as a floating tube cabin with diving and floating functions; Making cages with high efficiency and low production cost; according to the needs of the benthic breeding environment, using its diving and floating function, submerging in the water for breeding, adjusting the length of the hanging rope at the bottom of the box, it can stagnate in different water layers and effectively resist strong Storm attack and avoid red tide disasters, with high wind and wave resistance performance, can be arranged in open sea areas to expand the breeding sea area.

The invention has the following beneficial effects: its design principle is reasonable, its structure is simple and easy to implement, its cost is low, and it is easy to operate. The diving function of the device is to submerge in deep water areas close to the seabed for cultivation. Taking advantage of the characteristics of low water temperature in summer and relatively high water temperature in winter, the time of aestivation and hibernation of sea cucumbers is shortened, the growth time of sea cucumbers is prolonged, and the advantages of rich baits such as sea cucumbers and sea urchins are fully utilized. Improve output efficiency; according to the floating function of the device, it can also surface to check the growth, bait feeding, harvesting, etc. according to the floating function of the device. It is flexible and maneuverable, and can effectively avoid typhoons and red tides. It has a wide range of applications.

Description of drawings

Fig. 1 is the side view of single-floating tube submersible floating type intensive marine treasure cultivation device of the present invention;

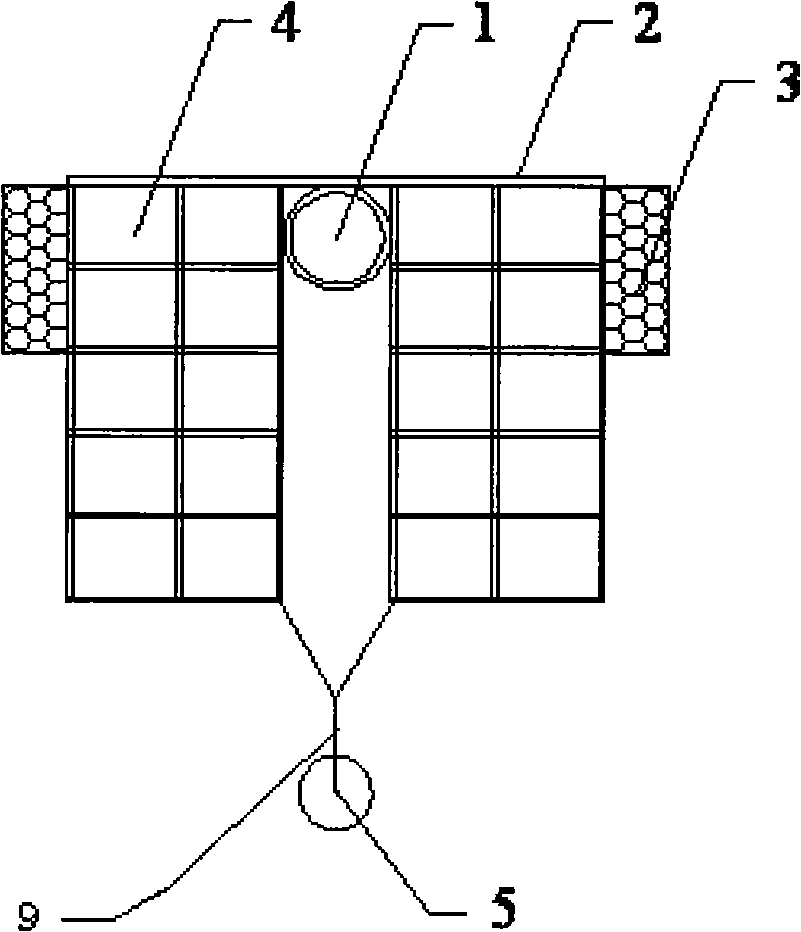

Fig. 2 is an end view of the single-floating tube submersible floating intensive marine treasure cultivation device of the present invention.

Detailed ways

Below in conjunction with the embodiment, the single-floating tube submersible floating intensive marine treasure cultivation device of the present invention will be described in more detail.

Fig. 1 is a side view of a single-floating tube submersible-floating intensive marine treasure cultivation device of the present invention, and Fig. 2 is an end view thereof.

The single-floating-tube submersible-floating intensive marine treasure breeding device of the present invention: a single high-density polyethylene pipe is used as a floating tube 1, a rack-shaped steel structure cage 2, and a block-shaped polymer cage bound on both sides of the cage. Ethylene foam float 3, special box for polyethylene sea treasure breeding 4, sling 9, hanging sinker at the bottom of steel cage frame 5, filling and exhausting port 6, filling and exhausting hose 7, inlet and outlet pipe 8; Both ends of a single floating tube 1 are closed with high-density polyethylene pipe fittings as a floating tube cabin. On the upper side wall of one end of the floating tube cabin, a charging and exhausting port 6 is welded, and the charging and exhausting port 6 is connected to the charging and discharging port. Pipe 7, filling and exhausting pipe 7 adopt high pressure-resistant rubber pipe material to make, and the upper end of filling and exhausting pipe 7 is provided with floater and control valve, can realize remote control diving control.

In the lower part of the other end of the floating tube cabin, inlet and outlet nozzles 8 are set; then every group of pannier-shaped cages 2 that have been prepared are bound to the floating tube 1 at intervals, because it is a panty-shaped design that can ensure that the floating tube 1. The center of buoyancy is above the center of gravity of the cage 2, and block polyethylene foam floats 3 are bound on both sides of the cage 2 to further ensure the vertical balance of the cage 2. The buoyancy of the foam floats 3 is slightly greater than that of each set of steel bars The gravity of the cage frame 2 of the structure; in the sea, multiple groups of cage frames 2 are carried on the rack at a certain interval and bound to a single high-density polyethylene pipe as the floating pipe 1, and the multi-layer polyethylene sea treasures are cultivated. Special case 4 is put into the cage frame 2 of steel structure, then at the bottom of the cage frame of cage frame 2 of every group of steel structure, hang sinking stone 5 at the bottom of the box with suspension rope 9, the size and weight of sinking stone will be according to the sinking and buoyancy force of whole device Calculated, specifically the gravity of each group of hanging sunken stones 5 will be slightly greater than the gravity difference of the cage frame of each group of foam float buoyancy and steel structure, according to the sea area bottom material situation and breeding requirements, adjust the length of suspension rope 9, reach Ability to stagnate in different water layers. The full-empty buoyancy of the floating tube 1 is greater than the total weight of each group of sunken stones, cage frames and culture box cages.

Technical safeguard measures: when the aquaculture device sinks into the bottom of the water and is in a stagnant state, it is necessary to ensure that the end of the high-density polyethylene floating pipe 1 close to the charging and exhaust port 6 is slightly higher than the end of the high-density polyethylene inlet and discharge pipe port 8; the safeguard measures are From the sling 9 at one end of the filling and exhaust port 6 to each sling at the end of the inlet and outlet pipe mouth 8, the same length decreases successively to form an arithmetic series.

In order to ensure that the aquaculture device is not washed away by the ocean current, the aquaculture device is anchored in the water by mooring at two points at both ends of the floating tube.

Open the control valve of the high-strength filling and exhausting hose 7, seawater enters the high-density polyethylene floating pipe 1 from the inlet and outlet pipe mouth 8, and the floating pipe drives the reinforced breeding cage frame 2 to sink into the sea successively from the water inlet to carry out underwater cultivation; When the cultivation device is floated to the water surface according to the cultivation requirements, the air compressor on board is utilized to inflate the high-strength inflation and exhaust hose 7 to realize the rising of the net cage.

The device was successfully tested in May 2010 in the sea area of Rongcheng Dongchu Island, the breeding base of Shandong Weihai Zhengming Ocean Technology Development Co., Ltd., and is ready to start the breeding and production of sea cucumbers and other sea treasures.

Claims (7)

1. A single-floating tube submersible floating-type intensive marine treasure cultivation device, comprising a floating tube, a cage frame and a depth-fixing device, characterized in that: the floating tube is made of a sealed single tube, and the upper side of one end of the floating tube is The wall is provided with an inflation and exhaust port, and the lower side wall at the other end is provided with an inlet and outlet pipe port; the cage is a pannier-shaped steel structure, the middle of the pannier-shaped cage is tied to the floating tube, and the The center of buoyancy is above the center of gravity of the cage, and at least three cages are bound to one floating tube, and the distances between the cages are the same, and a safe distance is left between the outermost cage and the top of the floating tube. The two sides of the frame are boxes with the same shape and size welded by steel bars. In each box, several layers of polyethylene sea treasure breeding special boxes with the same number are placed. The special breeding boxes can be lifted from the upper part of the cage box. 2. The single-floating tube submersible intensive sea treasure cultivation device according to claim 1, characterized in that: block foam floats are bound on both sides of the cage, and the buoyancy of the foam floats is slightly greater than that of each group The weight of the cage. 3. The single-floating tube submersible floating-type intensive marine treasure cultivation device according to claim 1, characterized in that: the depth-fixing device includes a hanging rope and sinking stones, the hanging rope is Y-shaped, and the two upper ends are respectively tied At the bottom of both sides of the pannier-shaped cage, sunken stones are tied to the lower ends of the suspension ropes. 4. The single-floating-tube submersible-floating intensive sea treasure cultivation device according to claim 1, characterized in that: the buoyancy of the floating tube in the empty state is greater than the total weight of the cage frame and the depth-fixing device. 5. The single-floating tube submersible floating intensive marine treasure cultivation device according to claim 1, characterized in that: the side of the inlet and outlet of the floating tube should be slightly lower than the end of the charging and exhausting port. Starting from one end of the inlet and outlet pipe mouth, the slings of the depth-fixing devices under each cage are lengthened sequentially. 6. The single-floating tube submersible intensive marine treasure breeding device according to claim 5, characterized in that: the charging and exhausting port is connected with a charging and discharging pipe, and the upper end of the charging and discharging pipe is provided with floating objects And control valve, can realize remote control diving control. 7. The single-floating tube submersible floating intensive marine treasure cultivation device according to claim 1, characterized in that: the two ends of the floating tube are provided with mooring devices.
