Abstract
The invention discloses a pair of comfortable large-sole shoes, each shoe comprises a shoe main body, each shoe main body comprises a vamp, an insole and a shoe sole, and each large shoe sole is a PU (polyurethane) large sole or a hollow large sole or a heel type combined sole. The pair of comfortable large-sole shoes are mainly characterized in that each shoe does not comprise a traditional mid-sole hard insert and a mid-sole waist iron. At present, the production way is changed by virtue of continuous testing, research and development, the mid-sole waist irons and the hard insets are removed, the operation is simple, convenient and firm, the manual work is further saved, feet can be in direct contact with the large soles or heels through the soft insoles, foot soles do not need to be in contact with the hard insets and the waist irons so as to achieve more comfortable foot feeling, the large soles are thickened and widened to be in the same size with the waist irons and the mid-sole inserts, and the shoe soles are firmer.
Description
Technical field
The present invention relates to footwear, especially a kind of do not contain in end waist iron close in the comfort type Large sole shoes of end hard in inserting.
Background technology
, there are various men and women's leather shoes children's footwear sport footwears of waist iron at the end in the present market, its common ground be to be equipped with in the footwear at the end hard insert in and in end waist iron (being steel bar) or in the big end, waist iron of the big end (being steel bar) is being set, steel bar plays the situation that prevents shoes overbending frangibility or wear time distortion, play the effect of grantee's body weight simultaneously.
Conventional art has the middle end of waist iron still need use hard to be combined into the end in a kind of hard typing with mediella in inserting, because the existence of middle end hard in slotting arranged, make the footwear inner height can raise the thickness of 2～3mm, make the footwear inner space diminish, also can to cause dress in inserting uncomfortable because of stepping on hard even put comfortable shoe-pad.
The applicant is 20100019544.4 in the application number of application on January 21st, 2010, patent name is a kind of patent of invention that contains the comfortable footwear of two waist iron at the big end and the middle end, described the technical problem that above-mentioned prior technical shoes exists in detail, and a kind of new structure proposed, through constantly improvement, thereby new improvement project has been proposed at No. 20100019544.4 patents: even for No. 20100019544.4 patents because waist iron of the middle end and waist iron of the big end identical radian of use when producing, but because of waist iron is placed on two different parts in the big end and the middle end, so in the middle of two waist iron the middle end and musculus cutaneus and cover port, back treasured (major name: the more difficult driving fit of the influence production typing thing) are arranged during production, so when producing, have nothing in common with each other because of material thickness, have influence on the driving fit of two waist iron arc degree, and increase the difficulty of producing and increase cost, improvement project be strengthen the bottom and remove in end hard insert in and in end waist iron, the applicant has illustrated in the number of patent application 201110047497.9 and 201110047475.2 and 201110047498.3 of application on February 25th, 2011 and waist iron of the big end (steel bar that is commonly called as) is set and has reinforced at the big end.
For further strengthening waist iron of the big end, the applicant is through testing research repeatedly, during end hard is inserted in removing and in end waist iron, and change waist iron of the big end into strengthen thickening non-steel bar type waist iron, and increase hardness and toughness.
Summary of the invention
The objective of the invention is to improve original in the end have hard insert in or the part hardness that contacts with pin of waist iron big, has thicker thickness, make and wear uncomfortable technical problem, remove end hard insert in and in end waist iron, allow footwear inside have the placement space bigger than original way 20100019544.4, need not to change the footwear structure of the outward appearance and the size of vamp, can place thicker pin bed type foot pad, make the more firm and comfortable a kind of comfort type Large sole shoes that does not have waist iron of the middle end and waist iron of the big end of dress.
For realizing above purpose, the present invention has taked following technical scheme: strengthen waist iron of the big end, change steel bar into plastic material, in the reduction base thickness degree and remove in end hard insert in and in end waist iron, and add the steel bar type waist iron of being altogether unjustifiable, and increase hardness and toughness, make sole more firm.
Described footwear main body is an internal height-increasing shoe, improve on the interior elevating pad: the interior elevating pad of half slotting formula is used the more stable and more firm of plastics waist iron beginning, the place, position of following of elevating pad is provided with novel waist iron in described pin bed type, and firmly the gravity center of human body prevents to sprain.
Have a hollow-out parts sole described, be embedded in hollow-out parts and add the steel bar type waist iron of being altogether unjustifiable, firmly the gravity center of human body prevents to sprain.
Plastics waist iron of the big end is at the radian children's footwear 2mm women's shoes 3mm Men's Shoes 4mm that uses the type that fits with position portion, and men and women's playshoes is respectively deepened concave arc 1mm, with the fit firm gravity center of human body of radian of type of place, position use, prevents to sprain.
The present invention compared with prior art, has following advantage: the invention discloses a kind of comfort type Large sole shoes, the difference of itself and traditional footwear maximum is, a kind of comfort type Large sole shoes in the present patent application, during end waist iron and hard of the middle end were inserted during the footwear of being produced did not contain, further strengthen thickening type waist iron of the big end by being provided with, this kind structure can allow sole need not touch in end hard insert in and in end waist iron, therefore the footwear of producing by feel more comfortable (comprise various types of footwear as, sandals, the California footwear, loafer, the cover lasting, the violent footwear of tradition, the suture footwear, draw group's injection moulded shoes, draw group's footwear, sole nailing footwear); Now through section test and research and development do not change the mode of production, during end waist iron reaches and inserts in the removal, it is easy and simple to handle that firmly saving is artificial again, and allow sole directly see through soft shoe-pad again with the big end or heel contacts, add waist iron of roomy end size as during insert at the middle end, use the soft shoe-pad of thickening need not contact in the hard difference and reach more comfortable and firm feel with waist iron by sole.
Description of drawings
Fig. 1 is the outside drawing at the big end of playshoes sport footwear moulding of the present invention;
Fig. 2 is the surface structure schematic diagram at the big end of playshoes sport footwear moulding of the present invention;
Fig. 3 is the surface structure schematic diagram at the big end of playshoes sport footwear moulding of the present invention;
Fig. 4 is for adopting the playshoes sport footwear moulding Large sole shoes structure cutaway view of Fig. 3;
Fig. 5 is interior elevating pad cutaway view;
Fig. 6 is the schematic appearance of elevating pad in Fig. 5;
Fig. 7 adopts the California of the present invention flat internal height-increasing shoe textural association cutaway view of Fig. 5 for figure;
Fig. 8 is the outside drawing (adopting California footwear way) of Fig. 7;
Fig. 9 is low with the big bottom structure decomposing schematic representation of moulding for PU of the present invention;
Figure 10 is the low schematic appearance with the big bottom structure of moulding of Fig. 9 PU of the present invention;
Figure 11 is low with California footwear cutaway view at the bottom of the PU for employing Fig. 9's;
Figure 12 is the outside drawing (adopting California footwear way) of Figure 11;
Figure 13 is the low big bottom structure decomposing schematic representation of base frame of PU moulding of the present invention (waist iron of the big end is located under the material guide hole 904);
Figure 14 is the low base frame suture footwear cutaway view of the moulding of the present invention of adopting Figure 13;
Figure 15 is the outside drawing (adopting suture footwear way) of Figure 14;
Figure 16 is the high waist iron schematic diagram of the big end with combination end footwear structure of Figure 18 the present invention;
Figure 17 is the high schematic appearance with combination end footwear structure of the present invention;
Figure 18 follows combination end loafer cutaway view for the height that adopts Figure 17;
Figure 19 is Figure 18 outside drawing (adopting suture footwear way);
Figure 20 is PU of the present invention slope end internal height-increasing shoe bottom structure cutaway view; (waist iron of the big end is located at the top of firm body);
Figure 21 is PU of the present invention slope end internal height-increasing shoe bottom structure cutaway view; (waist iron of the big end is located on the material guide hole);
Figure 22 is for adopting the PU of the present invention slope end internal height-increasing shoe cutaway view of Figure 21;
Figure 23 is the outside drawing (increasing suture footwear way in the employing) of Figure 22;
Figure 24 is hollow of the present invention slope type bottom structure schematic diagram;
Figure 25 is hollow of the present invention slope type bottom structure cutaway view; (waist iron of the big end is located on the material guide hole);
Figure 26 is hollow of the present invention slope type bottom structure cutaway view; (waist iron of the big end is located on the material guide hole);
Figure 27 for the hollow of the present invention slope type that adopts Figure 26 at the bottom of the loafer cutaway view;
Figure 28 is for directly being provided with waist iron decomposition texture schematic diagram of the big end at the big end of footwear with the naked empty portion in place, position;
Figure 29 is the combining structure cutaway view of Figure 28;
Figure 30 adopts violent footwear way structure cutaway view for the comfortable Large sole shoes of hollow that adopts Figure 29;
Figure 31 is the low end big end of suture footwear footwear of hollow of the present invention and firm body decomposition texture schematic diagram;
Figure 32 is for adopting suture footwear cutaway view of the low end of Figure 31 hollow; (waist iron of the big end is located on the material guide hole);
Figure 33 is the waist iron schematic appearance of the big end of Figure 32;
Figure 34 is for adopting the schematic appearance of Figure 32; (adopting suture footwear way);
Figure 35 makes up big bottom structure cutaway view for the thick end is low with type; (waist iron of the big end is located at intersegmental part at the big end);
Figure 36 makes up big bottom structure cutaway view for the thick end is low with type; (waist iron of the big end is located at top, stage casing, the big end);
Figure 37 is the schematic appearance of Figure 35;
Figure 38 makes up suture footwear cutaway view of the big end for adopting the low of Figure 35 with type;
Figure 39 is that half formula of inserting is hanged down with the big bottom structure cutaway view of type;
Figure 40 is that Figure 39 half inserts the low big bottom structure schematic appearance of type of following of formula;
Figure 41 hangs down with type Large sole shoes structure cutaway view for adopting half of Figure 39 formula of inserting;
Figure 42 is the outside drawing of Figure 41; (adopting California footwear way);
Figure 43 is that half formula of inserting is hanged down with the big bottom structure cutaway view of type;
Figure 44 is that Figure 43 half inserts the low big bottom structure schematic appearance of type of following of formula;
Figure 45 hangs down with type Large sole shoes structure cutaway view for adopting half of Figure 43 formula of inserting;
Figure 46 is the outside drawing of Figure 45; (adopting California footwear way);
Figure 47 is the half slotting low big bottom structure cutaway view of type of following;
Figure 48 is that Figure 47 half inserts low outside drawing with the big bottom structure of type;
Figure 49 is low with type Large sole shoes structure cutaway view for adopting half of Figure 47 to insert;
Figure 50 is the outside drawing of Figure 49; (adopting the loafer way);
Figure 51 is the half slotting low big bottom structure cutaway view of type of following;
Figure 52 is the half slotting low big bottom structure schematic appearance of type of following;
Figure 53 is low with type Large sole shoes structure cutaway view for adopting half of Figure 51 to insert;
Figure 54 is the outside drawing of Figure 53; (adopting California footwear way)
Figure 55 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located at shockproof groove below);
Figure 56 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located at shockproof groove below);
Figure 57 is for adopting the California footwear structure cutaway view of Figure 55;
Figure 58 is the outside drawing (adopting California footwear way) of Figure 57;
Figure 59 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located at sole with in the position);
Figure 60 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located at sole with in the place, position
Figure 61 is for adopting the suture footwear structure cutaway view of Figure 60;
Figure 62 is the outside drawing (adopting suture footwear way) of Figure 61;
Figure 63 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located at firm body below);
Figure 64 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located in the naked empty portion);
Figure 65 is for adopting the suture footwear structure outside drawing of Figure 64; (waist iron of the big end is located in the naked empty portion);
Figure 66 is the outside drawing (adopting suture footwear way) of Figure 65;
Figure 67 is the outside drawing of waist iron of the low big end of platybasic type of Figure 68 the present invention;
Figure 68 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located at the sole top);
Figure 69 is for adopting the California footwear structure cutaway view of Figure 67;
Figure 70 is the outside drawing (adopting California footwear way) of Figure 69;
Figure 71 is the big bottom structure outside drawing of the low platybasic type of Figure 68;
Figure 72 is the sole fare outside drawing of Figure 71;
Figure 73 is the low big bottom structure cutaway view of platybasic type of the present invention; (waist iron of the big end is located at sole inside);
Figure 74 is the big bottom structure outside drawing of the low platybasic type of Figure 73;
Figure 75 is the sole fare outside drawing of Figure 74;

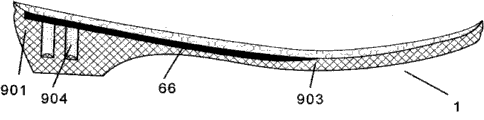

903 places are located at position 901 top or top, or be located under the material guide hole 904 as Figure 13 to Figure 15, or be located on the material guide hole 904 as Fig. 1 arrive Fig. 4, Fig. 9 to Figure 12, Figure 60 to Figure 62, or be located under the shockproof groove 2 and arrive Figure 58 as Figure 55.
Second kind of situation: make up the end for the type of following at the big end 1 of described footwear, see also figure Figure 35 to Figure 54, Figure 67 is to Figure 70, what waist iron 66 1 ends of the big end were located at stage casing, the big end 8 in the above-mentioned legend arrives Figure 38 with place 18, position to half sole touchdown point 14 as Figure 35, Figure 47 is to Figure 50, Figure 68 is to Figure 75, wherein Figure 68 locates 18 tops to touchdown point 14 to the position of following that Figure 72 is located at the big end 1, Figure 73 locates 18 inside to touchdown point 14 to the position of following that Figure 75 is located at the big end 1, Figure 35, Figure 37 Figure 38, Figure 47 Figure 49, Figure 50 Figure 17 Figure 18 Figure 19, what be located at stage casing, the big end 8 locates 18 to bosom position, touchdown point 903 place with the position, or stage casing 8 integral body of the big end are replaced as Figure 51 to Figure 54 by waist iron of the big end 66, or heel 4 integral body replace as Figure 39 to Figure 46 by waist iron of the big end 66, are provided with waist iron of the big end 66.By shoe tack 5 pass waist iron of the big end 66 be fixed on heel 4 tops see also Figure 16 to Figure 19, Figure 35 to Figure 38, Figure 47 to Figure 54, Figure 68 to Figure 75.
The third situation: at the big end 1 of described footwear is the big end of hollow, see also Figure 24 to Figure 27 Figure 28 to Figure 30 Figure 31 to 34, Figure 63 to Figure 66, as Figure 24 to Figure 27 Figure 31 to 34, waist iron of the big end 66 be located at firm body 90 with position 901 to 903 places, forefoot position with 901 tops, position or inside, as Figure 28 be located to Figure 30, Figure 63 to Figure 66 in the naked empty portion 68 in bottom or on.
The 4th kind of situation: in described, increase the 40 whole situations of using waist iron of the big end 66: see also Fig. 5 to Fig. 8.
Waist iron of the novel big end 66 uses material to be materials such as abs, pu, pvc, pp, tpu, wood, bamboo, rattan.
Further, can be according to actual needs, at the big end 1 of footwear or interior elevating pad 40, or waist iron of the big end 66 is established in stage casing, the big end 8.
Above-listed detailed description is specifying at possible embodiments of the present invention.This embodiment is not in order to limiting claim of the present invention, and the equivalence that all the present invention of disengaging do is implemented or change, all should be contained in the claim of this case.
Claims (9)
1. a comfort type Large sole shoes comprises footwear main body (100), it is characterized in that: described footwear main body (100) is made up of vamp (20), shoe-pad (30) and sole, and sole comprises the big end of footwear (1), and the big end of footwear (1) is the big end of PU or the big end of hollow or the type of the following combination end.
2. comfort type Large sole shoes as claimed in claim 1 is characterized in that: go up or the big end of footwear (1) at the interior elevating pad (40) of described footwear main body (100), in naked empty portion (68) or on be provided with big end waist iron (66).
3. comfort type Large sole shoes as claimed in claim 2, it is characterized in that: be the big end of PU at the big end 1 of described footwear, big end waist iron (66) is located at position (901) to forefoot position (903) to be located, or be located at the position (901) top or top, or be located on the material guide hole (904) or down, or be located under the shockproof groove (2).
4. comfort type Large sole shoes as claimed in claim 2, it is characterized in that: make up the end for the type of following at the big end of described footwear (1), waist iron (66) one ends of the big end are located at the position of following in stage casing, the big end (8) and locate (18) to half sole touchdown point (14), or (18) top or inside to touchdown point (14) is located in the position of following that is located at the big end 1, or be located at stage casing, the big end (8) with the position top, or place, position (18) to the touchdown point (903) of following that is located at stage casing, the big end (8) is located the bosom position, or big stage casing, the end (8) is whole by big end waist iron (66) replacement, or heel 4 integral body are replaced by big end waist iron (66).Shoe tack (5) passes big end waist iron (66) and is fixed on heel (4) top.
5. comfort type Large sole shoes as claimed in claim 2, it is characterized in that: be the big end of hollow at the big end 1 of described footwear, big end waist iron (66) be located at firm body (90) with position (901) to forefoot position (903) locate with top, position (901) or inner, be located in the naked empty portion in bottom (68) or on.
6. comfort type Large sole shoes as claimed in claim 4, it is characterized in that: can be peg or bamboo and wood, rattan nail or continuously connected fastener at described shoe tack (5), when shoe tack (5) used bamboo and wood, rattan nail or continuously connected fastener, sole did not promptly have metal object, can remove the sound of customs's scanning metal from.
7. comfort type Large sole shoes as claimed in claim 2 is characterized in that: increase 40 and use big end waist iron (66) in described integral body.
8. novel big end waist iron (66) uses material to be materials such as abs, pu, pvc, pp, tpu, wood, bamboo, rattan.
9. as the arbitrary described comfort type Large sole shoes of claim 1 to 7, it is characterized in that: at the big end of described footwear (1) or interior elevating pad (40) or big stage casing, the end (8) establish big end waist iron (66).
