CN102189650A - Conical screw injection machine - Google Patents
Conical screw injection machine Download PDFInfo
- Publication number
- CN102189650A CN102189650A CN2011100855909A CN201110085590A CN102189650A CN 102189650 A CN102189650 A CN 102189650A CN 2011100855909 A CN2011100855909 A CN 2011100855909A CN 201110085590 A CN201110085590 A CN 201110085590A CN 102189650 A CN102189650 A CN 102189650A
- Authority
- CN
- China
- Prior art keywords
- injection
- screw
- material storage
- volume
- plasticizing
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Landscapes
- Injection Moulding Of Plastics Or The Like (AREA)
Abstract
The invention discloses a conical screw injection machine, which comprises a plasticized part, an injection part, a die closing part and a base which serve as main parts, a feeding device, a screw, a machine barrel, a motor, a transmission device, a material storage and injection system, a heating device, a mold, a die closing system and the like. A plasticized screw is a conical screw, and a single screw, double screws or three screws can be provided. Due to the adoption of a plasticized-injection separation type structure, materials are plasticized by the screw and then are added into a material storage tank; a piston in the material storage tank advances relative to a material storage tank body, and the volume of the tank is reduced for injection; melts in the material storage tank is pressed to be injected out of a nozzle to enter a mold cavity for molding; after the injection is finished, the piston in the material storage tank is drawn back relative to the material storage tank body, and the volume of the tank is increased for material storage; only plasticization and mixing are finished before a metering section is reached; only material storage and injection are realized by the change of the volume in the material storage tank; a screw rotation mechanism does not move back and forth relative to a charging barrel; and the injection volume does not depend on the ratio of the diameter of the screw to the plasticization stroke but is only related to the volume of the material storage tank. By the machine, the advantages of the conical screw is fully exerted, the range of injection amount is obviously enlarged, continuous plasticization can be performed, and the rate of production is obviously improved. The machine can be used for directly machining and molding powder such as polyvinyl chloride and the like, heat sensitive materials and difficultly-machined materials and can also be used for performing injection molding on a large-sized or micro-sized product.
Description
Technical field
Conical screw injector of the present invention can be used for the injection technique process in the processing such as plastics, rubber, coating, paper pulp, medicine, feed, food, explosive.This machine both can be used for experiment also can be directly used in production.
Background technology
Reciprocating screw formula injector, operation principle are material heating plasticizings in machine barrel, rely on the rotation of machine barrel inner screw material further to be plastified and is delivered to the screw rod end.When reaching a certain amount of, the material that will be stored in front end by the quick reach of screw rod is injected in the mould.Because characteristics such as simple in structure have obtained extensive use.
In fact, conventional reciprocating screw-type injection machine bin stock section is exactly the continuity of metering section, and just screw rod does not extend to this section, and injection must move forward just and can finish after screw rod rotation plasticizing.During injection, must move forward by relative barrel with screw rod rotation associated mechanisms.Cause following limitation like this: (1) for guaranteeing injection pressure, the injection motive force must be very big; (2) each bin stock amount must be little, causes injection volume also little; (3) forming high-pressure injection and high shear in the small powder tube easily causes material to decompose; (4) plastify with injection and must carry out successively, restriction mutually causes suitable injection volume of injector and material and mould scope little.(5) adopt traditional straight spiro rod plasticizing bad to material effects such as polyvinyl chloride.Therefore, be necessary to address these problems.
The present invention separates the metering section of bin stock section with the front, and the variation of bin stock section internal volume is in order to realize injection fully, and part does not then need to take into account this function and only finishes plasticizing and mixing before the metering section.Secondly, the interior piston that links to each other with nozzle of bin stock section moves and changes bin stock section volume, does not need relative barrel mobile screw rotation associated mechanisms.Like this, realized that plasticizing separates with function of injection, can carry out continuous plastication, obviously improved productive rate; This novel injector injection capacity does not resemble the restriction that is subjected to screw diameter and the ratio of plasticizing stroke the common injection machine, and is only relevant with the material storage jar volume.Can obtain jumbo injection capacity with spiro rod plasticizing than minor diameter, but also injection moulding ultra-large type and miniature goods.Owing to do not injected movement requirement and limit, also can select big screw rod and improve injection volume easily.
Be different from and use common cylindricality screw rod in traditional injector, the present invention adopts conical screw efficiently to plastify system on the basis of plasticizing-injection isolating construction, obviously improves the plasticizing quality of material.Conical screw is extruded difficult processing materials such as temperature-sensitive materials such as being successfully applied to polyvinyl chloride, high filled composite materials.And the conical screw tail diameter increases, and has improved the bearing capacity of screw rod; Feeding section screw channel volume is big, and feeding quantity is big, easily adds the bulk density powder of larger volume; Also help the heat conduction, easier realization is to material heating or cooling; The discharge zone screw diameter is little, and peripheral speed is less, and the shearing of generation is lower, and frictional heat is also less, fire damage dangerous little; The screw channel volume reduces gradually along extruding direction, and material obtains compression gradually, thereby makes screw channel be full of material sooner, guarantees material plasticizing gently continuously.As seen, adopt conical screw plasticizing system and plasticizing-injection separating technology association schemes can solve the many problems of traditional injector, expanded its range of application, have energy-efficient characteristics.
In the spiro rod plasticizing system, can adopt single screw rod, twin-screw, three screw rods even multiscrew system.For example, in the double screw extruder, it is opposed that the protruding row thread of two screw rods is interlaced row, and in opposed formation " C type " chamber, material is subjected to shearing, friction and heating, rub and strengthen the mixing plasticizing effect; Material forward conveying capacity is big, the output height; Two screw rods are meshing with each other, and are self-cleaning effective, reduced the decomposition carbonization phenomenon of material, thereby obtain general application in extruder.In like manner, multiscrew can further improve output.Like this, twin-screw, three screw rods even multi-screw rod plasticizing system be can be applicable to plasticizing efficiency and the quality that plasticizing of the present invention-injection separating technology will improve material greatly, unique advantage is arranged for forming large-scale injection molding products.
Summary of the invention
Conical screw injector of the present invention mainly is made up of feeding device, screw rod, machine barrel, motor, transmission device, material storage jar, oil cylinder, heater, mould and clamping etc.Injector adopts plasticizing-injection separate type among the present invention, and screw rod is a conical screw, and the number of screw rod can be single screw rod, twin-screw or three screw rods.
Plasticizing-injection separate type is separated the metering section of bin stock section with the front among the present invention.The plasticized screw head is installed a backstop, guarantees that material flows to the bin stock section and seldom even can not flow backwards from plasticizing charging barrel.Change bin stock section internal volume by the continuous piston of control and nozzle relative to moving of holding bin, do not require that the relative barrel of rotary screw moves forward and backward.The variation of bin stock section internal volume only realizes injection, and part is then only finished plasticizing and mixing before the metering section.
When this novel injector was worked, material entered material storage jar behind spiro rod plasticizing, and the relative bin stock cylinder body of material storage jar inner carrier advances and dwindles volume and inject, and the melt injection delivery nozzle in the material storage jar is entered die cavity.Injection finishes, and the relative bin stock cylinder body of material storage jar inner carrier retreats and increases volume and carry out bin stock.This novel injector injection capacity does not resemble the restriction that is subjected to screw diameter and the ratio of plasticizing stroke the common injection machine, and is only relevant with the material storage jar volume.Realize that plasticizing separates with function of injection, can carry out continuous plastication, obviously improve productive rate; Can use the injected articles for preparing big capacity even vast capacity than the spiro rod plasticizing of minor diameter.
Be different from that screw rod is an ordinary straight cylindricality screw rod in the conventional injector, screw rod adopts conical screw among the present invention, guarantees material plasticizing gently continuously, can process temperature-sensitive material; Increase the bearing capacity of screw rod; Feeding section screw channel volume is big, easily adds the bulk density powder of larger volume.
The number of screw rod can be single screw rod, twin-screw or three screw rods in the injector.When adopting twin-screw or three screw rods, screw rod arrangement mode and direction of rotation can be carried out multiple combination, need select according to different material and technological requirement, obtain the goods of the best with the energy consumption of minimum.
Effect of the present invention: the screw rod of injector is a conical screw among the present invention, is particularly suitable for the injection processing of difficult processing materials such as powder and heat sensitive material.Injector adopts plasticizing-injection separate type, obviously improves output, enlarges the injector scope of application.Screw rod can adopt twin-screw or three screw rods, has strengthened the mixed effect of material in plasticizing, has improved output simultaneously.
Description of drawings

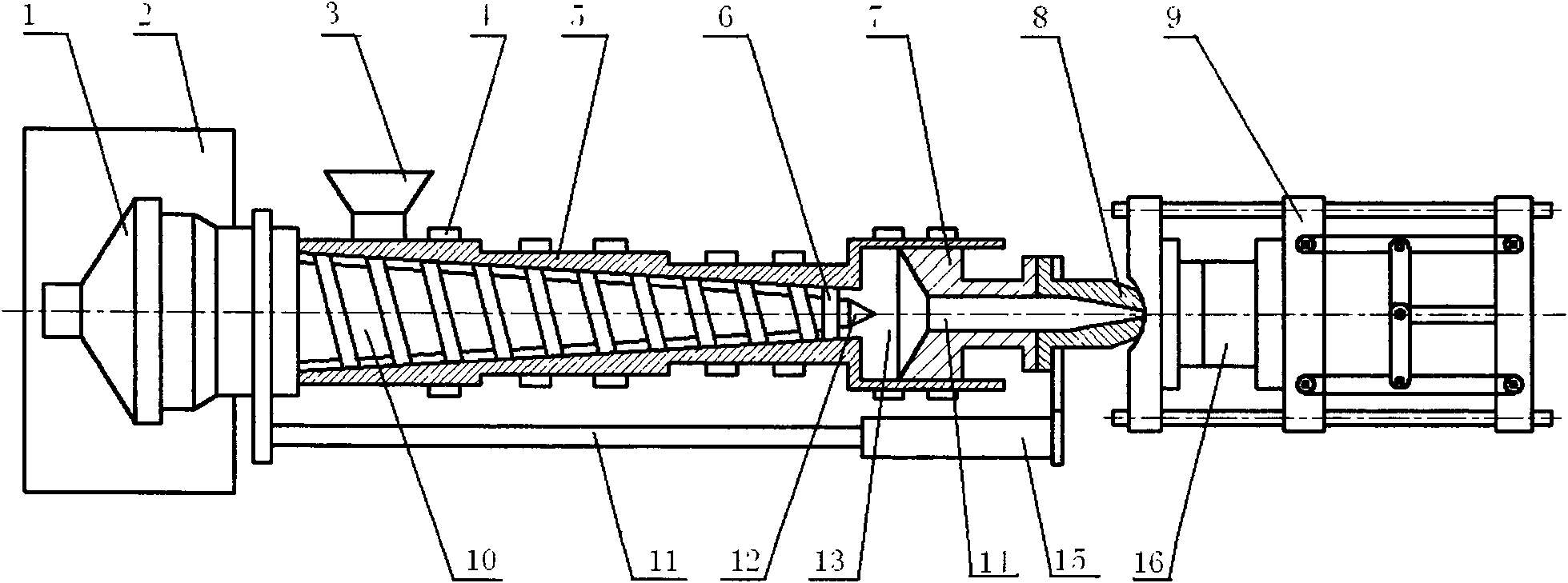

The structural representation of Fig. 1 conical screw injector of the present invention
Structural representation when Fig. 2 conical screw injector of the present invention adopts twin-screw
Screw rod when Fig. 3 adopts yi word pattern the to arrange conical three-screw schematic diagram of arranging
Screw rod when Fig. 4 adopts the rounded projections arranged conical three-screw schematic diagram of arranging
Specific embodiments
Embodiment one:
As Fig. 1, conical screw injector of the present invention mainly comprises plasticizing parts, injection member and matched moulds parts and base etc.The plasticizing part comprises: motor 1, transmission device 2, feeding device 3, heater 4, machine barrel 5, backstop 6, screw rod 10, screw head 12.Injection portion comprises material storage jar 13, piston 7, nozzle 8, runner 14, support pull bar 11 and hydraulic cylinder 15 etc.Piston 7 and nozzle 8 are bound up, runner 14 of inner formation.Can installation mold 16 between the template of mold closing mechanism 9, and drive the moving half module of mould.
Operation principle: mould 16 is closed under mold closing mechanism 9 drives.Add material by charge door 3, screw rod 10 rotates plastifying material under motor 1 drives.Under the back pressure effect, material enters material storage jar 13 through backstop 6.Support pull bar 11 drive support integral body (screw rod rotary system (1,2,10), barrel and material storage jar are fixed in this support) retreat the expansion volume and carry out abundant bin stock.Nozzle adjusted to mould gate contact, under hydraulic cylinder 15 effects, support pull bar 11 drives support integral body fast moving forward, and material enters mould 16 through runner 14 and through nozzle 8.Through the pressurize cooling, mould is opened, and ejects goods.So far finished shot process.In injection, screw rod can rotate continuously and plastify, and the plasticizing again of finishing to be injected such as also can suspend.After injection was finished, support pull bar 11 drove support integral body and retreats bin stock again.So repeat, just form whole injection moulding.
Embodiment two:
Plasticizing process can adopt Fig. 2, Fig. 3 and conical double-screw, yi word pattern shown in Figure 4 to arrange multiple screw form such as conical three-screw and rounded projections arranged conical three-screw, improves output and enlarges the equipment scope of application.Embodiment three:
Similar to specific embodiments one principle, different is: screw rod rotary system (1,2,10) and barrel are placed in the injector base and do not move forward and backward, and pull bar is fixed on injector base or the fixing matched moulds system solid plate.Hydraulic cylinder 15 drives piston 7 and nozzle 8 moves forward and backward.Dwindle the bin stock volume and increase material pressure, increase the bin stock volume and can make more materials flow to material storage jar from plasticizing charging barrel with regard to injectable.
Embodiment four:
Similar to specific embodiments three principles, different is: pull bar is fixed on the matched moulds system moving platen, and hydraulic cylinder 15 drives piston 7 by pull bar and nozzle 8 moves forward and backward.Matched moulds moving platen reach drives piston and dwindles the bin stock volume and injects, during die sinking behind the moving platen the moving piston of shipper pole move and enlarge the bin stock volume and carry out bin stock.
Embodiment five:
Material enters die cavity through nozzle, runner and cast gate in the conventional injection moulding.When moulding such as massive article, can omit nozzle, material in the material storage jar is injected into die cavity by be connected tubular type runner and cast gate with piston inner hole.
Claims (3)
1. conical screw injector of the present invention, mainly comprise plasticizing parts, injection member and matched moulds parts and base, form by feeding device, screw rod, machine barrel, motor, transmission device, bin stock and injecting systems, heater, mould and matched moulds system etc., it is characterized in that: adopt conical screw plasticizing system and plasticizing-injection separate type, thereby obviously enlarge the injection volume scope, can carry out continuous plastication, obviously improve productive rate; Directly powder, temperature-sensitive material and difficult-to-machine material such as machine-shaping polyvinyl chloride also can be used for the large-scale or miniature goods of injection moulding.
2. conical screw injector according to claim 1, it is characterized in that: plasticizing can be single screw rod, twin-screw or three screw rod various ways with conical screw, need to select, obtain the goods of the best with the energy consumption of minimum according to different material and technological requirement.
3. conical screw injector according to claim 1, it is characterized in that: material enters material storage jar in the plasticizing-injection separate type behind spiro rod plasticizing, the relative bin stock cylinder body of material storage jar inner carrier advances and dwindles volume and inject, melt injection delivery nozzle in the material storage jar is entered die cavity carry out moulding, injection finishes, and the relative bin stock cylinder body of material storage jar inner carrier retreats and increases volume and carry out bin stock; Only finish plasticizing and mixing before the metering section, the variation of material storage jar internal volume only realizes bin stock and injection, and the relative barrel of rotary screw does not move forward and backward; Injection capacity does not depend on screw diameter and the ratio that plastifies stroke, and is only relevant with the material storage jar volume.
