Abstract
The invention discloses an intelligent substation based on sensors, a communication network and an expert system. The intelligent substation comprises a substation automation system, a primary equipment condition monitoring system and an intelligent auxiliary control system. The intelligent substation is characterized in that the real-time data of equipment operation are acquired by additionally installing various sensors, the IEC61850 standard is utilized to realize information modeling of the sensor data, a communication network is utilized to build a physical channel for information transmission, and advanced application of the substation automation system and intelligent monitoring and linkage of the primary equipment condition monitoring and auxiliary systems are realized by a background expert system, thus realizing intelligent operation and patrol functions of the substation; the sensors include an all-fiber electronic current transformer, a capacitive voltage divider type electronic voltage transformer, a primary equipment condition monitoring sensor and an internet sensor with an auxiliary system things; and the advanced application of the substation automation system includes sequential control, equipment condition visualization, intelligent alarm, distributed condition estimation, substitution function and the like. Intelligent operation and patrol functions of the substation can be realized.
Description
Technical field
The present invention relates to a kind of novel transformer station, intellectuality operation and inspection function by transducer, communication network and Implementation of Expert System transformer station belong to technical field of power systems.
Background technology
China transformer station has formed comparatively ripe pattern through the development of decades, for the safety and economic operation that ensures electrical network has been brought into play important function.But also exist problems at present, as:
There are problems such as magnetic saturation, ferro resonance, insulating oil blast, sulphur hexafluoride leakage, short/open in conventional instrument transformer;
Shortage needs regularly equipment to be carried out interruption maintenance to comprehensive supervision means of the interior primary equipment of standing (as: main transformer, GIS etc.) operational factor, and the equipment service efficiency reduces;
Shortage relies on artificial regular visit to finish to the real-time monitoring of operational factors such as full station equipment operating temperature, ambient temperature and humidity, water level, environmental parameter, and workload is huge; Equipment start-stops such as air-conditioning, blower fan, water pump need artificial on-the-spot the intervention, can't be according to the start and stop of environmental change intelligence, and energy consumption is bigger, can not satisfy non-attendant operation's requirement;
Production auxiliary systems such as image monitoring, security guard, heating and ventilation, fire alarm, plumbing information each other are isolated, can't improve the senior application that realizes intelligent alarm interlock and convenient operation;
The operations staff is strayed into the interval situation and happens occasionally, and effective alarm brings very big threat to life safety.Personnel's the process of patrolling and examining fails to realize effective supervision, patrols and examines difficult quality control, increases management difficulty;
The digitlization of information interaction, the level of informatization are not high, and back-end data lacks the integrated senior application of expert system, can't provide more auxiliary on-line decision support for operation.
Summary of the invention
Last invention technical problem to be solved provides a kind of intelligent substation, can realize the intellectuality operation and the inspection function of transformer station.
For solving the problems of the technologies described above, the invention provides a kind of intelligent substation based on sensor communication network and expert system, comprise electric substation automation system, primary equipment condition monitoring system and intelligent supplementary controlled system, it is characterized in that: described electric substation automation system, primary equipment condition monitoring system and intelligent supplementary controlled system obtain the real time data of equipment operation respectively by various kinds of sensors, various kinds of sensors communicates by communication network structure and backstage expert system, by the senior application of backstage Implementation of Expert System electric substation automation system, the Intellectualized monitoring of primary equipment status monitoring and auxiliary system and interlock, thereby realize the intellectuality operation and the inspection function of transformer station, described transducer comprises all-fiber electronic current transformer, capacitance partial pressure type electronic type voltage transformer, primary equipment status monitoring transducer, auxiliary system Internet of Things transducer, the senior application of described electric substation automation system comprises: sequential control, equipment state is visual, intelligent alarm, distributed state estimation, replace function etc.
Aforesaid intelligent substation based on sensing network and expert system is characterized in that: electric substation automation system adopts layered distribution type structure, and equipment comprises station level, wall, process layer equipment, and it is interconnected to adopt communication network to realize between the equipment, wherein:
Transducer comprises: all-fiber electronic current transformer, capacitance partial pressure type electronic type voltage transformer;
Communication network comprises: station level network (realize station level, bay device interconnected), process layer network (realizing wall, process layer devices interconnect);
Expert system (being the senior application of electric substation automation system) comprises following functional module:
Sequential control module: send instruction by the gross by backstage in remote monitoring center or the station, judge that according to the status information of equipment situation of change whether per step operation puts in place, automatically performs next instruction after confirming to put in place, until executing all instructions;
Equipment state visualization model: primary equipment running status in standing is carried out real-time display analysis, as required relevant information is delivered to main station system by network simultaneously;
Intelligent alarm module: logic and the inference pattern of setting up transformer station's fault message, fault warning information is classified and filtering signals, running status to transformer station is carried out online in real time analysis and reasoning, reports that automatically transformer station is unusual and proposes the troubleshooting instruction;
Distributed state estimation module: in transformer station, realize distributed state estimation function, can realize data identification and processing, can provide reliable data, alleviate the computational burden of main station system and improve reliability to the control centre;
Replace functional module: system provides to replace the interface is set, the substitution value of device is by the supervisory control system setting, substitution value shows supports the multiple form of expression so that distinguish mutually with the value and the artificial setting value of normal demonstration, when unification is debugged in standing, by replacing function, the actual conditions of realization simulated field are carried out integration test, comprise the test of anti mis-closedown function, remote moving function and the sequential control function of substation safety operation.
Aforesaid intelligent substation based on sensing network and expert system, it is characterized in that: described primary equipment condition monitoring system adopts layered distribution type structure, equipment comprises transducer, status monitoring IED, background host computer, and it is interconnected to adopt communication network to realize between the equipment, wherein:
Transducer (the indoor station of 220kV GIS) comprising: main transformer oil dissolved gas/little water/oily temperature/baroceptor, GIS partial discharge/sulfur hexafluoride gas/circuit breaker operating characteristic transducer, leakage current of an arrester/discharge time transducer.
Communication network comprises: RS485 bus or CAN bus (realizing that transducer and status monitoring IED are interconnected); 100,000,000 and above star-like Ethernet (realize between the status monitoring IED or status monitoring IED and background system interconnected);
Expert system comprises: primary equipment status monitoring backstage analytical system, realize gathering and diagnostic analysis of full station primary equipment status monitoring data.
Aforesaid intelligent substation based on sensing network and expert system, it is characterized in that: described intelligent supplementary controlled system utilizes technology of Internet of things, adopt layered distribution type structure, whole intelligent assistance system is divided into several subsystems, comprising: equipment operation on-line temperature monitoring subsystem, SF6 leakage monitoring subsystem, heating and ventilation subsystem, anti-introns system, intelligent patrol detection authentication subsystem, the fire-fighting fire alarm subsystem of being strayed into.Each subsystem equipment comprises each transducer, field control terminal, the shared background host computer of all subsystems, and it is interconnected to adopt communication network to realize between the equipment, wherein:
Transducer comprises: facility such as transducer such as warm and humid sense, SF6 sensing, water logging, cigarette sense, vibration and camera, infrared imaging, sound and light alarm;
Communication network comprises: RS485 bus or CAN bus, wireless sense network (realizing that transducer and field control terminal are interconnected); 100,000,000 and above star-like Ethernet (realize between the field control terminal or field control terminal and background system interconnected);
Expert system comprises: intelligent assist control expert system, realize the information integration of each subsystem visual with the interlock function.
The beneficial effect that the present invention reached:
Novel intelligent of the present invention transformer station, by installing the real time data that big quantity sensor obtains equipment operation additional, utilize communication network to make up the physical channel of message transmission, by the Intellectualized monitoring and the interlock of backstage and Implementation of Expert System electric substation automation system Premium Features, primary equipment status monitoring and auxiliary system, thereby realize the intellectuality operation and the inspection function of transformer station.Imbody is as follows:
Transducer: electronic type voltage transformer can effectively solve conventional instrument transformer and have intrinsic drawbacks such as magnetic saturation, ferro resonance, insulating oil blast, sulphur hexafluoride leakage, short/open; Primary equipment status monitoring transducer can be realized the on-line monitoring to primary equipment operation parameter; Intelligence supplementary controlled system Internet of Things transducer can be realized the real-time monitoring to warm and humid sense, SF6 sensing, water logging, cigarette sense, vibration environment parameter;
Communication network: adopt fiber optic Ethernet, bus, wireless sense network to replace cable connection, can simplify the complexity of secondary connection greatly, save the total amount and the cost that connect medium, improve the interference free performance of signal transmission, optical fiber can be realized self check, is convenient to malfunction elimination.All secondary singals adopt IEC61850 to realize the standard modeling, can effectively improve the self-described ability of signal and the interoperability between secondary device;
Expert system: the senior application of electric substation automation system can greatly improve operational efficiency, avoids artificial erroneous judgement, display device running status and provide the decision-making suggestion for the operations staff in conjunction with real-time analysis and reasoning in real time; Primary equipment status monitoring backstage analytical system can realize the repair based on condition of component to primary equipment, and in time the discovering device failure symptom replaces fixed inspection, prolongs equipment overhaul cycle, reduces frequency of power cut, improves the service efficiency of equipment; Intelligence assist control expert system can realize the integrated interlock and the intelligent operation management of functions such as image monitoring, security guard, fire alarm, main transformer fire-fighting, heating and ventilation, possesses " intellectual monitoring, intelligent decision, intelligent management, intelligent verification " function.
Description of drawings

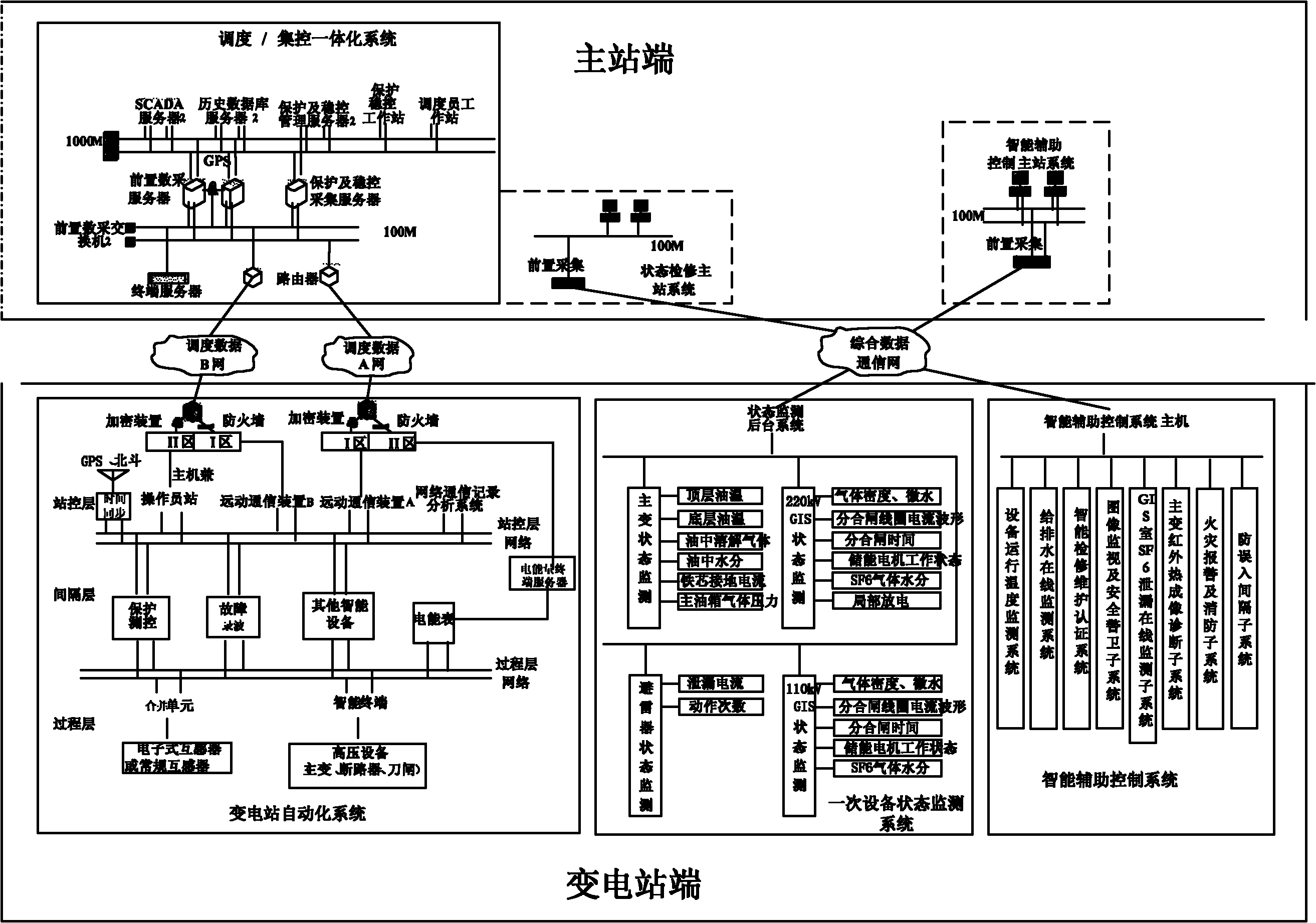

Fig. 1 is a transformer station of the present invention overall structure schematic diagram;
Fig. 2 is 220kV line segregation electric substation automation system structural representation in implementing;
Fig. 3 is primary equipment condition monitoring system structural representation in implementing;
Fig. 4 is primary equipment status monitoring sensor configuration schematic diagram in implementing;
Fig. 5 is intelligent supplementary controlled system structural representation in implementing;
Electric substation automation system station level schematic network structure during Fig. 6 implements;
Electric substation automation system process layer network structural representation during Fig. 7 implements;
Primary equipment condition monitoring system equipment connection diagram during Fig. 8 implements.
Embodiment
Intelligent substation structural representation involved in the present invention is as shown in Figure 1:
General structure
Transformer station end mainly is made up of automated system, primary equipment condition monitoring system and intelligent supplementary controlled system, and the backstage utilizes advanced functions such as advanced applied software and Implementation of Expert System automated system Premium Features, primary equipment status monitoring, auxiliary system intelligent linkage.
Obtain the real time data of equipment operation by installing various kinds of sensors additional, described transducer comprises all-fiber electronic current transformer, capacitance partial pressure type electronic type voltage transformer, primary equipment status monitoring transducer, auxiliary system Internet of Things transducer.
It is interconnected to utilize communication network (comprising: 100,000,000 reach above star-like Ethernet, bus, wireless sense network etc.) to realize in the transformer station between primary equipment and secondary device, the secondary device, and ethernet communication protocol adopts the IEC61850 standard.
Transformer station's background host computer possesses the expert system function module, can realize the Intellectualized monitoring and the interlock of the senior application of electric substation automation system, primary equipment status monitoring and auxiliary system.
Electric substation automation system
Be made up of station level, wall, process layer equipment, and realize connecting (comprising station level network, process layer network) with layering, distribution, open network system, overall structure is " three layer of two net " structure.Compare with conventional substation, aspect transducer, secondary connection, background host computer and software, exist than big-difference, as shown in Figure 2.
Transducer: the all-fiber electronic current transformer that utilization has advanced measuring principle (match lattice Nike effect) replaces conventional electromagnetic type current sensor, Li Yong capacitance partial pressure type electronic type voltage transformer replaces conventional electromagnetic type voltage transformer, and the digital message of IEC61850-9-2 standard modeling is adopted in the output of merge cells current/voltage.
Secondary connection: utilize between fiber optic Ethernet realization primary equipment and secondary device, the secondary device interconnected, the unified IEC61850 standard that adopts of communication protocol, replace control cable with optical fiber, replace analog signal with digital signal, carry under the prerequisite that significantly improves signal transmission interference free performance and greatly simplified secondary connection.Background host computer and software: the main frame operator station of holding concurrently realizes supervision, control, alarm and the information interaction function of full station equipment, finishes correlation functions such as DAM control (SCADA), operation locking and synchronized phasor collection, protection information management automatically.Demand according to operation, various automated informations in the integrated application station, daemon software can be realized senior application such as sequential control, primary equipment status visualization, intelligent alarm, distributed state estimation, replacement function, realize the intellectuality operation of transformer station, improve unattended reliability of transformer station and efficient, and provide better aid decision support for distant place operations staff.
The primary equipment condition monitoring system
Adopt layered distribution type structure, constitute by transducer, status monitoring IED, background system, as Fig. 3 institute not:
Transducer: primary equipment status monitoring transducer should be selected to install according to operation demand and equipment importance, the transducer that the indoor station owner of 220kV GIS will be installed additional comprises: main transformer oil dissolved gas/little water/oily temperature/baroceptor, GIS partial discharge/sulfur hexafluoride gas/circuit breaker operating characteristic transducer, leakage current of an arrester/discharge time transducer, as shown in Figure 4:
Communication network: adopt RS485 bus or CAN bus mode transportation simulator amount data between transducer and status monitoring IED; Adopt DL/T 860 standard traffics between the status monitoring IED or between status monitoring IED and background system, communication network adopts 100M and the star-like Ethernet of above high speed.
Background system: the shared unified background system of standing entirely, the various kinds of equipment status monitoring is unified backstage analysis software, interface type and transmission protocol, realize full station equipment status monitoring data transmission, gather and diagnostic analysis.
The intelligence supplementary controlled system
Utilize technology of Internet of things,, make up sensing net measurement and control network by perception to external world, as shown in Figure 5:
Equipment operation on-line temperature monitoring subsystem: mainly form by administrative center's (main control system), transfer of data base station and radio temperature sensor and thermal infrared imager.
SF6 leakage monitoring subsystem: form by SF6 detection node, controller, collaborative perception monitor supervision platform.
Plumbing on-line monitoring subsystem: detection node adopts wireless water sensor and wired level sensor, monitors same wireless platform with device temperature sensing net, need not additionally to dispose the base station.
The heating and ventilation subsystem: detection node adopts the wireless humiture transducer, monitors same wireless platform with device temperature sensing net, need not additionally to dispose the base station.
The anti-introns system that is strayed into: adopt the imageing sensor of image monitoring system, discern by intelligent image and realize being strayed into alarm at interval.Operation principle: manually locate maintenance interval according to work ticket, automatically eject the video image at this interval, manually assist and on above-mentioned image frame, generate the virtual logical safe fence, automatically compare the position difference of physics fence and logic fence, alarm automatically exceeds standard, automatically the outer personnel activity of identification fence, and produce alarm signal automatically and be delivered to the fence alarm indicator by wireless network, alert erect-position mistake.
Intelligent patrol detection authentication subsystem: adopt the imageing sensor of image monitoring system, realize inspection quality certification by the intelligent image identification software.Operation principle: default route and the monitoring time node of patrolling and examining, default key equipment image identification pad pasting (key is patrolled and examined a little) and image identification clothes (patrolling and examining work clothes), work clothes is patrolled and examined in intelligent image identification, automatically personnel (maximum 16 people) are patrolled and examined in identification, automatically record enters and leaves the visual field time, automatically generate image identification and literal form, automatically differentiate the personnel that patrol and examine and crucial distance of patrolling and examining a little, patrol and examine dot image sign and literal form near generating key automatically, according to polling path, time and key are patrolled and examined some monitoring time relation and are differentiated automatically and patrol and examine quality, and the low quality incident of patrolling and examining is generated video stream file and the literal form is pushed to administrative staff's desktop top layer automatically.
Image monitoring and security guard subsystem: form by parts such as high definition camera, shock sensor, fences.Can detect invasion and illegal invasion behavior on ground and the enclosure wall, intrusion target is carried out the classification of personnel, animal, vehicle, intelligent video identification prevents to cross gate, enclosure wall, deploy troops on garrison duty as required on time and withdraw a garrison function, on-the-spot sound and light of alarm, intelligent video identification and the fusion of other subsystem, the function that links comprise intelligent patrol detection authentication subsystem, SF6 leak detection subsystem, fire-fighting subsystem, plumbing subsystem etc.
Fire-fighting fire alarm subsystem: form by the smoke alarm network, fire alarm signal can be provided, the smart image sensors that links automatically, and by the interlocking logical locking exhaust system of setting in advance.The novel transformer station of this kind is by can realize standing entirely the visual and intelligent control of equipment state from the main system to the auxiliary system of sensing network and backstage expert system, the intellectuality operation that realizes transformer station with patrol and examine.
Concrete effect embodies as follows:
(1) electronic mutual inductor
Adopt advanced measuring principle, have the advantage of safe and reliable, economical and efficient, clean environment firendly, transparent opening, can effectively solve conventional instrument transformer and have intrinsic drawbacks such as magnetic saturation, ferro resonance, insulating oil blast, sulphur hexafluoride leakage, short/open;
Safe and reliable:
Insulation property improve;
No CT second open circuit, PT second short circuit;
Substitute oil and SF6, Environmental Safety with insulation fat;
No magnetic saturation, frequency response range is wide, transient characterisitics good, is not subjected to such environmental effects;
Digital signal has strengthened anti-EMI performance by Optical Fiber Transmission, and data reliability improves greatly.
Economical and efficient:
Volume and weight is much smaller than conventional instrument transformer, easily and other primary equipments integrated, reduce investment outlay;
Use optical cable cable trough, cable floor are greatly simplified, the cable consumption reduces, and saves and takes up an area of;
Solid insulation need not inspection and presses leak detection, and is non-maintaining in the running.
Clean environment firendly:
It is pollution-free that insulation fat does not have leakage;
The a large amount of copper materials of optical cable replacement cables saving
Transparent opening:
Has self-checking function; Plug and play; The debugging acid human-computer interaction.
(2) communication network
Adopt fiber optic Ethernet to replace cable connection, can simplify the complexity of secondary connection greatly, save the total amount and the cost that connect medium, improve the interference free performance of signal transmission, optical fiber can be realized self check, is convenient to malfunction elimination.All secondary singals adopt IEC61850 to realize the standard modeling, can effectively improve the self-described ability of signal and the interoperability between secondary device.
(3) automated system Premium Features
Sequential control can realize the one-touch automatic operation of equipment, has greatly shortened the time of artificial single-step operation, can effectively avoid the possibility of manual operation erroneous judgement, has improved operational efficiency.
The visual realization of equipment state carried out real-time display analysis to primary equipment running status in standing, for the operations staff provides better aid decision support.
The categorical filtering to information of intelligent alarm can effectively alleviate operations staff's work load, guarantees important incident is preferentially handled timely.
Distributed state estimation can realize data identification and processing in transformer station, alleviate the computational burden of main station system and improve reliability.
Replace function virtual when manually putting number and can be newly-built, reorganization and expansion the test of right anti mis-closedown function, remote moving function and sequential control function bring great convenience.
(4) primary equipment condition monitoring system
By on-line monitoring to primary equipment operation parameter, can realize timely discovering device failure symptom, replace fixed inspection with repair based on condition of component, prolong equipment overhaul cycle, reduce frequency of power cut, improve the service efficiency of equipment.
(5) intelligent assistance system
On sensing net monitoring platform basis, set up intellectual monitoring and supplementary controlled system, realize the integrated of functions such as image monitoring, security guard, fire alarm, main transformer fire-fighting, heating and ventilation, the operational management of round Realization intelligent substation possesses " intellectual monitoring, intelligent decision, intelligent management, intelligent verification " function.
Equipment operation on-line temperature monitoring subsystem: can realize the operating temperature of equipment such as wall bushing, capacitor body measured in real time and send, the huge workload of having avoided the regularly artificial thermometric of conventional station operations staff to bring.
SF6 leakage monitoring subsystem: accurate detection, leak source location, the intelligent image that can realize the SF6 gas leakage link, start functions such as blower ventilation ventilation.
Plumbing on-line monitoring subsystem: realize the real-time detection to the ponding situation, the Long-distance Control water pump operation realizes that ponding discharges automatically, and high water level surmounts directly electric automatic draining, and extra high water level protection is provided.
Heating and ventilation subsystem: realize remote inquiry humiture detection node operating state, the Long-distance Control operation of air conditioner according to the humiture situation of indoor and outdoor, is controlled the operational mode of ventilating system and air-conditioning system automatically, satisfy the Temperature and Humidity Control requirement, reduce the energy consumption that heating and ventilation brings simultaneously.
The anti-introns system that is strayed into: realize the outer personnel activity of identification fence automatically, and produce alarm signal automatically and be delivered to the fence alarm indicator that alert erect-position mistake has improved operating personnel's work life safety by wireless network.
Intelligent patrol detection authentication subsystem: realize that patrolling and examining an automatic differentiation of monitoring time relation according to polling path, time and key patrols and examines quality, for administrative staff provide quantifiable management method, reduces management difficulty.
Image monitoring and security guard subsystem: realize the panorama of full station equipment, building is monitored, take precautions against the illegal invasion behavior.
Fire-fighting fire alarm subsystem: detect the fire incident situation of transformer station automatically, the alarm of realization accident pushes away picture, linked system ventilation equipment.
Below be that example describes with the specific embodiments of river rising in Ningxia and flowing into central Shaanxi, 220kV west transformer station pilot project:
The Xi Jing change is made up of automated system, primary equipment condition monitoring system and intelligent supplementary controlled system in the station, a large amount of new technologies, new equipment, new material are adopted in full station, can finish advanced functions such as one-touch sequential control, primary equipment on-line monitoring, auxiliary system intelligent linkage and the senior application of electric substation automation system automatically, from main system to the intellectuality of auxiliary system round Realization.Become the indoor station design of the new city model of advanced person, reliable, integrated, low-carbon (LC), environmental protection.
(1) electronic mutual inductor
Electronic current mutual inductor: 220kV, 110kV, main transformer three sides adopt the full fiber type current transformer, all electronic current mutual inductors all adopt the double A/D sampling, wherein 220kV, main transformer three sides adopt " 4 sensing rings+4A/D " pattern, and 110kV adopts " 2 sensing rings+2A/D " pattern.Consider the convenience of maintenance, operation and the mutual harmful effect between minimizing instrument transformer and GIS, improve reliability, all GIS full fiber type current transformers all adopt air chamber to install outward, wherein 220kV GIS is that three-phase divides body structure, adopt the outer independent case body of air chamber to install, 110kV GIS is the three-phase coenosarc structure, adopts ring flange to install, instrument transformer is finally determined by establishing relevant producer with each of joint conference at the mounting means of GIS, is adopted integrated design, integrated installation.
10kV main transformer inlet wire full fiber type current transformer adopts mounting means in the switch cubicle:
Electronic type voltage transformer: the 220kV that stands entirely, 110kV voltage transformer all adopt electronic type voltage transformer.All electronic type voltage transformers all adopt the double A/D sampling.Electronic type voltage transformer adopts independent tank body to install, and instrument transformer is finally determined by establishing relevant producer with each of joint conference at the mounting means of GIS, adopted integrated design, integrated installation.
(2) secondary connection and communication network
Full station adopts the IEC61850 standard to realize the digitlization of secondary device information interaction, standardization, utilize optical fiber to realize that secondary device interconnects, greatly simplify secondary connection, improve message transmission reliability and device interoperability, saved control cable (control cable more than 60% is reduced at conventional station) in a large number.
The station level network
Station level network using dual star topology structure, redundant network adopt two net duplex mode operations, realize that network seamless switches.Each cell is provided with independently station level switch, and the secondary device chamber is provided with the station level center switch, as shown in Figure 6.
The process layer network
110kV process layer network is by two net configurations, and sampled value, GOOSE, IEEE 1588 unifications of three nets, common network transmit, and realize digitlization, networking, sharedization of transfer of data.220kV process layer network adopts the independently single net of two cover physics, and sampled value adopts the mode of directly adopting, and straight jumping+net jumping mode is adopted in tripping operation, guarantees the system works reliability.10kV is not provided with the self-contained process layer network, as shown in Figure 7.
(3) automated system background host computer and Premium Features software
The two cover configurations of automated system background host computer, Premium Features software have realized that sequential control, equipment state are visual, intelligent alarm, distributed state estimation and replace function.
(4) primary equipment status monitoring
Realization is to the status monitoring of stand interior main transformer, GIS, lightning arrester, the unified status monitoring background system in full station, and realize information interaction with the automation backstage, system architecture as shown in Figure 8:
Monitoring range and parameter
Transducer, IED, the configuration of screen cabinet
The backstage configuration: 1 status monitoring background host computer is established at full station, and 1 in group cabinet is provided with 1 display terminal on the workbench.
(5) intelligent supplementary controlled system
" Internet of Things " technology of utilization is set up the sensing measurement and control network, realizes the integrated application and the interlock control of auxiliary systems such as image monitoring, security guard, fire alarm, main transformer fire-fighting, heating and ventilation, plumbing, SF6 leakage monitoring, operating temperature monitoring.About 330 transducers such as warm and humid sense, SF6 sensing, water logging, cigarette sense, vibration have been arranged at full station, and cooperate facilities such as camera, infrared imaging, sound and light alarm, realization is to the perception of running environment and operational outfit, set up intellectual monitoring and supplementary controlled system on this basis, and adopt DL/T 860 communication protocols to realize the information mutual communication and the coordination linkage of each accessory production system.
Below disclose the present invention with preferred embodiment, so it is not in order to restriction the present invention, and all employings are equal to replaces or technical scheme that the equivalent transformation mode is obtained, all drops within protection scope of the present invention.
Claims (5)
1. intelligent substation based on sensor communication network and expert system, comprise electric substation automation system, primary equipment condition monitoring system and intelligent supplementary controlled system, it is characterized in that: described electric substation automation system, primary equipment condition monitoring system and intelligent supplementary controlled system obtain the real time data of equipment operation respectively by various kinds of sensors, various kinds of sensors communicates by communication network structure and backstage expert system, by the senior application of backstage Implementation of Expert System electric substation automation system, the Intellectualized monitoring of primary equipment status monitoring and auxiliary system and interlock, thus realize the intellectuality operation and the inspection function of transformer station.
2. the intelligent substation based on sensing network and expert system according to claim 1, it is characterized in that: electric substation automation system adopts layered distribution type structure, equipment comprises station level, wall, process layer equipment, and it is interconnected to adopt communication network to realize between the equipment, wherein:
Transducer comprises: all-fiber electronic current transformer, capacitance partial pressure type electronic type voltage transformer;
Communication network comprises: realize the station level network that station level, bay device are interconnected and realize the process layer network of wall, process layer devices interconnect;
Expert system comprises following functional module:
Sequential control module: send instruction by the gross by backstage in remote monitoring center or the station, judge that according to the status information of equipment situation of change whether per step operation puts in place, automatically performs next instruction after confirming to put in place, until executing all instructions;
Equipment state visualization model: primary equipment running status in standing is carried out real-time display analysis, as required relevant information is delivered to main station system by network simultaneously;
Intelligent alarm module: logic and the inference pattern of setting up transformer station's fault message, fault warning information is classified and filtering signals, running status to transformer station is carried out online in real time analysis and reasoning, reports that automatically transformer station is unusual and proposes the troubleshooting instruction;
Distributed state estimation module: in transformer station, realize distributed state estimation function, realize data identification and processing, provide reliable data, alleviate the computational burden of main station system and improve reliability to the control centre;
Replace functional module: the actual conditions that realize simulated field are carried out integration test, comprise the test of anti mis-closedown function, remote moving function and the sequential control function of substation safety operation.
3. the intelligent substation based on sensing network and expert system according to claim 1, it is characterized in that: described primary equipment condition monitoring system adopts layered distribution type structure, equipment comprises transducer, status monitoring IED, background host computer, it is interconnected to adopt communication network to realize between the equipment, wherein:
Transducer comprises: main transformer oil dissolved gas/little water/oily temperature/baroceptor, GIS partial discharge/sulfur hexafluoride gas/circuit breaker operating characteristic transducer, leakage current of an arrester/discharge time transducer;
Communication network comprises: realize transducer and interconnected RS485 bus or the CAN bus of status monitoring IED; Realize between the status monitoring IED or status monitoring IED and 100,000,000 interconnected and above star-like Ethernet of background system;
Expert system comprises: primary equipment status monitoring backstage analytical system, realize gathering and diagnostic analysis of full station primary equipment status monitoring data.
4. the intelligent substation based on sensing network and expert system according to claim 1, it is characterized in that: described intelligent supplementary controlled system utilizes technology of Internet of things, adopt layered distribution type structure, whole intelligent assistance system is divided into several subsystems, comprising: equipment operation on-line temperature monitoring subsystem, SF6 leakage monitoring subsystem, heating and ventilation subsystem, anti-introns system, intelligent patrol detection authentication subsystem, the fire-fighting fire alarm subsystem of being strayed into.
5. the intelligent substation based on sensing network and expert system according to claim 4, it is characterized in that: each subsystem equipment comprises each transducer, field control terminal, the shared background host computer of all subsystems, it is interconnected to adopt communication network to realize between the equipment, wherein:
Transducer comprises: facility such as transducer such as warm and humid sense, SF6 sensing, water logging, cigarette sense, vibration and camera, infrared imaging, sound and light alarm;
Communication network comprises: realize transducer and interconnected RS485 bus, CAN bus or the wireless sense network of field control terminal; Realize between the field control terminal or field control terminal and 100,000,000 interconnected and above star-like Ethernet of background system;
Expert system comprises: intelligent assist control expert system, realize the information integration of each subsystem visual with the interlock function.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2011100489870A CN102122844B (en) | 2011-03-01 | 2011-03-01 | Communication network based on sensor and smart substation of expert system |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2011100489870A CN102122844B (en) | 2011-03-01 | 2011-03-01 | Communication network based on sensor and smart substation of expert system |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN102122844A true CN102122844A (en) | 2011-07-13 |
| CN102122844B CN102122844B (en) | 2012-03-21 |
Family
ID=44251329
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN2011100489870A Expired - Fee Related CN102122844B (en) | 2011-03-01 | 2011-03-01 | Communication network based on sensor and smart substation of expert system |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN102122844B (en) |
Cited By (98)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102290865A (en) * | 2011-08-22 | 2011-12-21 | 国电南瑞科技股份有限公司 | Integrated intelligent unit of intelligent substation |
| CN102354174A (en) * | 2011-07-30 | 2012-02-15 | 山东电力研究院 | Inspection system based on mobile inspection apparatus of transformer station and inspection method thereof |
| CN102437647A (en) * | 2011-10-28 | 2012-05-02 | 镇江市高等专科学校 | Device for monitoring running state of prefabricated substation equipment |
| CN102495179A (en) * | 2011-11-28 | 2012-06-13 | 广东电网公司电力科学研究院 | Insulating gas detection system and data management method thereof |
| CN102545382A (en) * | 2011-11-28 | 2012-07-04 | 河南省电力公司焦作供电公司 | Online monitoring system of transformer device of intelligent transformer substation |
| CN102545386A (en) * | 2012-01-12 | 2012-07-04 | 浙江大学 | Automatic power grid scheduling system of intelligent unattended substations |
| CN102590661A (en) * | 2012-02-02 | 2012-07-18 | 江西省电力科学研究院 | Field distribution type intelligence test method for network-based smart substation |
| CN102830755A (en) * | 2012-08-06 | 2012-12-19 | 华北电力大学 | Integrated soft intelligent equipment server for intelligent substation |
| CN102932167A (en) * | 2012-10-10 | 2013-02-13 | 华南理工大学 | Information stream control method and system for improving relay protection reliability of intelligent substation |
| CN102946089A (en) * | 2012-10-29 | 2013-02-27 | 中国电力科学研究院 | Power system relay protection system based on wireless transmission |
| CN103063968A (en) * | 2013-01-14 | 2013-04-24 | 中国能源建设集团广东省电力设计研究院 | Convertor station electrical equipment status integrated online monitoring system |
| CN103107595A (en) * | 2012-11-29 | 2013-05-15 | 中国电力科学研究院 | Substation automation system in prefabricated transformer substation |
| CN103116100A (en) * | 2013-01-30 | 2013-05-22 | 中国海洋石油总公司 | Condition monitoring system for intelligent substation equipment on offshore oil platform |
| WO2013079112A1 (en) * | 2011-12-01 | 2013-06-06 | Siemens Aktiengesellschaft | Processing data of a technical system comprising several assets |
| CN103149910A (en) * | 2013-02-28 | 2013-06-12 | 丽水电业局 | Ventilation intelligent control system in transformer substation room |
| CN103166320A (en) * | 2013-03-29 | 2013-06-19 | 国家电网公司 | Modeling for online monitoring of intelligent substation device temperature |
| CN103206984A (en) * | 2013-03-26 | 2013-07-17 | 国家电网公司 | Intelligent component for oil-immersed transformer |
| CN103207565A (en) * | 2012-01-13 | 2013-07-17 | 通用电气公司 | Automated incorporation of expert feedback into monitoring system |
| CN103259333A (en) * | 2013-03-30 | 2013-08-21 | 国家电网公司 | Intelligent alarming and integrated fault analysis system |
| CN103280887A (en) * | 2013-05-17 | 2013-09-04 | 贵阳锐泰电力科技有限公司 | Intelligent alarm and fault diagnosis system for transformer substation and scheduling center |
| CN103312556A (en) * | 2013-05-09 | 2013-09-18 | 国家电网公司 | Device and method for monitoring and testing real-time performance of optical Ethernet |
| CN103312035A (en) * | 2013-05-21 | 2013-09-18 | 国家电网公司 | Integrated simulation adjusting-testing system and simulation adjusting-testing method for intelligent substation |
| CN103390935A (en) * | 2013-07-25 | 2013-11-13 | 江西省电力公司检修分公司 | Implementation method of conversion from traditional transformer substation auxiliary system to IEC (international electrotechnical commission) 61850 standard |
| CN103414249A (en) * | 2013-08-02 | 2013-11-27 | 中科天工电气控股有限公司 | Box-type substation long-distance monitoring system |
| CN103441571A (en) * | 2013-06-18 | 2013-12-11 | 国家电网公司 | Integrated monitoring system information platform for transformer substation |
| CN103453939A (en) * | 2013-09-02 | 2013-12-18 | 南通优尼恩纳电力科技有限公司 | Electrical device intelligent monitoring and diagnosis system |
| WO2013185424A1 (en) * | 2012-06-12 | 2013-12-19 | 中国电力科学研究院 | Grid active protection and control method based on intelligent high-voltage equipment and system thereof |
| CN103475092A (en) * | 2013-08-29 | 2013-12-25 | 国家电网公司 | Intelligent transformation method for traditional substation circuit breaker |
| CN103607053A (en) * | 2013-12-01 | 2014-02-26 | 国网河南省电力公司安阳供电公司 | Intelligent switching room system of three-layer structure |
| CN103616608A (en) * | 2013-12-10 | 2014-03-05 | 国家电网公司 | Intelligent monitoring device andg method for electric contact state of gas-insulation switch contactor |
| CN103633736A (en) * | 2012-08-23 | 2014-03-12 | 天津市电力公司 | Online monitoring communication method from substation sub station to main station |
| CN103795142A (en) * | 2012-10-31 | 2014-05-14 | 广州亚虎电力有限公司 | Intelligent inspection tour system of transformer substation |
| CN103986242A (en) * | 2013-06-05 | 2014-08-13 | 威盛电子股份有限公司 | Digital power gating integrated circuit and method |
| CN104081301A (en) * | 2012-02-01 | 2014-10-01 | Abb研究有限公司 | Monitoring of primary devices in a power system |
| CN104079067A (en) * | 2014-06-03 | 2014-10-01 | 广东电网公司茂名供电局 | Method for diagnosing states of primary equipment by means of communication states of secondary equipment in electric system |
| CN104181427A (en) * | 2014-08-29 | 2014-12-03 | 广州电力设计院 | Online monitoring system of intelligent substation transformer |
| CN104215279A (en) * | 2014-09-18 | 2014-12-17 | 贵州电力试验研究院 | Online environment monitoring system and environment monitoring method |
| CN104216444A (en) * | 2014-08-21 | 2014-12-17 | 国家电网公司 | Temperature and humidity measurement based secondary equipment cooling and dehumidification system |
| CN104236728A (en) * | 2014-09-30 | 2014-12-24 | 国家电网公司 | Oil temperature monitoring device and oil temperature monitoring system for power transformers |
| CN104283318A (en) * | 2014-10-24 | 2015-01-14 | 国家电网公司 | Power equipment integrated monitoring and early warning system based on big data and analysis method thereof |
| CN104333139A (en) * | 2014-11-21 | 2015-02-04 | 国家电网公司 | Transformer substation process layer device monitoring method and system |
| CN104330675A (en) * | 2014-11-17 | 2015-02-04 | 国家电网公司 | Multivariate time series based power transformation equipment online monitoring and analysis system and method thereof |
| CN104360184A (en) * | 2014-10-29 | 2015-02-18 | 中国石油化工股份有限公司 | Method and system for online state monitoring of power equipment on basis of neural network model |
| CN104361709A (en) * | 2014-11-27 | 2015-02-18 | 国网河南省电力公司平顶山供电公司 | Unattended-operation transformer substation temperature monitoring system |
| CN104536960A (en) * | 2014-10-21 | 2015-04-22 | 深圳供电局有限公司 | Intelligent monitoring and expert diagnosis system for switch cabinet |
| CN104750081A (en) * | 2015-04-07 | 2015-07-01 | 四川云锁科技有限公司 | Unattended station intelligent management system and control method based on remote terminal control |
| CN104917292A (en) * | 2015-05-15 | 2015-09-16 | 国家电网公司 | Remotely-maintainable substation online monitoring system |
| CN104978837A (en) * | 2015-05-27 | 2015-10-14 | 苏文电能科技有限公司 | Alarm system orienting user-side transformer station and realization method thereof |
| CN104993399A (en) * | 2015-04-24 | 2015-10-21 | 新疆华隆油田科技股份有限公司 | Box type switching station |
| CN105242130A (en) * | 2015-09-09 | 2016-01-13 | 成都比善科技开发有限公司 | Online monitoring method for online substation monitoring system with high safety performance |
| CN105242593A (en) * | 2015-09-21 | 2016-01-13 | 中国南方电网有限责任公司 | Automatic interconnection system for IOT (Internet of Things) intelligent secondary equipment |
| CN105258734A (en) * | 2015-11-12 | 2016-01-20 | 国网辽宁省电力有限公司朝阳供电公司 | Distributed intelligent transformer substation network monitoring system |
| CN105278592A (en) * | 2015-11-12 | 2016-01-27 | 国网辽宁省电力有限公司朝阳供电公司 | Intelligent transformer substation state networked monitoring system |
| CN105300455A (en) * | 2015-11-16 | 2016-02-03 | 王芳 | Real-time online monitoring device of current transformer |
| CN105391166A (en) * | 2015-11-04 | 2016-03-09 | 国网山东省电力公司济宁供电公司 | Transformer station monitoring system and monitoring method thereof |
| CN105446248A (en) * | 2015-12-29 | 2016-03-30 | 安徽海兴泰瑞智能科技有限公司 | Power grid power distribution security auxiliary monitoring system |
| CN105487411A (en) * | 2015-11-25 | 2016-04-13 | 国网河南省电力公司平顶山供电公司 | Fiber sensor based intelligent five-prevention locking method and device |
| CN105515198A (en) * | 2016-01-08 | 2016-04-20 | 国网浙江省电力公司 | Remote intelligent inspection system and method |
| CN105553105A (en) * | 2016-01-29 | 2016-05-04 | 国家电网公司 | Integrated method of primary and secondary equipment |
| CN105740993A (en) * | 2014-12-09 | 2016-07-06 | 深圳中兴力维技术有限公司 | Transformer station operation and maintenance inspection system and realization method thereof |
| CN105740340A (en) * | 2016-01-25 | 2016-07-06 | 国家电网公司 | Cabin division view marking method for 10-35kV switch cabinet of power system |
| CN105929770A (en) * | 2016-04-19 | 2016-09-07 | 广西电网有限责任公司电力科学研究院 | Substation operating condition visualization method based on CIM model |
| CN105974871A (en) * | 2016-07-06 | 2016-09-28 | 太仓诚泽网络科技有限公司 | Intelligent hydropower station automation control system |
| CN106026383A (en) * | 2016-05-16 | 2016-10-12 | 国网辽宁省电力有限公司朝阳供电公司 | Intelligent transformer station equipment state multi-system cooperative diagnosis method based on information fusion |
| CN106059093A (en) * | 2016-07-26 | 2016-10-26 | 潘燕 | Smart substation health condition monitoring system |
| CN106253477A (en) * | 2016-08-25 | 2016-12-21 | 镇江大全赛雪龙牵引电气有限公司 | A kind of high breaking DC traction power-supply system |
| CN106502683A (en) * | 2016-10-31 | 2017-03-15 | 广东电网有限责任公司电力调度控制中心 | A kind of Dynamic Customization classification methods of exhibiting of Real-time Alarm and device |
| CN106657880A (en) * | 2016-10-17 | 2017-05-10 | 国家电网公司 | Intelligent auxiliary system-based inspection system and method |
| CN102635923B (en) * | 2012-03-27 | 2017-07-18 | 上海市电力公司 | The control method of 10kV power distribution station automatic control energy-saving systems |
| CN107608291A (en) * | 2017-09-29 | 2018-01-19 | 中国电力科学研究院 | A kind of intelligent substation application function linkage rule verification method and system |
| CN107769378A (en) * | 2017-10-23 | 2018-03-06 | 国网天津市电力公司 | A kind of transformer substation sequence control determination methods of various dimensions criterion |
| CN108111482A (en) * | 2017-11-24 | 2018-06-01 | 国网天津市电力公司电力科学研究院 | A kind of intelligent grid industrial control network safety test system and test method |
| CN108269021A (en) * | 2018-01-25 | 2018-07-10 | 国网河北省电力有限公司 | Risk monitoring system and method are merged based on NB-IoT electric network informations physics |
| CN108333505A (en) * | 2018-03-02 | 2018-07-27 | 湖南科技大学 | High-voltage circuitbreaker on-line condition monitoring system based on WSN |
| CN108345247A (en) * | 2018-02-26 | 2018-07-31 | 杭州智仁建筑工程有限公司 | A kind of autocontrol method |
| CN108512312A (en) * | 2018-05-15 | 2018-09-07 | 国电南瑞科技股份有限公司 | A kind of substation interval primary equipment running state analysis method |
| CN108923302A (en) * | 2018-06-06 | 2018-11-30 | 中山市明阳电器有限公司 | A kind of intelligence distribution system |
| CN109412266A (en) * | 2018-10-31 | 2019-03-01 | 苏州热工研究院有限公司 | A kind of nuclear power plant's transforming plant protecting monitoring system |
| CN109407595A (en) * | 2018-12-22 | 2019-03-01 | 李彦吉 | The high-speed railway traction substation confined space is anti-to be strayed into monitoring system |
| CN109888914A (en) * | 2019-01-08 | 2019-06-14 | 许昌许继软件技术有限公司 | A kind of major-minor interlock method of substation and device |
| CN110401262A (en) * | 2019-06-17 | 2019-11-01 | 北京许继电气有限公司 | GIS device state intelligent monitoring system and method based on edge calculations technology |
| CN110800178A (en) * | 2017-06-28 | 2020-02-14 | Abb瑞士股份有限公司 | Medium-high voltage substation of unmanned operation and maintenance switch equipment or control equipment |
| CN110797782A (en) * | 2019-11-11 | 2020-02-14 | 国网山西省电力公司阳泉供电公司 | Auxiliary obstacle removing system for master control room |
| CN110958166A (en) * | 2019-11-19 | 2020-04-03 | 许继集团有限公司 | Secondary equipment and information interaction method thereof |
| CN111144232A (en) * | 2019-12-09 | 2020-05-12 | 国网智能科技股份有限公司 | Transformer substation electronic fence monitoring method based on intelligent video monitoring, storage medium and equipment |
| CN111478438A (en) * | 2020-04-14 | 2020-07-31 | 广州劲源科技发展股份有限公司 | Transformer substation visual management device based on equipment information model platform and equipment |
| CN111555463A (en) * | 2020-06-05 | 2020-08-18 | 南京南瑞继保电气有限公司 | Intelligent direct-current protection measurement and control device |
| CN111668927A (en) * | 2020-04-30 | 2020-09-15 | 国网天津市电力公司 | Substation intelligent inspection system based on ubiquitous power Internet of things and control method thereof |
| CN111682440A (en) * | 2020-06-17 | 2020-09-18 | 贵州电网有限责任公司 | Digital substation inspection method |
| CN111932819A (en) * | 2020-08-27 | 2020-11-13 | 宝武集团鄂城钢铁有限公司 | Visual identification system based on intelligent factory platform iPlat |
| CN112186899A (en) * | 2020-09-27 | 2021-01-05 | 国网山东省电力公司青州市供电公司 | Active routing inspection system and method for ring main unit |
| CN112217283A (en) * | 2020-10-12 | 2021-01-12 | 云南电网有限责任公司电力科学研究院 | Power equipment state on-line monitoring system based on Internet of things |
| CN112769240A (en) * | 2020-12-30 | 2021-05-07 | 广州发展能源站管理有限公司 | Power plant electrical equipment unified system |
| CN113990050A (en) * | 2021-10-26 | 2022-01-28 | 江苏致杰轨道交通科技有限公司 | High-voltage cable real-time monitoring and early warning system for high-speed railway |
| CN114362355A (en) * | 2021-11-29 | 2022-04-15 | 国网河南省电力公司周口供电公司 | 10kV switching station visual intelligent monitoring system based on multi-source data fusion |
| US11581712B2 (en) | 2017-06-28 | 2023-02-14 | Abb Schweiz Ag | Robot for unmanned operation and maintenance in an indoor medium or high voltage switch-gear station |
| US11626713B2 (en) | 2017-06-28 | 2023-04-11 | Abb Schweiz Ag | Substation containing switch-gear or control-gear with unmanned operation and maintenance |
| CN117974913A (en) * | 2024-04-02 | 2024-05-03 | 深圳供电局有限公司 | Distribution network cable robot control method and device, electronic equipment and medium |
Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2002352368A (en) * | 2001-05-25 | 2002-12-06 | Toshiba Corp | Equipment monitoring system |
| CN101783530A (en) * | 2010-02-22 | 2010-07-21 | 江苏省电力公司无锡供电公司 | Intelligent monitoring and auxiliary control system for transformer substation based on Internet of things |
| CN201717674U (en) * | 2010-06-25 | 2011-01-19 | 苏州太谷电力有限公司 | Intelligent monitoring system for customer substation |
-
2011
- 2011-03-01 CN CN2011100489870A patent/CN102122844B/en not_active Expired - Fee Related
Patent Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2002352368A (en) * | 2001-05-25 | 2002-12-06 | Toshiba Corp | Equipment monitoring system |
| CN101783530A (en) * | 2010-02-22 | 2010-07-21 | 江苏省电力公司无锡供电公司 | Intelligent monitoring and auxiliary control system for transformer substation based on Internet of things |
| CN201717674U (en) * | 2010-06-25 | 2011-01-19 | 苏州太谷电力有限公司 | Intelligent monitoring system for customer substation |
Non-Patent Citations (2)
| Title |
|---|
| 《电力自动化设备》 20110228 陈晓捷 500kV智能变电站无人值班技术探讨 第31卷, 第2期 2 * |
| 《电网与清洁能源》 20100228 刘昱等 750kV智能化变电站在线监测系统配置 第26卷, 第2期 2 * |
Cited By (125)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102354174B (en) * | 2011-07-30 | 2012-12-26 | 山东电力研究院 | Inspection system based on mobile inspection apparatus of transformer station and inspection method thereof |
| CN102354174A (en) * | 2011-07-30 | 2012-02-15 | 山东电力研究院 | Inspection system based on mobile inspection apparatus of transformer station and inspection method thereof |
| CN102290865A (en) * | 2011-08-22 | 2011-12-21 | 国电南瑞科技股份有限公司 | Integrated intelligent unit of intelligent substation |
| CN102437647A (en) * | 2011-10-28 | 2012-05-02 | 镇江市高等专科学校 | Device for monitoring running state of prefabricated substation equipment |
| CN102495179A (en) * | 2011-11-28 | 2012-06-13 | 广东电网公司电力科学研究院 | Insulating gas detection system and data management method thereof |
| CN102545382A (en) * | 2011-11-28 | 2012-07-04 | 河南省电力公司焦作供电公司 | Online monitoring system of transformer device of intelligent transformer substation |
| WO2013079112A1 (en) * | 2011-12-01 | 2013-06-06 | Siemens Aktiengesellschaft | Processing data of a technical system comprising several assets |
| CN102545386A (en) * | 2012-01-12 | 2012-07-04 | 浙江大学 | Automatic power grid scheduling system of intelligent unattended substations |
| CN102545386B (en) * | 2012-01-12 | 2013-12-25 | 浙江大学 | Automatic power grid scheduling system of intelligent unattended substations |
| CN103207565A (en) * | 2012-01-13 | 2013-07-17 | 通用电气公司 | Automated incorporation of expert feedback into monitoring system |
| CN103207565B (en) * | 2012-01-13 | 2019-06-18 | 通用电气公司 | Automatically expert feedback is integrated in monitoring system |
| CN104081301B (en) * | 2012-02-01 | 2017-02-22 | Abb研究有限公司 | Monitoring of primary devices in a power system |
| CN104081301A (en) * | 2012-02-01 | 2014-10-01 | Abb研究有限公司 | Monitoring of primary devices in a power system |
| CN102590661B (en) * | 2012-02-02 | 2014-04-02 | 江西省电力科学研究院 | Field distribution type intelligence test method for network-based smart substation |
| CN102590661A (en) * | 2012-02-02 | 2012-07-18 | 江西省电力科学研究院 | Field distribution type intelligence test method for network-based smart substation |
| CN102635923B (en) * | 2012-03-27 | 2017-07-18 | 上海市电力公司 | The control method of 10kV power distribution station automatic control energy-saving systems |
| WO2013185424A1 (en) * | 2012-06-12 | 2013-12-19 | 中国电力科学研究院 | Grid active protection and control method based on intelligent high-voltage equipment and system thereof |
| CN102830755B (en) * | 2012-08-06 | 2014-08-06 | 华北电力大学 | Integrated soft intelligent equipment server for intelligent substation |
| CN102830755A (en) * | 2012-08-06 | 2012-12-19 | 华北电力大学 | Integrated soft intelligent equipment server for intelligent substation |
| CN103633736B (en) * | 2012-08-23 | 2015-10-28 | 天津市电力公司 | From the on-line monitoring communication means of power transformation substation to main website |
| CN103633736A (en) * | 2012-08-23 | 2014-03-12 | 天津市电力公司 | Online monitoring communication method from substation sub station to main station |
| CN102932167B (en) * | 2012-10-10 | 2015-04-22 | 华南理工大学 | Information stream control method and system for improving relay protection reliability of intelligent substation |
| CN102932167A (en) * | 2012-10-10 | 2013-02-13 | 华南理工大学 | Information stream control method and system for improving relay protection reliability of intelligent substation |
| CN102946089B (en) * | 2012-10-29 | 2016-04-13 | 中国电力科学研究院 | A kind of power system relay protection system based on wireless transmission |
| CN102946089A (en) * | 2012-10-29 | 2013-02-27 | 中国电力科学研究院 | Power system relay protection system based on wireless transmission |
| CN103795142B (en) * | 2012-10-31 | 2016-04-13 | 广州亚虎电力有限公司 | A kind of intelligent substation inspection tour system |
| CN103795142A (en) * | 2012-10-31 | 2014-05-14 | 广州亚虎电力有限公司 | Intelligent inspection tour system of transformer substation |
| CN103107595B (en) * | 2012-11-29 | 2015-03-25 | 中国电力科学研究院 | Substation automation system in prefabricated transformer substation |
| CN103107595A (en) * | 2012-11-29 | 2013-05-15 | 中国电力科学研究院 | Substation automation system in prefabricated transformer substation |
| CN103063968A (en) * | 2013-01-14 | 2013-04-24 | 中国能源建设集团广东省电力设计研究院 | Convertor station electrical equipment status integrated online monitoring system |
| CN103116100A (en) * | 2013-01-30 | 2013-05-22 | 中国海洋石油总公司 | Condition monitoring system for intelligent substation equipment on offshore oil platform |
| CN103149910A (en) * | 2013-02-28 | 2013-06-12 | 丽水电业局 | Ventilation intelligent control system in transformer substation room |
| CN103149910B (en) * | 2013-02-28 | 2015-04-08 | 丽水电业局 | Ventilation intelligent control system in transformer substation room |
| CN103206984A (en) * | 2013-03-26 | 2013-07-17 | 国家电网公司 | Intelligent component for oil-immersed transformer |
| CN103166320B (en) * | 2013-03-29 | 2014-10-08 | 国家电网公司 | Modeling for online monitoring of intelligent substation device temperature |
| CN103166320A (en) * | 2013-03-29 | 2013-06-19 | 国家电网公司 | Modeling for online monitoring of intelligent substation device temperature |
| CN103259333A (en) * | 2013-03-30 | 2013-08-21 | 国家电网公司 | Intelligent alarming and integrated fault analysis system |
| CN103259333B (en) * | 2013-03-30 | 2016-01-27 | 国家电网公司 | Intelligent alarm and comprehensive analysis of fault system |
| CN103312556A (en) * | 2013-05-09 | 2013-09-18 | 国家电网公司 | Device and method for monitoring and testing real-time performance of optical Ethernet |
| CN103312556B (en) * | 2013-05-09 | 2016-09-21 | 国家电网公司 | A kind of fiber optic Ethernet real-time performance monitors and the device and method of test transformer station |
| CN103280887B (en) * | 2013-05-17 | 2016-06-08 | 贵阳锐泰电力科技有限公司 | A kind of transformer station and control centre's intelligent alarm and fault diagnosis system |
| CN103280887A (en) * | 2013-05-17 | 2013-09-04 | 贵阳锐泰电力科技有限公司 | Intelligent alarm and fault diagnosis system for transformer substation and scheduling center |
| CN103312035A (en) * | 2013-05-21 | 2013-09-18 | 国家电网公司 | Integrated simulation adjusting-testing system and simulation adjusting-testing method for intelligent substation |
| CN103312035B (en) * | 2013-05-21 | 2015-04-22 | 国家电网公司 | Integrated simulation adjusting-testing system and simulation adjusting-testing method for intelligent substation |
| CN103986242A (en) * | 2013-06-05 | 2014-08-13 | 威盛电子股份有限公司 | Digital power gating integrated circuit and method |
| CN103986242B (en) * | 2013-06-05 | 2016-10-26 | 威盛电子股份有限公司 | The integrated circuit of digital power lock control and method |
| CN103441571A (en) * | 2013-06-18 | 2013-12-11 | 国家电网公司 | Integrated monitoring system information platform for transformer substation |
| CN103390935A (en) * | 2013-07-25 | 2013-11-13 | 江西省电力公司检修分公司 | Implementation method of conversion from traditional transformer substation auxiliary system to IEC (international electrotechnical commission) 61850 standard |
| CN103414249A (en) * | 2013-08-02 | 2013-11-27 | 中科天工电气控股有限公司 | Box-type substation long-distance monitoring system |
| CN103475092A (en) * | 2013-08-29 | 2013-12-25 | 国家电网公司 | Intelligent transformation method for traditional substation circuit breaker |
| CN103453939A (en) * | 2013-09-02 | 2013-12-18 | 南通优尼恩纳电力科技有限公司 | Electrical device intelligent monitoring and diagnosis system |
| CN103607053A (en) * | 2013-12-01 | 2014-02-26 | 国网河南省电力公司安阳供电公司 | Intelligent switching room system of three-layer structure |
| CN103616608B (en) * | 2013-12-10 | 2017-01-18 | 国家电网公司 | Intelligent monitoring device andg method for electric contact state of gas-insulation switch contactor |
| CN103616608A (en) * | 2013-12-10 | 2014-03-05 | 国家电网公司 | Intelligent monitoring device andg method for electric contact state of gas-insulation switch contactor |
| CN104079067B (en) * | 2014-06-03 | 2015-11-18 | 广东电网有限责任公司茂名供电局 | By the method for secondary device communications status diagnosis primary equipment state in electric power system |
| CN104079067A (en) * | 2014-06-03 | 2014-10-01 | 广东电网公司茂名供电局 | Method for diagnosing states of primary equipment by means of communication states of secondary equipment in electric system |
| CN104216444A (en) * | 2014-08-21 | 2014-12-17 | 国家电网公司 | Temperature and humidity measurement based secondary equipment cooling and dehumidification system |
| CN104181427A (en) * | 2014-08-29 | 2014-12-03 | 广州电力设计院 | Online monitoring system of intelligent substation transformer |
| CN104215279A (en) * | 2014-09-18 | 2014-12-17 | 贵州电力试验研究院 | Online environment monitoring system and environment monitoring method |
| CN104236728A (en) * | 2014-09-30 | 2014-12-24 | 国家电网公司 | Oil temperature monitoring device and oil temperature monitoring system for power transformers |
| CN104536960A (en) * | 2014-10-21 | 2015-04-22 | 深圳供电局有限公司 | Intelligent monitoring and expert diagnosis system for switch cabinet |
| CN104283318A (en) * | 2014-10-24 | 2015-01-14 | 国家电网公司 | Power equipment integrated monitoring and early warning system based on big data and analysis method thereof |
| CN104360184A (en) * | 2014-10-29 | 2015-02-18 | 中国石油化工股份有限公司 | Method and system for online state monitoring of power equipment on basis of neural network model |
| CN104330675A (en) * | 2014-11-17 | 2015-02-04 | 国家电网公司 | Multivariate time series based power transformation equipment online monitoring and analysis system and method thereof |
| CN104330675B (en) * | 2014-11-17 | 2017-02-22 | 国家电网公司 | Multivariate time series based power transformation equipment online monitoring and analysis system and method thereof |
| CN104333139A (en) * | 2014-11-21 | 2015-02-04 | 国家电网公司 | Transformer substation process layer device monitoring method and system |
| CN104361709A (en) * | 2014-11-27 | 2015-02-18 | 国网河南省电力公司平顶山供电公司 | Unattended-operation transformer substation temperature monitoring system |
| CN105740993A (en) * | 2014-12-09 | 2016-07-06 | 深圳中兴力维技术有限公司 | Transformer station operation and maintenance inspection system and realization method thereof |
| CN104750081A (en) * | 2015-04-07 | 2015-07-01 | 四川云锁科技有限公司 | Unattended station intelligent management system and control method based on remote terminal control |
| CN104993399A (en) * | 2015-04-24 | 2015-10-21 | 新疆华隆油田科技股份有限公司 | Box type switching station |
| CN104917292A (en) * | 2015-05-15 | 2015-09-16 | 国家电网公司 | Remotely-maintainable substation online monitoring system |
| CN104978837A (en) * | 2015-05-27 | 2015-10-14 | 苏文电能科技有限公司 | Alarm system orienting user-side transformer station and realization method thereof |
| CN105242130A (en) * | 2015-09-09 | 2016-01-13 | 成都比善科技开发有限公司 | Online monitoring method for online substation monitoring system with high safety performance |
| CN105242593A (en) * | 2015-09-21 | 2016-01-13 | 中国南方电网有限责任公司 | Automatic interconnection system for IOT (Internet of Things) intelligent secondary equipment |
| CN105391166A (en) * | 2015-11-04 | 2016-03-09 | 国网山东省电力公司济宁供电公司 | Transformer station monitoring system and monitoring method thereof |
| CN105258734A (en) * | 2015-11-12 | 2016-01-20 | 国网辽宁省电力有限公司朝阳供电公司 | Distributed intelligent transformer substation network monitoring system |
| CN105278592A (en) * | 2015-11-12 | 2016-01-27 | 国网辽宁省电力有限公司朝阳供电公司 | Intelligent transformer substation state networked monitoring system |
| CN105300455A (en) * | 2015-11-16 | 2016-02-03 | 王芳 | Real-time online monitoring device of current transformer |
| CN105487411A (en) * | 2015-11-25 | 2016-04-13 | 国网河南省电力公司平顶山供电公司 | Fiber sensor based intelligent five-prevention locking method and device |
| CN105446248A (en) * | 2015-12-29 | 2016-03-30 | 安徽海兴泰瑞智能科技有限公司 | Power grid power distribution security auxiliary monitoring system |
| CN105515198A (en) * | 2016-01-08 | 2016-04-20 | 国网浙江省电力公司 | Remote intelligent inspection system and method |
| CN105740340A (en) * | 2016-01-25 | 2016-07-06 | 国家电网公司 | Cabin division view marking method for 10-35kV switch cabinet of power system |
| CN105740340B (en) * | 2016-01-25 | 2019-05-17 | 国家电网公司 | A kind of electric system 10-35kV switchgear divides storehouse view identification method |
| CN105553105A (en) * | 2016-01-29 | 2016-05-04 | 国家电网公司 | Integrated method of primary and secondary equipment |
| CN105929770B (en) * | 2016-04-19 | 2019-01-08 | 广西电网有限责任公司电力科学研究院 | A kind of substation operation operating condition method for visualizing based on CIM model |
| CN105929770A (en) * | 2016-04-19 | 2016-09-07 | 广西电网有限责任公司电力科学研究院 | Substation operating condition visualization method based on CIM model |
| CN106026383A (en) * | 2016-05-16 | 2016-10-12 | 国网辽宁省电力有限公司朝阳供电公司 | Intelligent transformer station equipment state multi-system cooperative diagnosis method based on information fusion |
| CN105974871A (en) * | 2016-07-06 | 2016-09-28 | 太仓诚泽网络科技有限公司 | Intelligent hydropower station automation control system |
| CN106059093A (en) * | 2016-07-26 | 2016-10-26 | 潘燕 | Smart substation health condition monitoring system |
| CN106253477A (en) * | 2016-08-25 | 2016-12-21 | 镇江大全赛雪龙牵引电气有限公司 | A kind of high breaking DC traction power-supply system |
| CN106657880A (en) * | 2016-10-17 | 2017-05-10 | 国家电网公司 | Intelligent auxiliary system-based inspection system and method |
| CN106502683A (en) * | 2016-10-31 | 2017-03-15 | 广东电网有限责任公司电力调度控制中心 | A kind of Dynamic Customization classification methods of exhibiting of Real-time Alarm and device |
| CN110800178A (en) * | 2017-06-28 | 2020-02-14 | Abb瑞士股份有限公司 | Medium-high voltage substation of unmanned operation and maintenance switch equipment or control equipment |
| US11451015B2 (en) | 2017-06-28 | 2022-09-20 | Abb Schweiz Ag | Substation containing switchgear or controlgear with unmanned operation and maintenance |
| US11581712B2 (en) | 2017-06-28 | 2023-02-14 | Abb Schweiz Ag | Robot for unmanned operation and maintenance in an indoor medium or high voltage switch-gear station |
| US11362489B2 (en) | 2017-06-28 | 2022-06-14 | Abb Schweiz Ag | Substation for medium or high voltage, containing switchgear or controlgear with unmanned operation and maintenance |
| US11626713B2 (en) | 2017-06-28 | 2023-04-11 | Abb Schweiz Ag | Substation containing switch-gear or control-gear with unmanned operation and maintenance |
| CN107608291A (en) * | 2017-09-29 | 2018-01-19 | 中国电力科学研究院 | A kind of intelligent substation application function linkage rule verification method and system |
| CN107769378A (en) * | 2017-10-23 | 2018-03-06 | 国网天津市电力公司 | A kind of transformer substation sequence control determination methods of various dimensions criterion |
| CN108111482A (en) * | 2017-11-24 | 2018-06-01 | 国网天津市电力公司电力科学研究院 | A kind of intelligent grid industrial control network safety test system and test method |
| CN108269021A (en) * | 2018-01-25 | 2018-07-10 | 国网河北省电力有限公司 | Risk monitoring system and method are merged based on NB-IoT electric network informations physics |
| CN108345247A (en) * | 2018-02-26 | 2018-07-31 | 杭州智仁建筑工程有限公司 | A kind of autocontrol method |
| CN108333505A (en) * | 2018-03-02 | 2018-07-27 | 湖南科技大学 | High-voltage circuitbreaker on-line condition monitoring system based on WSN |
| CN108512312A (en) * | 2018-05-15 | 2018-09-07 | 国电南瑞科技股份有限公司 | A kind of substation interval primary equipment running state analysis method |
| CN108923302A (en) * | 2018-06-06 | 2018-11-30 | 中山市明阳电器有限公司 | A kind of intelligence distribution system |
| CN109412266A (en) * | 2018-10-31 | 2019-03-01 | 苏州热工研究院有限公司 | A kind of nuclear power plant's transforming plant protecting monitoring system |
| CN109407595A (en) * | 2018-12-22 | 2019-03-01 | 李彦吉 | The high-speed railway traction substation confined space is anti-to be strayed into monitoring system |
| CN109888914A (en) * | 2019-01-08 | 2019-06-14 | 许昌许继软件技术有限公司 | A kind of major-minor interlock method of substation and device |
| CN110401262A (en) * | 2019-06-17 | 2019-11-01 | 北京许继电气有限公司 | GIS device state intelligent monitoring system and method based on edge calculations technology |
| CN110797782A (en) * | 2019-11-11 | 2020-02-14 | 国网山西省电力公司阳泉供电公司 | Auxiliary obstacle removing system for master control room |
| CN110958166A (en) * | 2019-11-19 | 2020-04-03 | 许继集团有限公司 | Secondary equipment and information interaction method thereof |
| CN111144232A (en) * | 2019-12-09 | 2020-05-12 | 国网智能科技股份有限公司 | Transformer substation electronic fence monitoring method based on intelligent video monitoring, storage medium and equipment |
| CN111478438A (en) * | 2020-04-14 | 2020-07-31 | 广州劲源科技发展股份有限公司 | Transformer substation visual management device based on equipment information model platform and equipment |
| CN111668927A (en) * | 2020-04-30 | 2020-09-15 | 国网天津市电力公司 | Substation intelligent inspection system based on ubiquitous power Internet of things and control method thereof |
| CN111555463A (en) * | 2020-06-05 | 2020-08-18 | 南京南瑞继保电气有限公司 | Intelligent direct-current protection measurement and control device |
| CN111682440A (en) * | 2020-06-17 | 2020-09-18 | 贵州电网有限责任公司 | Digital substation inspection method |
| CN111932819A (en) * | 2020-08-27 | 2020-11-13 | 宝武集团鄂城钢铁有限公司 | Visual identification system based on intelligent factory platform iPlat |
| CN112186899A (en) * | 2020-09-27 | 2021-01-05 | 国网山东省电力公司青州市供电公司 | Active routing inspection system and method for ring main unit |
| CN112217283A (en) * | 2020-10-12 | 2021-01-12 | 云南电网有限责任公司电力科学研究院 | Power equipment state on-line monitoring system based on Internet of things |
| CN112217283B (en) * | 2020-10-12 | 2024-08-27 | 云南电网有限责任公司电力科学研究院 | Power equipment state on-line monitoring system based on Internet of things |
| CN112769240A (en) * | 2020-12-30 | 2021-05-07 | 广州发展能源站管理有限公司 | Power plant electrical equipment unified system |
| CN113990050A (en) * | 2021-10-26 | 2022-01-28 | 江苏致杰轨道交通科技有限公司 | High-voltage cable real-time monitoring and early warning system for high-speed railway |
| CN114362355A (en) * | 2021-11-29 | 2022-04-15 | 国网河南省电力公司周口供电公司 | 10kV switching station visual intelligent monitoring system based on multi-source data fusion |
| CN117974913A (en) * | 2024-04-02 | 2024-05-03 | 深圳供电局有限公司 | Distribution network cable robot control method and device, electronic equipment and medium |
| CN117974913B (en) * | 2024-04-02 | 2024-06-11 | 深圳供电局有限公司 | Distribution network cable robot control method and device, electronic equipment and medium |
Also Published As
| Publication number | Publication date |
|---|---|
| CN102122844B (en) | 2012-03-21 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN102122844B (en) | Communication network based on sensor and smart substation of expert system | |
| CN207938972U (en) | A kind of intelligent monitor system applied to box-type substation | |
| CN105811584B (en) | A kind of conventional substation intellectualized reconstruction method | |
| CN201018284Y (en) | Economically intelligent synthetic power distribution unit | |
| CN103576650A (en) | Operation security monitoring and managing system for airport ground equipment | |
| CN208571704U (en) | A kind of intelligent monitor system applied to low-voltage comprehensive distribution box | |
| CN105785946B (en) | Computer room ring control integration monitors platform | |
| CN107989753A (en) | A kind of wind power plant wind power generating set monitoring system and monitoring method based on exploitation map | |
| CN208820537U (en) | A kind of box-type substation integrated information monitoring system based on Internet of Things | |
| CN104319892A (en) | Intelligent preassembled-type transformer substation state monitoring device | |
| CN211296946U (en) | Railway electric power comprehensive operation and maintenance management system | |
| CN107222027A (en) | A kind of efficient real time comprehensive managing and control system of power distribution room | |
| CN106786695A (en) | Sodium-sulphur battery power station | |
| CN203135572U (en) | Transformer substation DC device state monitoring system | |
| CN114498934A (en) | Transformer substation monitoring system | |
| CN107124038A (en) | High-efficiency real-time comprehensive management and control system for power distribution room | |
| CN206742968U (en) | A kind of switchgear house intelligence attended computer device people's system | |
| CN109412268A (en) | A kind of electronic box intelligent monitor system | |
| CN106597961A (en) | Ring network cabinet environment monitoring system and method thereof | |
| CN117054932A (en) | Method for generating model of on-line monitoring device of secondary equipment of power operation and maintenance system | |
| CN205911832U (en) | Circuit breaker intelligent components | |
| CN112202241A (en) | Distribution network equipment state monitoring and fault judgment system | |
| CN110108366A (en) | A kind of infrared cable vault's temp measuring system of dot matrix based on dispatch network | |
| CN107546856A (en) | A kind of ring-main unit comprehensive monitoring system | |
| CN214674537U (en) | Intelligent control transformer substation monitoring platform |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C06 | Publication | ||
| PB01 | Publication | ||
| C10 | Entry into substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| C14 | Grant of patent or utility model | ||
| GR01 | Patent grant | ||
| ASS | Succession or assignment of patent right |
Owner name: STATE GRID XINJIANG ELECTRIC POWER CO., LTD. ECONO Effective date: 20150202 |
|
| C41 | Transfer of patent application or patent right or utility model | ||
| C53 | Correction of patent for invention or patent application | ||
| CB03 | Change of inventor or designer information |
Inventor after: Su Lin Inventor after: Wang Zuomin Inventor after: Li Juan Inventor after: Peng Shengjiang Inventor after: Lu Donghai Inventor after: Wu Huaijun Inventor after: Wang Xiaohu Inventor after: Kang Yuhan Inventor after: Sun Chunjun Inventor after: Che Yong Inventor after: Wang Xiujiang Inventor after: Lou Yue Inventor after: Zhu Dongsheng Inventor after: Dan Qiang Inventor after: Qin Hua Inventor after: Wu Suoping Inventor before: Su Lin Inventor before: Wang Xiaohu Inventor before: Sun Chunjun Inventor before: Lou Yue Inventor before: Zhu Dongsheng Inventor before: Qin Hua Inventor before: Wu Suoping Inventor before: Wang Zuomin Inventor before: Lu Donghai Inventor before: Wu Huaijun |
|
| COR | Change of bibliographic data |
Free format text: CORRECT: INVENTOR; FROM: SU LIN SUN CHUNJUN LOU YUE ZHU DONGSHENG QIN HUA WU SUOPING WANG ZUOMIN LU DONGHAI WU HUAIJUN WANG XIAOHU TO: SU LIN SUN CHUNJUN CHE YONG WANG XIUJIANG LOU YUE ZHU DONGSHENG DAN QIANG QIN HUA WU SUOPING WANG ZUOMIN LI JUAN PENG SHENGJIANG LU DONGHAI WU HUAIJUN WANG XIAOHU KANG YUHAN |
|
| TR01 | Transfer of patent right |
Effective date of registration: 20150202 Address after: 210009 Gulou District, Jiangsu, Nanjing new model road, No. 5 Patentee after: Jiangsu Electric Power Designing Institute Patentee after: Guo Wang Xinjiang power company Patentee after: ECONOMIC TECHNOLOGY RESEARCH INSTITUTE, STATE GRID XINJIANG ELECTRIC POWER CO., LTD. Address before: 210009 Gulou District, Jiangsu, Nanjing new model road, No. 5 Patentee before: Jiangsu Electric Power Designing Institute |
|
| C56 | Change in the name or address of the patentee |
Owner name: CHINA ENERGY ENGINEERING GROUP JIANGSU ELECTRIC PO Free format text: FORMER NAME: JIANGSU ELECTRIC POWER DESIGNING INST. |
|
| CP01 | Change in the name or title of a patent holder |
Address after: 210009 Gulou District, Jiangsu, Nanjing new model road, No. 5 Patentee after: Chinese energy construction group Jiangsu Prov. Power Design Inst Co., Ltd Patentee after: Guo Wang Xinjiang power company Patentee after: ECONOMIC TECHNOLOGY RESEARCH INSTITUTE, STATE GRID XINJIANG ELECTRIC POWER CO., LTD. Address before: 210009 Gulou District, Jiangsu, Nanjing new model road, No. 5 Patentee before: Jiangsu Electric Power Designing Institute Patentee before: Guo Wang Xinjiang power company Patentee before: ECONOMIC TECHNOLOGY RESEARCH INSTITUTE, STATE GRID XINJIANG ELECTRIC POWER CO., LTD. |
|
| CF01 | Termination of patent right due to non-payment of annual fee | ||
| CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20120321 Termination date: 20200301 |
