Abstract

A lateral moving device for an upper mold of a multi-press bending machine, comprising a bending machine body (1), a guide rail (23), an upper mold (6) and a driving device for moving the upper mold (6), the bending machine The body (1) is provided with a column (4), a support (5) and a lower mold (21), and a support (5) is provided on the upper end of the column (4), and the guide rail (23) is arranged on the support (5). ), the upper die (6) is set to be arranged on the guide rail (23) through the bracket, the support of the upper die (6) is set to be slidingly connected with the guide rail (23), and the upper die (6) is set to be connected to the lower die (21) Correspondingly, the driving device is set to be connected with the support of the upper mold (6), and the moving direction of the upper mold (6) is set to be perpendicular to the material feeding and discharging direction of the plate, and the lateral moving device of the upper mold (6) is adopted, which not only reduces the The height and center of gravity of the bending machine increase the stability of the bending machine; especially because of the increased space, it is also more convenient to place and lift the sheet metal, and it is also convenient to adjust the upper die (6) and the lower die. (21) Maintenance and maintenance work.

Description

A lateral moving device for the upper die of a multi-press bending machine

1. Technical field:

The invention relates to an upper mold lateral moving device of a multi-press bending machine, which is mainly used for the bending machine for plastic forming processing of plate members with three-dimensional curved surfaces, especially for the bending of outer plate members with three-dimensional curved surfaces machine, belonging to the field of mechanical engineering.

2. Background technology:

With the rapid development of my country's economy, the shipbuilding industry is also developing rapidly. During shipbuilding, most of the hull's outer plate members are curved surfaces, and the manufacture of three-dimensional curved plate parts requires research on a new type of three-dimensional curved surface multi-pressure head bending machine. . In the existing bending machine, it is generally composed of three beams: the upper beam for fixing the hydraulic cylinder, the lower beam for placing the lower mold, and the movable beam for applying pressure in the middle of the upper mold. The placement and lifting of the bending machine requires a large intermediate movable beam stroke, resulting in the disadvantages of large height and high center of gravity of the bending machine.

3. Contents of the invention:

The purpose of the present invention is to provide a lateral moving device for the upper mold for the cold-bending processing and forming equipment of large-scale outer plate curved surface components of ships, which solves the technical problems of the original bending machine with large height and high center of gravity, and increases the The stability of the plate bending machine also facilitates the operation and maintenance of the plate in and out.

The above-mentioned purpose of the present invention is achieved in this way, and its technical solution is: an upper mold lateral movement device of a multi-press bending machine, including a bending machine body, a guide rail, an upper mold and a driving device for moving the upper mold, The body of the plate bending machine is provided with a column, a support and a lower die. A support is provided at the upper end of the column. The guide rail is arranged on the support. The upper die is set on the guide rail through the bracket. The guide rail is slidingly connected, the upper mold is set to correspond to the lower mold, the driving device is set to be connected to the bracket of the upper mold, and the moving direction of the upper mold is set to be perpendicular to the direction of feeding and discharging of the plate.

When the sheet material needs to be fed, start the driving device, push the upper die to move to the side of the bending machine body, increase the upper space of the lower die, lift out the formed sheet, put the sheet on the lower die, and then Start the driving device to make the upper mold and the lower mold accurately positioned, so that the upper mold and the lower mold can press and form the plate. Due to the design of the guide rail, the space of the lower mold is increased, which meets the requirements for the material in and out of the plate, and at the same time reduces the bending. The center of gravity of the plate bending machine increases the stability of the plate bending machine. Due to the design of the guide rail, the space of the lower mold is increased, which facilitates the operation and maintenance of the material in and out of the plate, and at the same time reduces the center of gravity of the plate bending machine, increasing the The stability of the bending machine is improved.

The present invention designs that the guide rail is set to include a guide rail seat and a slide rail, the cross section of the guide rail seat is set as a quadrilateral, slide rails are provided on both sides of the guide rail seat in contact with the bracket of the upper die, and the slide rail is arranged to pass through the bolt and the guide rail seat connection.

The present invention designs that the driving device is set as a push-pull oil cylinder, the axis of the push-pull oil cylinder is set to be perpendicular to the feeding and discharging direction of the plate, one end of the push-pull oil cylinder is set to be hinged to the guide rail, and the other end is set to be hinged to the bracket of the upper mold.

The present invention designs that the upper mold is set to include a pressure head and a pressure oil cylinder, and the pressure head and the pressure oil cylinder are set in multiples, and the multiple pressure heads are arranged in the bracket of the upper mold, and the multiple pressure heads are arranged in a square shape , one end of the pressure oil cylinder is set to be hinged with the bracket of the upper mold, the other end is set to be hinged with the pressure head, and the pressure oil cylinder is set to be connected with the hydraulic controller of the pressure oil cylinder.

The present invention designs, also includes roller, and the bracket of upper mold is arranged to connect with guide rail through roller.

4. Description of drawings:

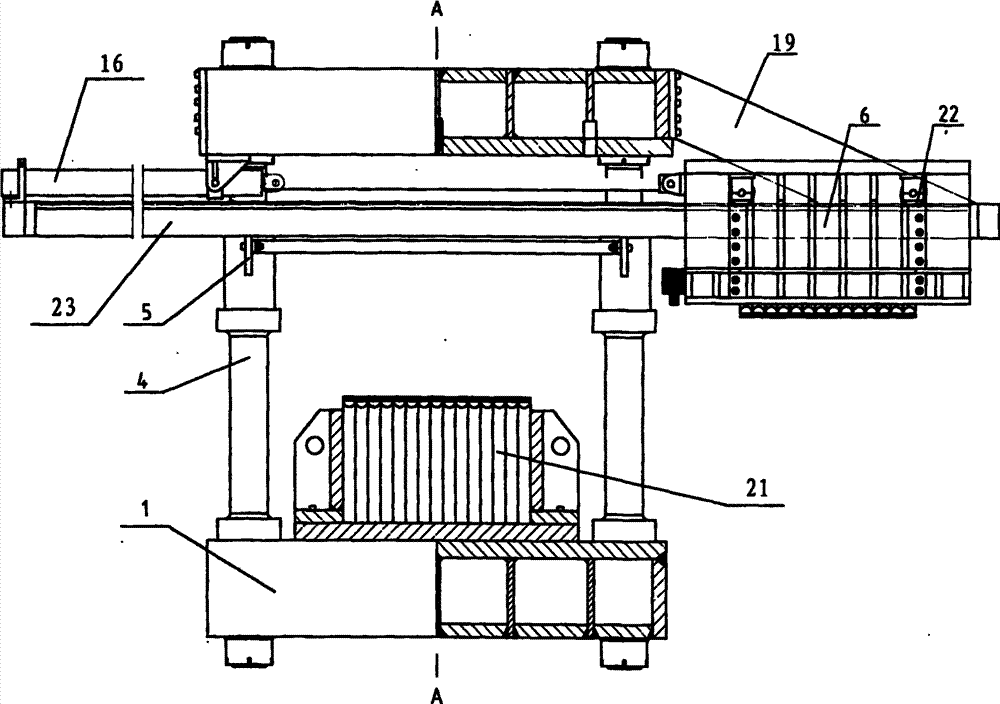

Fig. 1 is a structural representation of the present invention:

Fig. 2 is the A-A sectional view of Fig. 1:

Fig. 3 is a B-B sectional view of Fig. 2 .

5. Specific implementation methods:

Below in conjunction with the embodiment shown in the drawings, the specific content and working process of the present invention will be further described.

An upper mold lateral movement device of a multi-press bending machine, which is used for a multi-press bending machine of a ship's outer plate member, and is mainly used for the forming and processing of large three-dimensional plates such as ship's outer plate members in shipbuilding. The plate machine is different, mainly because the upper mold of the present invention can move along the direction perpendicular to the sheet material feeding direction, thereby increasing the space when the sheet material is fed in and out, thereby solving the technical problem of lowering the center of gravity of the machine tool.

Fig. 1 is a structural schematic diagram of an embodiment of the present invention. The technical solution of this embodiment is: a bending machine body 1, a guide rail 23, an upper mold 6, a roller 22, a push-pull cylinder 16 and a reinforcing rib 19, the bending machine body 1 is provided with a column 4, a support 5 and a lower mold 21, a support 5 is provided on the upper end of the column 4, and a guide rail 23 is arranged on the support 5, and the guide rail 23 is set to pass through the reinforcing rib 19 and the bending machine body 1 The upper end of the upper mold 6 is set to be arranged on the guide rail 23 through the bracket, the bracket of the upper mold 6 is set to be connected with the guide rail 23 through the roller 22, the upper mold 6 is set to correspond to the lower mold 21, and the axis of the push-pull cylinder 16 is set To be perpendicular to the feeding and discharging direction of the plate, one end of the push-pull cylinder 16 is set to be hinged to the guide rail 23, and the other end is set to be hinged to the bracket of the upper mold 6.

In this embodiment, the guide rail 23 is set to include a guide rail seat and a monorail, the cross section of the guide rail seat is set to a quadrilateral, and monorails are arranged on both sides of the guide rail seat contacting the support of the upper mold 6, and the monorail is arranged to be connected to the guide rail by bolts. seat connection.

In this embodiment, the upper die 6 is set to include a pressure head 61 and a pressure cylinder 62, and the number of the pressure head 61 and the pressure oil cylinder 62 is set to 196, and the 196 pressure heads 61 are set to be arranged in the bracket of the upper die 6, 196 A pressure head 61 is set to be arranged in a square, and one end of the pressure oil cylinder 62 is set to be hinged with the support of the upper mold 6, and the other end is set to be hinged with the pressure head 61, and the pressure oil cylinder 62 is arranged to be connected with the hydraulic controller of the pressure oil cylinder 62.

When sheet materials need to be fed, start the hydraulic controller of the push-pull cylinder 16 to extend the push-pull cylinder 16, push the upper die 6 to move to one side of the bending machine body 1, increase the upper space of the lower die 21, and press the sheet material Put it on the lower mold 21, start the hydraulic controller of the push-pull oil cylinder 16 to shrink the push-pull oil cylinder 16, and stop when the upper mold 6 reaches the position set with the lower mold 21.

In the present invention, the structure of the upper mold 6 and the lower mold 21 has been applied for a Chinese patent, and its name is: a square pressure head adjustable movable mold plate curved surface forming device.

When carrying out the scheme design of the present invention, when we were carrying out the bending machine test, we found that when the upper die 6 and the lower die 21, especially the upper die 6, were maintained, due to the distance between the upper die 6 and the lower die 21 It is too close, the space is small, and it is very inconvenient, so the guide rail 23 is designed, and the upper mold 6 is adopted to move laterally. When it is found that the upper space of the lower mold 21 can be increased, the center of gravity of the bending machine body 1 is lowered at the same time, and the This improves the stability of the plate bending machine body 1, and facilitates the placement and lifting of the sheet metal.

Features of the present invention:

1. Due to the design of the guide rail 23, the upper space of the lower die 21 is increased, which facilitates the entry and exit of plates, reduces the height and center of gravity of the bending machine body 1, and enhances the stability of the bending machine body 1.

2. Because the guide rail 23 is designed, it is more conducive to the placement and lifting of the sheet metal, and also facilitates the maintenance and maintenance of the upper mold 6 and the lower mold 21.

It can be seen that the multi-head plate bending machine with the upper mold capable of lateral movement of the present invention not only reduces the height and center of gravity of the plate bending machine, but also increases the stability of the plate bending machine; especially because of the increased space, It also facilitates the laying and lifting work of the sheet metal, and also facilitates the maintenance and maintenance work of the upper mold 6 and the lower mold 21.

In the technical field of the upper die lateral movement device of the multi-press bending machine, any plate bending machine body 1 is provided with a column 4, a support 5 and a lower die 21, and a support is provided at the upper end of the column 4 5. The guide rail 23 is set on the support 5, the upper mold 6 is set on the guide rail 23 through the bracket, the bracket of the upper mold 6 is set to be slidingly connected with the guide rail 23, the upper mold 6 is set to correspond to the lower mold 21, and the drive The technical content that the device is set to be connected with the support of the upper mold 6 and the moving direction of the upper mold 6 is set to be perpendicular to the feeding and discharging direction of the plate is within the protection scope of the present invention.

Claims (5)

1. the patrix horizontal mobile device of a multiple pressure squeezer; It is characterized in that: the drive unit that includes squeezer body (1), guide rail (23), patrix (6) and patrix (6) is moved; Squeezer body (1) is set to include column (4), bearing (5) and counterdie (21); Be provided with bearing (5) in the upper end of column (4), guide rail (23) is arranged on the bearing (5), and patrix (6) is set to be arranged on the guide rail (23) through support; The support of patrix (6) is set to be slidingly connected with guide rail (23); Patrix (6) is set to corresponding with counterdie (21), and drive unit is set to connect with the support of patrix (6), and the moving direction of patrix (6) is set to vertical with the input and output material direction of sheet material.

2. the patrix horizontal mobile device of a multiple pressure squeezer according to claim 1; It is characterized in that: guide rail (23) is set to include track base and slide rail, and the cross section of track base is set to quadrangle, and the both sides of the track base that contacts at the support with patrix (6) are provided with slide rail, and slide rail is set to connect with track base through bolt.

3. the patrix horizontal mobile device of a multiple pressure squeezer according to claim 1; It is characterized in that: drive unit is set to push cylinder (16), and the axis of push cylinder (16) is set to vertical with the input and output material direction of sheet material, and it is hinged with the support of patrix (6) that an end of push cylinder (16) is set to and guide rail (23) is hinged, the other end is set to.

4. the patrix horizontal mobile device of a multiple pressure squeezer according to claim 1; It is characterized in that: patrix (6) is set to include pressure head (61) and oil pressure cylinder (62); Pressure head (61), oil pressure cylinder (62) are set to a plurality of; A plurality of pressure heads (61) are made as in the support that is arranged in patrix (6); A plurality of pressure heads (61) are set to be arranged in well-regulated shape, and it is hinged with pressure head (61) that an end of oil pressure cylinder (62) is set to and the support of patrix (6) is hinged, the other end is set to, and oil pressure cylinder (62) is set to connect with the hydraulic controller of oil pressure cylinder (62).

5. according to the patrix horizontal mobile device of claim 1,2,3 or 4 a described multiple pressure squeezer; It is characterized in that: also include roller (22), the support of patrix (6) is set to connect with guide rail (23) through roller (22).
