Abstract

The invention discloses a safety device for a parking lot with a solar infrared induction device. A charging device and a wireless signal sending device, wherein the infrared sensing devices are respectively arranged on both sides of the fixing bracket, the solar charging device is installed on the upper side of the fixing bracket, and the wireless signal sending device is fixed on the top of the fixing bracket. The present invention is simple in structure, easy to use, detects the parking status of the vehicle in real time through the infrared sensing devices installed on both sides of the fixed bracket, and timely alarms through the wireless signal sending device; and the whole device uses solar energy to act as Power supply, very environmentally friendly and energy-saving.

Description

A safety device for a parking lot with a solar infrared sensor

technical field

The invention relates to a safety device, in particular to a parking safety device capable of ensuring safe parking of vehicles at night through a solar infrared induction device.

Background technique

As a means of transportation commonly used by people nowadays, a car refers to a vehicle that has four or more wheels, is equipped with a power plant, and travels on land without relying on rails or wires. Automobiles are usually used to carry passengers, goods, and tow passengers and goods trailers. They are also converted into special vehicles or equipped with special equipment to complete specific transportation tasks or work tasks, but they do not include machinery specially used for agriculture. Full trailers and semi-trailers do not have their own power devices, and they belong to the category of cars when they form a car train with a tractor car.

When parking cars in cities, people often only have to park in the divided parking lot-this kind of place for parking vehicles. In our country, the parking lot (garage) is an independently operated enterprise, and its main task is to keep the parked vehicles in the city. Modern parking lots (garages) can be divided into four types: warm garages - with heating equipment, Unaffected by the external climate, it can keep the vehicle in good technical condition, but the disadvantages of the warm garage are large investment and high maintenance costs; the cold room garage - the natural temperature in the warehouse, not affected by wind and rain, is a better vehicle The storage place is mostly used in offices, hotels, etc. at present. It can have a variety of construction methods such as ground, underground, single-story, and multi-story; carport-although it cannot prevent wind and sand, it can also avoid direct erosion of vehicles such as rain and snow, and is suitable for temporary vehicle storage; open-air parking lot ——The equipment is simple and the storage quality is the worst, but this kind of parking lot is widely used, especially in the parking places of professional transport units and public transport vehicles.

At present, in the cities of our country, warm garages or cold room garages are not very popular. When people park their vehicles at night, they often can only choose those open-air parking lots set up in ordinary living quarters or on roads with fewer vehicles. However, there is often a problem in these open-air parking lots, that is, because of the lack of security measures, it is easy for criminals to seize the loopholes in security when the car is parked, and a thorough accident occurs or the door is opened illegally to enter. Oh, and valuables are issued in the carriage.

Contents of the invention

The technical problem to be solved by the present invention is to provide a safety device for a parking lot with a solar infrared induction device, so as to solve the problem that vehicles in the existing open-air parking lot have relatively large safety loopholes when they are parked at night.

In order to achieve the above object, the present invention is achieved through the following technical solutions:

A safety device for a parking lot with a solar infrared sensing device, the safety device for a parking lot with a solar infrared sensing device mainly includes a fixed bracket fixed directly in front of each parking space, two groups for detecting An infrared sensing device for the parking status of the vehicle, a set of solar charging devices and a wireless signal sending device, the infrared sensing devices are respectively arranged on both sides of the fixed bracket, the solar charging device is installed on the upper side of the fixed bracket, the wireless The signal sending device is fixed on the top of the fixing bracket.

The safety device for the parking lot with the solar infrared induction device is also provided with a remote remote sensing controller for controlling its working state.

The present invention is simple in structure, easy to use, detects the parking status of the vehicle in real time through the infrared induction devices installed on both sides of the fixed bracket, and timely alarms through the wireless signal sending device; and the whole device uses solar energy to act as Power supply, very environmentally friendly and energy-saving.

Description of drawings

The present invention is described in detail below in conjunction with accompanying drawing and specific embodiment;

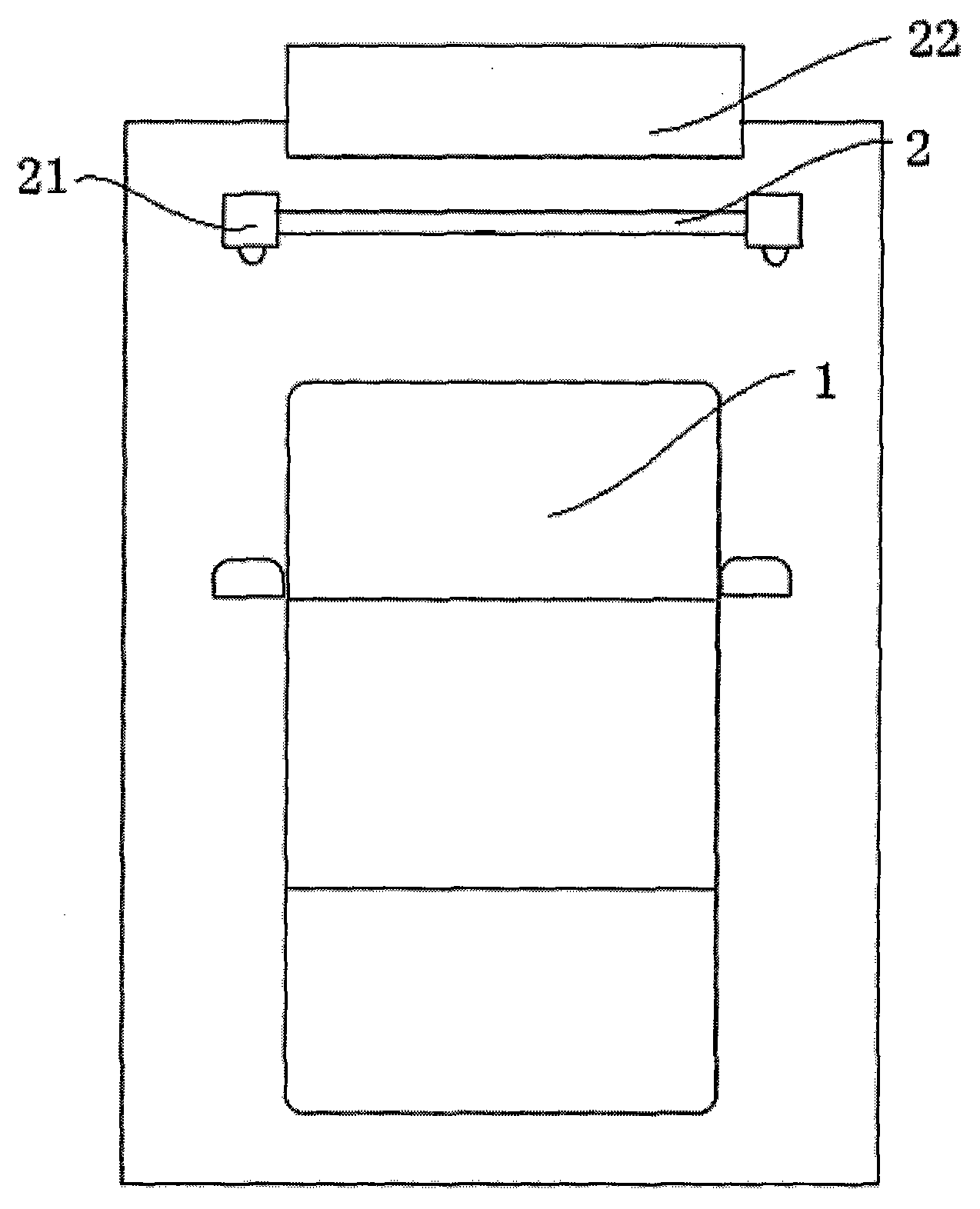

Fig. 1 is a schematic diagram of the structure of the present invention.

Fig. 2 is a side view of the structure of the present invention.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the present invention easy to understand, the present invention will be further described below in conjunction with specific embodiments.

As shown in Figures 1 and 2, the present invention is a safety device for a parking lot with a solar infrared sensor device, which is mainly used to solve the problem that the existing open-air parking lot often lacks corresponding safety measures when parking vehicles at night. As a result, vehicles are being stolen and destroyed artificially. For this reason, a corresponding improvement design has been carried out on the basis of the open-air parking lot.

The present invention mainly includes a fixed bracket 2 fixed directly in front of each parking space, two groups of infrared induction devices 21 for detecting the parking condition of the vehicle, a group of solar charging devices 22 and a wireless signal sending device 23. When installing, The infrared sensing device 21 is respectively arranged on both sides of the fixed bracket 2 , the solar charging device 22 is installed on the upper side of the fixed bracket 2 , and the wireless signal sending device 23 is fixed on the top of the fixed bracket 2 .

When parking, only the parker needs to start the present invention to work through a specific remote remote sensing controller, and the infrared sensing device 21 will detect in real time whether the side doors 11 on both sides of the vehicle 1 are opened by others, and the wireless signal sending device 23 Send this group of information to the host computer in the monitoring room, so that the relevant staff can confirm it, so as to timely stop the event of illegally opening the car door and entering the compartment to steal valuables or steal the whole car. More electric energy, for this reason the solar charging device 22 that is fixed on the fixed support 2, when the present invention does not work in the daytime, can well supplement sufficient electric energy for the present invention, so just can reach the purpose of energy saving and environmental protection.

The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above. Those skilled in the industry should understand that the present invention is not limited by the above-mentioned embodiments. What are described in the above-mentioned embodiments and the description only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention will also have Variations and improvements all fall within the scope of the claimed invention. The protection scope of the present invention is defined by the appended claims and their equivalents.

Claims (2)

1. A safety device for a parking lot with a solar infrared induction device, characterized in that, the safety device for a parking lot with a solar infrared induction device mainly includes a fixed support that is fixed directly in front of each parking space , two sets of infrared sensing devices for detecting the parking status of the vehicle, a set of solar charging devices and a wireless signal sending device, the infrared sensing devices are respectively arranged on both sides of the fixed bracket, and the solar charging device is installed on the side of the fixed bracket On the upper side, the wireless signal sending device is fixed on the top of the fixing bracket. 2. A kind of safety device with a parking lot with a solar infrared induction device according to claim 1, characterized in that, the safety device with a solar infrared induction device is also provided with a safety device for controlling its parking lot. Remote sensing controller of working status.
