Abstract
The invention relates to a storage battery, in particular to an electrode plate of a light lead storage battery. The electrode plate comprises a grid and active substance and is characterized in that the grid is made by pressing graphite material and the active substance is directly adhered on the surface of the grid. The graphite material is adopted to make the grid of the lead storage battery, the active substance is retained, and the weight of the lead storage battery is reduced; and the grid is made from the graphite instead of lead, thus lead fume in a lead grid casting process is avoided, lead consumption is saved by about 40%, the problem that short circuit is caused by growth of the grid in the use process of the battery can be solved to reduce fault, and the reliability is improved. In the invention, the grid does not adopt lead, thus not only is the storing capacity of the battery improved, but also the grade of the product is improved.
Description
Technical field
The present invention relates to a kind of storage battery, be specially a kind of battery lead plate of light-duty lead accumulator.
Background technology
The structure of lead accumulator is made up of positive and negative pole plate, bus-bar, dividing plate (film), electrolyte, vent valve, positive and negative pole, shell (groove), and positive and negative pole plate is made up of positive and negative grid and the positive and negative active material that is coated in above it, grid is to adopt lead to be made, be coated with lead plaster on its surface then, the weight of lead accumulator also is mainly derived from pole plate, i.e. grid and active material.For a long time, many people are arranged once at aluminium, plastics, lead plating on the materials such as copper, make grid then, its objective is and manage to reduce consumption of lead to reduce battery weight, the grid that adopts aluminium matter or copper material to make, metallic aluminium or metallic copper all can be subjected to the corrosion of electric liquid, thereby cause the impurity that contains in the electric liquid increasing, the electric energy reserves and the power supply capacity of lead-acid battery have been had a strong impact on, though increase in the prior art to have and adopt the trial of plastic material as the grid base material, but since plastic basis material self not the office conductivity is arranged, the quality of this lead-acid battery is very poor when reality is used, and can't use.
Summary of the invention
At problems of the prior art, the object of the present invention is to provide a kind of technical scheme of battery lead plate of light-duty lead accumulator.
The battery lead plate of described light-duty lead accumulator comprises grid and active material, it is characterized in that described grid is formed by the graphite material compacting, is provided with active material on the grid surface.
The battery lead plate of described light-duty lead accumulator is characterized in that described grid is formed by connecting by rectangular shaped rim and inner mesh.
The battery lead plate of described light-duty lead accumulator is characterized in that described inner mesh is formed by connecting by horizontal bar and perpendicular muscle.
The battery lead plate of described light-duty lead accumulator, the cross section that it is characterized in that described rectangular shaped rim are a kind of in rhombus, cylindrical, triangle or the regular polygon.
The present invention has the following advantages:
1. because graphite meets the requirement of making the lead accumulator grid, and that graphite proportion has only is plumbous 1/5th, therefore adopts graphite material to make the lead accumulator grid, and the retentive activity material has alleviated the weight of lead accumulator;
2. grid adopts graphite and need not be plumbous, has avoided the lead fume of these operations of casting stereotype grid to take place, and has optimized environment, has saved the input expense of environmental protection control;
3. adopt graphite to do grid and need not be plumbous, saved plumbous consumption about 40%;
4. adopt graphite to do grid and need not be plumbous, prevented that the growth that grid occurs from causing problem of short-circuit in the battery use, reduced fault, improved reliability;
5. adopt graphite to do grid and need not be plumbous, both alleviated the weight of lead accumulator, improved the performance of battery again, deleading also contains other metal ingredient outward in the grid originally, be subjected to electric corrosion after, other metal ingredient that contains in the electricity liquid can influence the backward reaction of electric liquid, cause the energy decreases of battery, thereby influence the useful life and the power supply capacity of battery, and grid need not be plumbous among the present invention, both strengthen the accumulate energy of battery, also improved the class of product again.
Description of drawings
Fig. 1 is the structural representation of grid of the present invention;

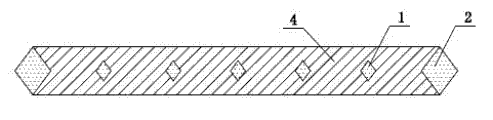

Fig. 2 is the A-A cross-sectional view of Fig. 1.
Embodiment
The present invention will be further described below in conjunction with Figure of description:
As shown in the figure, the present invention includes grid and active material 4, described grid is formed by the graphite material compacting, and active material 4 is arranged on the grid surface.Particularly, grid is formed by connecting by rectangular shaped rim 2 and inner mesh, and described inner mesh is formed by connecting by horizontal bar 3 and perpendicular muscle 1, and the cross section of rectangular shaped rim is a kind of in rhombus, cylindrical, triangle or the regular polygon.
Grid is being added man-hour, can adopt compacting or adopt the cut mode, with special use or common apparatus processing grid, the pole plate group connects in battery case and can adopt brazing mode to connect.
Because graphite meets the requirement of making the lead accumulator grid, and that graphite proportion has only is plumbous 1/5th, therefore adopts graphite material to make the lead accumulator grid, and the retentive activity material has alleviated the weight of lead accumulator; Grid adopts graphite and need not be plumbous, has avoided the lead fume of these operations of casting stereotype grid to take place, and has optimized environment, has saved the input expense of environmental protection control; Adopt graphite to do grid and need not be plumbous, saved plumbous consumption about 40%; Adopt graphite to do grid and need not be plumbous, prevented that the growth that grid occurs from causing problem of short-circuit in the battery use, reduced fault, improved reliability; Adopt graphite to do grid and need not be plumbous, both alleviated the weight of lead accumulator, improved the performance of battery again, deleading also contains other metal ingredient outward in the grid originally, be subjected to electric corrosion after, other metal ingredient that contains in the electricity liquid can influence the backward reaction of electric liquid, cause the energy decreases of battery, thereby influence the useful life and the power supply capacity of battery, and grid need not be plumbous among the present invention, both strengthen the accumulate energy of battery, also improved the class of product again.
Claims (4)
1. the battery lead plate of light-duty lead accumulator comprises grid and active material, it is characterized in that described grid is formed by the graphite material compacting, is provided with active material on the grid surface.
2. the battery lead plate of light-duty lead accumulator according to claim 1 is characterized in that described grid is formed by connecting by rectangular shaped rim and inner mesh.
3. the battery lead plate of light-duty lead accumulator according to claim 2 is characterized in that described inner mesh is formed by connecting by horizontal bar and perpendicular muscle.
4. the battery lead plate of light-duty lead accumulator according to claim 2, the cross section that it is characterized in that described rectangular shaped rim are a kind of in rhombus, cylindrical, triangle or the regular polygon.
