Abstract
一种复合烹饪锅具,包括内锅体和电热元件,内锅体为具有锅壁和锅底的容器体,其特征在于在内锅体的外侧套装一遮挡保护罩,遮挡保护罩为一个凹型容器,密封紧固于内锅体,电热元件固定置于内锅体和遮挡保护罩之间的密闭腔体内,锅体遮挡保护罩周壁设有用以实现电热元件与市电电源电连接的电连接器,电连接器安装在锅体遮挡保护罩的侧上部。本发明复合烹饪锅具电热元件固定置于内锅体和遮挡保护罩之间的密闭腔体内,加热效率高,而且因为通过遮挡保护罩将电热元件以及附属的电气元件隐藏在内,电连接器安装侧上部,消除了使用者顾虑,清洗锅具时更为安全,加工制造成本低,工艺更容易实现,锅具外观与现有产品保持一致,整机外形美观大方。
A composite cooking pot, including an inner pot body and an electric heating element, the inner pot body is a container body with a pot wall and a pot bottom, and is characterized in that a shielding protective cover is set outside the inner pot body, and the shielding protective cover is a concave shape The container is sealed and fastened to the inner pot body, and the electric heating element is fixedly placed in the airtight cavity between the inner pot body and the shielding protective cover. The surrounding wall of the pot body shielding protective cover is provided with an electrical connection to realize the electric connection between the electric heating element and the mains power supply The electrical connector is installed on the side upper part of the pot body shielding protective cover. The electric heating element of the composite cooking pot of the present invention is fixedly placed in the airtight cavity between the inner pot body and the shielding protective cover, so the heating efficiency is high, and because the electric heating element and the attached electrical elements are hidden by the shielding protective cover, the electric connector The installation of the upper part of the side eliminates the concerns of users, and it is safer when cleaning the pot. The manufacturing cost is low, and the process is easier to realize. The appearance of the pot is consistent with the existing products, and the appearance of the whole machine is beautiful and generous.
Description
技术领域technical field
本发明属于电热炊具技术领域,具体涉及一种加热盘与内锅固定一体的锅具。 The invention belongs to the technical field of electric cooking utensils, and in particular relates to a cooking utensil in which a heating plate and an inner pot are fixed together. the
背景技术Background technique
现有电热烹饪用具中锅具,其自身为金属材料拉伸制成的普通锅体和自发热锅体,普通锅体的发热主要通过在锅体底部设置的电热装置(电热板或电热盘),锅体通过与电热装置接触传热,普通锅体由于依靠接触传热,其热效率不高,且电热装置存在断电后热上冲的问题,难以实现精确控制,影响烹饪效果。 The pots in the existing electric cooking utensils are ordinary pots and self-heating pots made of stretched metal materials. The heating of ordinary pots is mainly through the electric heating device (electric heating plate or electric heating plate) arranged at the bottom of the pot. , The pot body transfers heat through contact with the electric heating device. Because the ordinary pot body relies on contact heat transfer, its thermal efficiency is not high, and the electric heating device has the problem of thermal upshoot after power failure, which makes it difficult to achieve precise control and affects the cooking effect. the
自发热锅体是一种在普通锅体的底部焊接发热管或电热膜的锅具,其依靠电极开关与底部实现电连接,实现锅体自发热,如本申请人CN101214116(2008年07月09日)一种高热效的电热烹饪锅具,包括内锅体、对内锅进行加热的电加热元件以及温控电气元件,电加热元件固定置于内锅体内的底部,电加热元件与内锅体侧壁的接触面密封,温控电气元件位于电加热元件下方内的密封腔体内,该发明外壳与内锅壁之间为密封空间,实现低耗持续保温,解决现有技术电热烹饪锅具热效率低的问题,由于底部与食物直接接触的部分为发热面,热效率高,结构空间小,生产成本低。 The self-heating pot body is a pot with a heat pipe or an electric heating film welded on the bottom of an ordinary pot body. It relies on an electrode switch to realize electrical connection with the bottom to realize self-heating of the pot body, such as the applicant CN101214116 (July 09, 2008 J) A high-efficiency electric heating cooking pot, including an inner pot body, an electric heating element for heating the inner pot, and a temperature control electrical element, the electric heating element is fixed at the bottom of the inner pot body, and the electric heating element and the inner pot The contact surface of the side wall of the body is sealed, and the temperature control electric element is located in the sealed cavity below the electric heating element. The space between the shell and the inner pot wall of the invention is a sealed space, which realizes low consumption and continuous heat preservation, and solves the problem of electric heating cooking pots in the prior art. The problem of low thermal efficiency, because the part of the bottom that is in direct contact with the food is the heating surface, the thermal efficiency is high, the structural space is small, and the production cost is low. the
另一中国实用新型专利CN201418654(公开日为2010年03月10日)提供一种节能电压力锅,包括压力锅体、锅盖、安全阀、压力锅座,其发热体直接安装在锅胆底部,温度传感器紧贴锅胆安置,发热体、锅胆安装在锅体外壳中组成锅体,锅体可放置于压力锅座上,它们由接头电连接。与发热盘接触传热的普通锅体相比,上述发热体如电热管或电热膜与锅体焊接在一体,热效率高,控制准确。 Another Chinese utility model patent CN201418654 (published on March 10, 2010) provides an energy-saving electric pressure cooker, including a pressure cooker body, a pot cover, a safety valve, and a pressure cooker seat. The heating element is directly installed at the bottom of the pot, and the temperature sensor Placed close to the pot liner, the heating element and the pot liner are installed in the pot body shell to form a pot body, and the pot body can be placed on the pressure cooker base, and they are electrically connected by joints. Compared with the ordinary pot body with heating plate contacting heat transfer, the above-mentioned heating element such as electric heating tube or electric heating film is welded together with the pot body, which has high thermal efficiency and accurate control. the
考虑到普通锅具热效低的缺陷,中国发明专利CN10949341994年11月16日)还提供了一种电热膜加热的电饭锅,它由锅盖、内胆、外壳、内壳体、控温元件、电热元件、控制电路和控制开关组成,发明点在于电热元件采用电热膜,它涂覆在内胆的外表面上,而内胆外还套有一内胆护罩,二者在翻边处联接构成复合内胆,在护罩上必设有分别与电热膜正、负极和控温元件联接的接线柱,在内壳体上相应地装有控制电路插座与接线柱相配。该电饭锅电热膜涂覆在内胆的外表面,直接加热锅体,热效率高。 Considering the defects of low thermal efficiency of ordinary pots, Chinese invention patent CN1094934 (November 16, 1994) also provides an electric rice cooker heated by electric heating film, which consists of a pot cover, an inner tank, an outer shell, an inner shell, a temperature control Element, electric heating element, control circuit and control switch, the invention point is that the electric heating element adopts electric heating film, which is coated on the outer surface of the inner tank, and an inner tank shield is set outside the inner tank, the two are at the flange The connection constitutes a composite liner, and the shield must be provided with binding posts respectively connected to the positive and negative poles of the electric heating film and the temperature control element, and the control circuit socket is correspondingly installed on the inner shell to match the binding posts. The electric heating film of the electric rice cooker is coated on the outer surface of the inner container, directly heats the pot body, and has high thermal efficiency. the
上述自发热锅体提高了热效率,但一直未能普及,究其原因有以下几点: The above-mentioned self-heating pot has improved thermal efficiency, but it has not been popularized. The reasons are as follows:
1.如CN201418654,电热管外露使消费者对其清洗产生质疑,担心有触电危险,而且电热管或电热膜等电热元件的外露,其锅体一旦出现撞击,很容易导致电热管或电热膜损坏。1. As in CN201418654, the exposure of the electric heating tube makes consumers question its cleaning and worry about the risk of electric shock. Moreover, if the electric heating element such as the electric heating tube or the electric heating film is exposed, once the pot body is hit, it is easy to cause the electric heating tube or the electric heating film to be damaged. .
2.如CN201418654和CN1094934此类自发热锅体在底部实现电连接,必须通过在底部设置插座,外观与现有产品内锅差异大,消费者对其清洗产生质疑,担心有触电危险,且当应用于电饭煲或电压力锅等产品时,由于电饭煲或电压力锅的锅体下部清洗有时需浸入水中,导致消费者担心插座的密封性,同时也担心会有异物卡入插座导致使用问题。 2. Self-heating pots such as CN201418654 and CN1094934 are electrically connected at the bottom, and sockets must be installed at the bottom. The appearance is quite different from the inner pots of existing products. Consumers question its cleaning and worry about the risk of electric shock. When used in products such as rice cookers or electric pressure cookers, the lower part of the rice cooker or electric pressure cooker sometimes needs to be immersed in water for cleaning, causing consumers to worry about the sealing of the socket, and also worry that foreign objects will get stuck in the socket and cause problems in use. the
发明内容Contents of the invention
针对现有技术的不足,本发明提供一种即能保障高热效率的同时又可消除消费者使用疑虑的复合烹饪锅具。 Aiming at the deficiencies of the prior art, the present invention provides a composite cooking pot that can ensure high thermal efficiency and at the same time eliminate consumers' doubts about use. the
为实现上述发明目的,采用如下技术方案: In order to realize the foregoing invention object, adopt following technical scheme:
一种复合烹饪锅具,包括内锅体和电热元件,内锅体为具有锅壁和锅底的容器体,其特征在于在内锅体的外侧套装一遮挡保护罩,遮挡保护罩为一个凹型容器,密封紧固于内锅体,电热元件固定置于内锅体和遮挡保护罩之间的密闭腔体内,锅体遮挡保护罩周壁设有用以实现电热元件与市电电源电连接的电连接器,电连接器安装在锅体遮挡保护罩的侧上部。本发明复合烹饪锅具,电热元件固定置于内锅体和遮挡保护罩之间的密闭腔体内,加热效率高,而且因为通过遮挡保护罩将电热元件以及附属的电气元件隐藏在内,电连接器安装侧上部,除了清洗锅具时更为安全,而且相比电连接器设置底部其加工制造成本低,工艺更容易实现,方便加工制造,侧上部设置电连接器,该锅具应用于具有外壳体的电饭煲或压力锅时,与该连接器对应设置的插座可设置在外壳上,电连接器电连接后不破坏整机外观设计,整机在制造成本上和外观占有很大的优势。A composite cooking pot, including an inner pot body and an electric heating element. The inner pot body is a container body with a pot wall and a pot bottom. It is characterized in that a shielding protective cover is set outside the inner pot body, and the shielding protective cover is a concave shape. The container is sealed and fastened to the inner pot body, and the electric heating element is fixedly placed in the airtight cavity between the inner pot body and the shielding protective cover. The surrounding wall of the pot body shielding protective cover is provided with an electrical connection to realize the electric connection between the electric heating element and the mains power supply The electrical connector is installed on the side upper part of the pot body shielding protective cover. The composite cooking pot of the present invention, the electric heating element is fixedly placed in the airtight cavity between the inner pot body and the shielding protective cover, the heating efficiency is high, and because the electric heating element and the attached electrical elements are hidden by the shielding protective cover, the electrical connection The upper part of the appliance installation side is safer when cleaning the pot, and compared with the bottom of the electrical connector, its manufacturing cost is lower, the process is easier to realize, and it is convenient for processing and manufacturing. The upper side is equipped with an electrical connector. In the case of an electric rice cooker or a pressure cooker with an outer casing, the socket corresponding to the connector can be arranged on the outer casing. After the electrical connector is electrically connected, the appearance design of the whole machine will not be damaged, and the whole machine has great advantages in terms of manufacturing cost and appearance.
根据本发明的较佳实施方式,本发明复合烹饪锅具,遮挡保护罩的上端焊接、铆接、压接或螺纹连接于内锅体锅口处。本发明不限遮挡保护罩和内锅体两个部件结合方式,考虑到工艺成熟度和方便实施,可以采用焊接、铆接、压接或螺纹连接等。 According to a preferred embodiment of the present invention, in the composite cooking pot of the present invention, the upper end of the shielding cover is welded, riveted, crimped or screwed to the mouth of the inner pot body. The present invention is not limited to the combination method of the shielding protective cover and the inner pot body, and welding, riveting, crimping or threading can be used in consideration of the maturity of the process and the convenience of implementation. the
进一步,为实现精确控温,本发明内锅体和遮挡保护罩之间的密闭腔体还设有控温器,该控温器接入电热元件的控制电路中。 Further, in order to achieve precise temperature control, the airtight cavity between the inner pot body and the shielding protective cover of the present invention is also provided with a temperature controller, and the temperature controller is connected to the control circuit of the electric heating element. the
本发明的电热元件为电热管或为内置有电热管的电热板,电热元件与内锅底部直接接触。 The electric heating element of the present invention is an electric heating tube or an electric heating plate with a built-in electric heating tube, and the electric heating element is in direct contact with the bottom of the inner pot. the
电热元件也可为印刷于内锅体的导电薄膜,该导电薄膜制有两个与电连接器电连接的导电触点。 The electric heating element can also be a conductive film printed on the inner pot body, and the conductive film is made with two conductive contacts electrically connected with the electrical connector. the
本发明复合烹饪锅具应用于电磁加热炊具时,该电热元件可为电磁线圈,内锅体置于感应线圈围成的空腔里。 When the composite cooking pot of the present invention is applied to an electromagnetic heating cooker, the electric heating element can be an electromagnetic coil, and the inner pot body is placed in the cavity surrounded by the induction coil. the
进一步,锅体遮挡保护罩与内锅体为相同材质制成,锅体遮挡保护罩的底部厚度为内锅体的底部厚度1/3~2/3,锅体遮挡保护罩的侧壁厚度为内锅体的侧壁厚度1/3~2/3。 Further, the pot body shielding protective cover is made of the same material as the inner pot body, the bottom thickness of the pot body shielding protective cover is 1/3 to 2/3 of the bottom thickness of the inner pot body, and the side wall thickness of the pot body shielding protective cover is The thickness of the side wall of the inner pot body is 1/3-2/3. the
本发明解决方案的一个有意义的设计是所述电连接器包括一个兼做手柄的绝缘壳体,绝缘壳体安装有连接电热元件与市电电源的电触头,该电触头朝下设置。将电连接器的绝缘壳体做成兼用手柄的形状,该锅具取用方便,而且电连接器能很好地隐藏。 A meaningful design of the solution of the present invention is that the electrical connector includes an insulating housing that doubles as a handle, and the insulating housing is equipped with electrical contacts connecting the heating element and the mains power supply, and the electrical contacts are set downwards . The insulating shell of the electrical connector is made into the shape of a double-purpose handle, so that the pot is convenient to use, and the electrical connector can be well hidden. the
本发明复合烹饪锅具的锅体遮挡保护罩的作用是用于将内锅封闭,保护电热元件,其材质可以根据需要设置为金属材质或非金属材质制成,可以为锈钢、铝合金和不锈钢体,还可以为陶瓷或玻璃或搪瓷,或为耐热塑料,该耐热塑料可以在外表面涂仿金属水性涂料等,以达到美观效果。 The function of the protective cover for the pot body of the composite cooking pot of the present invention is to seal the inner pot and protect the electric heating element. The stainless steel body can also be pottery or glass or enamel, or heat-resistant plastic, and the heat-resistant plastic can be coated with metal-imitating water-based paint or the like on the outer surface to achieve an aesthetic effect. the
本发明复合烹饪锅具的锅体遮挡保护罩形状不限,优选与内锅体锅壁和锅底的形状相仿,可方便置于电饭煲或者电压力锅内。在作为简式锅具时,简式锅具指的是没有外壳,该锅具直接连接电源烹饪,还可以设置为方体、圆柱体或者其它较美观的外形。 The shape of the shielding cover of the pot body of the composite cooking pot of the present invention is not limited, and is preferably similar to the shape of the inner pot body wall and the pot bottom, and can be conveniently placed in an electric rice cooker or an electric pressure cooker. When used as a simple pot, the simple pot means that there is no shell, the pot is directly connected to a power source for cooking, and it can also be set as a cube, cylinder or other more beautiful shapes. the
相比现有技术,本发明复合烹饪锅具有益效果在于保障热效率的同时,消除了消费者顾虑,并最大限度的保证了消费者的使用安全及便利性,外观上与现有产品完全一致,电连接器设置于锅体遮挡保护罩的侧上部分,保证了清洗时的安全与便利性。 Compared with the prior art, the composite cooking pot of the present invention has the beneficial effect of ensuring thermal efficiency, eliminating consumers’ concerns, and ensuring the safety and convenience of consumers to the greatest extent, and its appearance is completely consistent with existing products. The electric connector is arranged on the side upper part of the pot body shielding protective cover, which ensures the safety and convenience during cleaning. the
the
附图说明Description of drawings

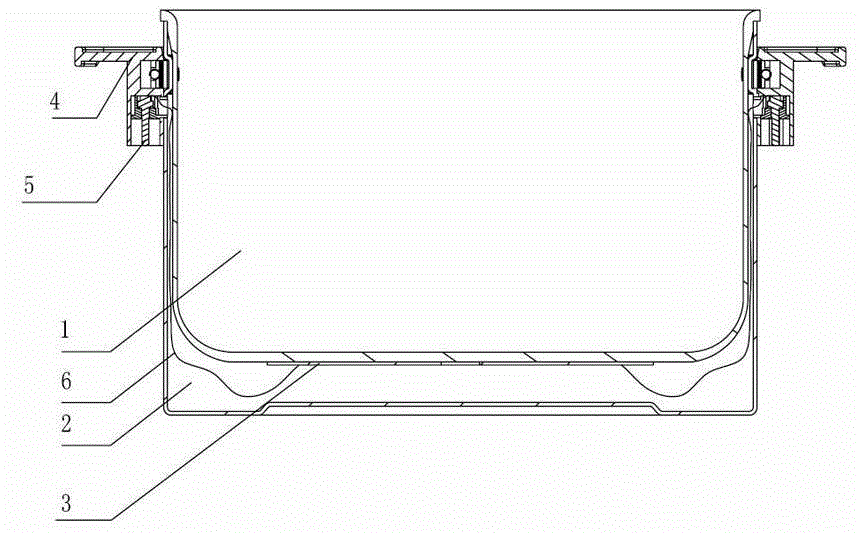

图1所示为本发明复合烹饪锅具的实施例1的结构示意图。 Fig. 1 is a schematic structural view of
图2所示为复合烹饪锅具放置于外壳8内的结构示意图。 FIG. 2 is a structural schematic diagram of the composite cooking pot placed in the
图3所示为图2所示复合烹饪锅具与外壳8分离的结构示意图。 FIG. 3 is a schematic diagram of the structure of the composite cooking pot shown in FIG. 2 separated from the
图4所示为本发明复合烹饪锅具展示电连接器的立体示意图。 FIG. 4 is a three-dimensional schematic view showing an electrical connector of the composite cooking pot of the present invention. the
图5所示为本发明复合烹饪锅具作为一种简式烹饪器具的结构示意图。 Fig. 5 is a schematic structural view of the compound cooking pot of the present invention as a simple cooking utensil. the
图中:1.内锅体;2.外锅;3.电热元件; 4.手柄;5.电连接器的电触头;6.导线;7.对应电连接器的插座; 8外壳; 9.电连接器。 In the figure: 1. Inner pot body; 2. Outer pot; 3. Heating element; 4. Handle; 5. Electrical contact of electrical connector; 6. Wire; 7. Socket corresponding to electrical connector; . Electrical connectors. the
具体实施方式Detailed ways
以下通过具体实施例对本发明技术方案作进一步说明。 The technical solutions of the present invention will be further described below through specific examples. the
实施例1 Example 1
见图1所示一种复合烹饪锅具,包括内锅体1和电热元件3,内锅体为具有锅壁和锅底的凹型容器体,内锅体1的外侧套装一外锅2,该外锅2为遮挡保护罩,外锅2的形状与现有锅体一致。As shown in Figure 1, a composite cooking pot includes an
本实施例中外锅2通过焊接固定密封于内锅体,内锅体1的锅口具有凸缘,外锅2的上端固定于内锅体锅口处,电热元件3固定置于内锅体和外锅2之间的密闭腔体内,外锅周壁设有用以实现电热元件与市电电源电连接的电连接器,电连接器安装在锅体遮挡保护罩的侧上部。 In this embodiment, the
本实施例电热元件3为电热膜,在内锅体1底部通过印刷电热膜的方式实现电热膜与内锅体的连接,该电热膜制有两个与电连接器电连接的导电触点。 In this embodiment, the
内锅体1和外锅2之间的密闭腔体还内置有控温器(图中未示),该控温器接入电热元件的控制电路中,该控温器可以位于发热盘的下方,且控温器顶端与发热盘之间留有一定的间隙,可以为磁钢限温器或金属片控温器等,用于对锅具的精确控温。 The airtight cavity between the
外锅2为不锈钢锅体,该外锅为非发热层,其可实现更好的保温效果而不影响其烹饪效果,进一步,可将内锅体与外锅间抽真空处理以实现更好的保温效果。 The
本实施例电连接器包括一个兼做手柄4的绝缘壳体,绝缘壳体安装有电触头5,电触头5通过导线6与电热元件3连接,该电触头朝下设置。电触头朝下设计更利于制造,较安全,方便锅具的清洗,但是不限于朝下设置,电连接器可设置外锅体侧部,电触头水平设置,见图2和图3所示,外壳8上设置有对应电连接器的插座7,组成一对阴插座和阳插头,插座7连接电气控制元件和市电电源,当烹饪锅具放入外壳8内,电触头插入插座7内,与插座导电片接触,连接了外部电源,电热膜加热。 The electrical connector in this embodiment includes an insulating housing that doubles as a
本发明通过将手柄设置为电连接器的外壳体保证了使整个锅体的外观与现有的产品保持一致,消除了消费者的使用顾虑,而且电连接器设置于外锅侧上部,最大限度的保证了产品的使用安全性与便利性。 In the present invention, by setting the handle as the outer shell of the electrical connector, it is ensured that the appearance of the entire pot body is consistent with that of the existing products, eliminating consumers' concerns about use, and the electrical connector is arranged on the upper part of the outer pot side to maximize It guarantees the safety and convenience of the product. the
实施例2 Example 2
本实施例电热元件3为电热盘,固定在内锅体的底部,与内锅直接接触,或固定在外锅的内表面,只要置于内锅体与外锅(遮挡保护罩)之间的密闭腔体内即可。其余同实施例1。In this embodiment, the
实施例3 Example 3
见图5所示为本发明复合烹饪锅具作为一种简式烹饪器具。包括内锅体1和电热元件3,内锅体为具有锅壁和锅底的容器体,内锅体1的外侧套装一外锅2,该外锅2为遮挡保护罩,本实施例中外锅2通过螺纹连接于内锅体,连接处设有密封件,外锅的侧上部设有用以实现电热元件与市电电源电连接的电连接器9,该连接器设置位置可以考虑使用者的习惯,大概在整个内锅体高度的三分之二以上的位置,当通过电源线连接外部电源时,可作为易用式自发热锅体。Shown in Fig. 5 is composite cooking pan of the present invention as a kind of simple cooking utensil. Including an
综上所述,本领域的普通技术人员阅读本发明文件后,根据本发明的技术方案和技术构思无需创造性脑力劳动而作出其他各种相应的变换方案,均属于本发明所保护的范围。 To sum up, after reading the document of the present invention, those of ordinary skill in the art can make various other corresponding conversion schemes according to the technical solutions and technical concepts of the present invention without creative mental work, all of which fall within the protection scope of the present invention. the
