Abstract
A novel decorative illuminating lamp comprises a fixed base; the light guide body is arranged on the fixed base and is provided with an accommodating space combined with the fixed base; the circuit board is arranged on the fixed base and positioned in the accommodating space, wherein a light source adjacent to the side wall of the accommodating space is arranged on the circuit board, and the light emitting surface of the light source faces the side wall of the accommodating space; and the shielding part is arranged outside the light guide body and shields the light source in the positive direction, and the shielding part can prevent the whole lamp from being seen from the front and has a prominent bright spot.
Description
Technical field
The present invention relates to a kind of novel decorative illuminating lamp, especially a kind ofly be installed on the multifunctional and multipurpose decorating lighting lamp that metope, ground or sky are taken.
Background technology
In the modern architecture, usually can use various fitting structures, to increase the aesthetic feeling of building, environment around setting off by contrast, for example common ornament lamp, or has illuminating lamp of decoration function etc., yet present decoration or illuminating lamp, its profile all do not have very new meaning mostly, and moulding and pattern repeat easily, and structure is not too many yet to be broken through, only improve to some extent on outward appearance sample attitude, pattern, color, decorative pattern at the most, illumination mode is comparatively fixing, and also limit to some extent the application scenario, therefore feel stereotyped to the people unavoidably, novel degree and decorative effect are not enough to some extent; And adopt forward alight tool at present, it is generally all very thick, and under some occasion, it is convenient inadequately to use.
Summary of the invention
At the problems referred to above, the invention provides a kind of novel structure, diverse in function is of wide application, decorate and illuminating effect all very outstanding, and the decorative illumination lamp that can design very thinly.
The technical scheme that the present invention is adopted for its technical problem of solution is:
A kind of novel decorative illuminating lamp comprises:
One firm banking;
One level is installed on the light conductor of described firm banking, and this light conductor has an accommodation space and combines with firm banking;
One level is installed on the wiring board of described firm banking, wiring board and light conductor parallel on thickness direction, and light source is arranged along the wiring board circumferential distribution, light source is positioned at accommodation space, and the sidewall of contiguous accommodation space, its light-emitting area are towards the sidewall of accommodation space, and this structure has guaranteed to adopt thin accommodation space, just can realize a plurality of direction irradiations, finally derive by light conductor; And
One is arranged at outside the light conductor, and at the occlusion part of the luminous point that shelters from light source forward.Occlusion part can prevent that whole lamp is from the front, outstanding bright spot is arranged, adopt this structure, light source emits beam, it is the sidewall that side direction is got to accommodation space, thereby enter light conductor, derive via light conductor, because light can both be appeared in light conductor side and front, can realize side emitting or positive luminous, with according to different needs, be applied to smallpox, the decorative lighting on wall or ground.
Wherein, described light conductor is provided with reflective surface towards the back of firm banking, with light from the front or offside reflection go out, effectively utilized light.
As the further improvement of such scheme, wiring board is provided with the control light source luminescent to be changed, and forms the control module of dynamic light-emitting effect, and cooperates the effect of occlusion part, from the front, can make the luminous as rotating of whole lamp or change.
As the further improvement of such scheme, light conductor is provided with reflective surface towards the back of firm banking, is mapped to the light at light conductor back, can be by reflective surface to the forward or sideswipe; Reflective surface is laser or the concavo-convex floating-point of silk-screen on light conductor.
Further, occlusion part is to be installed on the outer cover plate of light conductor.
As a kind of improvement project, can install on the occlusion part towards the luminous positive illuminating source of forward, and be provided with through hole on occlusion part, the lead of positive illuminating source is introduced accommodation space via through hole, the diffuser that covers positive illuminating source also is installed on occlusion part, reaches the luminous effect of forward.
As another kind of improvement project, accommodation space is provided with towards the luminous positive illuminating source of forward; Positive illuminating source is arranged on the wiring board; Described occlusion part is provided with the printing opacity mouth that appears light for positive illuminating source, also reaches the luminous effect of forward.
Above-mentioned printing opacity mouth is outer can be equipped with diffuser, and the light efficiency radiation response is better.
Above-mentioned printing opacity mouth can be the hollow out decorative pattern, and the light of positive illuminating source is appeared.
As another kind of improvement project, accommodation space is the cavity of being located on the light conductor; Wiring board have with accommodation space match in logical portion, described positive illuminating source is a cylinder lamp structure, its front portion is provided with the card edge of width greater than accommodation space, the rear portion is provided with the spring that clamps that reverses forward, wherein card is along being placed in the outside, accommodation space front portion, main body is positioned at accommodation space, clamps Spring Card and places the light conductor rear portion, reaches the function of similar Down lamp.
As another kind of improvement project, occlusion part is the silk-screen face that is arranged on the light conductor.
As the further improvement of such scheme, occlusion part is that wiring board is provided with towards the luminous positive illuminating source of forward in the annular that shelters from light source forward, and its light is appeared by the light conductor front, and the light source that makes light fixture be equipped with two types carries out decorative lighting.
As the further improvement of such scheme, wiring board is circular or annular, and light source is evenly distributed in around the wiring board, can make lamp do circular or other similar structures.
Or as another kind of improvement project, wiring board is a square plate, and distribution of light sources can make lamp make elongate structure in wiring board two long sides.
Light source is pinned LED, and its pin is arranged on the wiring board, and has the bending part of the light-emitting area of making towards the accommodation space sidewall.Adopt a wiring board, can realize multi-direction or omnibearing luminously all around, cost is very cheap.
As the further improvement of such scheme, light source is the luminous adopting surface mounted LED of side, can make very thin that whole light fixture does, and is suitable for metope or ground and uses.
The invention has the beneficial effects as follows: novel decorative illuminating lamp provided by the present invention, be a kind of different occasions that can be applicable to, the decorating lighting lamp of many light efficiencies, light conductor can be designed as circle, square or other possess the shape of aesthetic feeling, light source is injected light conductor from the accommodation space side, can realize that as required light conductor side emitting and positive refraction are luminous, plant the luminous structure of side like this, can design whole lamp very thin, and in conjunction with occlusion part, can block illuminator from the front, make whole lamp outstanding bright spot can not occur, whole aesthetics gets a promotion, and control module can be set light source is controlled, not only can make light source produce light and shade, the variation of color reaches dynamic effect, but also the wiring board reasonable Arrangement that can guarantee control module is installed guarantees that the thickness of whole lamp is still very thin in light conductor; In addition, the present invention can carry out different expansions according to different needs, to be suitable for smallpox, wall or to use with burying, to reach more various illumination effect in conjunction with positive illuminating source.
Description of drawings
Be further described below in conjunction with the drawings and specific embodiments:

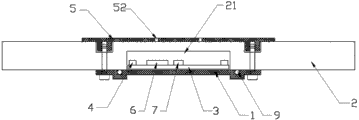

Fig. 1 is the cross section structure schematic diagram of first kind of embodiment of the present invention;
Fig. 2 is the fractionation structural representation of first kind of embodiment of the present invention;
Fig. 3 is the perspective view of first kind of embodiment of the present invention;
Fig. 4 is the cross section structure schematic diagram of second kind of embodiment of the present invention;
Fig. 5 is the Facad structure schematic diagram of second kind of embodiment of the present invention;
Fig. 6 is the Facad structure schematic diagram of the third embodiment of the present invention;
Fig. 7 is the cross section structure schematic diagram of the 4th kind of embodiment of the present invention;
Fig. 8 is the fractionation structural representation of the 4th kind of embodiment of the present invention;
Fig. 9 is the perspective view of the 4th kind of embodiment of the present invention;
Figure 10 is the cross section structure schematic diagram of the 5th kind of embodiment of the present invention;
Figure 11 is the fractionation structural representation of the 5th kind of embodiment of the present invention;
Figure 12 is the perspective view of the 5th kind of embodiment of the present invention;
Figure 13 is the cross section structure schematic diagram of the 6th kind of embodiment of the present invention;
Figure 14 is the fractionation structural representation of the 6th kind of embodiment of the present invention;
Figure 15 is the perspective view of the 6th kind of embodiment of the present invention;
Figure 16 is the cross section structure schematic diagram of the 7th kind of embodiment of the present invention;
Figure 17 is the cross section structure schematic diagram of the 8th kind of embodiment of the present invention;
Figure 18 is the fractionation structural representation of the 8th kind of embodiment of the present invention;
Figure 19 is the perspective view of the 8th kind of embodiment of the present invention;
Figure 20 is the cross section structure schematic diagram of the 9th kind of embodiment of the present invention;
Figure 21 is the Facad structure schematic diagram of the 9th kind of embodiment of the present invention;
Figure 22 is the Facad structure schematic diagram of the tenth kind of embodiment of the present invention;
Figure 23 is the cross section structure schematic diagram of the 11 kind of embodiment of the present invention;
Figure 24 is the Facad structure schematic diagram of the 11 kind of embodiment of the present invention;
Figure 25 is the cross section structure schematic diagram of 12 kinds of embodiment of the present invention;
Figure 26 is the Facad structure schematic diagram of 12 kinds of embodiment of the present invention.
The specific embodiment
As shown in the figure, decorative illumination lamp provided by the present invention, can be as required, be applied to smallpox, metope or carry out decorative lighting with burying, its structure comprises a firm banking 1, be used for and extraneous secure bond, one is horizontally placed on the light conductor 2 on the firm banking 1, and light conductor 2 can adopt glass, acrylic or other transparent materials, to possess light conductivity preferably, can be connected and fixed by screw and firm banking 1, light conductor 2 has an accommodation space 21, and accommodation space 21 can be the heavy chamber on the light conductor 2, it also can be cavity, difference according to environment has different structures equally, combines with firm banking 1, to be horizontally placed on firm banking 1 place; In accommodation space 21, has the wiring board 3 that is horizontally placed on firm banking 1, to realize wiring board 3, light conductor 2 and accommodation space 21 thereof, remain on a direction, realize optimization position relation, like this can be so that the highly very low wiring board 3 down that just can hold of accommodation space 21, and wiring board 3 also possesses enough positions electronic devices and components is set, and then light conductor 2 also can design very thinly, be suitable for metope or use with burying, or design thicklyer as required, be applied to metope or smallpox.
In addition, because light source 4 is spot lights, do not block if having during work, see from the external world and to have tangible bright spot, therefore outside light conductor 2, one occlusion part 5 is set, and just in time to block the luminous point of light source 5 from the front, the illumination effect of order integral body is more outstanding, occlusion part can be independently to cover or cover, also can be to be set directly at the screen printing pattern on the light conductor 2 or the coating that is in the light, in shape, can be according to the distribution of accommodation space 21 inner light sources 4 of light conductor 2 and relative set, it can be a circle, square or other face shapes, also can be the annular that only shelters from light source 4,, can have nothing in common with each other according to different designs.
In addition for reaching water proof and dust proof effect preferably, can hermetically-sealed construction 9 be set in light conductor 2 and firm banking 1 junction, make accommodation space 21 possess better seal, if and occlusion part 5 is two split type parts with light conductor 2, also can between occlusion part 5 and light conductor 2, add hermetically-sealed construction, make accommodation space 21 reach hermetically sealed effect.
As preferred implementation of the present invention, on wiring board 3, a control module 6 is set in addition, be used to control shading value, the colors changing hue of light source 4, cooperate occlusion part 5 to block light source, can form the dynamic effect that can move, make more horn of plenty of decorative lighting effect as the lamp internal light source; And, the arrangement of combined circuit board 3, light conductor 2 and accommodation space 21, control module 6 can be arranged on wiring board 3 about position intermediate easily, whole reliable operation degree, the pressure-bearing degree is all very good.
With several embodiment concrete application of the present invention is described below:
Embodiment one:
As Fig. 1 ~ Fig. 3, these embodiment basic ideas are for providing a kind of circular lamp, therefore see on the total, firm banking 1, light conductor 2, accommodation space 21 and wiring board 3 all are designed to circular sample attitude, wherein accommodation space 21 and wiring board 3 all are positioned at firm banking 1, the center of light conductor 2, light source 4 is uniformly distributed in edge, wiring board 3 surrounding, sidewall over against accommodation space 21, if control module 6 is arranged, but the central part of online design road plate 3 then, and fix by screw lock, set up waterproof apron simultaneously, so the layout of wiring board 3 is comparatively reasonable, insufficient space can not occur.
In the present embodiment, occlusion part 5 just in time covers light source 4 for directly being arranged at the circular screen printing pattern on the light conductor 2 from the front, and when light source 4 was luminous, the front was seen and just in time has been blocked, and does not have outstanding bright spot like this.
In the present embodiment, light source 4 can be pinned LED or the luminous adopting surface mounted LED of side, the pin plug-in mounting of pinned LED is arranged on the wiring board 3, and has a right angle bending part, make light-emitting area just in time towards the sidewall of accommodation space 21, the luminous adopting surface mounted LED of side then light-emitting area directly towards and press close to the sidewall of accommodation space 21 as far as possible.Adopt a wiring board 3 like this, just can reach towards around luminous and positive luminous effect, the as seen superiority of structure of the present invention.
Adopt present embodiment, be particularly suitable for smallpox or wall, use as illuminating lamp or ornament lamp, in conjunction with control module 6, can control light source 4 and dodge in certain sequence and go out or light and shade changes, and cooperate the effect of blocking of occlusion part 5, reach as lamp inside and be provided with rotational structure, make lamp rotate luminous effect, it is simple in structure, but possesses beyond thought decorative lighting effect is arranged.
Embodiment two
Shown in Figure 5 as Fig. 4, in the present embodiment, basic configuration is identical with structure embodiment, institute does not exist together and is, occlusion part 5 places of silk-screen, promptly the front of light conductor 2 is provided with printing opacity mouth 52, and this printing opacity mouth is the hollow out decorative pattern that passes to accommodation space 21, and, the luminous positive illuminating source 7 of super forward is set on wiring board 3, and faces hollow out decorative pattern 22 places, the lamp of present embodiment is when work like this, except illumination effect as embodiment one, light source 4 provides light by outside the light conductor derivation, and positive illuminating source 7 also provides forward luminous light, and is appeared by printing opacity mouth 52, form luminous pattern attractive in appearance, perhaps reach illuminating effect.
Embodiment three
As shown in Figure 6, the basic structure of present embodiment and embodiment two are similar, and institute does not exist together and is, light conductor 2 is designed to the sample attitude of flower, cooperate printing opacity mouth 52 to appear light, and the light of light conductor 2 derivation, form the light efficiency of beautiful flowers.
Embodiment four
As Fig. 7 ~ shown in Figure 9, the difference of present embodiment and the foregoing description, be occlusion part 5 be one independently the lid, and be fixed on light conductor 2 fronts by screw, with from blocking light source 4 forward, simultaneously, occlusion part 5 can also directly carry out hollow out and form printing opacity mouth 52, also reaches the forward illumination effect as embodiment three.And this respective outer side edges is occlusion part 5 independently, and bearing capacity is further strengthened.
Embodiment five
As Figure 10 ~ shown in Figure 12, present embodiment and embodiment four are similar, promptly occlusion part 5 be one independently the lid, and, occlusion part 5 is provided with printing opacity mouth 52, light for positive illuminating source 7 appears, in addition, and on the basis of these structures, also outside occlusion part 5, fixedly mounted a diffuser 8, the light radiation response is better, and can dustproof and waterproof, is suitable for positive illuminating source 7 is used as lighting source.
Embodiment six
Shown in Figure 13 ~ 15, originally be embodied as the distortion of embodiment five, wherein, positive illuminating source 7 no longer is arranged at and reaches on the wiring board 3 in the accommodation space 21, but directly install on the occlusion part 5 outside light conductor 2, be beneficial to like this and dwindle accommodation space 21, and can on wiring board 3, arrange more electronic devices and components that other need, and positive illuminating source 7 is also independent mutually with wiring board 3 and light source 4, having on the wiring board 3 under the situation of control module 6, the also light source 4 of control circuit board 3 only, and positive illuminating source 7 can work independently; Wherein for realizing the mode of connection of positive illuminating source 7, need on the main body of occlusion part 5, offer a through hole 51, and for the accommodation space 21 that does not lead to light conductor 1 front, also need to offer a cable-through hole, make the lead of positive illuminating source 7 introduce accommodation space 21, with connection line plate 3 or directly via accommodation space 21 and firm banking 1 external power supply via through hole 51 and light conductor 2.The lamp of this embodiment, positive illuminating source 7 is particularly suitable for doing illuminating lamp and uses, and the cooperation of light source 4 and light conductor 2, can realize floor light and decorative light-source, and effect is noticeable.
Embodiment seven
As shown in figure 16, distortion for embodiment six, institute's difference is, accommodation space 21 is for passing to the cavity in light conductor 2 fronts, occlusion part 5 directly covers accommodation space 21, airtight accommodation space 21, positive illuminating source 7 directly can be introduced accommodation space 21 by the through hole 51 of occlusion part 5 and carry out wiring.
Embodiment eight
As Figure 17 ~ shown in Figure 19, present embodiment is the further change of the foregoing description, wherein accommodation space 21 is a cavity, wiring board 3 have with accommodation space 21 match in logical portion, and positive illuminating source 7 adopts cylinder lamp structures, its front portion be provided with width greater than the card of accommodation space 21 along 71, be stuck in accommodation space 21, be that light conductor 2 is positive outside, and had the effect of occlusion part 5 simultaneously concurrently, block light source 4, simultaneously, positive illuminating source 7 rear portions are provided with as Down lamp, and that reverses forward clamps spring 72, and the main body of positive illuminating source 7 is being positioned at accommodation space 21, clamp spring 72 and be placed in light conductor 2 rear portions, whole form positive illuminating source 7 stand-alone cards and be contained in sample attitude in the accommodation space 21, the structure of present embodiment has had the illuminating effect of Down lamp concurrently, and set the effect of light source 4 and light conductor 2 on every side, play the effect of floor light and decorative light-source, compare common Down lamp, light efficiency is strengthened greatly, lighting effect is more attractive in appearance, and range of application has also obtained expansion greatly.
Embodiment nine
As Figure 20 ~ shown in Figure 21, present embodiment and above-mentioned several embodiment are all different, and its light conductor 2, accommodation space 21 and wiring board 3 all are designed to microscler, use as strip light, wherein, occlusion part 5 is similarly the silk-screen face of strip, is covered in light conductor 2 fronts.
This configuration state, the decorative lighting that is particularly suitable for wall or buries ground, light source 4 can be distributed in wiring board 3 both sides, and under the situation that flush type is installed and used, because of no longer needing sidepiece luminous, therefore can reflective structure be set in light conductor 2 outside portions, as apply reflecting coating, or be sticked and go up reflector layer, perhaps concavo-convex floating-point on laser, the silk-screen, the light that sends of light source 4 shines light conductor 2 outsides like this, to be reflected, together with light by the rear portion reflected back, the light unification is sent from light conductor 2 front portions, increase lighting effect.
In addition, for being applied to wall ground, especially bury the light fixture of ground decorative lighting effect, the light source 4 preferred luminous adopting surface mounted LEDs of side that adopt are mounted on the wiring board 3, its light-emitting area is towards the sidewall of accommodation space 21, so only need to adopt a wiring board 3, just reached effect luminous on the both direction, that light conductor 2 and the structure that matches can also be done simultaneously is very thin, control module 6 can be arranged on wiring board 3 central parts easily, so very frivolous, it is more easy that flush type is installed, and also just more suitable buying in is installed on ground or metope.
Embodiment ten
As shown in figure 22, present embodiment is the distortion of embodiment nine, it is designed to two silk-screen faces with occlusion part 5, be not blocked with the middle part of leaving light conductor 2, so, can increase positive illuminating source 7 in wiring board 3 middle parts, directly appear, to increase another kind of light efficiency by the middle part of light conductor 2.
Embodiment 11
Shown in Figure 23 ~ 24, present embodiment is the another kind of scheme of above-mentioned two kinds of embodiment, is about to the front that accommodation space 21 has passed to light conductor 2, form cavity, like this, light conductor 2 can be formed by two, the middle accommodation space 21 that forms also can directly form by one; Under this structure, occlusion part 5 is designed to independently lid-like, be installed on the light conductor 2 by screw, and in order to reach waterproof effect preferably, wiring board 3 can be installed in the accommodation space 21 by a transparent fastener 31, clamp by transparent fastener 31 and to carry out water proof and dust proof, and convenient fixing, water proof ring can be saved.This structure, bearing capacity is good, and the effect that is applied to underground lamp is very outstanding.
Embodiment 12
Shown in Figure 25 ~ 26, present embodiment is the distortion of embodiment 11, and its occlusion part 5 is provided with printing opacity mouth 52 can be the hollow out decorative pattern, and wiring board 3 middle parts are provided with positive illuminating source 7, the light of so positive illuminating source 7 can appear from printing opacity mouth 52, has increased illumination effect.
By top several embodiment as seen, decorative illumination lamp provided by the present invention, according to different needs, can carry out different expansions, being suitable for smallpox, wall or using with burying, and it can realize lateral emitting or positive luminous, to tackle different decorative lighting sights, in conjunction with control module and occlusion part, can reach more beyond thought decorative lighting effect and make its range of application also more extensive in addition so that whole lamp is realized the change of color, light and shade.
