CN102027892A - Simple trawl fishing system for aquaculture pond - Google Patents

Abstract

The invention belongs to the technical field of fishery engineering machinery, and relates to a simple trawling system for aquaculture ponds. On both sides of the length direction of the pond (G), one ground pile (1) is arranged at the front and rear ends respectively, and the ground piles (1) at the front and rear ends of each side ) respectively tighten a steel wire guide rope (2), the lateral ends of the mesh bag (3) are pulled to the steel wire guide ropes (2) on both sides respectively, and connected to the wire guide rope (2) On the collar, the collar is pulled by the trawl wire rope (4), and the two trawl wire ropes (4) are combined and sent to the left and right trawl winches in the traction device (5) after being sleeved on the ground pile (1) at the front end respectively. (53,54), left and right trawl winches (53,54) are powered by tractor (6). Described traction device (5) also comprises being arranged on the trailer, transport vehicle (55) on the guide rail (56) consistent with pond (G) length direction during operation, the rear of transport vehicle (55) is provided with via guide rope pulley ( 57) Guided transporter traction winch (58). The invention has the advantages of simple structure, convenient operation, fast pulling up of the fishing net, greatly saving manpower and time, and improving work efficiency.

Description

A simple trawling system for aquaculture ponds

technical field

The invention belongs to the technical field of fishery engineering machinery, and in particular relates to a device system for trawl fishing in aquaculture ponds.

Background technique

Pond farming netting is a method of hauling nets in ponds to catch market-sized product. A fishing net can be a simple trawl net or a specially made net for the purpose, usually using polyethylene or nylon line and equipped with floats, drop hammers and sometimes a mesh pocket. The size of the trawl used depends on the size and depth of the pond used for the operation. The general height is 2.5-9 meters, and the length is equivalent to 1.6 times the width of the pond. The selected mesh should be determined according to the specifications of the products sold, and the applicable mesh size is 1-5 cm.

The bottom of the trawl remains dragged over the bottom of the pond. If this is not done, many fish and shrimp will slip through the net. It is best to trawl along the long sides of the pond, generally using rectangular ponds with a maximum width of 50 m, so that both ends of the net can be trawled along the banks.

Trawling in the prior art is manual, and the more people who carry out the trawl operation, the higher the efficiency. 3 to 5 people can pull the net in a pond with a width of 30 meters, and 7 to 10 people can handle a pond with a width of 50 meters. . It takes about 2-3 hours for 3 to 4 people to catch the big and keep the small in a 0.2-hectare breeding pond with a single net.

There are also pond cultures that need 8-10 people when raising the nets, and it takes a lot of time to raise the nets for 0.5-1 hour. high.

Contents of the invention

The purpose of the present invention is to provide a mechanical method for lifting nets, which uses less labor and takes less time, improves work efficiency, and improves the survival rate and freshness of salvaged and caught aquatic products.

The purpose of the present invention is achieved by the following technical solutions:

A simple trawling system for aquaculture ponds, characterized in that:

On both sides of the length direction of the pond, set a ground pile at the front and rear ends respectively, and tighten a steel wire guide rope between the ground piles at the front and rear ends of each side, and the lateral ends of the mesh bag are respectively pulled to the steel wire guide ropes on both sides and connected to the collar that penetrates the steel wire guide rope, the collar is pulled by the trawl wire rope, and the two trawl wire ropes are respectively sleeved on the ground pile at the front end and then combined and sent to the left and right trawl winches in the traction device. The left and right trawl winches are powered by the tractor.

Further, the ground pile is a socket structure of a female pile and a sub-pile, the female pile is fixed on the ground surface and has a movable cover plate, and the sub-pile can be inserted and pulled out for disassembly.

Further, the traction device also includes a transport vehicle arranged on the trailer, running on a guide rail consistent with the length direction of the pond, and a transport vehicle traction winch guided by a guide rope pulley is arranged behind the transport vehicle.

Further, the traction device also includes an oil tank, which is supplied to the manual multi-way reversing valve through the oil suction filter and the gear pump, and the manual multi-way reversing valve provides pressure oil to the left and right trawl winches and the traction winch of the transport vehicle; the tractor drives the gear Pump.

Further, the pond has a length of 20-100 meters and a width of 20-50 meters.

The hydraulic trawl fishing system of the present invention is used for lifting nets in aquaculture ponds. The net lifting system includes a tractor (for power supply and transportation), a gear pump, a multi-way manual reversing valve, a cycloidal winch, and a trawl net. The tractor provides power to drive the gear pump to supply oil, and the hydraulic winch pulls the trawl net to complete the work of rounding up fish schools and lifting the net.

The advantages and beneficial effects of the present invention, the present invention provides a flexible, easy-to-operate, high-reliability trawling system, as long as a tractor is used as the power, it can not only be used for the transportation of aquatic fish and shrimp, but also can be used as a pond trawling net to pick up fish Power, simple structure, easy operation, quick to pull up the fishing net, greatly saving manpower and time, and improving work efficiency.

Description of drawings

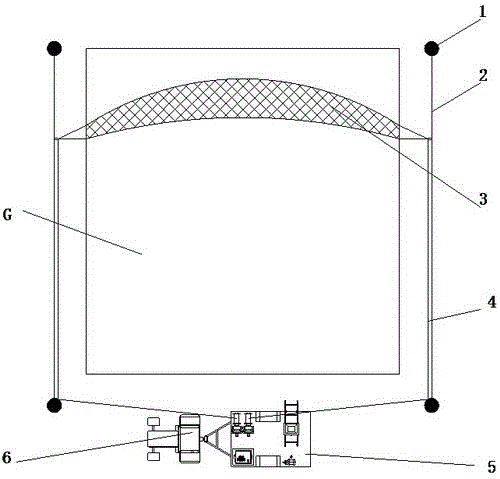

Fig. 1 is an embodiment of the simple and easy trawling system for aquaculture ponds of the present invention, a schematic diagram of the structure configured on the periphery of the pond;

Fig. 2 is the disposition schematic diagram of tractor and traction device in an embodiment of the simple and easy trawling system of aquaculture pond of the present invention;

Fig. 3 is a schematic diagram of the configuration structure of the hydraulic system part according to an embodiment of the present invention;

Fig. 4 is a schematic diagram of the configuration structure of the ground pile part according to an embodiment of the present invention.

In the figure, 1 is a ground pile, 10 is a sub-pile, 11 is a mother pile, 2 is a wire guide rope, 3 is a mesh bag, 4 is a trawl wire rope, 5 is a traction device, 51 is a gear pump, 52 is an oil tank, and 53 is a left /Right trawl winch, 54 is right/left trawl winch, 55 is transport vehicle, 56 is guide rail, 57 is guide rope pulley, 58 is traction winch of transport vehicle, 59 is hydraulic system, 59a is oil suction filter, 59b is fast Change joints, 59d is a pressure gauge, 59e is a manual multi-way reversing valve, 59f is a one-way throttle valve, 59g is a reducer, 59h is a safety valve, 59i is an oil return filter, 6 is a tractor, and G is a pond.

Detailed ways

The technical solution of the present invention will be described in detail below in conjunction with the accompanying drawings.

A simple trawling system for aquaculture ponds,

On both sides of the length direction of the pond G, a ground pile 1 is arranged at the front and rear ends respectively, and a steel wire guide rope 2 is tightened between the ground piles 1 at the front and rear ends of each side, and the lateral ends of the mesh bag 3 are respectively pulled to two The side wire guide rope 2 is connected to the collar that penetrates the wire guide rope 2. The net bag 3 rope is terminated with a snap button, which can be easily disassembled. The collar is pulled by the trawl wire rope 4, and the two trawl wire rope 4 Merge into the left and right trawl winches 53,54 in the traction device 5 after being nested in the ground pile 1 of the front end respectively, and the left and right trawl winches 53,54 are powered by the tractor 6.

When tractor 6 starts, left and right trawl winches 53,54 rotate, and the lateral two ends of mesh bag 3 are pulled forward slowly by trawl wire rope 4 respectively and tighten up. Only one tractor 6 is needed to realize the trawling operation of the mesh bag 3 .

The ground pile 1 is a socket structure between a female pile 11 and a sub-pile 10. The female pile is fixed on the ground surface and has a movable cover plate, and the sub-pile 10 can be inserted and pulled out for disassembly. The female pile 11 is nailed to the ground surface, slightly exposed to the ground surface. When not working, cover it with a cover plate to prevent rainwater from entering. The sub-pile 10 is detachable. Take it out and put it on the trailer together with the wire guide rope.

Described traction device 5 also comprises being arranged on the trailer, transport vehicle 55 on the guide rail 56 consistent with pond G length direction during operation, the rear of transport vehicle 55 is provided with the transport vehicle traction winch 58 guided by guide rope pulley 57.

After net bag 3 draws in, net bag 3 packs the aquatic products of fishing in the transport vehicle 55, starts transport vehicle traction winch 58, and transport vehicle 55 moves on the trailer along guide rail 56 under the guidance of guide rope pulley 57.

The traction device 5 also includes an oil tank 52, which is supplied to a manual multi-way reversing valve 59e through an oil suction filter 59a and a gear pump 51. 58 provides pressure oil; tractor 6 drives gear pump 51. The left and right trawl winches 53, 54 and the traction winch 58 of the transport vehicle are operated in cooperation with the above structures and components.

A quick change joint 59b is connected between the oil suction filter 59a and the gear pump 51; it is convenient for assembly and operation.

Connect the oil return filter 59i in the circuit from the manual multi-way reversing valve 59e to the oil tank 52; to keep the oil in the oil tank and the working circuit clean, protect the equipment and prolong the working life.

A pressure gauge 59d and a safety valve 59h are connected to the oil circuit to ensure safe operation.

The pond G has a length of 20-100 meters and a width of 20-50 meters, which is a suitable pond scale for the present invention.

Claims (6)

1. the simple and easy trawlnet of cultivating pool is fished for system, it is characterized in that:

(G) length direction both sides in the pond, a pile (1) respectively is set in the front and back end, between the pile (1) of every side front and back end, tighten a steel wire conductor rope (2) respectively, the transverse ends of net capsule (3) is drawn respectively to the steel wire conductor rope (2) of both sides, and be connected on the collar that penetrates steel wire conductor rope (2), the collar is pulled by trawlnet steel wire rope (4), two trawlnet steel wire ropes (4) merge a left side of sending in the draw-gear (5) respectively after being nested with the pile (1) at front end, right trawl winch (53,54) a, left side, right trawl winch (53,54) supply with power by tractor (6).

2. fish for system according to the simple and easy trawlnet of the described cultivating pool of claim 1, it is characterized in that described pile (1) patches structure for female stake (11) and son stake (10), female stake is fixed on the face of land, on removable cover is arranged, dismounting can be inserted and extract to son stake (10).

3. fish for system according to the simple and easy trawlnet of the described cultivating pool of claim 1, it is characterized in that described draw-gear (5) also comprises is arranged on the trailer, transport vehicle (55) during operation on the guide rail (56) consistent with pond (G) length direction, the rear of transport vehicle (55) are provided with the transport vehicle pulling winch (58) through conductor rope pulley (57) guiding.

4. fish for system according to the simple and easy trawlnet of the described cultivating pool of claim 1, it is characterized in that described draw-gear (5) also comprises fuel tank (52), supply with manual multi-path reversing valve (59e) through oil suction oil filter (59a), gear pump (51), manual multi-path reversing valve (59e) provides pressure oil to left and right trawl winch (53,54) and transport vehicle pulling winch (58); Tractor (6) driving gear pump (51).

5. fish for system according to the simple and easy trawlnet of the described cultivating pool of claim 4, it is characterized in that:

Between described oil suction oil filter (59a) and gear pump (51), insert hydraulic quick coupler (59b);

To the loop of fuel tank (52), insert oil return oil filter (59i) at manual multi-path reversing valve (59e);

Cut-in pressure table (59d) and safety valve (59h) in oil circuit.

6. fish for system according to the simple and easy trawlnet of the described cultivating pool of claim 1, the length that it is characterized in that described pond (G) is 20-100 rice, and width is a 20-50 rice.

Images
