Abstract

本发明公开了一种无线接入承载的传输方法,包括:终端(UE)业务承载的发送方对服务质量(QoS)参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受方;UE业务承载的接受方根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从底层数据承载上获取与底层数据承载标识相对应的UE业务承载。 The present invention discloses a method for transmitting a radio access bearer, comprising: a terminal (UE) bearer traffic sender of quality of service (QoS) parameters to merge the same or identical portions UE bearer service, and the combined UE recipient bearer service multiplexed on the same underlying data bearer QoS transmission according to uniform traffic bearer to the UE; recipient UE bearer service identifier and the correspondence between the UE bearer service bearer identification based on preconfigured underlying data, data from the bottom Get in touch with the underlying data bearer corresponding to the bearer identity UE bearer service. 本发明还公开了一种无线接入承载的传输系统,在底层数据承载数量受限,且底层数据承载同时承担其他类型业务的情况下,对不同UE的业务承载提供满足QoS的传输。 The present invention also discloses a system for transmitting a radio access bearer, the limited amount of underlying data carrier, the carrier and the underlying data and to assume other types of services, for providing services of different bearers of the UE satisfy the QoS transmission.

Description

一种无线接入承载的传输方法和系统技术领域[0001] 本发明涉及无线通信中的业务承载技术,尤其涉及一种无线接入承载的传输方法和系统。 TECHNICAL FIELD The transmission method and a radio access bearer [0001] The present invention relates to a wireless service carrier communication technique, particularly to a method and system for transmitting a radio access bearer. 背景技术[0002] 蜂窝无线通信系统如图1所示,主要由终端(UE,User Equipment)、接入网和核心网组成,基站(eNB)、或基站和基站控制器组成的网络称为无线接入网(RAN,Radio Access Network),负责接入层事务,例如无线资源的管理;核心网负责非接入层事务,例如位置更新等;UE是指可以与蜂窝无线通信网络通信的各种设备,例如移动电话、笔记本电脑等。 [0002] cellular wireless communication system shown in Figure 1, mainly by the terminal (UE, User Equipment), composed of an access network and a core network, a base station (the eNB), a base station controller or a base station and a wireless network of called access network (RAN, radio access network), is responsible for access layer transactions such as radio resource management; the core network is responsible for non-access layer transactions, such as location update, etc.; the UE refers to various cellular networks can communicate with the radio communication devices such as mobile phones, notebook computers. eNB之间可以根据实际情况存在物理或者逻辑上的连接,且每个eNB可以与一个或者一个以上的核心网节点(CN, Core Network)连接。 There may be a logical or physical connection between the eNB according to the actual situation, and each eNB may be connected to one or more than one core network node (CN, Core Network). [0003] 在蜂窝无线通信系统中,固定eNB网络的无线覆盖由于各种原因受到限制,例如各种建筑结构对于无线信号的阻挡等原因造成在无线网络的覆盖中无可避免的存在覆盖漏洞。 [0003] In cellular radio communication systems, fixed wireless network eNB coverage is limited due to various reasons, resulting in a variety of building structures, for example, wireless network coverage in the coverage hole exists inevitable wireless signal to cause blocking. 另外,在小区的边缘地带,由于无线信号强度的减弱,以及相邻小区的干扰,导致UE在小区边缘时通信质量较差,无线传输的错误率较高。 Further, the edge of the cell, since the weakening of the wireless signal strength, and interference from adjacent cells, leading to cell edge UE is poor when the communication quality of the wireless transmission error rate is high. 为了提高数据的覆盖率、群组移动性、临时网络部署、小区边缘地带的吞吐量以及新区域的覆盖,现有技术引入了中继(Relay)的概念。 In order to improve the coverage data, coverage group mobility, temporary network deployment, the cell throughput and the edge of the new region, introduced the concept of the prior art relay (Relay) is. [0004] Relay是指具有在网络节点之间通过无线链路中继数据功能的站点,也称中继节点(Relay Node)或中继站(Relay Station),中继网络的结构如图2所示,其中,eNB直接服务的UE称为宏(Macro) UE, Relay服务的UE称为Relay UE ;eNB与UE之间的无线链路称为直传链路(direct link),包含上/下行(DL/UL, downlink/uplink)直传链路;Relay与UE之间的无线链路称为接入链路(access link),包含DL/UL接入链路;eNB与Relay之间的无线链路称为回程链路(backhaul link),包含DL/UL回程链路。 [0004] Relay means having a site between the network nodes via a relay radio link data function, also known as a relay node (Relay Node) or a relay station (Relay Station), relay network structure shown in Figure 2, wherein, UE directly served called a macro eNB (macro) UE, UE Relay Relay service called UE; wireless link between the eNB and the UE is called direct link (direct link), comprising uplink / downlink (DL / UL, downlink / uplink) direct link; a radio link between the Relay and the UE is called an access link (access link), containing DL / UL access link; a radio link between the eNB and Relay It referred to as a backhaul link (backhaul link), containing DL / UL backhaul link. [0005] Relay可以通过多种方法中继数据,例如直接放大接收到的无线信号;或者将接收的数据进行处理,再将正确接收的数据转发给UE ;或者Relay和eNB合作向UE发送数据。 [0005] Relay for relaying data through a variety of methods, for example, directly amplifies the received radio signal; or processing the received data, then forwards the data to the correctly received the UE; or a Relay eNB and cooperate to transmit data to the UE. 反之' Relay也能中继由UE向eNB发送的数据。 Conversely 'Relay relay data can be transmitted to the eNB by the UE. [0006] 在众多的中继类型中,存在一种中继被称为类型一中继(Type I Relay),其特点如下:[0007] UE无法区分中继和固定eNB下的小区,即在UE看来,Relay本身就是一个小区, 与固定eNB下的小区没有区别,此类小区可以称为中继小区。 [0006] In many relay type, there is a type called a relay is a relay (Type I Relay), which is characterized as follows: [0007] UE can not distinguish between the cell relay and the eNB fixed, i.e. UE opinion, relay itself is a cell, a cell with no difference in fixing the eNB, such cells can be referred to as a cell relay. 中继小区有自身的小区物理标识(PCI,Physical Cell Identity),与普通小区一样发送广播,当UE驻留在中继小区中时,中继小区可以单独分配无线资源给UE使用。 Relay cell has its own physical cell identity (PCI, Physical Cell Identity), the same as ordinary broadcast cell transmission, when the UE resides in the cell relay, the relay cell may allocate radio resources to the UE used alone. 中继小区和Relay UE之间的接口以及协议栈,与普通eNB小区和UE之间的相同。 The interface between the UE and the relay cell and Relay protocol stacks, the same between the normal cell and the UE and eNB. [0008] LTE系统采用基于互联网协议(IP,Internet Protocol)的扁平化架构,如图3 所不,由演进的通用地面无线接入网(E-UTRAN, Evolved Universal Terrestrial Radio Access Network)、CN以及其他支撑节点组成,其中CN包括:移动管理单元(MME, MobilityManagement Entity)和服务网关(S-GW, Serving Gateway), MME负责移动性管理、非接入层信令的处理、用户的移动管理、上下文的管理等控制面操作;S_GW负责UE用户面数据的传送、转发和路由切换等。 [0008] LTE system uses flat architecture of Internet Protocol (IP, Internet Protocol), and FIG. 3 are not, by the evolved universal terrestrial radio access network (E-UTRAN, Evolved Universal Terrestrial Radio Access Network), CN and other support nodes, wherein the CN comprises: a mobility management unit (MME, MobilityManagement Entity) and a serving gateway (S-GW, serving gateway), MME is responsible for mobility management, treatment of non-access stratum signaling, user mobility management, the context management of control plane operations; S_GW responsible for transmitting user plane data of the UE, forwarding and routing switching. eNB之间在逻辑上通过X2接口相连,用于支持UE在整个网络内的移动性,保证用户的无缝切换;每个eNB通过SI接口连接到系统架构演进(ASE,System Architecture Evolution)核心网,即通过控制平面的S1-MME接口与MME相连,通过用户平面的Sl-U接口与S-GW相连,且SI接口支持eNB与MME和S-GW之间的多点连接。 ENB through an X2 interface between logically connected, to support the mobility of the UE in the entire network to ensure the seamless handover of a user; each eNB connected to the system architecture evolution (ASE, System Architecture Evolution) core network through SI , i.e., by the control plane MME S1-MME interface and is connected, is connected through the user plane Sl-U interface and the S-GW, and SI interface supports multi-point between the eNB and the MME and S-GW is connected. Sl-MME接口的协议栈如图4所示,其网络层使用IP协议,网络层之上的传输层使用流控制传输协议(SCTP, Stream Control Transmission Protocol),应用层使用控制面的应用部分(S1-AP, Application Part)协议。 Sl-MME interface protocol stack shown in Figure 4, which is the network layer IP protocol, the transport layer above the network layer using the Stream Control Transmission Protocol (SCTP, Stream Control Transmission Protocol), application layer control plane part of the application ( S1-AP, Application Part) protocol. Sl-U接口的协议栈如图5所示,其通用数据传输平台(GTP-U, General Data Transfer Platform)/用户数据报协议(UDP,User Datagram Protocol)/IP 组成了传输承载,用以传输eNB与S-GW之间的用户面协议数据单元(H)U,Protocol Data Unit)。 Sl-U interface to the protocol stack shown in Figure 5, which common data transmission platform (GTP-U, General Data Transfer Platform) / User Datagram Protocol (UDP, User Datagram Protocol) / IP transport bearers composed of, for transmitting between the eNB and the S-GW user plane protocol data units (H) U, protocol data unit). [0009] 每个eNB通过Uu接口(UTRAN与UE之间的无线接口)与UE进行信令和数据的传输。 [0009] Each eNB for transmission of signaling and data via the Uu interface (radio interface between UTRAN and UE) and the UE. 图6和图7分别从控制面和用户面显示了eNB与UE的LI,L2,L3之间的空口协议栈。 Figures 6 and 7, respectively, from the control plane and the user plane protocol stack shows the air interface between the LI eNB and the UE, L2, L3. [0010] LTE系统可提供端到端的服务,并且通过具体承载的参数来保证所提供业务的服务质量(QoS, Quality of Service)。 [0010] LTE systems can provide end to end service, and the parameters specific to ensure the quality of service bearer (QoS, Quality of Service) service provided. 在演进的分组核心网(EPC, Evolved Packet Core) 和E-UTRAN承载的QoS水平保证的粒度是演进的分组系统(EPS,Evolved Packet System) 承载(EPS bearer)/E-UTRAN 的无线接入承载(E-RAB,E-UTRAN Radio Access Bearer)。 In an evolved packet core (EPC, Evolved Packet Core) and E-UTRAN bearer QoS level of granularity is assurance Evolved Packet System (EPS, Evolved Packet System) bearer (EPS bearer) / E-UTRAN radio access bearer (E-RAB, E-UTRAN Radio Access Bearer). 在S-GW 和公用数据网(PDN, Public Data Networks)网关(P-GW, PDN Gateffay)之间是通过S5/S8承载来传输EPS承载的数据包。 In the S-GW and between public data network (PDN, Public Data Networks) Gateway (P-GW, PDN Gateffay) is a packet S5 / S8 bearer transmitted by the EPS bearer. 在eNB和S-GW之间是通过SI Bearer来传输E-RAB 的数据包,在UE和eNB之间是通过无线承载(Radio Bearer)来传输E-RAB的数据包。 Between the eNB and the S-GW is transmitted via SI Bearer E-RAB packets between the UE and the eNB to transmit the E-RAB bearer data packets through radio (Radio Bearer). [0011] 负责连接Relay的基站被称为赠与演进基站(DeNB,Donr eNB)。 The base station [0011] is responsible for connecting Relay is referred to as an evolved base station grants (DeNB, Donr eNB). Relay与DeNB之间的无线接口被定义为Un接口,Un接口的无线承载被称为Un RB ;UE与Relay之间的接口仍被定义为Uu接口,Uu接口的无线承载被称为Uu RB。 Relay radio interface between DeNB and is defined as the Un interface, radio bearer Un Un interface is called the RB; Relay interface between the UE and still defined as a Uu interface, the interface Uu radio bearer is called Uu RB. [0012] 现有技术中对UE的E-RAB (即UE-E-RAB)的QoS定义参考下表1,称为标准服务质量级别标识(QCI, QoS Class Identified)。 The QoS definition reference [0012] to the UE prior art E-RAB (i.e., UE-E-RAB) in Table 1, referred to the standard quality of service level identifier (QCI, QoS Class Identified). 目前规定了9类QoS是从QCI I到QCI 9,每类QCI规定了对应的资源类型(Resource Type),报文延时要求(Packet Delay Budget), 丢包率(Packet Error loss Rate)等参数。 9 presently defined QoS class from the I QCI QCI to 9, for each class corresponding to a predetermined QCI Resource Type (Resource Type), the message delay requirement (Packet Delay Budget), packet loss ratio (Packet Error loss Rate) parameters . 例如:QCI为I表示其代表的资源类型为保证速率(GBR, Guaranteed Bit Rate),报文延时要求不超过100毫秒(ms),丢包率不超过10-2 个。 For example: QCI I is represented as resource type represents a guaranteed rate (GBR, Guaranteed Bit Rate), packet delay requirement of no more than 100 milliseconds (ms), a packet loss ratio does not exceed 10-2. [0013]表 I[0014]QCI Resource Priority Packct Packet Example I Type Delay Error I^ss Services Budget Rate I[0015] [0013] TABLE I [0014] QCI Resource Priority Packct Packet Example I Type Delay Error I ^ ss Services Budget Rate I [0015]

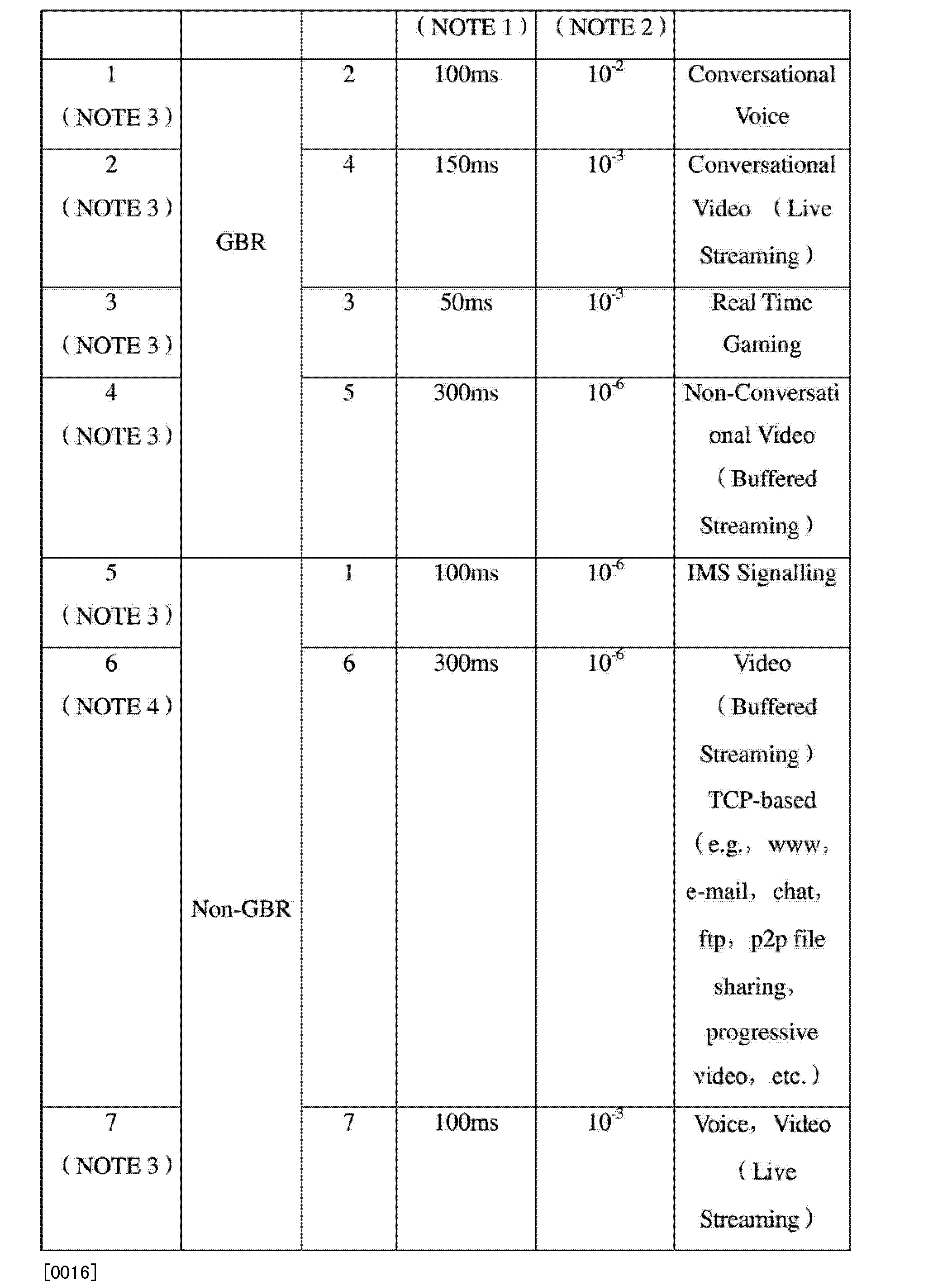

Figure CN101932038BD00061

[0016] [0016]

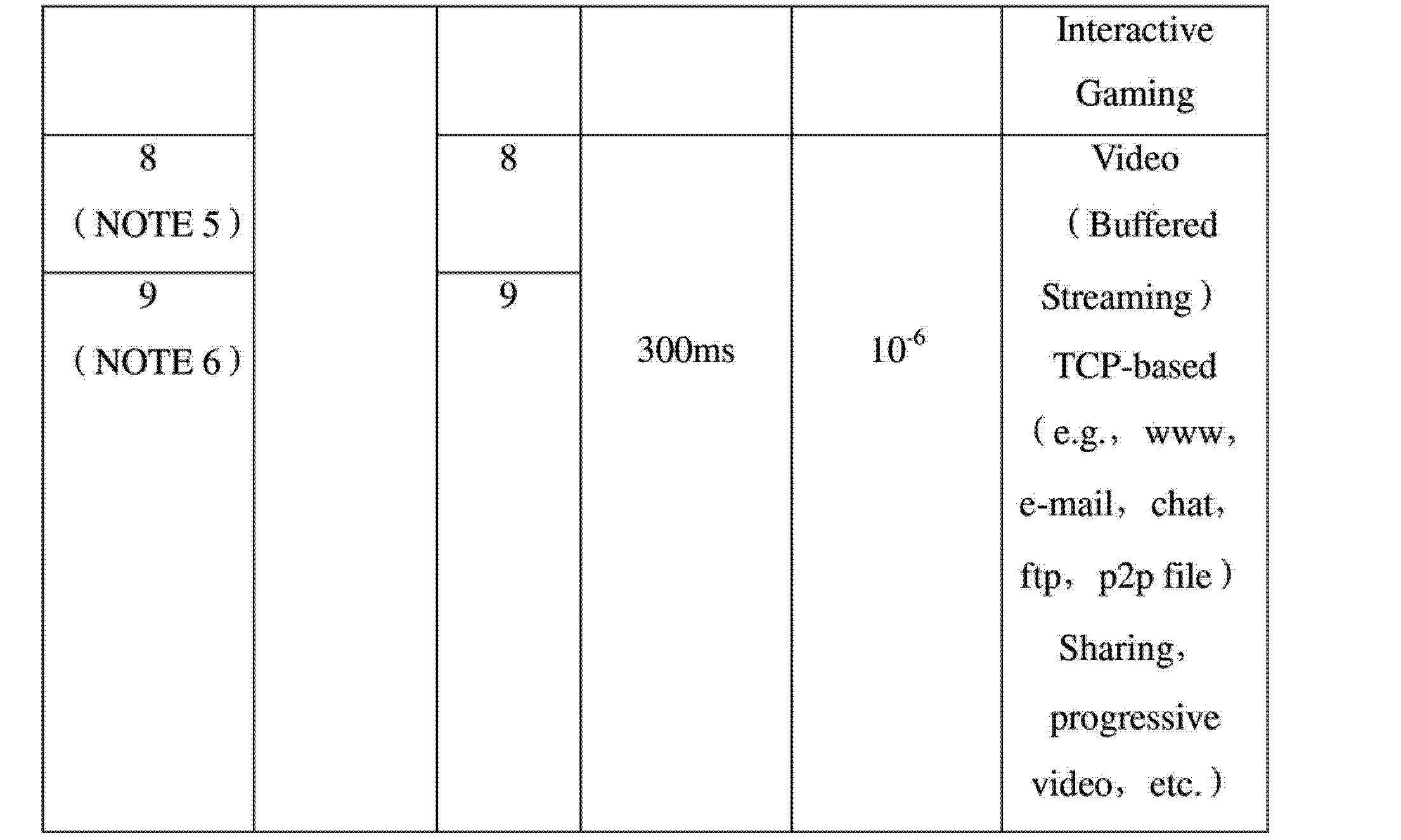

Figure CN101932038BD00071

[0017] 在Un接口中不同Un RB需要传递Relay上UE的控制信令、UE-E-RAB信息、Relay 本身的配置信息等数据。 [0017] Un RB requires different control signaling is transmitted in the Relay UE on the Un interface, UE-E-RAB information, configuration information, etc. Relay data itself. 其中,UE-E-RAB的传递需要有QoS作为保证,由于现有的Un接口仅能提供数量有限的Un RB承载,因此需要解决在保证QoS的前提下UE-E-RAB如何在数量受限的Un RB中传输的问题,然而现有技术还无法提供一种有效的解决方案,从而给实际应用带来不便。 Wherein the transmitting UE-E-RAB needs to have a guaranteed QoS, because conventional Un interface can only provide a limited number of bearer Un RB therefore need to address how UE-E-RAB premise limited number of QoS guaranteed Un RB transmission problem, but the existing technology can not provide an effective solution, thereby causing inconvenience to the practical application. 发明内容[0018] 有鉴于此,本发明的主要目的在于提供一种无线接入承载的传输方法和系统,以实现在保证QoS的前提下UE-E-RAB在数量受限的Un RB中的传输。 SUMMARY [0018] In view of this, the main object of the present invention to provide a method and system for transmitting a radio access bearer in order to achieve the UE-E-RAB in a limited number Un RB QoS guaranteed under the premise transmission. [0019] 为达到上述目的,本发明的技术方案是这样实现的:[0020] 本发明提供了一种无线接入承载的传输方法,该方法包括:[0021] 终端UE业务承载的发送方对服务质量QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受方;所述UE业务承载合并具体为:对服务质量级别标识QCI相同的UE业务承载进行合并,或者对QoS参数中报文延时要求和丢包率相同的UE业务承载进行合并;[0022] 所述UE业务承载的接受方根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从所述底层数据承载上获取与所述底层数据承载标识相对应的UE业务承载; 所述底层数据承载为Un接口的无线承载Un RB,或中继的无线接入承载Relay-E-RAB。 [0019] To achieve the above object, the technical solution of the present invention is implemented as follows: [0020] The present invention provides a method for transmitting a radio access bearer, the method comprising: [0021] a sender terminal UE bearer service the QoS parameters identical or equivalent elements for a UE bearer service combined and the combined UE bearer service multiplexed on the same underlying recipient data bearer QoS transmission according to uniform traffic bearer to the UE; UE the service the combined carrier specifically: the quality of service level identifier QCI same UE bearer service merger, or QoS parameters of the packet loss rate and latency requirements same UE bearer service merger; [0022] the UE bearer service the underlying data carrying recipient preconfigured correspondence between the identifier and a UE identifier of the bearer service, obtaining UE bearer bearer service identifier corresponding to the underlying data from the underlying data bearer; the underlying data bearer Un interface radio bearer Un RB, or a relay radio access bearer relay-E-RAB. [0023] 所述对应关系是由所述UE业务承载的发送方预先配置,并在传输UE业务承载之前发送给所述UE业务承载的接受方。 [0023] The correspondence is pre-configured by the sender and the UE bearer service, and sends to the recipient UE bearer service traffic bearer UE before transmission. [0024] 该方法进一步包括:所述UE业务承载的接受方根据所述底层数据承载标识选择返回所述UE业务承载所使用的底层数据承载。 [0024] The method further comprises: the recipient UE based on the underlying bearer service data identifying selected bearer of the UE returns underlying data bearer service bearer used. [0025] 该方法进一步包括:在传输合并后的UE业务承载时,只传输通用数据传输平台GTP协议数据。 [0025] The method further comprising: when the service carrier transmission combined UE transmits only the generic data transport protocol GTP internet data. [0026] 所述GTP协议数据的头部只携带必选字段。 [0026] The header of the GTP protocol data carries only mandatory field. [0027] 本发明还提供了一种无线接入承载的发送方法,该方法包括:[0028] 终端UE业务承载的发送方对服务质量QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受方;所述底层数据承载为Un接口的无线承载Un RB,或中继的无线接入承载Relay-E-RAB ;[0029] 所述UE业务承载合并具体为:[0030] 对服务质量级别标识QCI相同的UE业务承载进行合并,或者对QoS参数中报文延时要求和丢包率相同的UE业务承载进行合并。 [0027] The present invention further provides a method of transmitting a radio access bearer, the method comprising: [0028] The sender terminal UE bearer service QoS parameters of the service quality of the same or identical portions merge UE bearer service, and the combined UE bearer service multiplexed on the same underlying recipient data bearer QoS transmission according to uniform traffic bearer to the UE; the underlying data bearer Un RB radio bearer for the Un interface or the relay wireless access carrying Relay-E-RAB; [0029] the bearer service merger UE is specifically: [0030] for the same quality of service level identifier merge a QCI UE bearer service, or QoS parameters of the packet loss rate and latency requirements the same UE bearer service merger. [0031] 在传输合并后的UE业务承载时,只传输通用数据传输平台GTP协议数据。 [0031] When the service carrier transmission combined UE transmits only common internet data transfer protocol GTP data. [0032] 所述GTP协议数据的头部只携带必选字段。 [0032] The header of the GTP protocol data carries only mandatory field. [0033] 本发明还提供了一种无线接入承载的传输系统,该系统包括:UE业务承载的发送模块和接受模块,其中,[0034] 所述UE业务承载的发送模块,用于对QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受模块;所述UE业务承载合并具体为:对服务质量级别标识QCI相同的UE业务承载进行合并,或者对QoS参数中报文延时要求和丢包率相同的UE业务承载进行合并;[0035] 所述UE业务承载的接受模块,用于根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从所述底层数据承载上获取与所述底层数据承载标识相对应的UE 业务承载;[0036] 所述底层数据承载为Un接口的无线承载Un RB,或中继的无线接入承载Relay-E-RAB0[0037] 所述UE业务承载的发送模块进一步用于,在传 [0033] The present invention further provides a system for transmitting a radio access bearer, the system comprising: a transmitting module and a receiving UE bearer service module, wherein, [0034] the UE bearer service transmission module for QoS parameters are identical or equivalent elements for a UE bearer service combined and the combined UE bearer service multiplexed on the same underlying accepting module in accordance with the unified bearer QoS data transmission to the UE bearer service; the combined UE specific bearer service for the same quality of service level identification a QCI UE bearer service merger, or QoS parameters of the packet loss rate and latency requirements same UE bearer service merger; [0035] the UE bearer service acceptance module: is bearer identifier for the corresponding relationship between the UE identifier based on the underlying bearer service preconfigured data acquired from the underlying data carrying identification of the underlying data bearer service corresponding to the UE bearer; [0036] the underlying data bearer Un Un RB radio bearer interface, or a relay radio access bearer relay-E-RAB0 [0037] the UE transmits bearer service module is further configured to, pass 输UE业务承载之前,将预先配置的所述对应关系发送给所述UE业务承载的接受模块。 UE before transmission bearer service, the pre-configured to accept the module corresponding to the UE bearer service is transmitted to the relationship. [0038] 所述UE业务承载的接受模块进一步用于,根据所述底层数据承载标识选择返回所述UE业务承载所使用的底层数据承载。 [0038] The UE receiving module is further used for bearer service, the UE returns a bearer identifier selected bearer services used by the underlying data carrier according to the underlying data. [0039] 本发明所提供的一种无线接入承载的传输方法和系统,由UE业务承载的发送方对QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受方;UE业务承载的接受方根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从底层数据承载上获取与底层数据承载标识相对应的UE业务承载。 [0039] A method and system for transmitting a radio access bearer provided by the present invention, the sender of the service by the UE bearer QoS parameters of the same or identical portions UE bearer service combined and the combined UE bearer service recipient multiplexed on the same underlying data bearer QoS transmission according to uniform traffic bearer to the UE; recipient UE bearer service based on the correspondence of the underlying data pre-configured with the UE bearer identifier identifying the bearer service, carried over from the underlying data Get in touch with the underlying data corresponding to the identification UE bearer service bearer. 通过本发明,实现了在底层数据承载数量受限,且底层数据承载同时承担其他类型业务情况下,对不同UE的业务承载提供满足业务QoS的传输。 By the present invention, to achieve a limited amount of underlying data carrier, the carrier and the underlying data and to assume the other type of traffic situation, the UE bearer service provided to satisfy different service QoS transmission. 附图说明[0040] 图1为现有技术中蜂窝无线通信系统的结构示意图;[0041] 图2为现有技术中中继网络的结构示意图;[0042] 图3为现有技术中LTE系统的网络构架示意图;[0043] 图4为现有技术中Sl-MME接口的协议栈示意图;[0044] 图5为现有技术中Sl-U接口的协议栈示意图;[0045] 图6为现有技术中eNB与UE之间的控制面的空口协议栈示意图;[0046] 图7为现有技术中eNB与UE之间的用户面的空口协议栈示意图;[0047] 图8为本发明一种无线接入承载的传输方法的流程图;[0048] 图9为本发明实施例一的UE-E-RAB传输示意图;[0049] 图10为本发明实施例二的UE-E-RAB传输示意图;[0050] 图11为本发明中UE-E-RAB在Un RB中传输的报文格式示意图;[0051] 图12为本发明中UE-E-RAB在Relay-E-RAB中传输的报文格式示意图[0052] 图13为本发明一种无线接入承载的传输系统的组成结构示意图。 BRIEF DESCRIPTION [0040] FIG. 1 is a schematic structural diagram of the prior art cellular radio communication system; [0041] FIG. 2 is a schematic view of the prior art relay network; [0042] FIG. 3 is a prior art LTE system schematic network architecture; [0043] FIG 4 is a prior art protocol stack interfaces Sl-MME schematic; [0044] FIG. 5 is a prior art Sl-U interface protocol stack of a schematic view; [0045] FIG. 6 is now art air interface protocol control plane between eNB and the UE schematic stack; [0046] FIG. 7 is a schematic diagram of the air interface protocol stack of the user plane between the eNB and the UE in the prior art; [0047] FIG. 8 of the present invention, a species flowchart transmission method of a radio access bearer; [0048] FIG. 9 is a schematic diagram UE-E-RAB transmission according to one embodiment of the invention; [0049] FIG. 10 UE-E-RAB transmission according to a second embodiment of the present invention. a schematic view; [0051] FIG. 12 of the present invention, UE-E-RAB is transmitted in the Relay-E-RAB; and [0050] FIG 11 a schematic view of the transmission packet format of the Un RB in the UE-E-RAB present invention packet format diagram [0052] Figure 13 a structure diagram of a transmission system of the present invention a radio access bearer. 具体实施方式[0053] 下面结合附图和具体实施例对本发明的技术方案进一步详细阐述。 DETAILED DESCRIPTION [0053] The following Examples and specific embodiments described in detail further aspect of the present invention in conjunction with the accompanying drawings. [0054] 本发明所提供的一种无线接入承载的传输方法,如图8所示,主要包括以下步骤:[0055] 步骤801,UE业务承载的发送方对QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE 业务承载的接受方。 [0054] A method for transmitting a radio access bearer provided by the present invention, as shown in FIG. 8, includes the following steps: [0055] Step 801, the sending UE bearer service QoS parameters of the same or identical portions UE radio bearer combined and the combined UE bearer service multiplexed on the same underlying recipient data bearer QoS transmission according to uniform traffic bearer to the UE. [0056] 优选的,UE业务承载的发送方可以对QCI相同的UE业务承载进行合并,或者也可以对QoS参数中报文延时要求和丢包率相同的UE业务承载进行合并。 [0056] Preferably, the sending UE bearer service may be the same merge a QCI UE bearer service, or may be combined parameters for QoS packet latency and packet loss rate requirement same UE bearer service. [0057] 标准QCI的特征值为9类,分别对应9种不同的QoS,参照表I。 [0057] Standard QCI eigenvalues ​​class 9, 9 correspond to the QoS different, with reference to Table I. 对QCI按照资源类型、报文延时要求、丢包率相近的情况进行合并,各种合并的组合均在本发明的保护范围之内。 QCI according to the resource type, packet delay requirement, packet loss rate is close to merging, the combined various combinations are within the scope of the present invention. 合并后的QCI类型的数量要求小于或等于Relay与DeNB之间的空中接口的承载数量。 QCI number of combined type claims less than or equal number of air interface between the carrier and the Relay DeNB. [0058] 优选的,对资源类型为Non-GBR类型的QCI为6、8、9三种类型进行合并,并按照QCI为6分配资源,且保持剩余的QCI类型,这样QCI由9种类型合并为7种类型。 [0058] Preferably, the resource type is the type of Non-GBR QCI combined to the three types 6,8,9, and 6 according to the allocation of resources QCI, QCI and the remaining holding type, which consists of nine types of combined QCI 7 types. [0059] 优选的,对资源类型为Non-GBR类型的QCI为5、7两种类型进行合并,并按照QCI 为5分配资源;对资源类型为Non-GBR类型的QCI为6、8、9三种类型进行合并,并按照QCI 为6分配资源;同时保持剩余的QCI类型,这样QCI由9种类型合并为5种类型。 [0059] Preferably, the two types of resource types 5,7 merged, and in accordance with allocated resources QCI 5 Non-GBR QCI is type; resource type is the type of Non-GBR QCI is 6,8,9 Three types are combined, and the allocation of resources according to QCI 6; type while maintaining the rest of the QCI, QCI so that the 9 types combined into five types. [0060] 需要指出的是,该合并后的QCI仅在Un接口分配空口资源时有效,合并后的QCI 并不需要以显式方式或者隐式方式在Relay与DeNB之间传递。 [0060] It is noted that, QCI on the combined effective only when allocating air interface resources Un interface, QCI combined does not need to be explicitly or implicitly passed between the Relay and DeNB. [0061] Relay与DeNB之间的空中接口需要建立底层数据承载(无线承载),无线承载所要承载的内容是Relay上不同的UE业务承载(UE-E-RAB),这些不同的UE-E-RAB需要在相同的Un 口无线承载中传递。 [0061] Relay air interface between the underlying data and the DeNB need to establish bearer (radio bearer), the contents of the radio bearer is to be carried on different Relay UE traffic bearer (UE-E-RAB), these different UE-E- RAB is transmitted in the same radio bearer Un interface. [0062] 无线承载的建立是根据该合并后的QCI建立或者重配置合适的无线资源,以保证最终能满足合并QCI所指示的QoS。 [0062] The radio bearer setup or reconfiguration is suitable wireless resources to meet the QoS guaranteed ultimately combined according QCI QCI indicated on the combined. [0063] 无线承载建立完成后,DeNB将底层数据承载标识与UE-E-RAB标识的对应关系显式或者隐式的传递给Relay,这样建立或者重配置并承载与此QCI匹配的不同的UE-E-RAB, Un接口承载建立。 After the [0063] radio bearer setup complete, DeNB corresponding relationship between the underlying data bearing identification and UE-E-RAB identified explicitly or implicitly transmitted to Relay, so that the establishment or reconfiguration and carries this QCI match different UE -E-RAB, Un interfaces bearer establishment. [0064] 步骤802,UE业务承载的接受方根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从底层数据承载上获取与底层数据承载标识相对应的UE业务承载。 [0064] Step 802, the recipient UE bearer service bearer correspondence between the identifier and a UE identifier of the bearer service based on the underlying preconfigured data, data acquired from the base carrying the underlying data corresponding to the identification UE bearer service bearer. [0065] UE业务承载的接受方还能够根据该底层数据承载标识选择返回UE业务承载所使用的底层数据承载。 [0065] Recipient UE bearer service bearer identifier can also choose to return to the underlying data bearer service bearer used by UE based on the underlying data. [0066] 需要指出的是,本发明所指的底层数据承载可以是Un接口的无线承载(UnRB),也可以是中继的无线接入承载(Relay-E-RAB)。 [0066] It should be noted that the present invention refers to the underlying data carrier may be a radio bearer Un interface (UnRB), it may be a relay radio access bearer (Relay-E-RAB). [0067] 下面以Un RB为例对上述的无线接入承载的传输方法进一步说明。 [0067] In the following an example of the above-described Un RB radio access bearer transmission method described further. [0068] 在该实施例一中,某DeNB需要将两个UE不同的EPS·承载通过Relay与DeNB之间的Un接口传递到UE,如图9所示,在DeNB中的Sl-U接口存在两条UEl的无线接入承载分别是UE1E-RAB1和UE1E-RAB2 ;在DeNB中的Sl-U接口存在两条到UE2的无线接入承载分别是UE2E-RAB1 和UE2E-RAB2。 [0068] In one embodiment of this embodiment, a DeNB require two different UE EPS · Un bearer transmitted through Relay interface between the UE and the DeNB, as shown in FIG, Sl-U interface to 9 in the presence of the DeNB UEl two radio access bearers are UE1E-RAB1 and UE1E-RAB2; Sl-U interface exists DeNB two radio access bearer to UE2 are UE2E-RAB1 and UE2E-RAB2. [0069] 在Relay与DeNB之间的空口上,存在两条Relay到UEl的空中接口承载,分别为UEl Relay Uu bear I 和UEl Relay Uu bear2 ;在Relay 与DeNB 之间的空口上,存在两条Relay 到UE2 的空中接口承载,分别为UE2 Relay Uu bearl 和UE2 Relay Uu bear2。 [0069] On the air interface between the Relay and the DeNB, there are two Relay UEL air interface to carry, respectively UEl Relay Uu bear I and to UEl Relay Uu bear2; on the Relay and the air interface between the DeNB, there are two UE2 to Relay bearer air interface, respectively UE2 Relay Uu bearl and UE2 Relay Uu bear2. [0070] E-RAB与Uu bear是--映射,此处的映射关系是:[0071] UEl E-RABl 映射到UEl Relay Uu bearl,[0072] UEl E-RAB2 映射到UEl Relay Uu bear2,[0073] UE2 E-RABl 映射到UE2 Relay Uu bearl,[0074] UE2 E-RAB2 映射到UE2 Relay Uu bear2。 [0070] E-RAB and Uu bear is - mapping, mapping relationship here is: [0071] UEl E-RABl mapped to UEl Relay Uu bearl, [0072] UEl E-RAB2 mapped to UEl Relay Uu bear2, [ 0073] UE2 E-RABl mapped to UE2 Relay Uu bearl, [0074] UE2 E-RAB2 mapped to UE2 Relay Uu bear2. [0075]其中 UEl E-RABKUEI E_RAB2、UE2 E-RABKUE2 E-RABl 需要通过Relay 与DeNB 的Un接口的无线承载(Un RB)传递到Relay,并由Relay按该映射关系分别映射为UEl Relay Uu bearl、UEl Relay Uu bear2、UE2 Relay Uu bearl、UE2 Relay Uu bear2。 [0075] wherein UEl E-RABKUEI E_RAB2, UE2 E-RABKUE2 E-RABl radio bearer needs to be passed through the Un interface Relay with the DeNB (Un RB) Relay, according to the mapping relationship Relay by mapping each UEl Relay Uu bearl , UEl Relay Uu bear2, UE2 Relay Uu bearl, UE2 Relay Uu bear2. [0076] 如果E-RAB的QoS类型数量小于或等于Un RB的数量,则可以将QoS —致的E-RAB 在同一个Un RB中传输,例如如图9所示,在仅有两条Un RB (Un RB N, Un RB N+1)的情况下传输如下表2所不的UE-E-RAB :[0077]表 2[0078] [0076] If the E-RAB QoS class number is less than or equal to the number of the Un RB, then QoS may be - E-RAB consistent Un RB in the same transmission, for example as shown in FIG. 9 only two Un RB (Un RB N, Un RB N + 1) in table 2 below are not transmitted to the UE-E-RAB conditions: [0077] tABLE 2 [0078]

Figure CN101932038BD00101

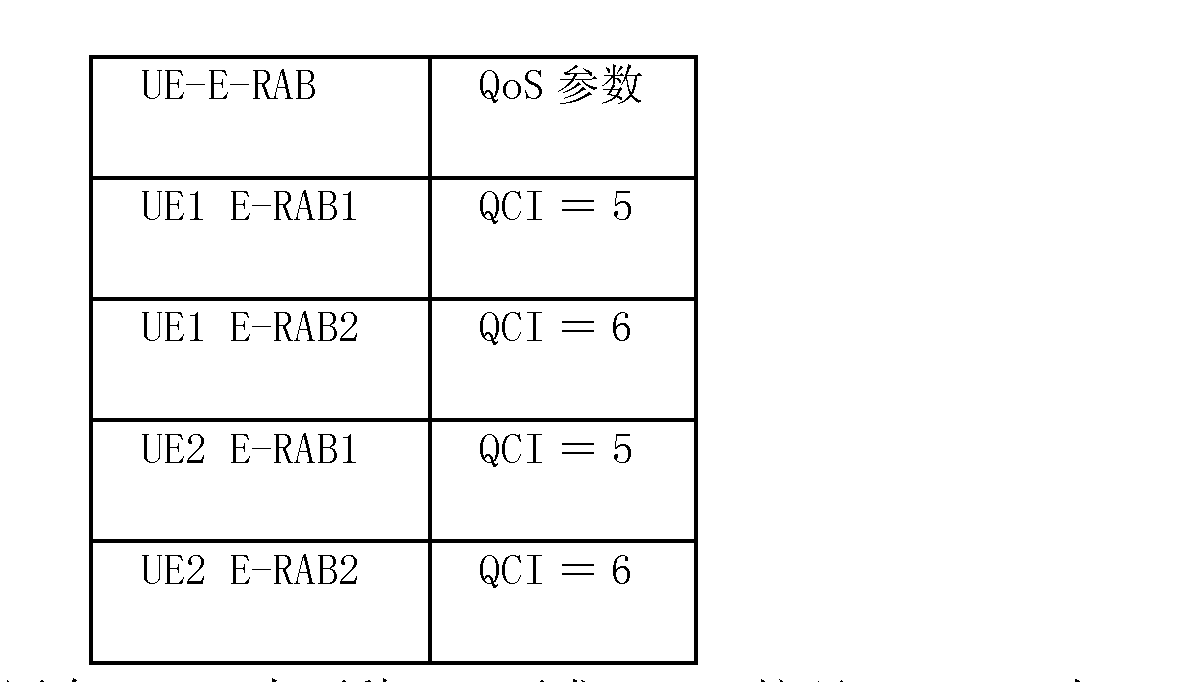

[0079] 该表中两个UE的四个E-RAB有两种QoS要求,DeNB按照QCI = 5为UEl E-RABl和UE2 E-RABl分配或者重配置一个Un RB,如图9所示为Un RB N ;DeNB按照QCI = 6为UEl E-RABl和UE2 E-RABl分配或者重配置一个Un RB,如图9所示为Un RB N+1。 [0079] The table UE four two E-RAB QoS requirements, there are two, DeNB UEl E-RABl and UE2 E-RABl allocated or a Un RB reconfiguration according to QCI = 5, as shown in FIG. 9 Un RB N; DeNB according QCI = 6 UEl E-RABl and UE2 E-RABl or reconfiguring a dispensing Un RB, as shown in FIG Un RB N + 1 9. [0080] 如果E-RAB的QoS类型数量大于Un RB的数量,则可以将QoS相同或相近的E-RAB 进行合并,利用合并的QoS来选择Un RB传输,例如如图9所示在仅有两条Un RB (UnRB N, UnRB N+1)的情况下传输如下表3所示的UE-E-RAB :[0081]表 3[0082] [0080] If the E-RAB QoS class number is larger than the number of the Un RB, may be the same or similar QoS E-RAB merging, the combined use of QoS transmission Un RB is selected, for example, as shown in FIG. 9 only table two below the transmission case Un RB (UnRB N, UnRB N + 1) shown in Figure 3 of the UE-E-RAB: [0081] table 3 [0082]

Figure CN101932038BD00111

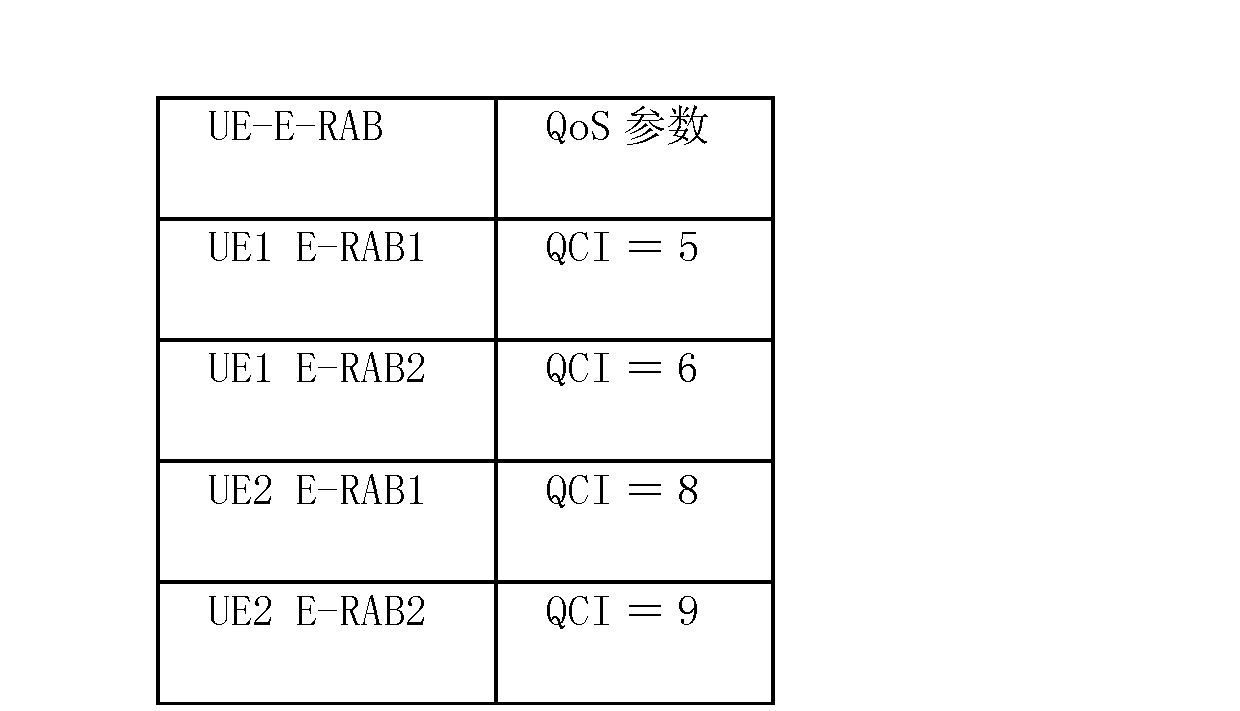

[0083] 该表中两个UE有四个QoS要求,假设目前可用的Un RB数量只有2个,则可以将QCI等于5的UEl E-RABl单独分配或重配Un RB传输,Un RB的QoS要求按照QCI为5进行分配;而QCI为6、7、8的其他三个E-RAB共同使用同一个Un RB, Un RB的QoS按照QCI 为6的要求进行分配。 [0083] The UE table has two four QoS requirements, assumed that the number of currently available only Un RB 2, the QCI can be equal UEl E-RABl 5 or a separately allocated transmission Un RB reconfiguration, the QoS Un RB in accordance with claim 5 QCI is allocated; the other three QCI E-RAB 6,7,8 commonly use the same Un RB, Un RB is allocated in the QoS according to claim 6 QCI. [0084] 如果出现GBR类型QoS,QCI —致,但是GBR速率不一致的情况,按照相同QCI共同传输,且Un RB按照速率要求高的要求分配资源。 [0084] If the type GBR QoS, QCI occurs - induced, but inconsistent rate GBR case, a QCI transmitted together in the same, and a rate Un RB allocation resource demanding requirements. 例如如图9所示在仅有两条Un RB (UnRB N,UnRB N+1)的情况下传输如下表4所示的UE-E-RAB :[0085]表 4[0086] As shown in FIG. 9, for example, the case where the transmission only two Un RB (UnRB N, UnRB N + 1) in the following Table UE-E-RAB shown in: [0085] Table 4 [0086]

Figure CN101932038BD00112

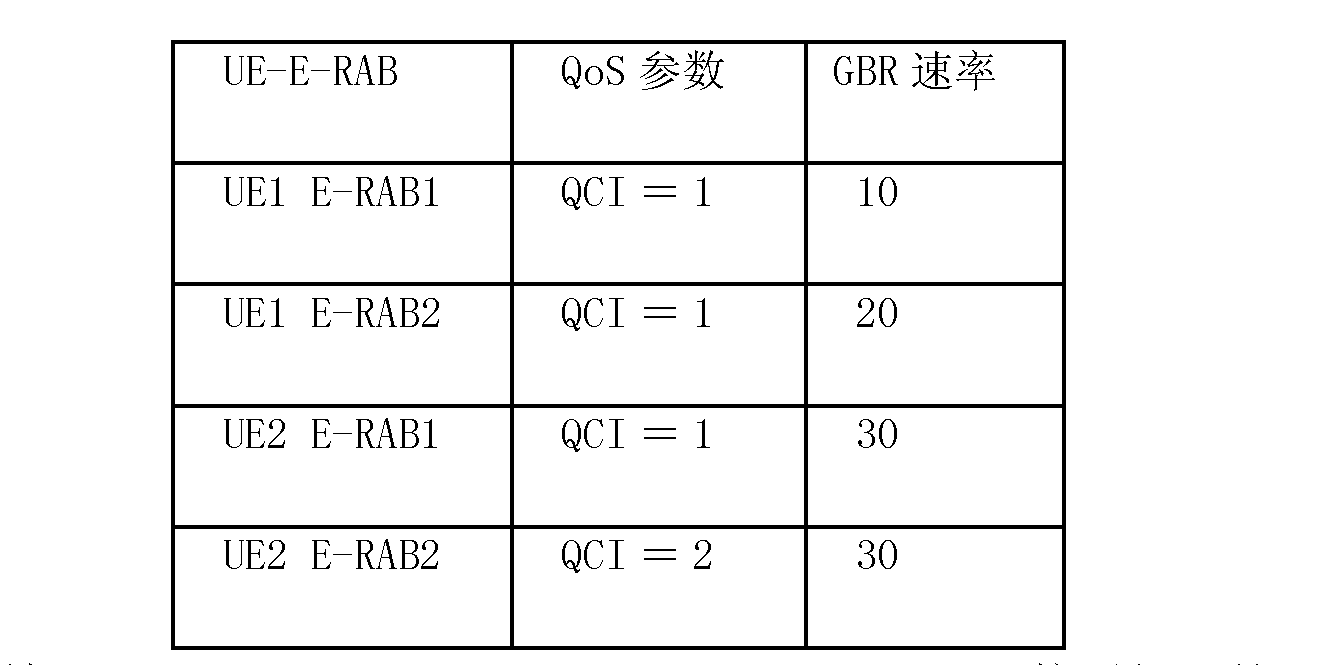

[0087] 在这种情况下,UEl E-RABU UEl E-RAB2、UE2 E-RABl使用相同的Un RB,并按照GBR速率为30进行传输。 [0087] In this case, UEl E-RABU UEl E-RAB2, UE2 E-RABl same Un RB, and 30 according to the transmission rate of GBR. [0088] 需要指出的是,上述的实施例一同样适用于Relay与Relay之间的无线接入承载的传输。 [0088] It should be noted that a transmission of the above-described embodiments are equally applicable to and between Relay Relay radio access bearer. [0089] 下面再以Relay-E-RAB为例对上述的无线接入承载的传输方法进一步说明。 [0089] In the following further Relay-E-RAB an example of the above method for transmitting a radio access bearer described further. [0090] 在该实施例二中,其构架是通过Relay作为特殊UE接入EPC,Relay上的UE的控制面和用户面通过Relay的Relay-E-RAB传输。 [0090] In this second embodiment, the frame by which a special Relay UE accesses the EPC, the UE control plane and the user plane on Relay Relay-E-RAB transmitted through the Relay. Relay在Relay' s SGW/PGW上下文中区分出UE-E-RAB的QoS,根据与实施例一类似的方法为UE-E-RAB选择满足其QoS传输的Relay-E-RAB进行传输。 Relay distinguish UE-E-RAB QoS in Relay 's SGW / PGW context, transmitted according to a method similar to Example selecting UE-E-RAB meet its QoS transmission Relay-E-RAB. [0091] 如图10所示,在Relay的eNB属性部分和User-UE' s SGW/PGW存在UE的E-RAB, 简称为UE-E-RAB。 [0091] As shown, the presence of the attribute section 10 in the eNB and Relay User-UE 's SGW / PGW UE the E-RAB, abbreviated to UE-E-RAB. Relay 的UE 属性部分和Relay-UE' s SGW/PGW 之间存在Relay 的E-RAB, 简称为Realy-E-RAB。 Relay presence of E-RAB UE and the attribute portion Relay Relay-UE between 's SGW / PGW, abbreviated as Realy-E-RAB. 一条Realy-E-RAB 承载不同的UE-E-RAB。 A Realy-E-RAB bearer different UE-E-RAB. [0092] 如果UE-E-RAB的QoS类型数量小于或等于Realy-E-RAB的数量,可以将QoS —致的UE-E-RAB 在同一个Realy-E-RAB 中传输,例如在仅有两条Realy-E-RAB (Realy-E-RABl 和Realy-E-RAB2)的情况下传输如下表5所示的UE-E-RAB :[0093]表 5[0094] [0092] If the number of QoS class UE-E-RAB is equal to or less than the number Realy-E-RAB may be QoS - UE-E-RAB induced in the same Realy-E-RAB is transmitted, for example only two case Realy-E-RAB (Realy-E-RABl and Realy-E-RAB2) transmission following table UE-E-RAB shown in Figure 5: [0093] tABLE 5 [0094]

Figure CN101932038BD00121

UE-E-RAB QoS参数UEl E-RABl QCI = 5UEl E-RAB2 QCI = 6UE2 E-RABl QCI = 5UE2 E-RAB2 QCI = 6[0095] 该表中两个UE的四个E-RAB有两种QoS要求,Relay UE' SGW/PGW的逻辑实体将按照QCI 等于5 的UEl E-RABl 和UE2 E-RABl 通过Realy-E-RABl 进行传输;Relay UE,SGff/ PGff的逻辑实体将按照QCI等于6的UEl E-RAB2和UE2 E-RAB2通过Realy_E_RAB2进行传输,以保证不同的QoS的实现。 UE-E-RAB QoS parameters UEl E-RABl QCI = 5UEl E-RAB2 QCI = 6UE2 E-RABl QCI = 5UE2 E-RAB2 QCI = 6 [0095] The two tables of four UE has two E-RAB QoS requirements, Relay UE 'SGW / PGW logical entity according QCI equal UEl E-RABl and UE2 E-RABl 5 is transmitted through Realy-E-RABl; Relay UE, SGff / PGff logical entities will be equal to 6 in accordance with the QCI the UEl E-RAB2 and UE2 E-RAB2 transmitted through Realy_E_RAB2, in order to ensure the realization of different QoS. [0096] 如果UE-E-RAB的QoS类型数量大于Realy-E-RAB承载的数量,可以将UE-E-RAB 按照QoS合并后选择Realy-E-RAB传输,例如在仅有两条Realy-E-RAB (Realy-E-RABl和Realy-E-RAB2)的情况下传输如下表6所示的UE-E-RAB :[0097]表 6[0098] [0096] If the number of types of QoS UE-E-RAB is greater than the number Realy-E-RAB bearer may be UE-E-RAB QoS combined in accordance with the selected transmission Realy-E-RAB, for example, only two Realy- the following table shows the transmission case 6 E-RAB (Realy-E-RABl and Realy-E-RAB2) of the UE-E-RAB: [0097] tABLE 6 [0098]

Figure CN101932038BD00122

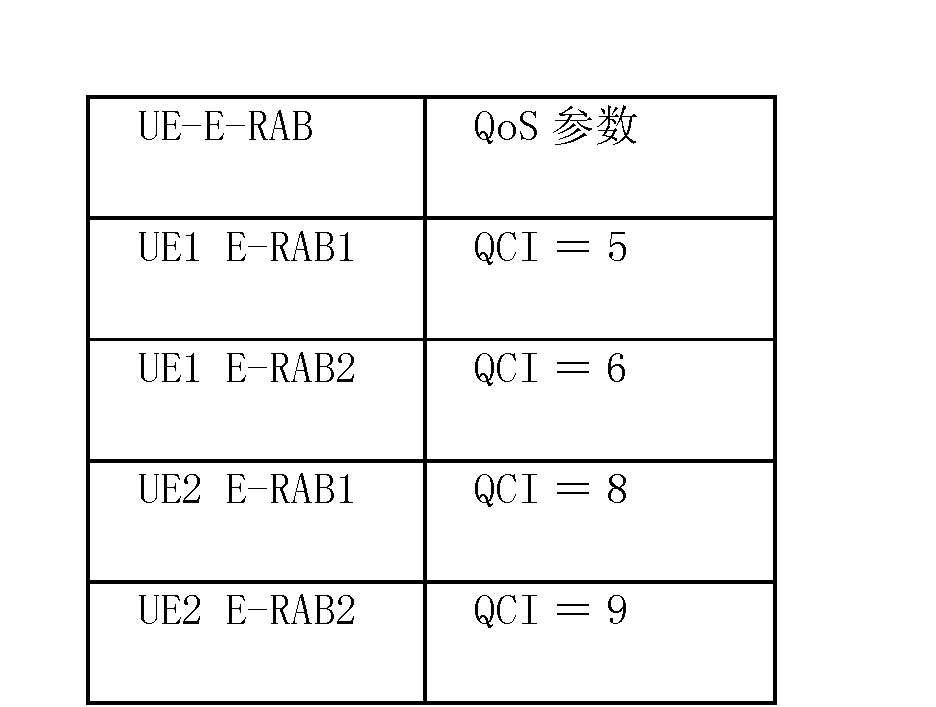

UE-E-RAB QoS参数UEl E-RABl QCI = 5UEl E-RAB2 QCI = 6UE2 E-RABl QCI = 8UE2 E-RAB2 QCI = 9[0099] 该表中两个UE有四个不同QoS的UE-E-RAB,则可以将QCI等于5的UEl E-RABl在Realy-E-RABI上传输;而QCI为6、7、8的其他三个UE-E-RAB共同使用同一个Realy-E_RAB2 传输。 UE-E-RAB QoS parameters UEl E-RABl QCI = 5UEl E-RAB2 QCI = 6UE2 E-RABl QCI = 8UE2 E-RAB2 QCI = 9 [0099] the UE has two tables of four different QoS UE-E -RAB, the QCI can be equal UEl E-RABl 5 transmitted on the Realy-E-RABI; QCI and three other UE-E-RAB 6,7,8 commonly use the same transmission Realy-E_RAB2. [0100] 如果UE-E-RAB出现GBR类型QoS,QCI 一致,但是速率不一致的情况,UE-E-RAB按照相同QCI使用相同的Realy-E-RAB传输,且传输速率要求满足合用Realy-E-RAB的最高GBR速率要求。 [0100] If the UE-E-RAB occurs GBR type QoS, consistent QCI, but inconsistent rate case, UE-E-RAB same Realy-E-RAB is transmitted according to the same QCI, and the transmission rate required to meet the combined Realy-E -RAB GBR highest rate requirements. 例如,在仅有两条Realy-E-RAB (Realy-E-RABl和Realy-E_RAB2)的情况下传输如下表Ί所示的UE-E-RAB :[0101]表 7[0102] For example, the following table the transmission UE-E-RAB Ί shown in the case where only two Realy-E-RAB (Realy-E-RABl and Realy-E_RAB2) is: [0101] Table 7 [0102]

Figure CN101932038BD00131

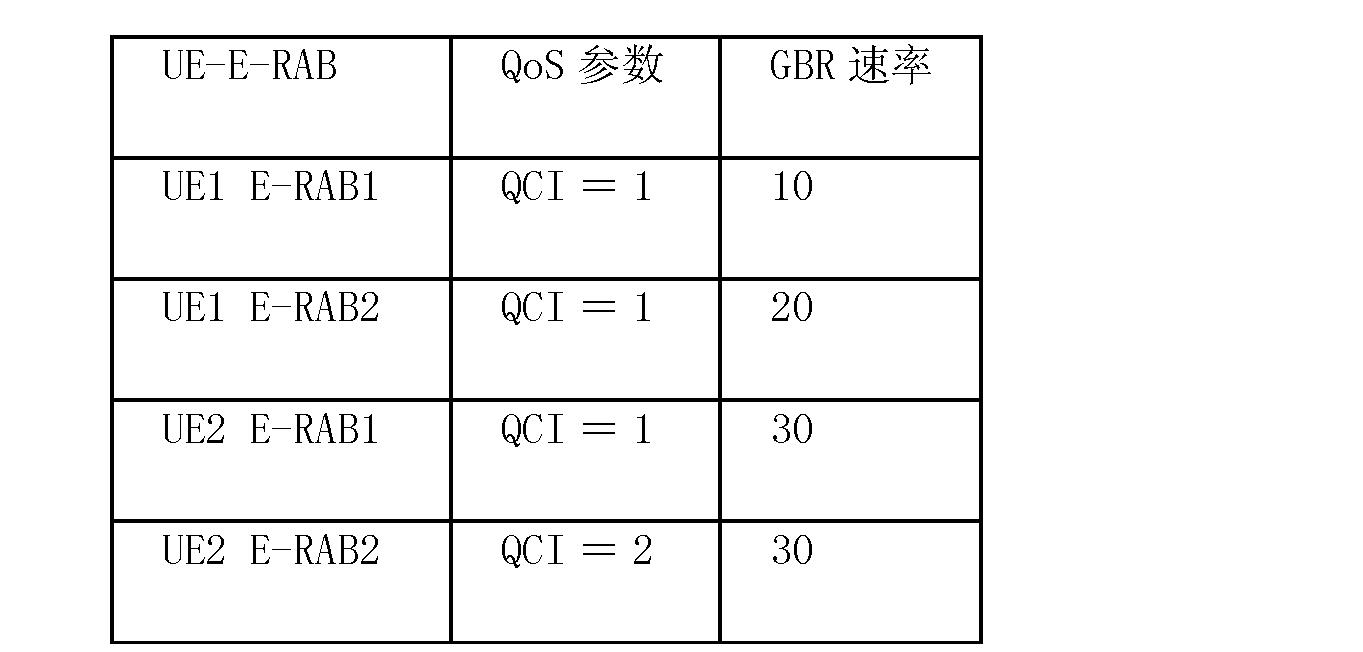

[0103]在这种情况下,UEl E-RABU UEl E_RAB2、UE2 E-RABl 使用相同的Realy-E-RAB I 进行传输,并按照GBR速率要求为30 ;UE2 E-RAB2使用Realy-E-RAB 2进行传输。 [0103] In this case, UEl E-RABU UEl E_RAB2, UE2 E-RABl same Realy-E-RAB I transmitted, and in accordance with requirements for the rate of GBR 30; UE2 E-RAB2 using Realy-E-RAB 2 for transmission. [0104] 需要特别指出的是,在同一个承载传输不同的UE-E-RAB之前,分配承载的网元需要隐式或显式的将承载标识与UE-E-RAB标识的对应关系告知被接受网元。 [0104] Of particular note is that before a different same bearer transport UE-E-RAB, the distribution network carrying element requires implicit or explicit carrying the correspondence between the identifier and the UE-E-RAB identifier inform accepted NE. [0105] 对应本发明的实施例一,DeNB的Un接口为UE RAB分配Un RB之后,DeNB通过E-RAB消息携带为此E-RAB分配的Un RB编号,通过UE的E-RAB消息携带并传送到Realy, Realy通过获取该信息可以获取哪些Un RB用于传输UE的E-RAB信息,这样分配数据无线承载(DRB)的网元就可以显式的将DRB编号与UE E-RAB的对应关系告知接受网元。 [0105] After the corresponding one embodiment of the present invention, the DeNB Un interface of an RAB to UE Un RB allocation, the DeNB Un RB carrying the E-RAB ID to this E-RAB assignment message by carrying the message from the UE through the E-RAB and transferred to Realy, Realy Un RB which may be acquired for transmission to the UE through the E-RAB information to obtain the information, so that distribution data radio bearer (DRB) network element may be DRB explicit UE ID and E-RAB corresponding to relations told to accept the network element. [0106] 较佳的,在DeNB的Un接口为UE RAB分配Un RB的时候,配置的Un RB序号按照默认约定的默认序号进行,例如可以按照QCI的值为Un RB分配相应的序号,QCI为I类型的UE RAB均从序号为I的Un RB上传输。 [0106] Preferably, the Un interface UE RAB allocated to the DeNB Un RB when the RB number configured by default convention Un default number for, for example, in accordance with the number corresponding to the value Un RB allocation QCI, QCI is I type of UE RAB are transmitted from the serial number of the I Un RB. [0107]对应本发明的实施例二,在 Relay-UE' s SGW/PGW 为UE-E-RAB 分配Relay-E-RAB 的时候,Re I ay-UE ' s SGW/PGW通过Re I ay-E-RAB的控制消息携带为此UE-E-RAB分配的Relay-E-RAB标识,通过UE的E-RAB控制消息携带并传送到Relay,Relay通过获取该信息可以获取哪些Relay-E-RAB用于传输该UE的E-RAB信息,这样分配承载的网元就可以显式的将承载编号与UEE-RAB的对应关系告知接受网元。 [0107] corresponding to two embodiments of the present invention, the Relay-UE 's SGW / PGW for the UE-E-RAB assignment Relay-E-RAB time, Re I ay-UE' s SGW / PGW by Re I ay- E-RAB control message carries UE-E-RAB assignment Relay-E-RAB ID for this, and transmitted to a control message carried by the Relay E-RAB of the UE, which Relay Relay-E-RAB information may be acquired by acquiring the E-RAB information for transmission to the UE, such that the dispensing can be carried NE explicit correspondence relationship between the carrier number and the UEE-RAB to inform the receiving network element. [0108]较佳的,在 Relay-UE's SGW/PGW 为UE-E-RAB 分配Relay-E-RAB 的时候,UE-E-RAB 所使用的Relay-E-RAB序号按照默认约定的默认标识进行,例如可以按照QCI的值为Relay-E-RAB分配相应的序号,QCI为I类型的UE-E-RAB均从序号为I的Relay-E-RAB上传输。 [0108] Preferably, performed for the UE-E-RAB assignment Relay-E-RAB time, Relay-E-RAB ID UE-E-RAB used by default agreed default identity in the Relay-UE's SGW / PGW , for example, in accordance with the number corresponding to the value of the QCI Relay-E-RAB assignment, each of the I QCI Relay-E-RAB the transmission of the I type from the UE-E-RAB ID. [0109] 另外,为了节省空口资源,在Un 口或者Relay与Relay空口数据无线承载(DRB) 传递UE的E-RAB时,可以仅传输GTP协议数据,GTP的承载UPD和IP协议并不传输。 [0109] Further, in order to save air interface resources, the Un interface or the Relay and Relay air interface data radio bearer (the DRB) transmitting E-RAB UE may transmit only the GTP protocol data, GTP bearer UPD and IP protocol does not transmit. 例如参考图11,Relay和DeNB传输的UE-E-RAB时的报文格式,Un RB仅传输GTP报文,不传输UDP和IP协议报文。 E.g. packet format with reference to FIG. 11, Relay and DeNB transmission UE-E-RAB, Un RB transmitting only the GTP packet, and the UDP does not transmit IP packets. [0110] 同样的参考图12,Relay和Relay-UE's SGW/PGW传输的UE-E-RAB时的报文格式, Relay-E-RAB中仅传输UE-E-RAB的GTP报文,没有传输UE-E-RAB的UDP和IP协议报文。 [0110] Also with reference to FIG. 12, the packet format of the Relay and Relay-UE's SGW / PGW transmission UE-E-RAB, Relay-E-RAB only transmit UE-E-RAB GTP packets, there is no transmission UE-E-RAB of the UDP and IP packets. [0111] 为了进一步节省空口资源,在承载UE-E-RAB时,UE-E-RAB的GTP头部可以仅携带必选字段,UE-E-RAB如果要求保序功能,将在DeNB侧和EPS网元之间实现,由于eNB和Relay之间、Re I ay和Relay之间、Re I ay和Relay-UE's SGW/PGW的承载来保证保序功能的完成。 [0111] In order to save air interface resources, when carrying UE-E-RAB, UE-E-RAB a GTP header may carry only mandatory fields, UE-E-RAB if desired order-preserving feature to the DeNB side and EPS achieved between NEs, since between the eNB and Relay Relay and between Re I ay, and Re I ay Relay-UE's SGW / PGW bearer order to ensure complete protection function. [0112] 对应本发明的实施例一,Un 口或者Relay与Relay空口数据无线承载(DRB)传递UE的E-RAB时,DeNB和EPS之间的UE的E-RAB承载通过Un接口传输到Relay网元中进行传输;这些E-RAB连接使用GTPU协议进行传输,传输的过程中如果需要保序功能的情况下, 也就是在需要传递GTPU序号(Sequence Number)以便保序功能实现的情况下,在DeNB侧进行保序功能的终结。 [0112] When the corresponding embodiment of the present invention a, Un interface or the Relay and Relay air interface data radio bearers (the DRB) transmitting the UE E-RAB, UE the E-RAB between DeNB and the EPS bearer Un interface transmission to the Relay NE for transmission; the connection GTPU protocol transmission, the transmission process of the E-RAB in circumstances requiring protection order function, that is, the need to pass GTPU number (sequence number) in order to protect the case where the order functions implemented, protection for termination sequences functional in DeNB side. DeNB来保证在DeNB按E-RAB的顺序向Relay发送数据,同时该Un 承载可以保证承载的数据以顺序传递。 DeNB to ensure DeNB sequentially transmitted to the E-RAB Relay data, while the data carrier can ensure Un bearer transfer order. UE的GTPU序号在Un接口不传输。 GTPU number of UE does not transmit in the Un interface. [0113] 对应本发明的实施例二,Relay和Relay-UE' s SGW/PGW之间传递UE的E-RAB时, Relay-UE' s SGW/PGW 和UE-EPS 之间的UE 的E-RAB 承载通过Relay-E-RAB 传输到Relay 网元中进行传输;这些UE-E-RAB连接使用GTPU协议进行传输,传输的过程中如果需要保序功能的情况下,也就是在需要传递GTPU序号以便保序功能实现的情况下,在Relay-UE's SGW/PGW侧进行保序功能的终结。 'Is between s SGW / PGW transmission of the UE E-RAB, Relay-UE' [0113] corresponding to the second embodiment, Relay Relay-UE, and the UE of the present invention is between s SGW / PGW and UE-EPS E- RAB bearer transport through the Relay-E-RAB Relay network element for transmission; the process of the UE-E-RAB connection GTPU protocol transmission, the transmission in a case where, if required order-preserving function, i.e. the need to pass GTPU No. for the case where the order-preserving functions implemented, be terminated in order preserving function Relay-UE's SGW / PGW side. Relay-UE' s SGW/PGW来保证在DeNB按E-RAB的顺序向Relay发送数据,同时该Relay-E-RAB承载可以保证承载的数据以顺序传递。 Relay-UE 's SGW / PGW to ensure DeNB sequentially transmitted to the E-RAB Relay data, while the E-RAB bearer-Relay data can be carried in order to ensure the transfer. UE的GTPU序号在Un接口不传输。 GTPU number of UE does not transmit in the Un interface. [0114] 为实现上述的无线接入承载的传输方法,本发明所提供的一种无线接入承载的传输系统,如图13所示,包括:UE业务承载的发送模块10和接受模块20。 [0114] In order to achieve a transmission method for a radio access bearer described above, the transmission system of the present invention a radio access bearer provided, shown in Figure 13, comprising: UE bearer service transmitting and receiving module 10 module 20. UE业务承载的发送模块10,用于对QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE 业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受模块20。 UE bearer service transmission module 10, or identical QoS parameters for the same UE bearer service parts were combined and the combined UE bearer service multiplexed on the same underlying data bearer QoS transmission according to a uniform service to the UE acceptable carrier module 20. UE业务承载的接受模块20,用于根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从底层数据承载上获取与底层数据承载标识相对应的UE业务承载。 UE bearer service acceptance module 20, for carrying the correspondence between the identifier and a UE identifier of the bearer service based on the underlying preconfigured data, data acquired from the base carrying the underlying data corresponding to the identification UE bearer service bearer. [0115] 较佳的,UE业务承载的发送模块10进一步用于,在传输UE业务承载之前,将预先配置的对应关系发送给UE业务承载的接受模块20 ;优选的,可以对QCI相同的UE业务承载进行合并,或者对QoS参数中报文延时要求和丢包率相近的UE业务承载进行合并。 [0115] Preferably, the UE bearer service sending module 10 is further configured to, prior to transmission of the UE bearer service, sends a corresponding relationship between the pre-configured to accept the service modules UE bearers 20; preferably, the UE may be the same for QCI the combined bearer service, or QoS parameters of the packet loss rate and latency requirements similar UE bearer service merger. [0116] 较佳的,UE业务承载的接受模块20进一步用于,根据底层数据承载标识选择返回UE业务承载所使用的底层数据承载。 [0116] Preferably, the UE receiving service module 20 further bearer for carrying data identifying selected Back underlying bearer service used by UE bearer according to the underlying data. [0117] 上述的UE业务承载的发送模块10即作为UE业务承载的发送方中用以实现无线接入承载传输的功能模块,UE业务承载的接受模块20即作为UE业务承载的接受方中用以实现无线接入承载传输的功能模块。 [0117] The transmission of the UE bearer service module 10 is coupled for a bearer service in the sender UE functional modules that realize transmission radio access bearer, the bearer service acceptance module UE 20 i.e. a UE bearer service accept Fang with radio access bearer in order to achieve the transfer function module. 然而需要指出的是,由于实际应用中UE与DeNB之间的数据可以双向传输(DL/UL),因此对应DL中继链路时,Relay即作为UE业务承载的发送方,DeNB即作为UE业务承载的接受方;反之,对应UL中继链路时,DeNB即作为UE业务承载的发送方,Relay即作为UE业务承载的接受方。 However, it should be noted that, since the data may be bi-directional transmission (DL / UL) between the UE practical application and DeNB, so when the corresponding DL relay link, Relay i.e. sending UE a bearer service, DeNB i.e. a UE traffic recipient Conversely, when the corresponding UL relay link, i.e., the DeNB sending UE a bearer service, i.e., carrying a relay UE traffic; recipient bearer. 另外,本发明的无线接入承载的传输方法和系统,也适用于Relay与Relay之间的无线接入承载的传输。 Further, a method and system for transmitting a radio access bearer according to the invention is also applicable to transfer between Relay Relay and the radio access bearer. 因此,对于实际应用中的某一DeNB或Relay,其可以同时包括上述两个功能模块,分别用以实现无线接入承载的发送和接受功能。 Thus, for a certain or DeNB Relay practical application, which may include both the above-described two functional modules, each for realizing transmission and reception of a radio access bearer functions. [0118] 以上所述,仅为本发明的较佳实施例而已,并非用于限定本发明的保护范围。 [0118] The above are only preferred embodiments of the present invention but are not intended to limit the scope of the present invention.

Claims (11)

1. 一种无线接入承载的传输方法,其特征在于,该方法包括: 终端UE业务承载的发送方对服务质量QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受方;所述UE业务承载合并具体为:对服务质量级别标识QCI相同的UE业务承载进行合并,或者对QoS参数中报文延时要求和丢包率相同的UE业务承载进行合并; 所述UE业务承载的接受方根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从所述底层数据承载上获取与所述底层数据承载标识相对应的UE业务承载;所述底层数据承载为Un接口的无线承载Un RB,或中继的无线接入承载Relay-E-RAB。 1. A transmission method for a radio access bearer, characterized in that, the method comprising: a sender terminal UE bearer service is identical to the QoS parameters or a portion of the same UE bearer service are combined, and the combined UE recipient bearer service multiplexed on the same underlying data bearer QoS transmission according to uniform traffic bearer to the UE; bearer service the UE is specifically combined: the same quality of service level identifier merge a QCI UE bearer service, or QoS of parameter packet latency and packet loss rate requirement same UE bearer service merger; recipient service bearers of the UE corresponding relationship between the UE identifier and the bearer service identifier based on the underlying data bearer pre-configured from the underlying data carrier obtaining the identification of the underlying data corresponding to the UE bearer service bearer; of the underlying data bearing radio interface bearer Un Un RB, or a relay radio access bearer relay-E-RAB.
2.根据权利要求1所述无线接入承载的传输方法,其特征在于,所述对应关系是由所述UE业务承载的发送方预先配置,并在传输UE业务承载之前发送给所述UE业务承载的接受方。 The transmission method of a radio access bearer according to claim 1, wherein said correspondence relationship is pre-configured by the sender and the UE bearer service, and service to the UE prior to transmission of the UE bearer service recipient bearer.
3.根据权利要求1所述无线接入承载的传输方法,其特征在于,该方法进一步包括:所述UE业务承载的接受方根据所述底层数据承载标识选择返回所述UE业务承载所使用的底层数据承载。 The transmission method of a radio access bearer according to claim 1, wherein the method further comprises: the recipient UE based on the underlying bearer service data identifying selected bearer service is returned to the UE bearer used underlying data bearer.
4.根据权利要求1所述无线接入承载的传输方法,其特征在于,该方法进一步包括:在传输合并后的UE业务承载时,只传输通用数据传输平台GTP协议数据。 The transmission method of a radio access bearer according to claim 1, wherein the method further comprises: when the service carrier transmission combined UE transmits only the generic data transport protocol GTP internet data.
5.根据权利要求4所述无线接入承载的传输方法,其特征在于,所述GTP协议数据的头部只携带必选字段。 The transmission method of a radio access bearer according to claim 4, characterized in that the head of the GTP protocol data carries only mandatory field.
6. 一种无线接入承载的发送方法,其特征在于,该方法包括: 终端UE业务承载的发送方对服务质量QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受方;所述底层数据承载为Un接口的无线承载Un RB,或中继的无线接入承载Relay-E-RAB ; 所述UE业务承载合并具体为: 对服务质量级别标识QCI相同的UE业务承载进行合并,或者对QoS参数中报文延时要求和丢包率相同的UE业务承载进行合并。 6. A method of transmitting a radio access bearer, characterized in that, the method comprising: a sender terminal UE bearer service is identical to the QoS parameters or a portion of the same UE bearer service are combined, and the combined UE recipient bearer service multiplexed on the same underlying data bearer QoS transmission according to uniform traffic bearer to the UE; bearer carrying the underlying data for the radio bearer relay-E- Un RB Un interface or the relay wireless access an RAB; combined bearer service the UE is specifically: the quality of service level identifier QCI same UE bearer service merger, or QoS parameters of the packet loss rate and latency requirements same UE bearer service merger.
7.根据权利要求6所述无线接入承载的发送方法,其特征在于,在传输合并后的UE业务承载时,只传输通用数据传输平台GTP协议数据。 7. A method of transmitting a radio access bearer according to claim 6, wherein, when the combined transmission UE bearer service, internet data transmission only transmitting common data protocol GTP.
8.根据权利要求7所述无线接入承载的发送方法,其特征在于,所述GTP协议数据的头部只携带必选字段。 8. A method of transmitting a radio access bearer according to claim 7, wherein the head portion of the GTP protocol data carries only mandatory field.
9. 一种无线接入承载的传输系统,其特征在于,该系统包括:UE业务承载的发送模块和接受模块,其中, 所述UE业务承载的发送模块,用于对服务质量QoS参数完全相同或部分相同的UE业务承载进行合并,并将合并后的UE业务承载复用到同一个底层数据承载上按照统一的QoS传输给UE业务承载的接受模块;所述UE业务承载合并具体为:对服务质量级别标识QCI相同的UE业务承载进行合并,或者对QoS参数中报文延时要求和丢包率相同的UE业务承载进行合并; 所述UE业务承载的接受模块,用于根据预先配置的底层数据承载标识与UE业务承载标识的对应关系,从所述底层数据承载上获取与所述底层数据承载标识相对应的UE业务承载; 所述底层数据承载为Un接口的无线承载Un RB,或中继的无线接入承载Relay-E-RAB。 A radio access bearer transmission system, wherein the system comprises: UE bearer service module sending and receiving module, wherein the transmitting module of the UE bearer service, the QoS parameters for identical or part of the same UE bearer service merger, and the combined UE bearer service multiplexed on the same underlying accepting module in accordance with the unified bearer QoS data transmission to the UE bearer service; bearer service the UE is specifically combined: for quality of service level identifier QCI same UE bearer service merger, or QoS parameters of the packet loss rate and latency requirements same UE bearer service merger; receiving module of the UE bearer service, according to pre-configured the relationship of bottom bearer identification data with the UE bearer service identifier acquired from the underlying data carrying identification of the underlying data bearer service corresponding to the UE bearer; the underlying data bearer Un Un interface of the RB radio bearer, or relay radio access bearer relay-E-RAB.
10.根据权利要求9所述无线接入承载的传输系统,其特征在于,所述UE业务承载的发送模块进一步用于,在传输UE业务承载之前,将预先配置的所述对应关系发送给所述UE业务承载的接受模块。 Transmitting the correspondence transmission system as claimed in the radio access bearer in claim 9, wherein the UE sends the bearer service module is further configured to, prior to transmission of the UE bearer service, the pre-configured to said receiving module UE bearer service.
11.根据权利要求9所述无线接入承载的传输系统,其特征在于,所述UE业务承载的接受模块进一步用于,根据所述底层数据承载标识选择返回所述UE业务承载所使用的底层数据承载。 11. The transmission system of a radio access bearer to claim 9, wherein the UE bearer service acceptance module is further configured to, based on the underlying data identifying selected bearer of the UE returns underlying bearer service used data bearer.
