A foldable multi-in-one toilet, comprising: a support frame with forward extension walls on both sides, and a shaft hole for installing the rotation shaft at the position corresponding to the toilet rotation shaft on the inner side of the two front extension walls; a rotation shaft, The two ends are respectively inserted into the above-mentioned shaft holes; a double toilet that can rotate around the rotation axis has a double-body structure, one side is the toilet seat table top, and the other side is the vertical table top of the men's urinal, and the horizontal use position is The toilet, in the upright position, is a men’s urinal; under the double toilet is a support seat, which is integrated with the double toilet in the horizontal position to form a toilet, and there is a drain opening at the bottom; between the support frame and the "double toilet" A gas spring that can control the position of the "double toilet" is installed between the two sides of the toilet; there is a washbasin above the double toilet; it is installed in the bathroom and can be used to complete the toilet, the men's urinal, the convenience of washing hands and washing water The function of sanitary ware can save water resources and take up less space.

Description

A kind of folding multi-position integrated closestool

Technical field

The invention belongs to technical field of sanitary ware, relate in particular to the water closet that uses in a kind of washroom.

Background technology

The urinal of the water closet of family, hotel and public place use and man's use is respectively independently at present, and all be independently to install in different positions, this minute body structure makes the cost and price height of product itself and installation cost also high, main is because family, washroom, hotel are less, water closet is only adorned in general family and hotel, seldom have family and hotel that water closet and man's urinal are housed simultaneously, this gives in the family and the man in inhabitation hotel life brings a lot of inconveniences.Existing traditional water closet generally is by water tank and water closet pedestal one or split typely constitutes, conventional one-piece toilet stool, split water closet are promptly arranged, but common water closet uses and not the time spent all be horizontal being fixed on the accomodation ground, taken the appreciable area of narrow washroom itself; Even the place of water closet and urinal is installed, also be with clean tap water flushing closestool and urinal after the urine, like this water resource has been caused very big waste.

Summary of the invention

The purpose of this invention is to provide a kind of easy to use and save the folding multi-position integrated closestool take up room.

For achieving the above object, the present invention takes following design scheme:

A kind of folding multi-position integrated closestool, it comprises:

One bracing frame, both sides have extension forward wall, and the inboard corresponding toilet seat axis of rotation height and position place of two extension forward walls is provided with the axis hole that is used to install axis of rotation;

One axis of rotation, two ends insert respectively in the above-mentioned axis hole;

One can be around two closets of axis of rotation rotation, and it is the couple structure form, and one side is water closet pedestal table top, and another side is the vertical table top of man's urinal, and horizontal user mode position is a water closet, and erectting the user mode position is man's urinal;

The below that is positioned at two closets is to support pedestal, and two closets of itself and horizontal level user mode are integrated into water closet, and the below has down the mouth of a river.

There is wash basin the top that is positioned at two closets, and wash basin has into, delivery port.

The invention provides a kind of water closet, man's urinal, wash basin in the sanitaryware product that can fold of one, it is installed on can be used to finish toilet seat, man's urinal in the washroom, the function of the water flushing sanitation sanitary equipment of washing one's hands and wash one's hands after convenient; And can the conserve water resource, wash the sanitaryware of this many integration automatically with the water after washing one's hands.

Advantage of the present invention is: more split type installation, manufacturing, can effectively save the area that sanitaryware take the washroom, reduce manufacturing cost relatively, and in use can save a large amount of waters that washes away, bring good social benefit and economic benefit for customer and manufacturer.

Description of drawings

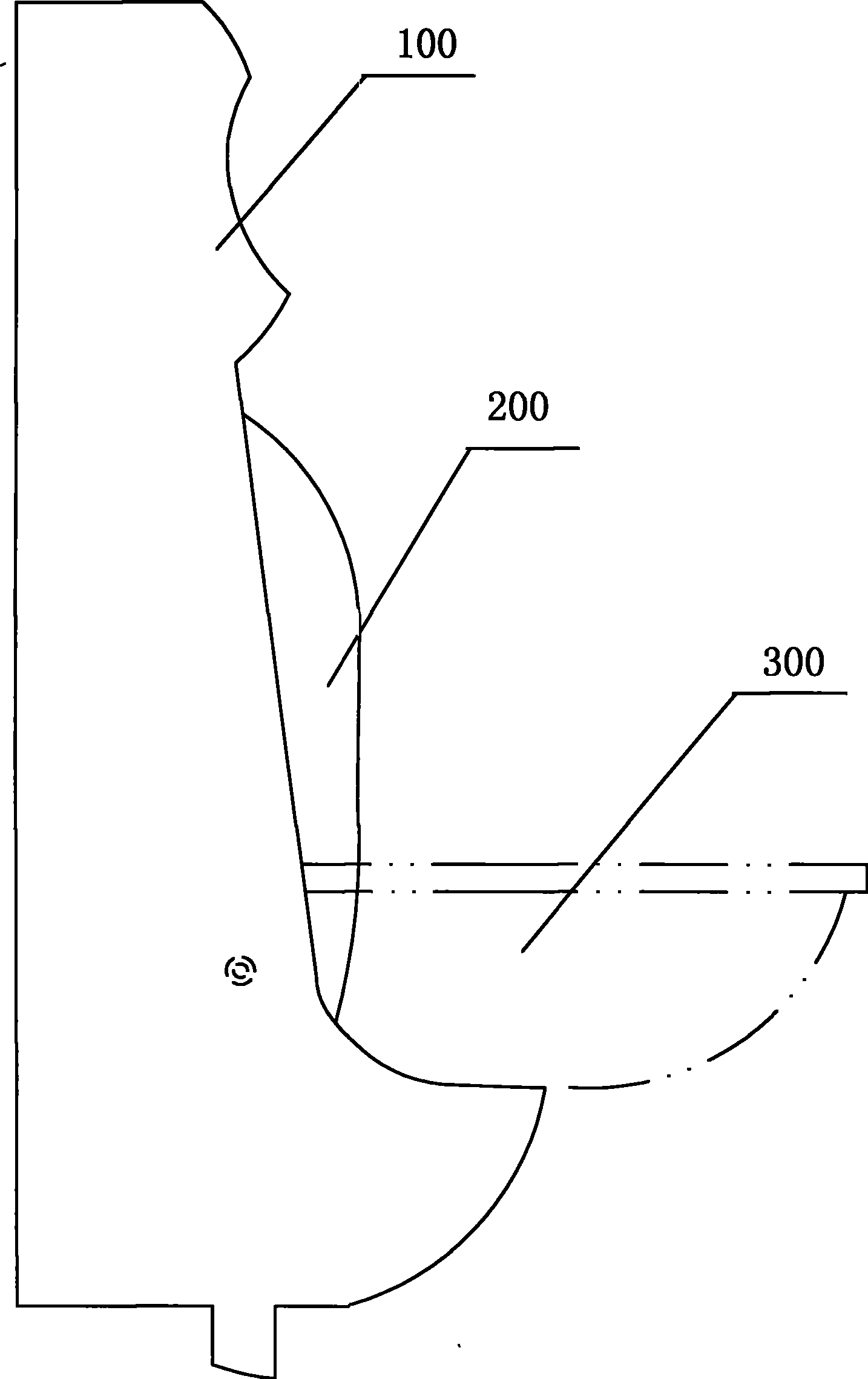

Fig. 1 is a folding multi-position integrated closestool contour structures schematic diagram of the present invention (diagrammatic side views).

Fig. 2 is a folding multi-position integrated closestool structural representation of the present invention (side is analysed and observe).

Fig. 3 is the A-A sectional drawing (example structure of man's urinal) among Fig. 2.

Fig. 4 is the A-A sectional drawing (another example structure of man's urinal) among Fig. 2.

Fig. 5 is man's urinal water route structural representation (A is to view among Fig. 2) of this folding multi-position integrated closestool.

Fig. 6 is the control panel structural representation (B is to view among Fig. 2) of this folding multi-position integrated closestool.

Structural representation (side sectional view) when Fig. 7 uses as man's urinal for the present invention.

Structural representation (side sectional view) when Fig. 8 uses as water closet for the present invention.

Below in conjunction with drawings and the specific embodiments the present invention is described in further details:

The specific embodiment

Consult shown in Figure 1ly, folding multi-position integrated closestool of the present invention can be by wash basin 100, water closet 300 and the man's urinal 200 sanitaryware product in one.

The present invention's first inventive point is: water closet and man's urinal are designed to " two closet " one form, use as man's urinal when rotating to the erection position, use as water closet when rotating to horizontal level; Both make things convenient for use, saved the usefull space again.

Another inventive point of the present invention is: wash basin is installed above water closet, and the water of washing one's hands can be used for washing the water closet of below, has both saved the space, has saved the water source again.

Another inventive point of the present invention is in the outside of the inboard of bracing frame and " two closet " air spring to be installed respectively, the position when position in the time of can erectting according to length (air spring can extend and shorten) the control urinal of air spring and water closet level.

The most basic structure of folding multi-position integrated closestool of the present invention can be the sanitaryware of water closet and two one of man's urinal, and also can be equipped with wash basin on this basis becomes Trinitarian sanitaryware.

Shown in Fig. 2 is the embodiment of Trinity structure, consults Fig. 2, shown in Figure 3, and folding multi-position integrated closestool of the present invention includes:

One base carrier 1, it is for supporting the body frame of the multi-functional water closet of this Trinity, and is used for and being connected and fixed of body of wall.The inboard corresponding toilet seat axis of rotation position that has extension forward wall 21, two extension forward walls in its both sides is provided with the axis hole that is used to install axis of rotation.One axis of rotation 18, two ends insert respectively in the above-mentioned axis hole; One can be around two closets 5 of axis of rotation 18 rotations, it simultaneously is water closet table top body (as the form of dotted line signal horizontal level among Fig. 2, Fig. 3, user mode such as Fig. 8), another side is man's urinal facade body (as the user mode of erection position among Fig. 2, user mode such as Fig. 7).Realize bifunctional accurate location for making two closets by rotation, in the present embodiment, left air spring 6 and right air spring 19 can symmetry be installed in appropriate location at bracing frame 1, one head end of two air springs can be fixedly mounted on extension forward wall 21 inside walls of bracing frame 1, and another head end is fixedly mounted on the lateral wall of " two closet " 5 pedestals.

The below that is positioned at " two closet " 5 is to support pedestal 7, its can with two closets of horizontal level user mode to synthetic complete water closet style, the interior below of support pedestal 7 has the drainage pipeline 8 that leads to sewer pipe.

(existing drawing on direction of rotation) extreme position was the facade of the big border plane contact bracing frame 1 in " two closet " pedestal front when " two closet " 5 was rotated counterclockwise, and the turn clockwise extreme position of (direction of rotation on the existing drawing) of " two closet " 5 is that the plane, border of reverse side man urinal contacts and supported by supporting seat with the supporting seat 7 of bracing frame bottom.

For " two closet " structure Design, under the prerequisite of body design thought, can adopt multiple moulding, Fig. 3 and Fig. 4 show the form of two kinds of example structure, and wherein, the structure shown in Fig. 3 is that man's urinal cross section is the structure of monolateral arc.Structure shown in Fig. 4 is that man's urinal first half cross section is monolateral arc, and the Lower Half cross section surrounds the structure of closed for two circular arcs.

There is wash basin 2 top that is positioned at two closets, and wash basin has water inlet 3 and delivery port 4.Wash basin 2 can be an one with bracing frame 1, also can adopt separate form, is installed on the bracing frame 1, and the installation site of wash basin should not influence the use of two closet erection positions (being man's urinal).For reaching the water saving purpose, wash basin 2 top water inlets 3 places can be equipped with induction tap, and the water tap that reaches in the certain altitude scope of induction tap bottom promptly can water outlet.Be provided with delivery port 4 in wash basin 2 bottoms, this delivery port 4 directly communicates with the water inlet 22 of two closet 5 reverse side man urinals, water after washing one's hands can be gone into aquaporin 23 by what water inlet directly entered two closet 5 reverse side man urinals, water is gone into the aquaporin inboard through man's urinal and is flowed into man's urinal every the aperture 27 of one section setting, man's urinal is washed away the back to be flowed in the supporting seat 7, enter sewer pipe 8 then, carry out flush urinal, saved water with the water of washing one's hands.The water route structure of man's urinal is provided with can be referring to Fig. 5.

The water route structure of folding multi-position integrated closestool main body of the present invention comprises inlet pipeline 11, aqueduct 9, water

closet water route

16 and 17 and sewer pipe 8, and it can be by existing techniques in realizing, and this does not give unnecessary details.An innovative point of the present invention is: be added with water route and the toilet cleaner device of realizing the cleaning toilet function in the water closet.

Be " flushing " and " cleaning " that cooperates folding multi-position integrated closestool of the present invention, can set up a cover control water system, (this valve can be a common valve to add a valve 10 9 of inlet pipeline 11 and aqueducts, also can be electromagnetic valve), Sheng liquid device 13 can be installed in bracing frame 1 bottom, fill toilet cleaner in the described Sheng liquid device 13, on wash basin upper support 1, be provided with control panel 24, referring to being provided with two control of " flushing ", " cleaning " button on Fig. 6 control panel 24 respectively, be used for control that two closet 5 water closets are washed and clean.Concrete control program can be designed as: use (this moment, two closets 5 were horizontal) behind the water closet, press " flushing " button 25, the valve open certain hour, water in the water pipe enters the water closet water route 16 and 17 in two closet 5 fronts by inlet pipeline 11, valve 10 passages, aqueduct 9, water process water closet water route 16 and 17 following apertures every one section setting pour and enter sewer pipe 8 after two 5 pairs of water closet inside of closet are washed away in the back inflow supporting seat 7, the certain hour late gate is closed, and two closet 5 front water closet flushings are finished; Press " cleaning " button, discharge opeing (supercharging) pump 14, to contain liquid device 13 interior toilet cleaners squeezes in water closet water route 16 and 17 by feed tube 15, toilet cleaner pours in two closet 5 front water closets through the aperture below water closet water route 16 and 17 water closet is cleaned, discharge opeing behind the certain hour (supercharging) pump 14 dead electricity quit work, " flushing " program begins (" flushing " program of pressing to be set also automatically behind the certain hour, cleaning procedure begins), water closet is cleaned, rinses well; The two closet 5 reverse side man urinals of flushing, the water of washing one's hands can directly enter wash basin 2 delivery ports 4, this delivery port 4 directly communicates with the water inlet 22 of man's urinal, water is gone into aquaporin 23 by what water inlet 22 directly entered two closet 5 reverse side man urinals, goes into aquaporin 23 inboards through man's urinal and flows into man's urinals every the aperture 27 of one section setting it is washed; Cleaning man urinal, toilet cleaner directly can be poured into wash basin outlet 4, this delivery port 4 directly communicates with the water inlet 22 of two closet 5 reverse side man urinals, toilet cleaner can be gone into aquaporin 23 by what water inlet 22 directly entered two closet 5 reverse side man urinals, toilet cleaner is gone into the aquaporin inboard through man's urinal and man's urinal is cleaned in the back inflow supporting seat 7 every the aperture 27 inflow man urinals of one section setting, enter sewer pipe 8 then, enter the program of flushing man urinal afterwards, played cleaning, the effect of flushing man urinal.

The various embodiments described above can not depart from the scope of the present invention down in addition some variations, thus above explanation comprises and accompanying drawing shown in structure should be considered as exemplary, but not in order to limit the protection domain of the present patent application patent.

Claims

1. A folding multi-in-one toilet equipped with a waterway system; it is characterized in that it includes:

A support frame with forward extension walls on both sides, and shaft holes for installing the rotation shaft are provided at the inner sides of the two front extension walls corresponding to the height of the toilet rotation shaft;

a rotating shaft, the two ends of which are respectively inserted into the above-mentioned shaft holes;

A double toilet that can rotate around the rotation axis, which is a two-body structure, one side is a toilet seat table, the other side is a vertical table top of a men's urinal, the horizontal use position is the toilet, and the vertical use position is the men's urinal pool;

Below the double closet is a supporting seat body, which is integrated with the double closet in the horizontal position to form a toilet, and a water outlet is opened at the bottom.

2. The foldable all-in-one multifunctional toilet according to claim 1, characterized in that: there is a washbasin above the double toilet, and the washbasin has water inlet and outlet.

3. The folding multi-in-one toilet according to claim 1, characterized in that: a gas spring capable of controlling the position of the "double toilet" is installed between the support frame and the two sides of the "double toilet".

4. The foldable multi-in-one toilet according to claim 3, characterized in that: one end of the gas spring is fixedly installed on the inner side wall of the forward extension wall of the support frame, and the other end is fixedly installed on the "double toilet". "On the outer wall of the base.

5. The foldable multi-in-one toilet according to claim 1, characterized in that: the section of the men's urinal of the double toilet is unilaterally arc-shaped.

6. The foldable multi-in-one toilet according to claim 1, characterized in that: the upper half section of the men's urinal of the double toilet is a unilateral arc, and the lower half section is a closed circle surrounded by double arcs. shape.

7. The foldable multi-in-one toilet according to claim 1, characterized in that: the toilet is equipped with a water channel and a toilet liquid device for realizing the toilet cleaning function.
