Abstract

The invention discloses a concrete pole identification plate fixing part, which relates to the technical field of identification plate installation. It consists of a fixing piece I consisting of a connecting plate and bolts and a fixing piece II consisting of a U-shaped hoop and an angle iron; a hole matching the U-shaped hoop is opened on one side of the angle iron, and the U-shaped hoop The open end of the hoop passes through the hole on the angle iron and is fastened with a nut; the connecting plate is a flat iron bent at one end with a hook that can be stuck on the angle iron, and a long hole at the other end; one end of the bolt is bent with a It is a hook shape that can be stuck on the angle iron, and the threaded end passes through the long hole on the connecting plate and is fastened with a nut. The utility model has the advantages of simple manufacture, not easy to be missing, and not easy to be damaged by human beings; the signboard is neatly installed on the concrete pole, which improves the work safety in line maintenance or construction transformation.

Description

Concrete rod identification plate fixing parts

technical field

The invention relates to the technical field of identification plate installation, in particular to a concrete pole identification plate fixing part, which is mainly suitable for the installation of identification plates on concrete poles of power lines.

Background technique

For maintenance and safety needs, identification plates are generally installed on the concrete poles of electric power lines. At present, the identification plates on the concrete poles mostly adopt the method of iron wire binding. Since the concrete pole of the power line is in an outdoor or field environment, the iron wire is easy to rust and break after a long time, causing the identification plate to automatically fall off; bringing safety hazards to the maintenance personnel; affecting line inspection and defect reporting; Checking the lines increases the workload. At present, the identification plate on the concrete pole is easy to lose, and there is no uniform installation position and method, which makes the installation of the identification plate particularly messy.

Contents of the invention

Aiming at the above-mentioned shortcomings of the prior art, the present invention provides a concrete pole identification plate fixing part, which is easy to install by using the fixing part to fix the identification plate, and makes the installation of the identification plate on the concrete pole tidy.

The present invention is realized by the following technical scheme: a concrete rod identification plate fixing part, including a fixing part I composed of a connecting plate and a bolt, and a fixing part II composed of a U-shaped hoop and an angle iron; There is a hole on the side that matches the U-shaped hoop. The open end of the U-shaped hoop passes through the hole on the angle iron and is fastened with a nut; the connecting plate is bent at one end and has a hook shape that can be stuck on the angle iron. , a flat iron with a long hole at the other end; one end of the bolt is bent into a hook shape that can be stuck on the angle iron, and the threaded end passes through the long hole on the connecting plate and is fastened with a nut.

The invention has the beneficial effects that: the production is simple, it is not easy to be lost, and it is not easy to cause artificial damage; the signboard is neatly installed on the concrete pole, which improves the work safety in line maintenance or construction transformation.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings and embodiments.

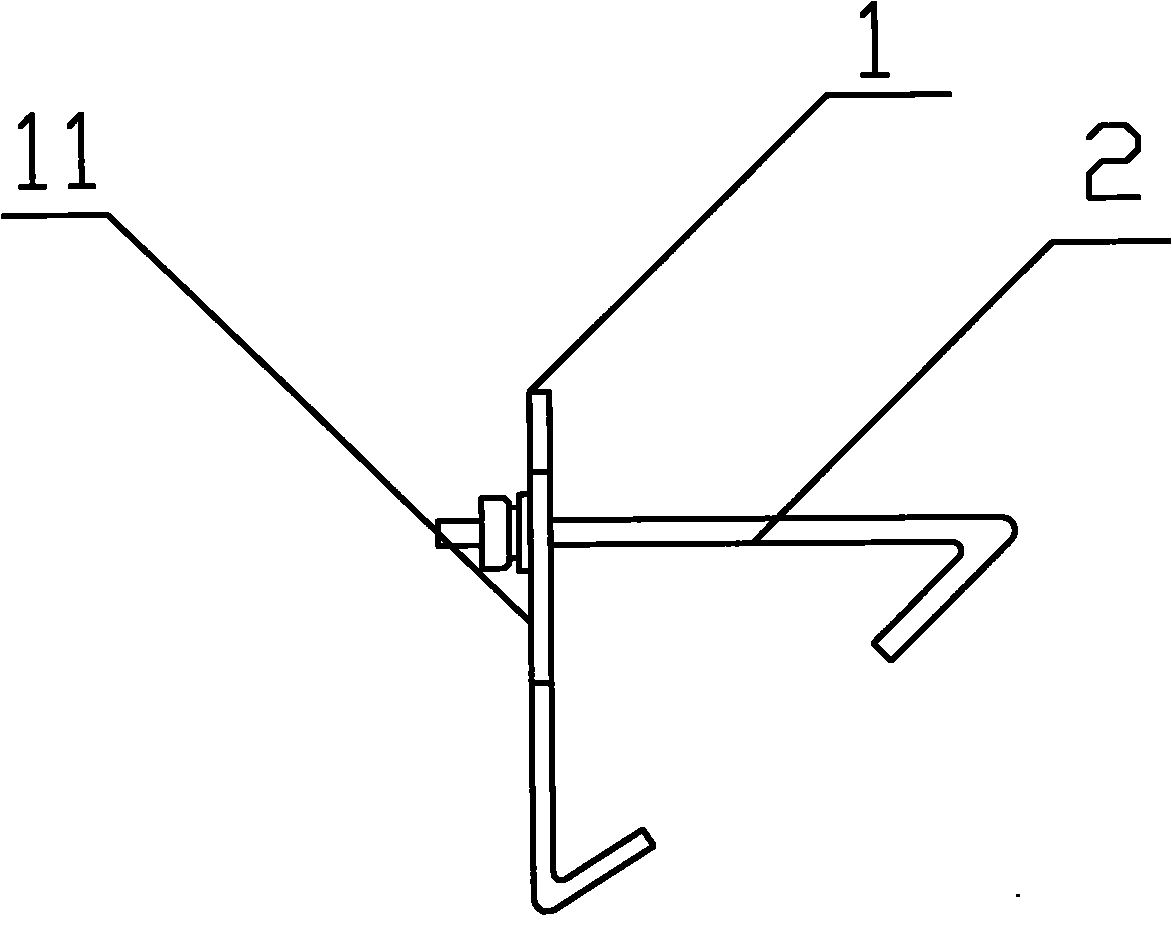

Fig. 1 is a structure diagram of fixture 1;

Fig. 2 is a structural diagram of the fixing part II.

In the figure: 1, connecting plate; 11, long hole; 2, bolt; 3, U-shaped hoop; 4, angle iron; 41, hole.

Detailed ways

As shown in Fig. 1 and Fig. 2, the concrete rod identification plate fixing part is composed of a fixing part I composed of a connecting plate 1 and a bolt 2 and a fixing part II composed of a U-shaped hoop 3 and an angle iron 4. A side of the angle iron 4 has a hole 41 matched with the U-shaped hoop 3, and the open end of the U-shaped hoop 3 passes through the hole 41 on the angle iron 4 and is fastened with a nut. The connecting plate 1 is a flat iron, one end of which is bent into a hook shape that can be stuck on the angle iron 4, and the other end has a long hole 11. One end of bolt 2 is bent to have the crotch shape that can be stuck on the angle iron 4, and the threaded end passes through the long hole 11 on the connecting plate 1 and is fastened with a nut. In the present embodiment, the connecting plate 1 is a flat iron with a length of 100mm, a width of 50mm, and a thickness of 5mm; The distance between the long hole 11 and the bending part of the connecting plate 1 h≤the width of the side of the angle iron 4; the long hole 11 is 50 mm long and 8 mm wide, which not only meets the requirements of various angle iron sizes but also meets the penetration of 6 mm diameter bolts. Because the sign plate installation hole is generally standard diameter 8mm, therefore adopting bolt 2 diameters is 6mm, the bolt of long 100mm; In addition, the size of the connecting plate 1 and the bolt 2 can be changed according to the size of the angle iron 4, so as to ensure the firmness of the installation of the identification plate.

The installation process is: first install the fixing part II: the U-shaped hoop 3 is stuck on the concrete bar, and its open end passes through the hole 41 on the angle iron 4 and is fastened with a nut, and the fixing part II is just fixed on the concrete bar. Then install the fixing part I: hook the hook end of the connecting plate 1 to one side of the angle iron 4, and hook the hook end of the bolt 2 to the other side of the angle iron 4; the threaded end of the bolt 2 passes through the connecting plate 1 The long hole 11, then put the identification plate on the bolt 2, and then tighten it with a nut.

Claims (3)

1. A concrete pole signage plate fixing part is characterized in that: comprise the fixing part 1 that is made up of connecting plate (1), bolt (2) and the fixing part that is made up of U-shaped hoop (3) and angle iron (4) Part II; On a side of the angle iron (4), there is a hole (41) matched with the U-shaped hoop (3), and the open end of the U-shaped hoop (3) passes through the hole on the angle iron (4). The hole (41) is fastened with a nut; the connecting plate (1) is bent at one end and has a hook shape that can be stuck on the angle iron (4), and the other end has a flat iron with a long hole (11); the bolt (2) One end of one end is bent and has the crotch shape that can be stuck on the angle iron (4), and the screw thread end passes the long hole (11) on the connecting plate (1) and is fastened with a nut. 2. The concrete rod identification plate fixing part according to claim 1, characterized in that: the hook on one end of the connecting plate (1) is at an angle of 45°. 3. The concrete pole identification plate fixing piece according to claim 1, characterized in that: the distance h between the long hole (11) and the bending part of the connecting plate (1)≤the width of the side of the angle iron (4).
